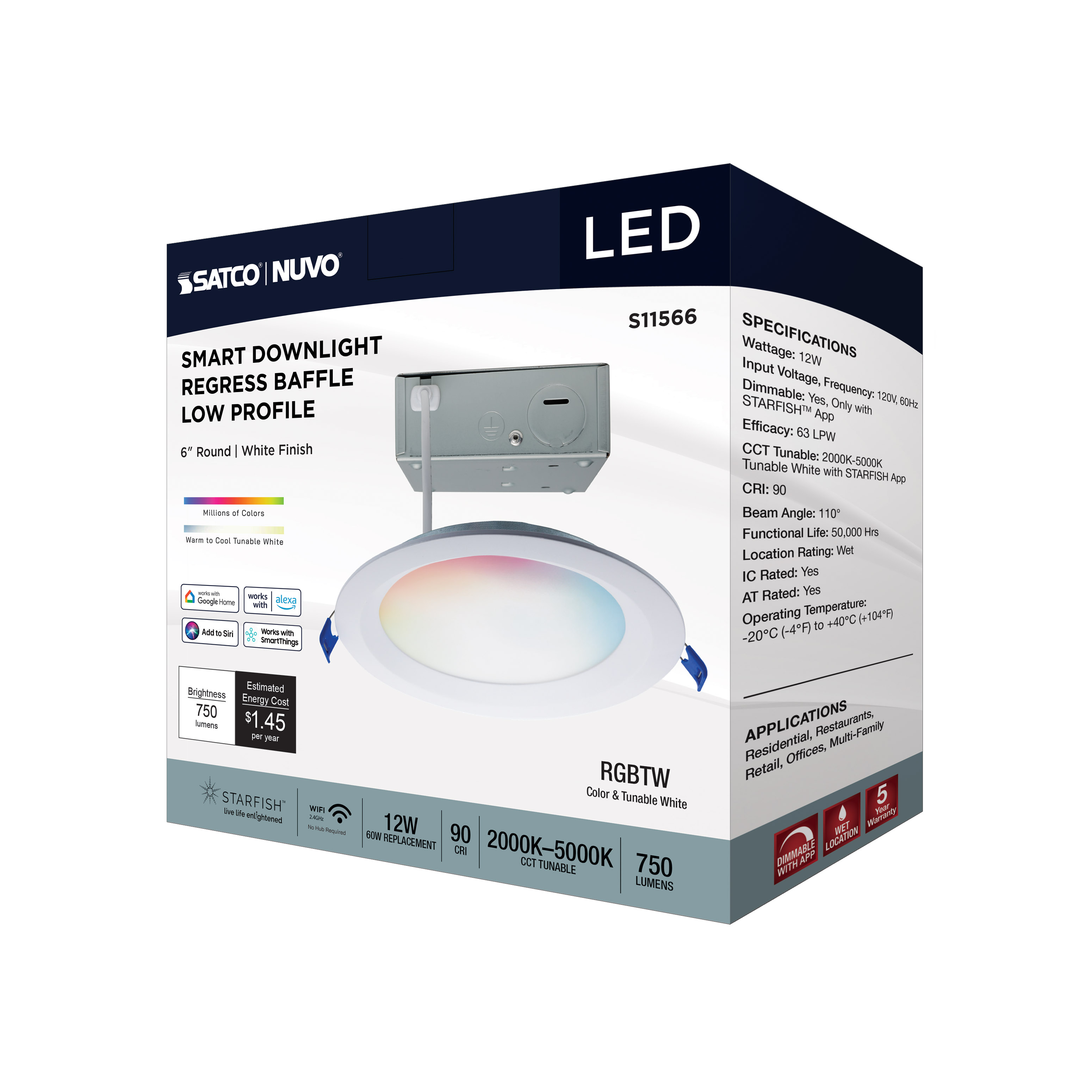

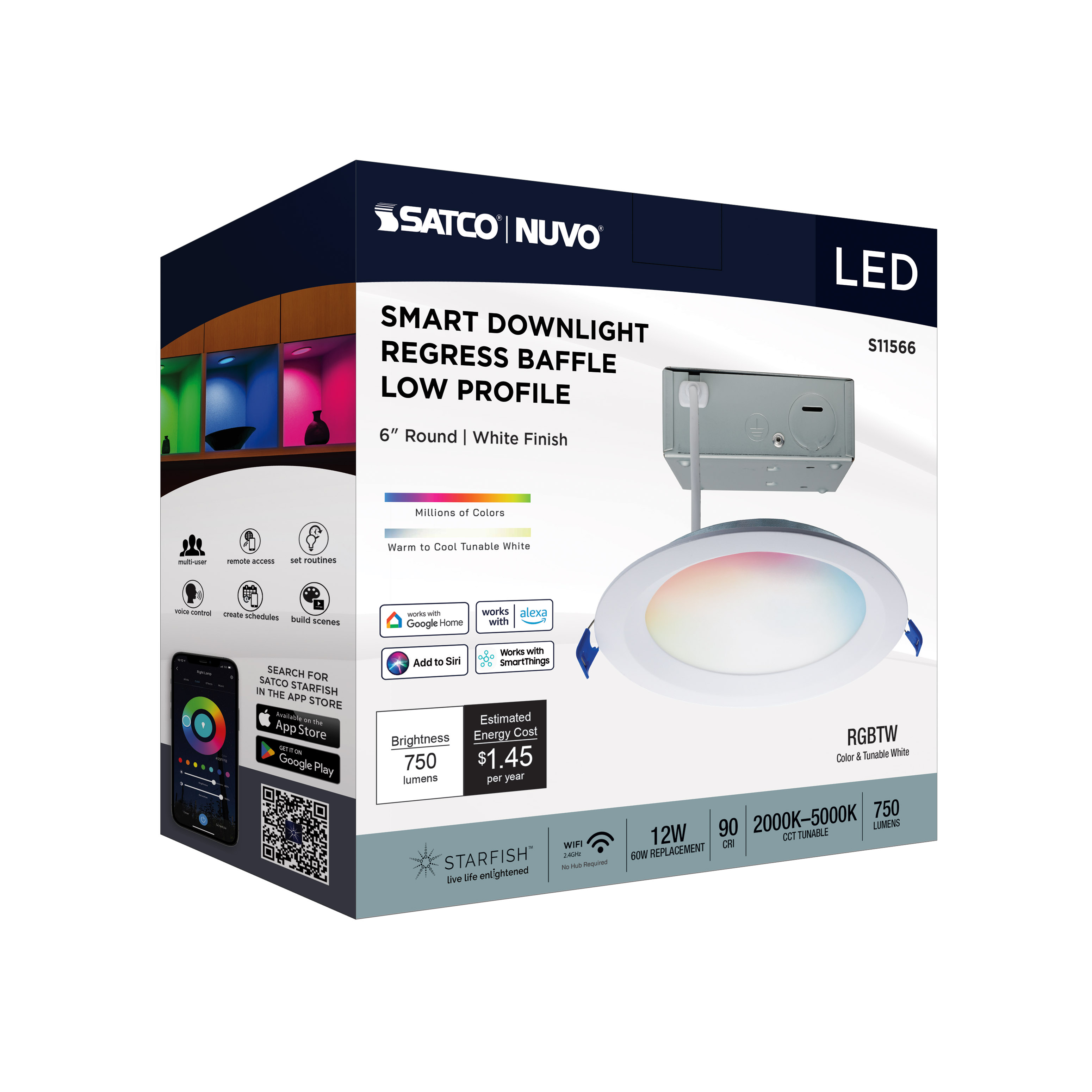

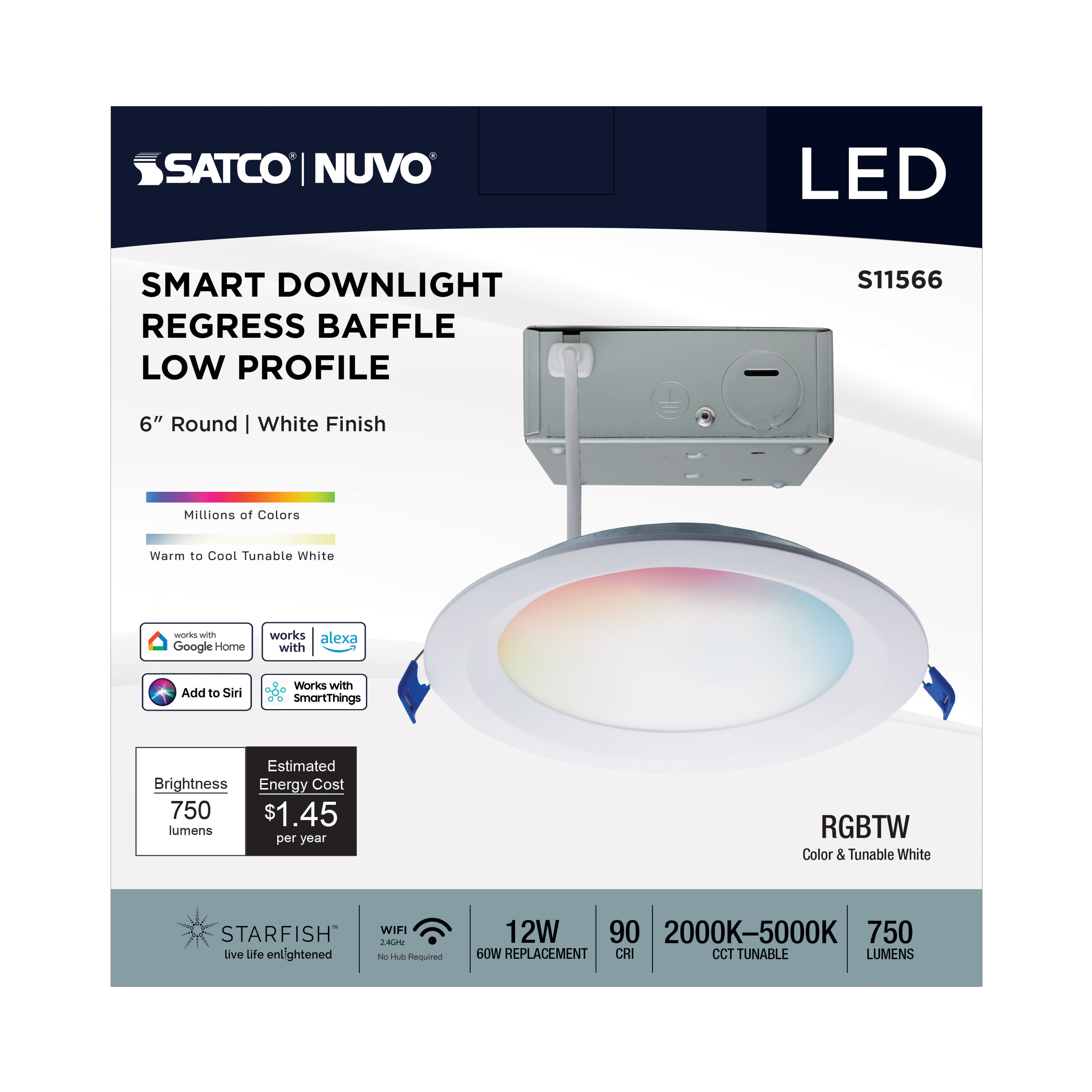

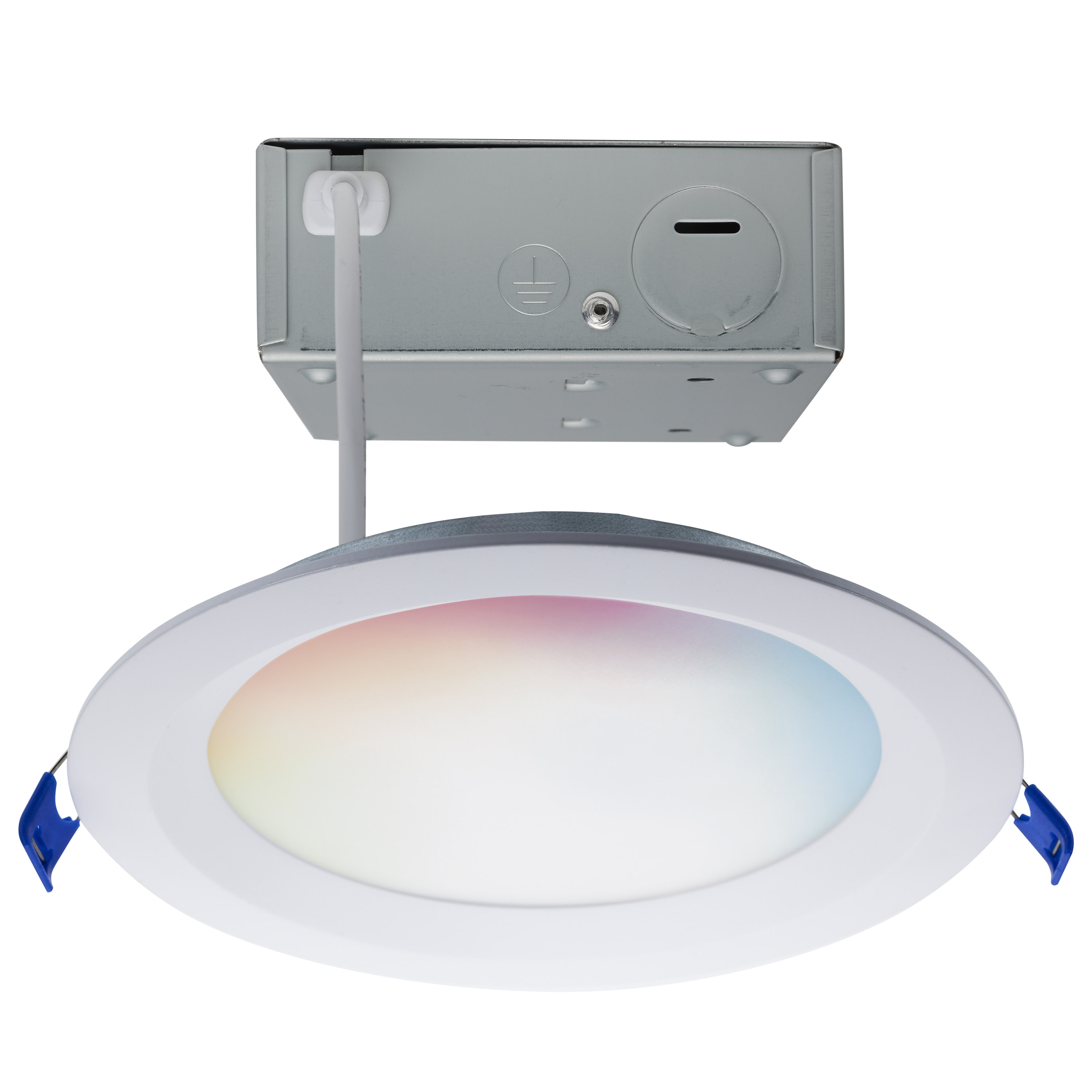

S11566

12WLED/DW/6/RGBTW/RND/RD/WH

  • 12 Watt
  • LED Direct Wire
  • Low Profile Regress Baffle Downlight
  • 6 Inch Round
  • Starfish IOT
  • Tunable White and RGB
  • 120 Volt
  • 90 CRI
  • White Finish
cc_selectable^y^1
air_tight^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120v^2
ic_rated^y^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11566 SpecificationsS11566 Accessory Sheet.pdf
Tools
Lighting Layout Analysis For S11566
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

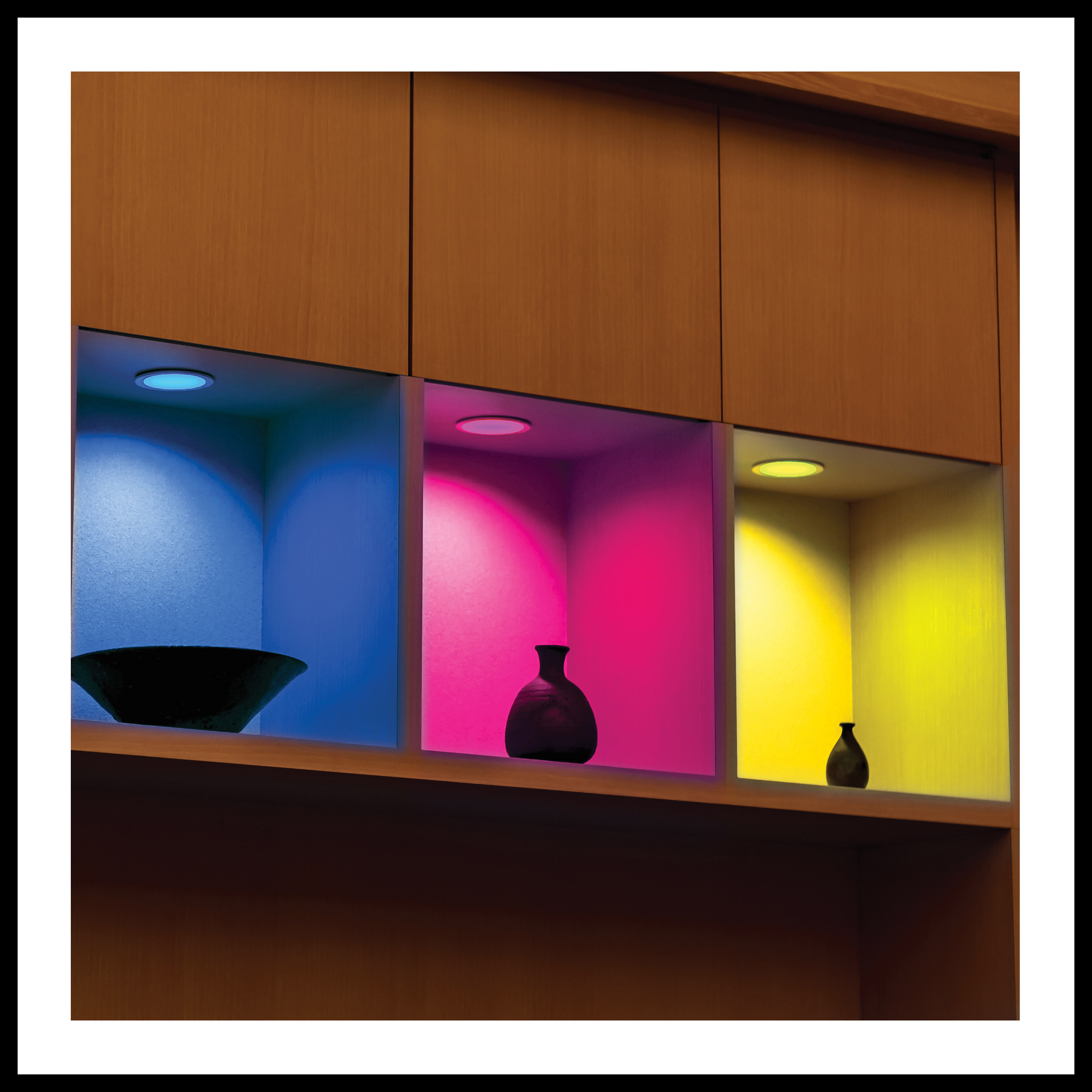

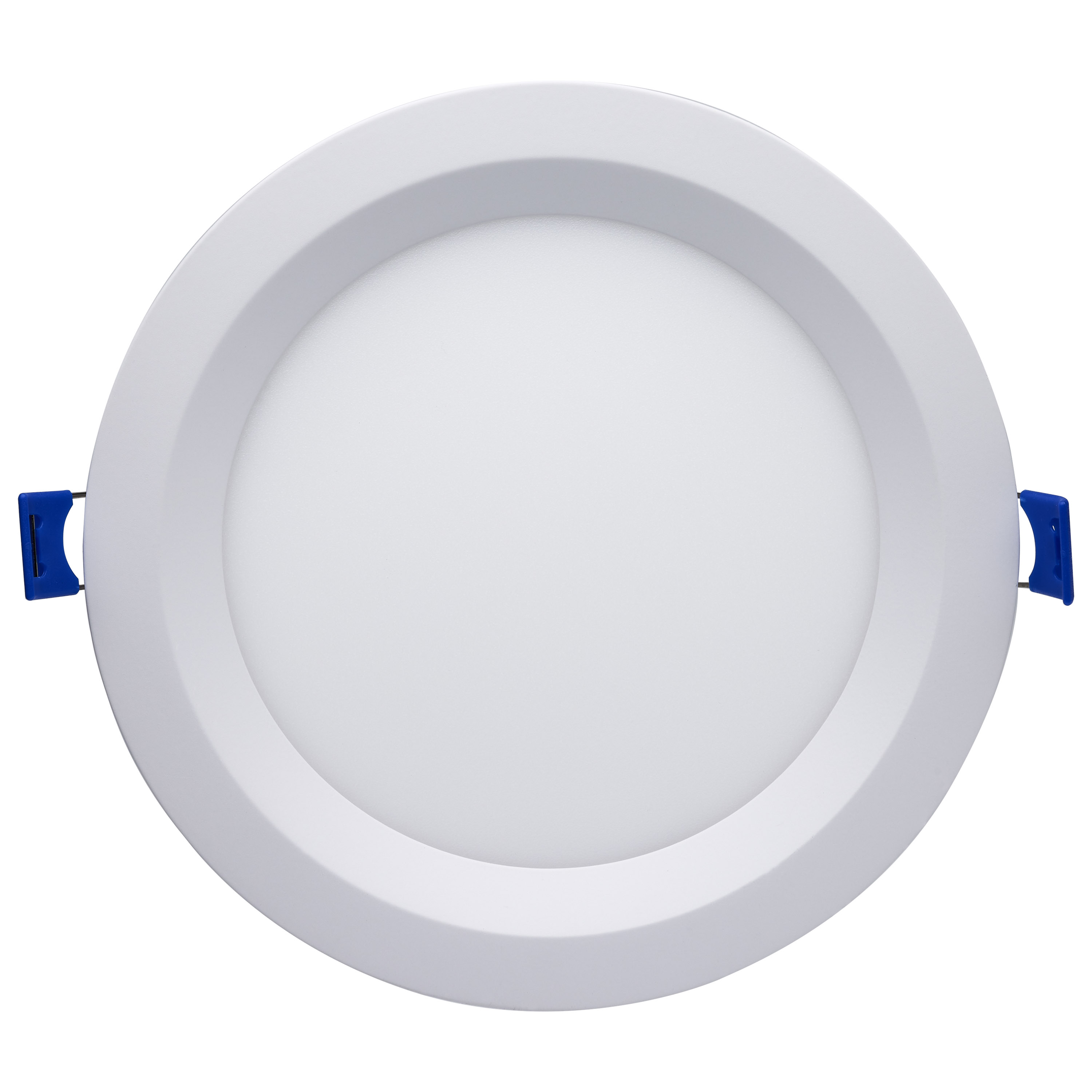

SATCO NUVO's S11566 LED Slimfit Downlight with STARFISH technology is the ultimate choice for smart lighting and ambiance control. Download the STARFISH app to customize any tunable white color temperatures from 2000K warm white to 5000K natural light or choose from millions of colors on the RGB spectrum, all from your mobile device. Offered in 6-inch round with a smooth baffle to reduce glare, this slimfit downlight is ideal for transforming residential and multi-family environments. This downlight is also compatible with Siri, Alexa, Google Home, and SmartThings so it can be easily incorporated into your smart home.
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Starfish Communication ProtocolWiFi-2.4GHz

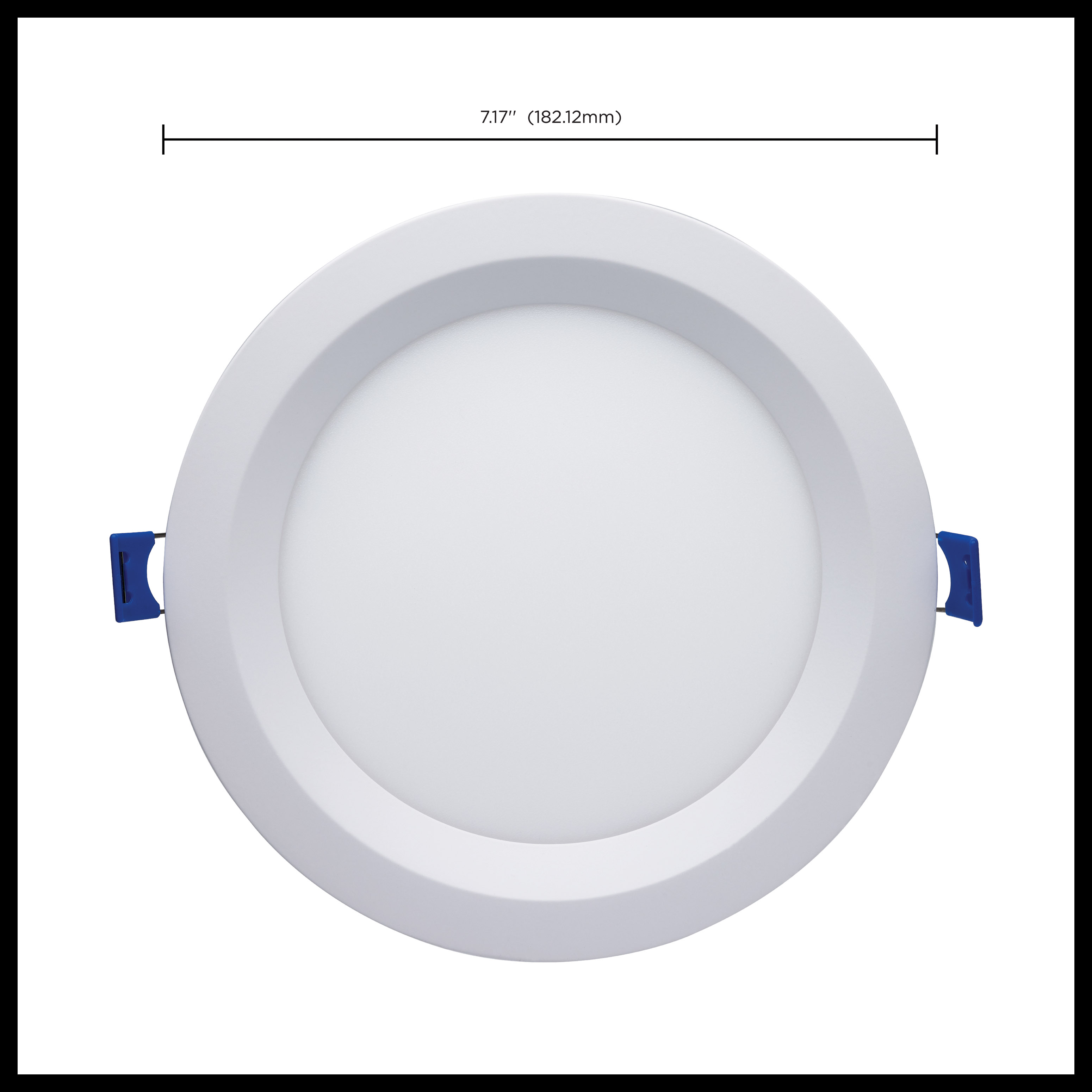

Diameter7.17
MaterialAluminum
Fixture TypeRemote Driver LED Downlight
StatusActive
StyleUtility
Total Harmonic Distortion<30%
Starfish Voice Assistants SupportedAlexa, Google Home, Siri, SmartThings
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.100A
Has CameraNo
IOT EnabledYes

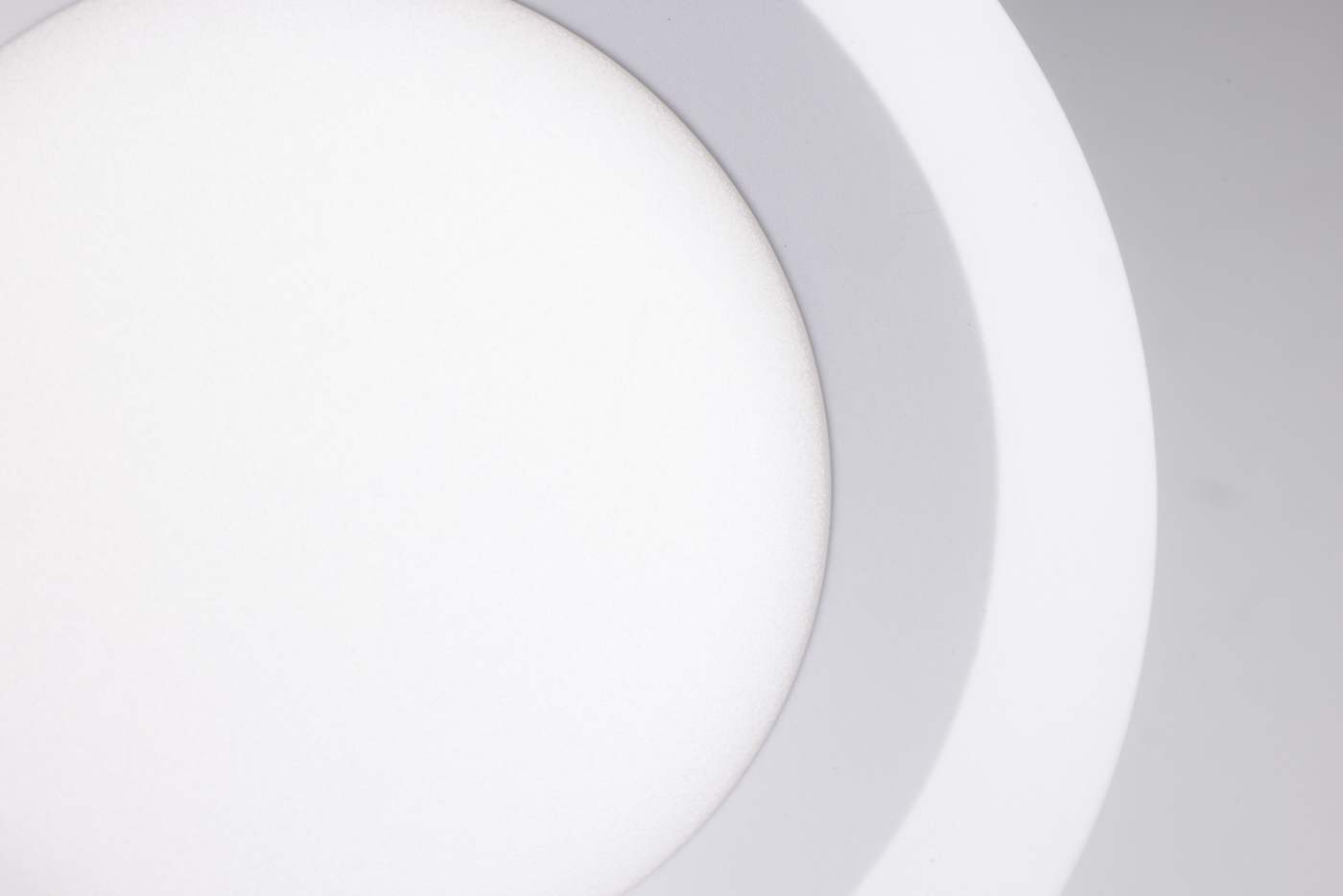

Lens FinishFrosted
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Fixture
Starfish Software SupportedTuya/Starfish App
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2000K-5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm to Cool White/Color Changeable
CRI90+
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens750L
Volts120v
Watts12W
ConnectionDirect Wired
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound

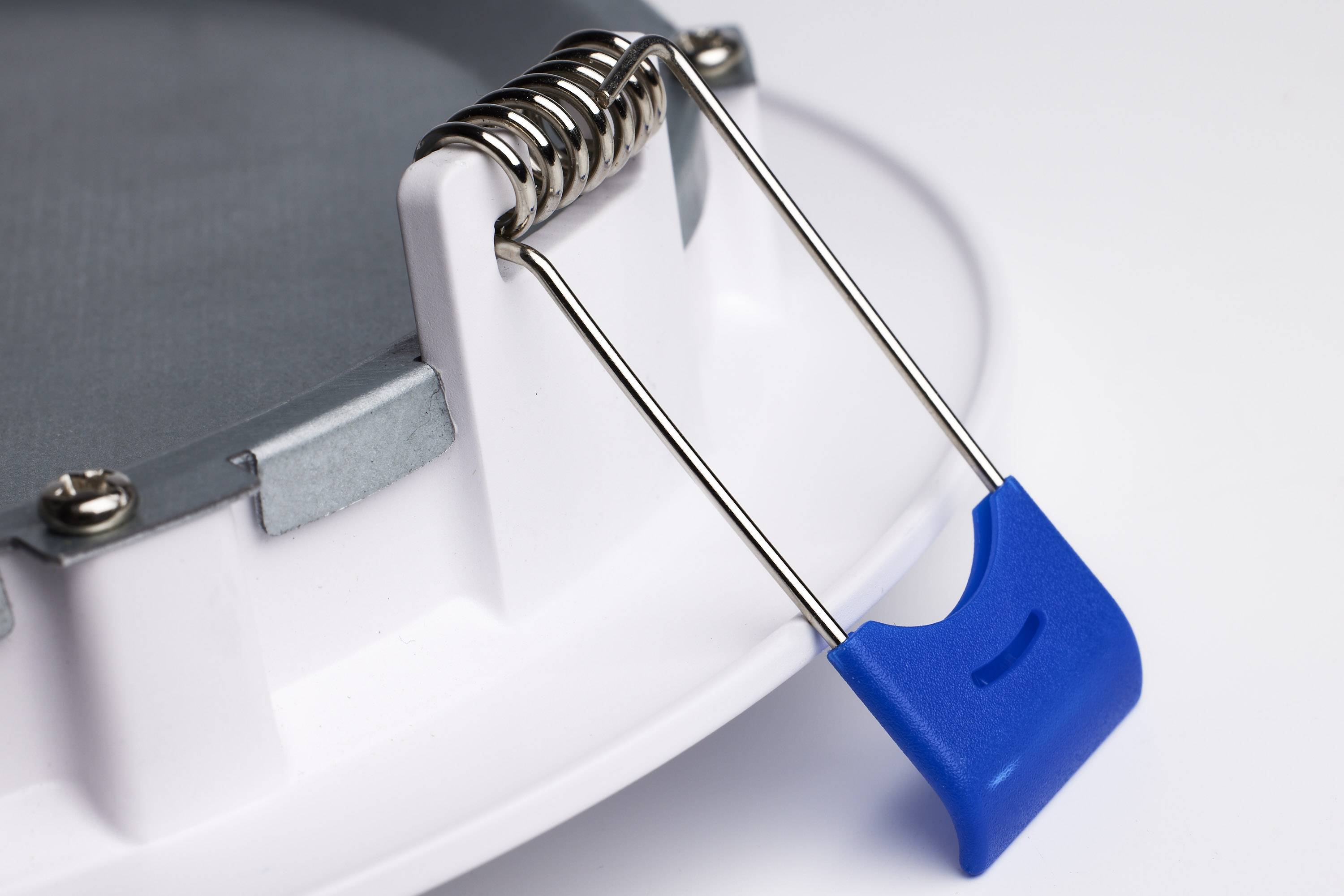

Mounting ProcedureRecessed Direct Wire
Additional Info
Warranty5-Years

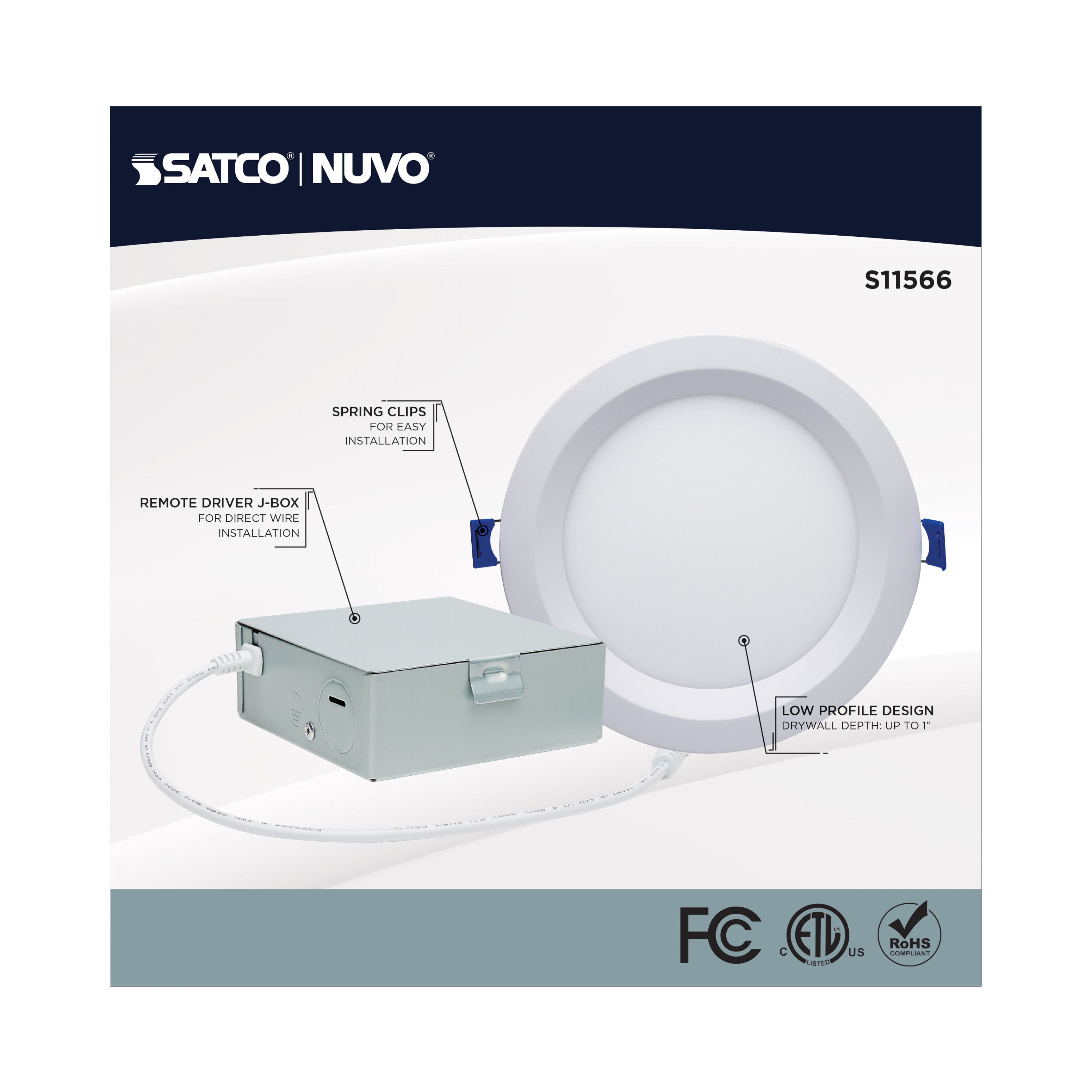

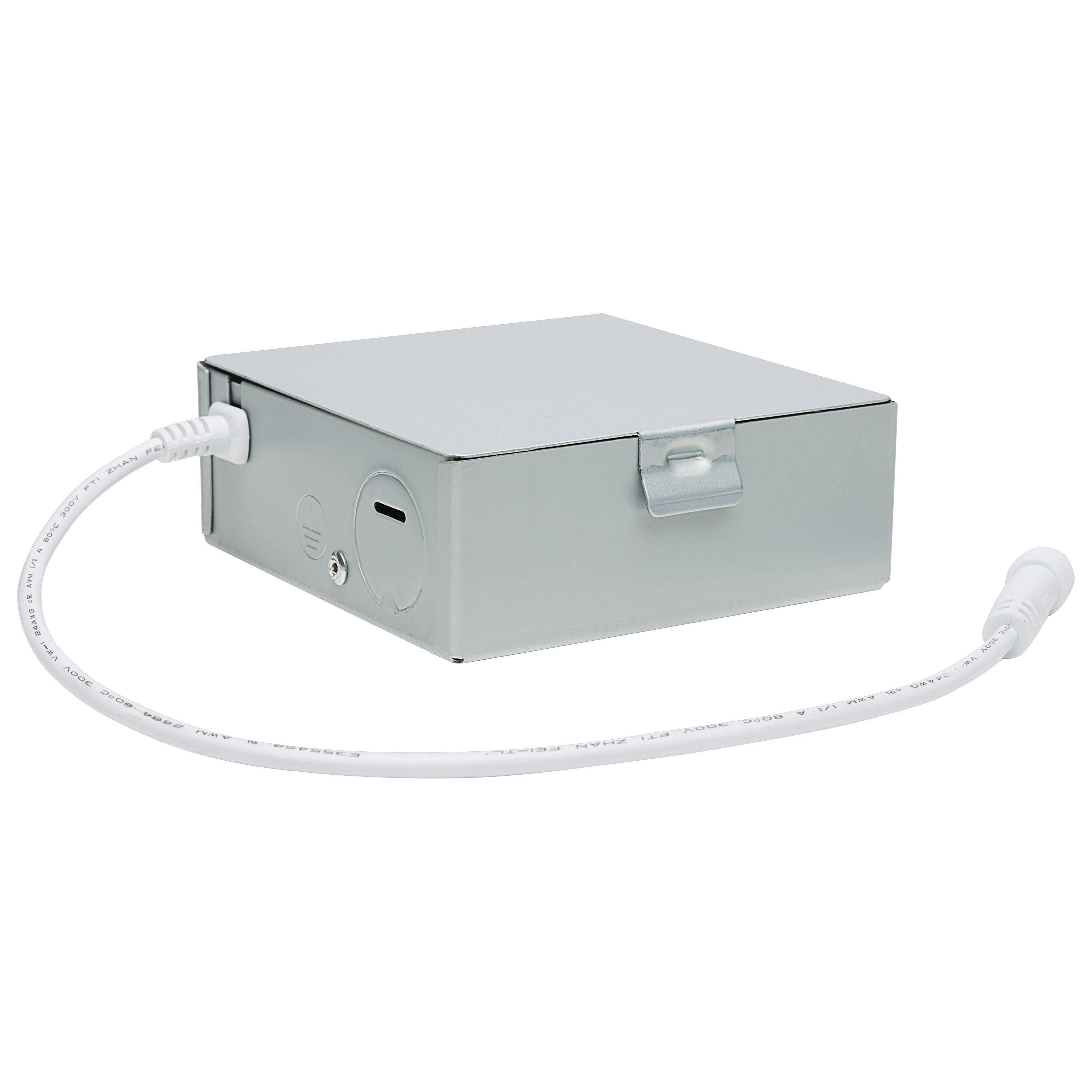

Installation NotesDriver Dimensions: 3.46 Inches Long x 3.46 Inches Wide x 1.44 Inches High
Documents
Compliance
Air TightYes
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923115660
Case Cube2.1296
Case Height15.83
Case Length15.75
Case Quantity20
Case UPC10045923115667
Case Weight26.45
Case Width14.76
EA Cube0.0886
EA Height7.48
EA Length7.64
EA Quantity1
EA Weight1.19
EA Width2.68
Pack TypeBox
Web Height1.25
Web Width7.17
