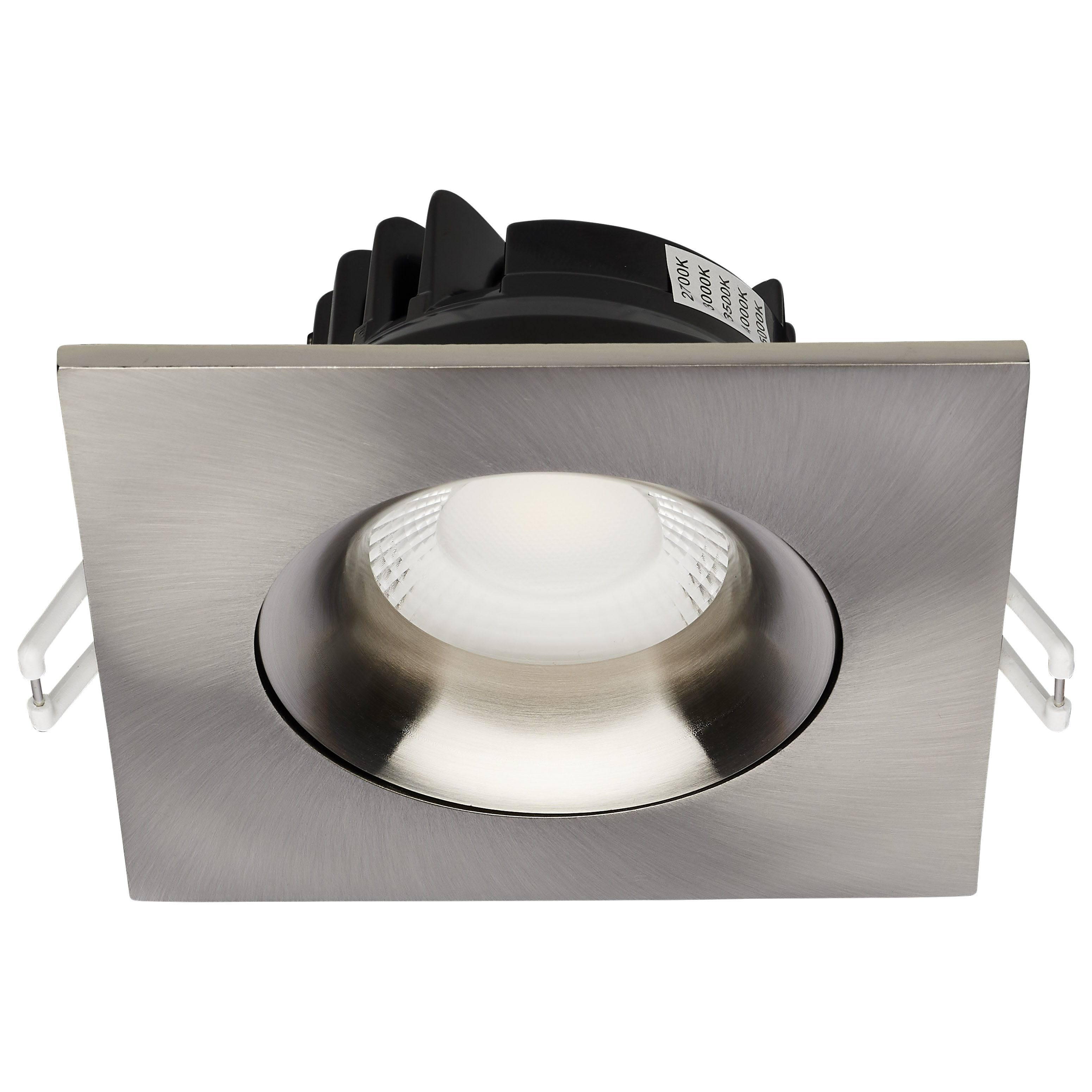

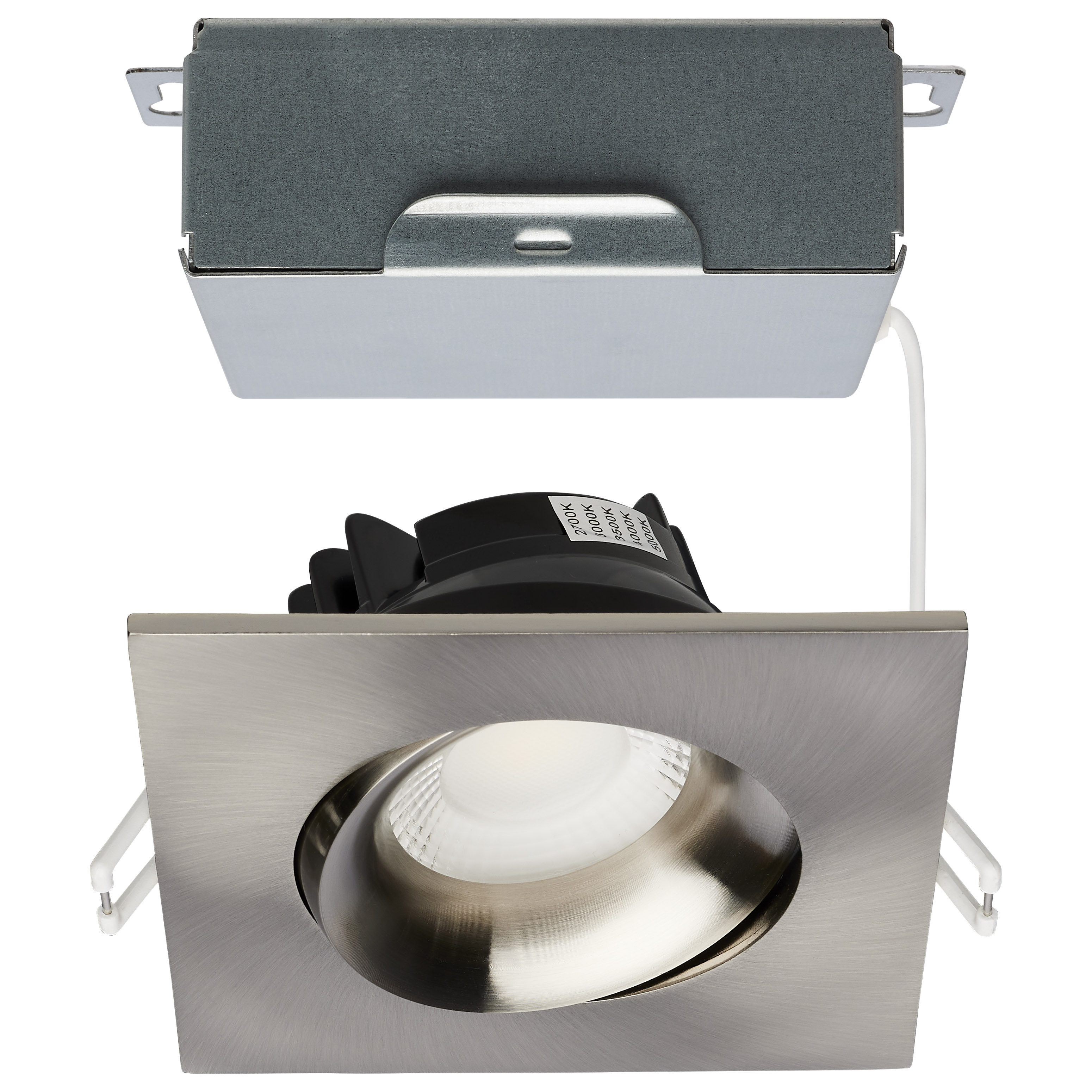

S11629R1

12W/DW/GBL/3.5/CCT/SQ/RD/BN

  • 12 Watt LED Direct Wire Downlight
  • Gimbaled
  • 3.5 Inch
  • CCT Selectable
  • Square

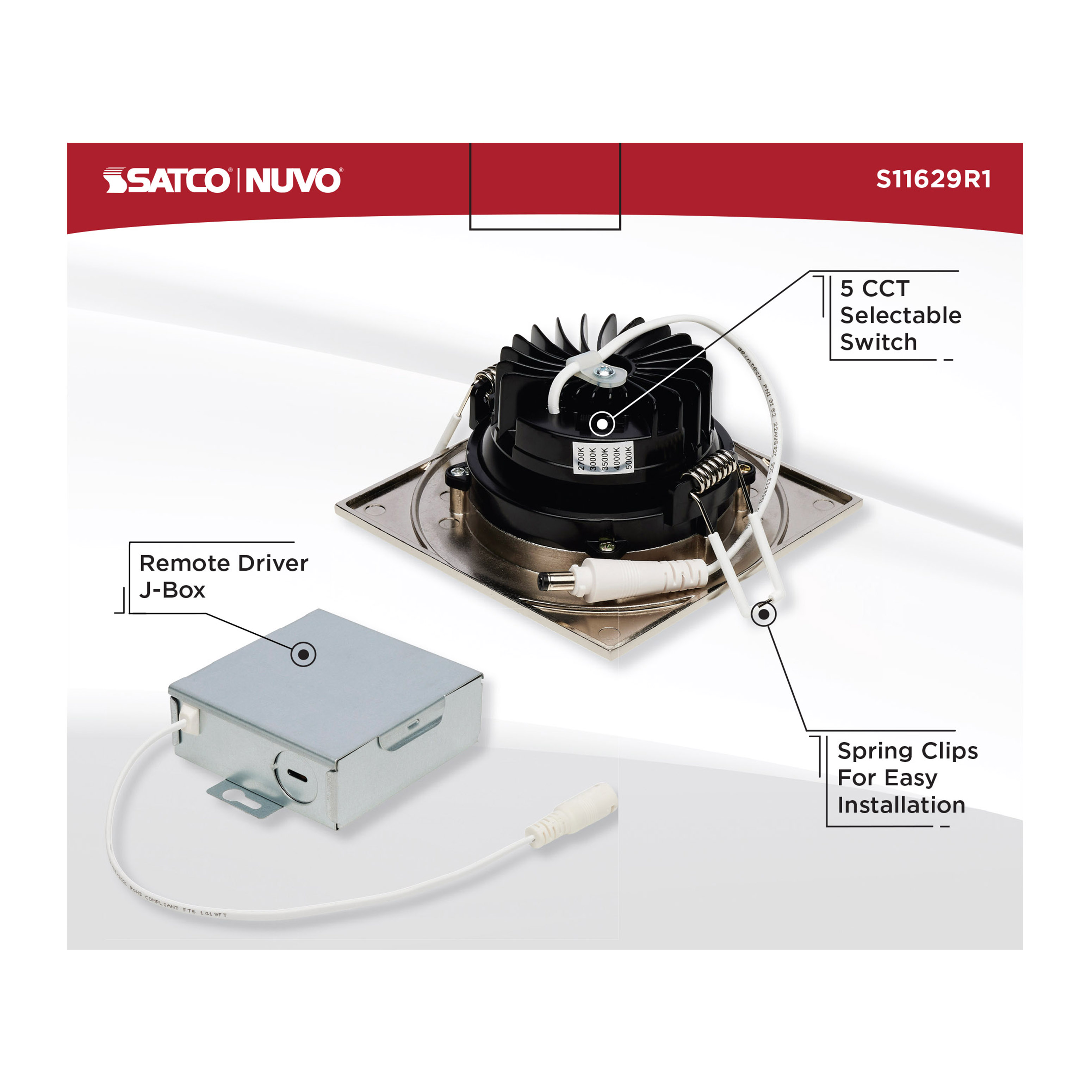

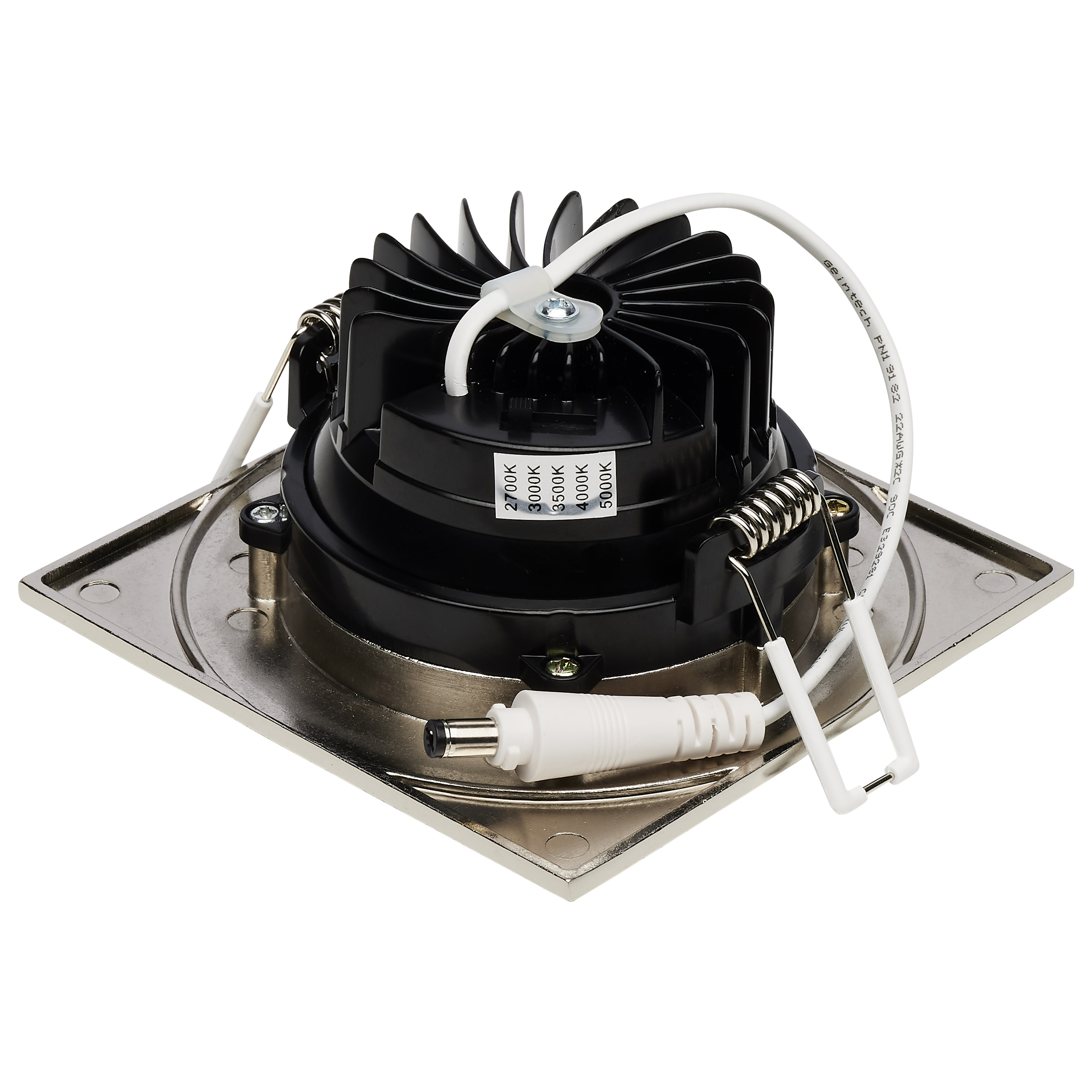

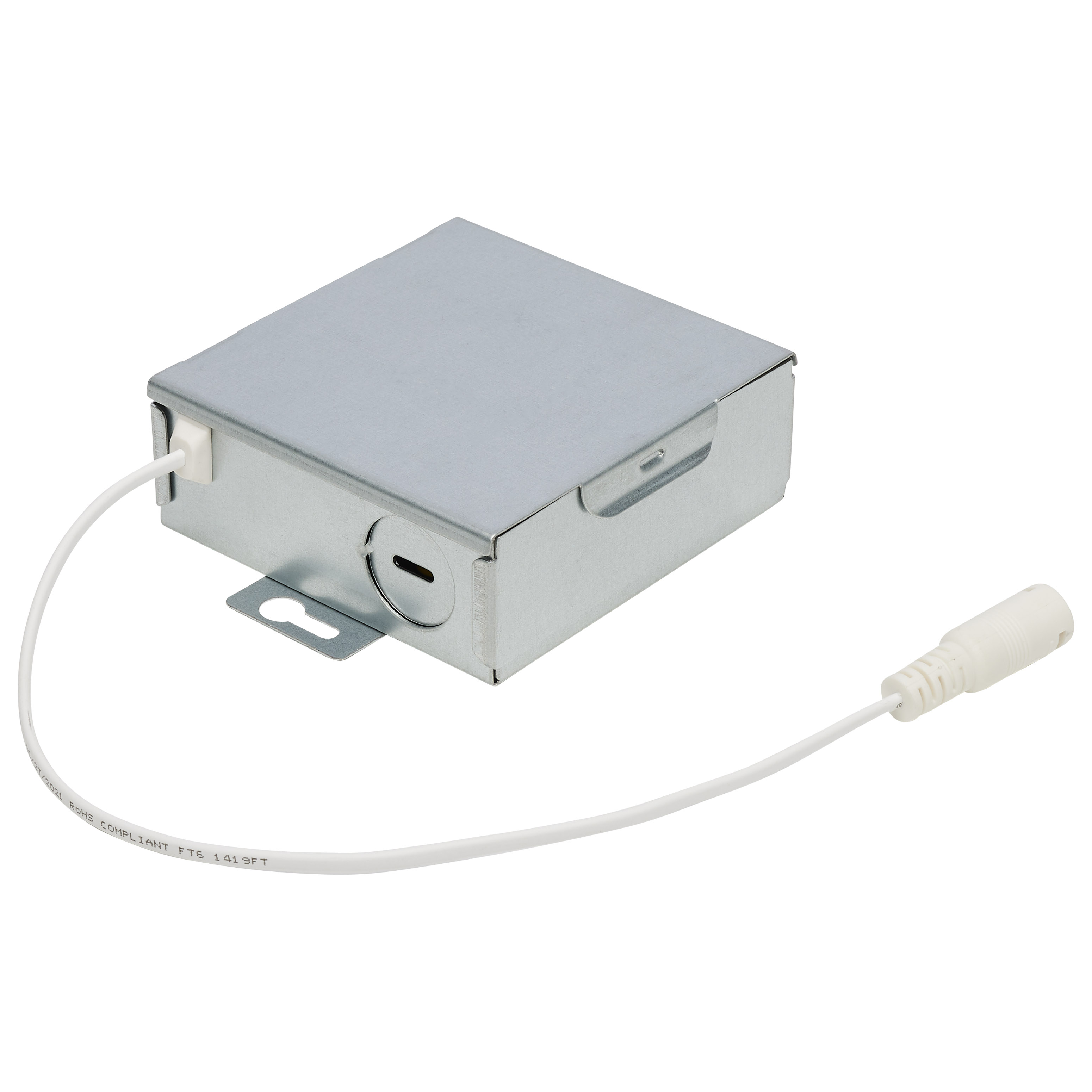

  • Remote Driver
  • Brushed Nickel Finish

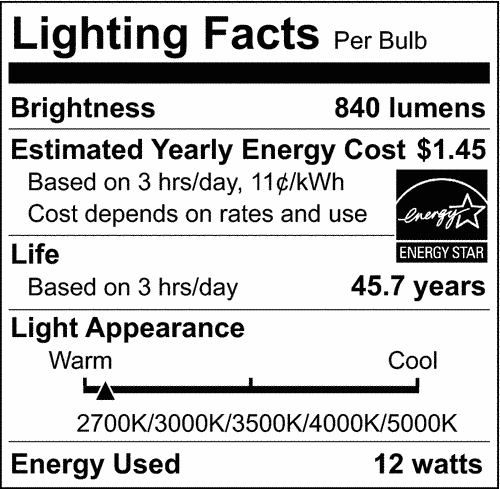

  • 840 Lumens
  • 120 Volt
cc_selectable^y^1
air_tight^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
beam_angle^40^2
warranty^5_years^2
volts^120v^2
ic_rated^y^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11629R1 SpecificationsS11629R1 Accessory Sheet.pdf
Tools
Lighting Layout Analysis For S11629R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

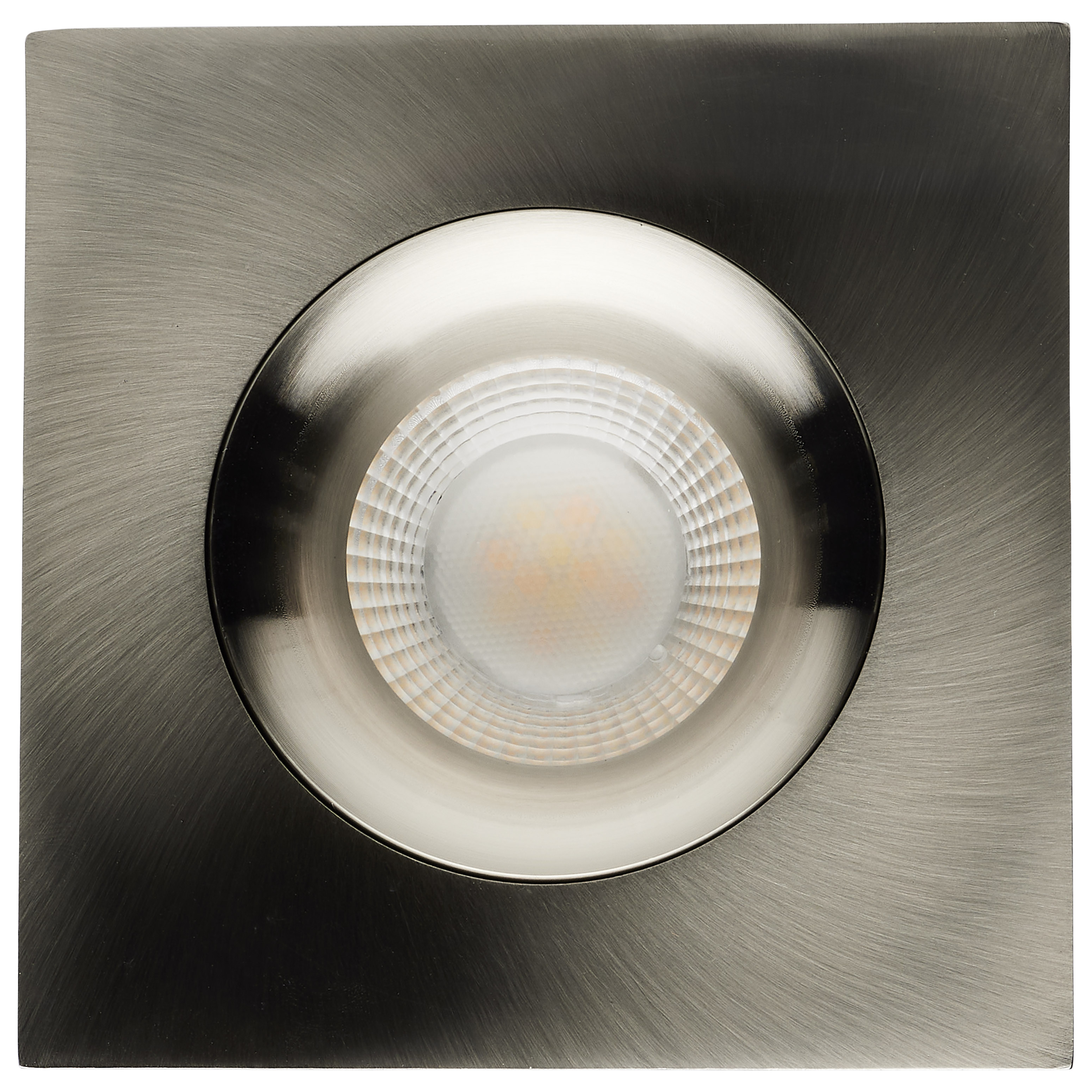

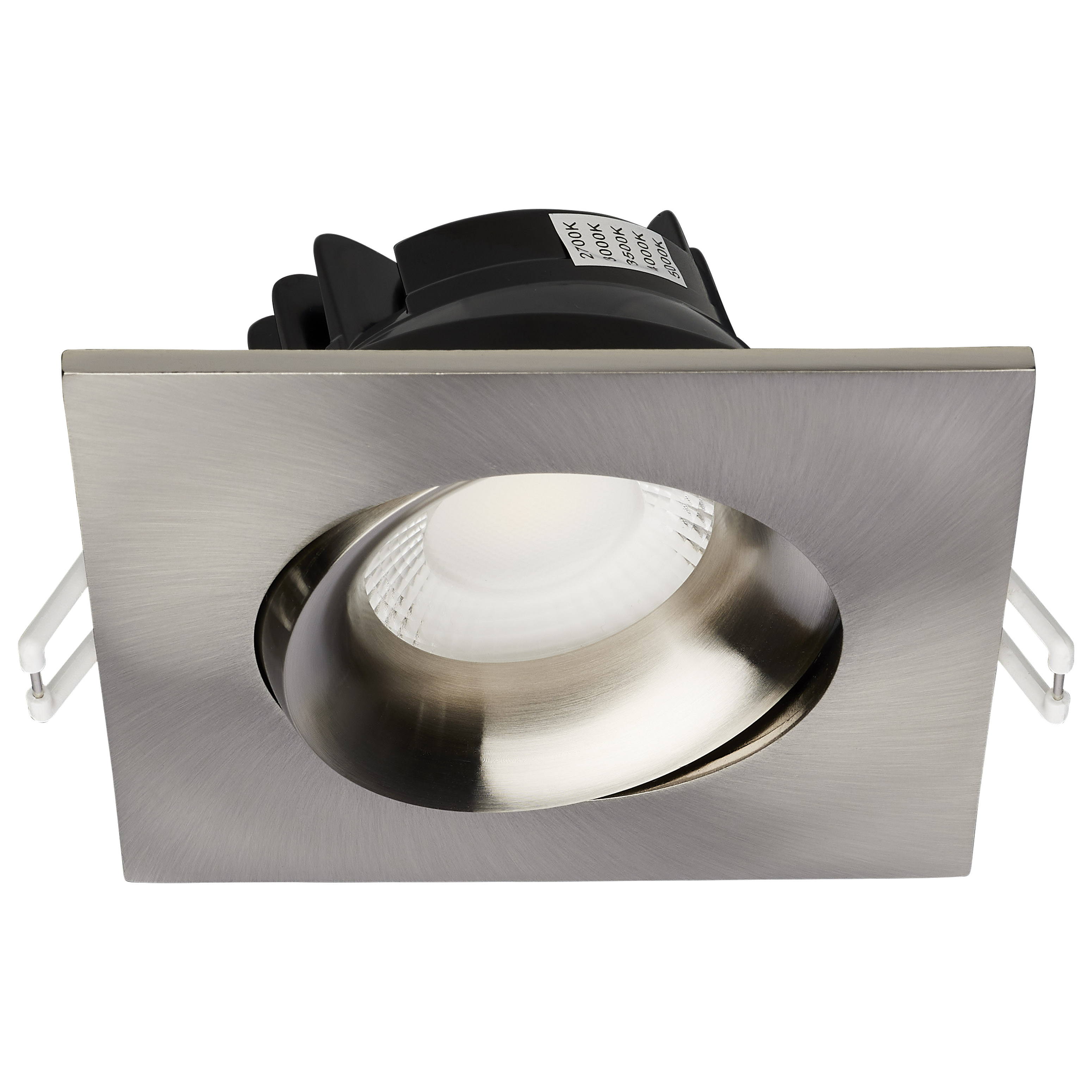

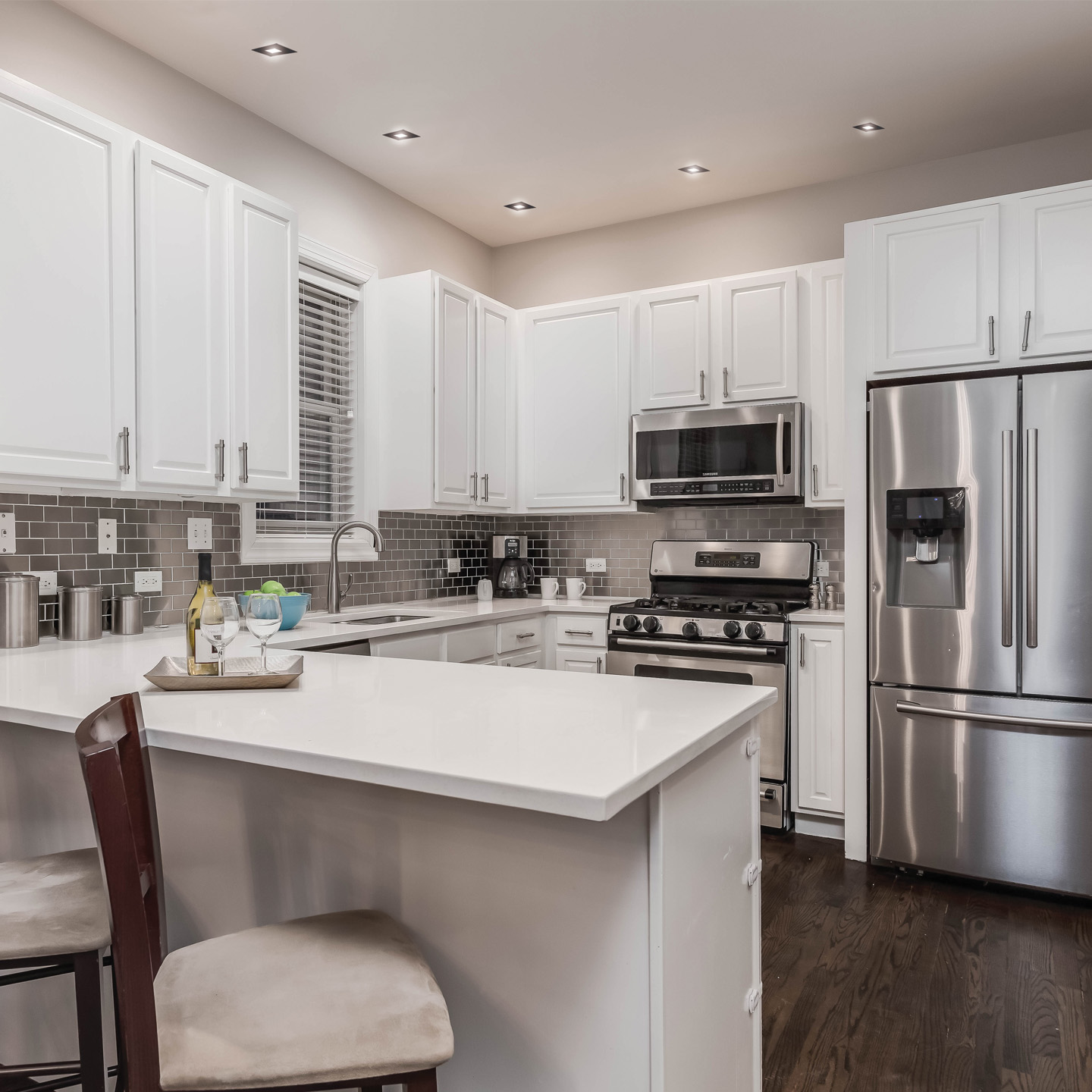

SATCO NUVO's S11629R1 LED Directional Architectural Downlight is made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Install as a standard downlight to keep a consistent look throughout the space. This 3.5-inch square brushed nickel fixture will accentuate any aesthetic from retail to living rooms with crisp, quality lighting.

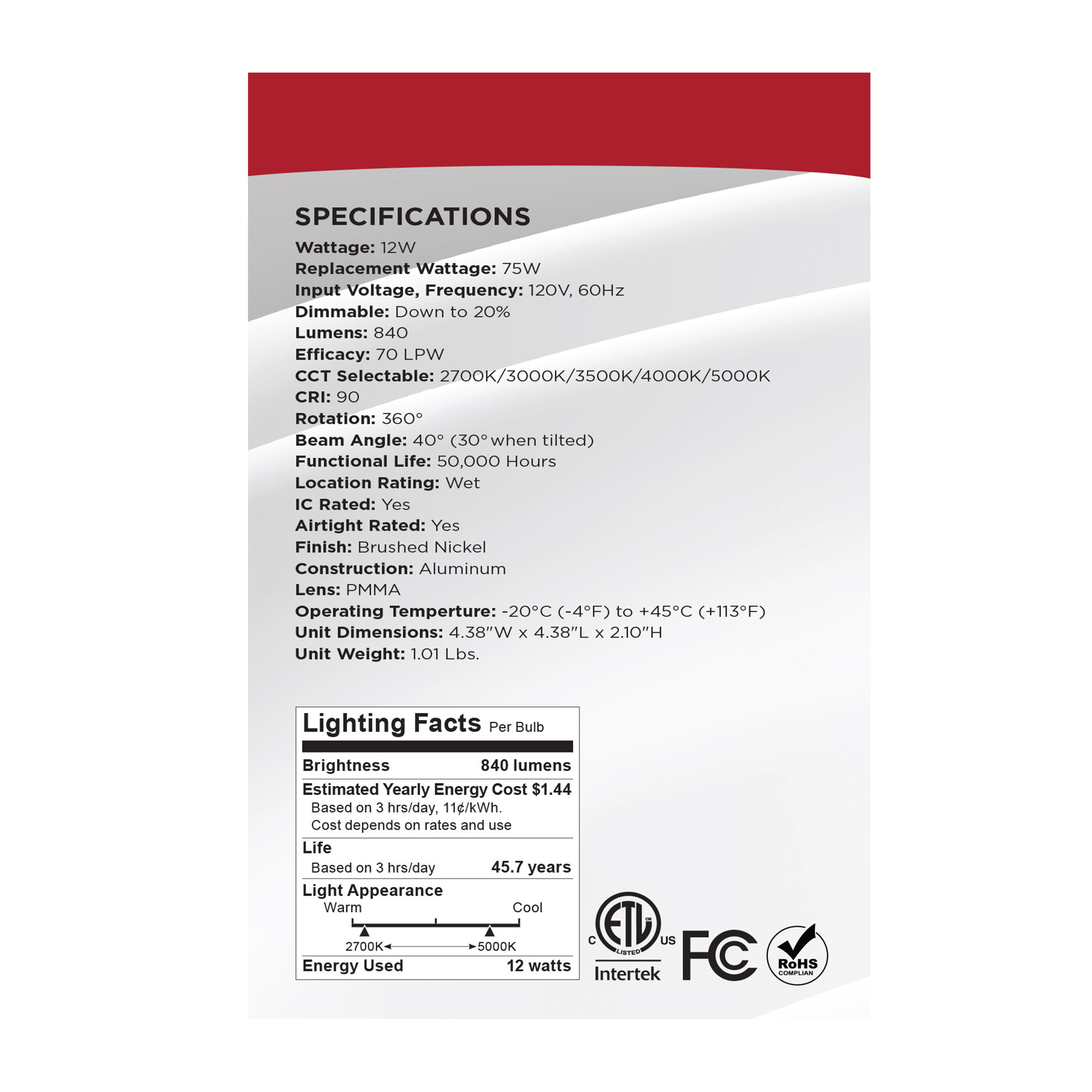

Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeRemote Driver LED Downlight
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1.5KV
Total Harmonic Distortion<30%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNickel
Additional Info360 Degree Rotation; 30 Degree Tilt
Amps0.100A
Has CameraNo
IOT EnabledNo

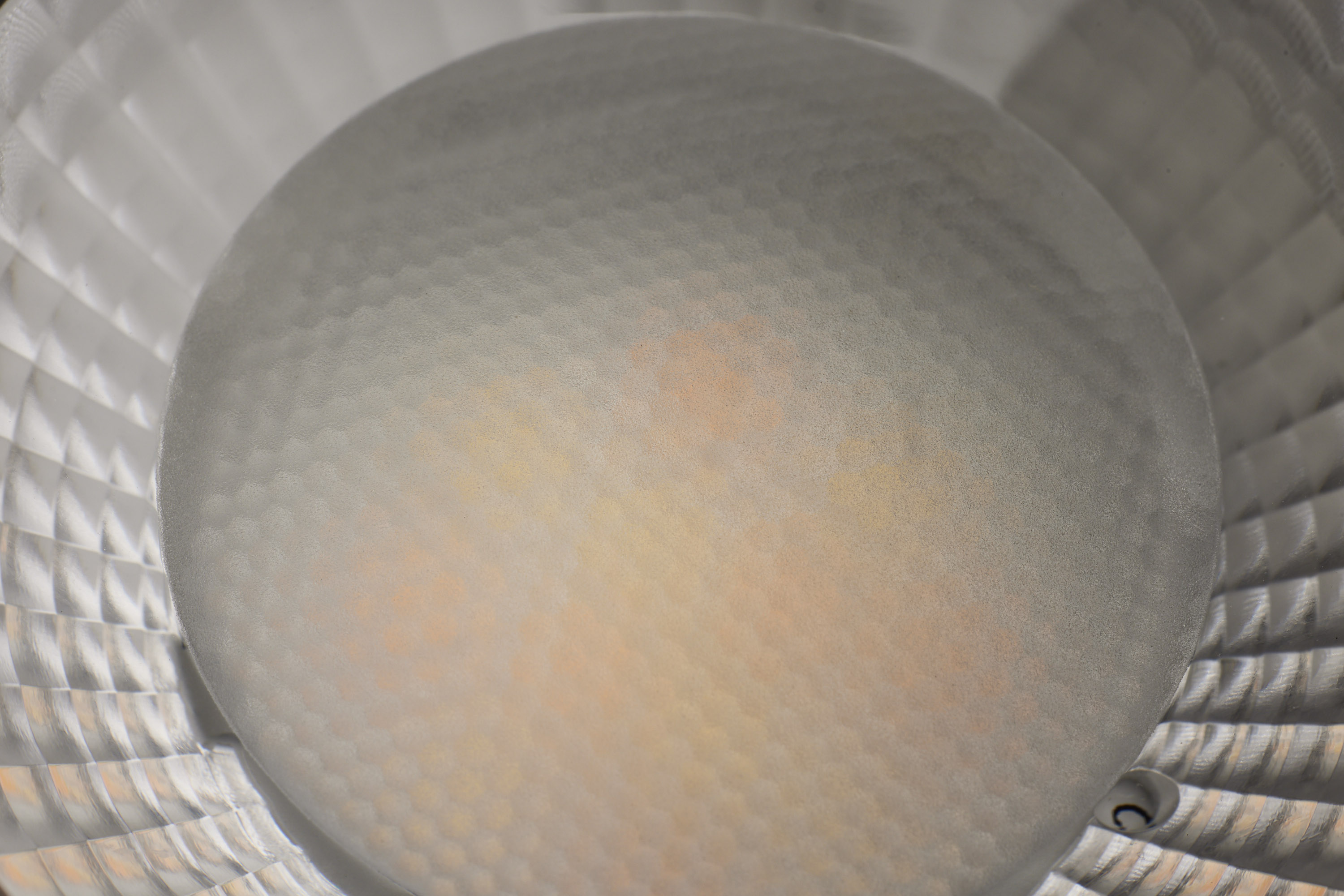

Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fixture Lamp Count1
Incandescent Equivalent75W
Electrical

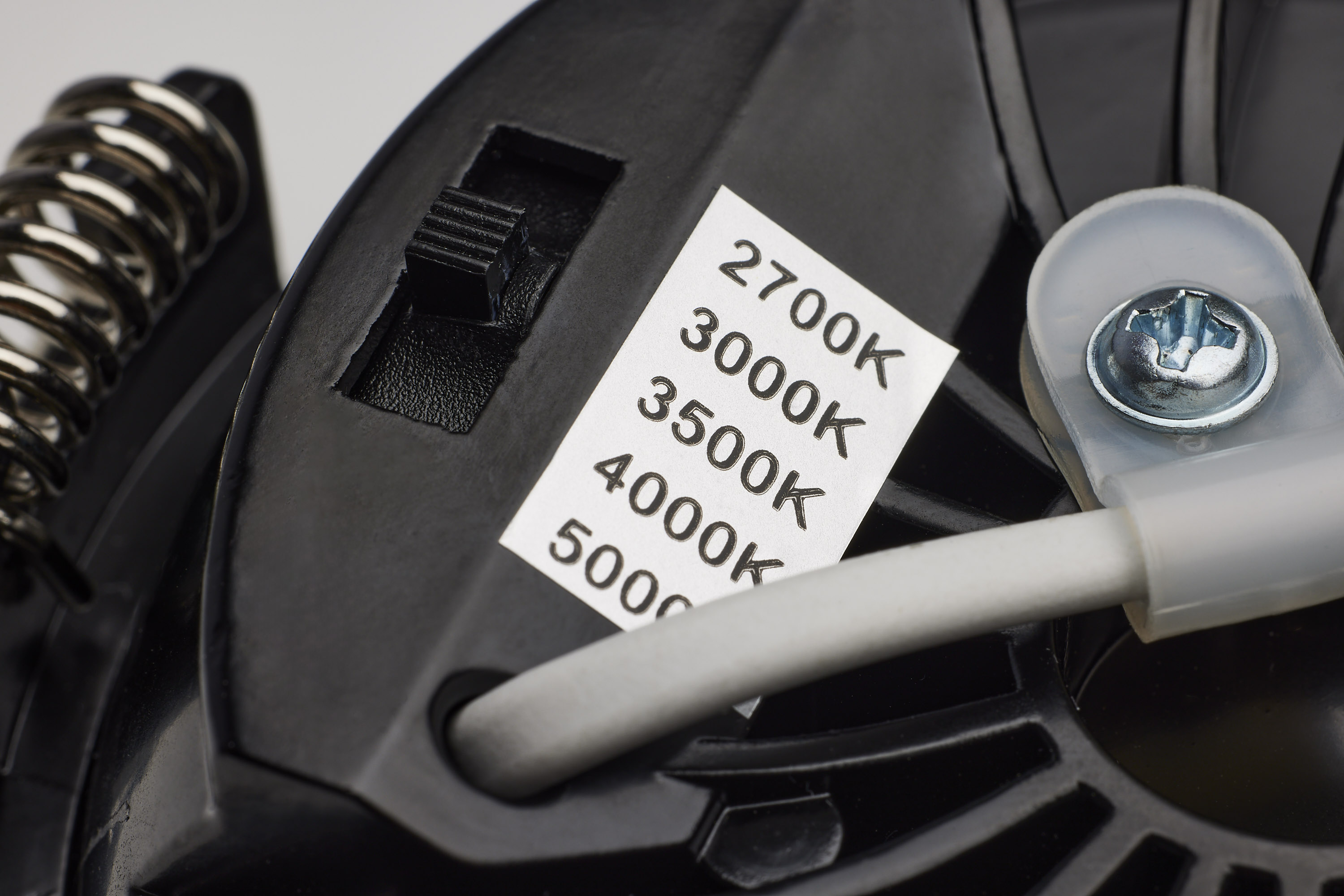

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)40
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens840L
Volts120v
Watts12W
ConnectionDirect Wired
Physical
Lamp BaseIntegrated
FinishBrushed Nickel
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Mounting ProcedureRecessed Direct Wire
Additional Info
Warranty5-Years
Documents
Compliance
Air TightYes
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923311321
Case Cube0.9361
Case Height11.61
Case Length12.2
Case Quantity12
Case UPC10045923311328
Case Weight15.14
Case Width11.42
EA Cube0.061
EA Height5.31
EA Length5.31
EA Quantity1
EA Weight1.19
EA Width3.74
Pack TypeBox

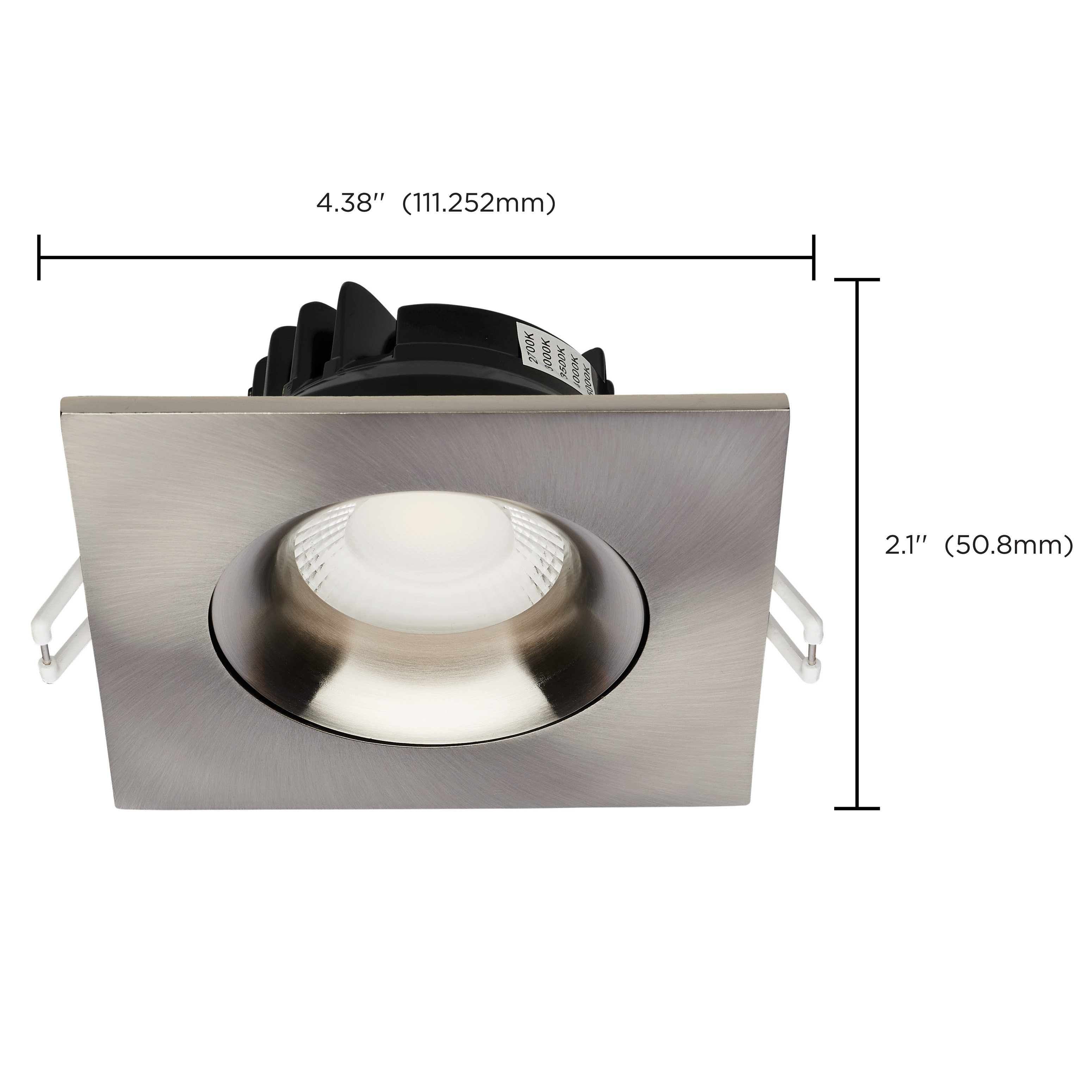

Web Height2.1
Web Length4.38
Web Width4.38
