| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| Material | Aluminum |

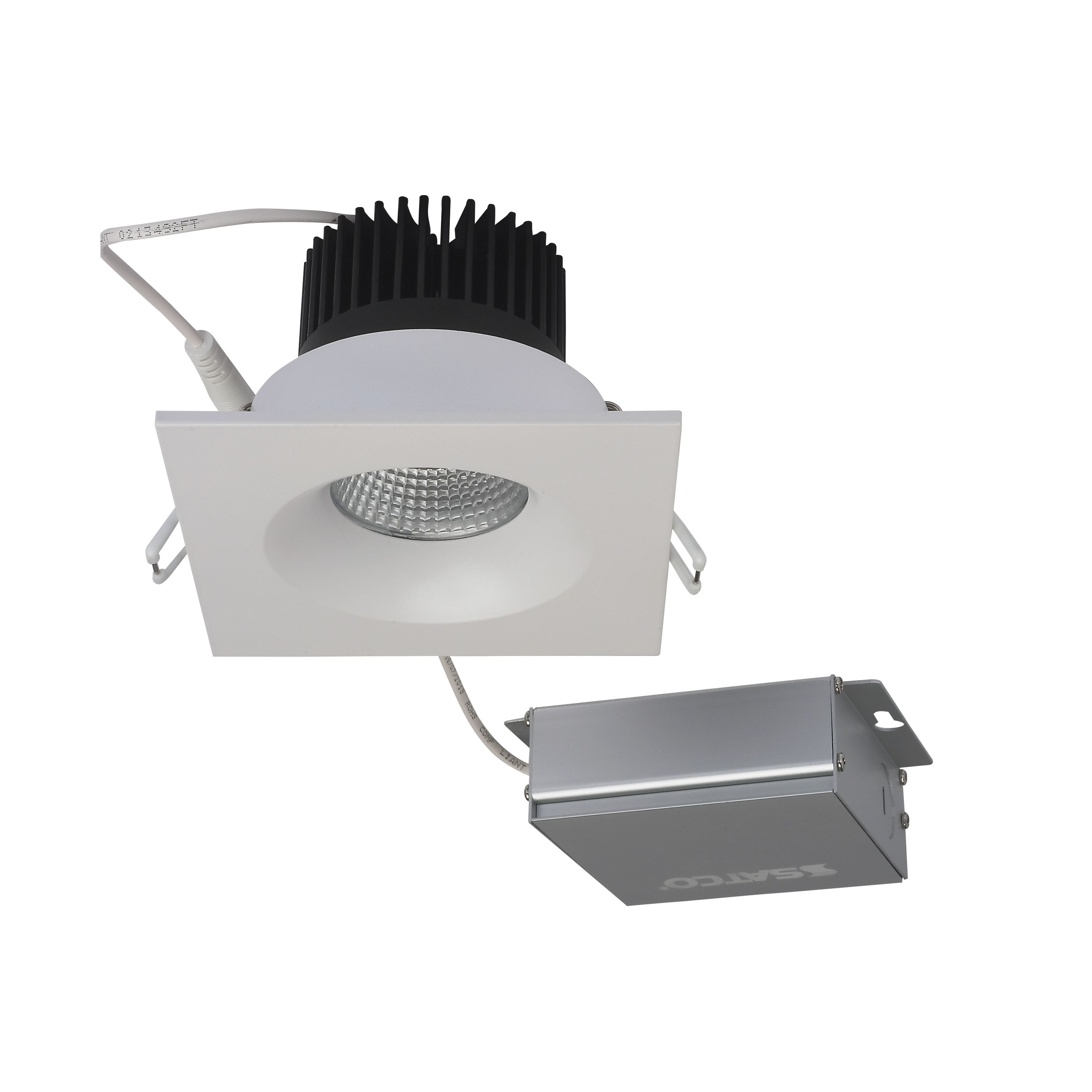

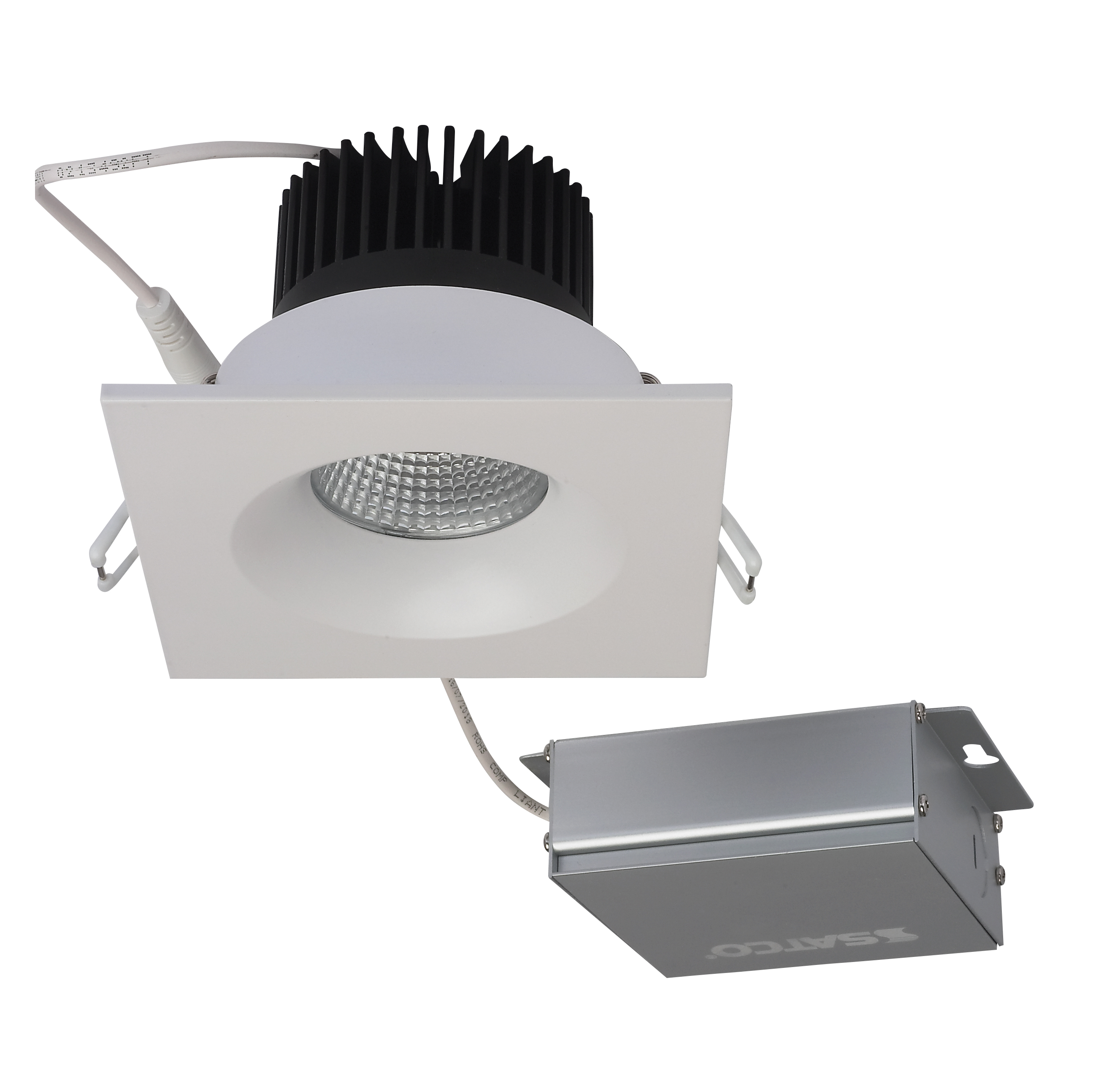

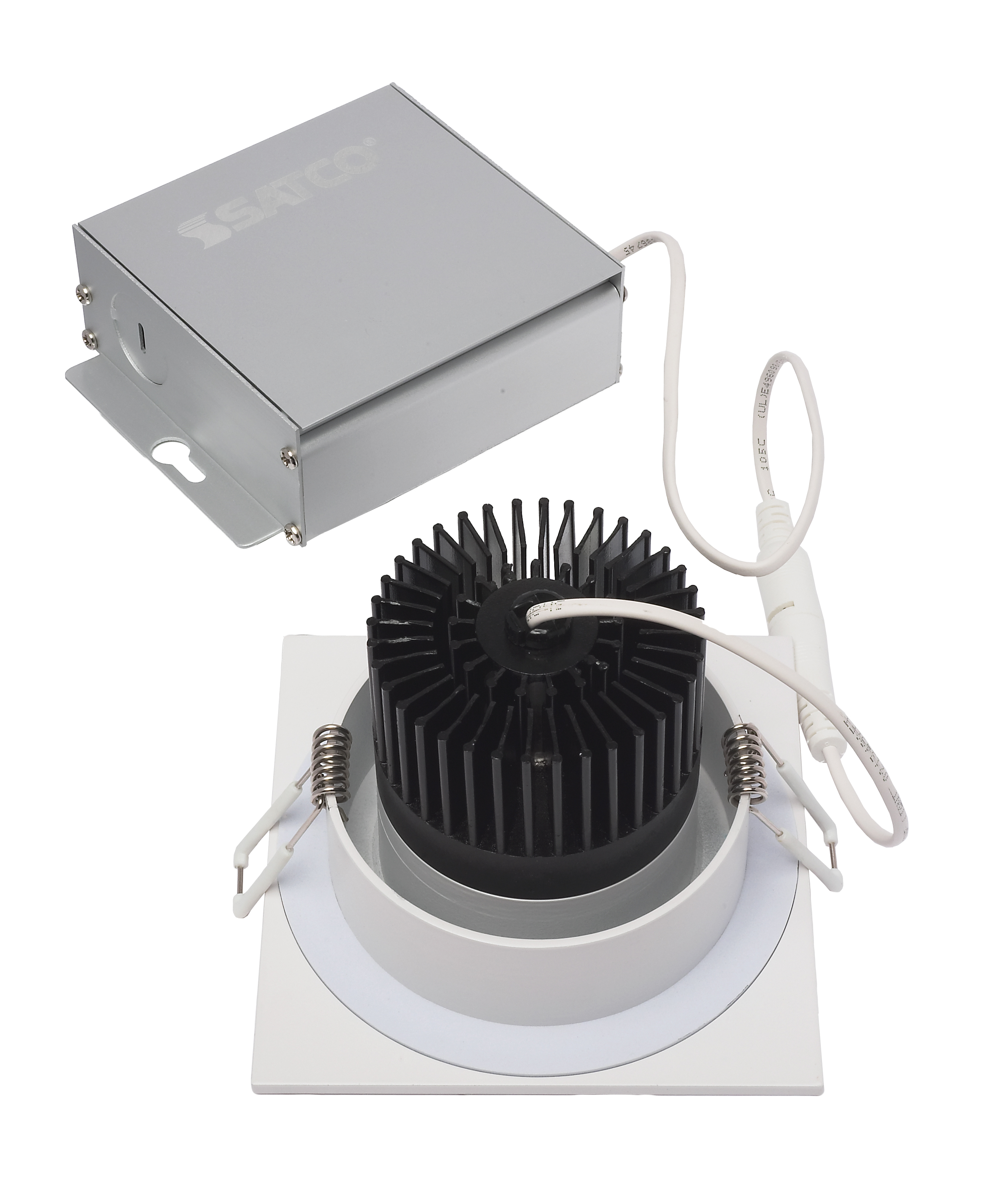

| Fixture Type | Remote Driver LED Downlight |
| Status | Transitioning |
| Style | Utility |
| Most Current Generation | S11633R1 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Additional Info | Integrated j-box for direct wire installation |
| Amps | 0.100A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) and Glass |
| Power Factor | 0.98 |
| SDS Class | LED_Lamp |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |

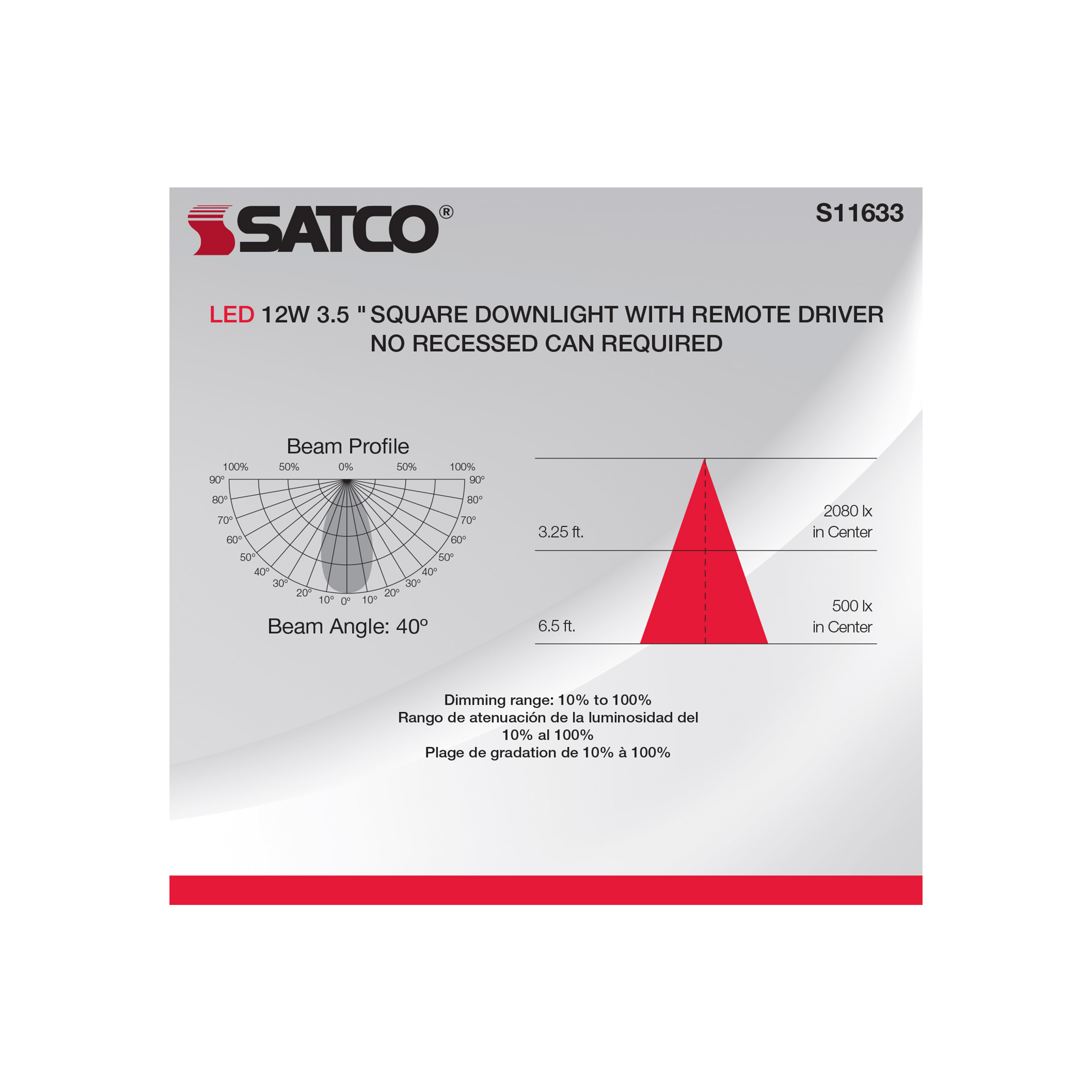

| Beam Angle (degree) | 40 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | Forward Phase or Reverse Phase or Phase Selectable or Triac |
| Operating Frequency | 60Hz |

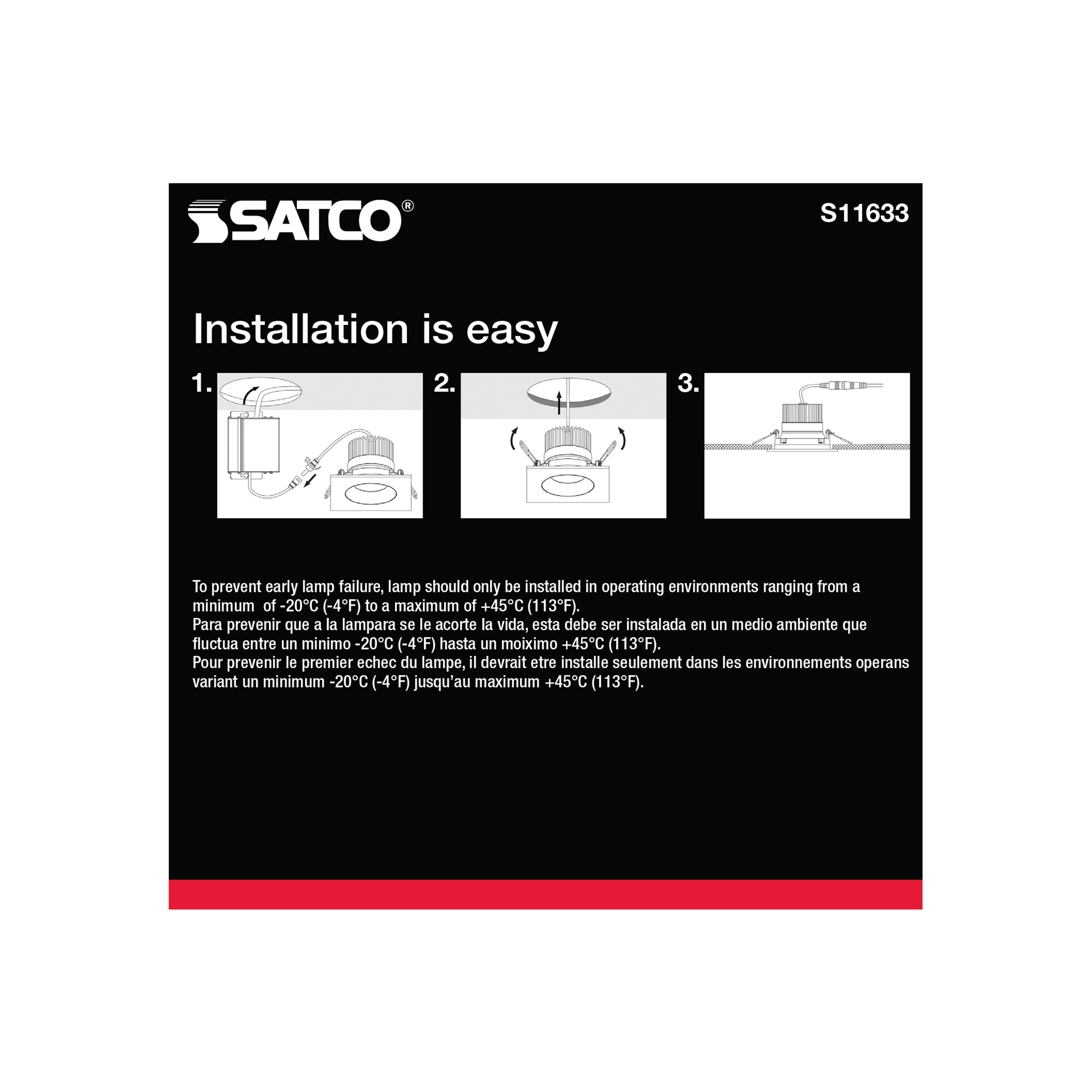

| Operating Temp | -20C (-4F) to +45C (+113F) |

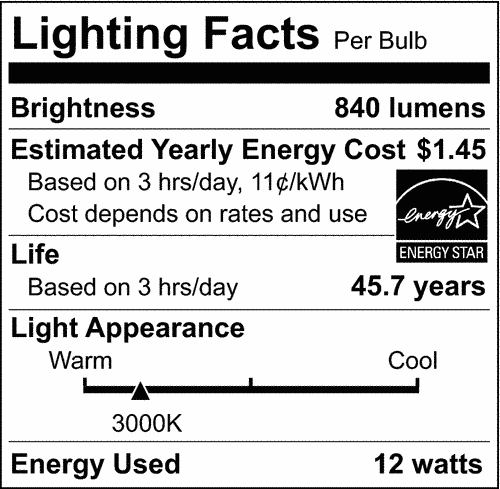

| Lumens | 840L |
| Volts | 120v |
| Watts | 12W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|---|
| Installation Notes | **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973) |
| Air Tight | True |
|---|---|
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | California T24 Listed |
| UL Application | Ceiling |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | True |
| UPC | 045923116339 |
|---|---|
| Case Cube | 1.2184 |
| Case Height | 10.59 |
| Case Length | 15.63 |
| Case Quantity | 12 |
| Case UPC | 10045923116336 |
| Case Weight | 17.87 |
| Case Width | 12.72 |
| EA Cube | 0.0821 |
| EA Height | 4.8 |
| EA Length | 6.06 |
| EA Quantity | 1 |
| EA Weight | 1.24 |
| EA Width | 4.88 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

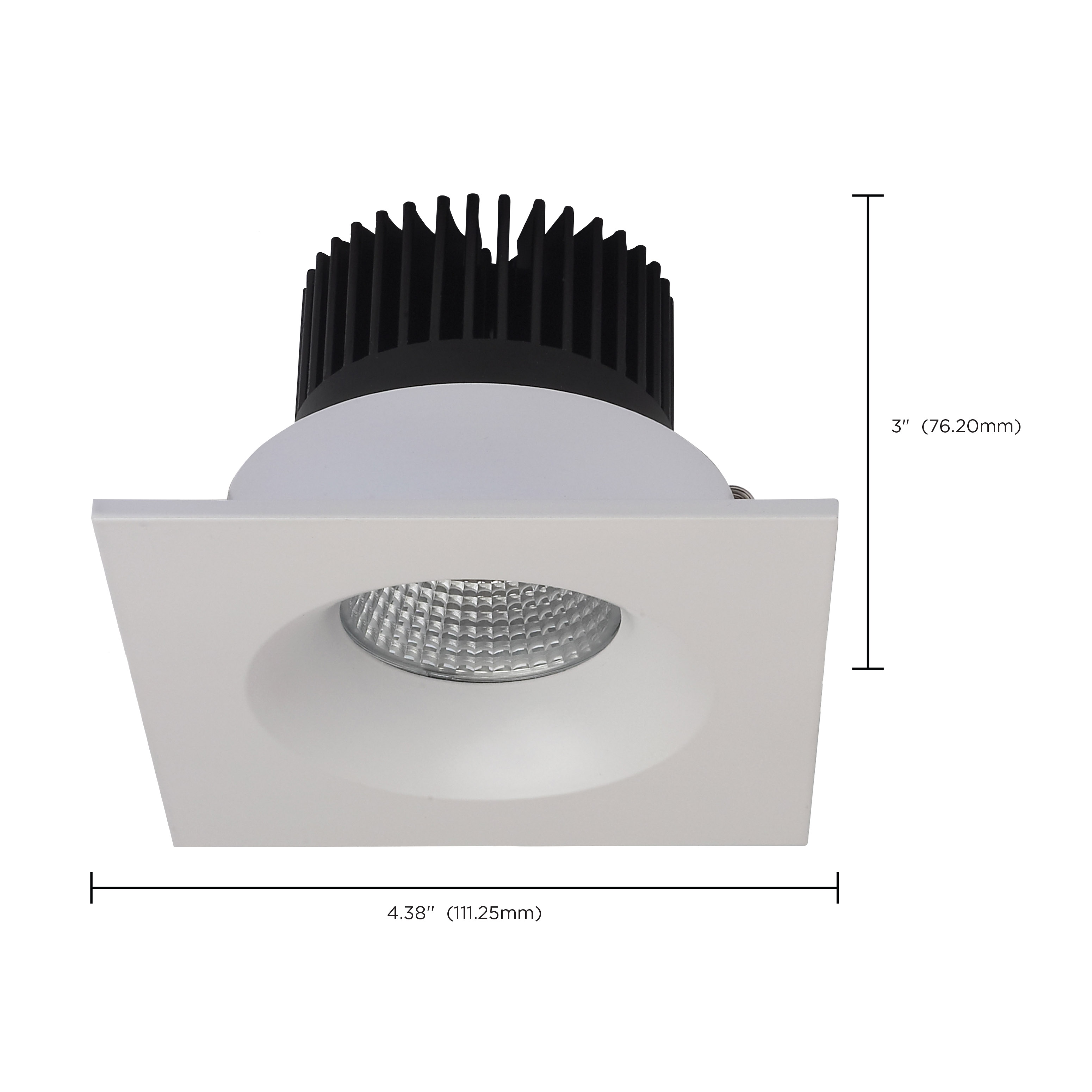

| Web Height | 3.0 |
| Web Length | 4.38 |
| Web Width | 4.38 |
