| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 7.36 |
| Material | Die-cast Aluminum |

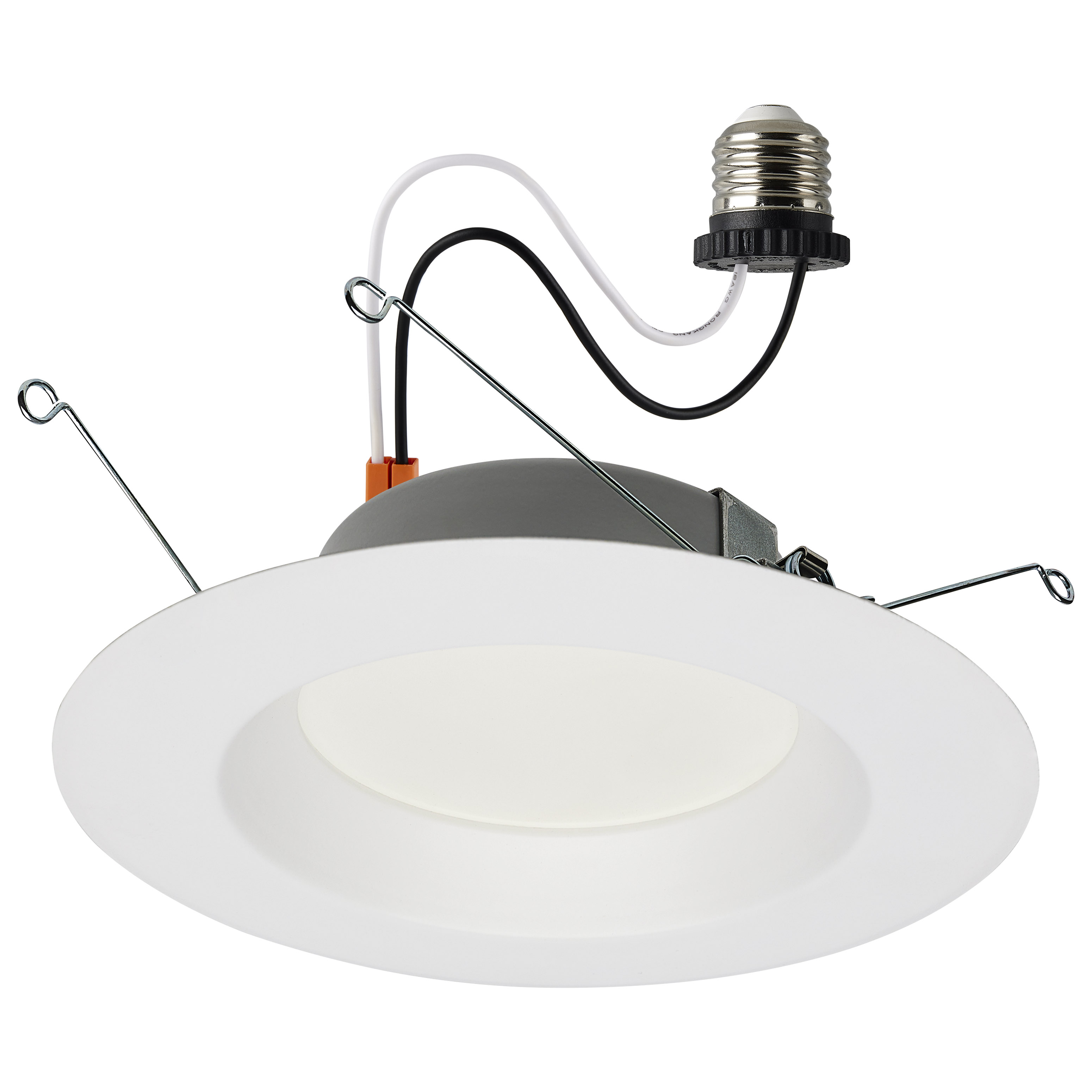

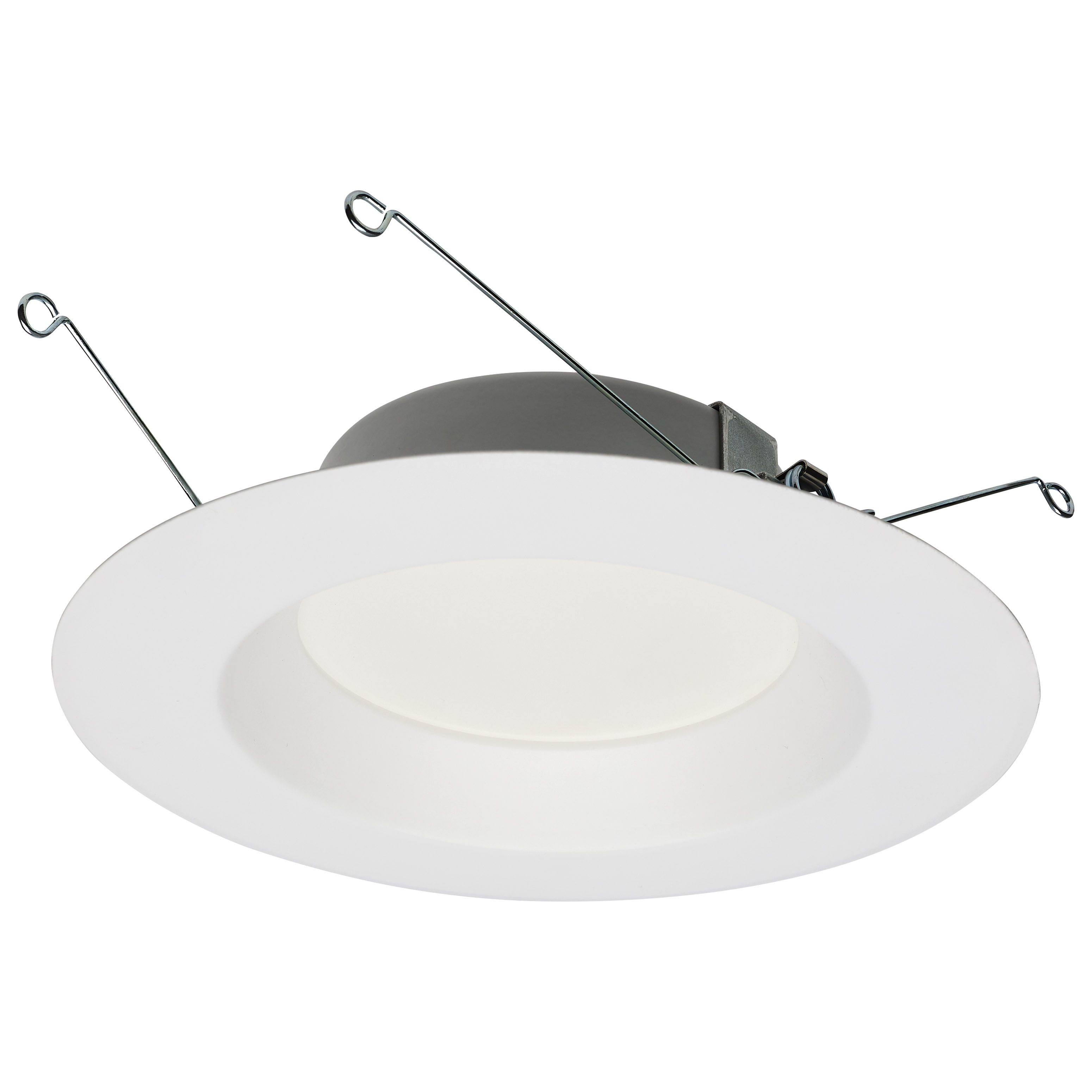

| Fixture Type | Downlight Retrofit |

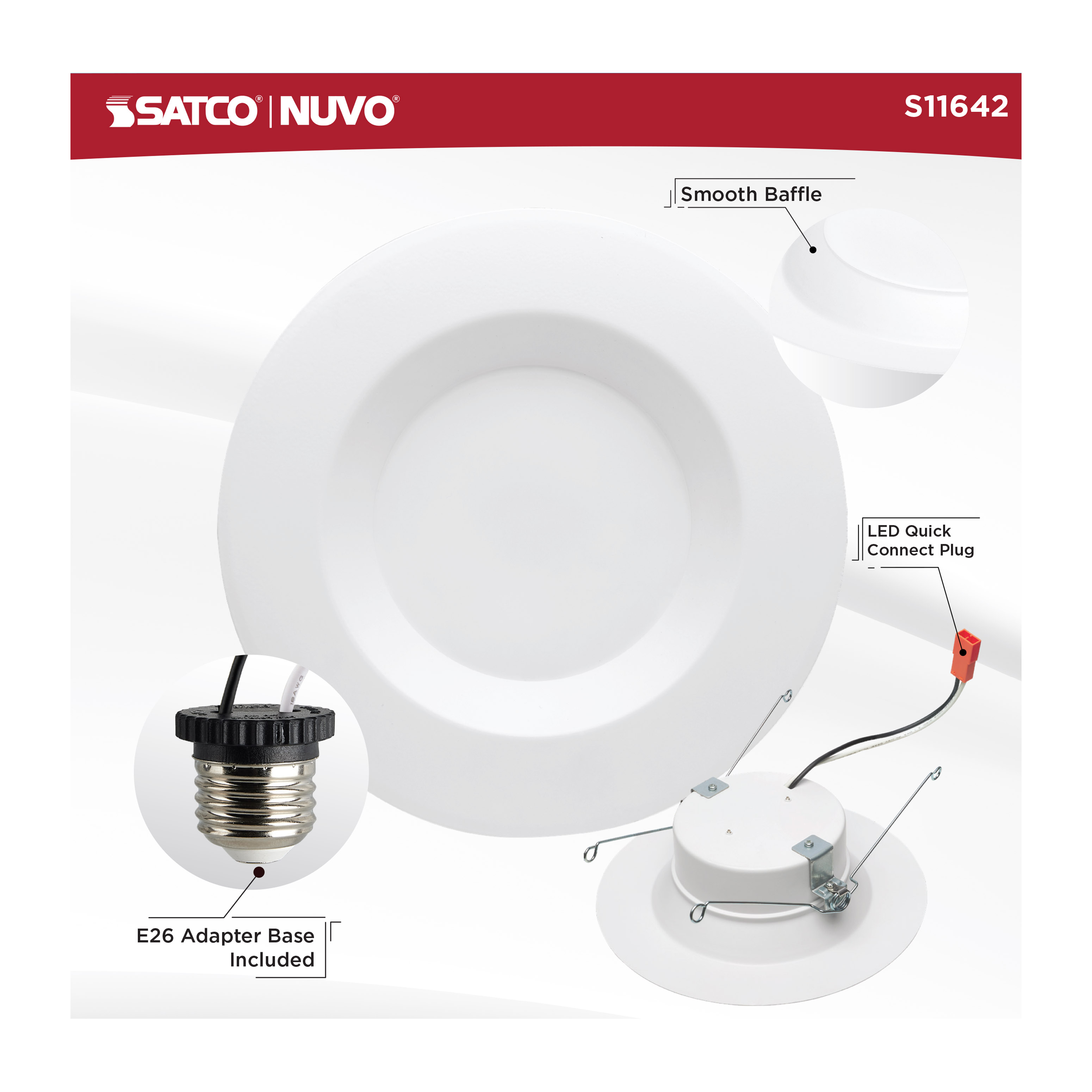

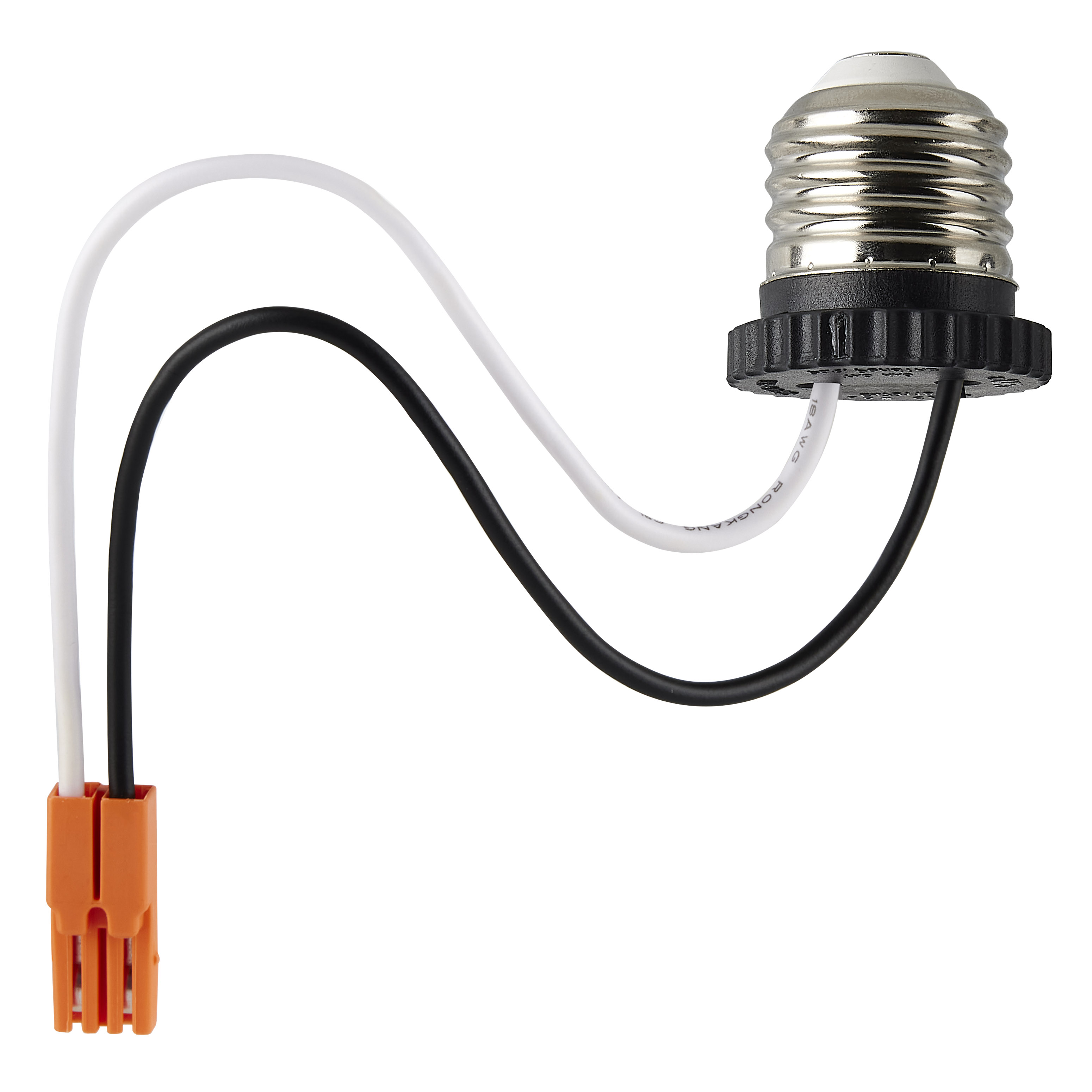

| Includes | E26 Adapter included (S9001) |
| Status | Transitioning |
| Style | Utility |
| Most Current Generation | S12604 |
| Total Harmonic Distortion | <30% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Can Size | 5-6 in. |
| Finish Family | White |
| Amps | 0.104A |
| Has Camera | False |
| IOT Enabled | False |

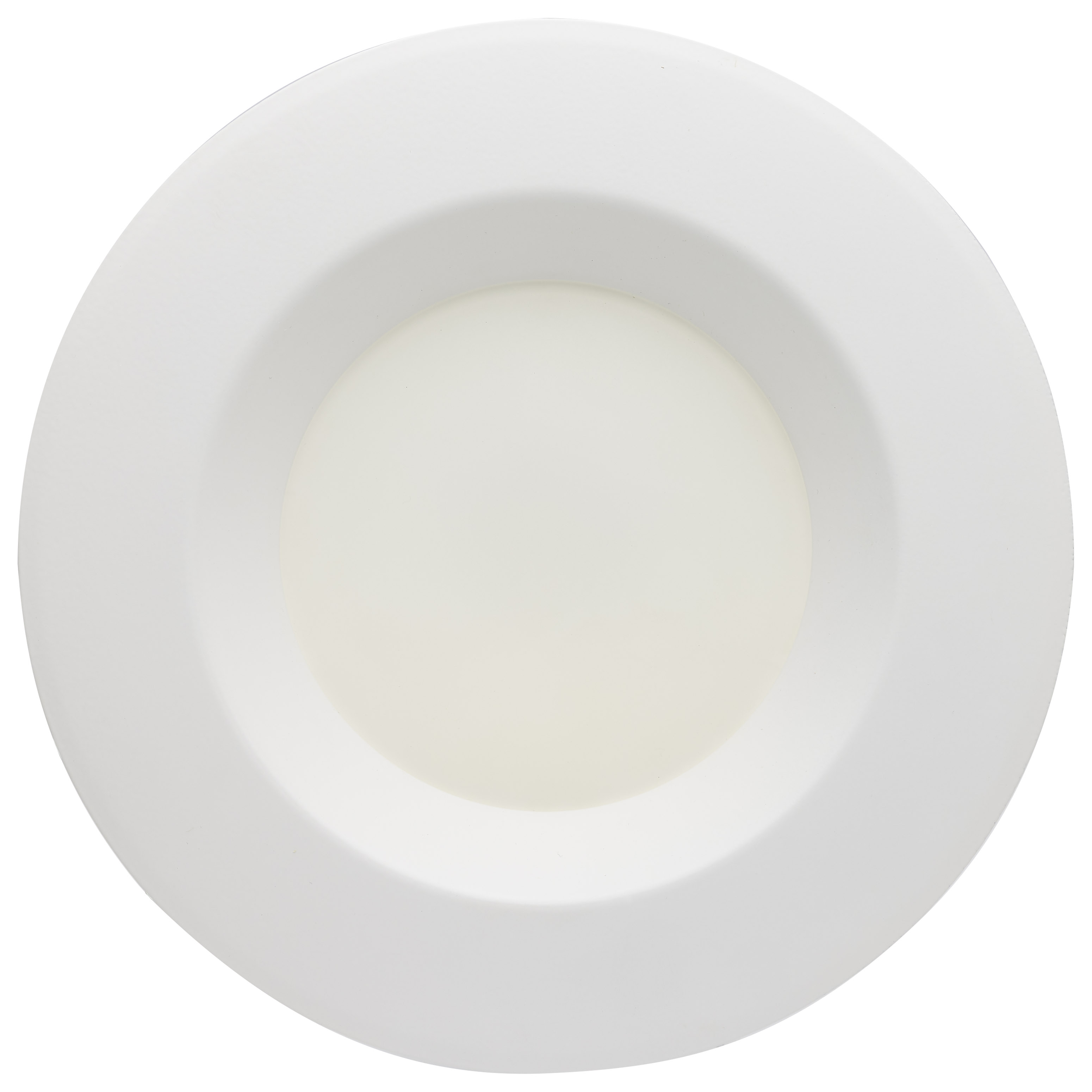

| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fixture Lamp Count | 1 |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 2700K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 35000 |
| Beam Angle (degree) | 100 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

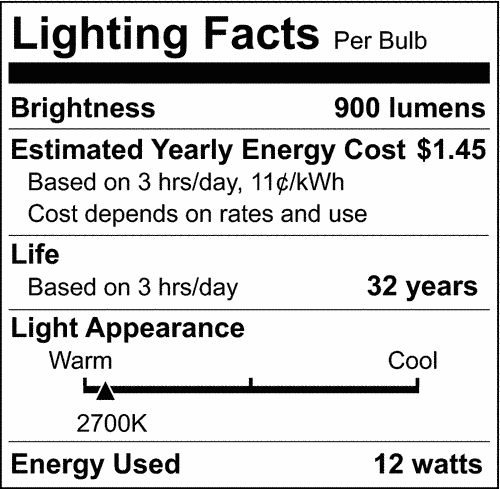

| Lumens | 900L |
| Volts | 120v |
| Watts | 12.5W |
| Lamp Base | Medium Adapter |
|---|---|
| Finish | WHITE |
| ANSI Base | E26 Adapter |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| Air Tight | True |
|---|---|
| CA Regulations | California T24 2016 - 2025 JA8 Listed; T20 Listed |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| CA Compliance Text | California T24 Listed |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Yes |
| T24 Compliant | True |
| UPC | 045923116421 |
|---|---|
| Case Cube | 1.5138 |
| Case Height | 8.86 |
| Case Length | 25.0 |
| Case Quantity | 12 |
| Case UPC | 10045923116428 |
| Case Weight | 10.69 |
| Case Width | 11.81 |
| EA Cube | 0.104 |
| EA Height | 8.07 |
| EA Length | 8.07 |
| EA Quantity | 1 |
| EA Weight | 0.81 |
| EA Width | 2.76 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

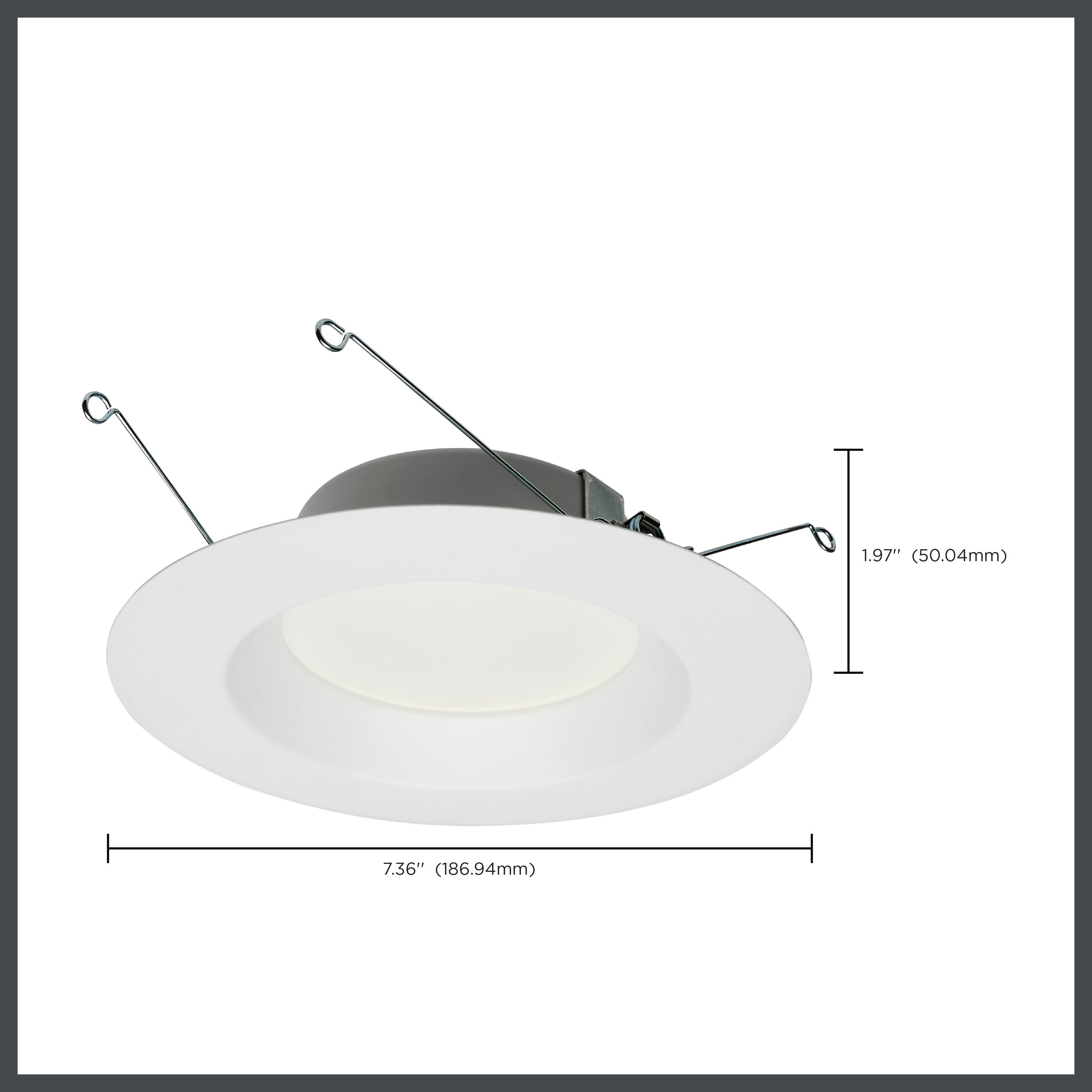

| Web Height | 1.97 |
| Web Width | 7.36 |
