S11646

12.5WLED/DLR/5-6/CCT-SEL/RD/WH

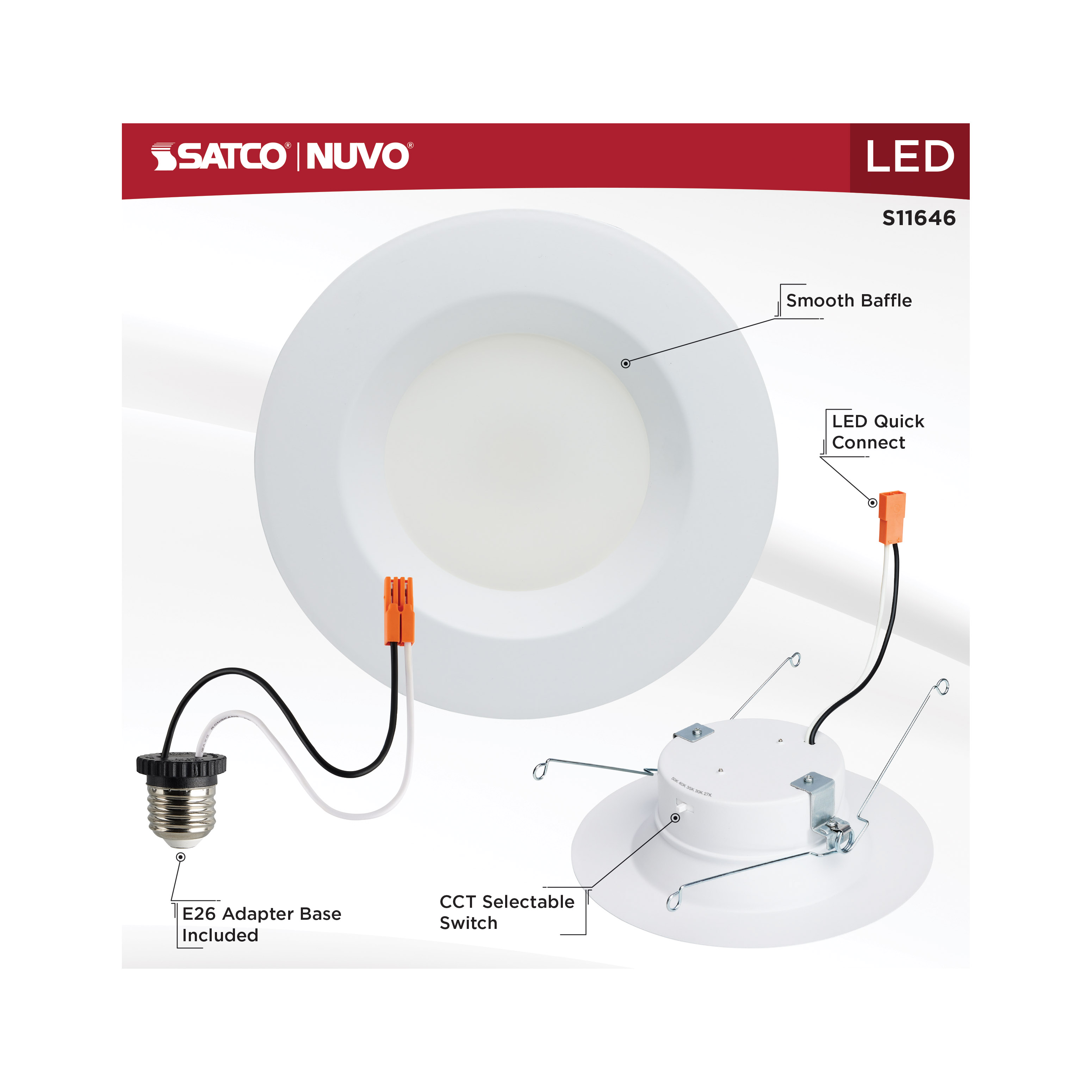

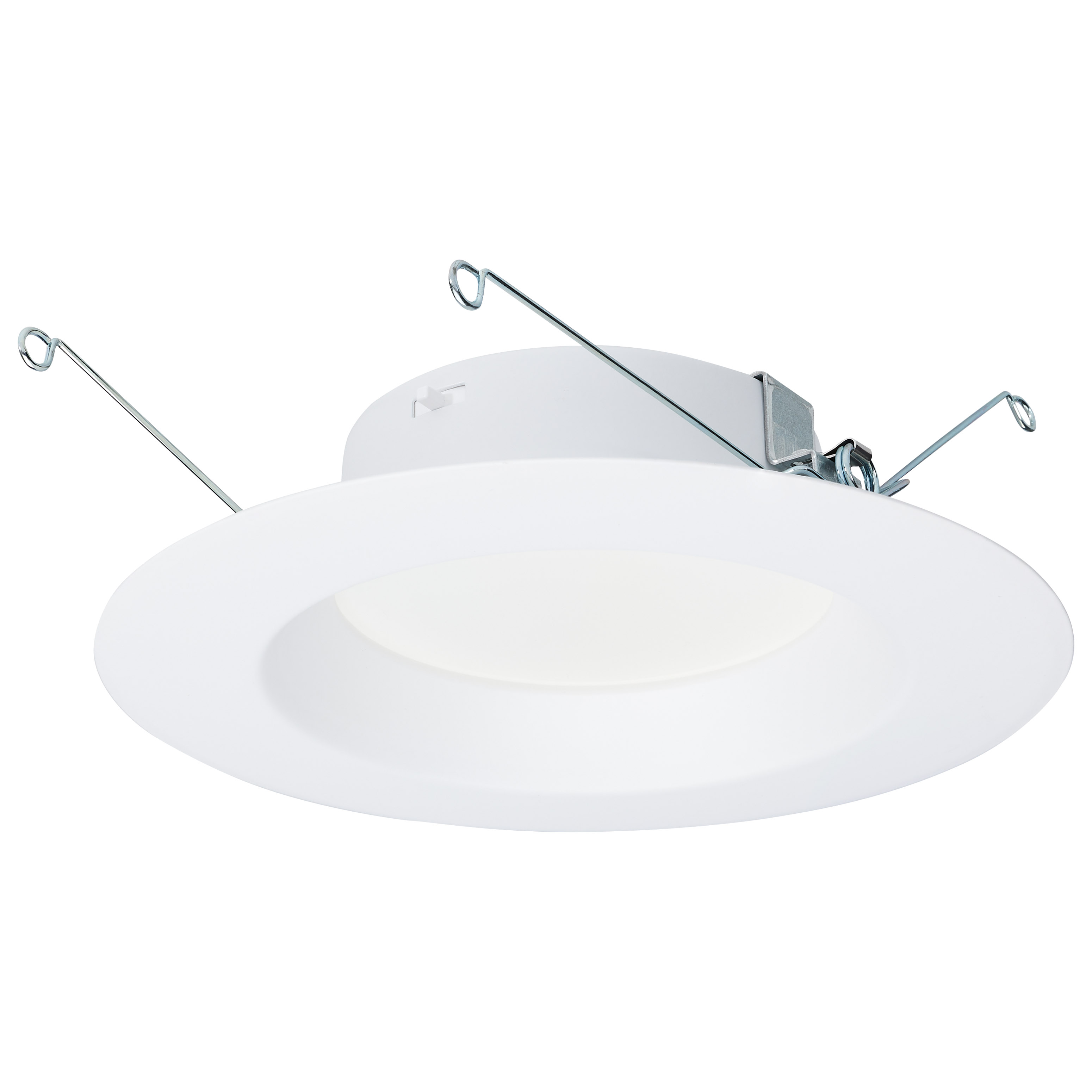

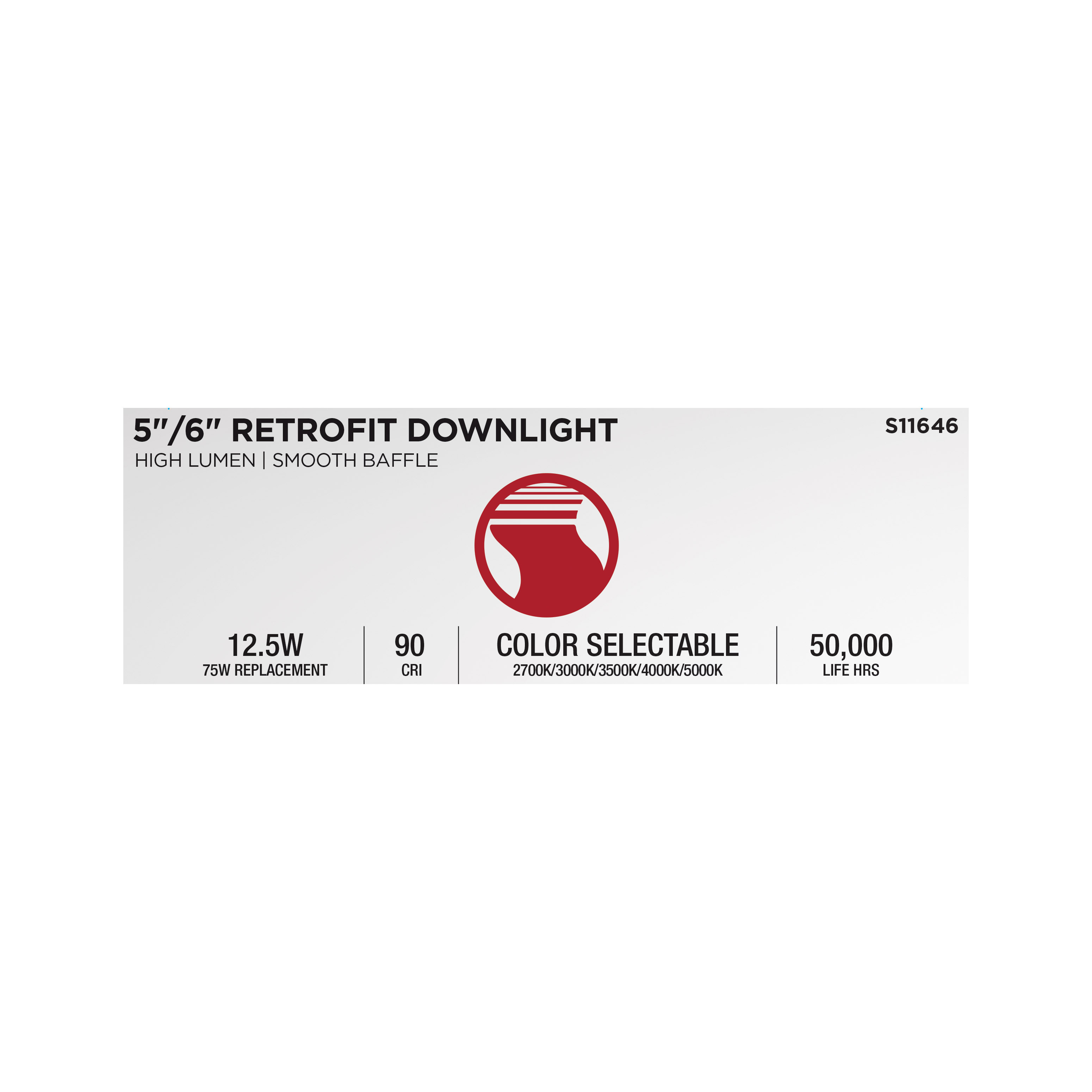

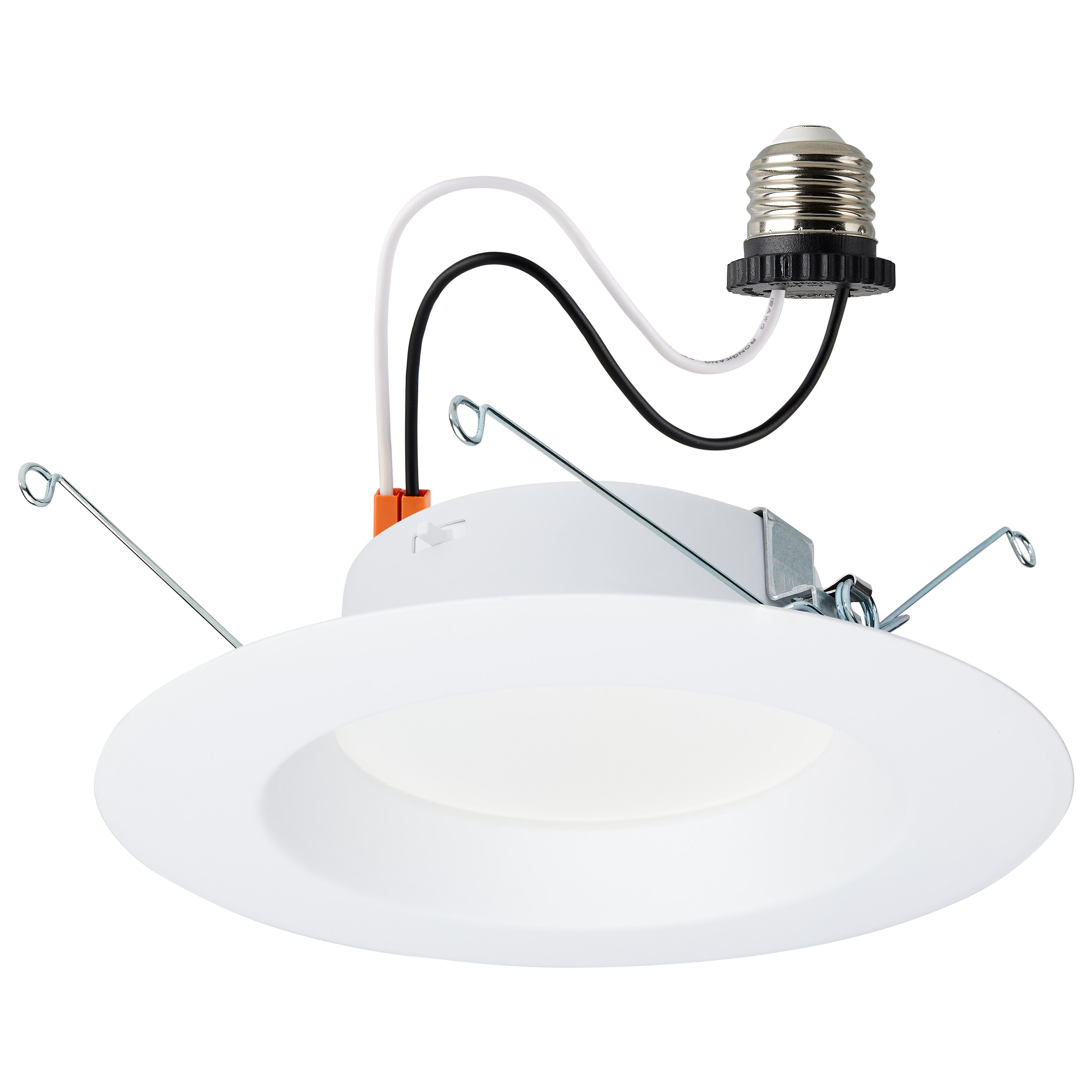

  • 12.5 Watt LED High Lumen Downlight Retrofit
  • 5-6 Inch

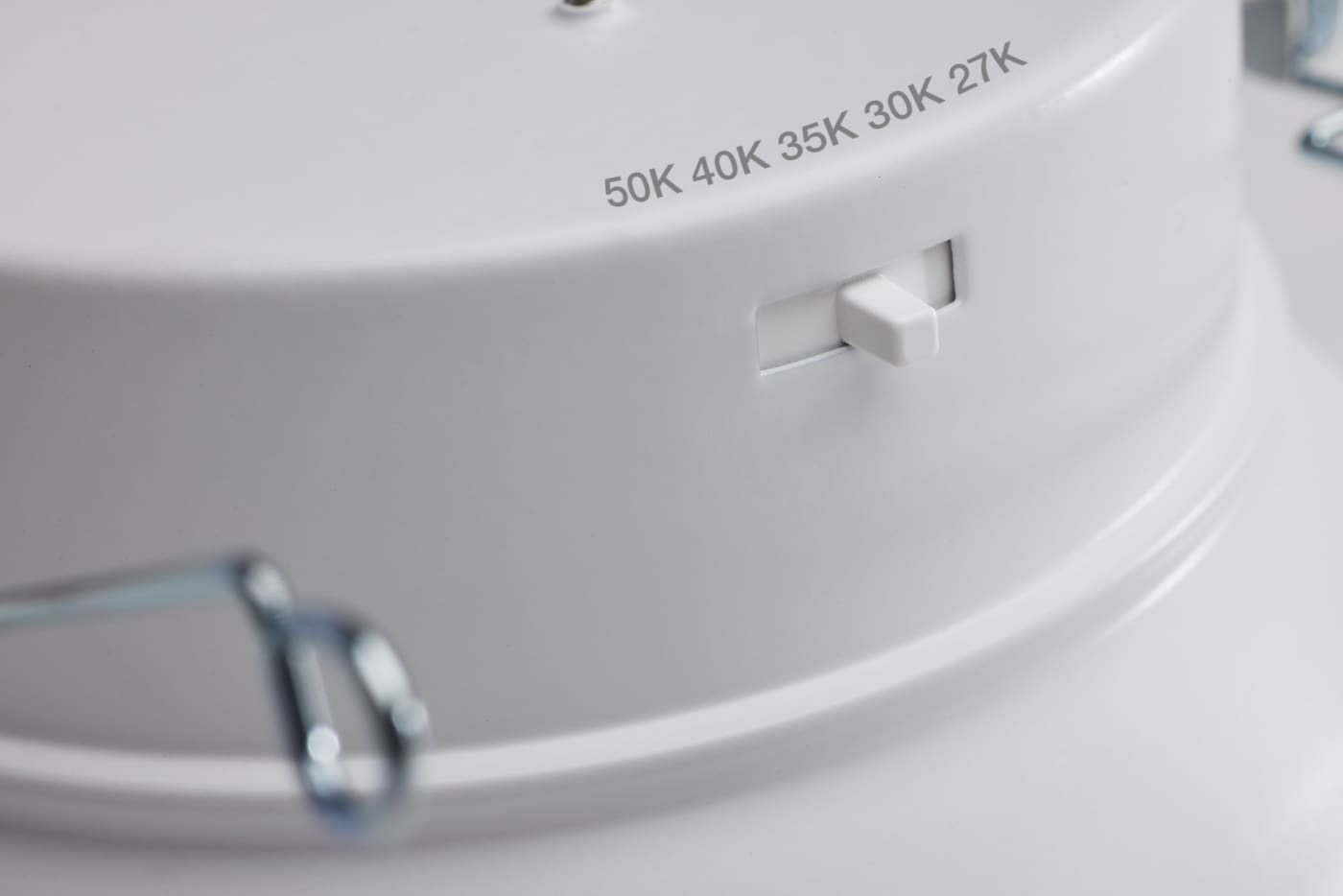

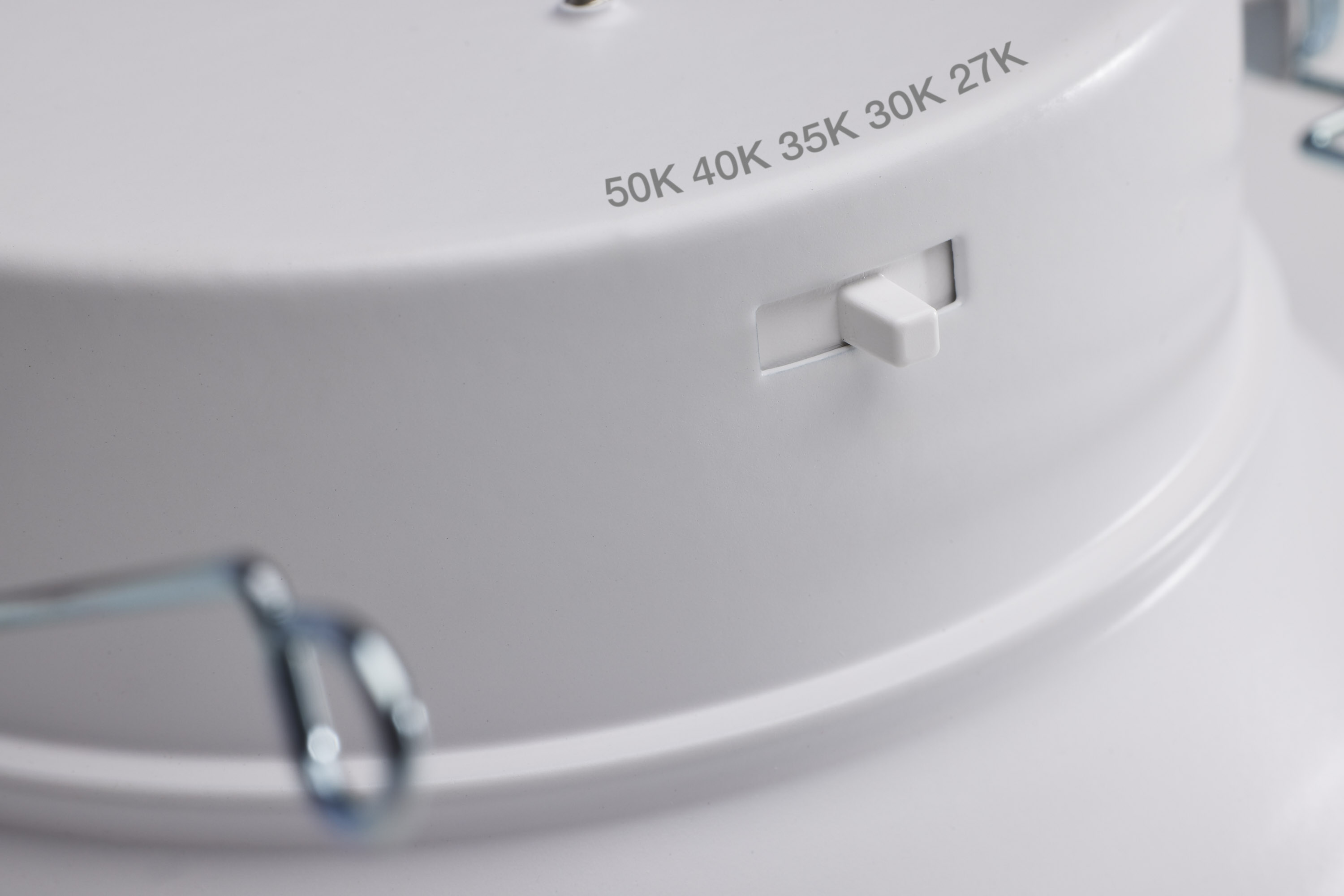

  • 27K/30K/35K/40K/50K CCT Selectable
  • 120 Volts
  • Dimmable
  • White Finish
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11646 SpecificationsS11646 Photometrics 2700K.iesS11646 Photometrics 3000K.ies
Tools
Lighting Layout Analysis For S11646
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120 Volts; Dimmable; White Finish

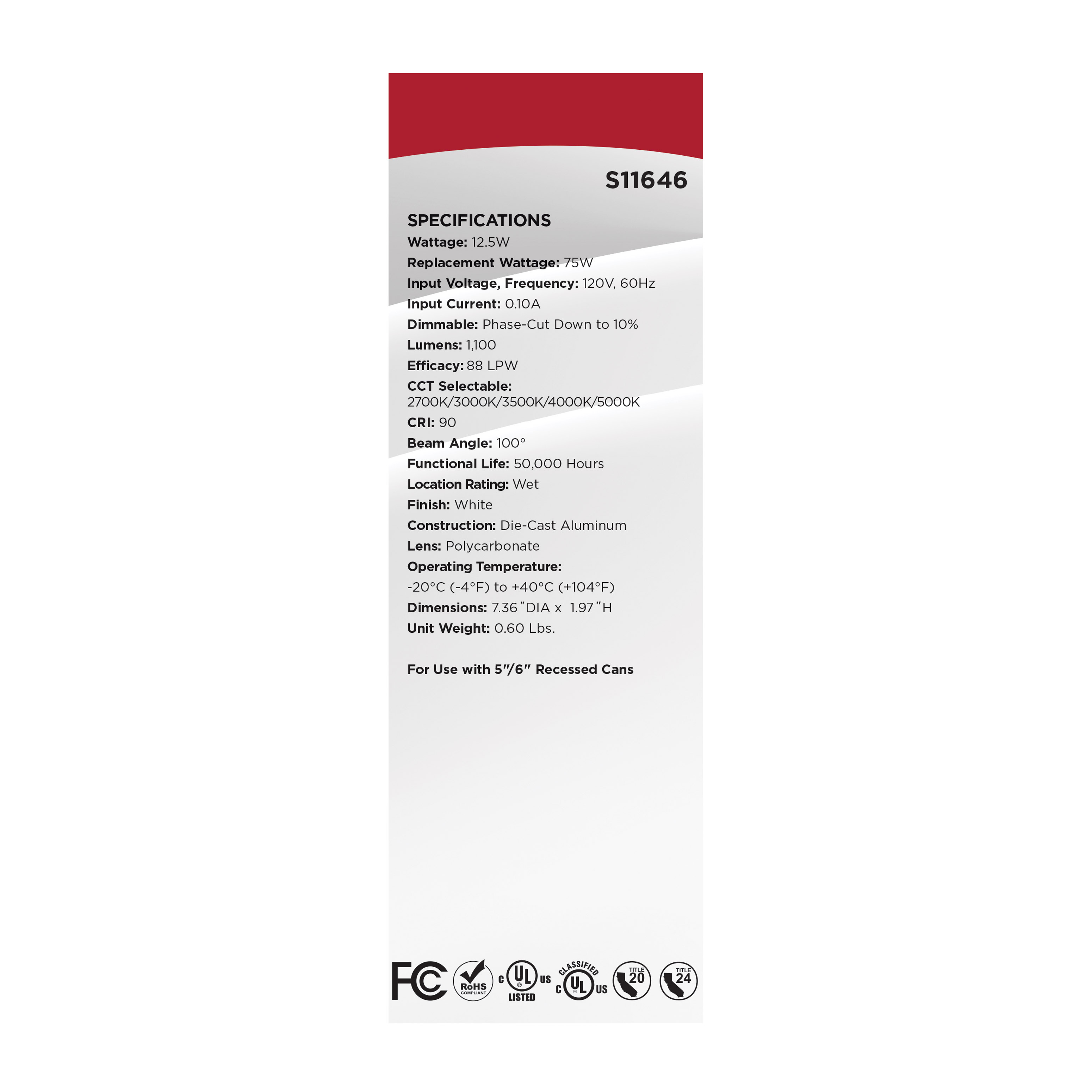

Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

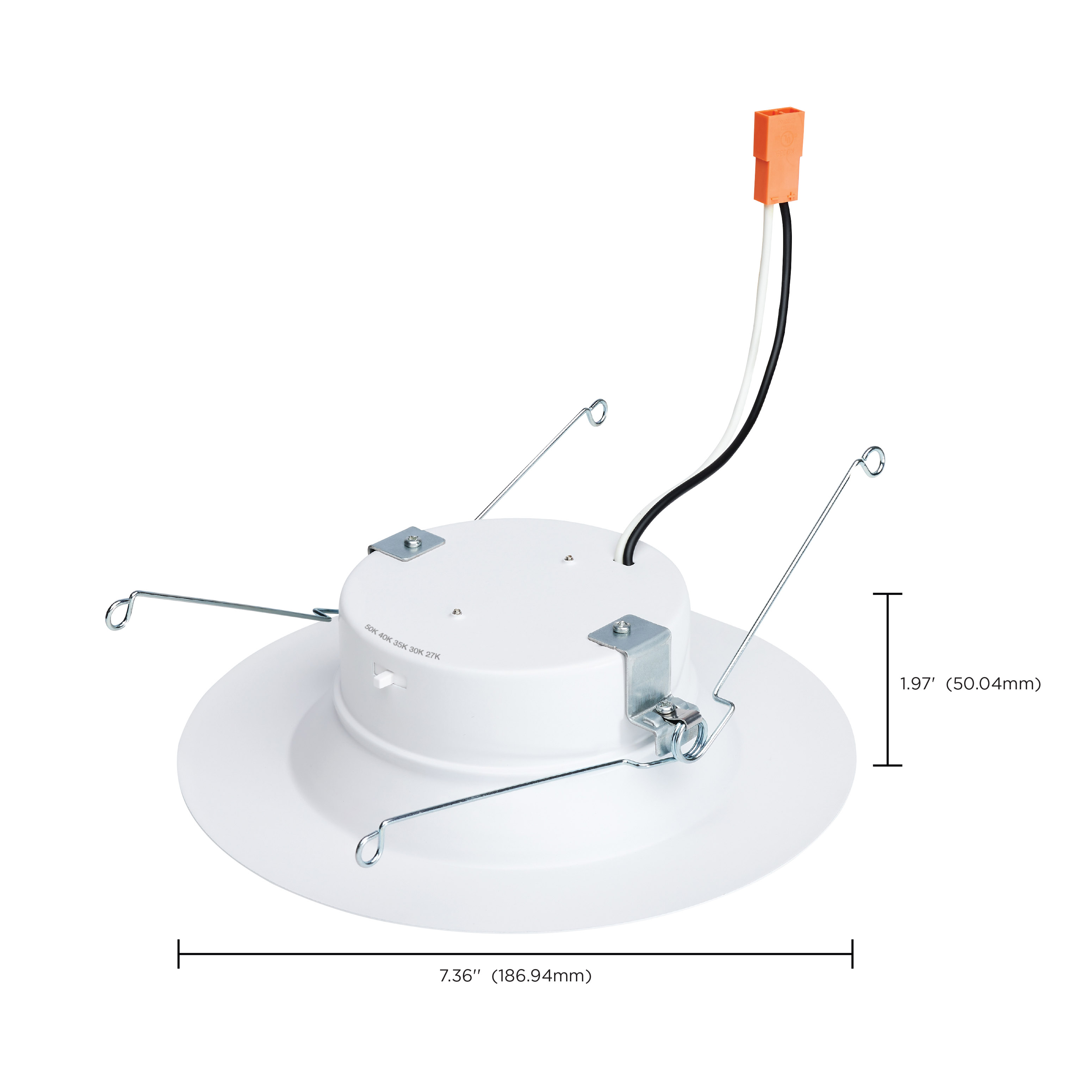

Diameter7.36
Dimmable TextForward or Reverse Phase
MaterialSteel
Fixture TypeDownlight Retrofit
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion41.4%

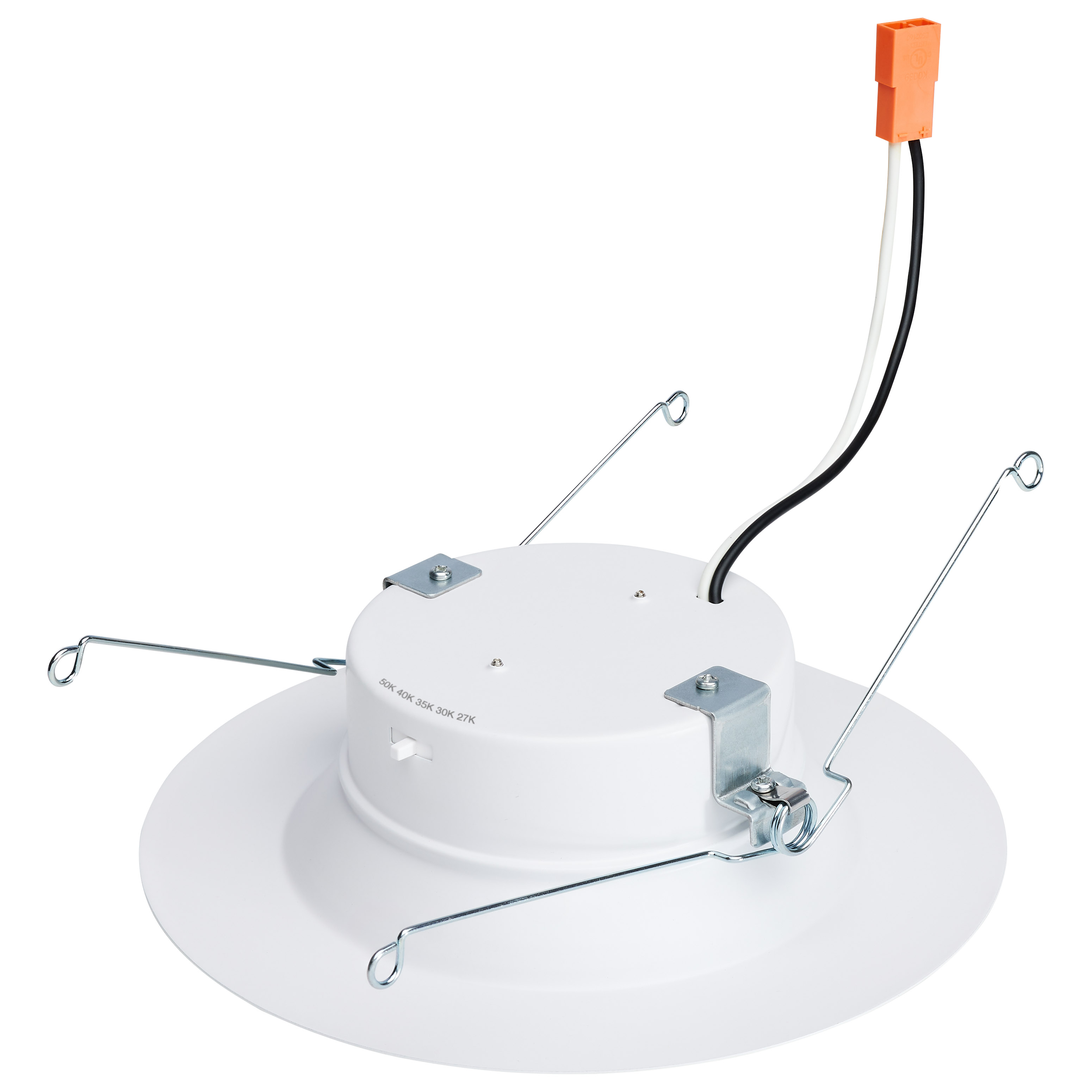

CCT SelectableYes
Wattage SelectableNo
Can Size5-6 in.
Finish FamilyWhite
Amps0.104A
Has CameraNo
IOT EnabledNo

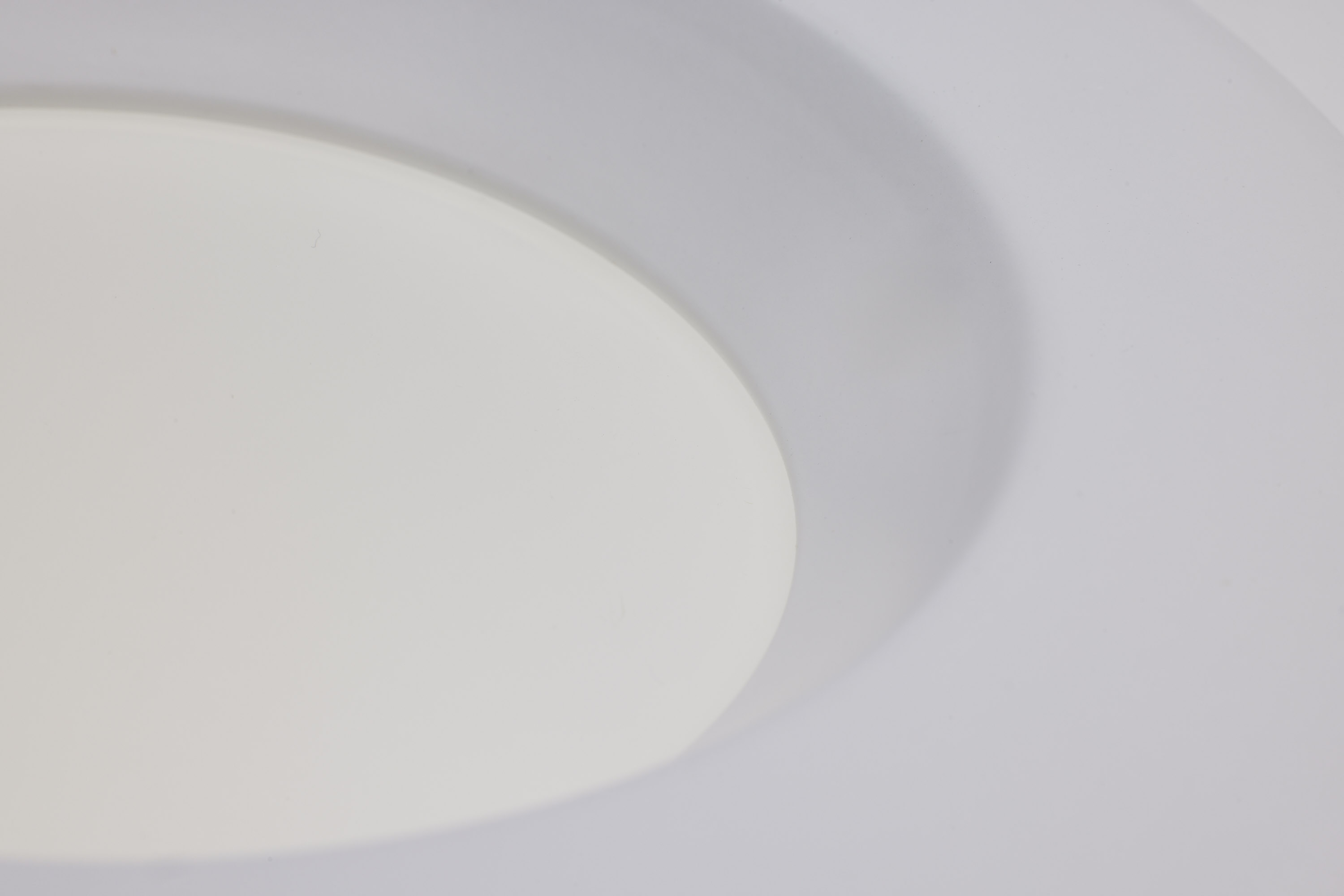

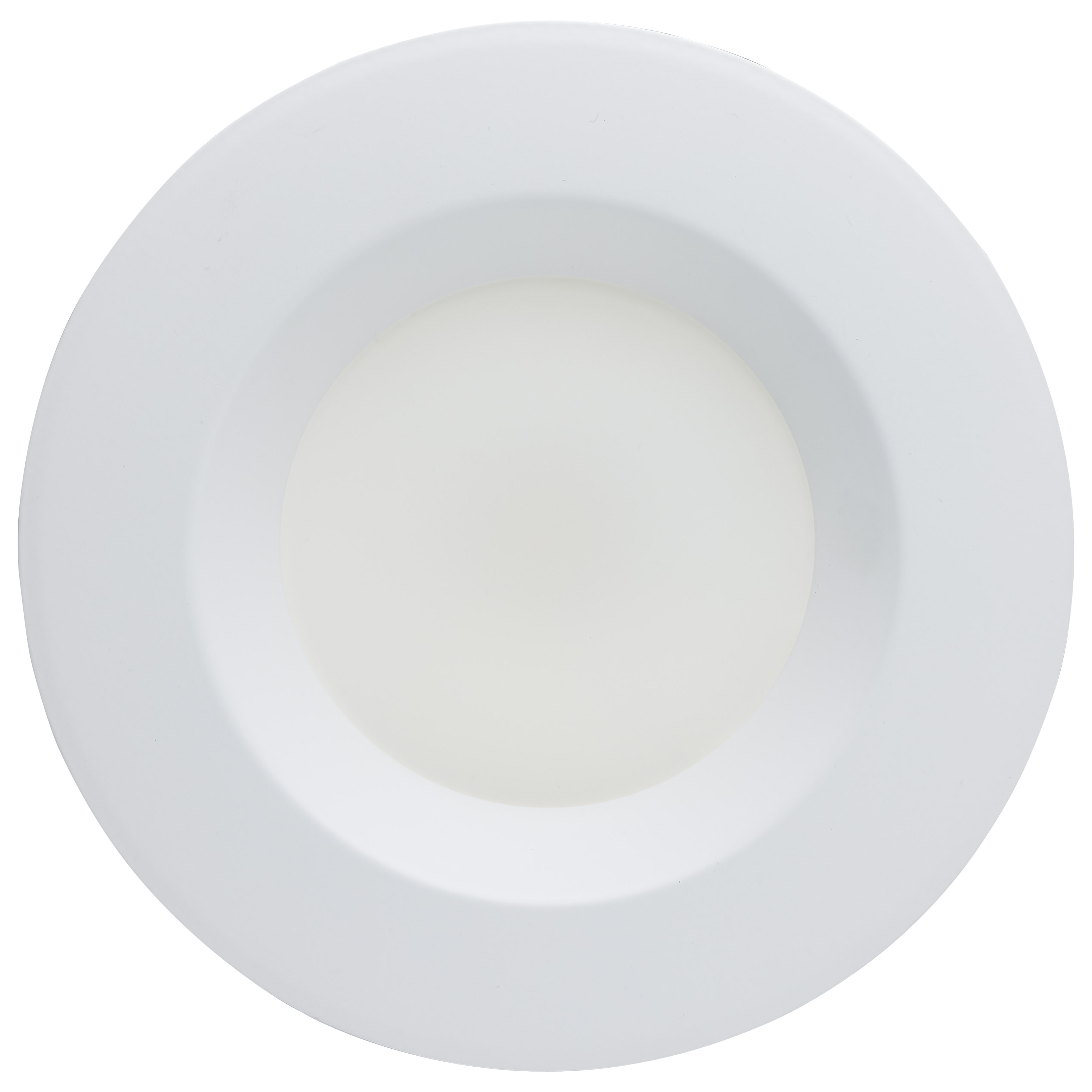

Lens FinishMatte Frosted
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeFor the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical

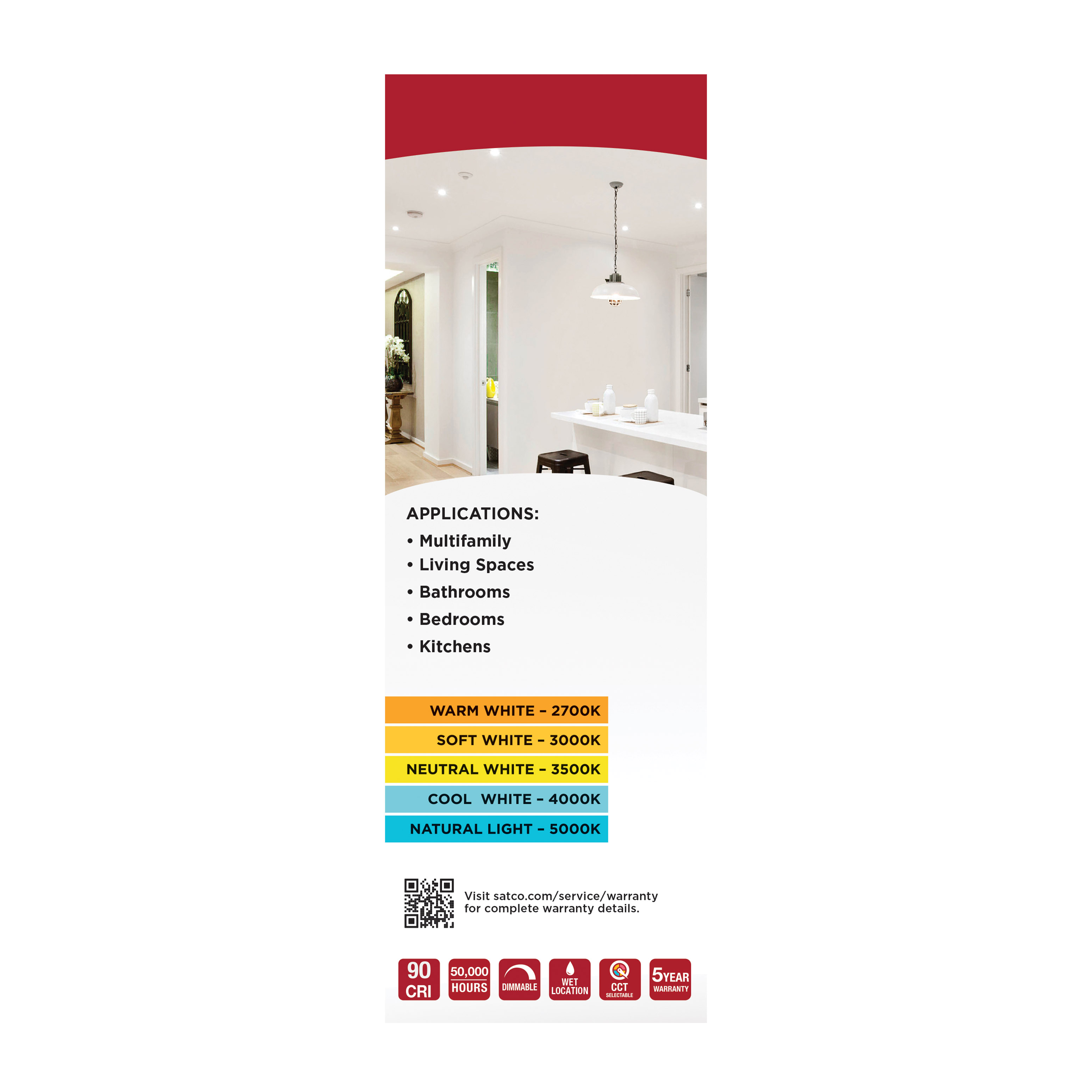

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm White to Natural Light
CRI90+
Dimming TypePhase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)

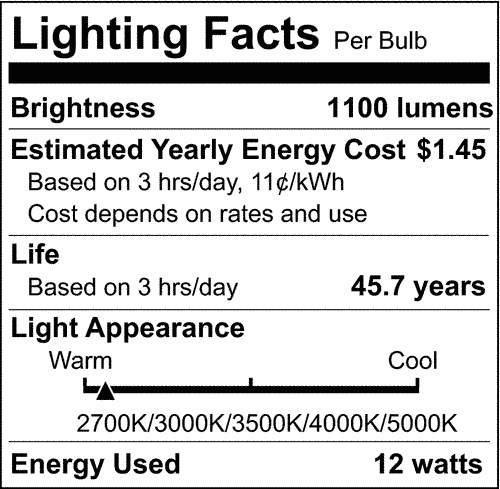

Lumens1100L
Volts120v
Watts12.5W
Physical

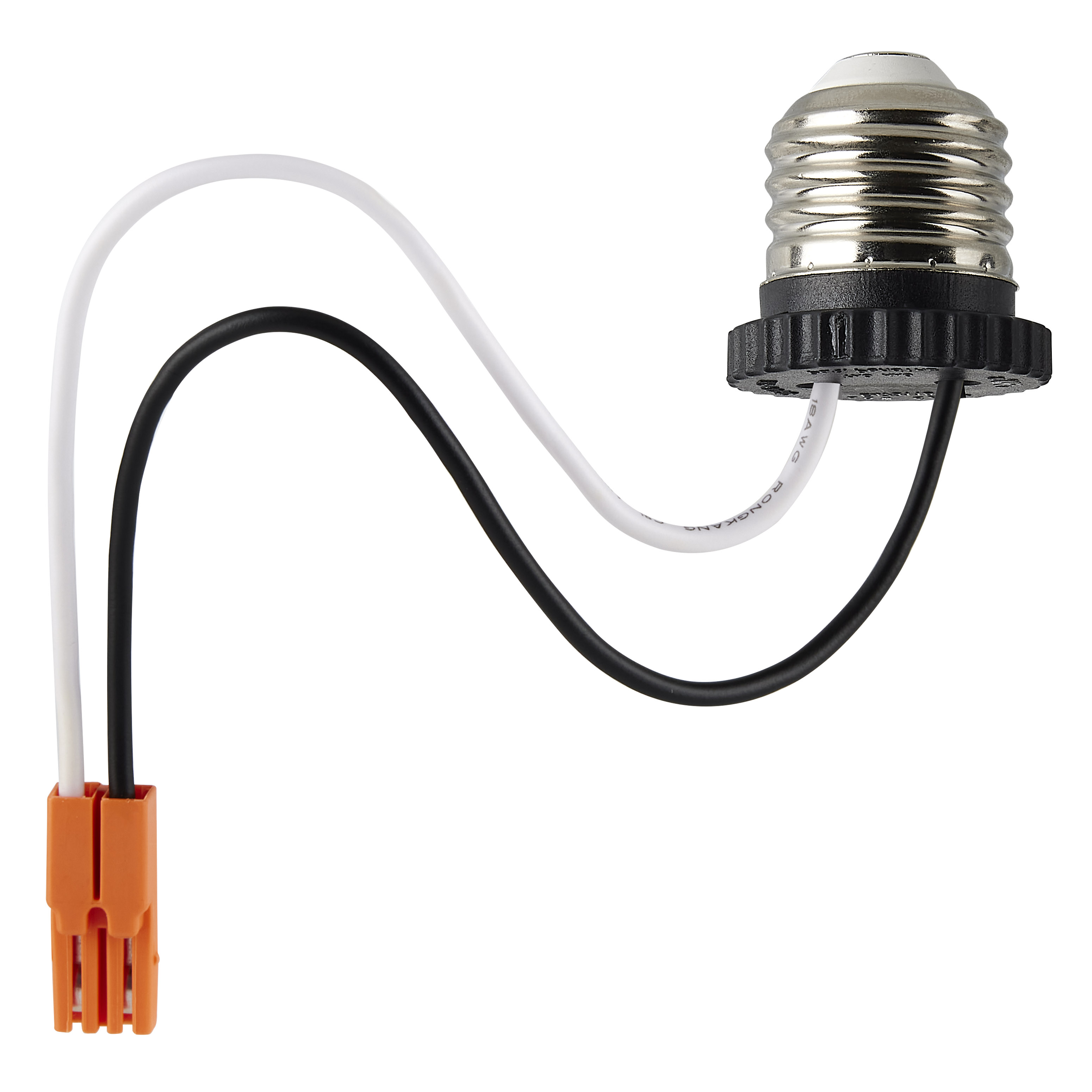

Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
Air TightYes
CA Prop 65Lead
Energy Star ID3845045
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedYes
Title 20Yes
T24 CompliantYes

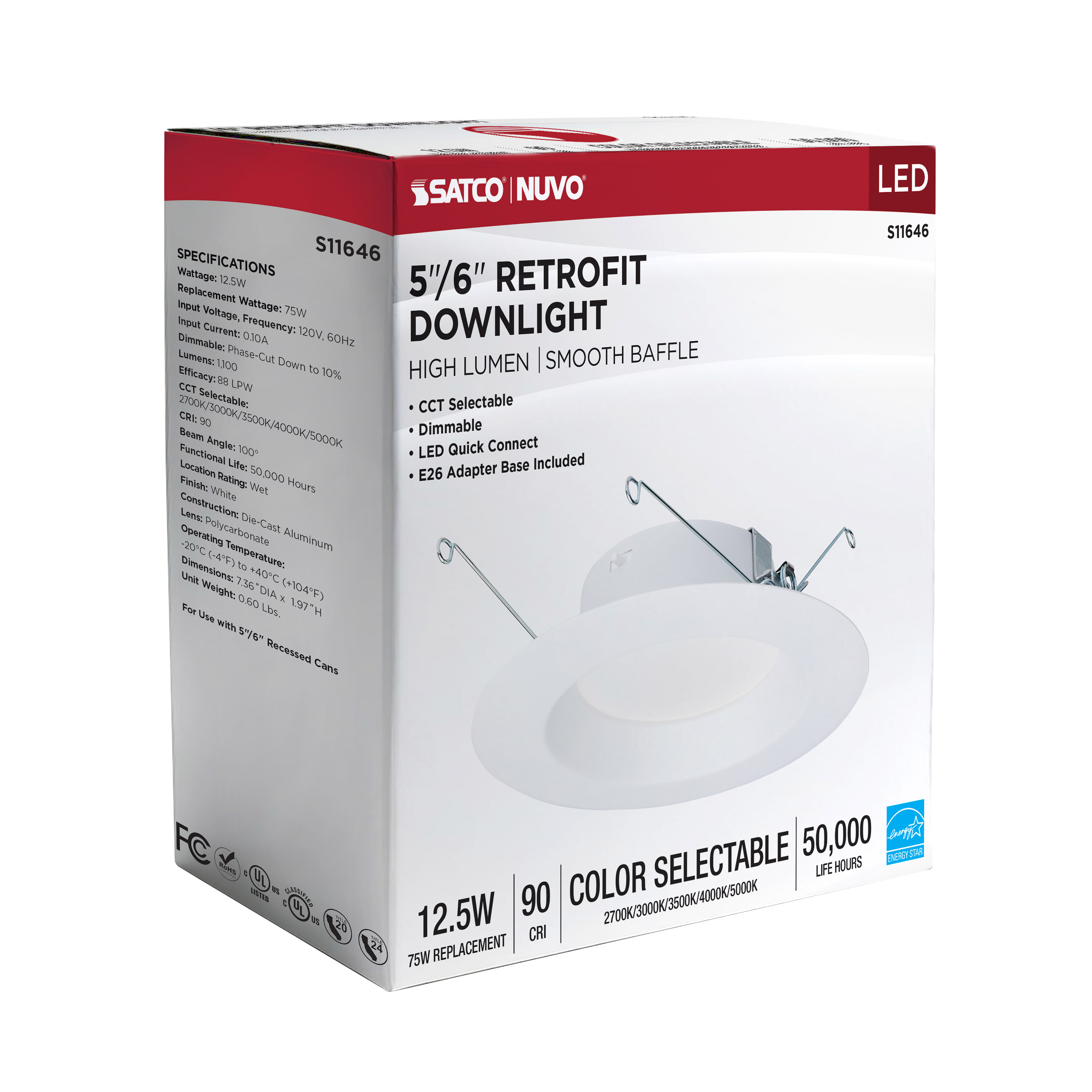

Packaging
UPC045923116469
Case Cube1.5138
Case Height8.86
Case Length25.0
Case Quantity12
Case UPC10045923116466
Case Weight10.69
Case Width11.81
EA Cube0.104
EA Height8.07
EA Length8.07
EA Quantity1
EA Weight0.81
EA Width2.76
Inner Cube0.0
Pack TypeBox
Web Height1.97
Web Width7.36
