» S11665

S11665 15T8/LED/48-5CCT/DIM/LF/BP
NEW

S11665

15T8/LED/48-5CCT/DIM/LF/BP

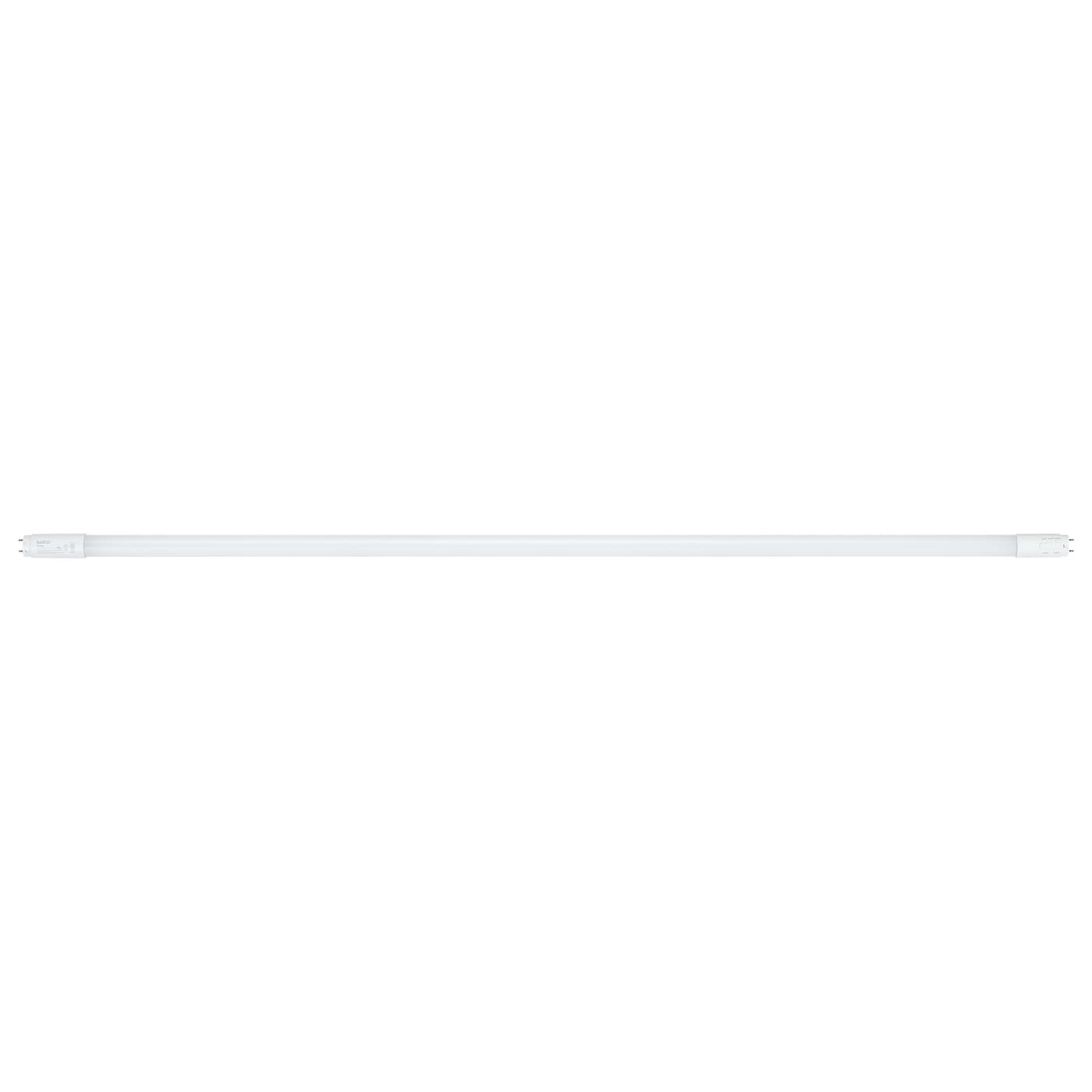

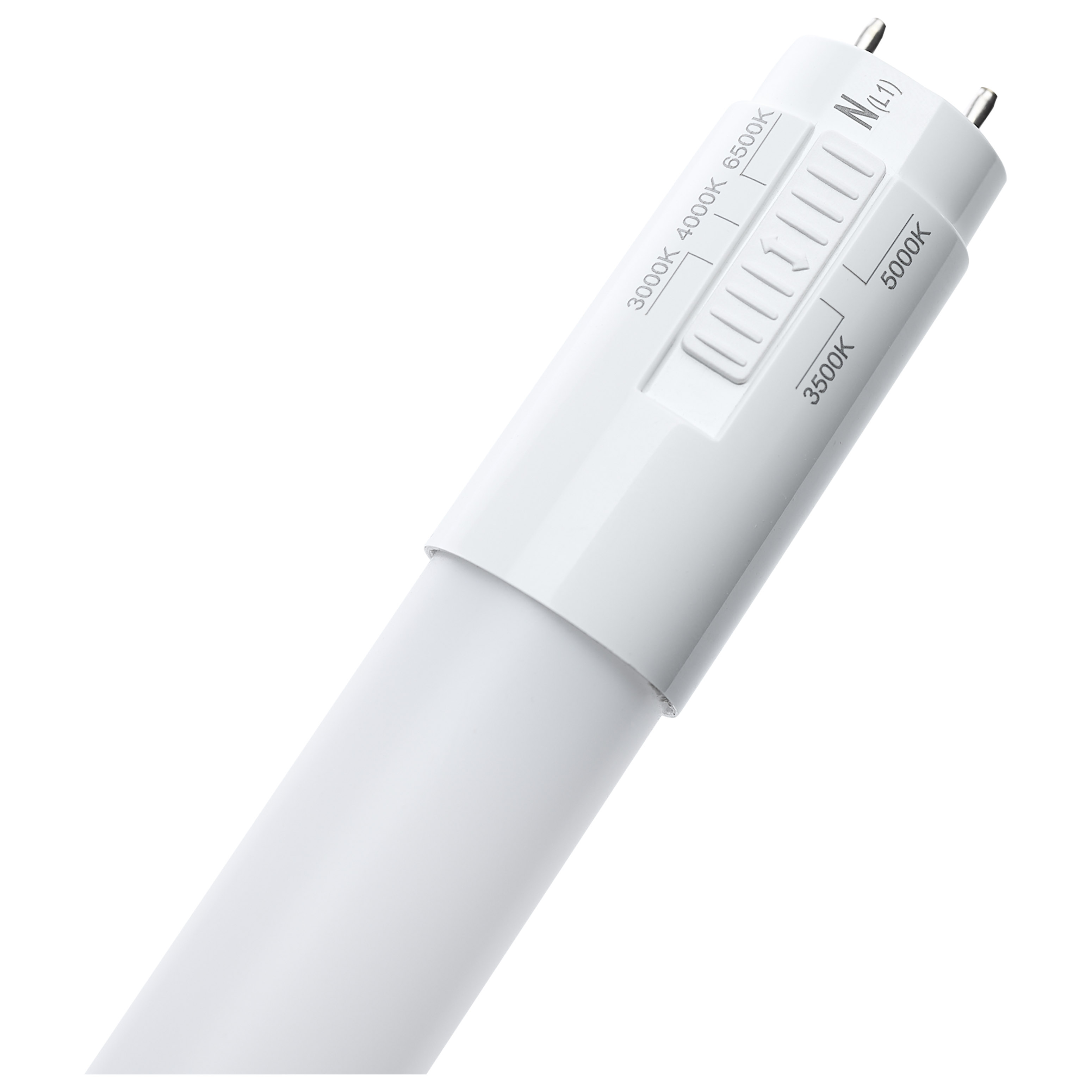

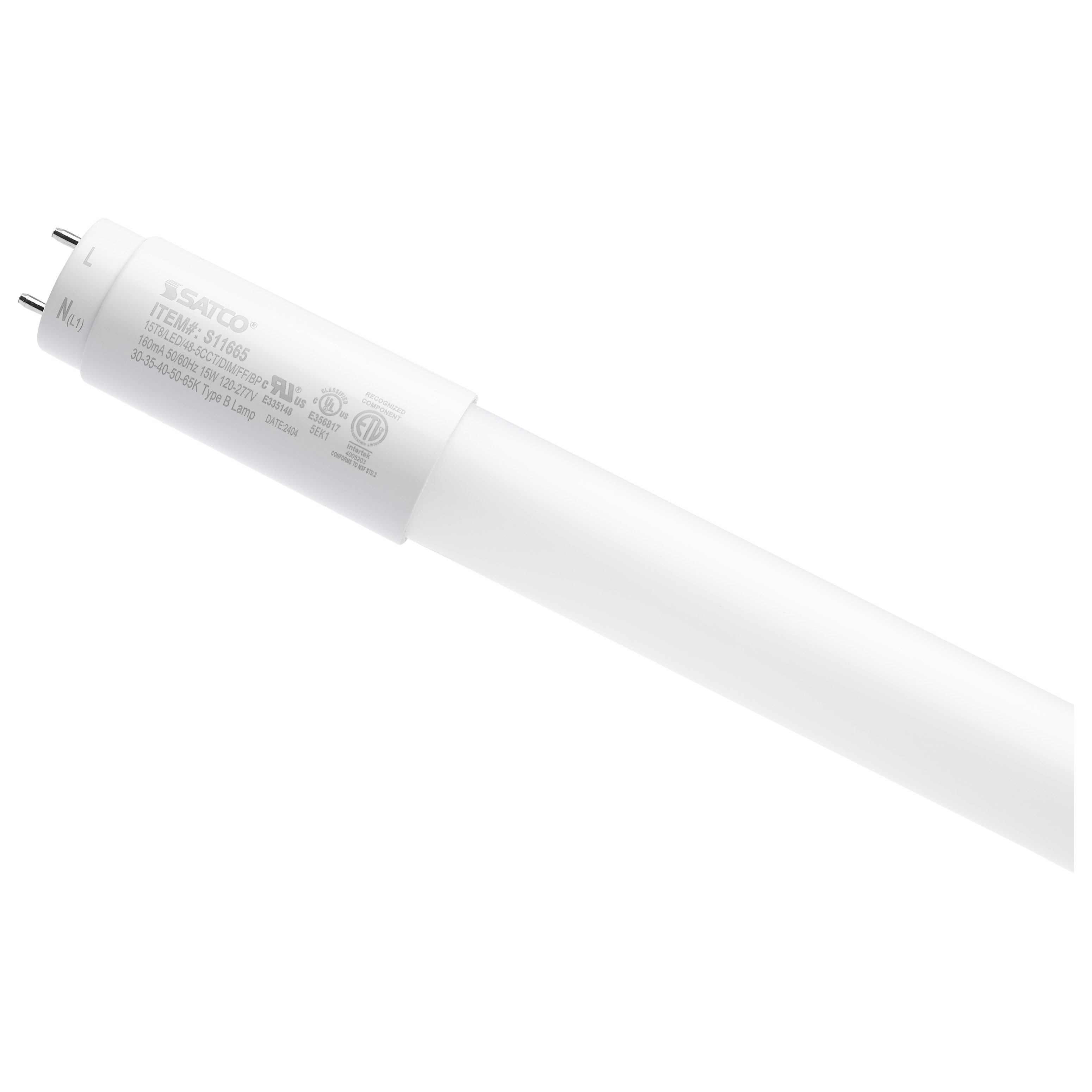

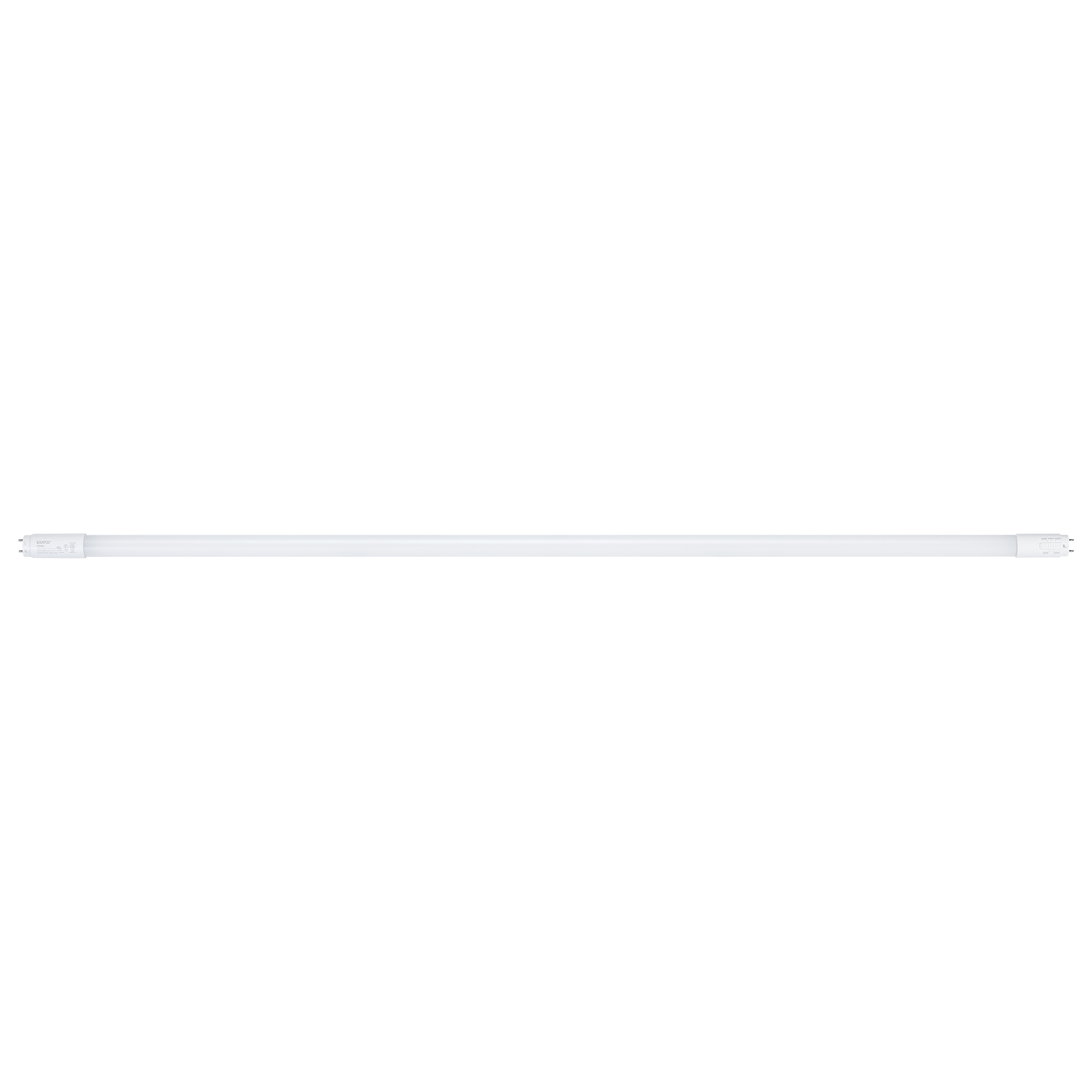

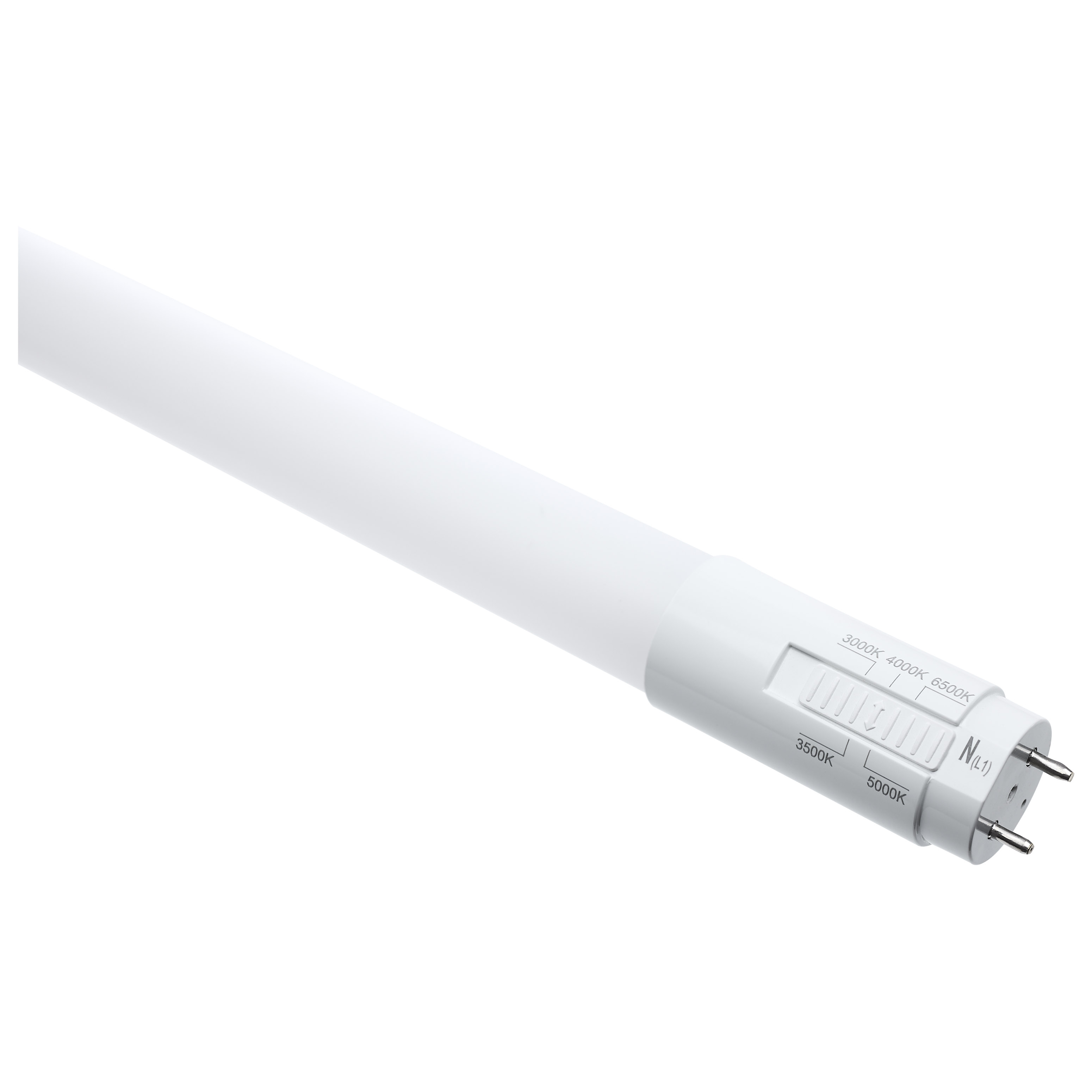

15 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish


Lights

S11665

15T8/LED/48-5CCT/DIM/LF/BP

15 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish

Specifications

General
StatusActive
Watts15W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrost
CCT (Kelvin)3000K/3500K/4000K/5000K/6500K
TemperatureSoft White to Daylight
CRI83
Lumens2000L/2100L/2200L/2200L/2100L
Beam Spread160
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts15W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3000K/3500K/4000K/5000K/6500K
TemperatureSoft White to Daylight
CRI83
Lumens2000L/2100L/2200L/2200L/2100L
Beam Spread160
DimmableYes-Dimmable
Dimming TypeTriac
Dimming Note120V only
Power Factor0.9
Hours Rated50000
THD<20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL47.2
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Weight (lb.)0.42
Additional Information
Shatter-Proof TypePET Coated
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Certified; cULus - Classified; cRUus - Recognized Component
Location RatingDamp
DLC ApprovedYes
DLC IDS-PM9DJP
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
Flicker FreeYes
Packaging
Each UPC045923116650
Each Quantity1
Each Length (in.)0.00
Each Width (in.)0.00
Each Height (in.)0.00
Each Weight (lb.)0.47
Each Cube (CuFt.)0.0000
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923116657
Case Quantity25
Case Length (in.)50.20
Case Width (in.)6.50
Case Height (in.)6.69
Case Weight (lb.)16.76
Case Cube (CuFt.)1.2633
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Lutron MA-PRO Visit
Dimmer Lutron RRD-PRO Visit
Dimmer Lutron HQRD-PRO Visit
Dimmer Lutron HQRA-PRO Visit
Dimmer Lutron ST-PRO-N Visit
Dimmer Lutron RRST-PRO-N Visit
Dimmer Lutron HRST-PRO-N Visit
Dimmer Lutron PD-5NE Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Lutron NTRP-250 Visit
Dimmer Lutron SELV-300P Visit
Dimmer Lutron MAELV-600 Visit
Dimmer Acuity WSX-PDT-WH Visit
Dimmer Eaton SUF7 Visit
Dimmer Lutron PHPM-WBX-120 Visit
Dimmer Precision MR42400PLS Visit
×
×

Precautions

No precautions available at this time.

×
