| Company | SATCO |
|---|---|
| Mounting Height | 4.0 |
| Bulb Included | Integrated |
| Dimmable Text | Dual Dimming: Phase-Cut and 0-10V |
| Material | Aluminum |

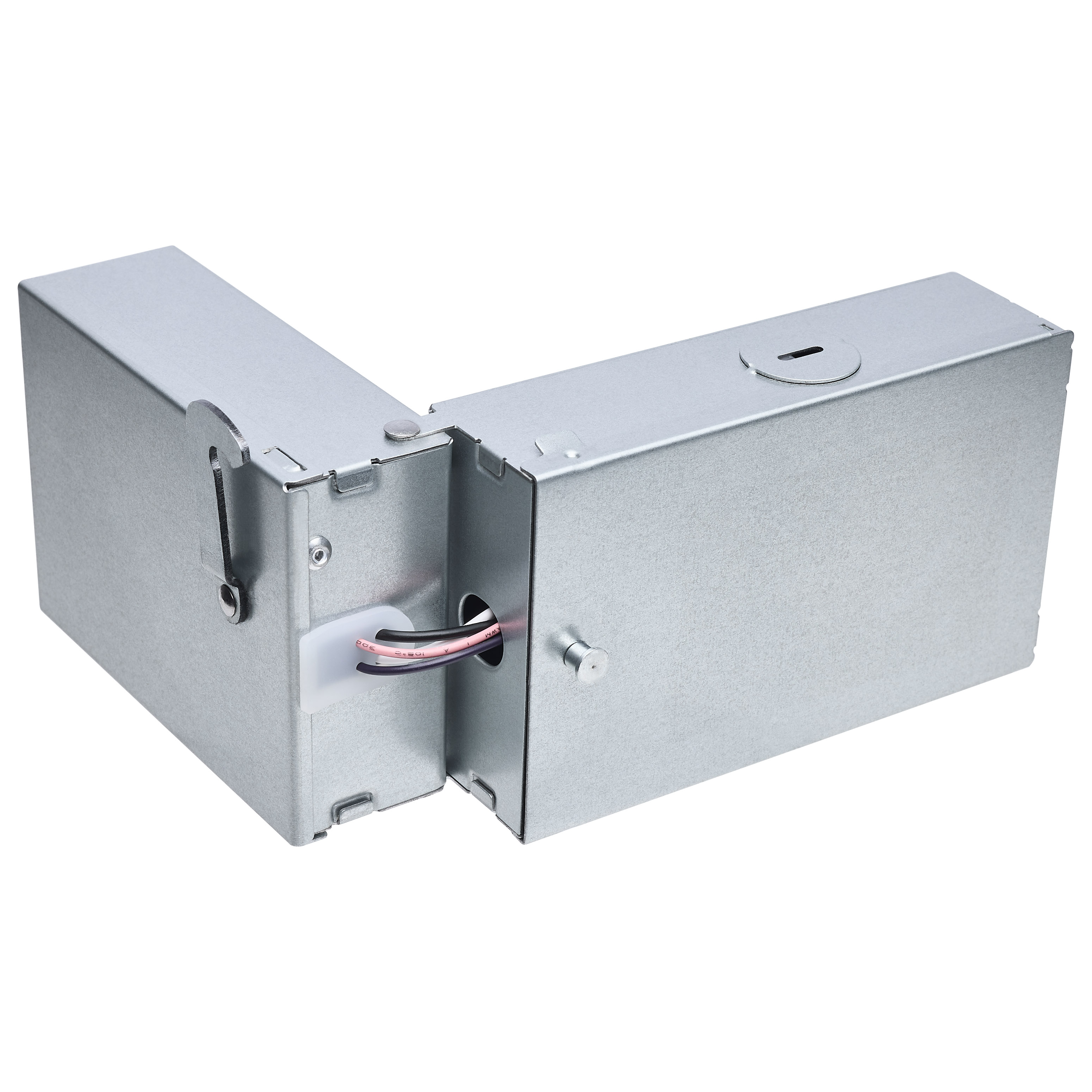

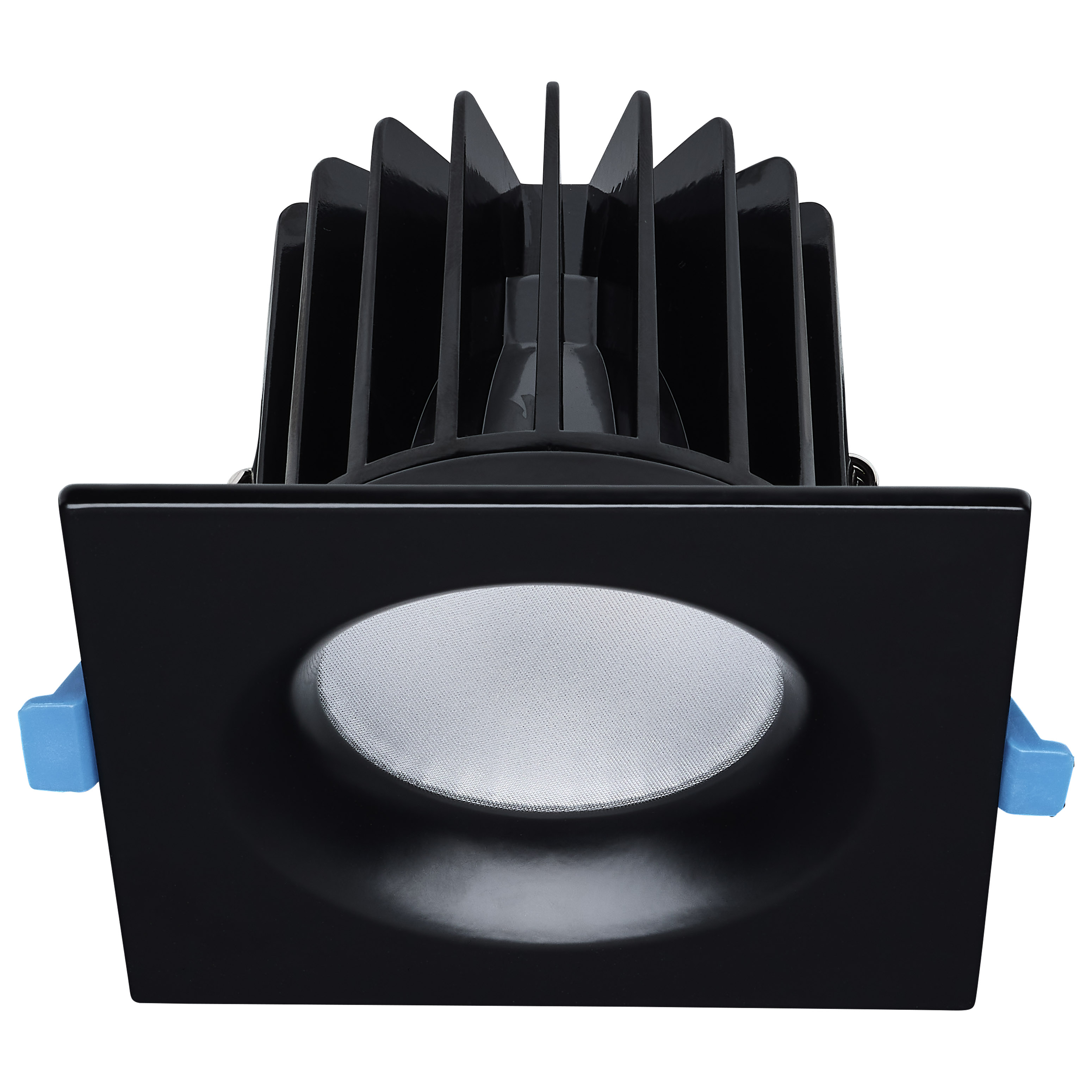

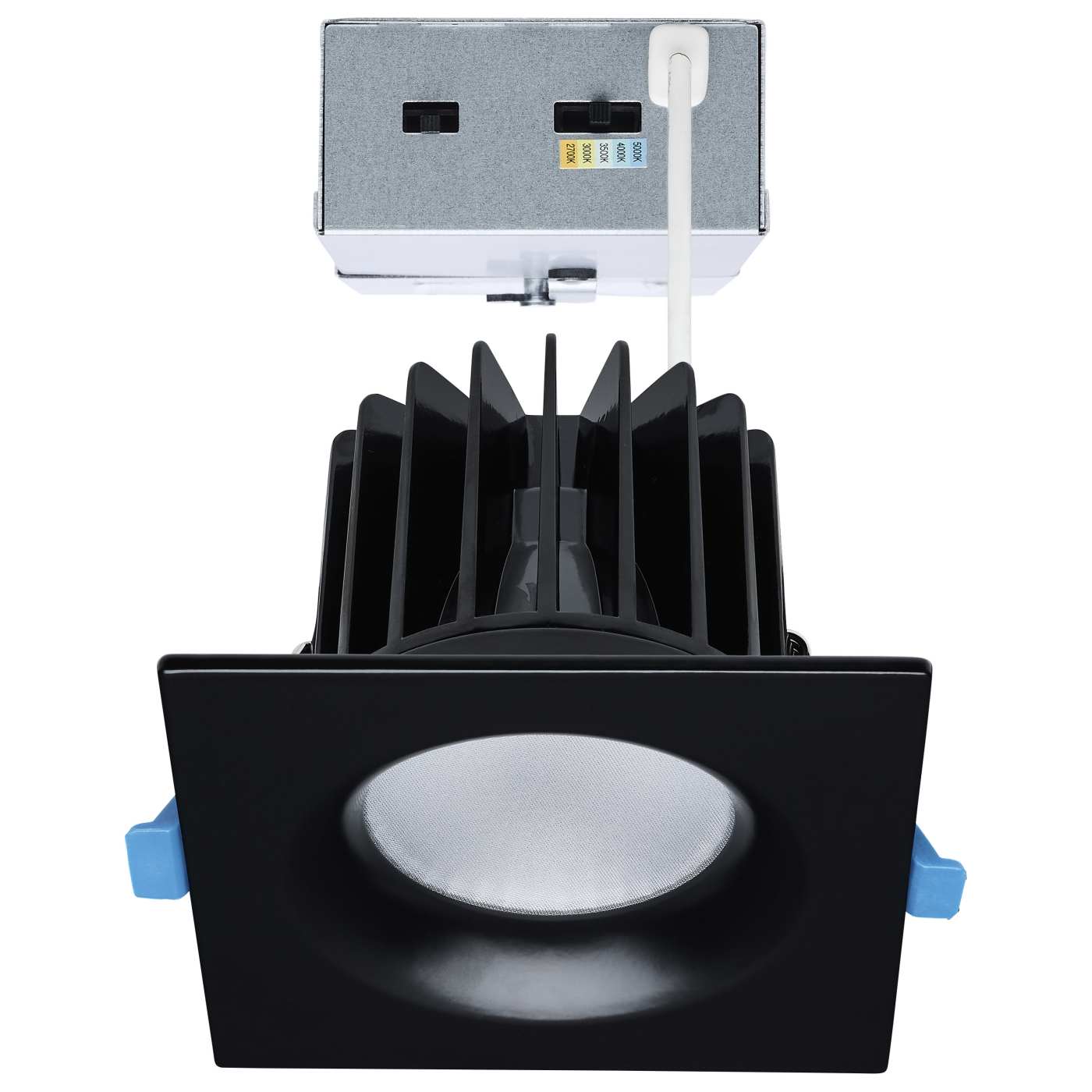

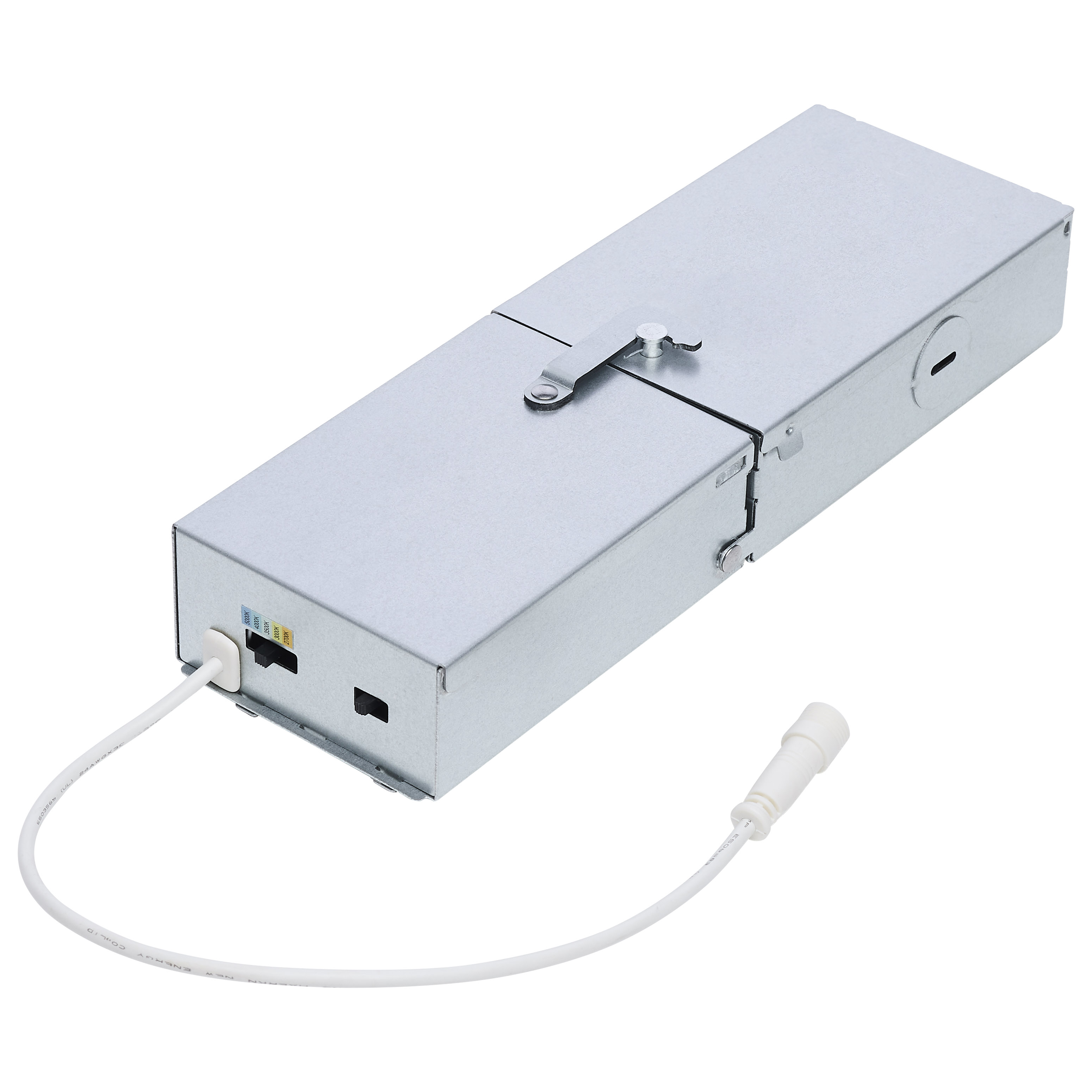

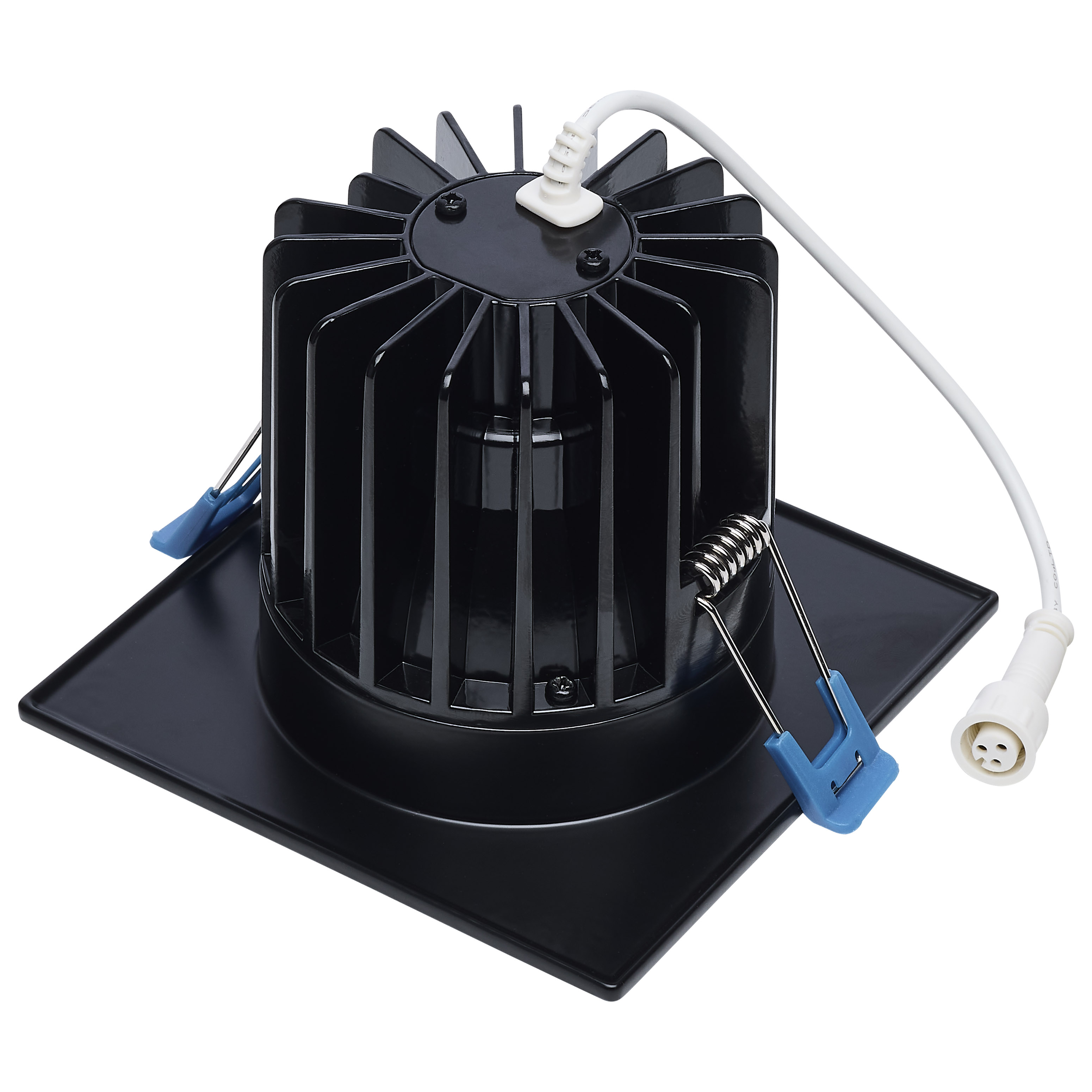

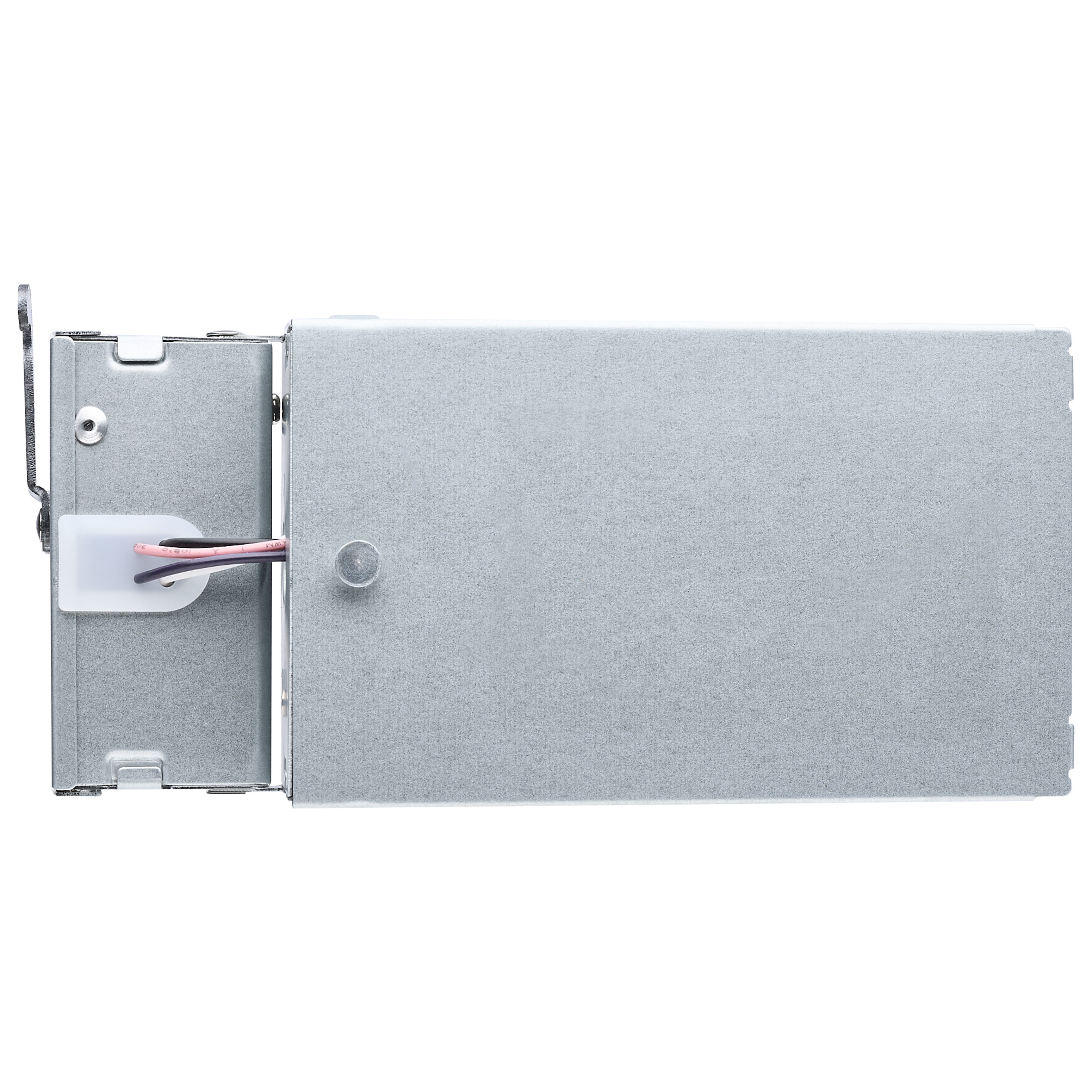

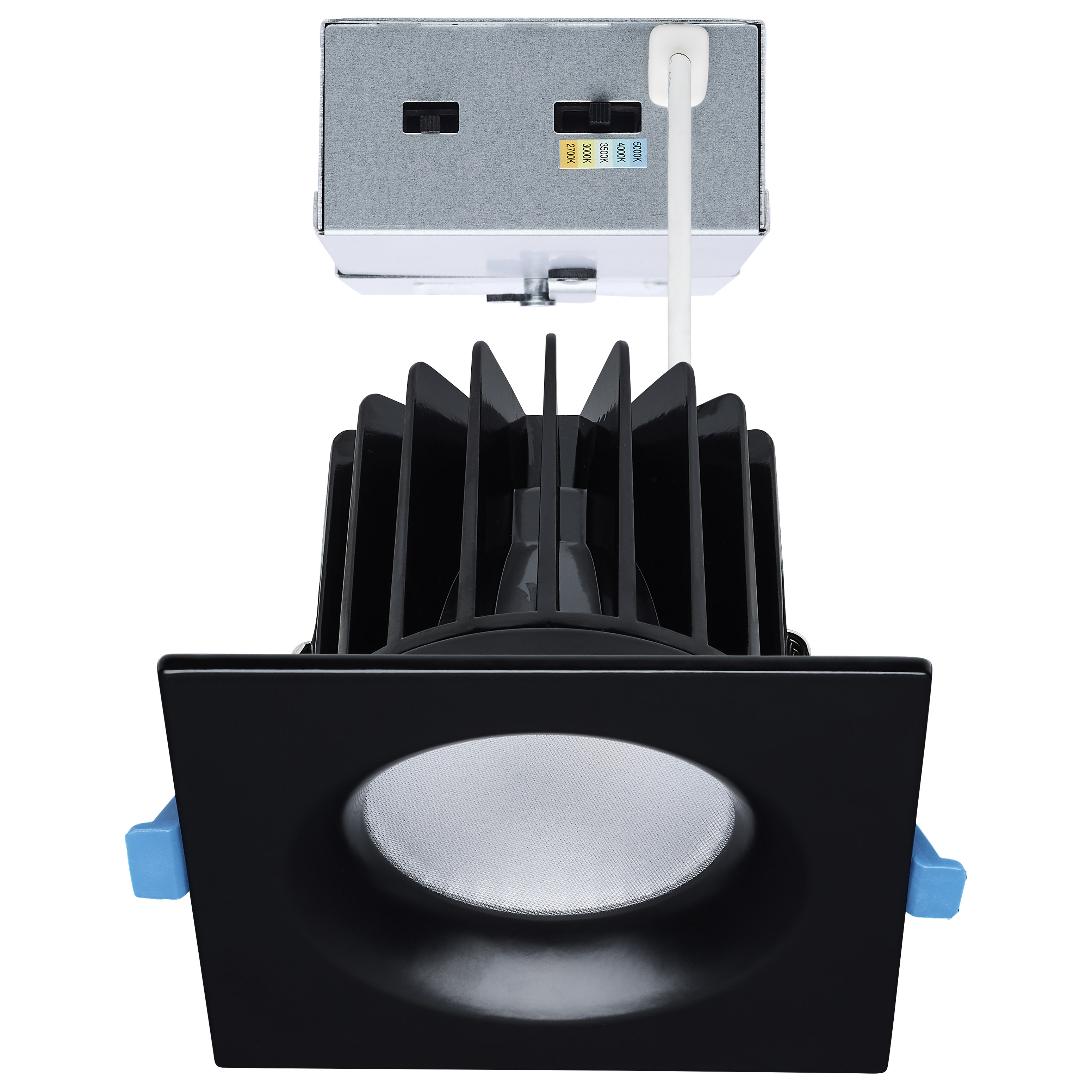

| Fixture Type | Remote Driver LED Downlight |
| Product Notes | Default wattage setting: 20W |
| Status | Active |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | <20% |

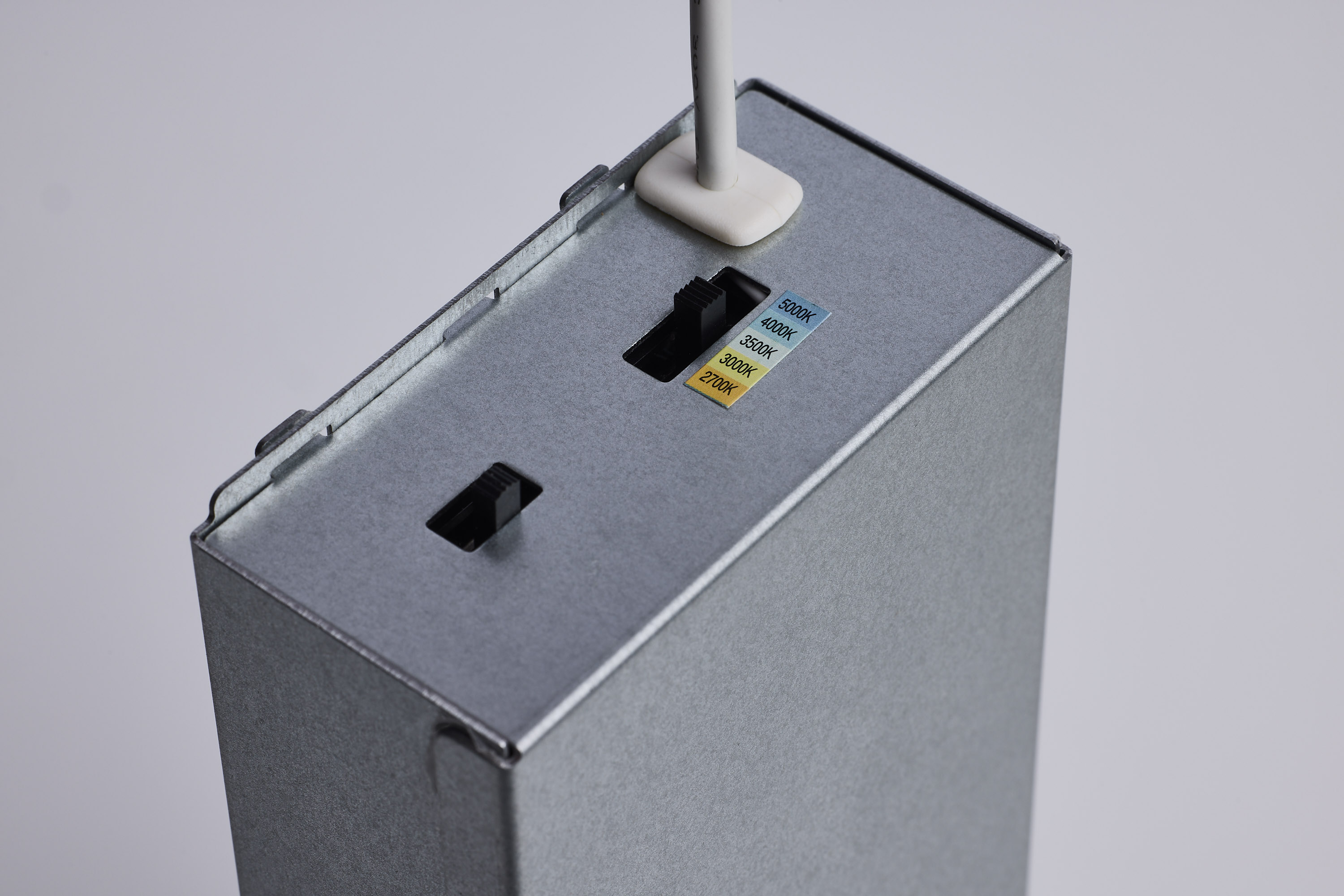

| CCT Selectable | True |
| Wattage Selectable | True |
| Can Size | 3 in. |
| Finish Family | Black |
| Amps | 0.133-0.058/0.167-0.072/0.200-0.087A |
| Mounting Diameter | 3.62 |
| Has Camera | False |
| IOT Enabled | False |

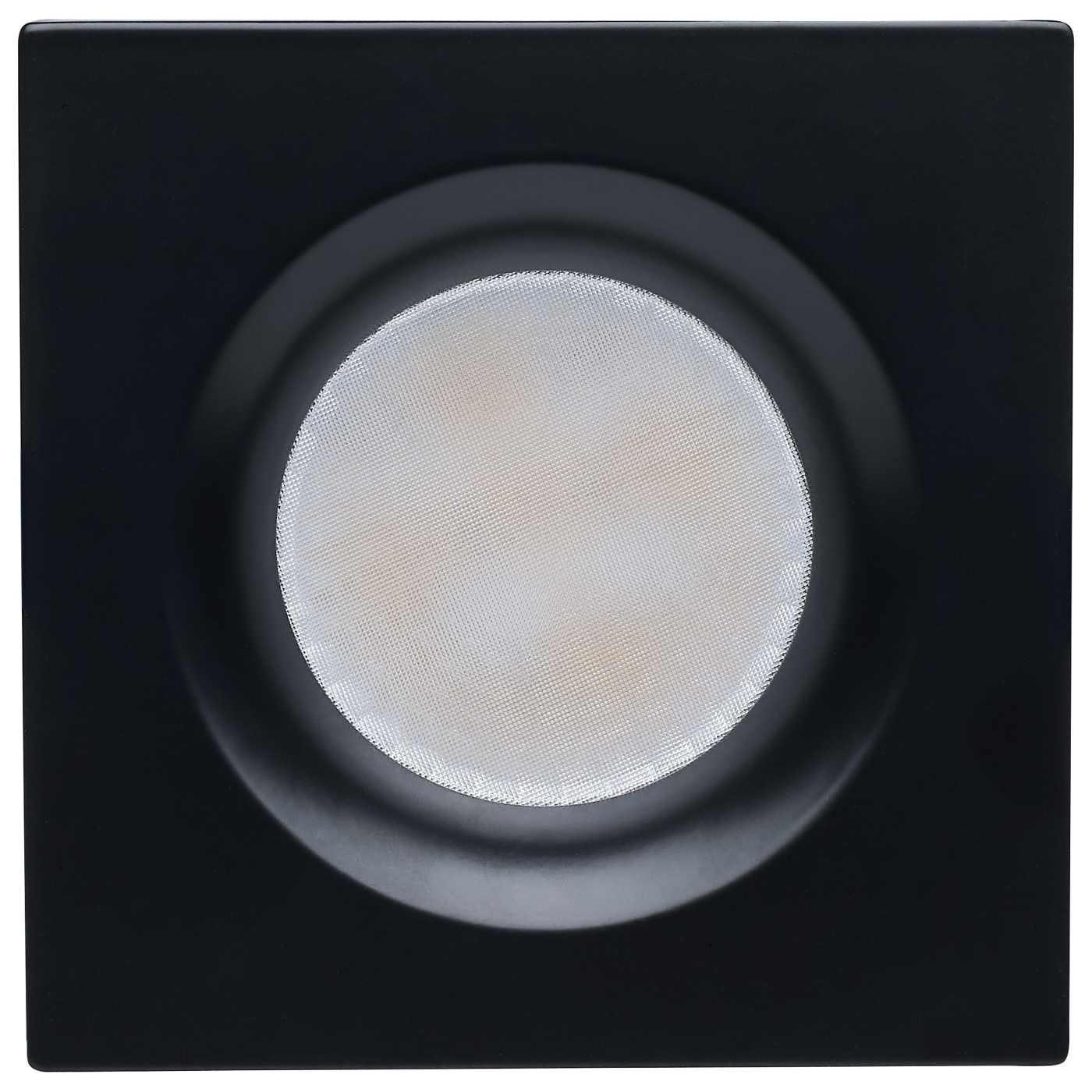

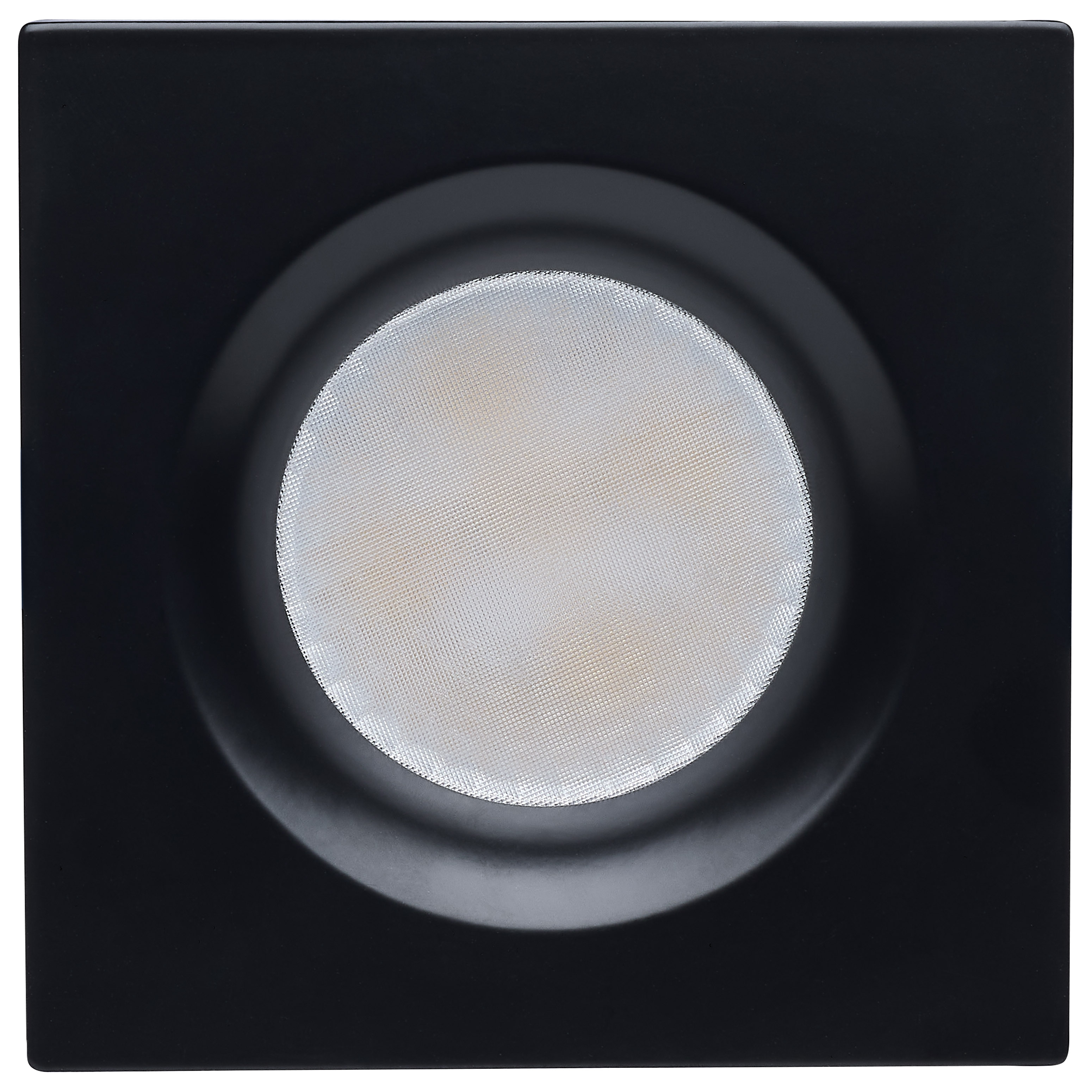

| Lens Finish | Clear Prismatic |
| Lens Material | Polycarbonate (PC) |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 40 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Dual Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |

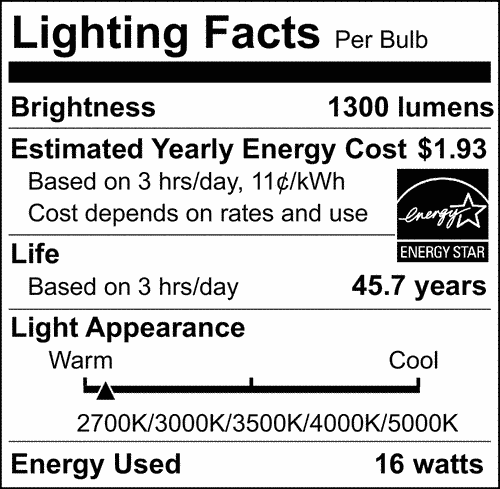

| Lumens | 1300L/1600L/2000L |
| Volts | 120V-277V |
| Watts | 16W/20W/24W |
| Lamp Base | Integrated |
|---|---|
| Finish | BLACK |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|
| Air Tight | True |
|---|---|
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Energy Star ID | 3999677 |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Wet |
| NEC Compliance | Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5) |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| Energy Star Certified | Yes |
| Title 20 | Exempt |
| T24 Compliant | True |
| UPC | 045923116742 |
|---|---|
| Case Cube | 2.782 |
| Case Height | 13.98 |
| Case Length | 20.79 |
| Case Quantity | 12 |
| Case UPC | 10045923116749 |
| Case Weight | 32.74 |
| Case Width | 16.54 |
| EA Cube | 0.2064 |
| EA Height | 6.69 |
| EA Length | 10.04 |
| EA Quantity | 1 |
| EA Weight | 2.66 |
| EA Width | 5.31 |
| Inner Cube | 0.0 |
| Pack Type | Box |

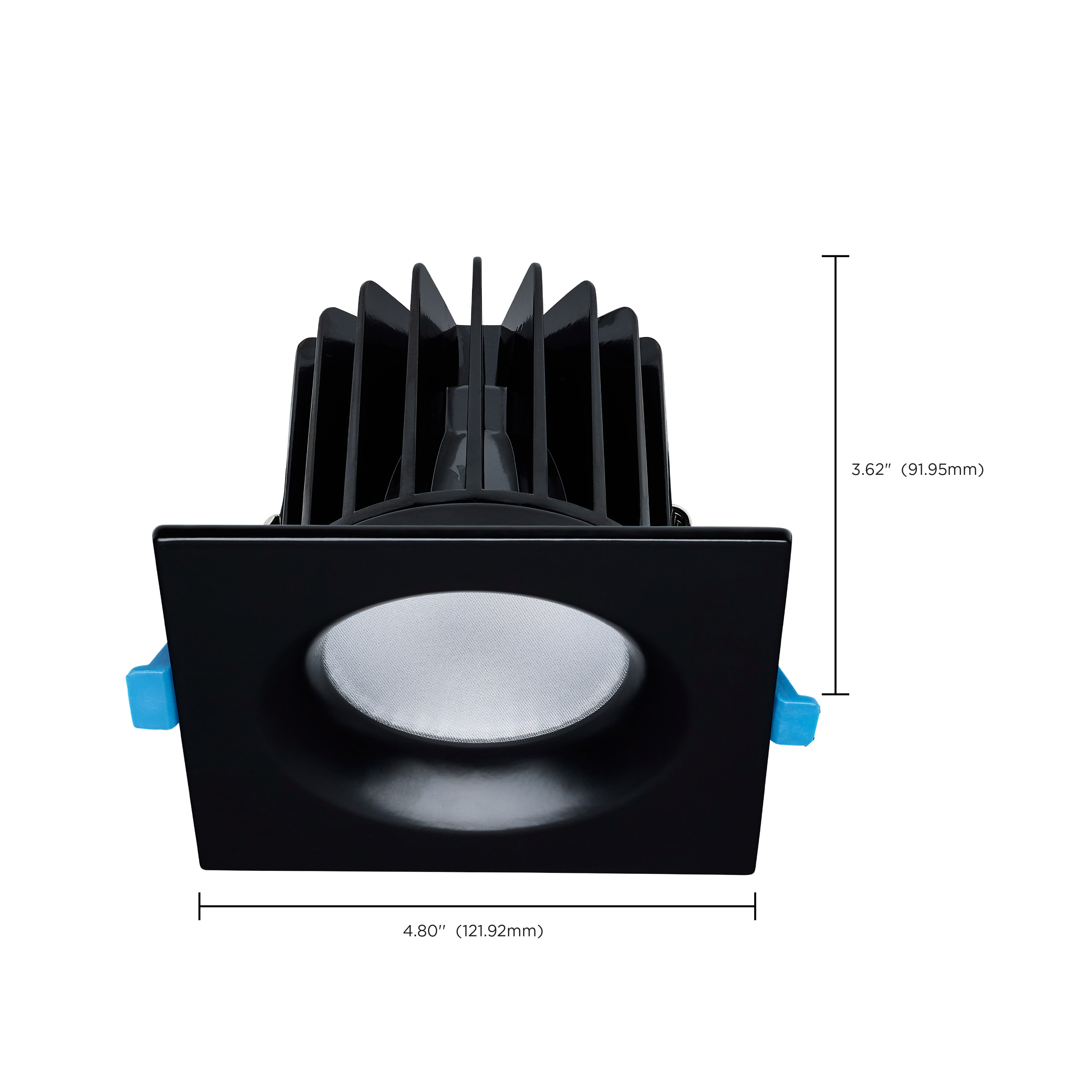

| Web Height | 3.62 |
| Web Length | 4.8 |
| Web Width | 4.8 |
