» S11762

Discontinued – Suggested Replacement: S21762

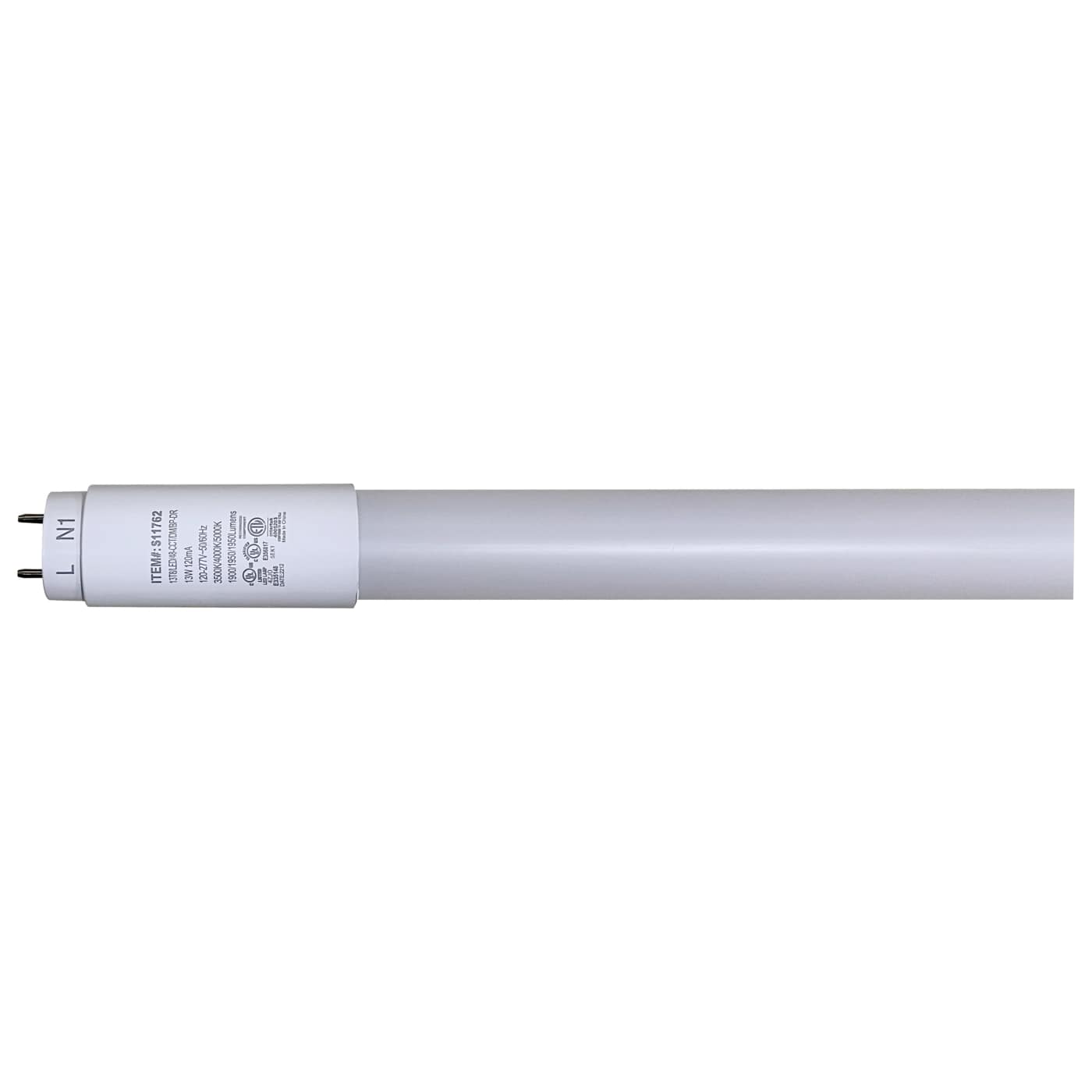

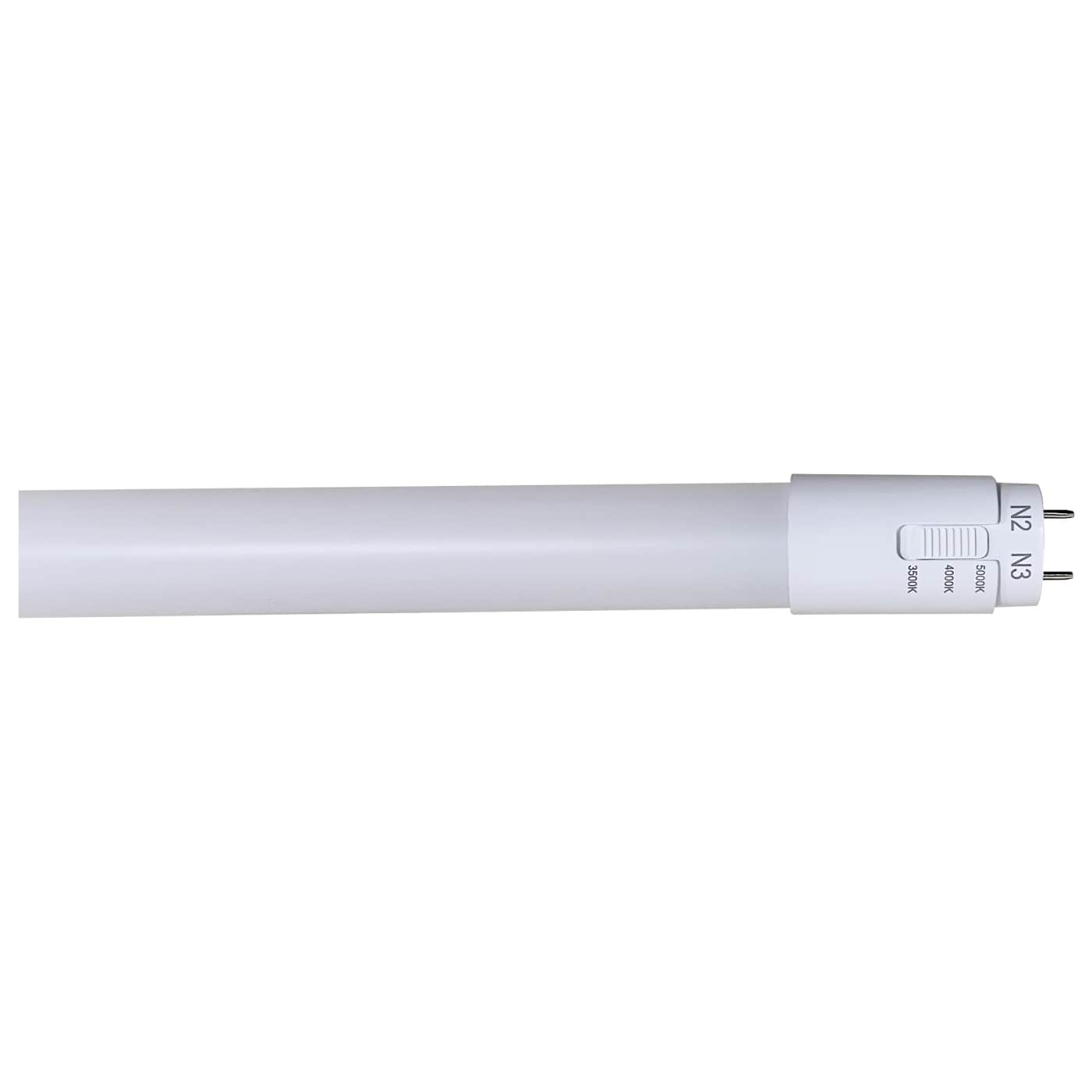

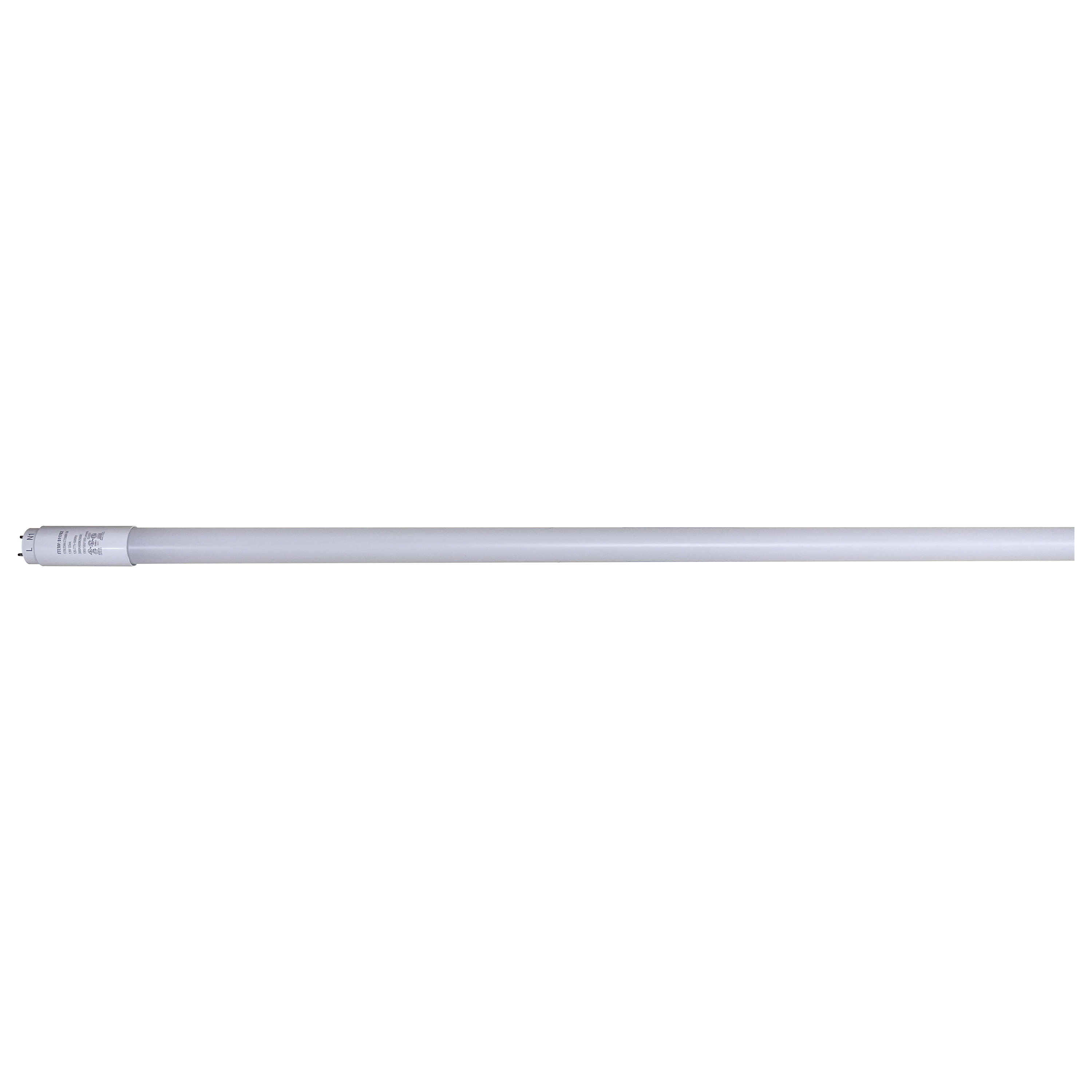

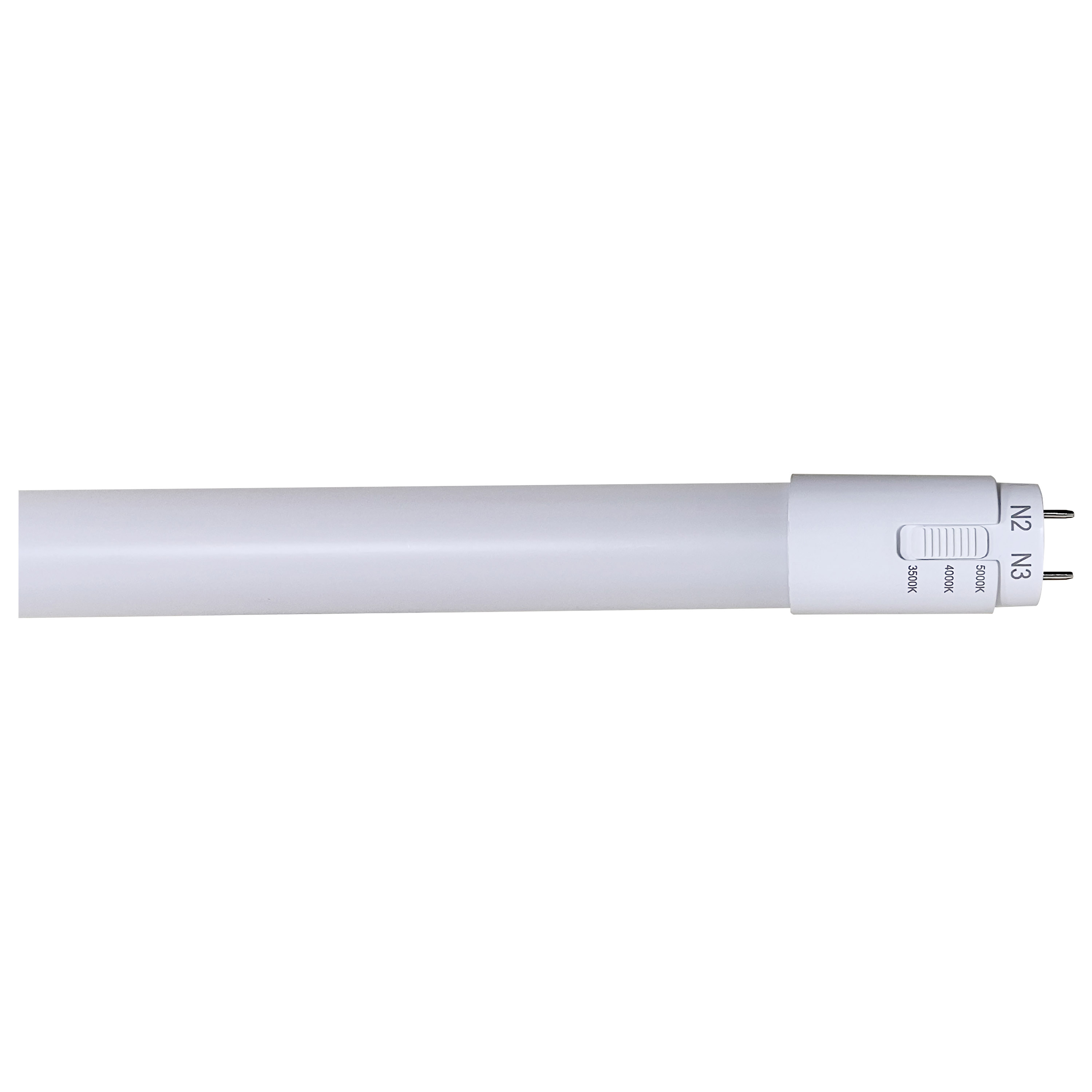

S11762 13T8/LED/48-CCT/DM/BP-DR

S11762

13T8/LED/48-CCT/DM/BP-DR

13 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct Replacement; Single or Double Ended Wiring; Glass with PET coating


Lights

S11762

13T8/LED/48-CCT/DM/BP-DR

13 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct Replacement; Single or Double Ended Wiring; Glass with PET coating

Specifications

General
StatusDiscontinued
SubstituteS21762
Watts13W
Incandescent Equivalent50W
Fluorescent Equivalent28W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishWhite
CCT (Kelvin)3500K/4000K/5000K
TemperatureNeutral White to Natural Light
CRI83
Lumens1900L/1950L/1950L
Beam Spread180
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts13W
Incandescent Equivalent50W
Fluorescent Equivalent28W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)3500K/4000K/5000K
TemperatureNeutral White to Natural Light
CRI83
Lumens1900L/1950L/1950L
Beam Spread180
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL47.78
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishWhite
MaterialGlass / Plastic
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.55
Additional Information
Shatter-Proof TypePET Coated
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-0VNZRQ
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923117626
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.65
Each Cube (CuFt.)0.0278
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923117623
Case Quantity25
Case Length (in.)50.00
Case Width (in.)6.50
Case Height (in.)6.70
Case Weight (lb.)17.20
Case Cube (CuFt.)1.2601
