S11810

14.5WLED/CDL/4/ADJ-CCT/80D

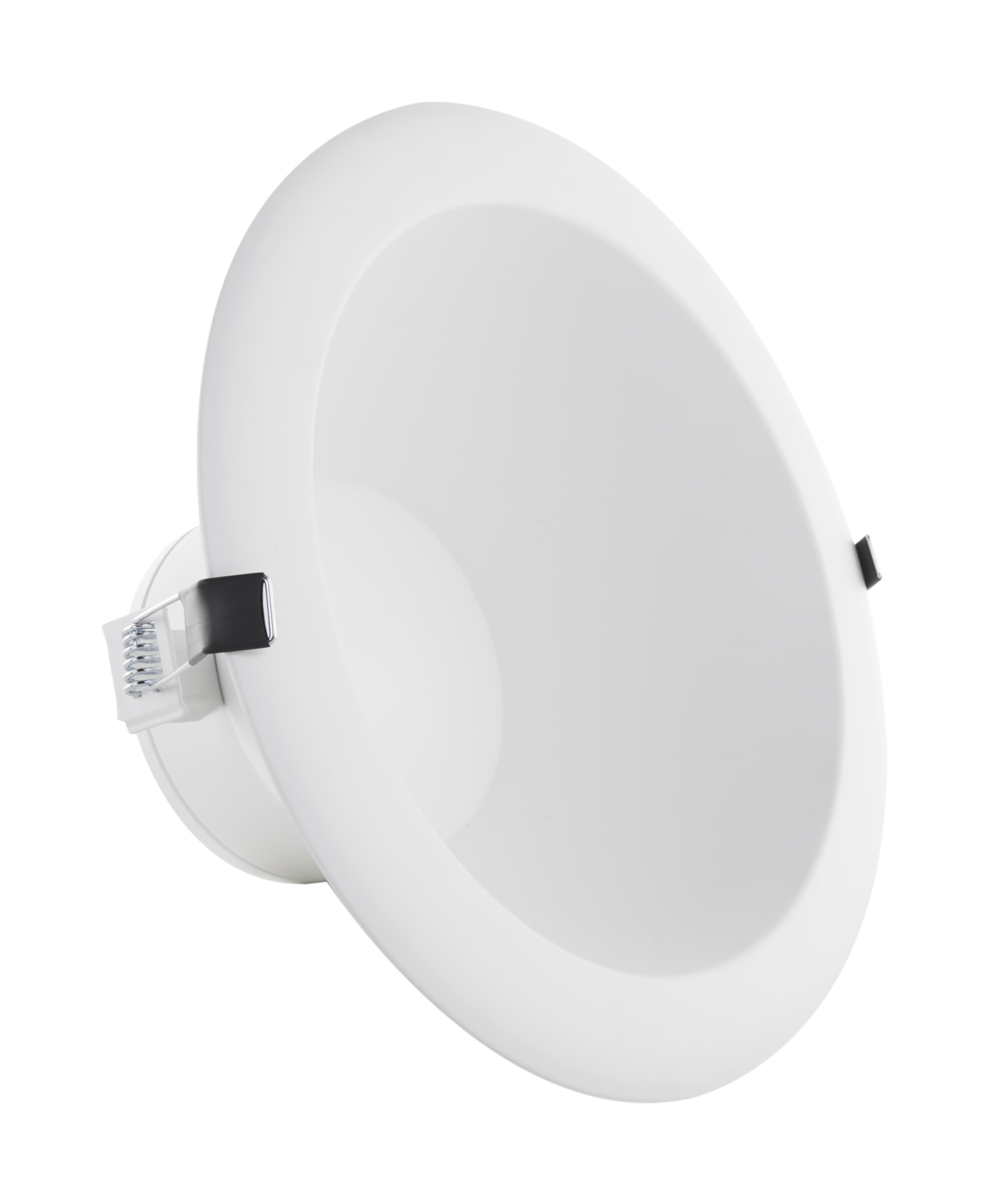

  • 14.5 Watt Commercial LED Downlight
  • 4 in.
  • Color Adjustable
  • Lumen Adjustable
  • 120-277 volt
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11810 SpecificationsS11810 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For S11810
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
14.5 Watt Commercial LED Downlight; 4 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

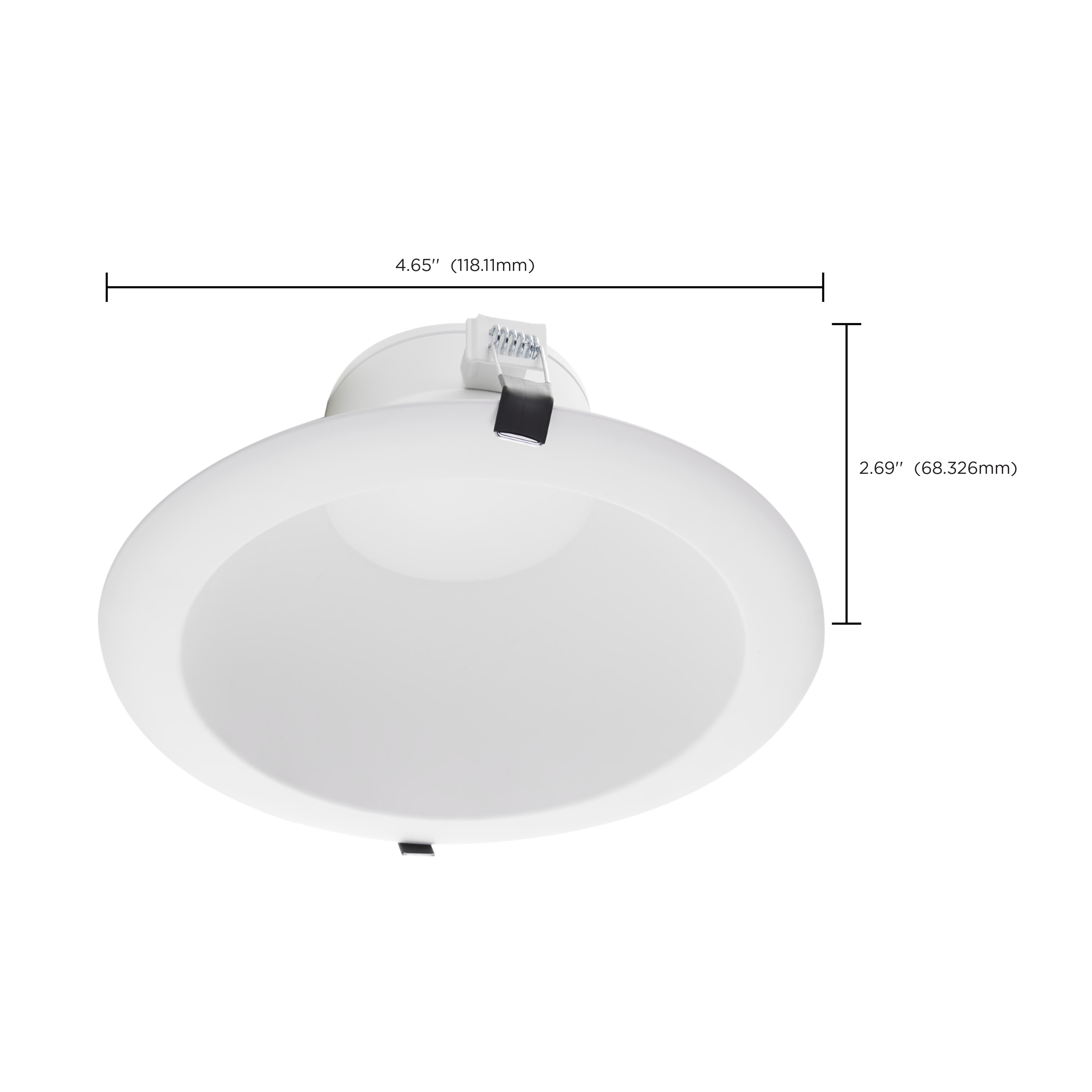

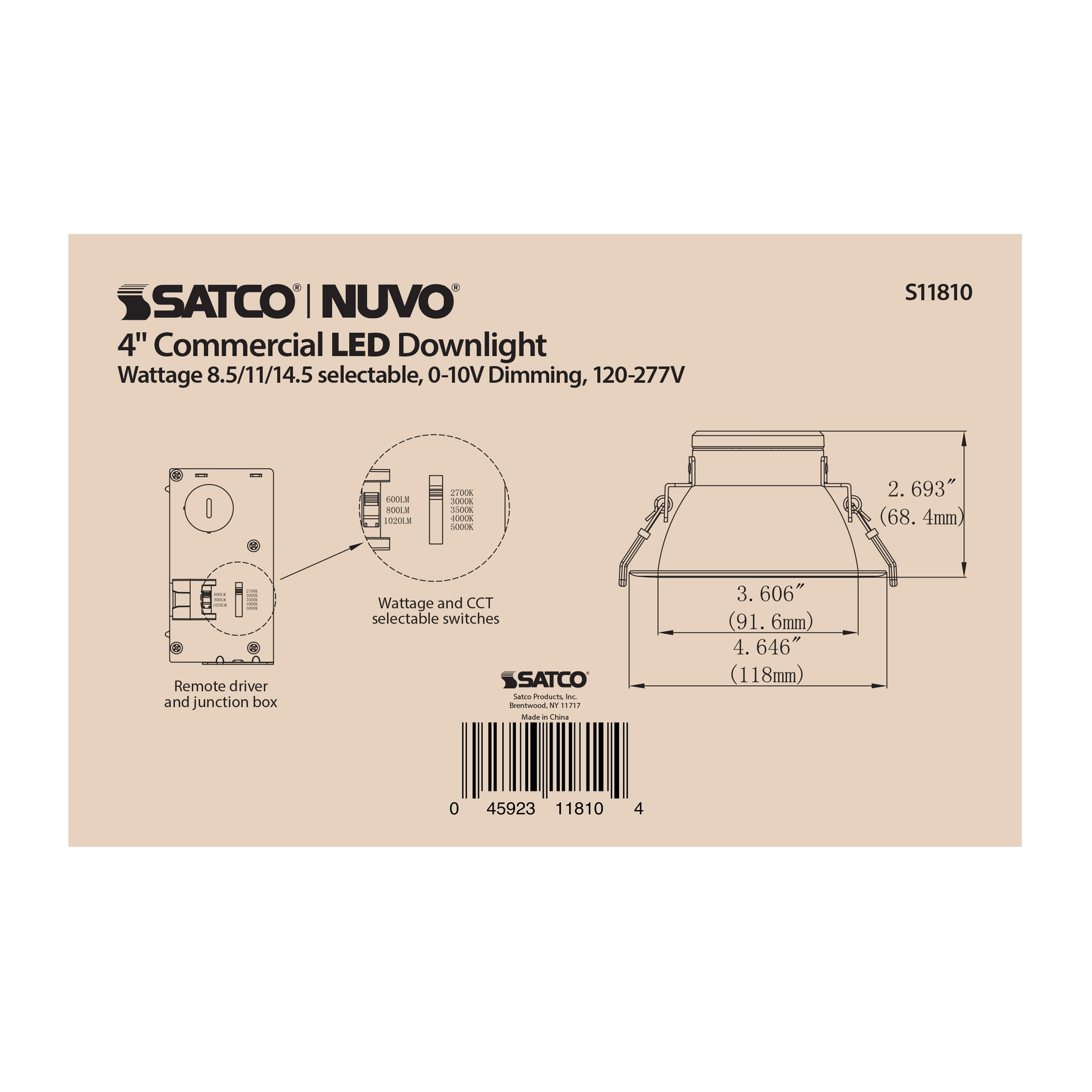

Diameter4.65
Dimmable Text0-10V Dimming Only
MaterialAluminum
Fixture TypeCommercial Downlight Retrofit
Product NotesDefault wattage setting is 14.5W
StatusActive
StyleUtility
CCT SelectableTrue
Wattage SelectableTrue
Can Size4 in.
Finish FamilyWhite
Amps0.071-0.031/0.092-0.040/0.121-0.052A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv1 x 18W CFL
Incandescent Equivalent45W/65W/85W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)80
Color TempWarm to Cool White
CRI80+
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)

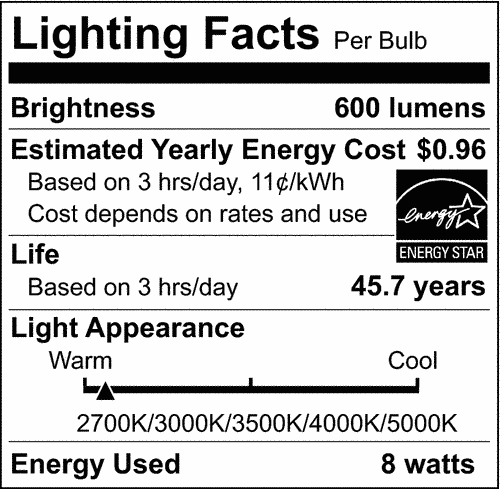

Lumens600L/800L/1020L
Volts120V-277V
Watts8.5W/11W/14.5W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesCan be installed with or without the rough-in plate (80-959)
Documents
Compliance
Air TightFalse
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923118104
Case Cube0.5565
Case Height5.71
Case Length15.55
Case Quantity4
Case UPC10045923118101
Case Weight6.58
Case Width10.83
EA Cube0.109
EA Height4.92
EA Length7.48
EA Quantity1
EA Weight1.45
EA Width5.12
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.69
Web Width4.65
