| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 11.3 |
| Dimmable Text | 0-10V Dimming Only |
| Material | Aluminum |
| Fixture Type | Commercial Downlight Retrofit |
| Product Notes | Default wattage setting is 46W |
| Status | Active |
| Style | Utility |
| CCT Selectable | True |
| Wattage Selectable | True |
| Can Size | 10 in. |
| Finish Family | White |
| Amps | 0.275-0.119/0.333-0.144/0.383-0.166A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Power Factor | 0.98 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 2 x 26W CFL |
| Incandescent Equivalent | 150W/200W/250W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 80 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 2500L/3000L/3500L |
| Volts | 120V-277V |
| Watts | 33W/40W/46W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Can be installed with or without the rough-in plate (80-959) |
| Air Tight | False |
|---|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923118135 |
|---|---|
| Case Cube | 2.2237 |
| Case Height | 12.8 |
| Case Length | 24.21 |
| Case Quantity | 4 |
| Case UPC | 10045923118132 |
| Case Weight | 16.44 |
| Case Width | 12.4 |
| EA Cube | 0.477 |
| EA Height | 5.91 |
| EA Length | 11.81 |
| EA Quantity | 1 |
| EA Weight | 3.59 |
| EA Width | 11.81 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

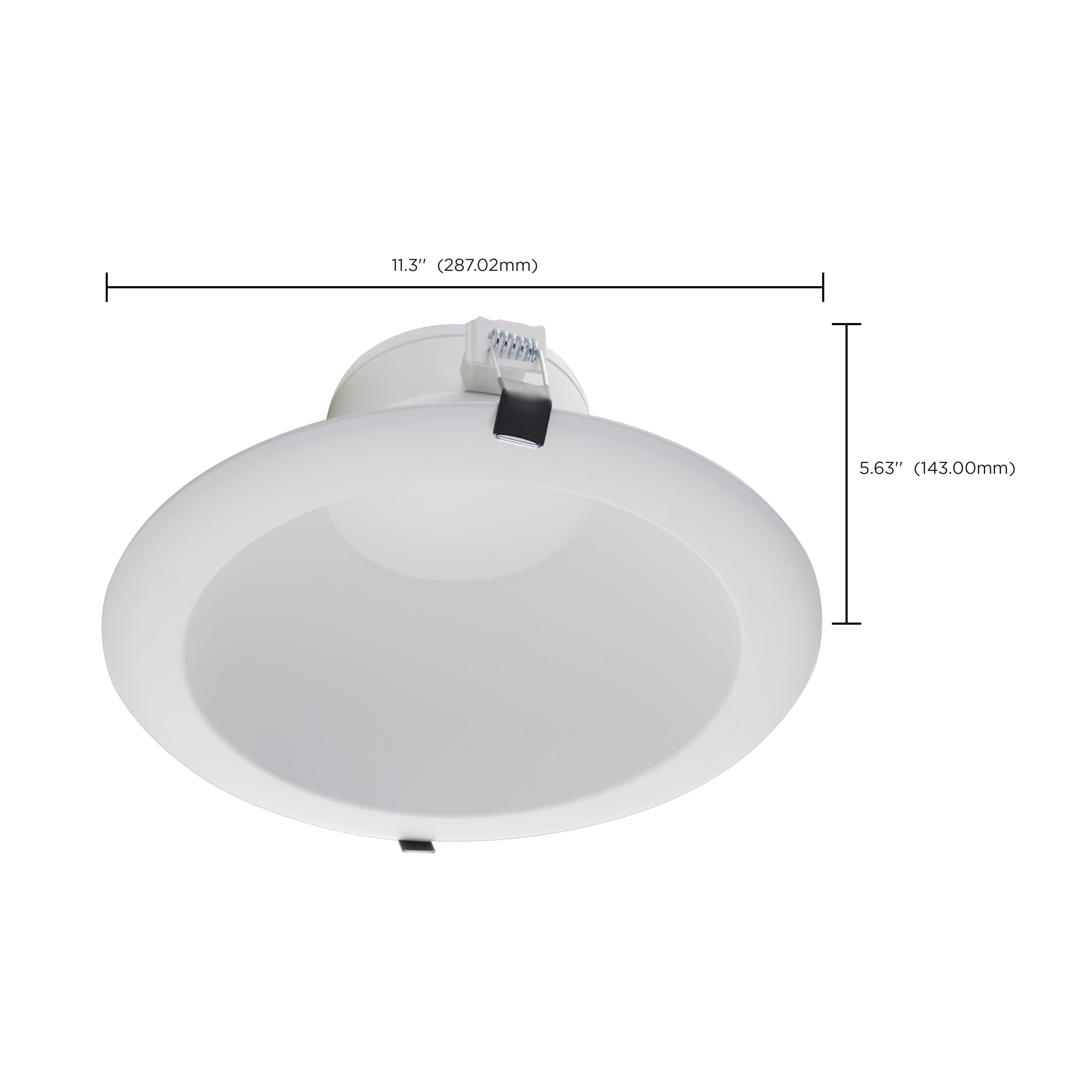

| Web Height | 5.63 |
| Web Width | 11.3 |
