| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |

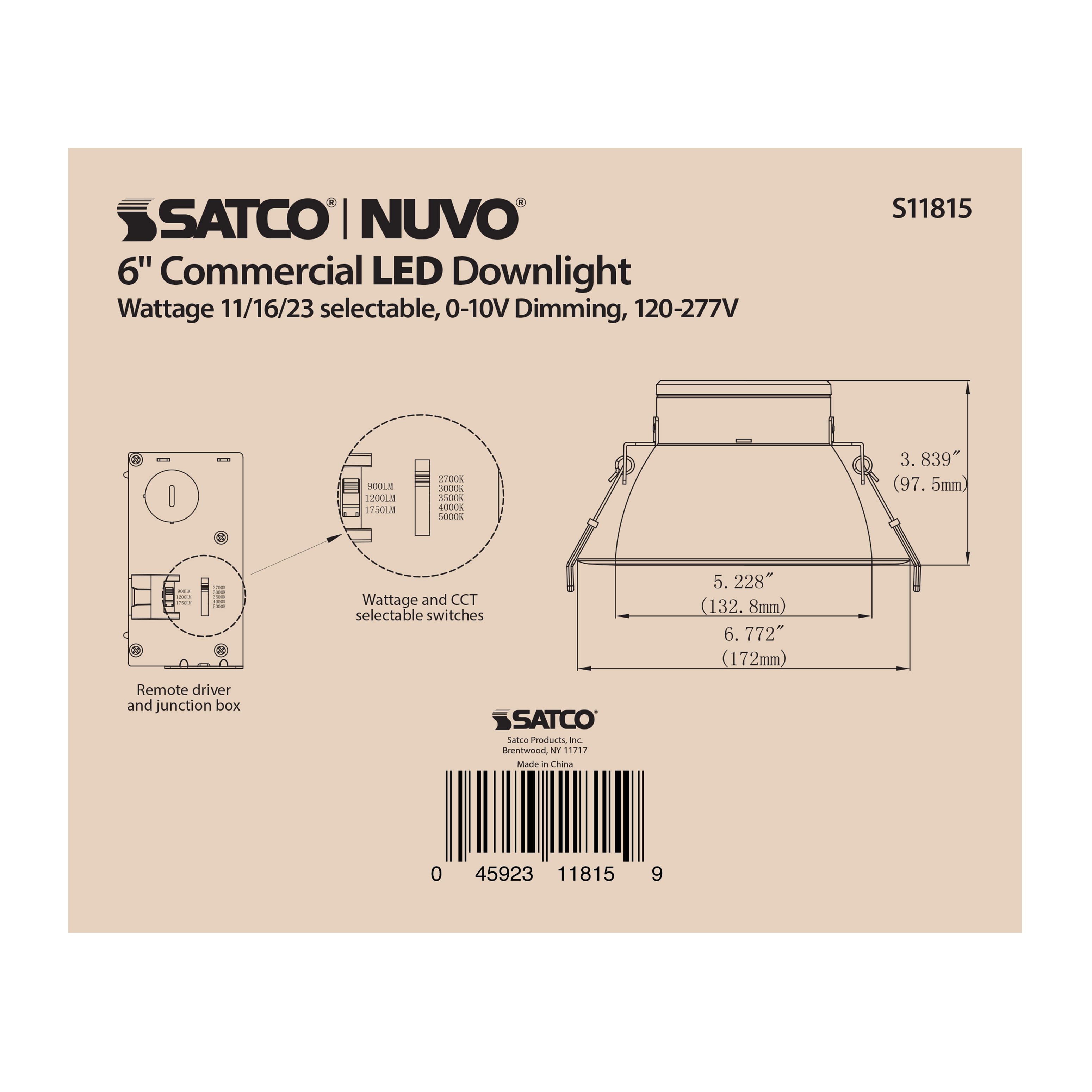

| Diameter | 6.77 |
| Dimmable Text | 0-10V Dimming Only |
| Material | Aluminum |

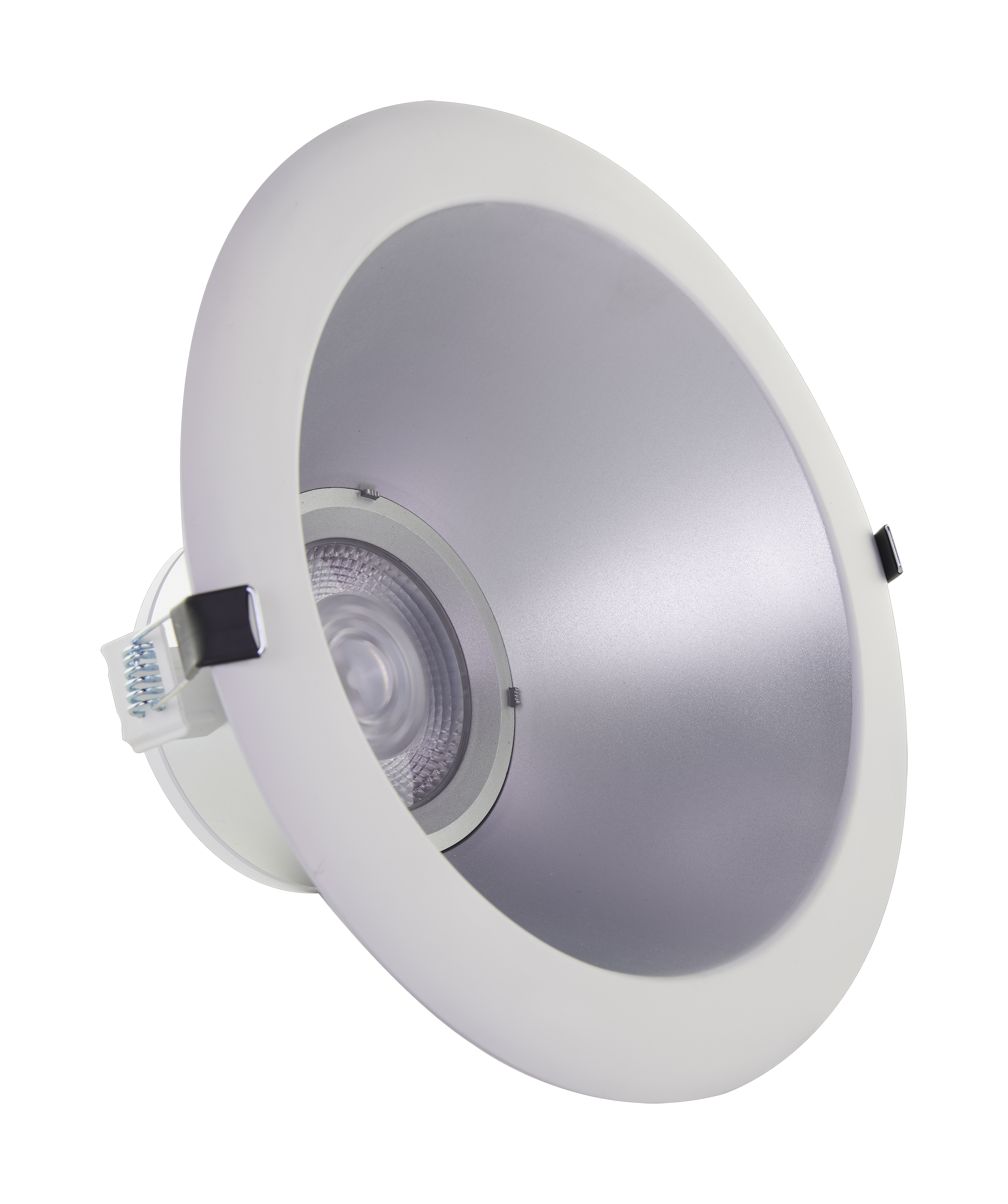

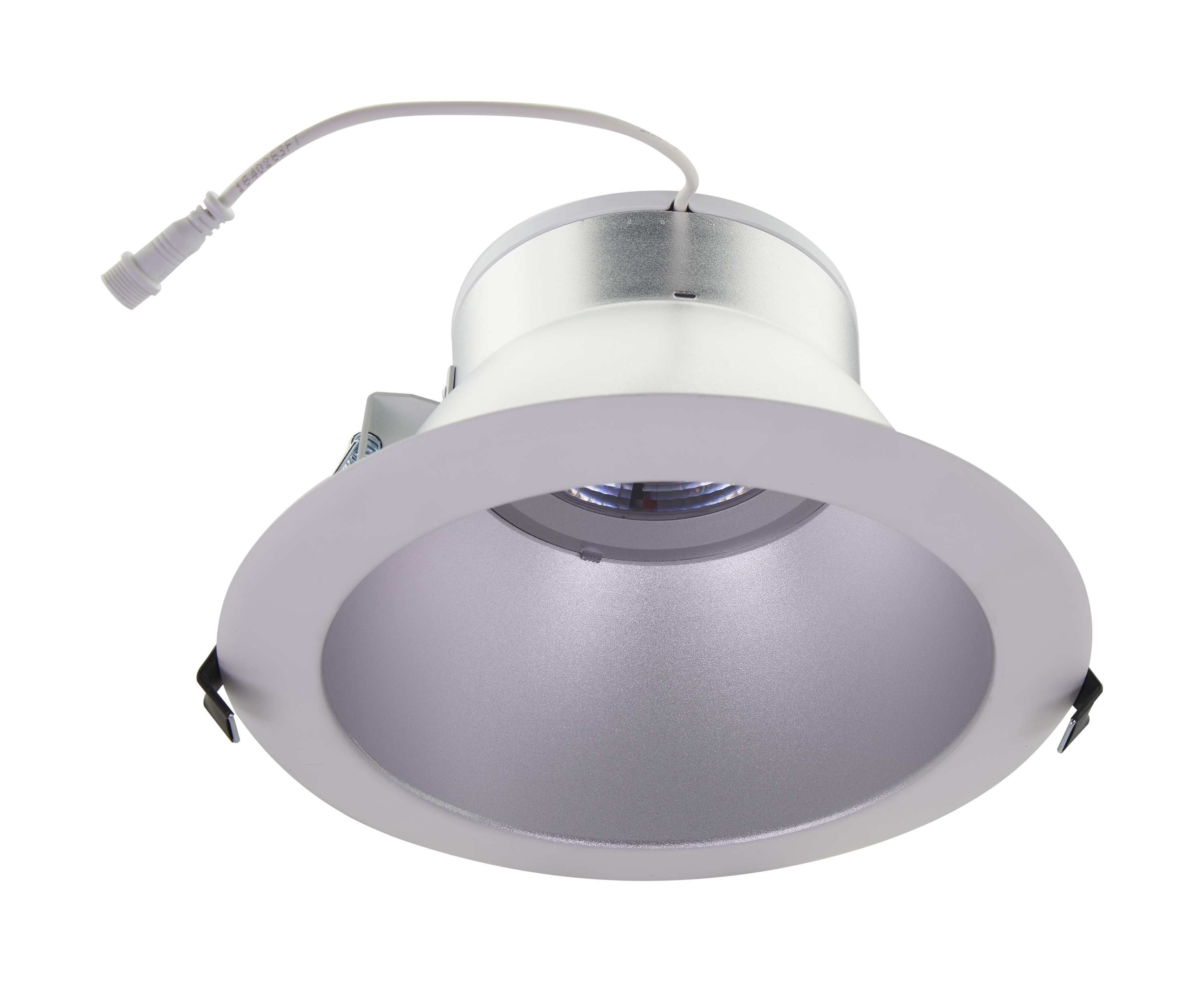

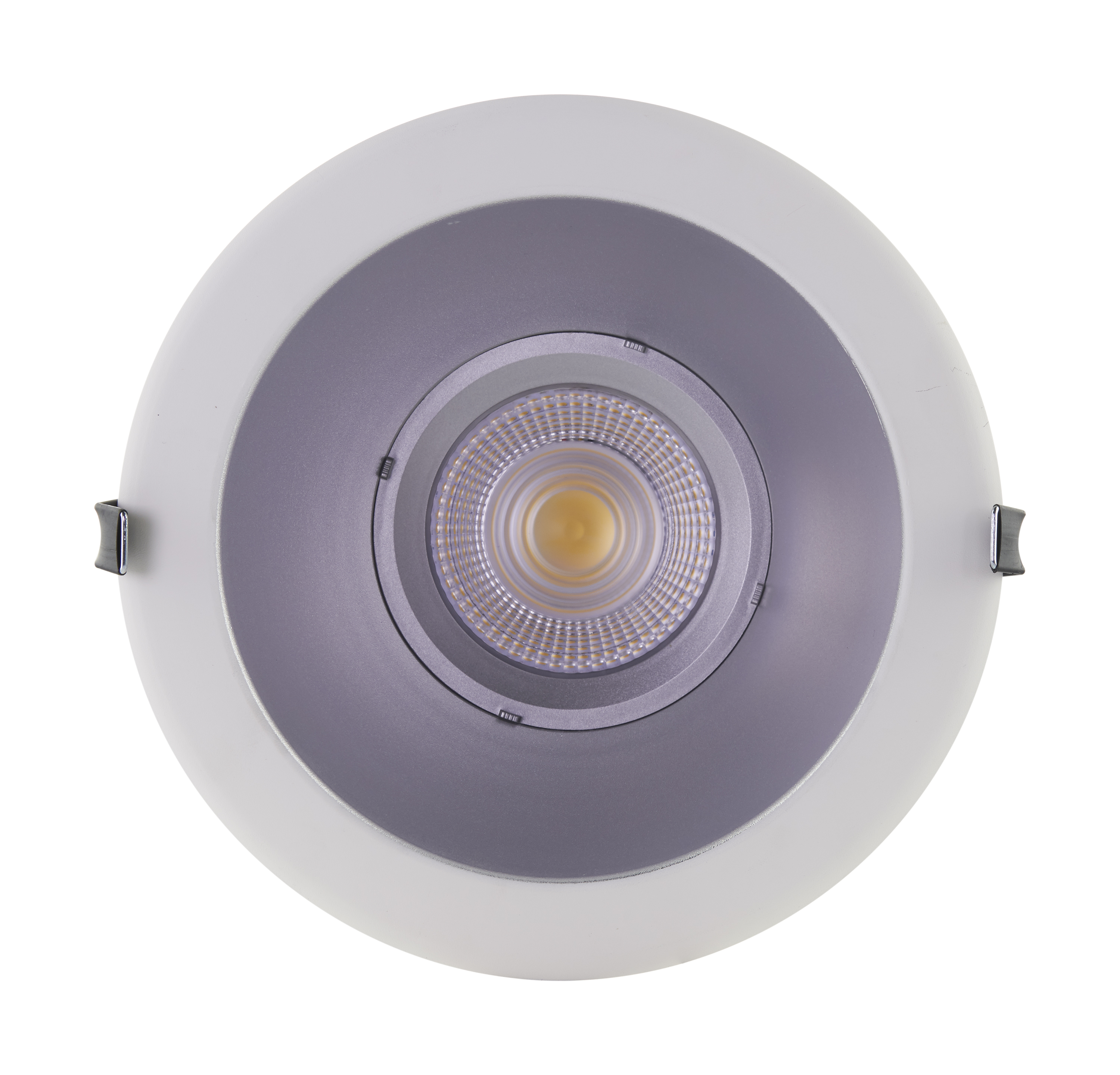

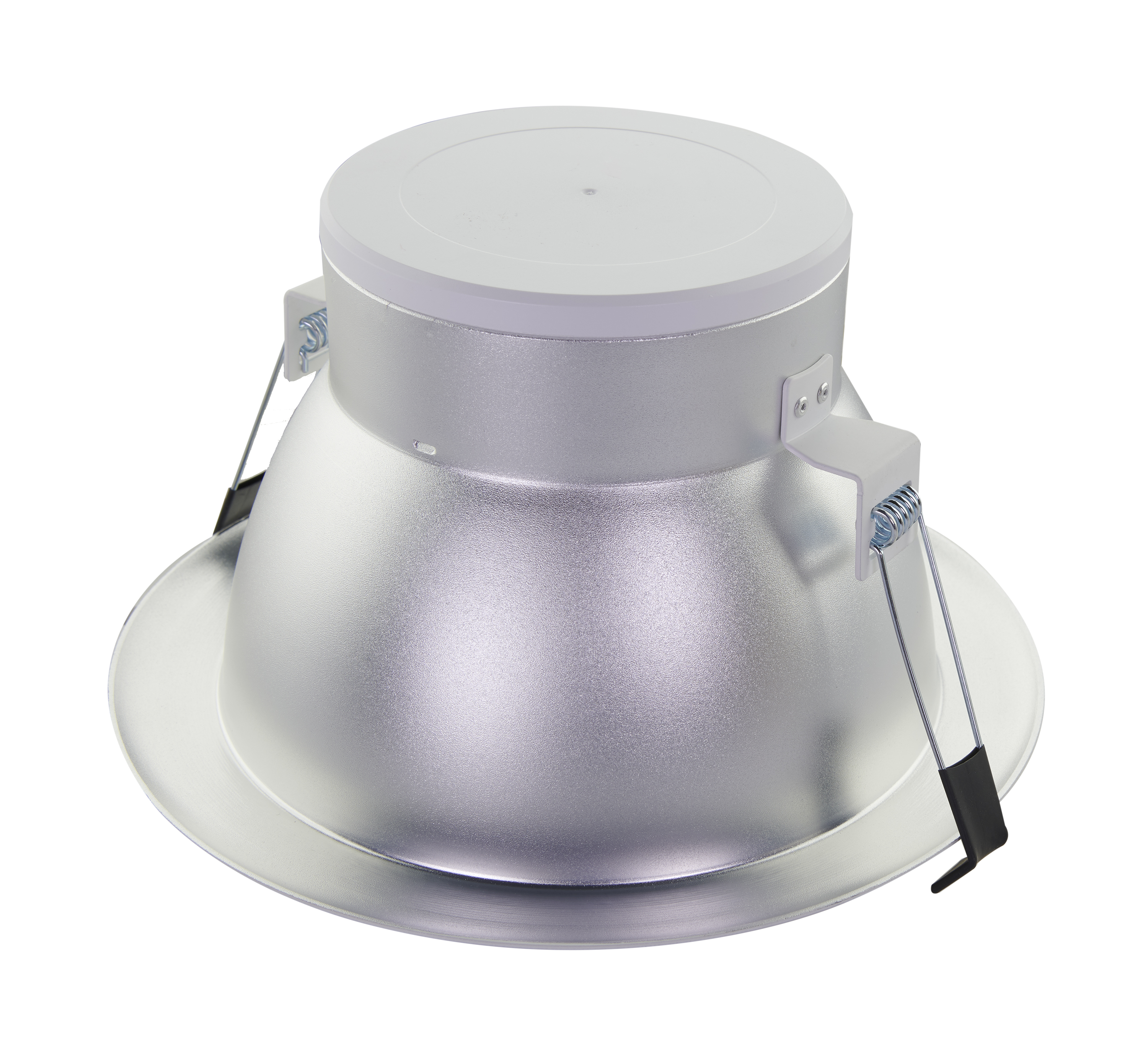

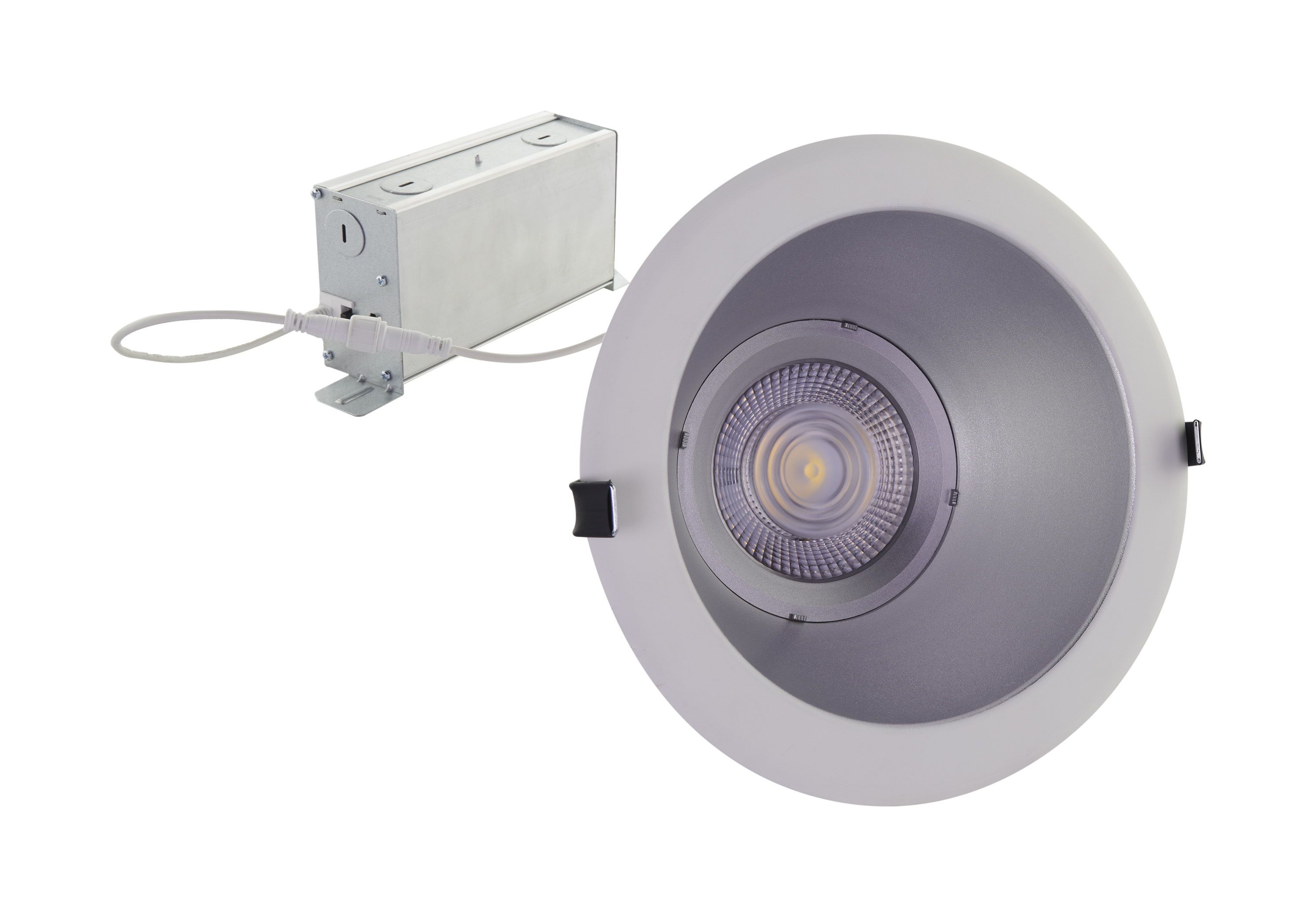

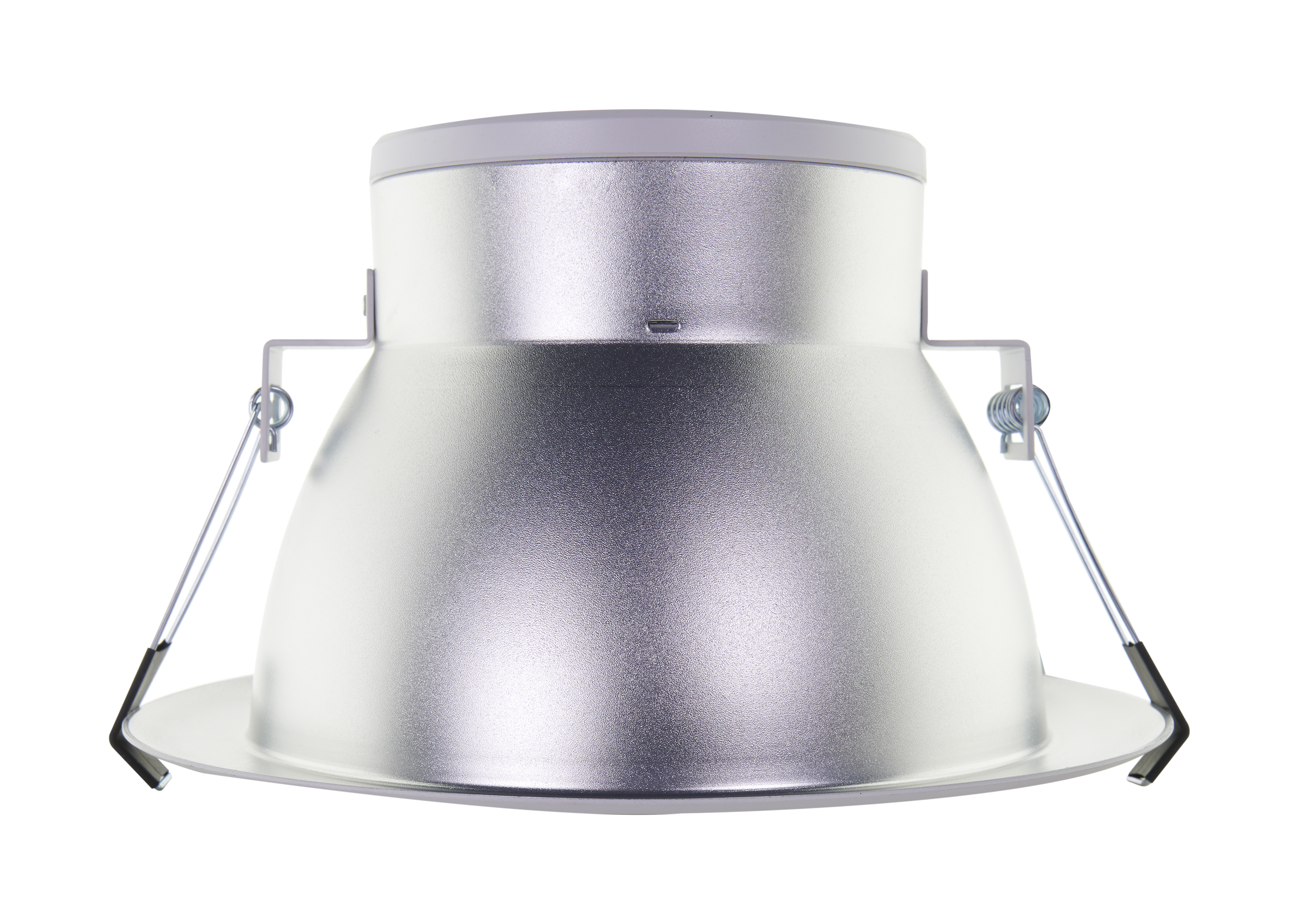

| Fixture Type | Commercial Downlight Retrofit |
| Product Notes | Default wattage setting is 23W |
| Status | Active |
| Style | Utility |
| CCT Selectable | True |
| Wattage Selectable | True |
| Can Size | 6 in. |
| Finish Family | Silver |
| Amps | 0.092-0.040/0.133-0.058/0.192-0.083A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Power Factor | 0.99 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 1 x 26W CFL |
| Incandescent Equivalent | 65W/85W/100W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 40 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 900L/1200L/1750L |
| Volts | 120V-277V |
| Watts | 11W/16W/23W |
| Lamp Base | Integrated |
|---|---|
| Finish | SILVER |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Can be installed with or without the rough-in plate (80-959) |
| Air Tight | False |
|---|---|
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923118159 |
|---|---|
| Case Cube | 0.9921 |
| Case Height | 7.09 |
| Case Length | 15.55 |
| Case Quantity | 4 |
| Case UPC | 10045923118156 |
| Case Weight | 8.63 |
| Case Width | 15.55 |
| EA Cube | 0.204 |
| EA Height | 6.3 |
| EA Length | 7.48 |
| EA Quantity | 1 |
| EA Weight | 1.83 |
| EA Width | 7.48 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

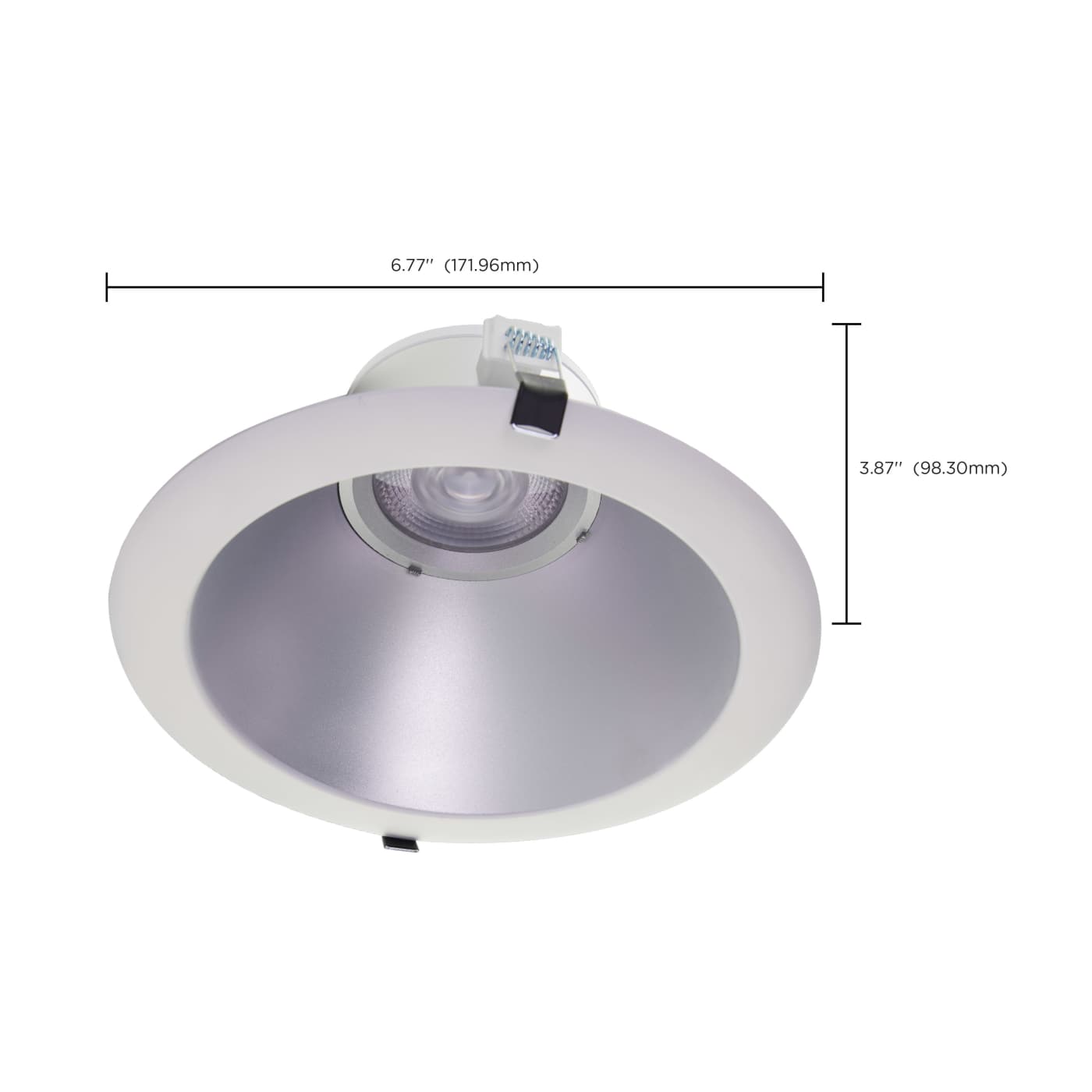

| Web Height | 3.87 |
| Web Width | 6.77 |
