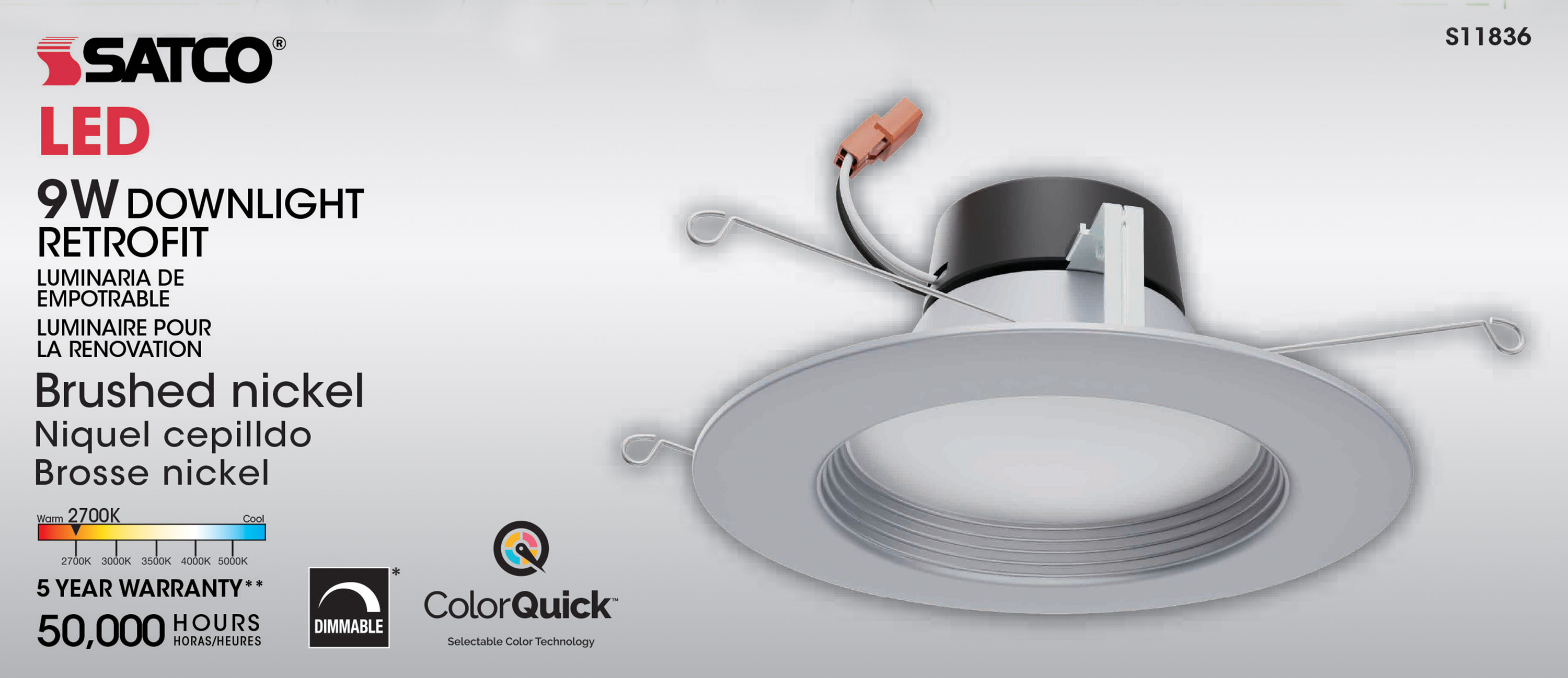

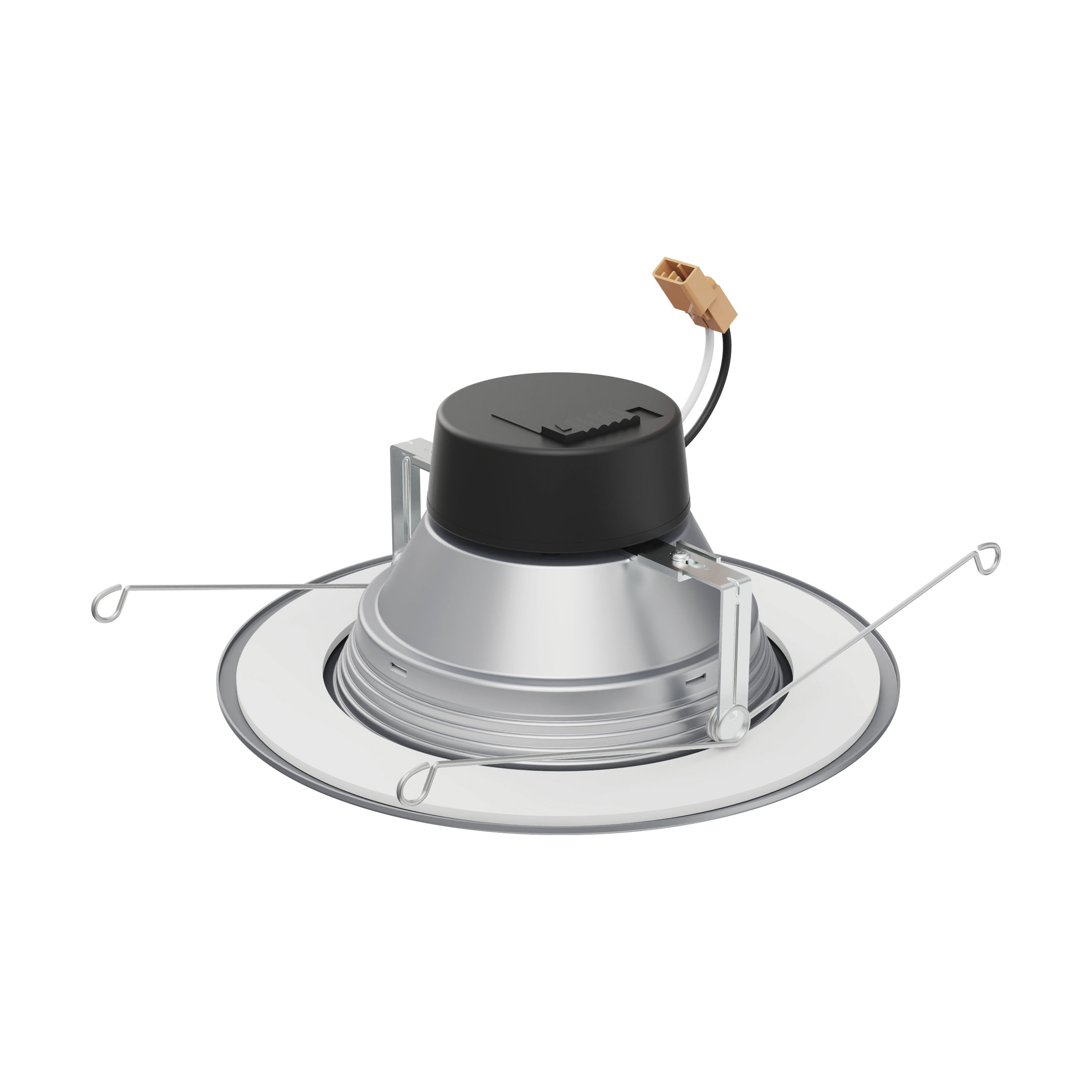

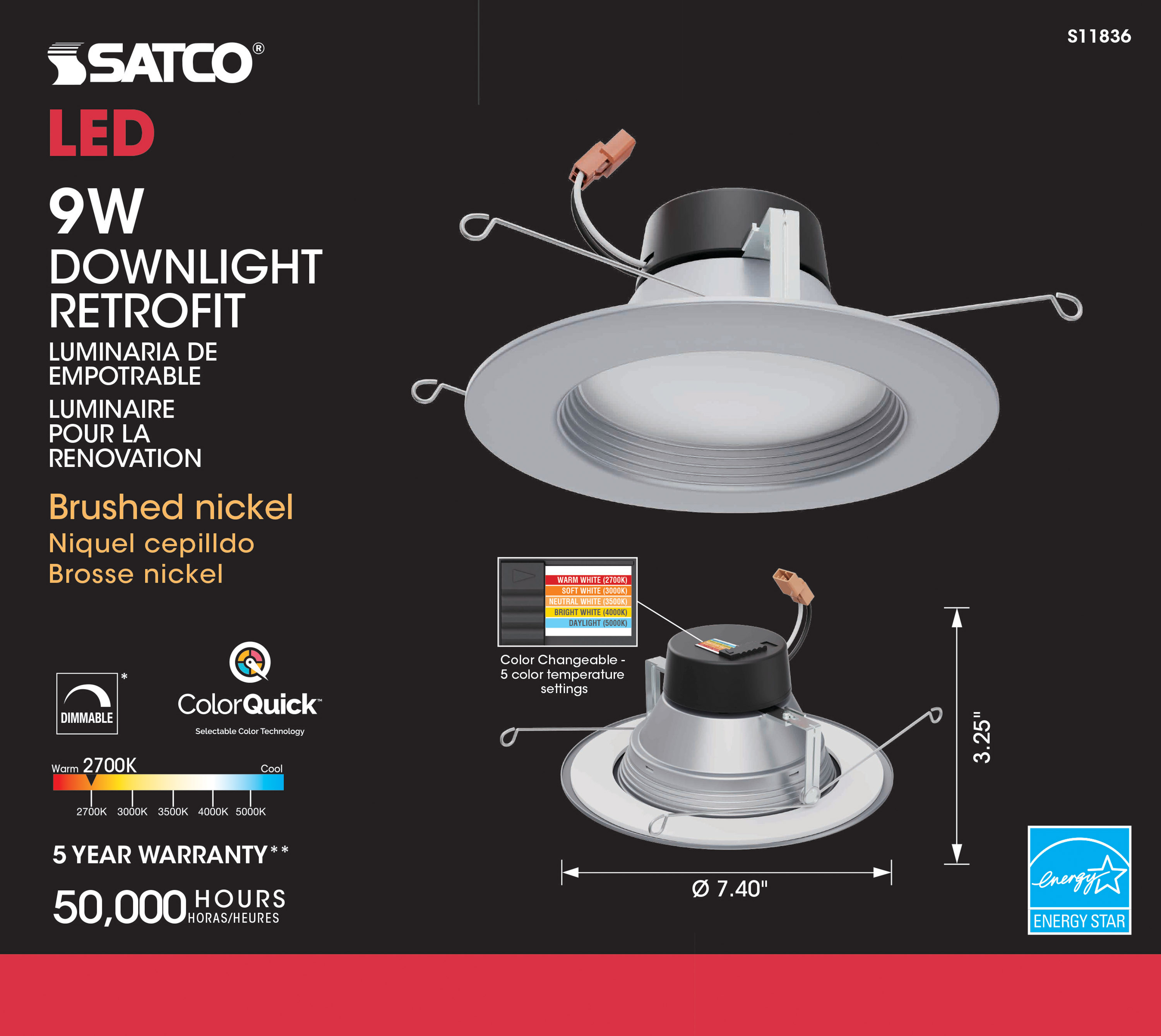

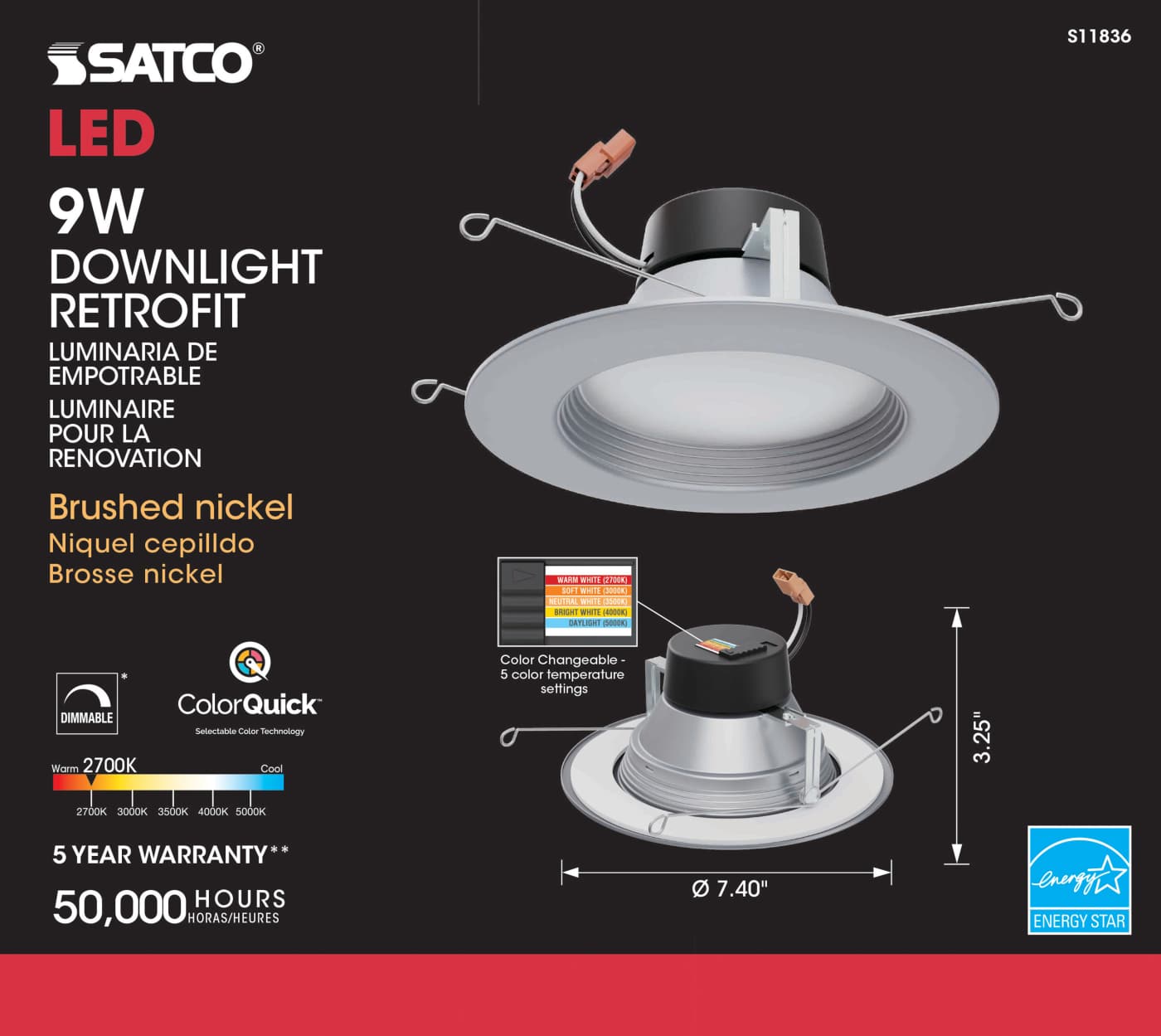

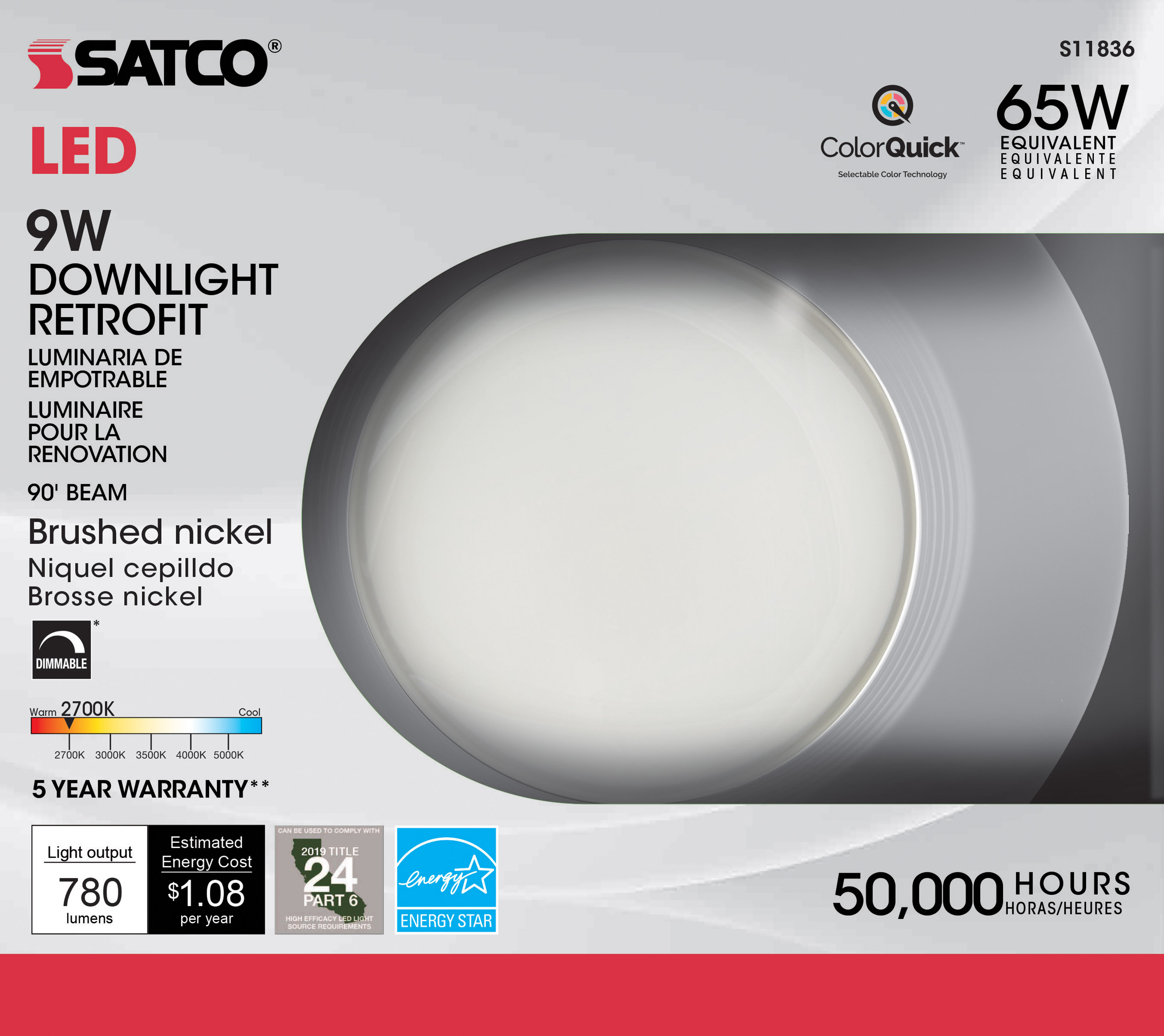

S11836

9WLED/RDL/5-6/CCT-SEL/120V/BN

Discontinued - Suggested Replacement: S11836R1
  • 9 Watt
  • LED Downlight Retrofit
  • 5 Inch - 6 Inch

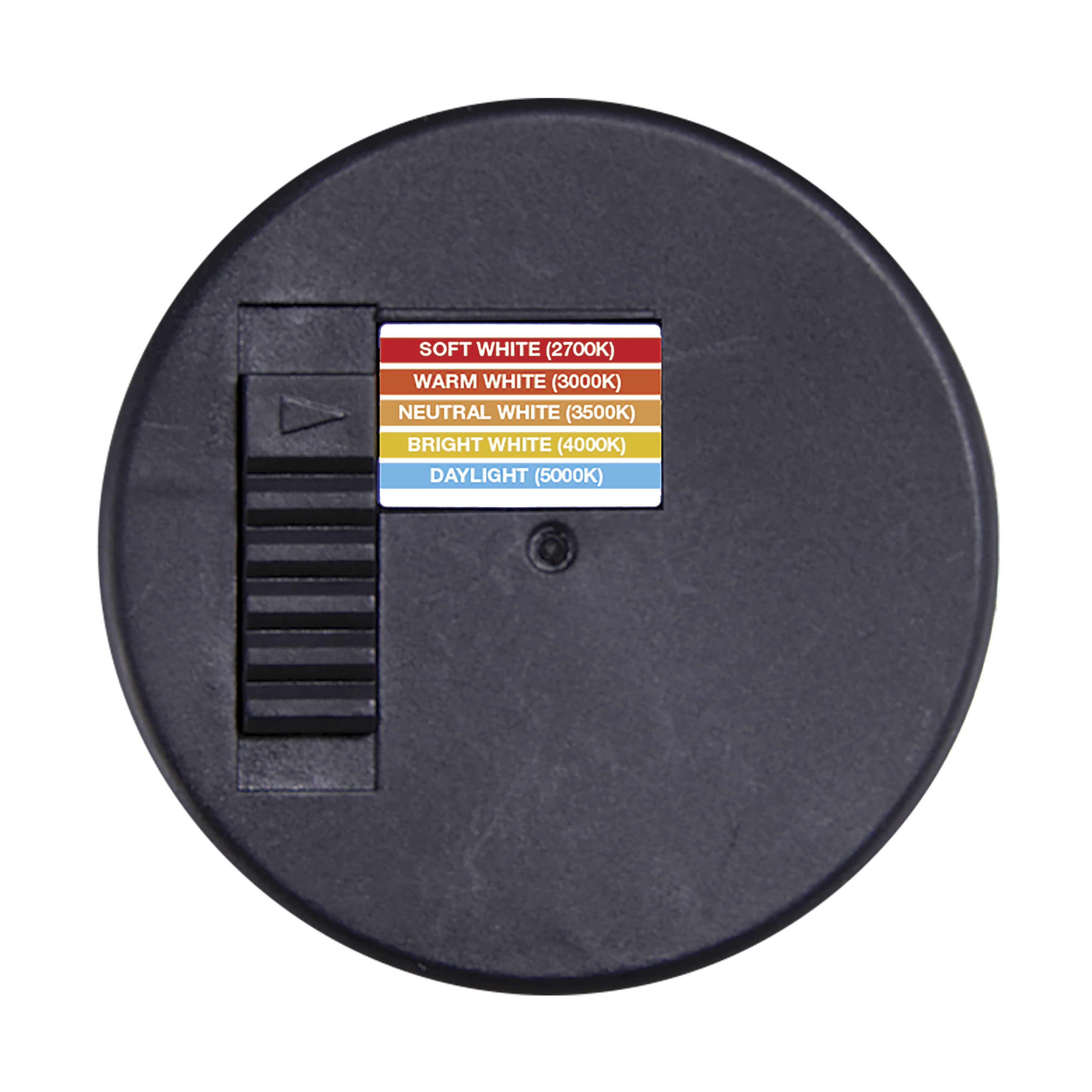

  • CCT Selectable
  • 120 volts
  • Dimmable
  • Brushed Nickel Finish
cc_selectable^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11836 SpecificationsS11836 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For S11836
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

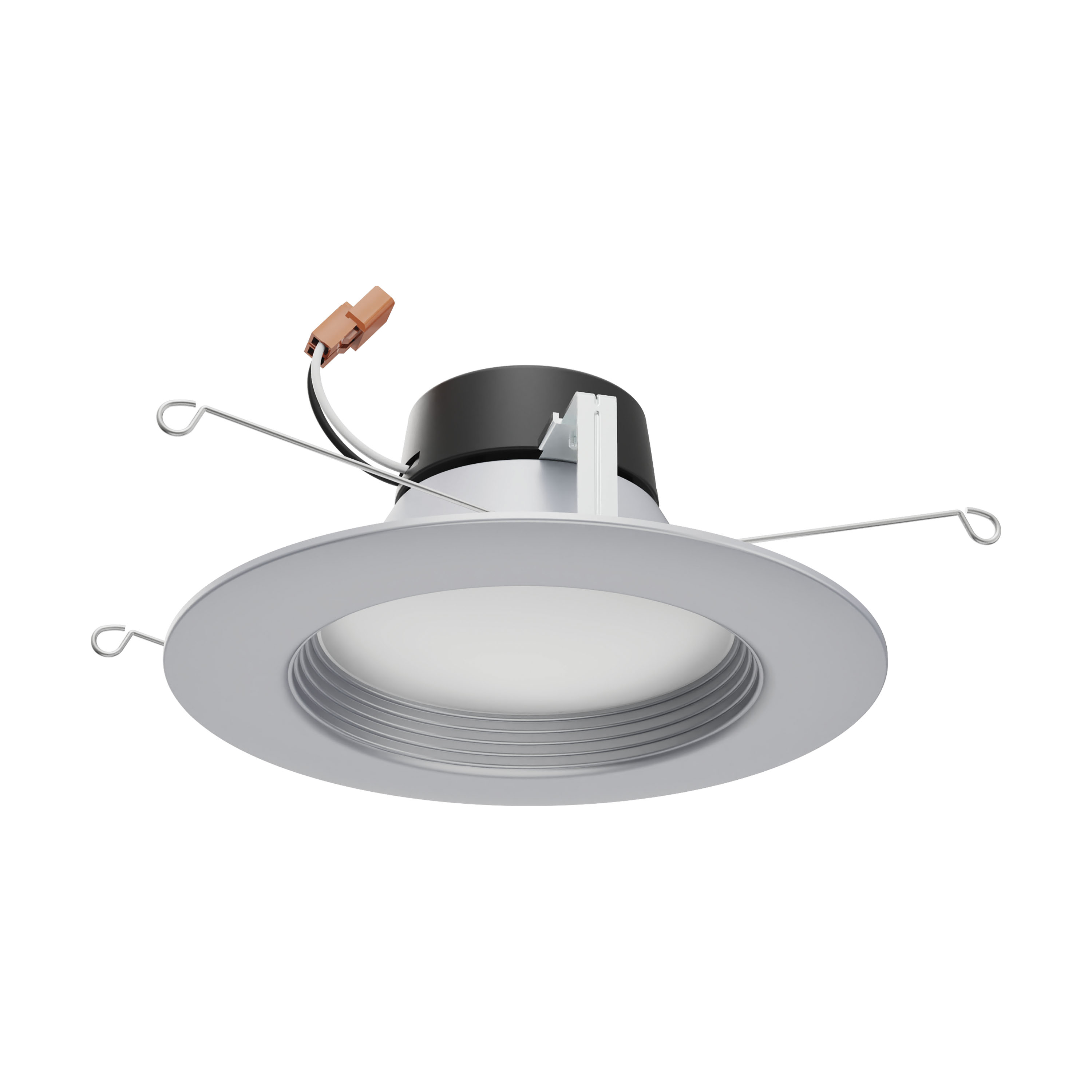

9 Watt; LED Downlight Retrofit; 5 Inch - 6 Inch; CCT Selectable; 120 volts; Dimmable; Brushed Nickel Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

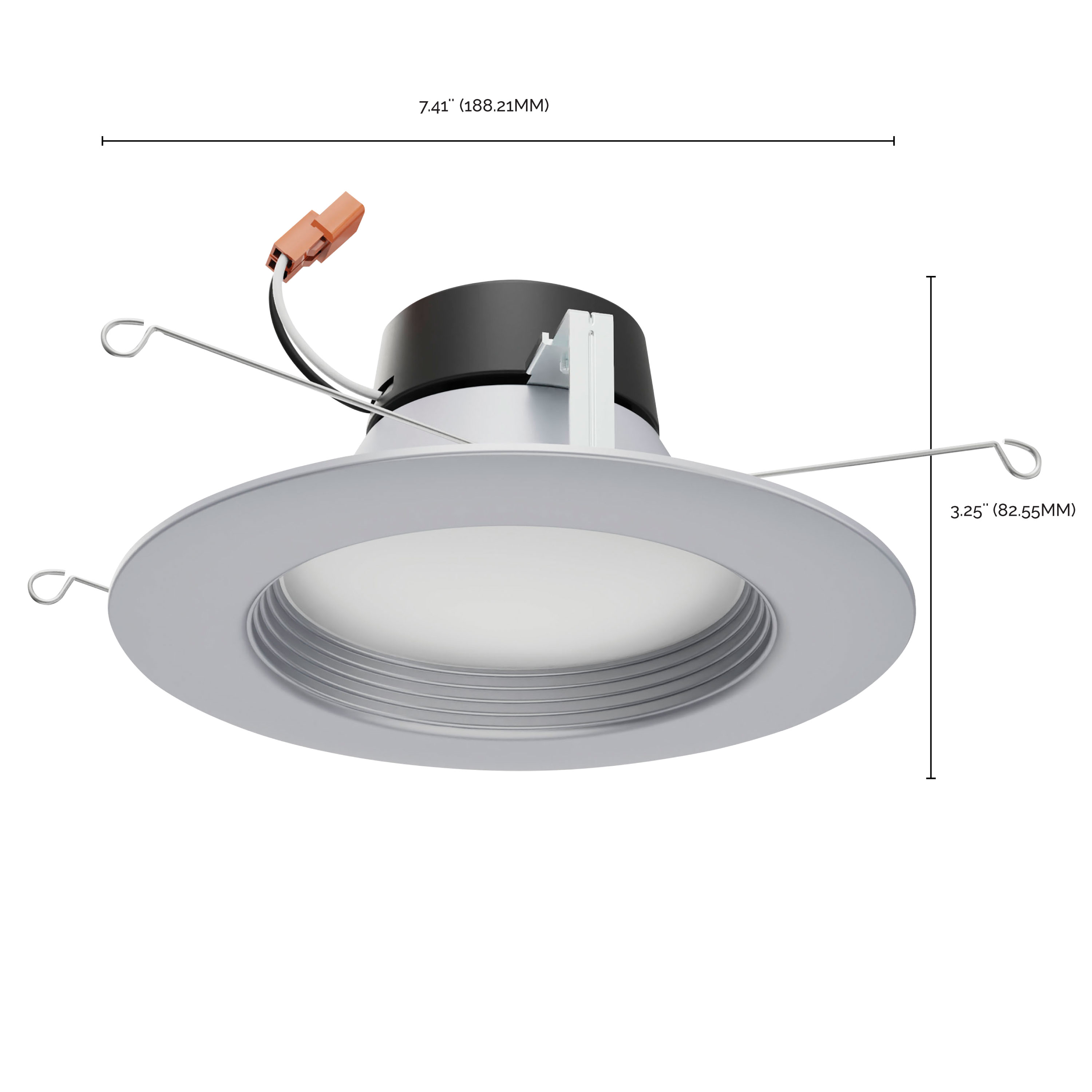

Diameter7.41
MaterialAluminum
Fixture TypeDownlight Retrofit
StatusDiscontinued
StyleContemporary
Most Current GenerationS11836R1
CCT SelectableTrue
Wattage SelectableFalse
Can Size5-6 in.
Finish FamilyNickel
Amps0.075A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Photo CellNo
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm to Cool White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens800L
Volts120v
Watts9W
Physical

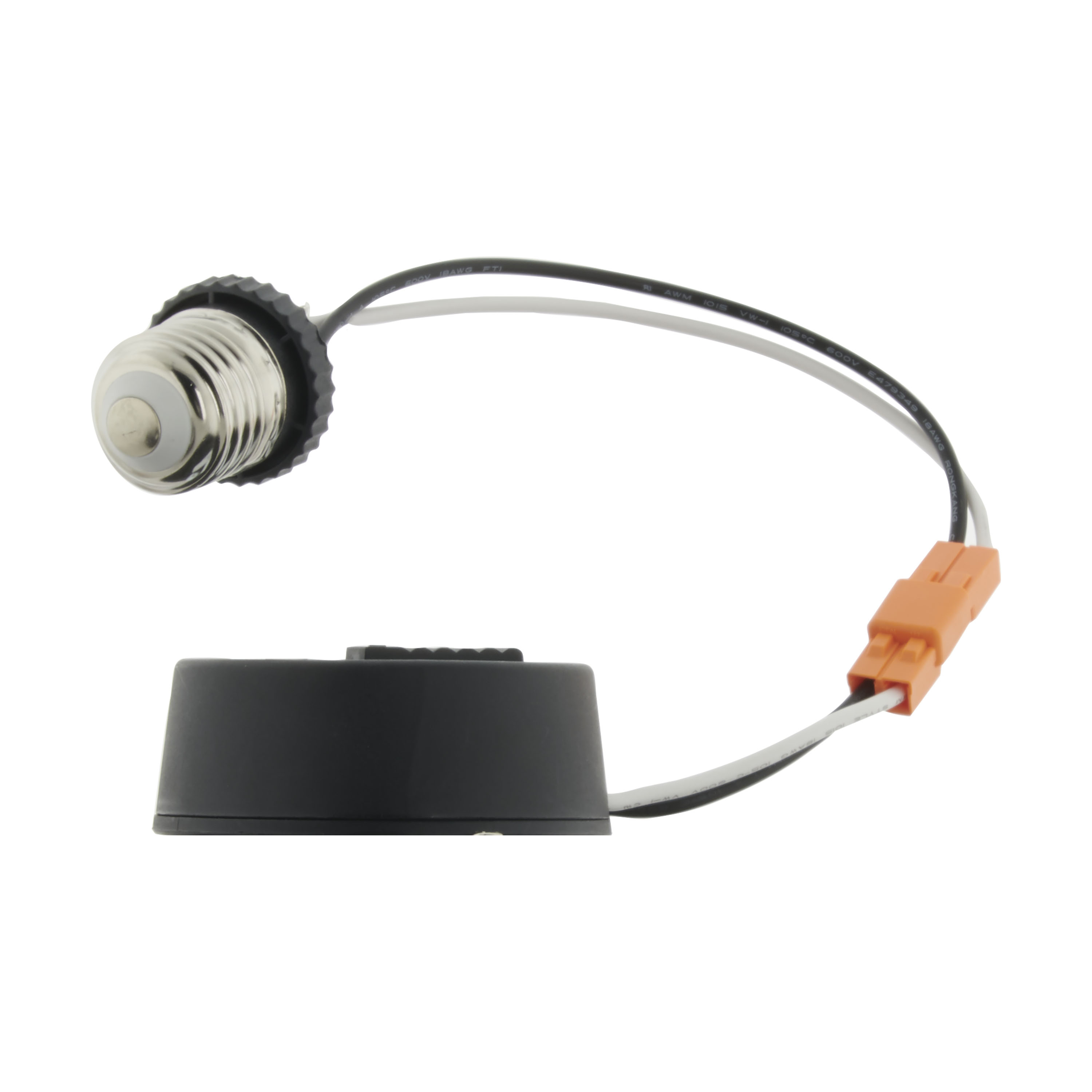

Lamp BaseMedium Adapter
FinishBrushed Nickel
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesAluminum Torsion Springs
Documents
Compliance
CA RegulationsT20 Non-Compliant - Efficacy Rating <297
CA Prop 65Lead
CA StatusNon-Compliant
Dark Sky RatedFalse
FCC CompliantTrue
IC RatedTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923118364
Case Cube1.596
Case Height8.86
Case Length18.74
Case Quantity8
Case UPC10045923118361
Case Weight10.28
Case Width16.61
EA Cube0.1667
EA Height8.07
EA Length9.06
EA Quantity1
EA Weight1.1
EA Width3.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeColor Box
Web Height3.25
Web Width7.41
