S11847

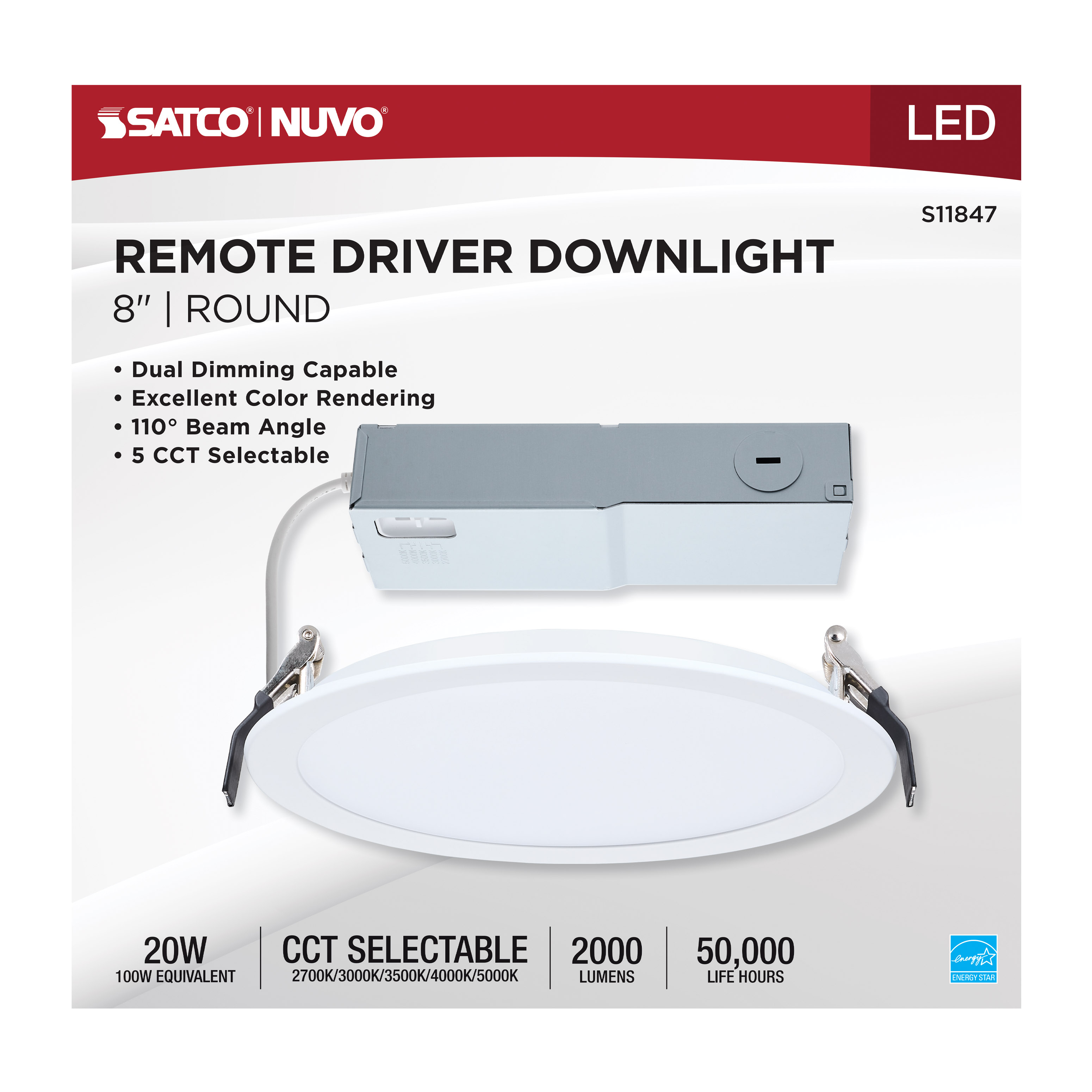

20WLED/DW/8/CCT/RND/FL/DD

  • 20 Watt
  • 8 Inch LED Direct Wire Downlight

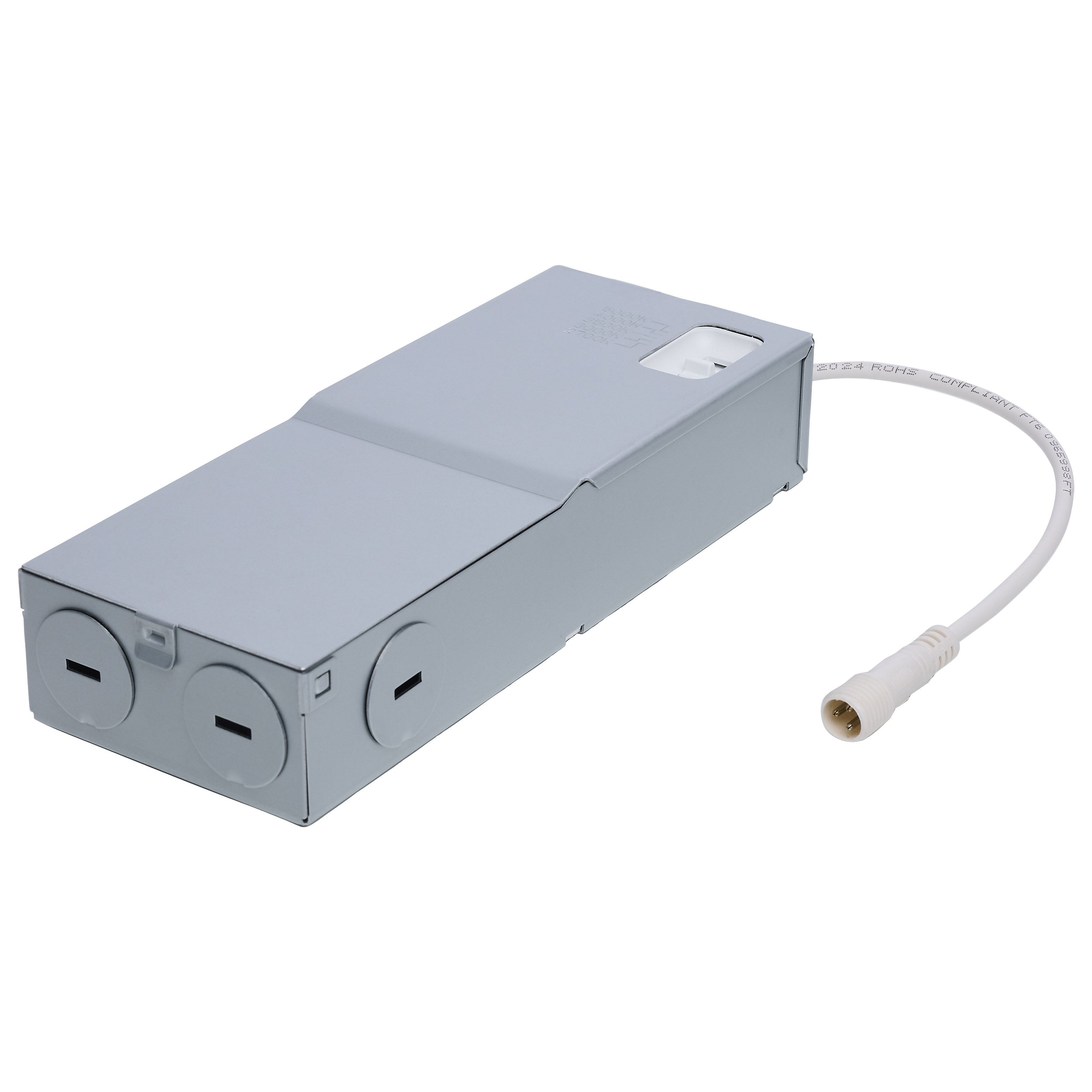

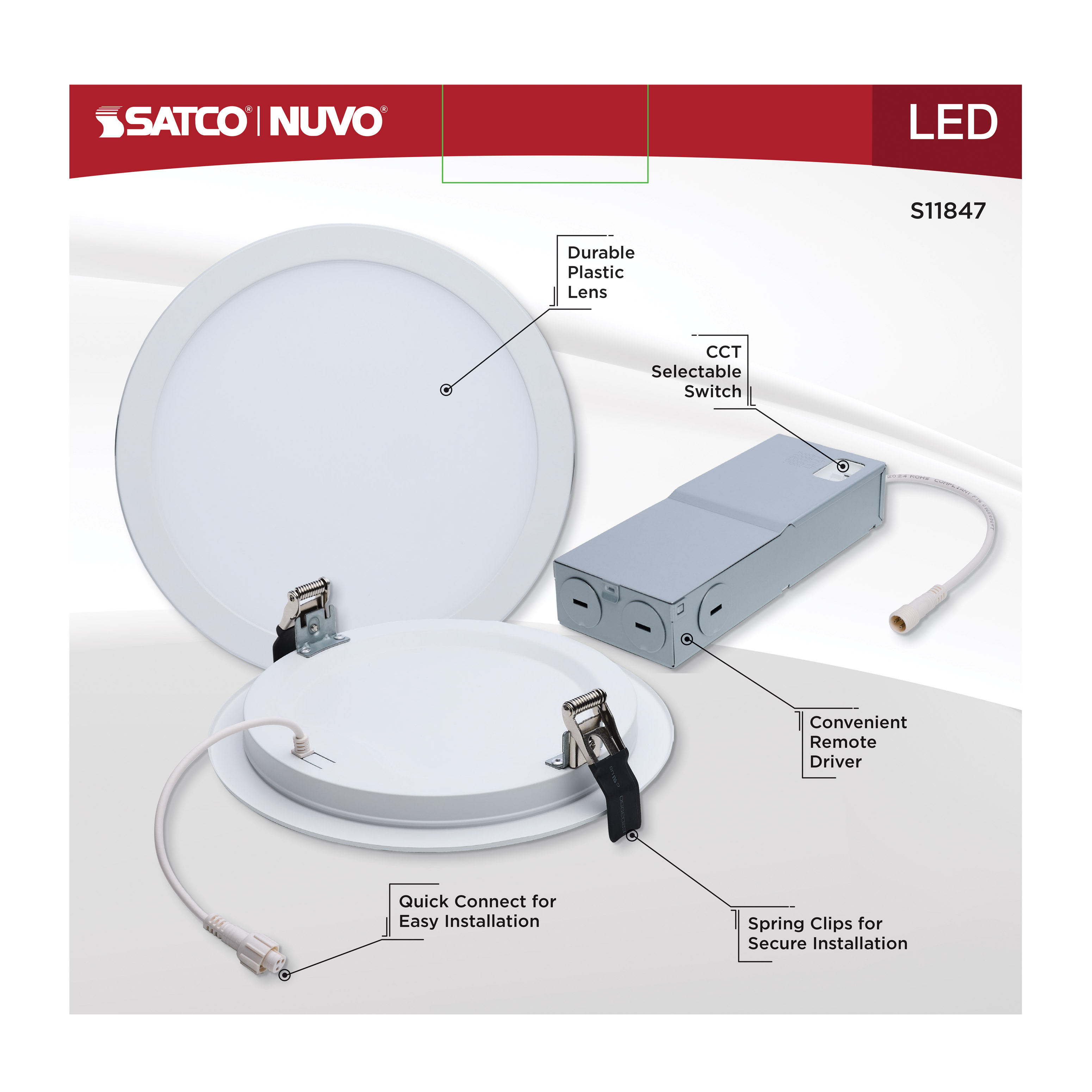

  • Remote Driver
  • CCT Selectable
  • Dual Dimming

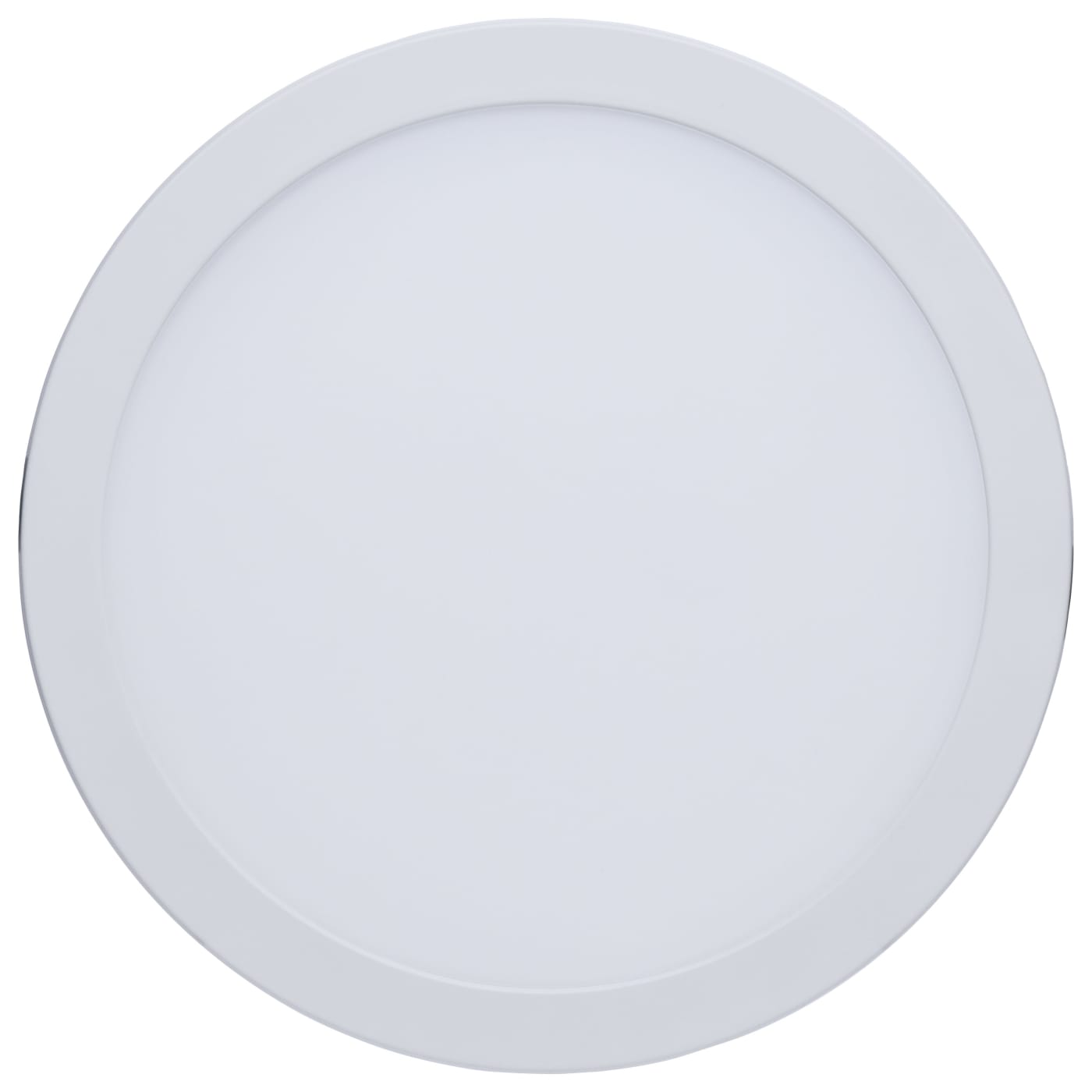

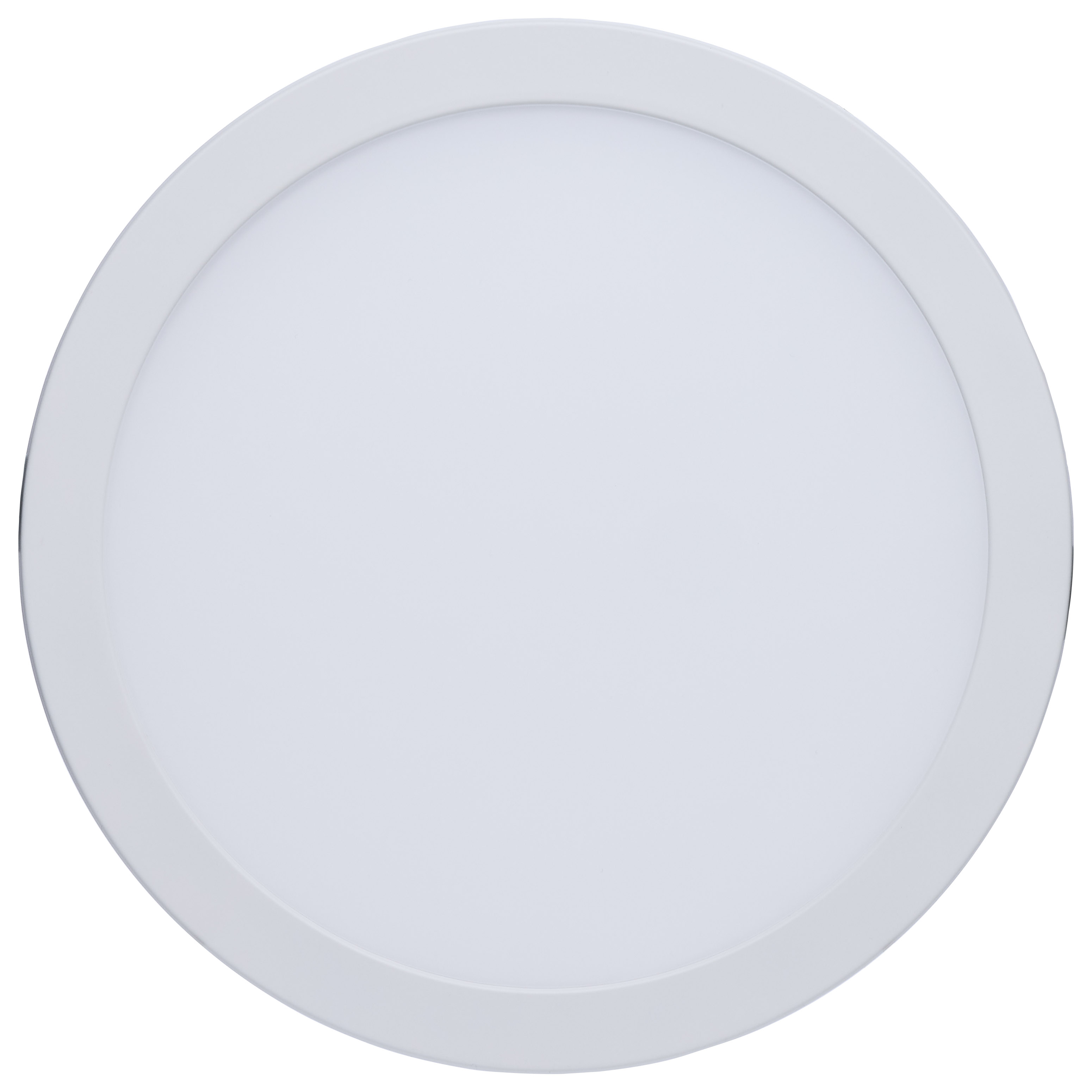

  • Flat Face
  • Round
  • White Finish
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11847 SpecificationsS11847 Instructions.pdf
Tools
Lighting Layout Analysis For S11847
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

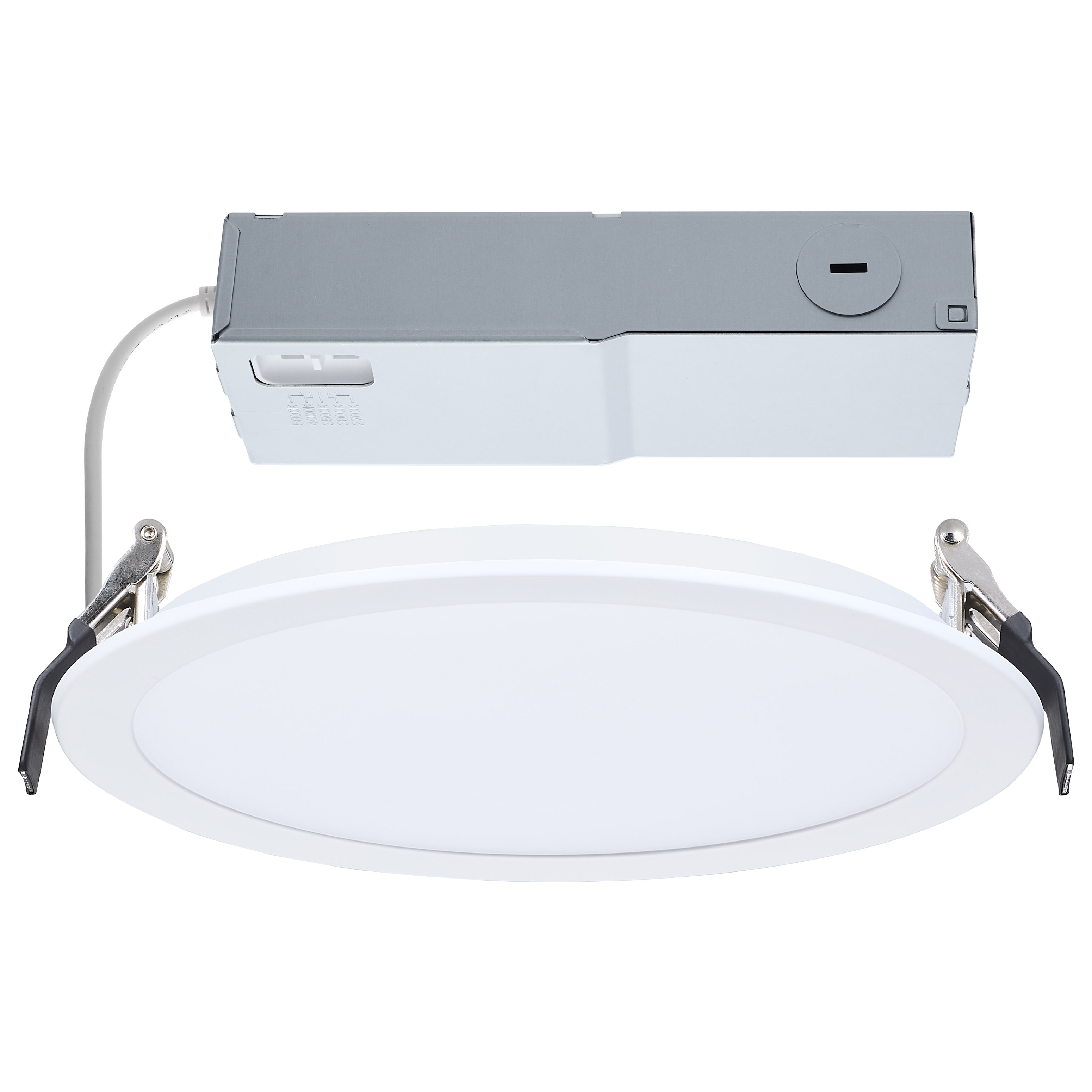

SATCO NUVO's S11847 LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide 8-inch diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation to create the perfect atmosphere for any space. Dual dimming capabilities, including phase-cut dimming at 120V and 0-10V dimming at 120V-277V, allow for precise lighting control. IC rated and airtight rated, with a 90 CRI for superior color rendering, they deliver long-lasting performance with a 50,000 hour lifespan and a 5 year warranty. Designed for ceilings with limited clearance, their slim profile and durable steel construction with polycarbonate lens ensures both functionality and style.

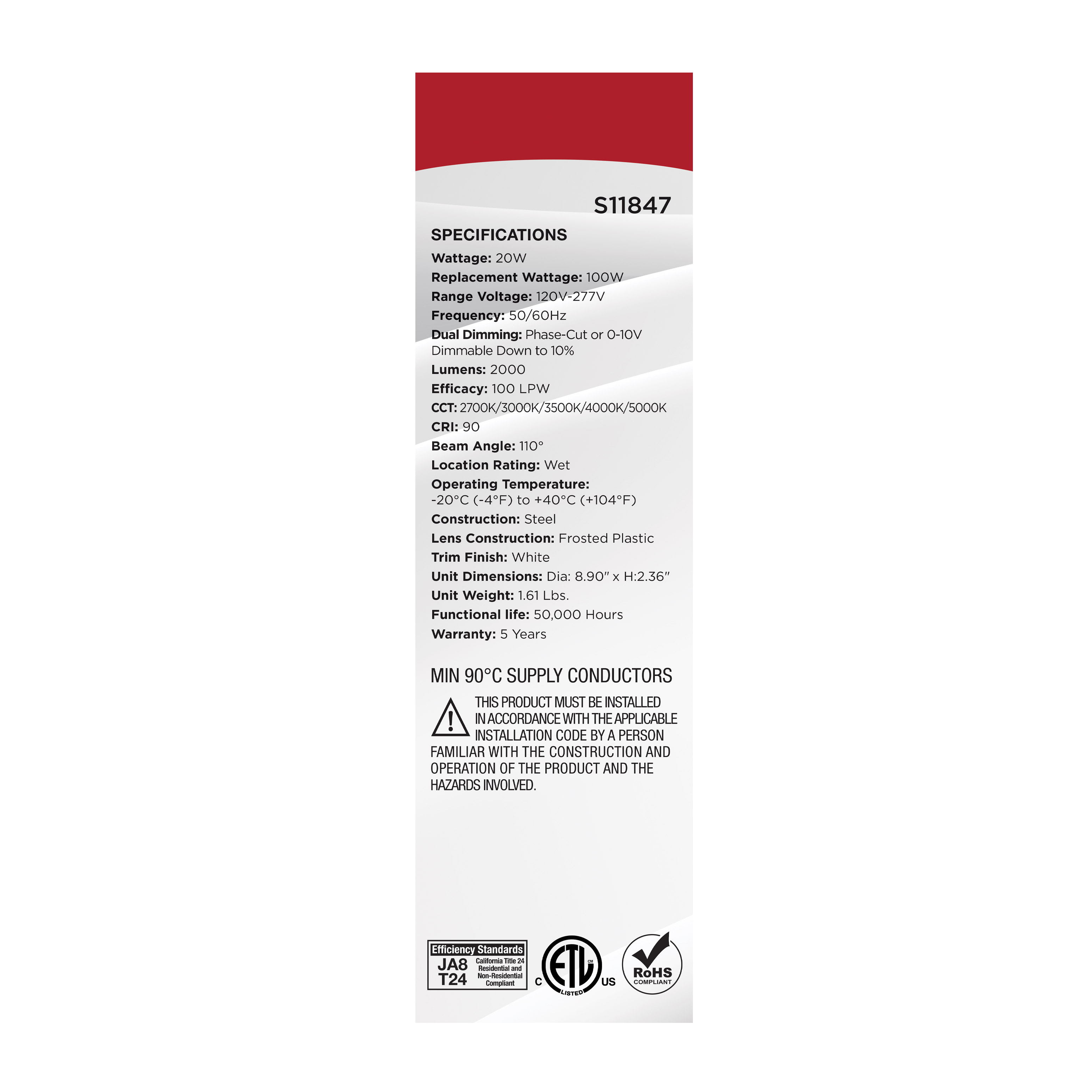

Products Specs
General
CompanySATCO
Mounting Height3.94
Bulb IncludedIntegrated

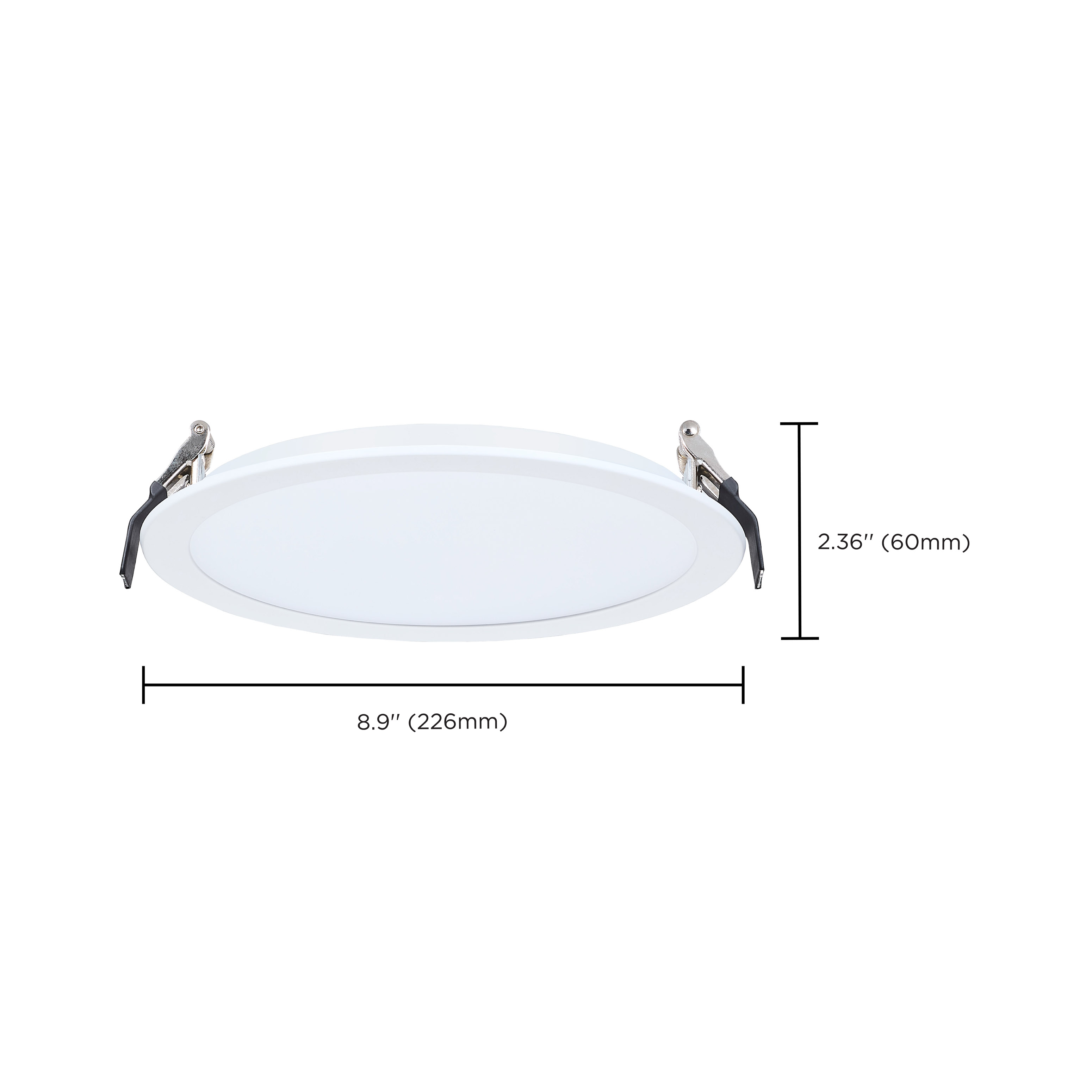

Diameter8.9
MaterialSteel
Fixture TypeDirect Wire LED Downlight
StatusActive
Surge ProtectionBuilt-in surge protection - 1.6KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Can Size8 in.
Finish FamilyWhite
Amps0.190A
Mounting Diameter7.87
Has CameraNo
IOT EnabledNo
Lens FinishMatte Frosted
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-277V
Operating Frequency50/60Hz
Operating Temp-4F to +104F (-20C to +40C)

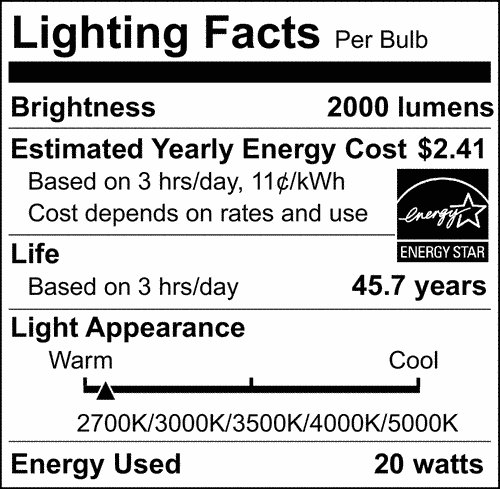

Lumens2000L
Volts120V-277V
Watts20W
ConnectionDirect Wired
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
Air TightYes
CA Prop 65Lead
Energy Star ID3994413
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923118470
Case Cube1.8466
Case Height9.76
Case Length19.13
Case Quantity12
Case UPC10045923118477
Case Weight24.72
Case Width17.09
EA Cube0.1294
EA Height9.06
EA Length9.21
EA Quantity1
EA Weight1.89
EA Width2.68
Pack TypeBox
Web Height2.36
Web Width8.9
