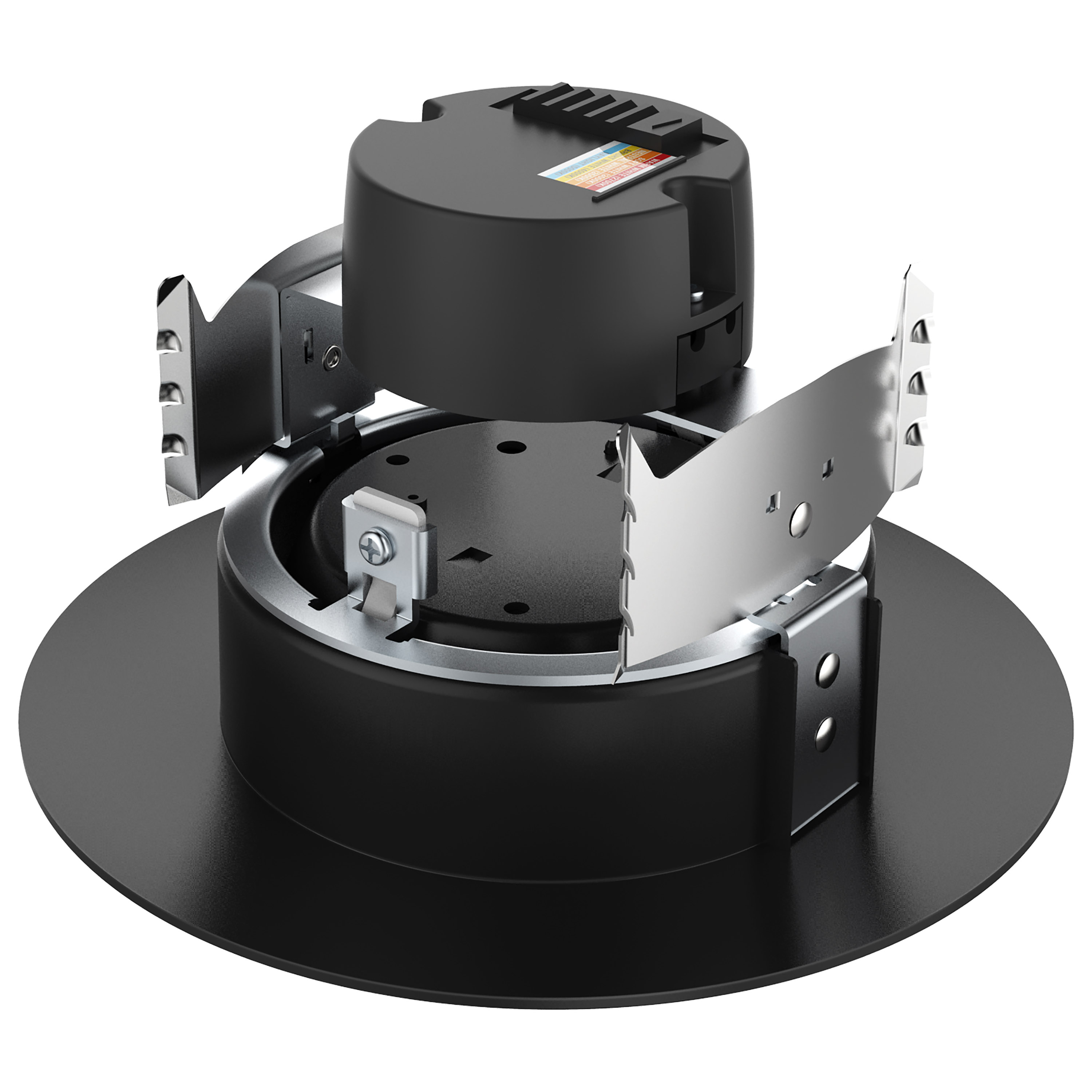

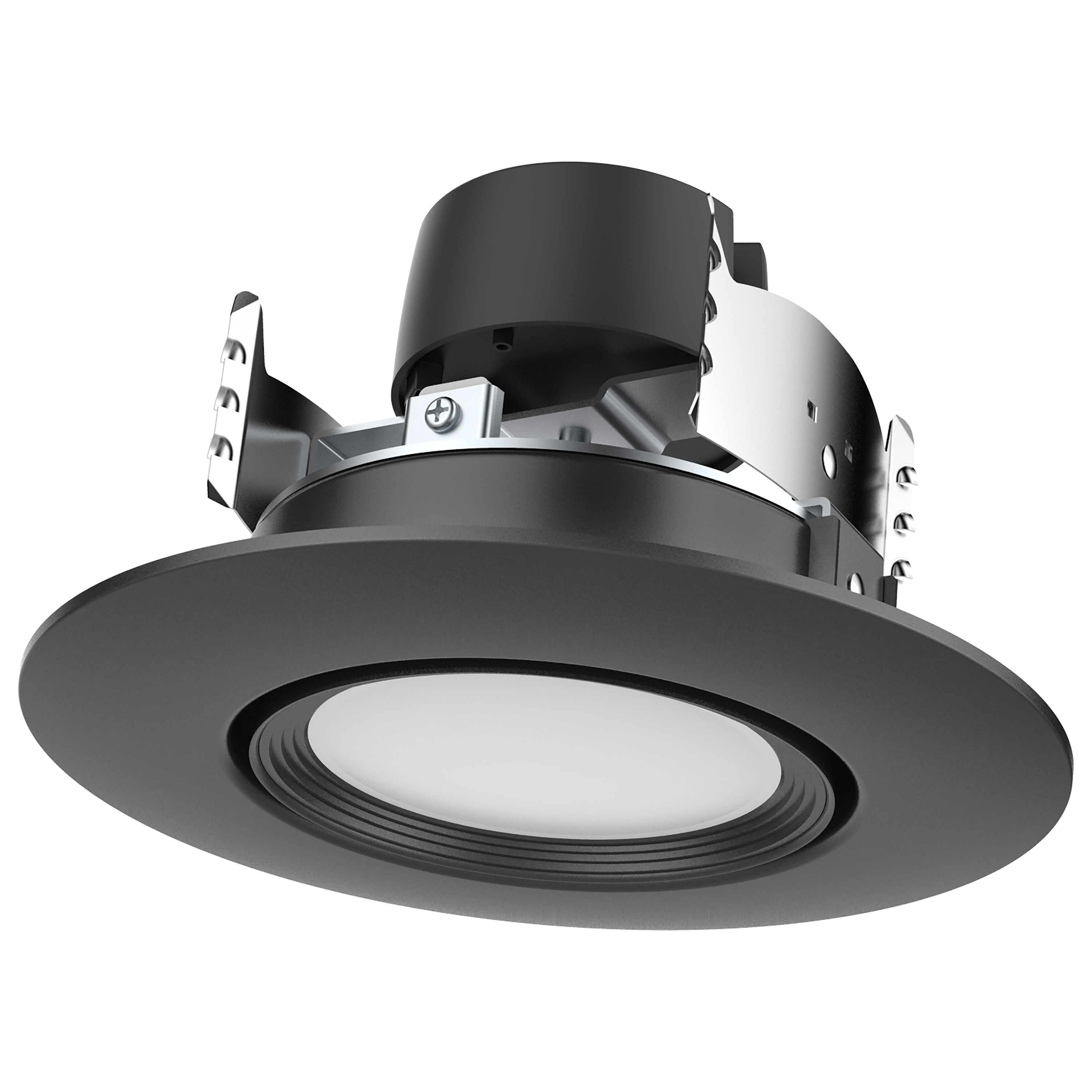

S11854

7.5WLED/DIR/4/60'/CCT-SEL/120V

  • 7.5 Watt
  • LED Retrofit Downlight
  • Gimbaled
  • 120 Volt
  • CCT Selectable
  • Black Finish
location_rating^damp^1
cc_selectable^y^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
beam_angle^60^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11854 SpecificationsS11854 Photometrics 2700K.iesS11854 Photometrics 3000K.ies
Tools
Lighting Layout Analysis For S11854
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7.5 Watt; LED Retrofit Downlight; Gimbaled; 120 Volt; CCT Selectable; Black Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

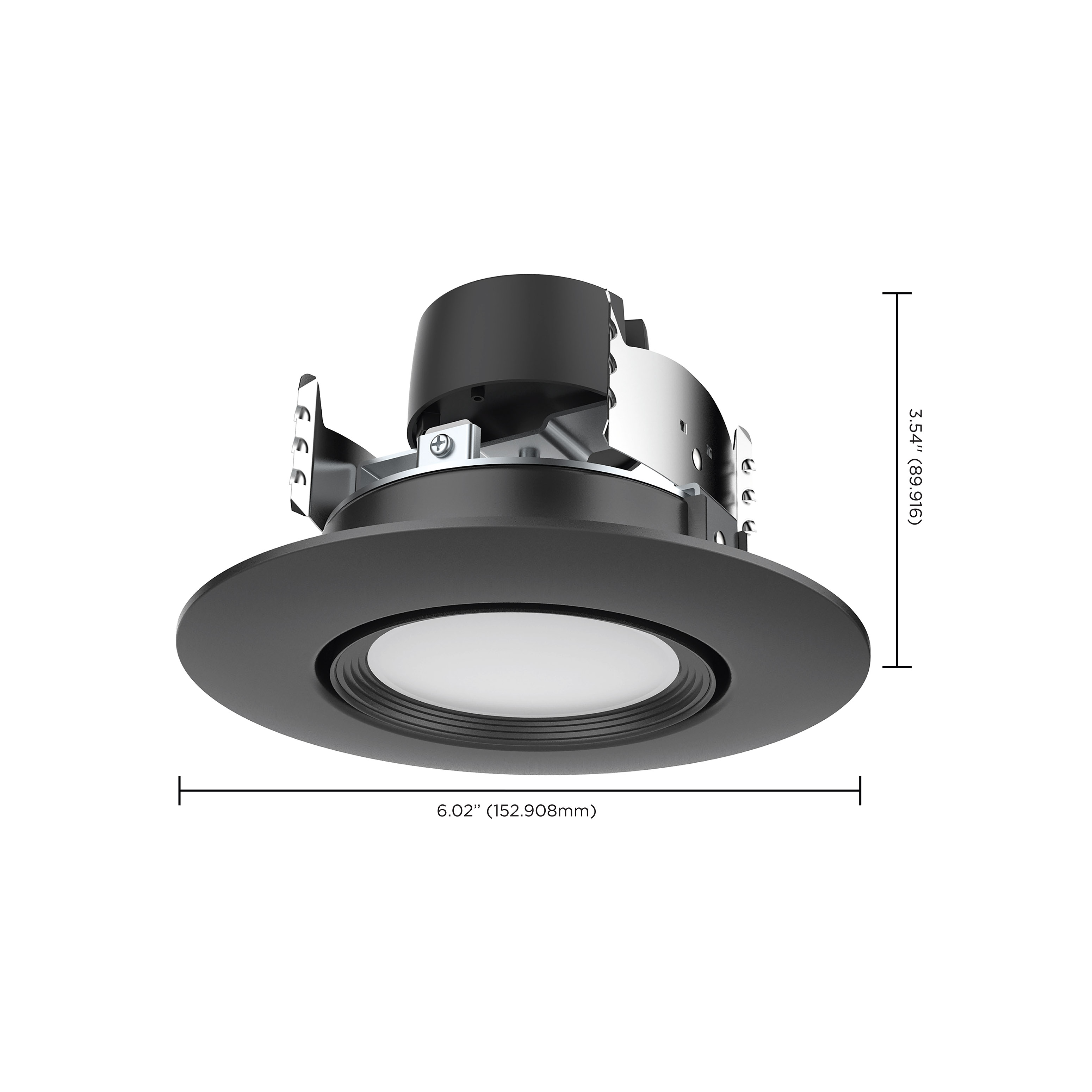

Diameter6.02
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialPolycarbonate (PC)
Fixture TypeDirect Wire LED Downlight
IncludesE26 Adapter included (S9001)
Product NotesAiming Angle: 22 Degrees
StatusActive
StyleUtility
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Can Size4 in.
Finish FamilyBlack
Amps0.063A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)60
Color TempWarm to Cool White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens680L
Volts120v
Watts7.5W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
Air TightNo
CA Prop 65Lead
Energy Star ID4510417
FCC CompliantYes
IC RatedYes
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedYes
Title 20Yes
T24 CompliantYes
Packaging
UPC045923118548
Case Cube1.0114
Case Height7.68
Case Length16.61
Case Quantity8
Case UPC10045923118545
Case Weight8.63
Case Width13.7
EA Cube0.0998
EA Height6.69
EA Length3.94
EA Quantity1
EA Weight0.95
EA Width6.54
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeColor Box
Web Height3.54
Web Width6.02
