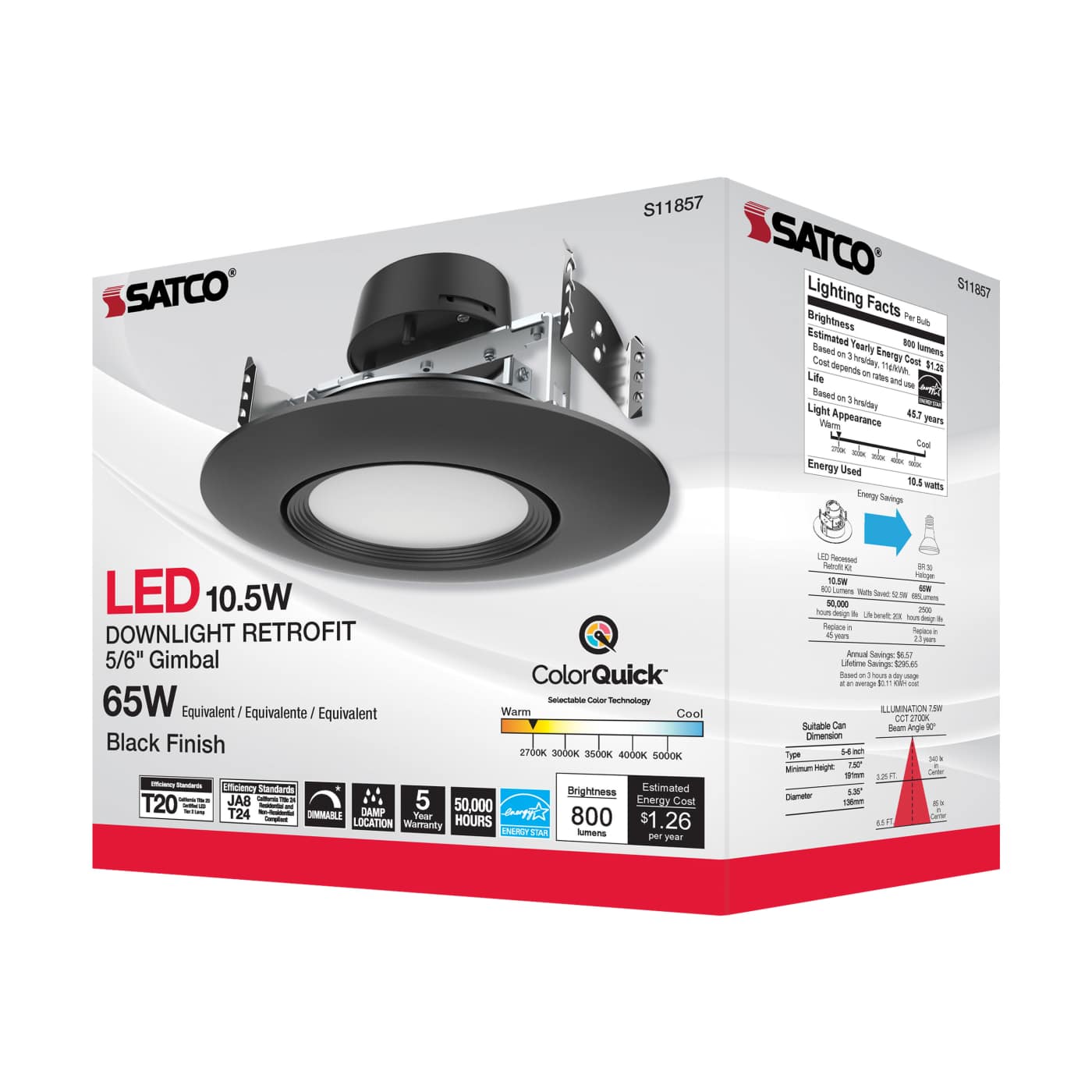

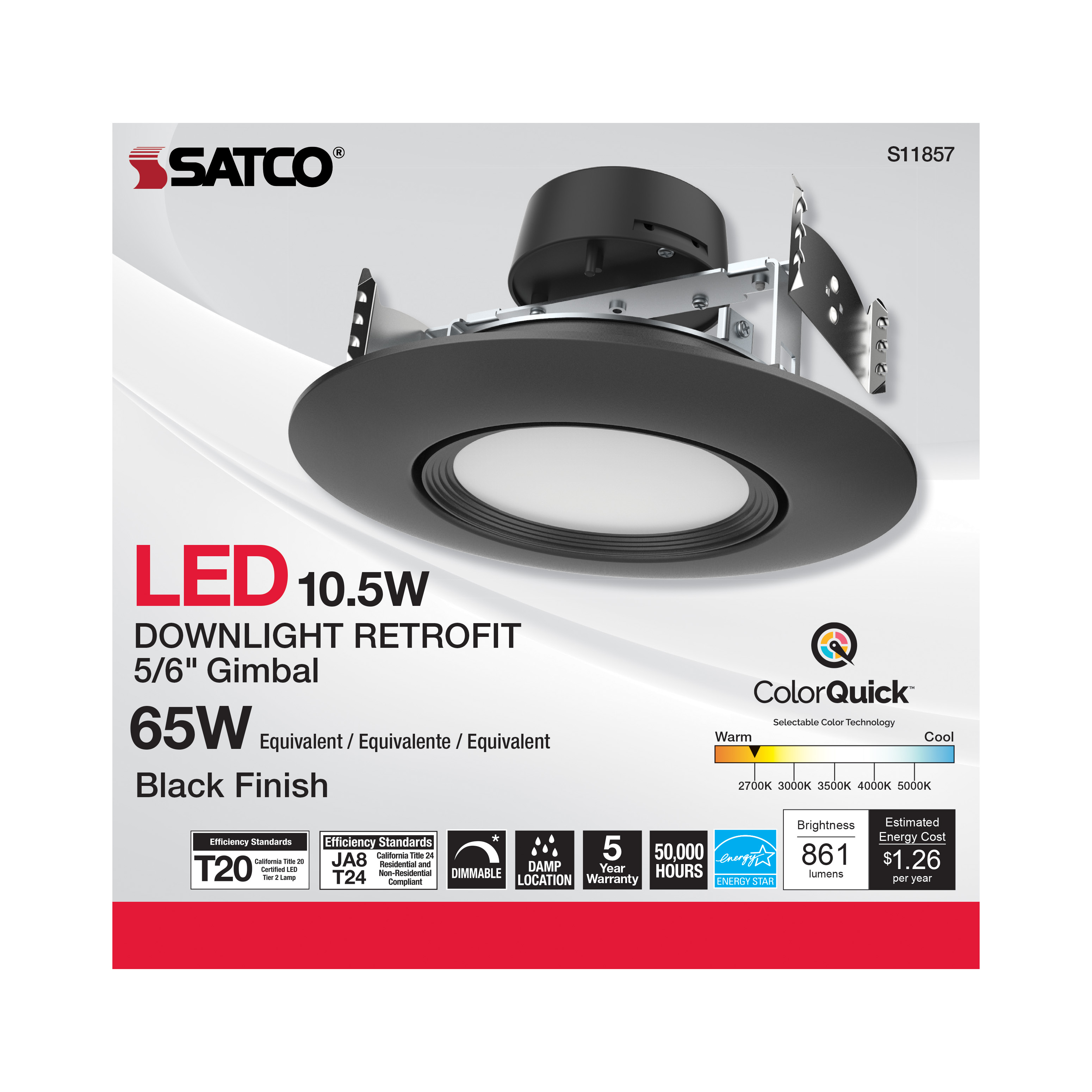

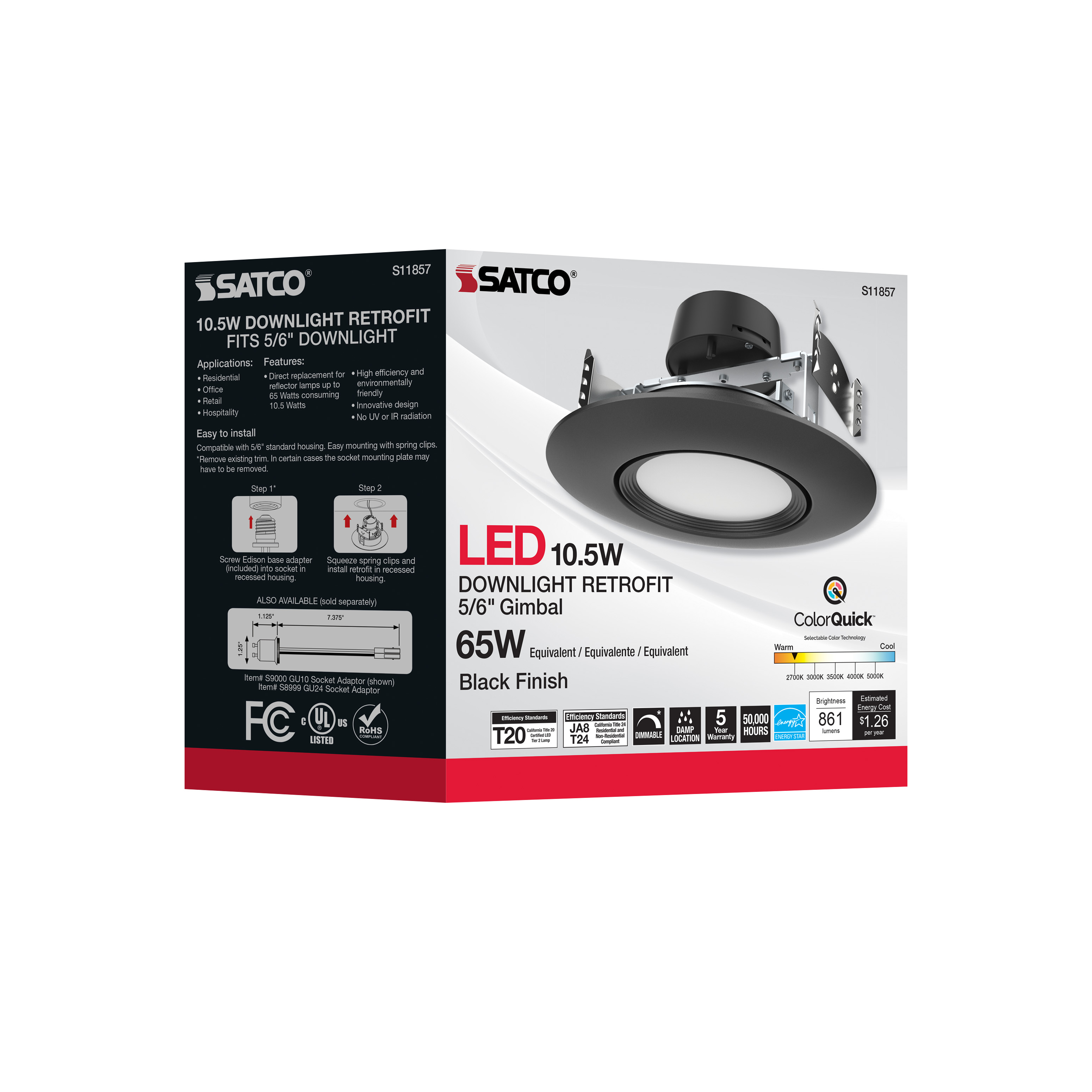

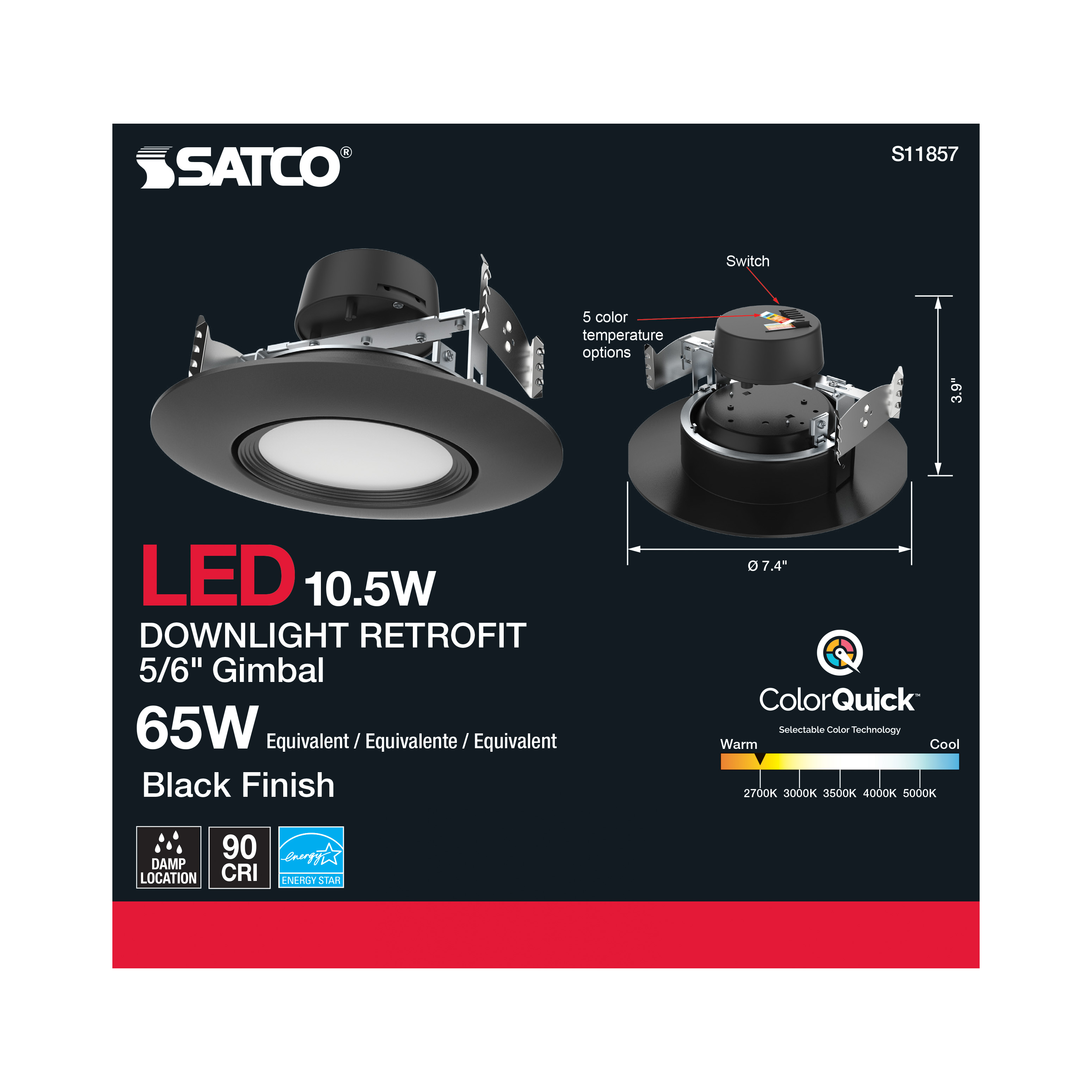

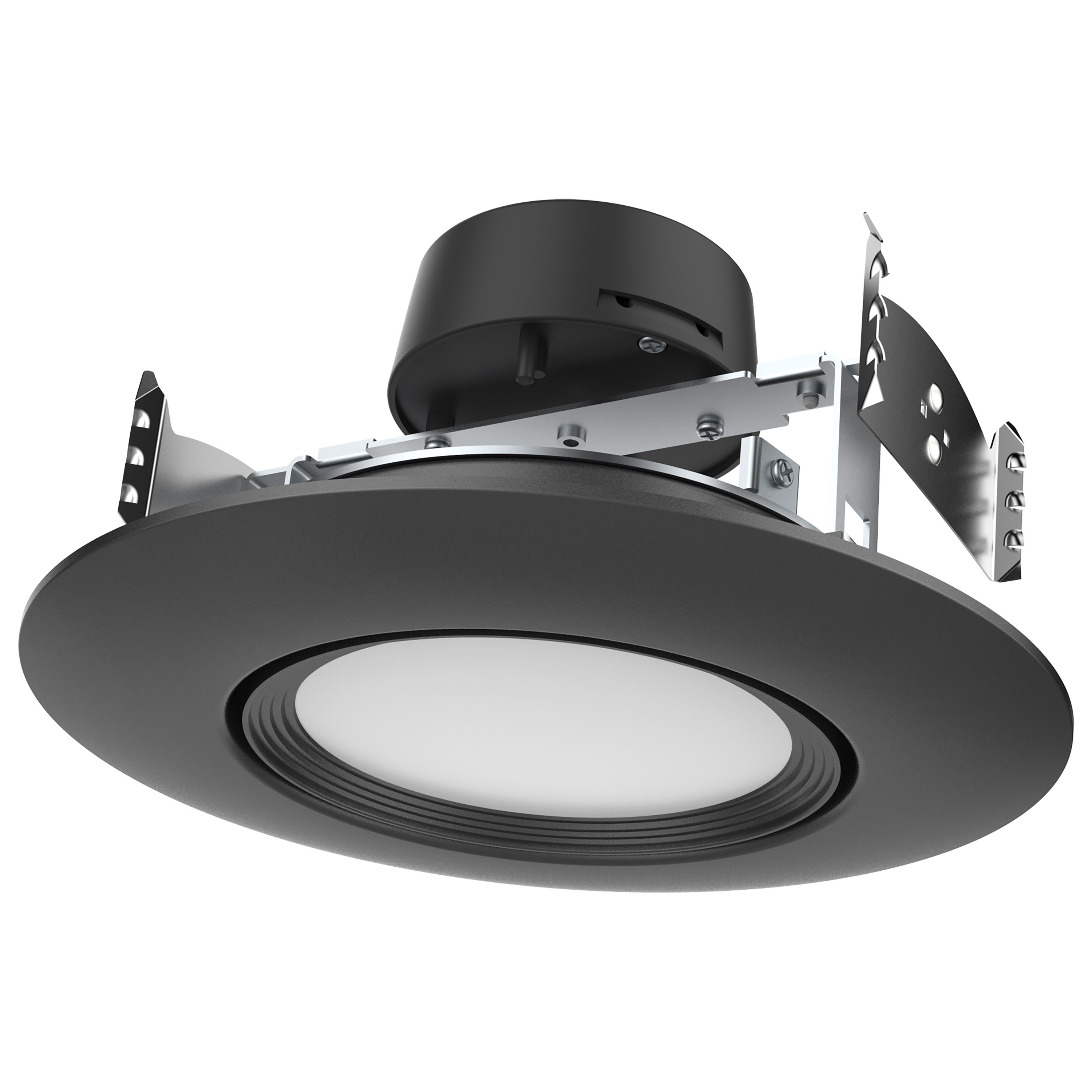

S11857

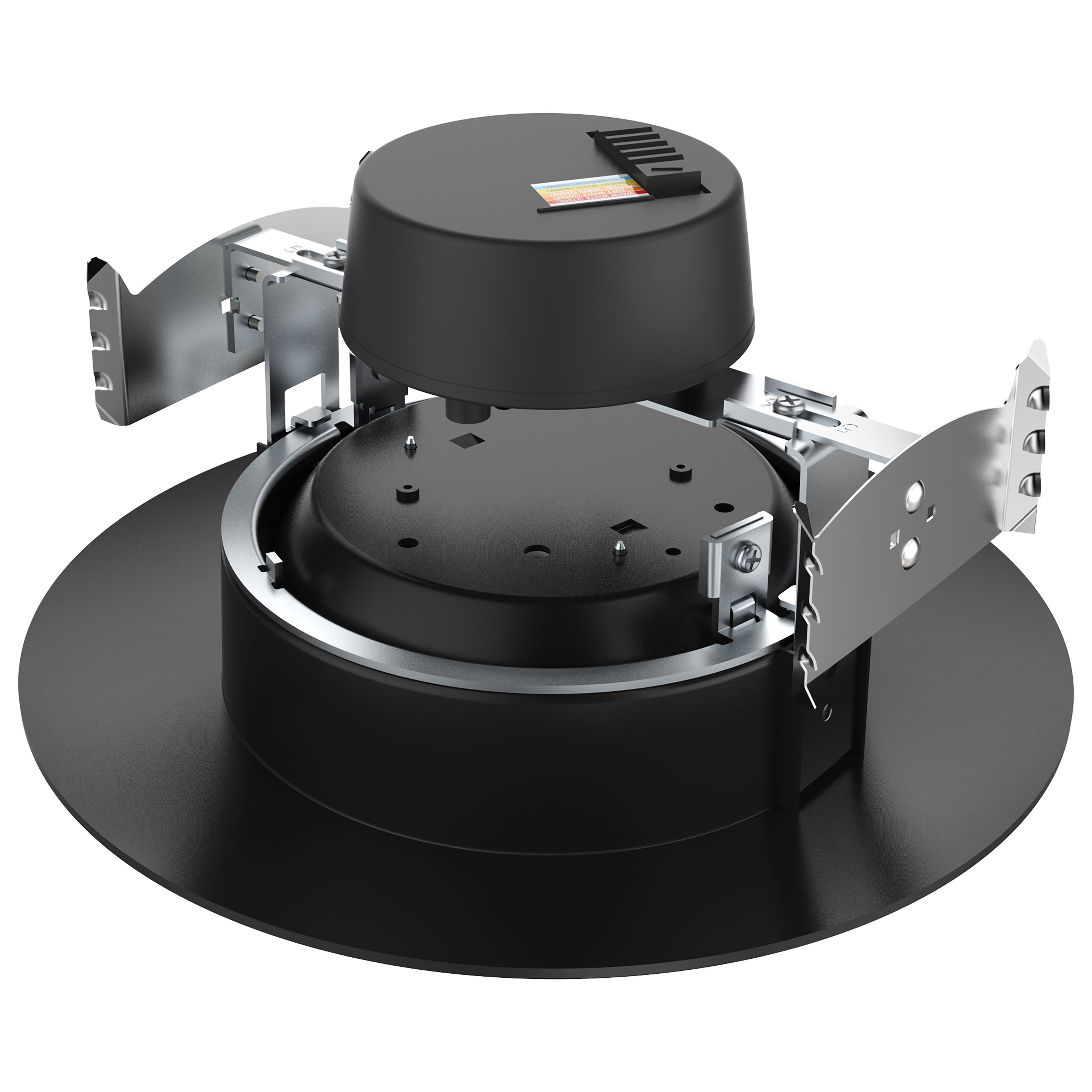

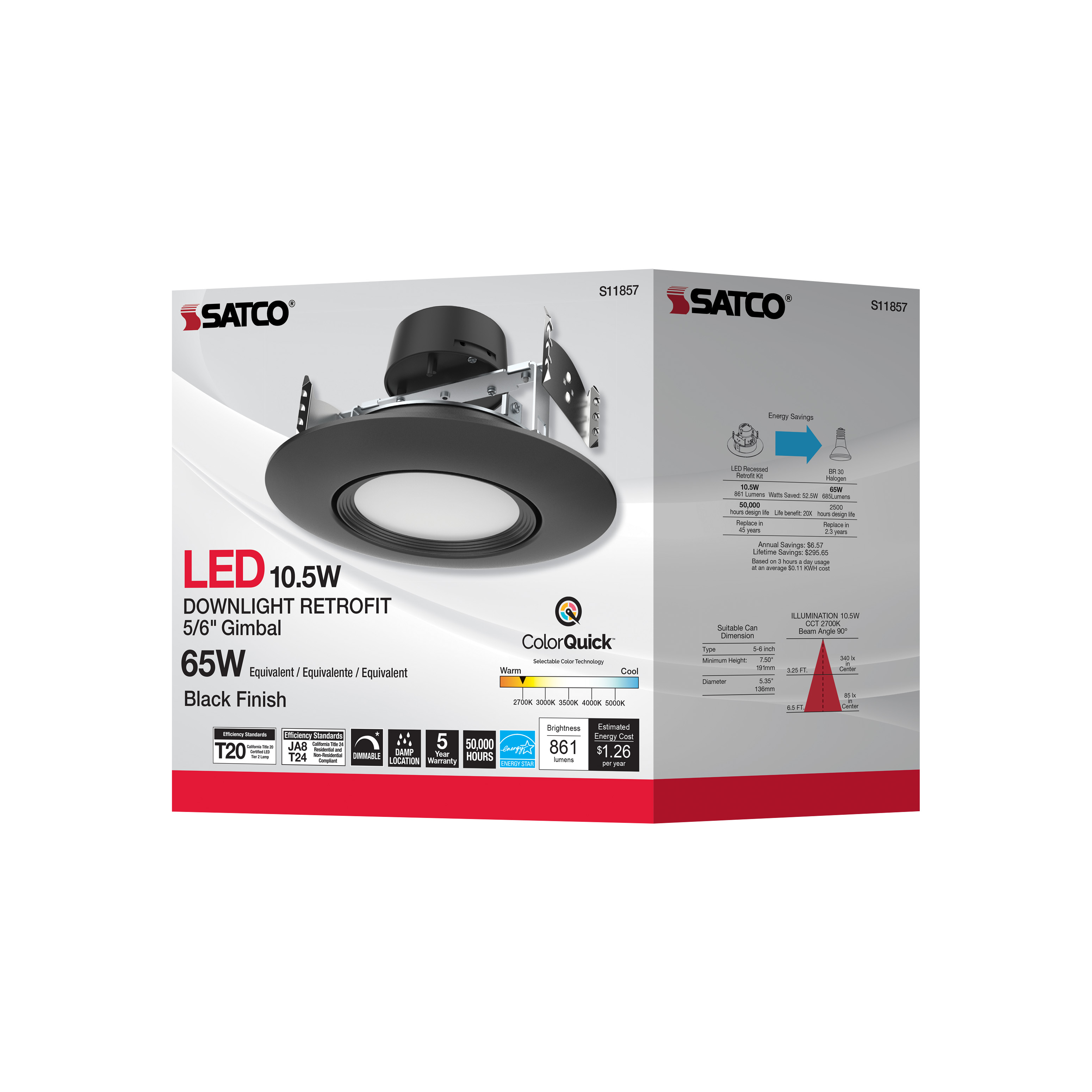

10.5WLED/DIR/5-6/CCT-SEL/120V/

  • 10.5 Watt
  • LED Retrofit Downlight
  • Gimbaled
  • 120 Volt
  • CCT Selectable
  • Black Finish
location_rating^damp^1
cc_selectable^y^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11857 SpecificationsS11857 Instructions.pdf
Tools
Lighting Layout Analysis For S11857
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10.5 Watt; LED Retrofit Downlight; Gimbaled; 120 Volt; CCT Selectable; Black Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

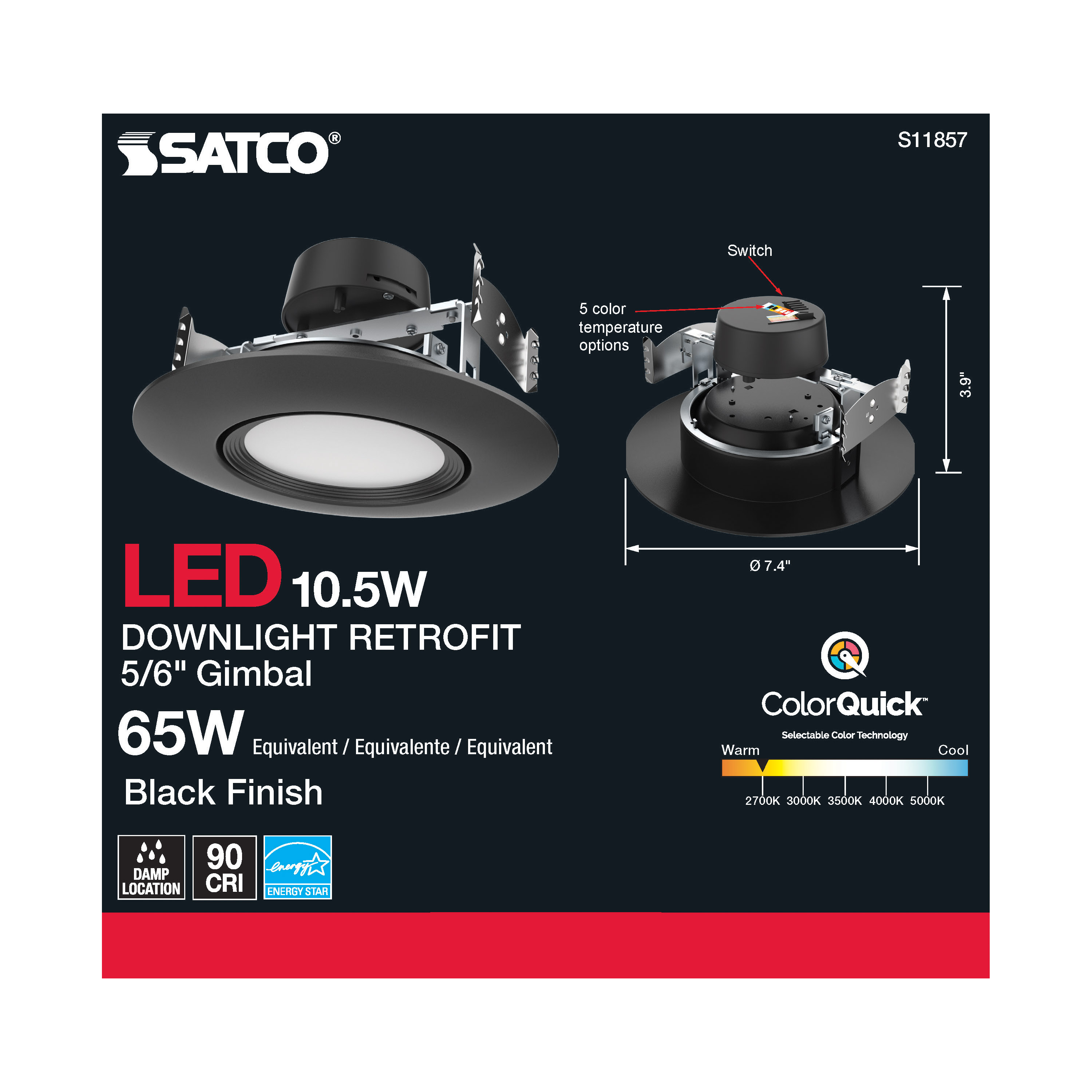

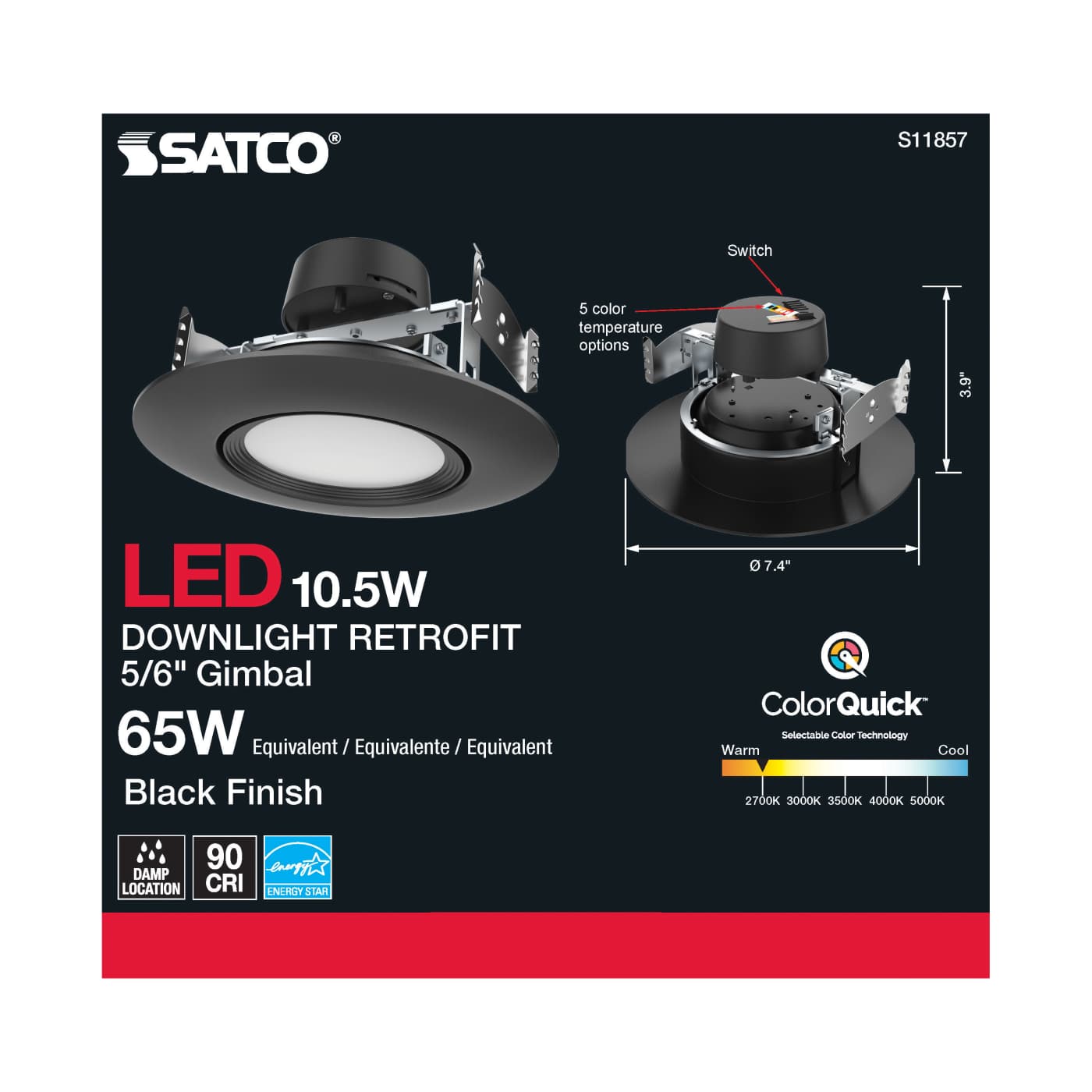

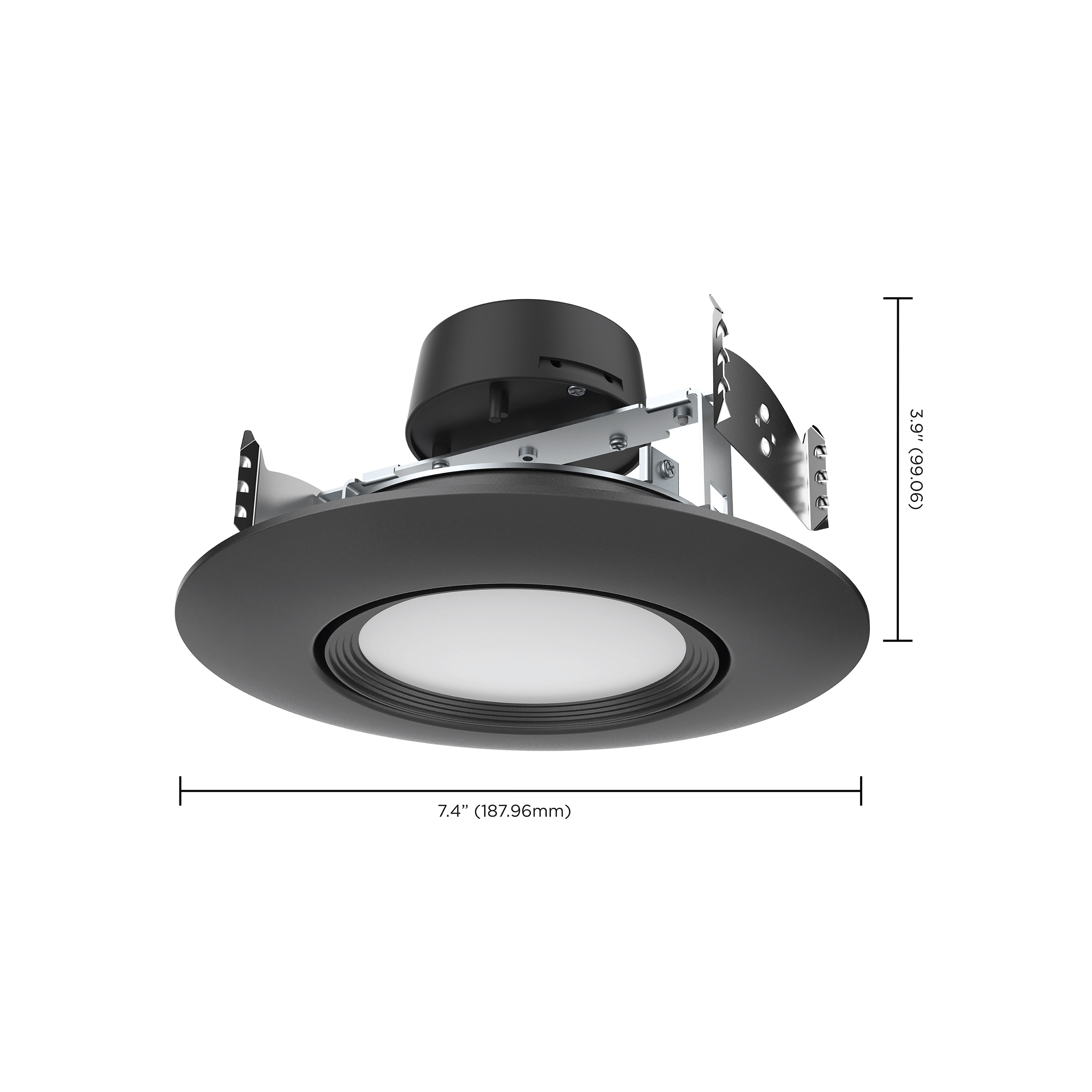

Diameter7.4
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialPolycarbonate (PC)
Fixture TypeDirect Wire LED Downlight

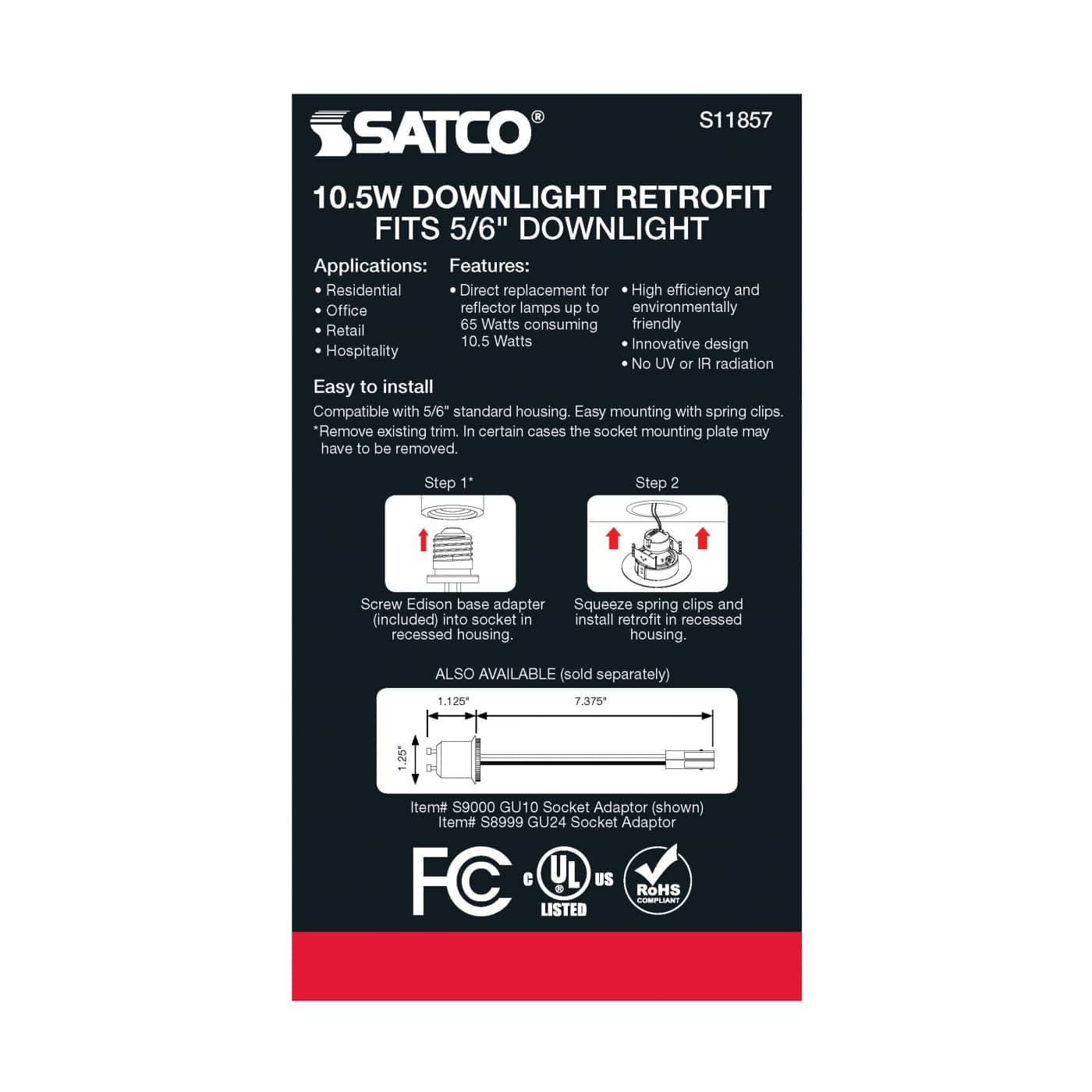

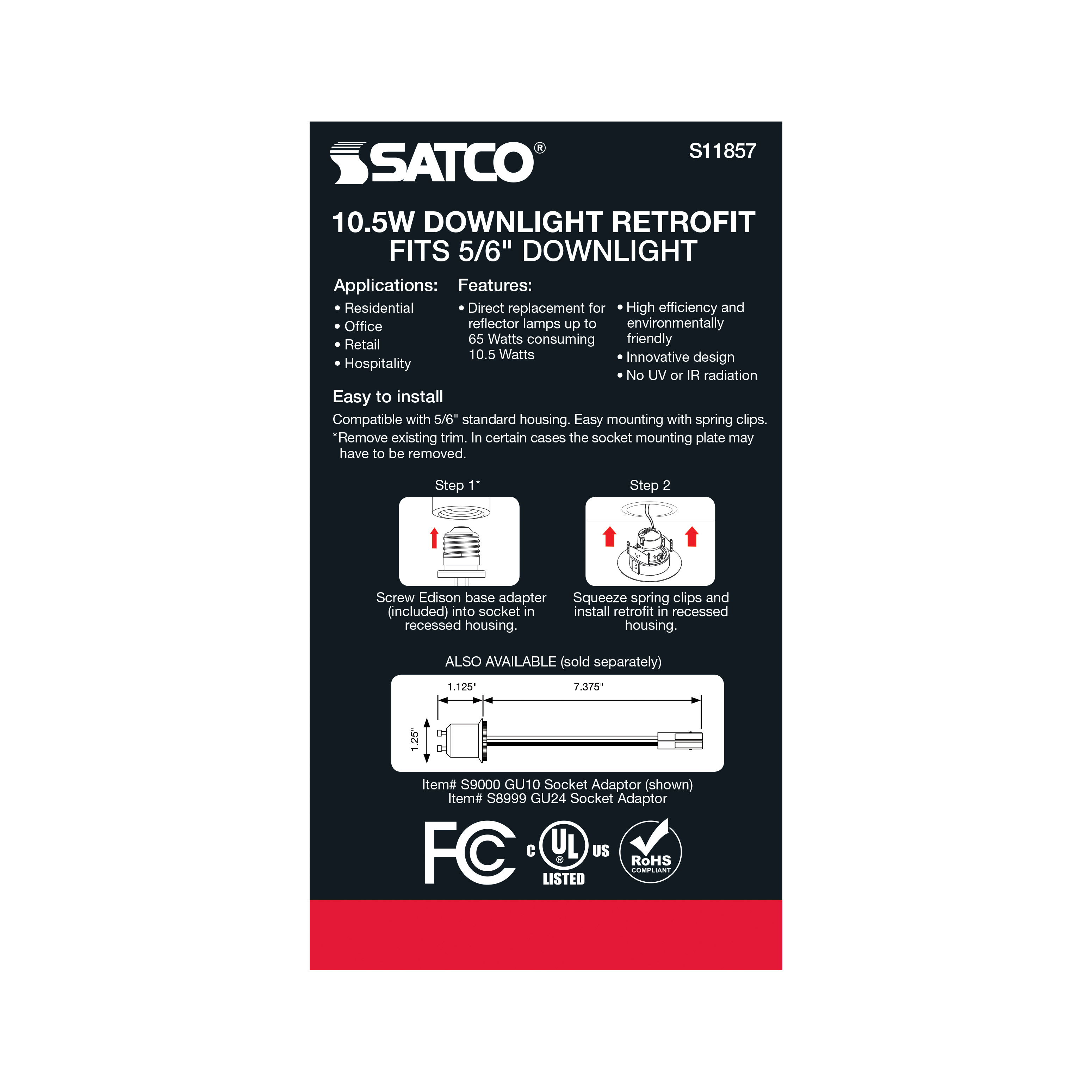

IncludesE26 Adapter included (S9001)
Product NotesAiming Angle: 22 Degrees
StatusActive
StyleUtility
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Can Size5-6 in.
Finish FamilyBlack
Amps0.088A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm to Cool White
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens861L
Volts120v
Watts10.5W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
Air TightNo
CA Prop 65Lead
Energy Star ID4510421
FCC CompliantYes
IC RatedYes
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedYes
Title 20Yes
T24 CompliantYes
Packaging
UPC045923118579
Case Cube1.7037
Case Height9.06
Case Length18.98
Case Quantity8
Case UPC10045923118576
Case Weight11.42
Case Width17.12
EA Cube0.1734
EA Height8.07
EA Length4.5
EA Quantity1
EA Weight1.21
EA Width8.25
Pack TypeColor Box
Web Height3.9
Web Width7.4
