| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |

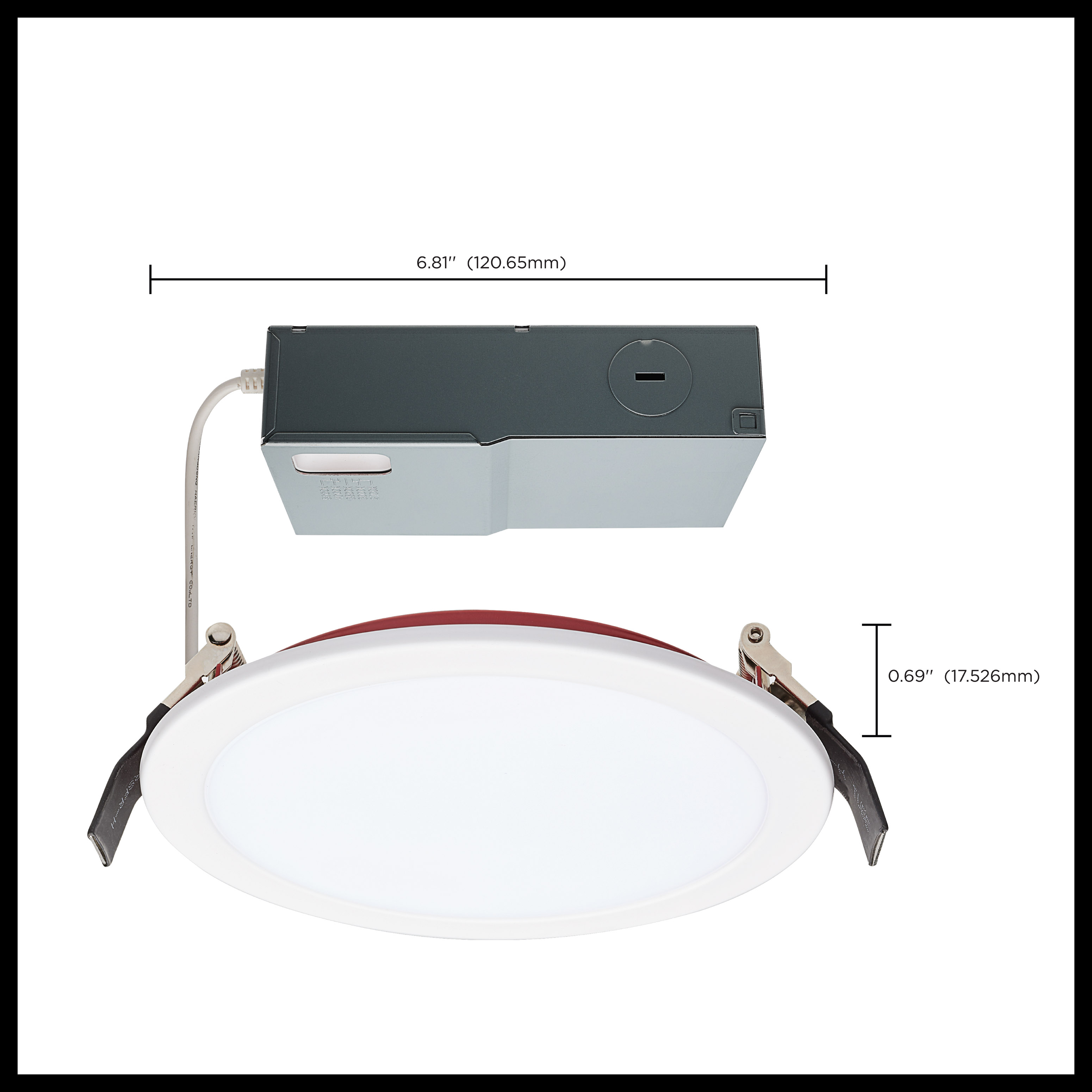

| Diameter | 6.81 |
| Dimmable Text | 0-10V Dimming |
| Lamp Filament | LED |
| Material | Aluminum / Steel |

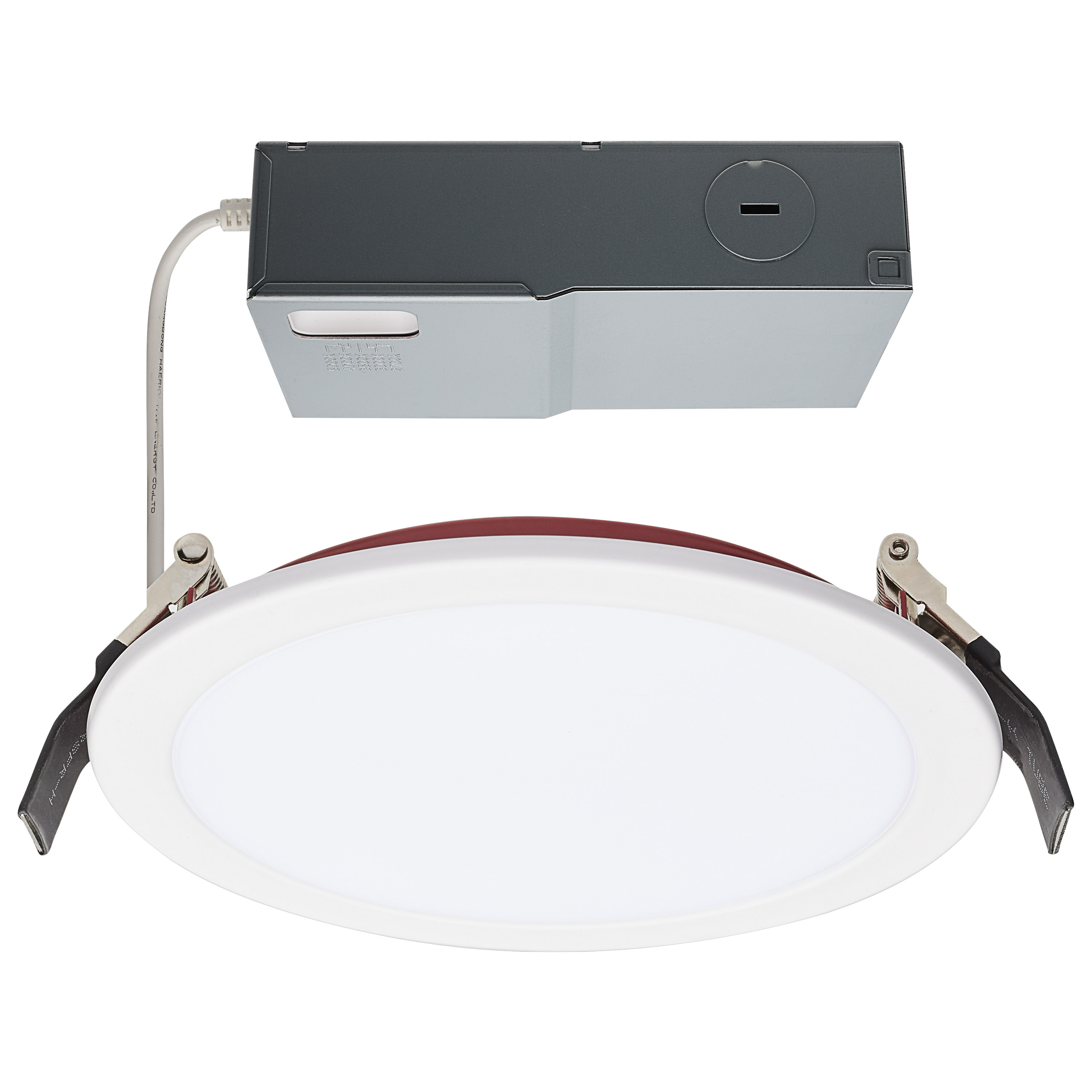

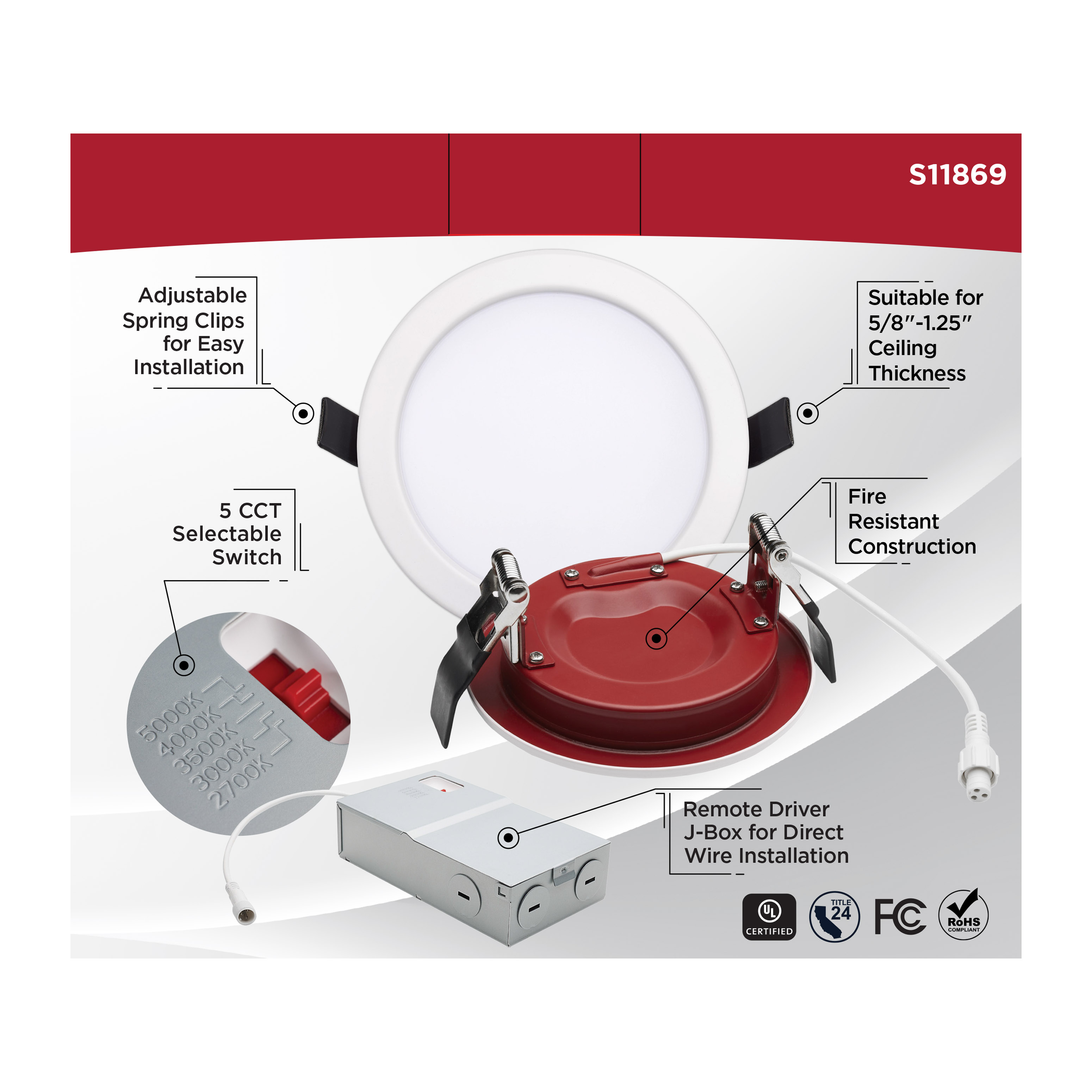

| Fixture Type | Remote Driver LED Downlight |

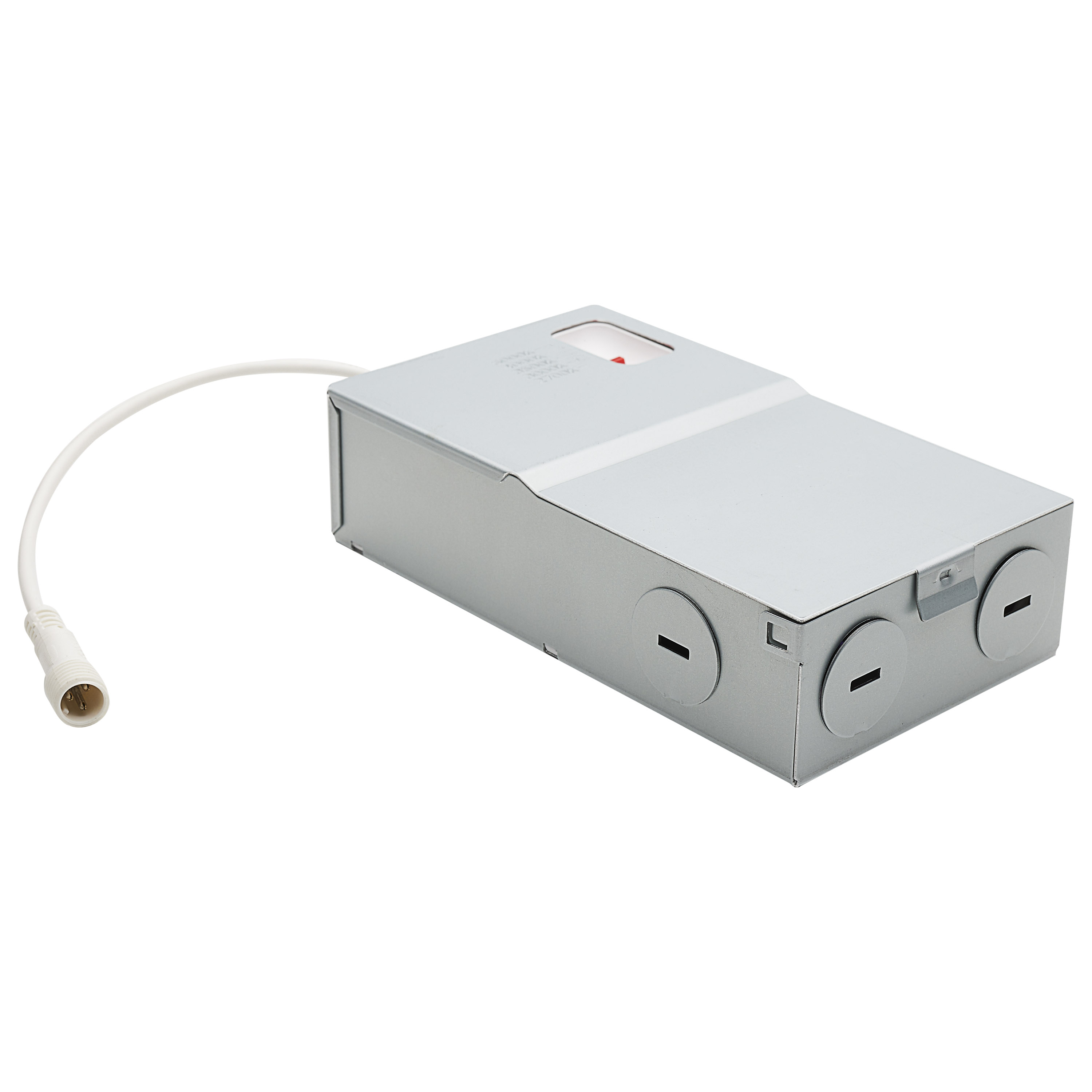

| Product Notes | Driver Dimensions: 4.50" x 3.00" x 1.25" |
| Status | Active |
| Style | Specialty |
| Most Current Generation | S11869R1 |
| Total Harmonic Distortion | <20% |

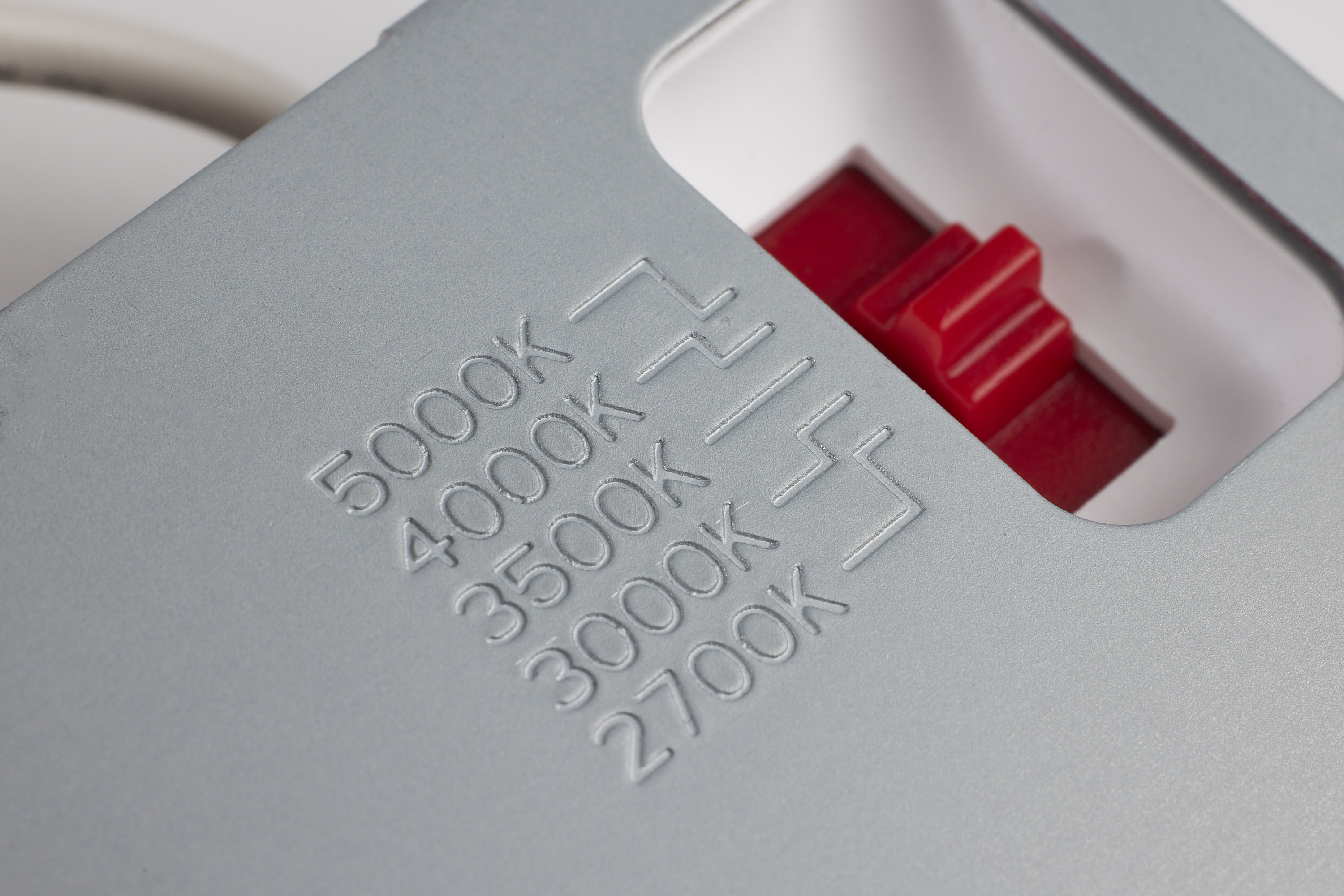

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |

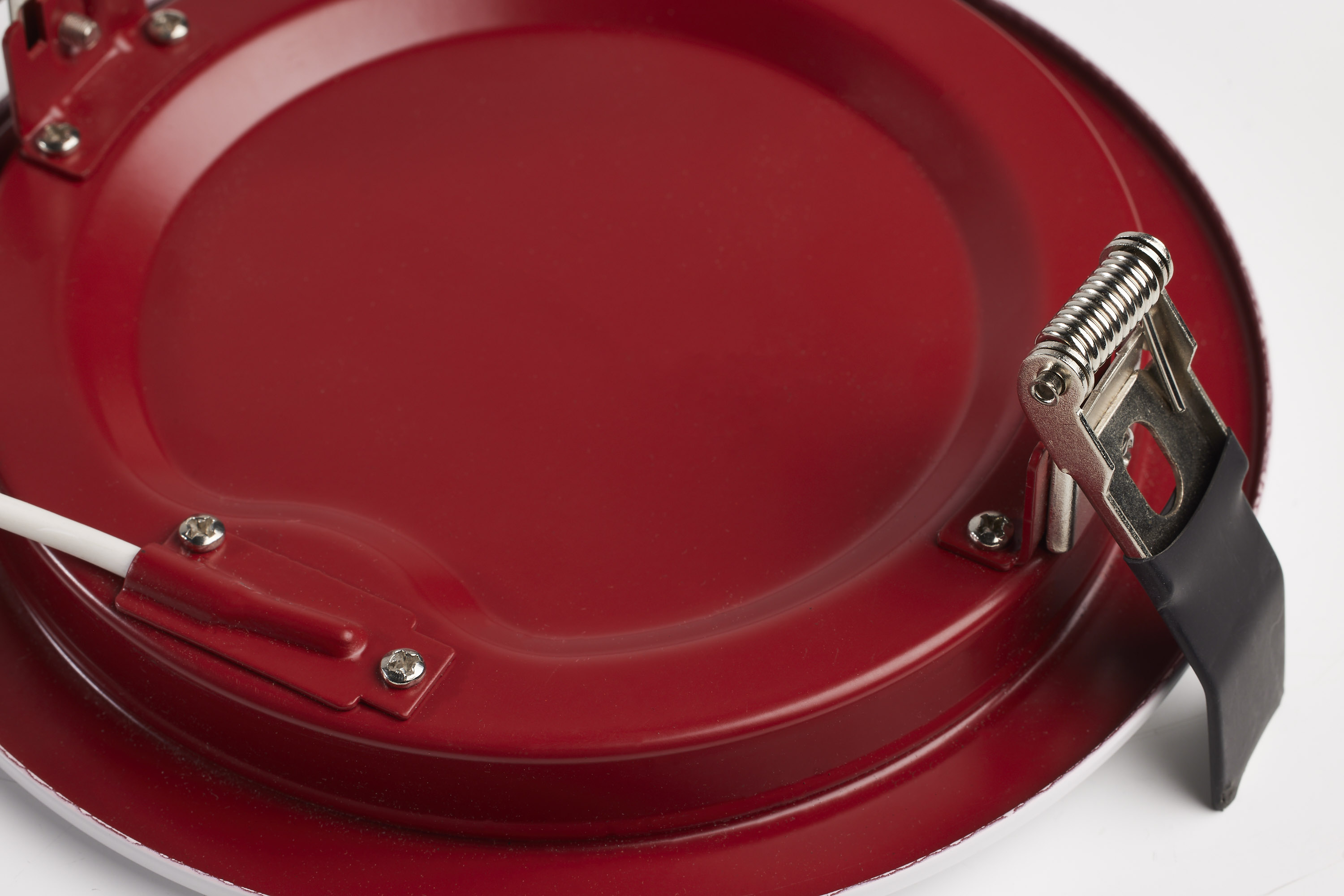

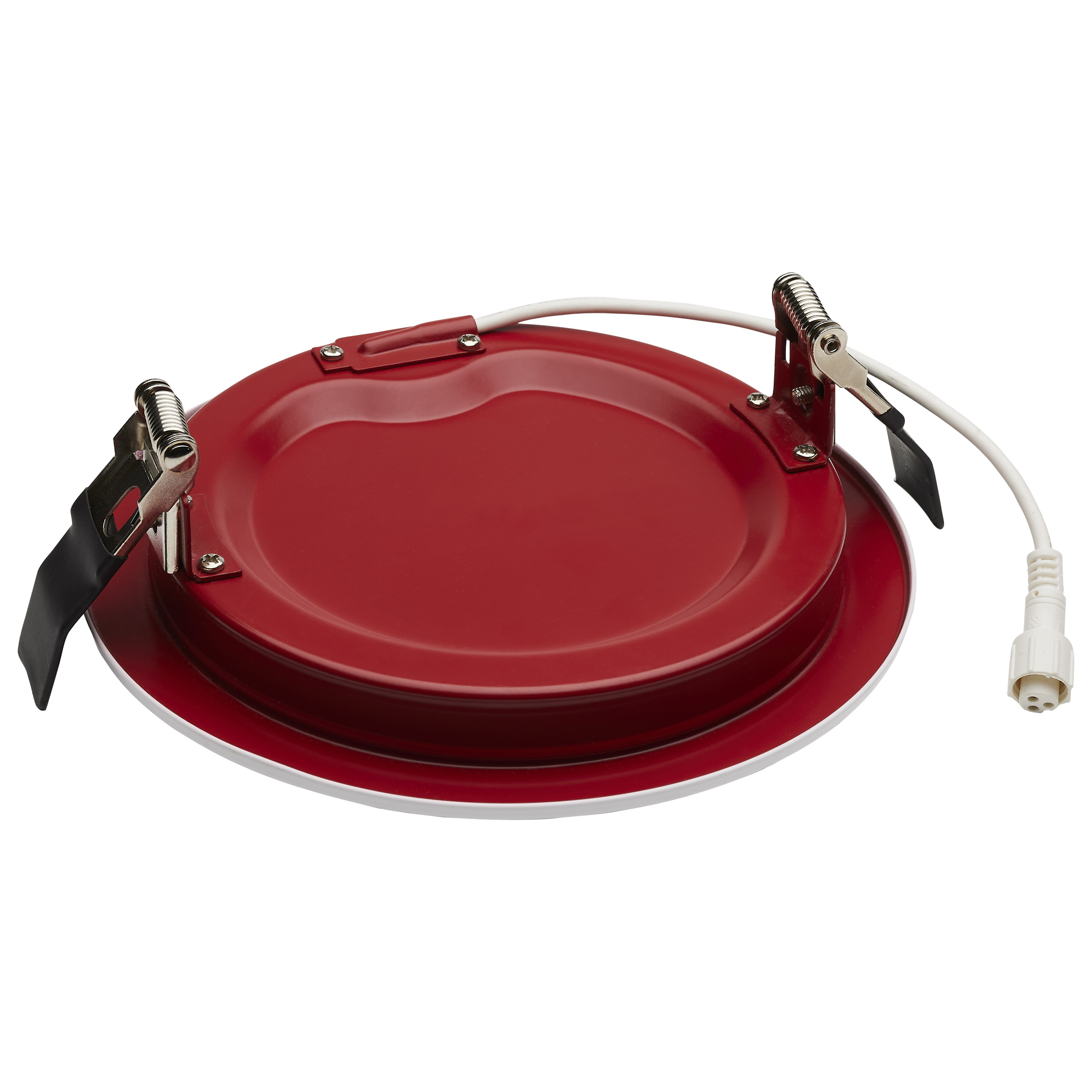

| Additional Info | 2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07; White Trim/Red Backplate |
| Amps | 0.108-0.047A |
| Has Camera | False |
| IOT Enabled | False |

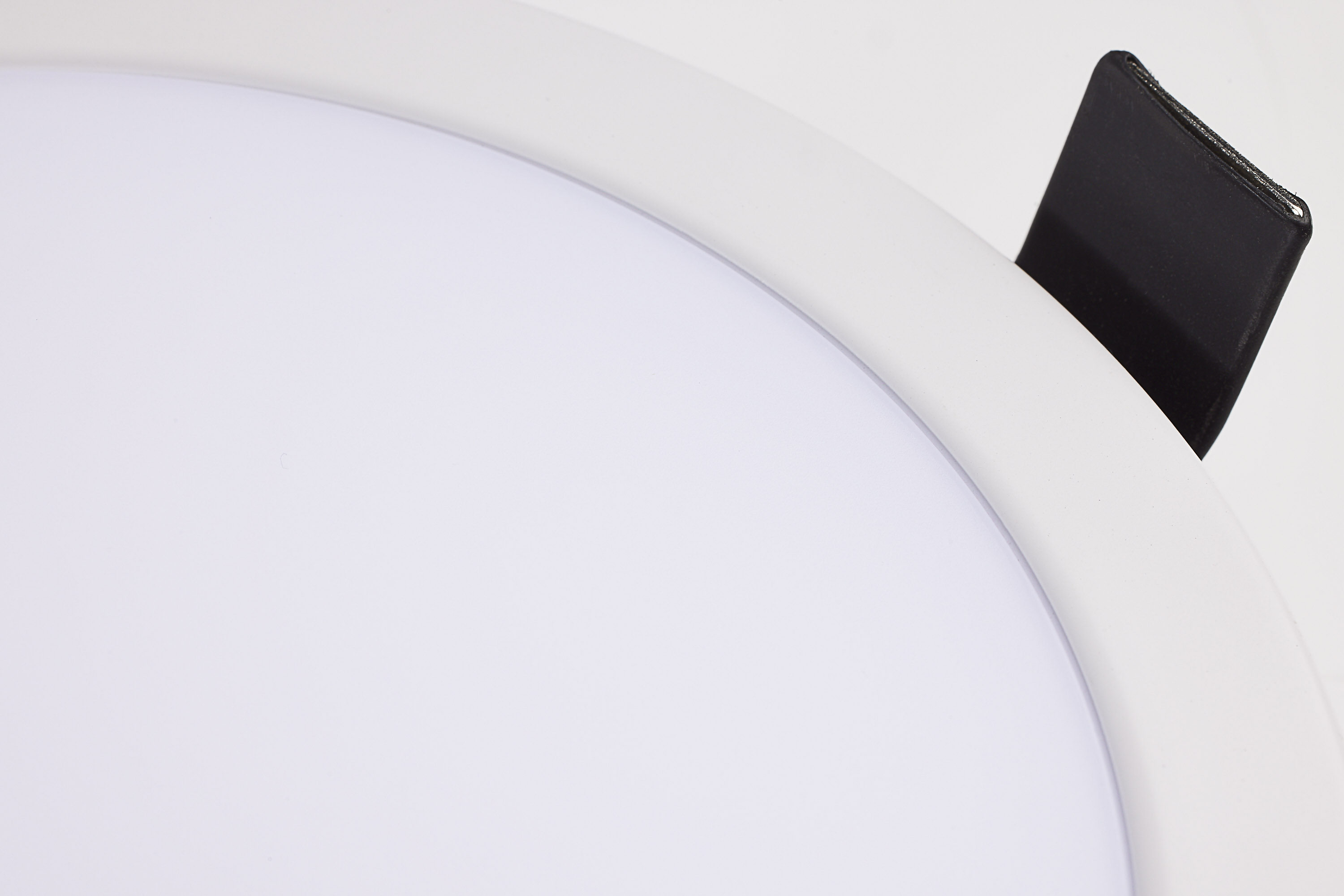

| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Bulb Count | 1 |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 1050L |
| Volts | 120V-277V |
| Watts | 13W |
| Lamp Base | Integrated |
|---|---|
| Finish | White / Red |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| Air Tight | True |
|---|---|
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Energy Star ID | ESID-3942768 |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | California T24 Listed |
| UL Application | LED Recessed Luminaire |
| DLC Approved | False |
| Energy Star Certified | Yes |
| Title 20 | Exempt |
| T24 Compliant | True |
| UPC | 045923118692 |
|---|---|
| Case Cube | 0.5756 |
| Case Height | 7.32 |
| Case Length | 16.06 |
| Case Quantity | 6 |
| Case UPC | 10045923118699 |
| Case Weight | 11.01 |
| Case Width | 8.46 |
| EA Cube | 0.0846 |
| EA Height | 6.93 |
| EA Length | 7.87 |
| EA Quantity | 1 |
| EA Weight | 1.72 |
| EA Width | 2.68 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 0.69 |
| Web Width | 6.81 |
