| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 4.92 |
| Lamp Filament | LED |
| Material | Aluminum |

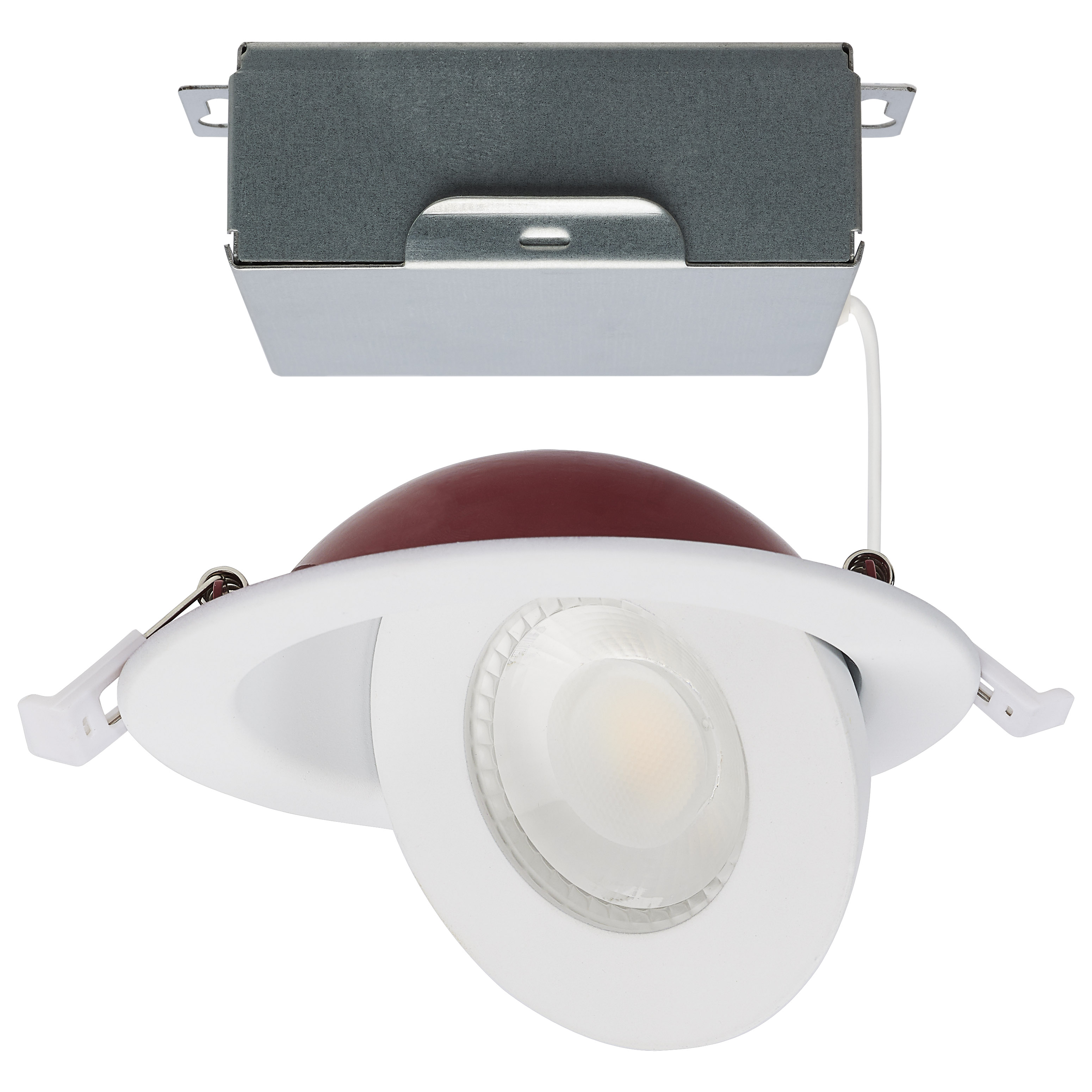

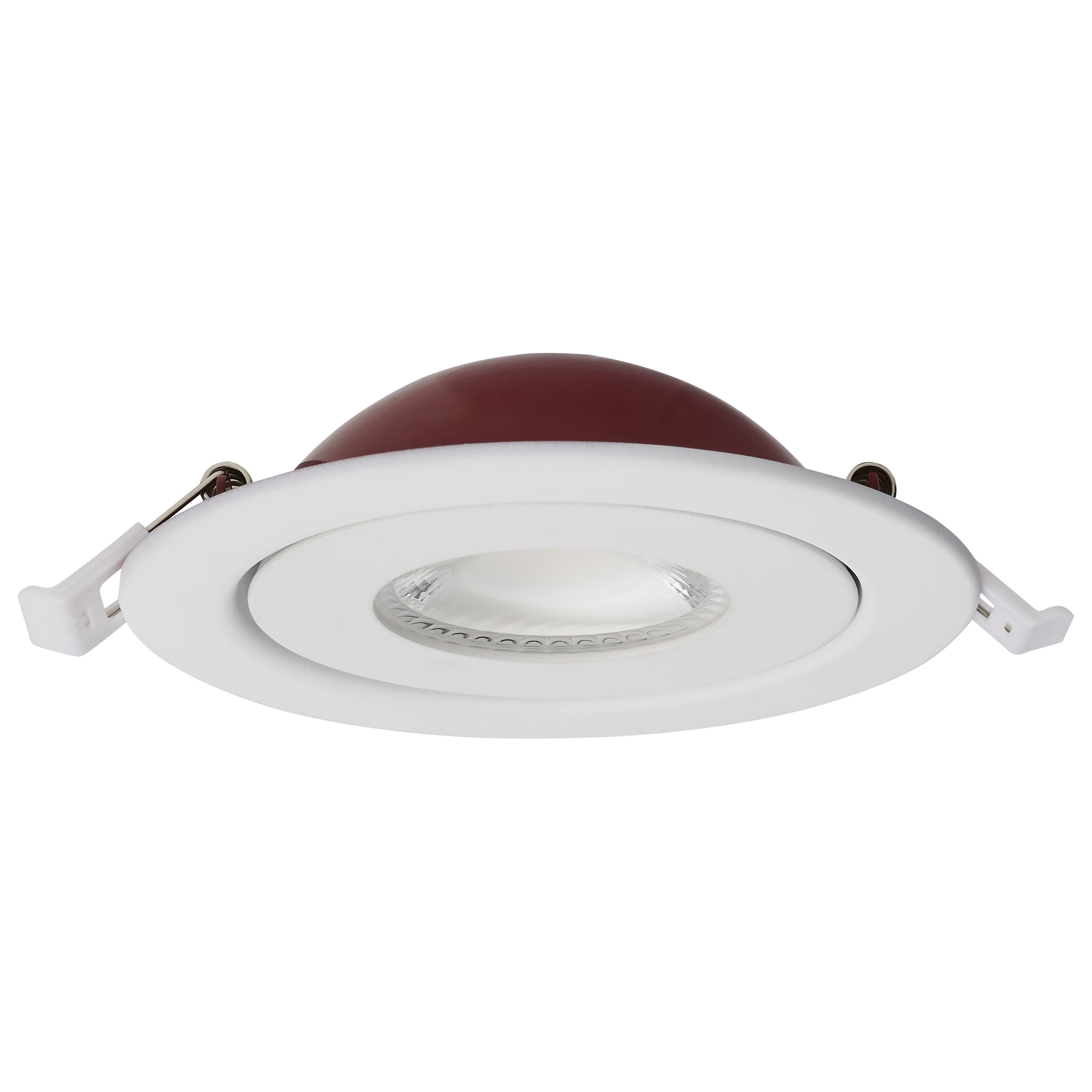

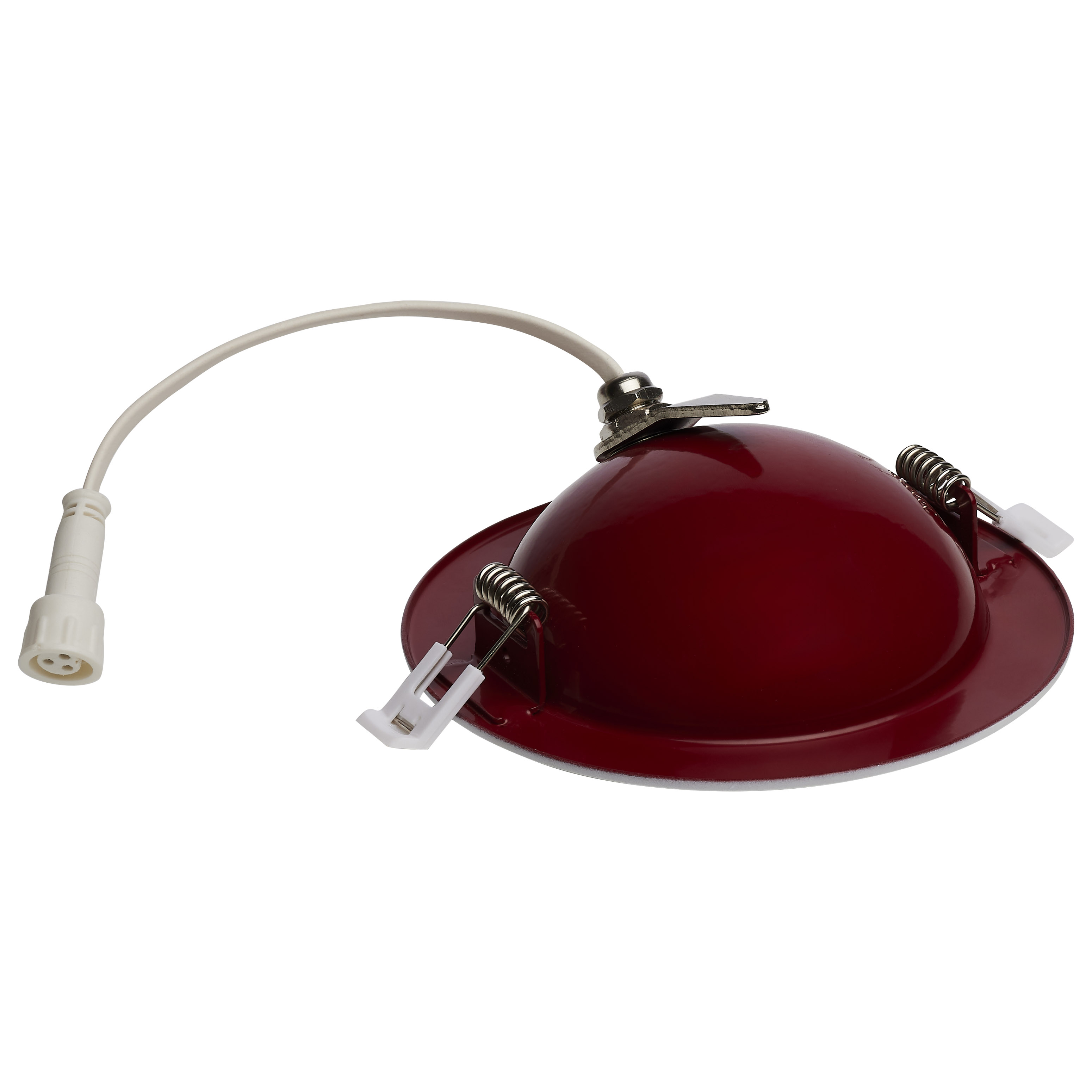

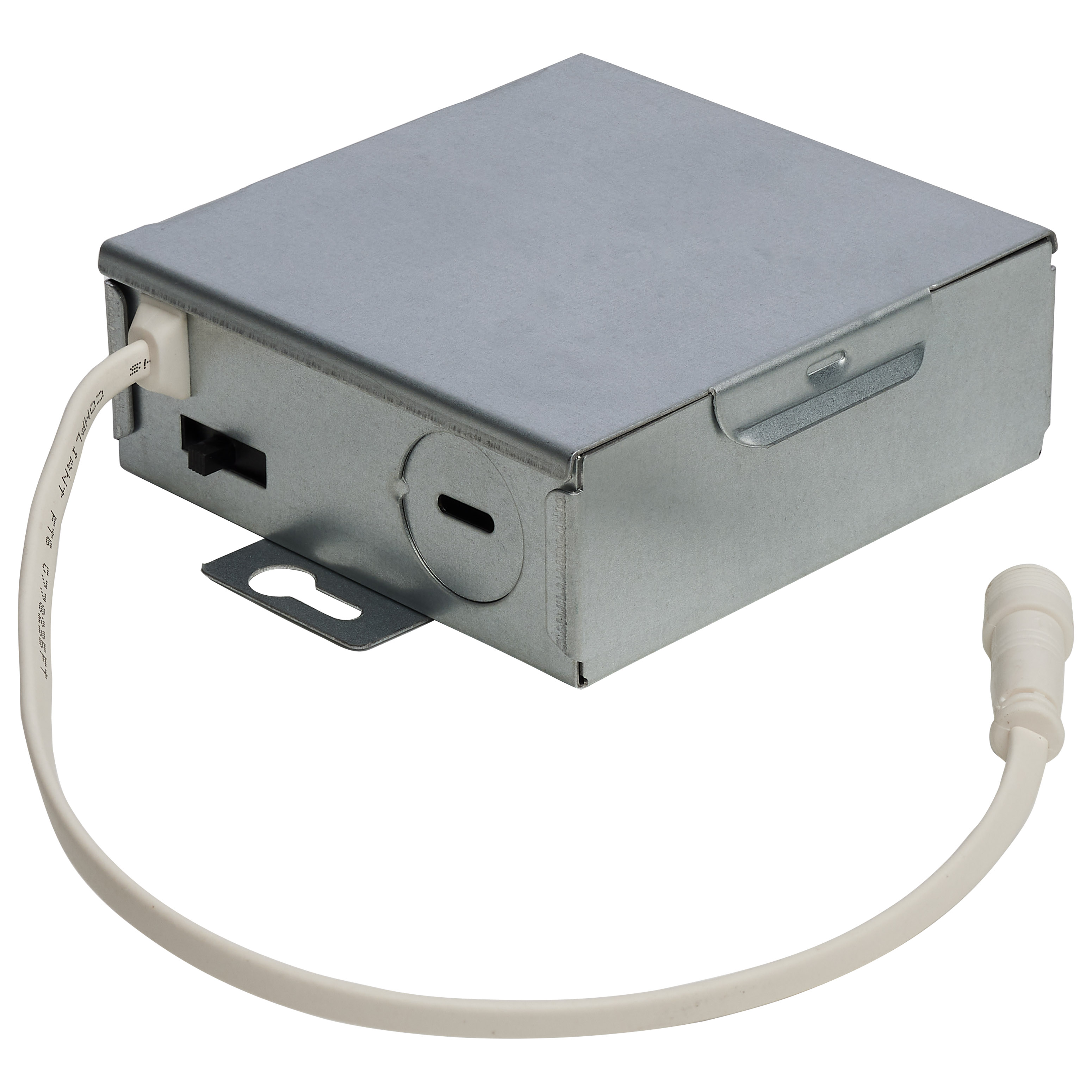

| Fixture Type | Remote Driver LED Downlight |

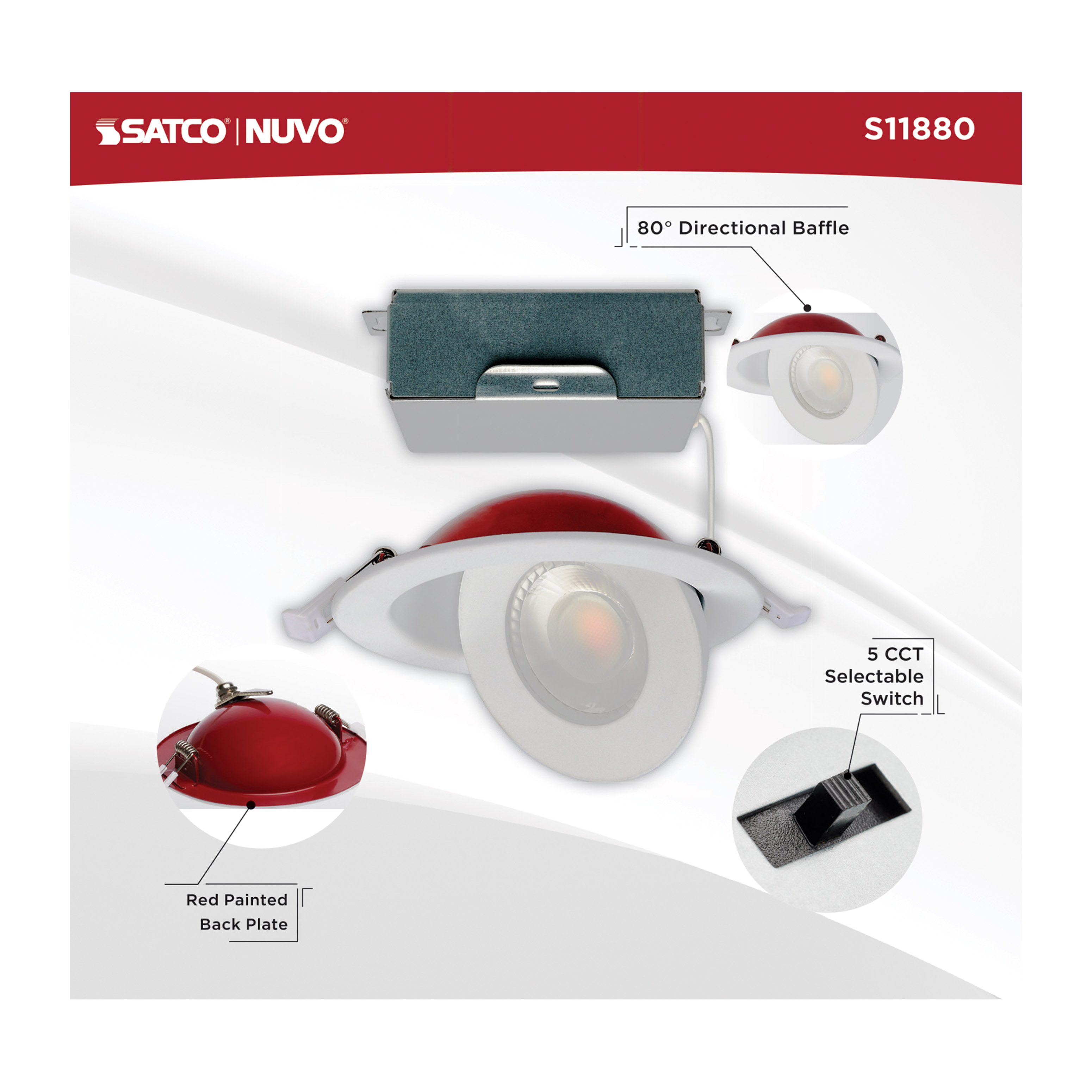

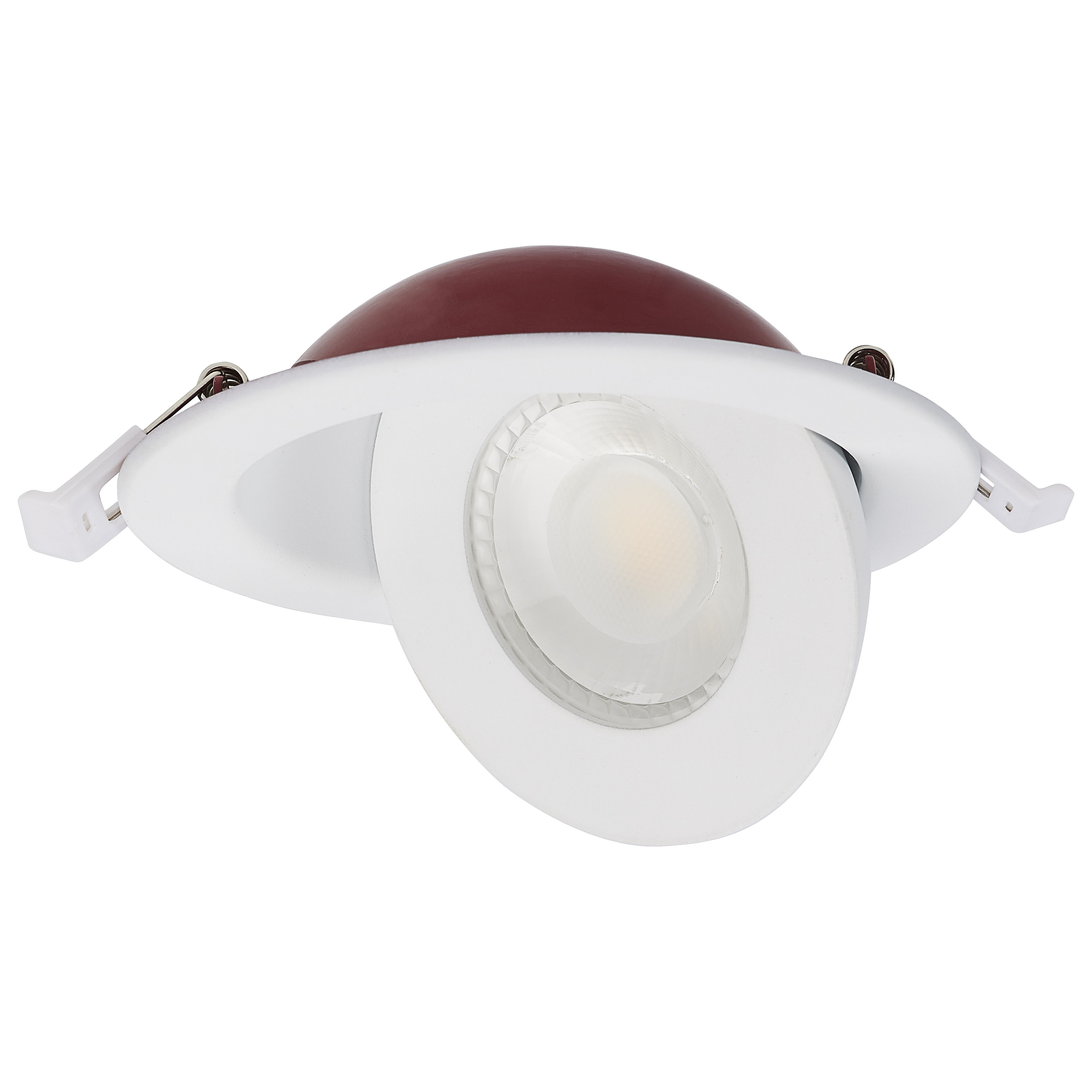

| Product Notes | Rotation Angle 360 degrees; Tilt Angle 80 degrees |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 1.5KV |
| Total Harmonic Distortion | <30% |

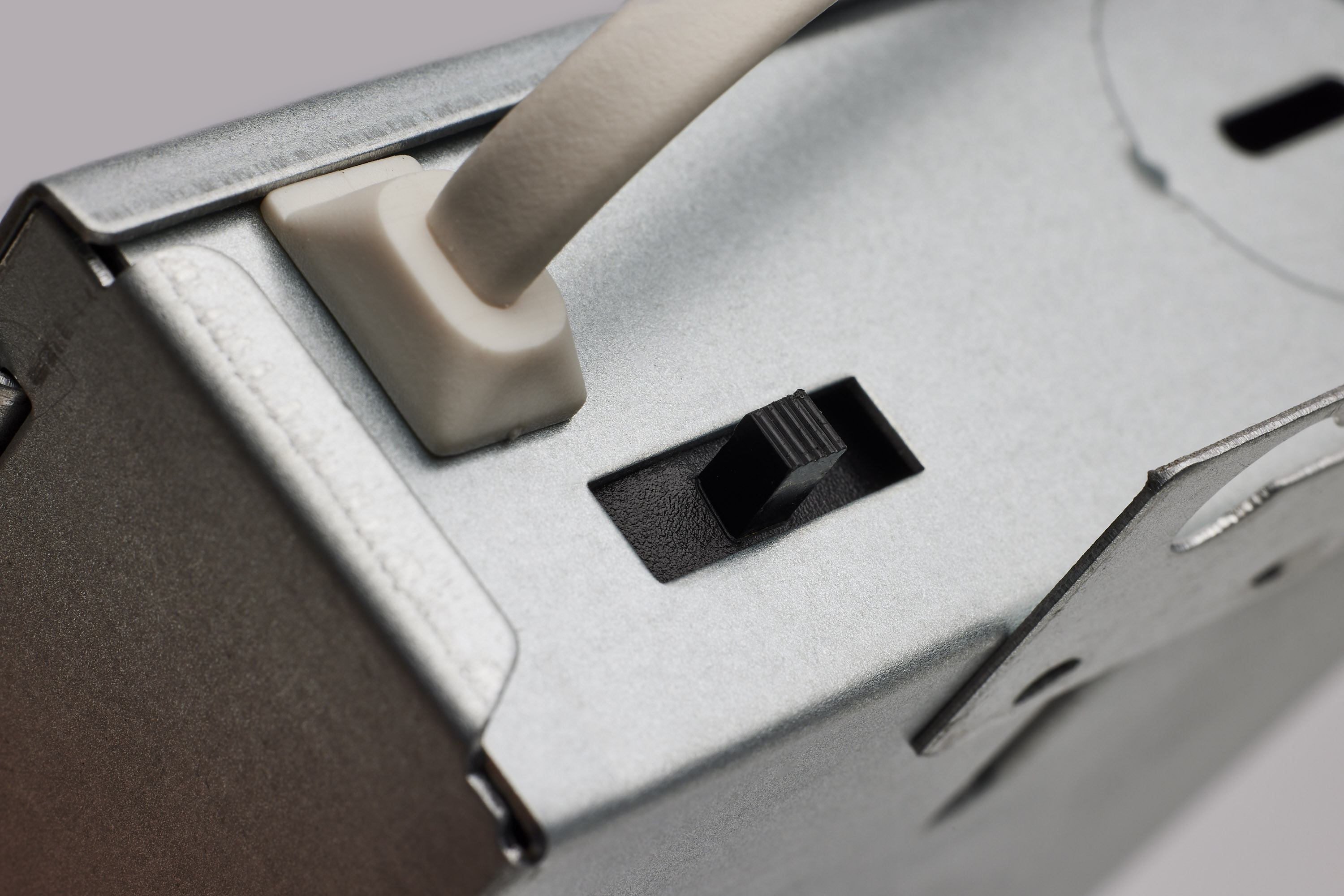

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Can Size | 4 in. |
| Finish Family | White |
| Additional Info | 2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07 |
| Amps | 0.08A |
| Has Camera | No |
| IOT Enabled | No |

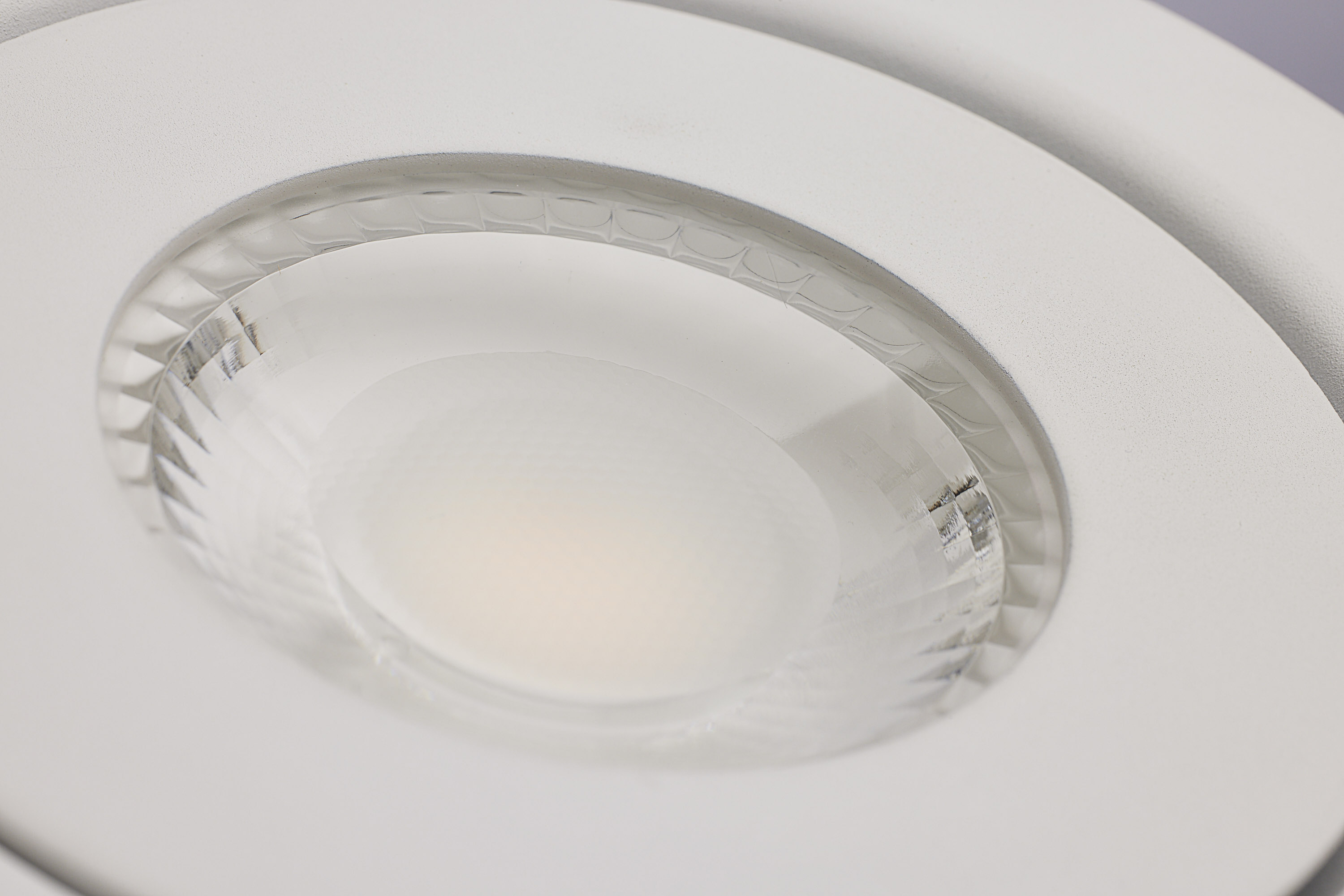

| Lens Finish | Frost |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Sloped Ceiling Compatible | Yes |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fixture Lamp Count | 1 |
| Incandescent Equivalent | 50W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 36 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Triac |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 650L |
| Volts | 120v |
| Watts | 9W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| Air Tight | Yes |
|---|---|
| CA Prop 65 | Lead |
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | California T24 Listed |
| UL Application | Covered Ceiling Mount |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| UPC | 045923118807 |
|---|---|
| Case Cube | 0.7196 |
| Case Height | 11.02 |
| Case Length | 11.02 |
| Case Quantity | 12 |
| Case UPC | 10045923118804 |
| Case Weight | 15.21 |
| Case Width | 10.24 |
| EA Cube | 0.0484 |
| EA Height | 5.08 |
| EA Length | 5.16 |
| EA Quantity | 1 |
| EA Weight | 1.2 |
| EA Width | 3.19 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

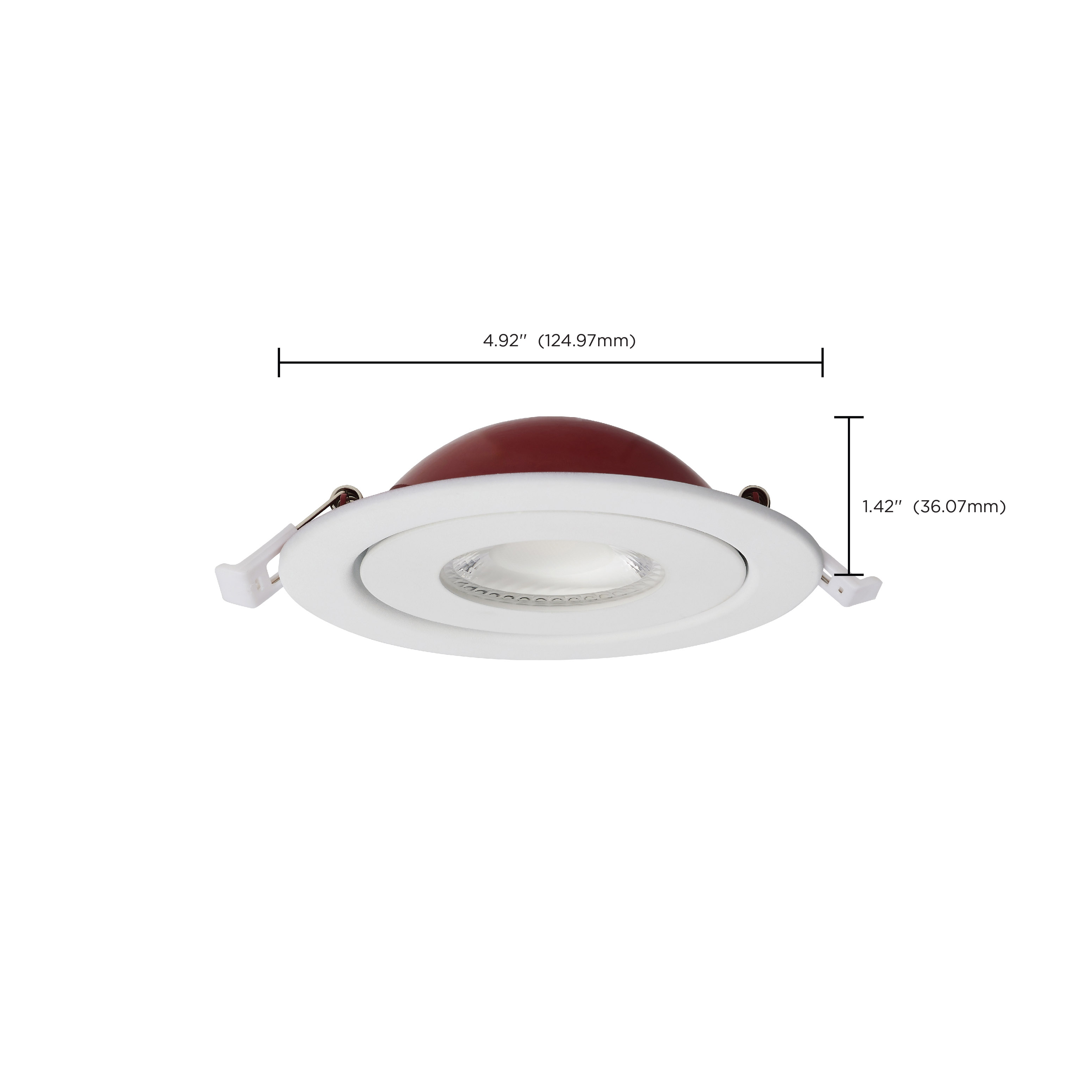

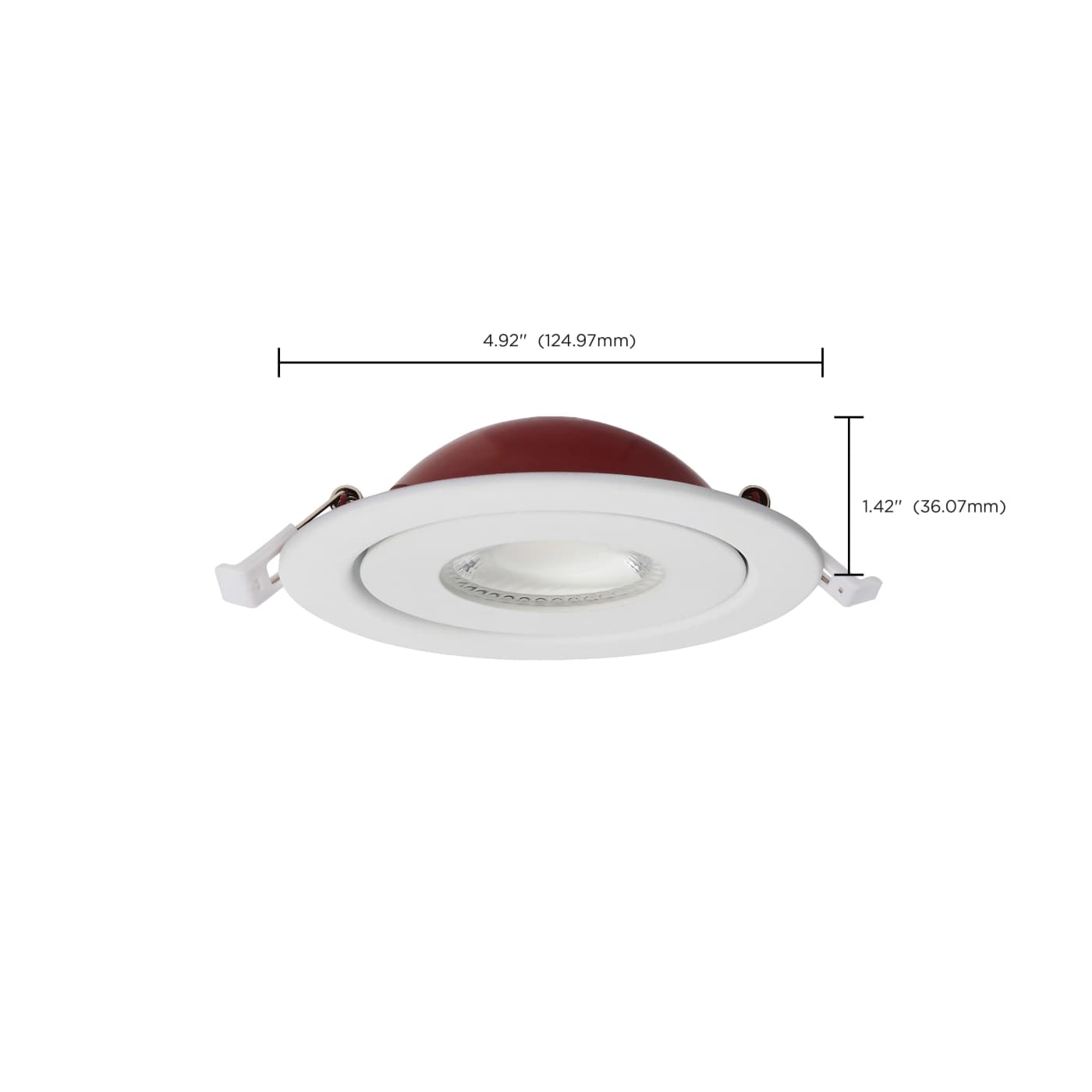

| Web Height | 1.42 |
| Web Width | 4.92 |
