S11896

13WLED/DLR/6/FS/WF/RND/WH

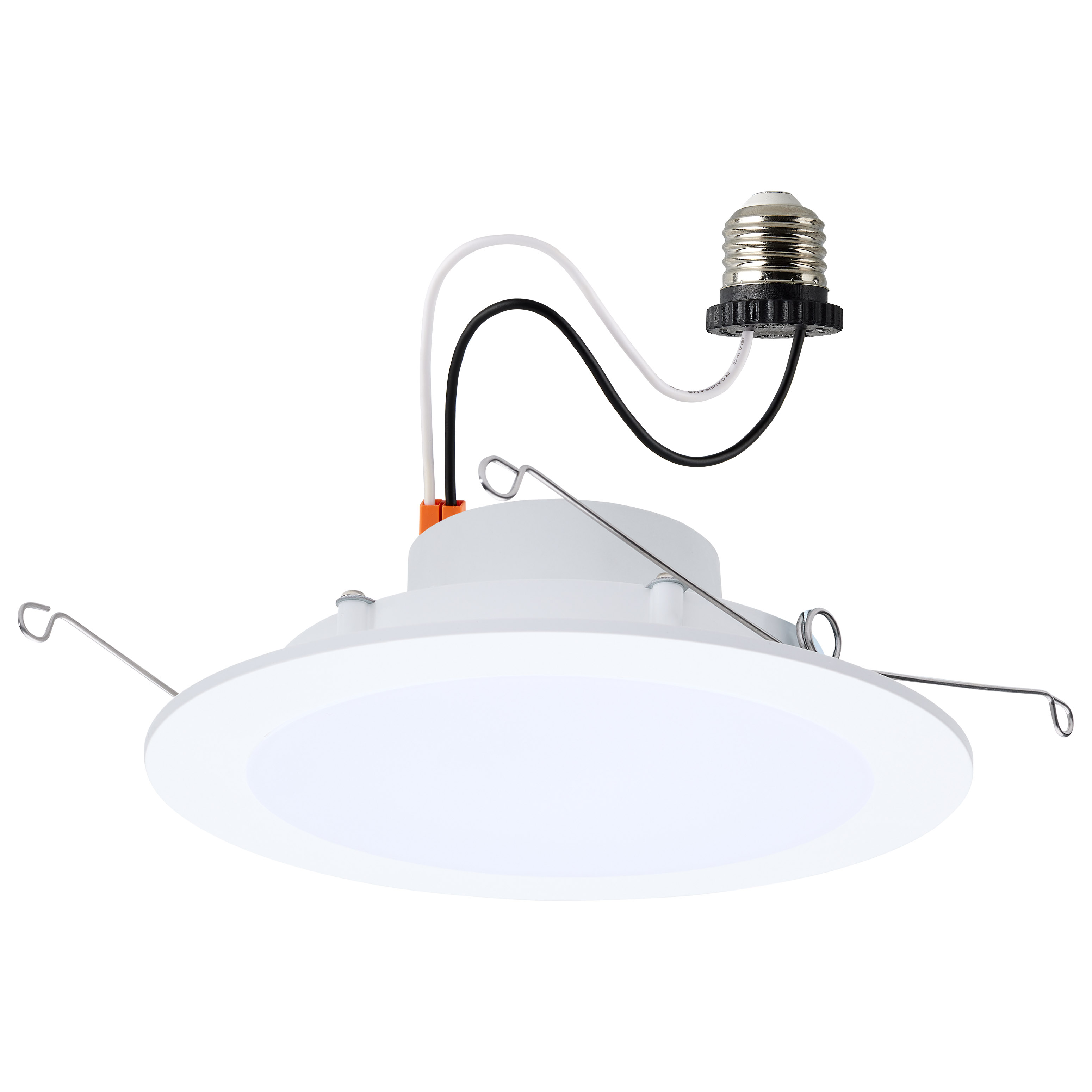

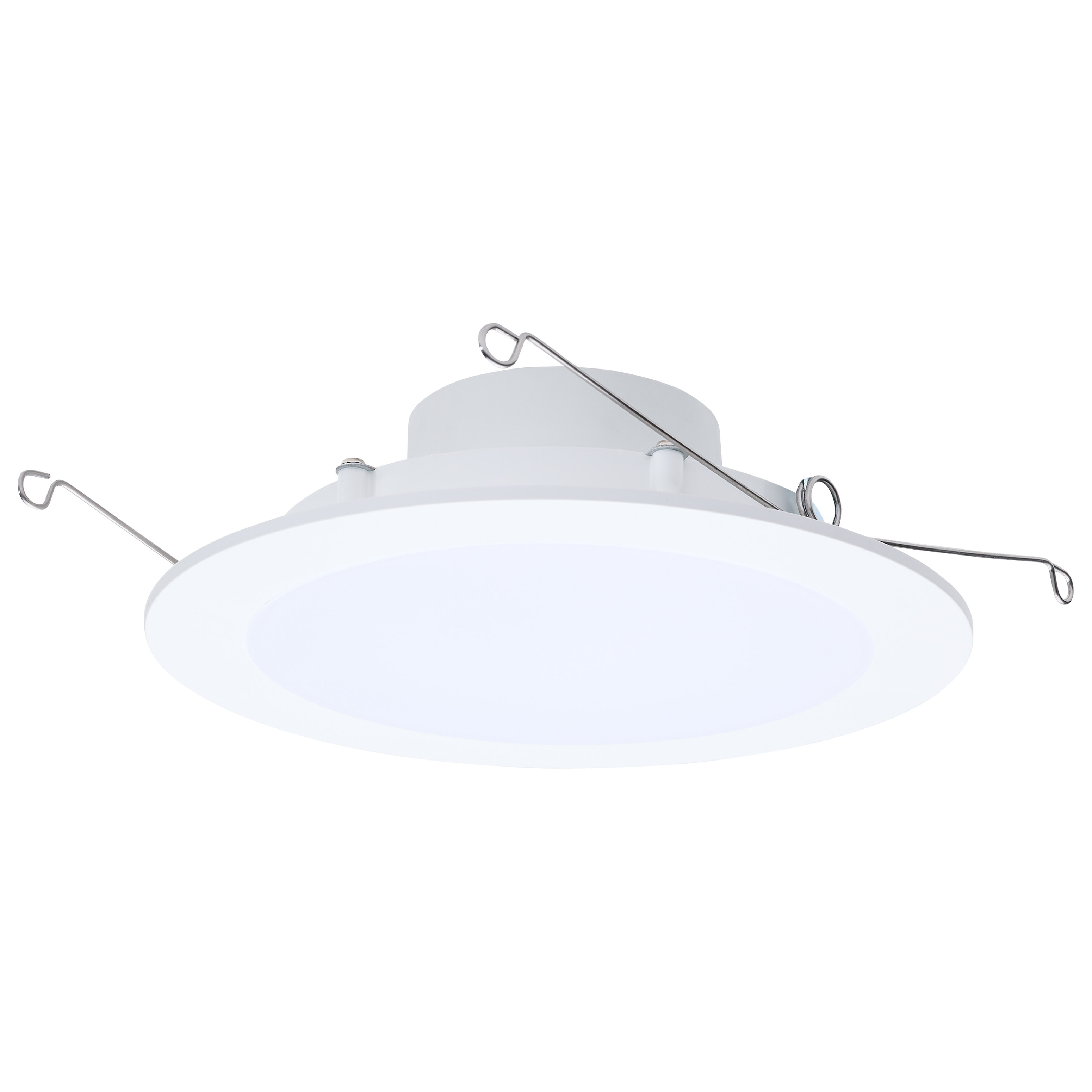

  • 9/11/13 Watt LED Downlight Retrofit
  • 27K/30K/35K/40K/50K CCT
  • 6 Inch

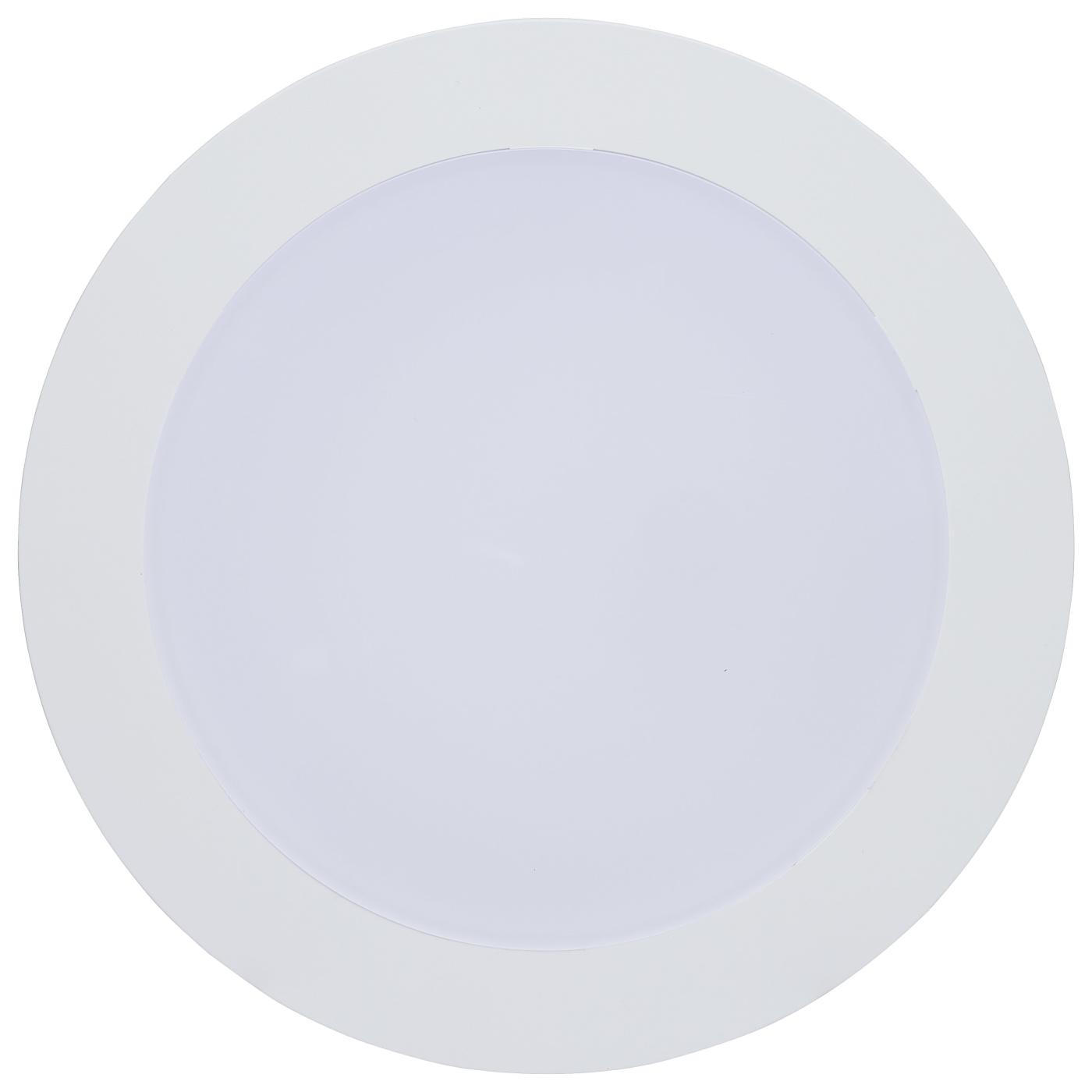

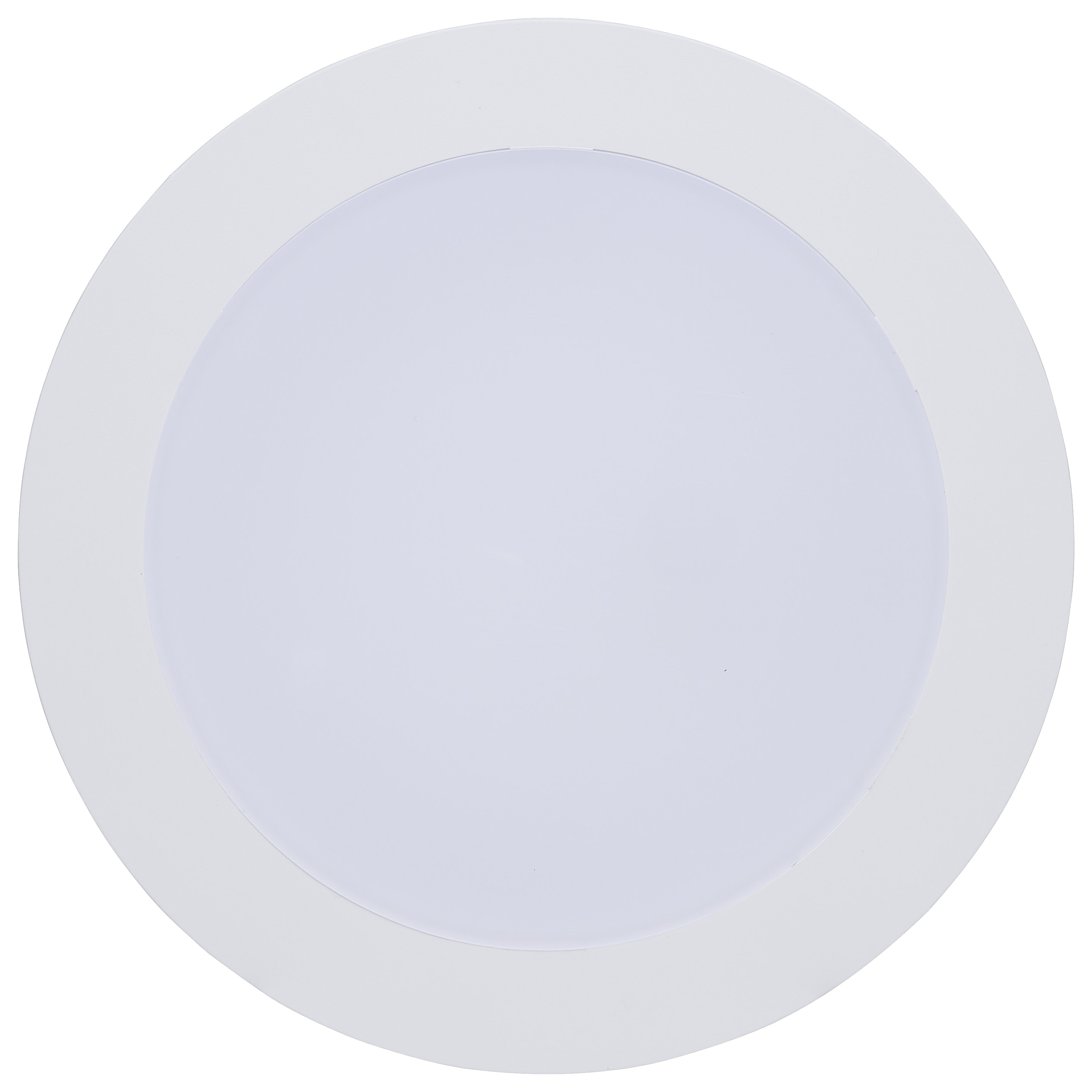

  • Flat Wafer
  • Round
  • Matte White Finish
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120v^2
ic_rated^y^2
safety_listing^cetlus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11896 SpecificationsS11896 Instructions.pdf
Tools
Lighting Layout Analysis For S11896
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

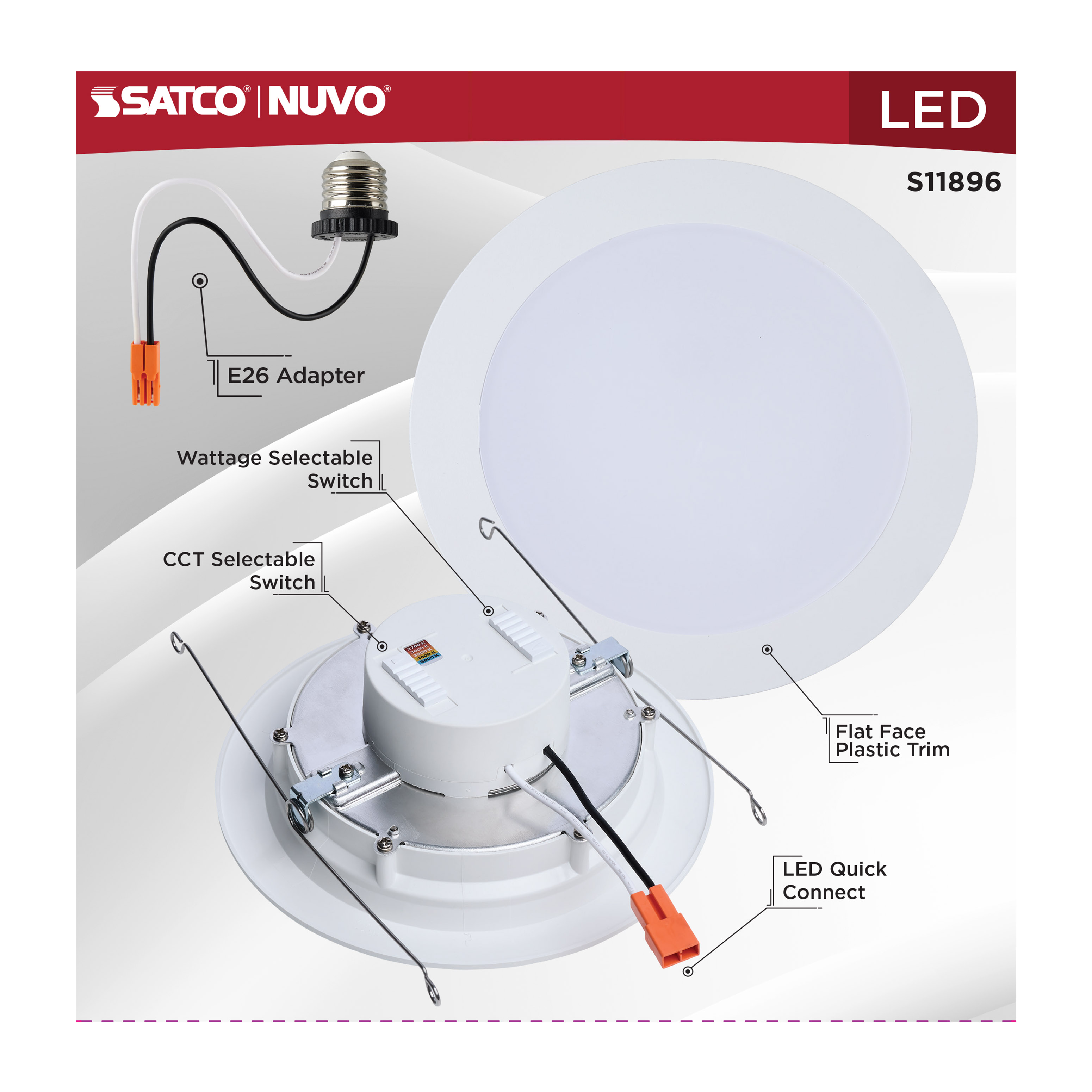

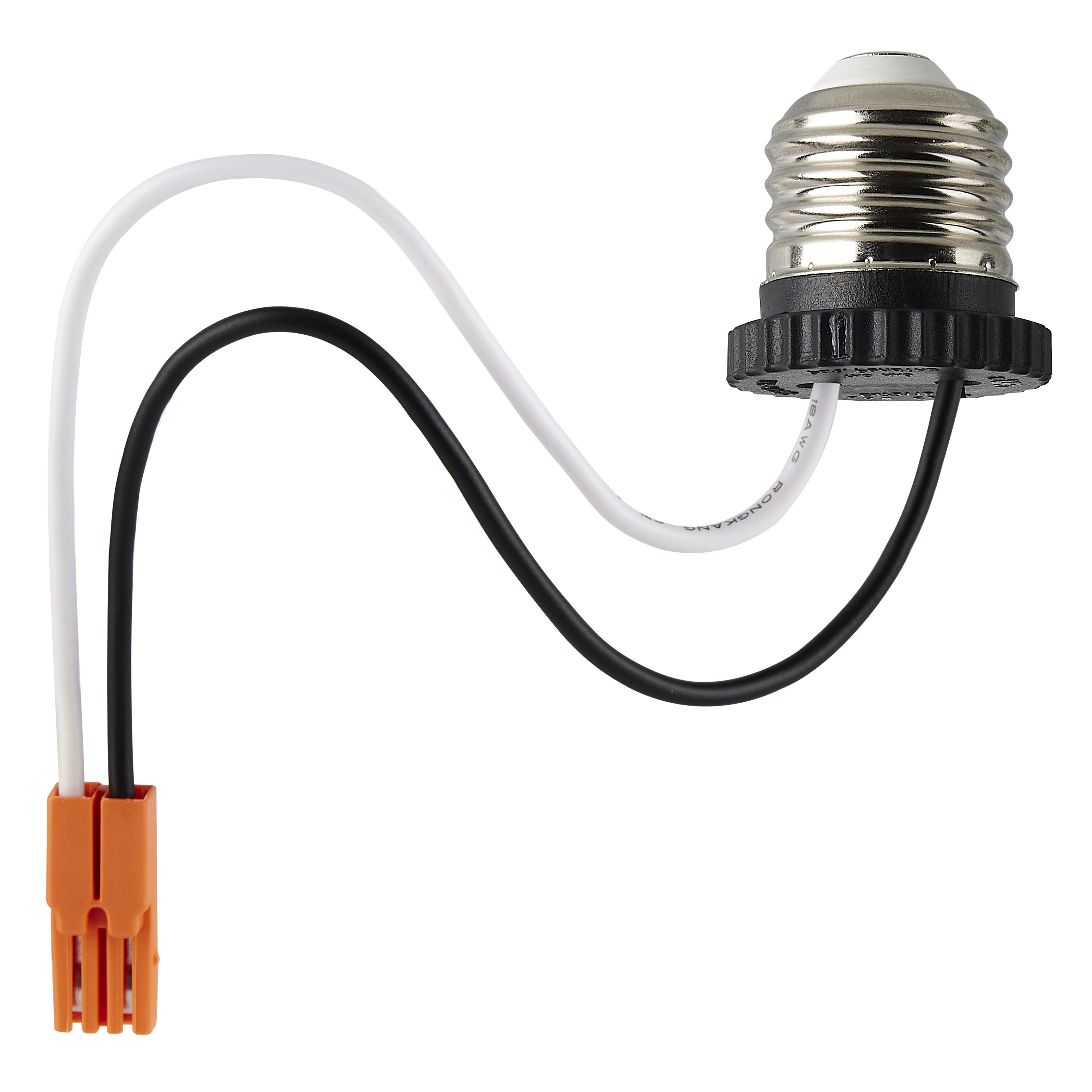

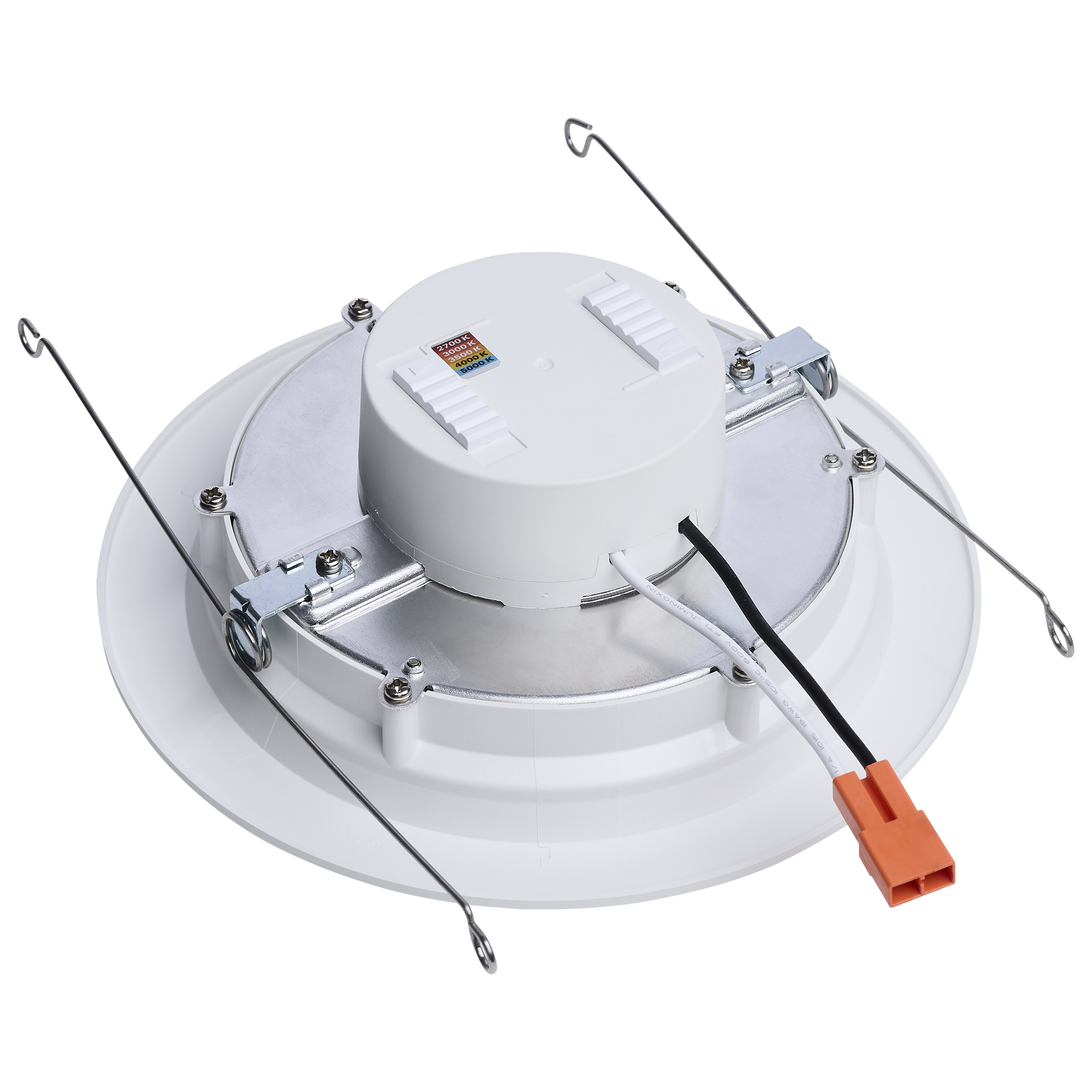

SATCO NUVO's S11896 is a 6-inch, flat-faced PRO Series LED wafer-style retrofit downlight that pairs sleek design with field-selectable performance. Offering three selectable wattages (9W/11W/13W) and five color temperatures (2700K–5000K) via an on-unit switch, this model provides customizable illumination for a variety of settings. Its wet-location rating and non-conductive dead-front trim make it a safe, modern solution for damp spaces like bathrooms and showers. Installation is quick and efficient thanks to the included LED quick connect and E26 adapter, suitable for both remodels and new construction. With a high 90 CRI, the S11896 delivers energy-efficient light with vivid, accurate color. Optional colored trims and accessories are available for added customization.

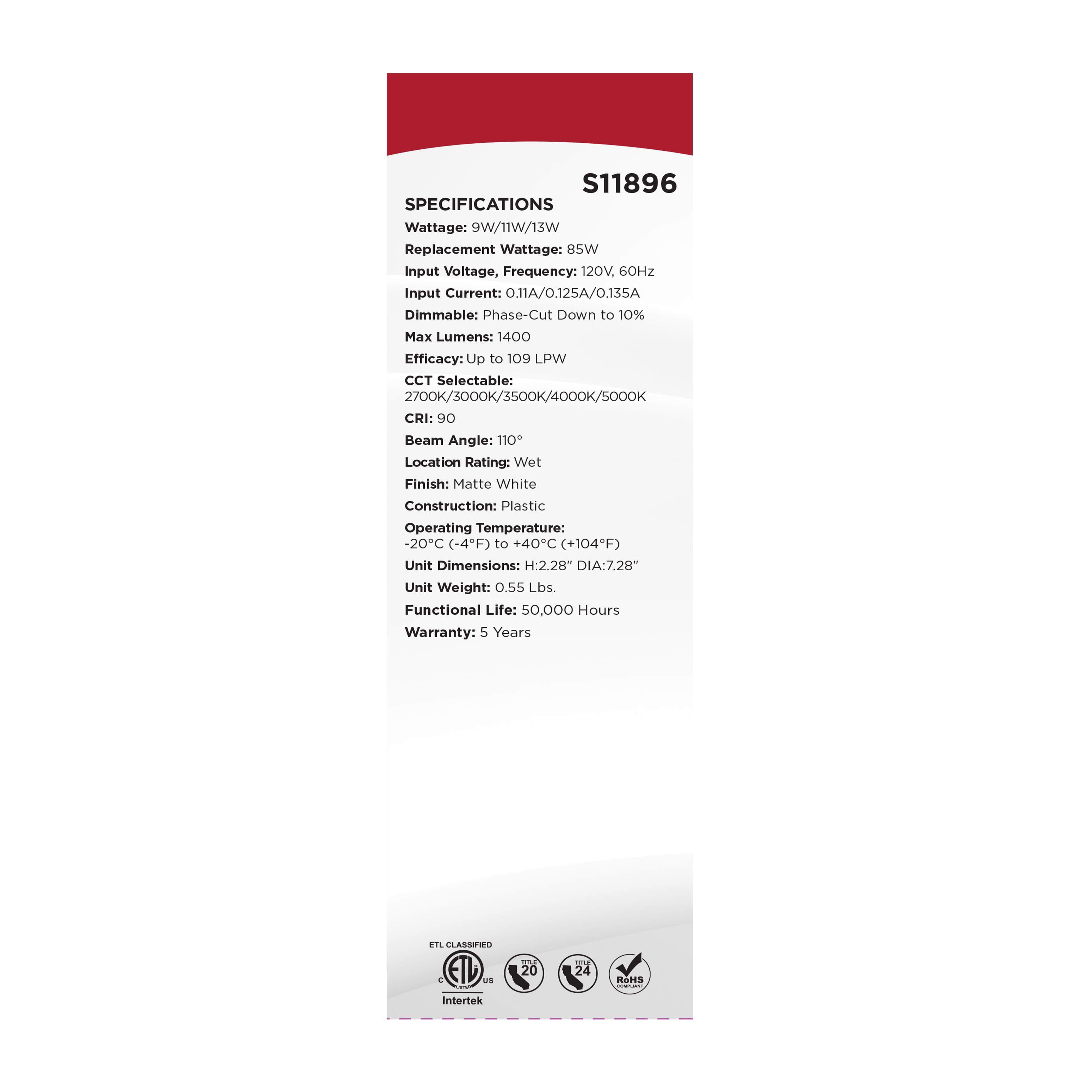

Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

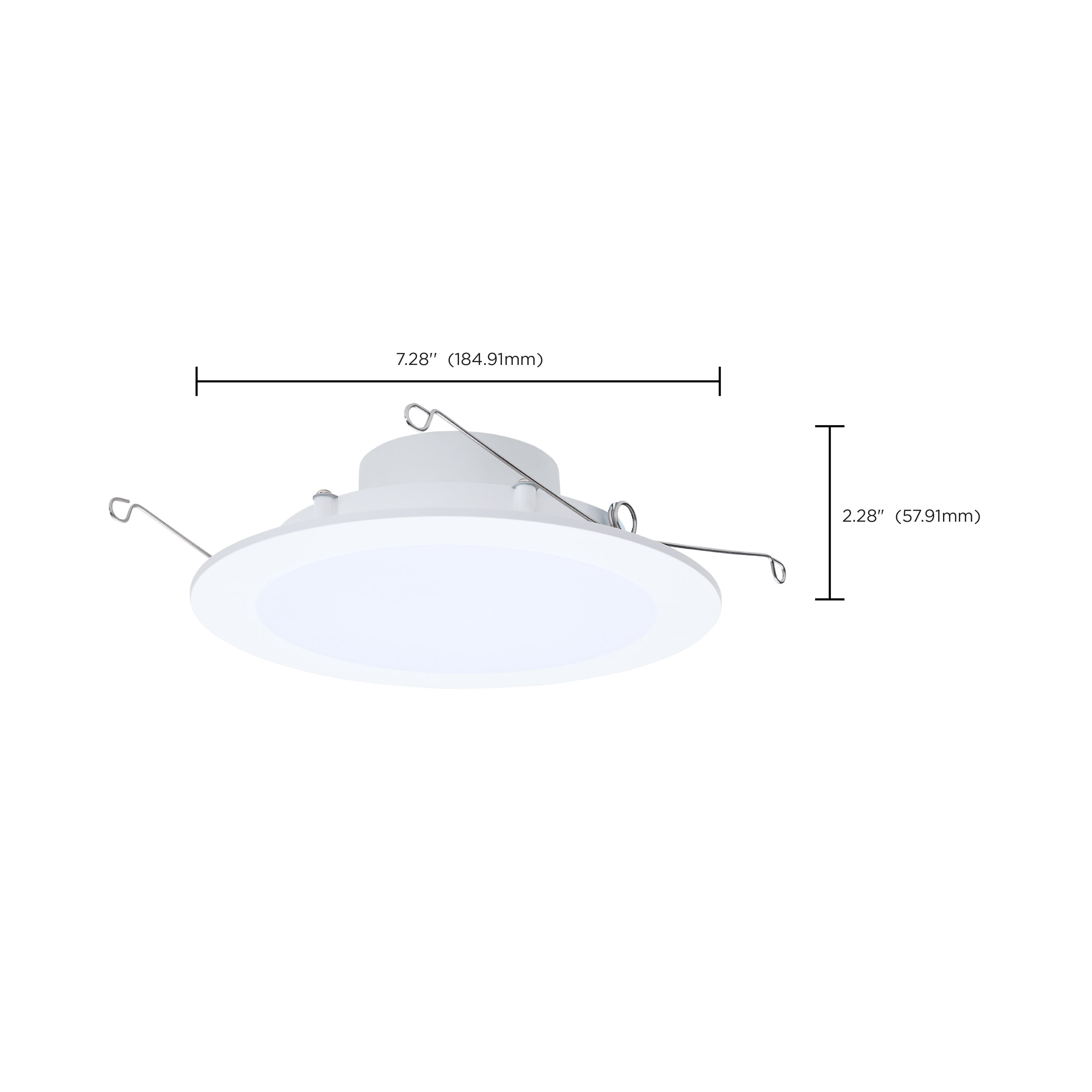

Diameter7.28
MaterialPlastic
Fixture TypeDownlight Retrofit
Product NotesDefault Wattage setting is 11W
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Can Size6 in.
Finish FamilyWhite
Amps0.11/0.125/0.135A
Mounting Diameter6.0
Has CameraNo
IOT EnabledNo
Lens FinishMatte Frosted
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent85W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens900L/1200L/1400L
Volts120v
Watts9W/11W/13W
Max Lumens1400L
Physical
Lamp BaseMedium Adapter
FinishMatte White
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
Air TightYes
CA Prop 65Lead
Energy Star ID3994240
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Classified
California BanLawful for sale
Energy Star CertifiedYes
Title 20Yes
T24/JA8 CompliantYes
Packaging
UPC045923118968
Case Cube0.7567
Case Height8.27
Case Length15.16
Case Quantity8
Case UPC10045923118965
Case Weight7.01
Case Width10.43
EA Cube0.0781
EA Height7.68
EA Length7.32
EA Quantity1
EA Weight0.75
EA Width2.4
Pack TypeBox
Web Height2.28
Web Width7.28
