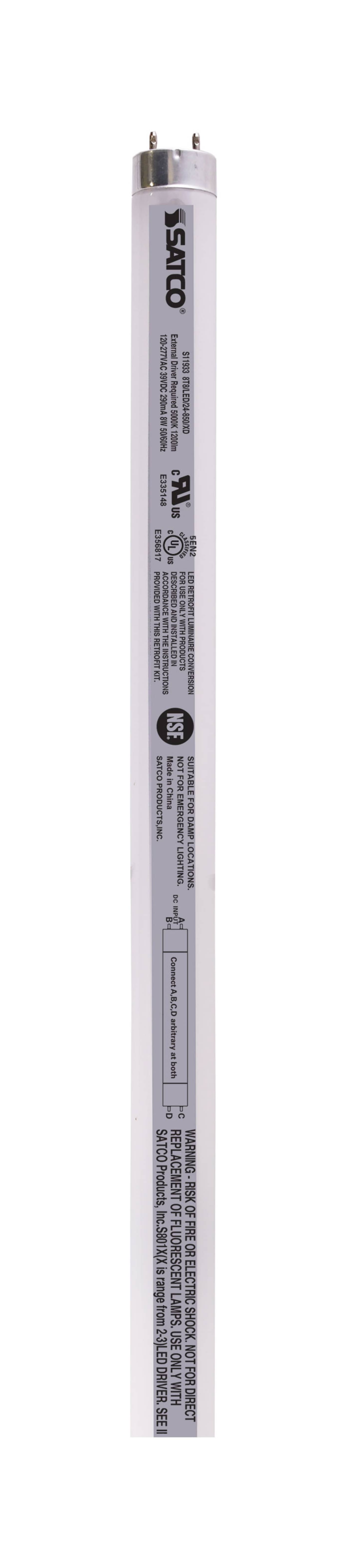

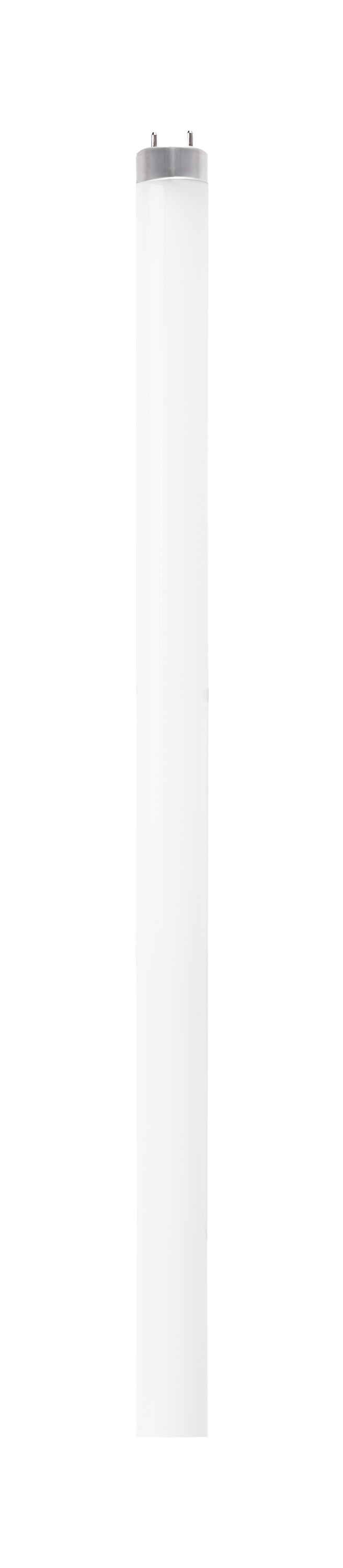

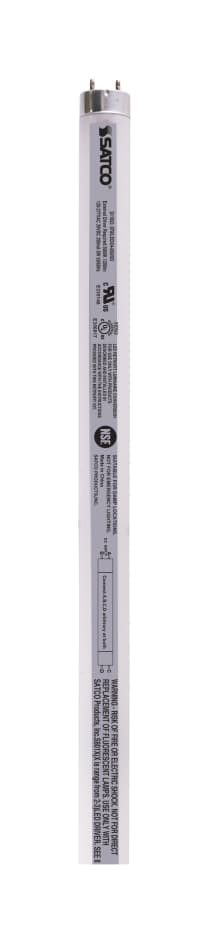

S11933 8T8/LED/24-850/XD

S11933

8T8/LED/24-850/XD

8 Watt T8 LED; 5000K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required


Lights

S11933

8T8/LED/24-850/XD

8 Watt T8 LED; 5000K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required

Specifications

General
StatusActive
Watts8W
Incandescent Equivalent40W
Fluorescent Equivalent17W
Volts120V-277V
Ballast TypeType C
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1200L
Beam Spread220
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts8W
Incandescent Equivalent40W
Fluorescent Equivalent17W
Volts120V-277V
Ballasting RequirementsBallast replaced with external driver
Ballast TypeType C
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1200L
Beam Spread220
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL24
MOD1
Nominal Length24
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Weight (lb.)0.25
Additional Information
Additional InfoNot for emergency lighting
Tube Guard UseYes
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - LED Type C Bulbs
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLBO124ZILXY
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
SDS SheetLED Lamp
Packaging
Each UPC045923119330
Each Quantity1
Each Length (in.)23.70
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.25
Each Cube (CuFt.)0.0137
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119337
Case Quantity25
Case Length (in.)23.62
Case Width (in.)5.90
Case Height (in.)5.90
Case Weight (lb.)6.88
Case Cube (CuFt.)0.4758
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
