Status | Active |
Watts | 10.5W |
Incandescent Equivalent | 50W |
Fluorescent Equivalent | 25W/28W/32W |
Volts | 120V-277V |
Ballast Type | Type B |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Nominal Length | 48 |
Finish | Gloss White |
CCT (Kelvin) | 3000K |
Temperature | Warm White |
CRI | 82 |

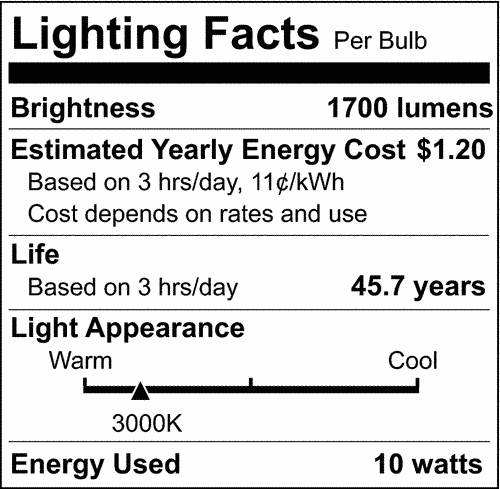

Lumens | 1700L |
Beam Spread | 210 |
Hours Rated | 50000 |
Product Category | T8 |
Lamp Type | T8 |
Technology | LED |
Watts | 10.5W |
Incandescent Equivalent | 50W |
Fluorescent Equivalent | 25W/28W/32W |
Volts | 120V-277V |
Ballasting Requirements | Ballast Bypass |
Ballast Type | Type B |
Operating Frequency | 50/60Hz |
CCT (Kelvin) | 3000K |
Temperature | Warm White |
CRI | 82 |
Lumens | 1700L |
Beam Spread | 210 |
Power Factor | 0.9 |
Hours Rated | 50000 |
THD | 20% |
Operating Temperature | -20C (-4F) to +45C (+113F) |
MOL | 47.78 |
MOD | 1.1 |

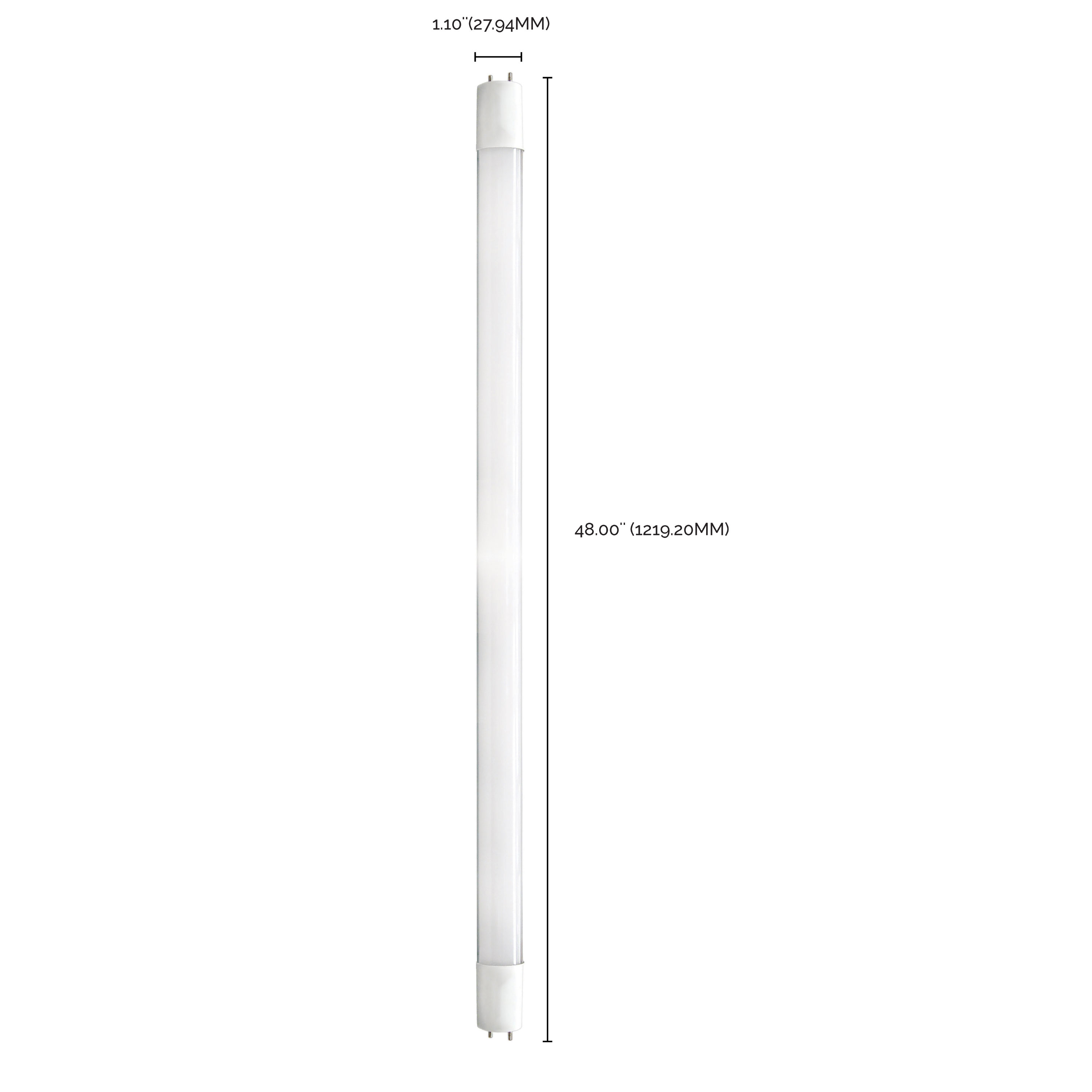

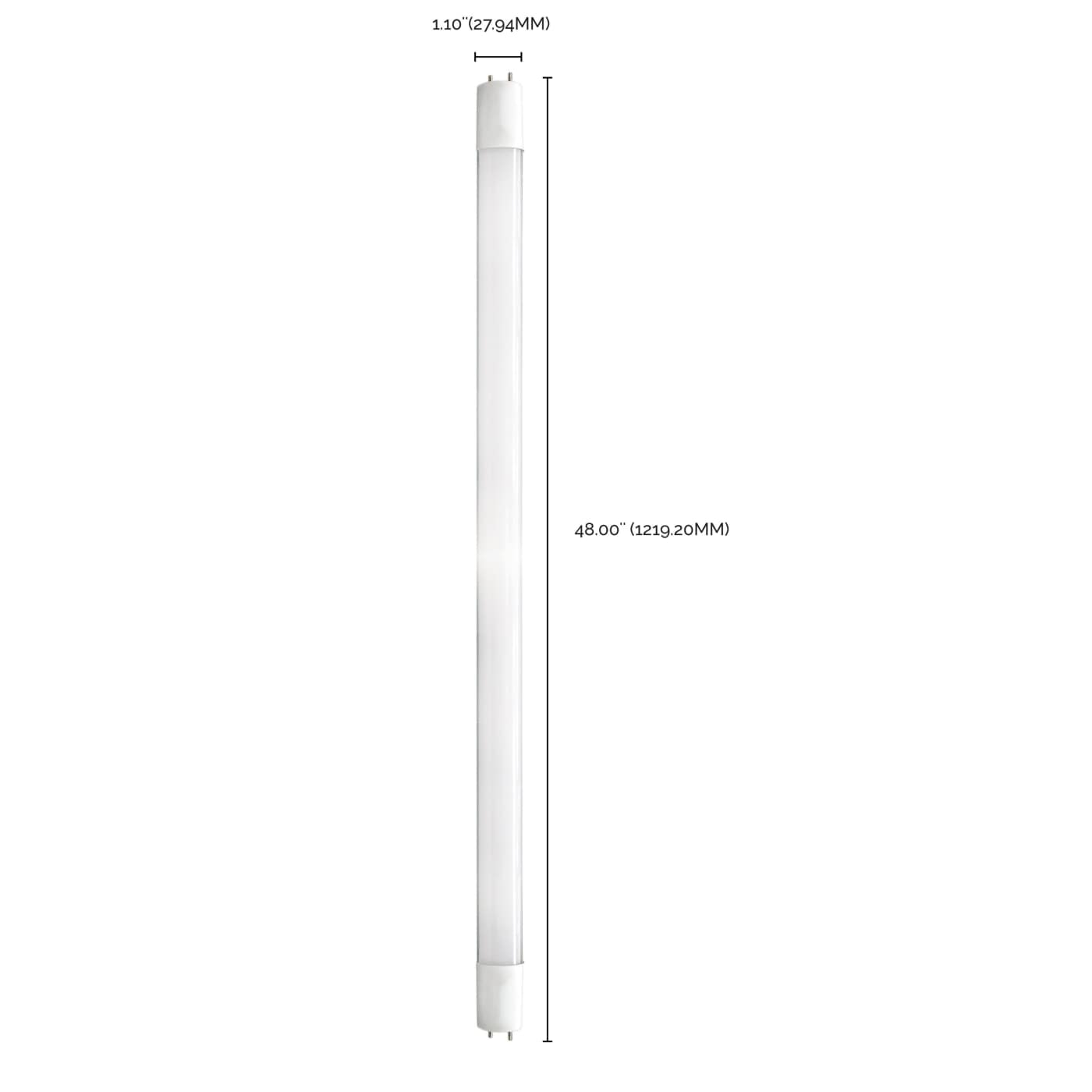

Nominal Length | 48 |
Shape | T8 |

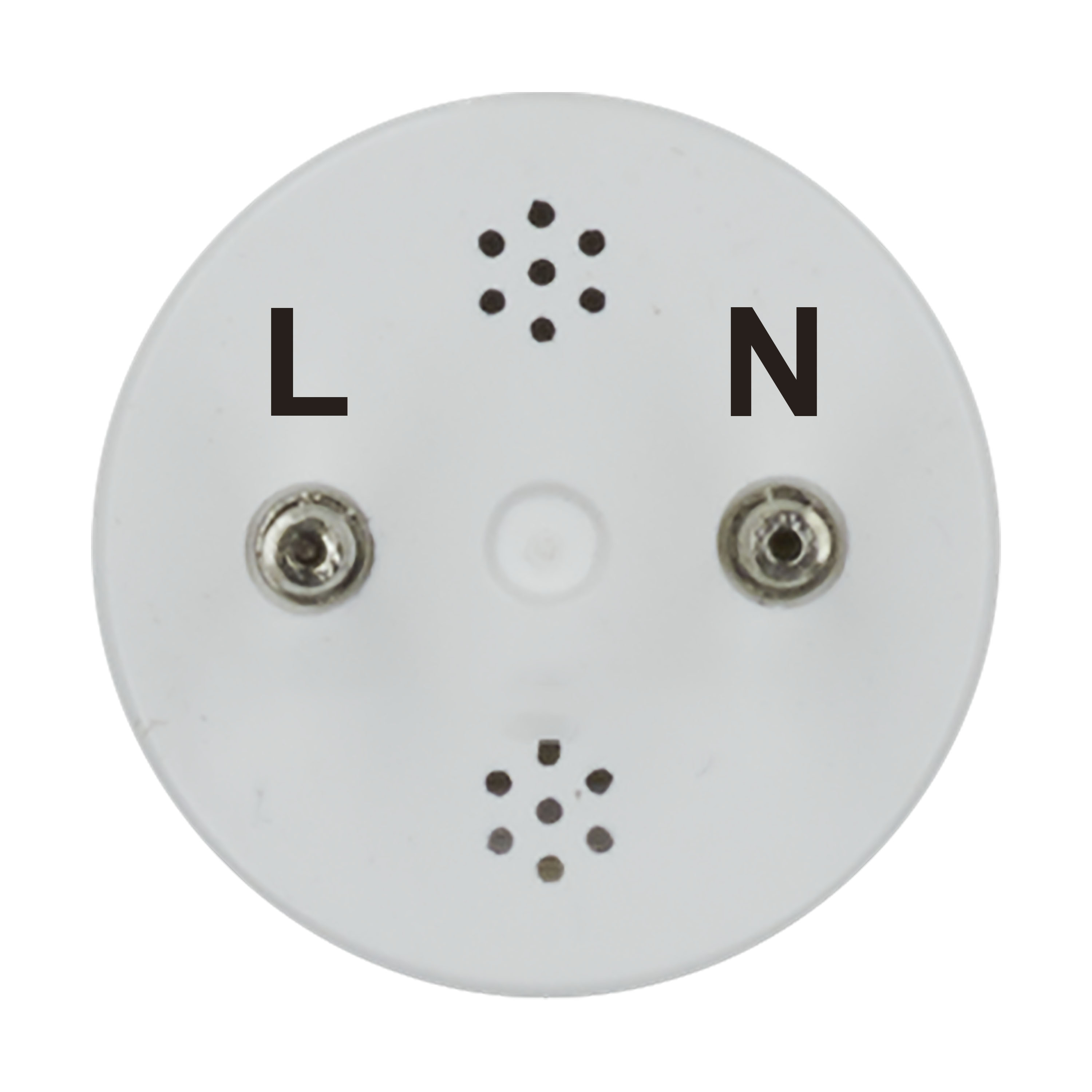

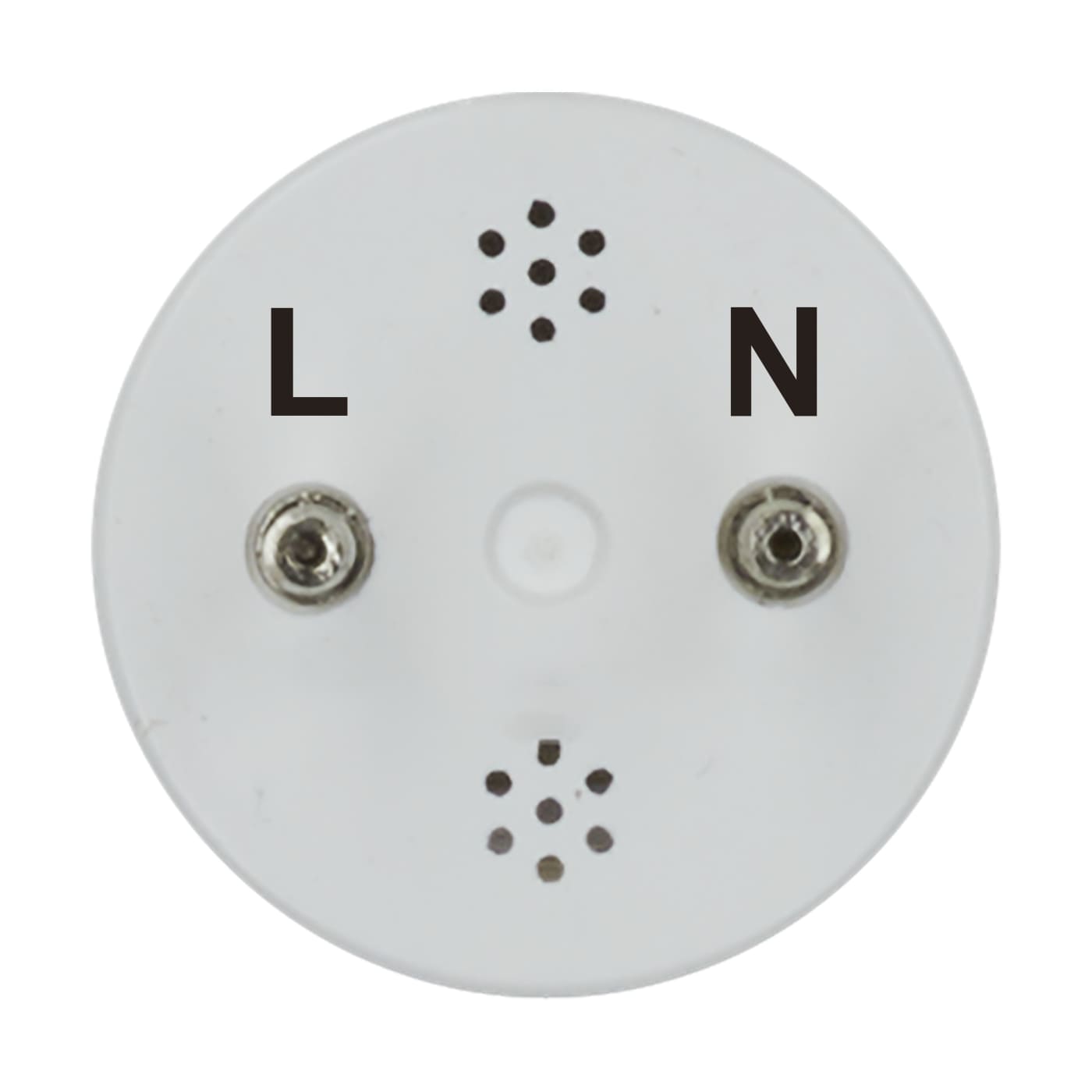

Base | Medium Bi Pin |
ANSI Base | G13 |
Finish | Gloss White |
Material | Glass |
Lens Finish | Gloss White |
Lens Material | Glass |
Housing Color | White |
Weight (lb.) | 0.44 |
Tube Guard Use | Yes |
Installation Notes | Not for use in vapor tight fixtures. |
Specification Note | Built-in shock resistant circuit - (not hot until both ends are installed) |
Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Safety Listing | cULus - Classified; cRUus - Recognized Component |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLU4L0QWWZZ2 |
CA T20 / T24 Rationale | Exempt - Base Not Regulated |
RoHS Compliant | Yes |
FCC Compliant | Yes |
NSF Approved | Yes |
Flicker Free | Yes |
SDS Sheet | LED Lamp |
Each UPC | 045923119606 |
Each Quantity | 1 |
Each Length (in.) | 48.00 |
Each Width (in.) | 1.10 |
Each Height (in.) | 1.10 |
Each Weight (lb.) | 0.58 |
Each Cube (CuFt.) | 0.0336 |
Pack Type | Sleeve |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923119603 |
Case Quantity | 25 |
Case Length (in.) | 49.00 |
Case Width (in.) | 6.00 |
Case Height (in.) | 6.00 |
Case Weight (lb.) | 14.40 |
Case Cube (CuFt.) | 1.0208 |
