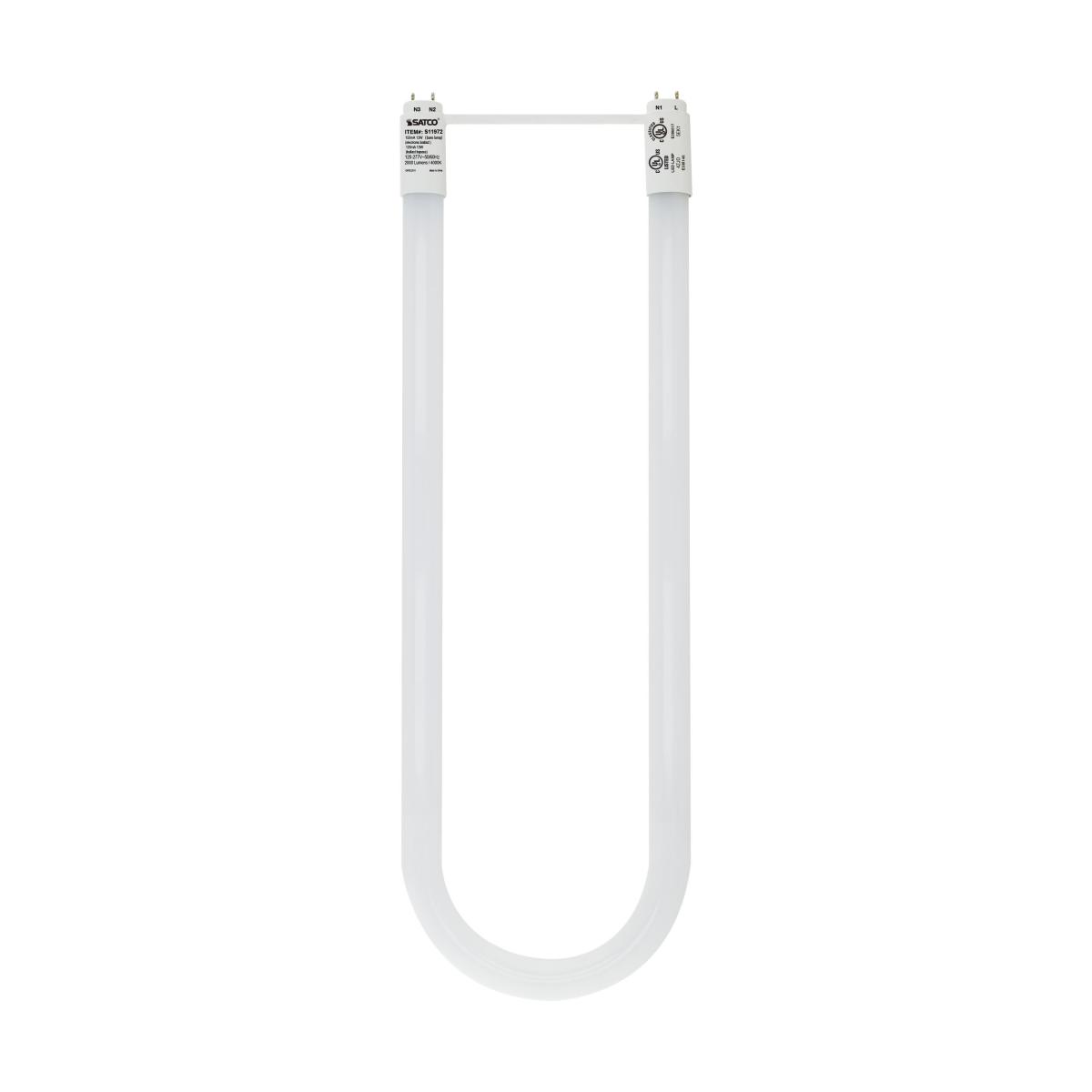

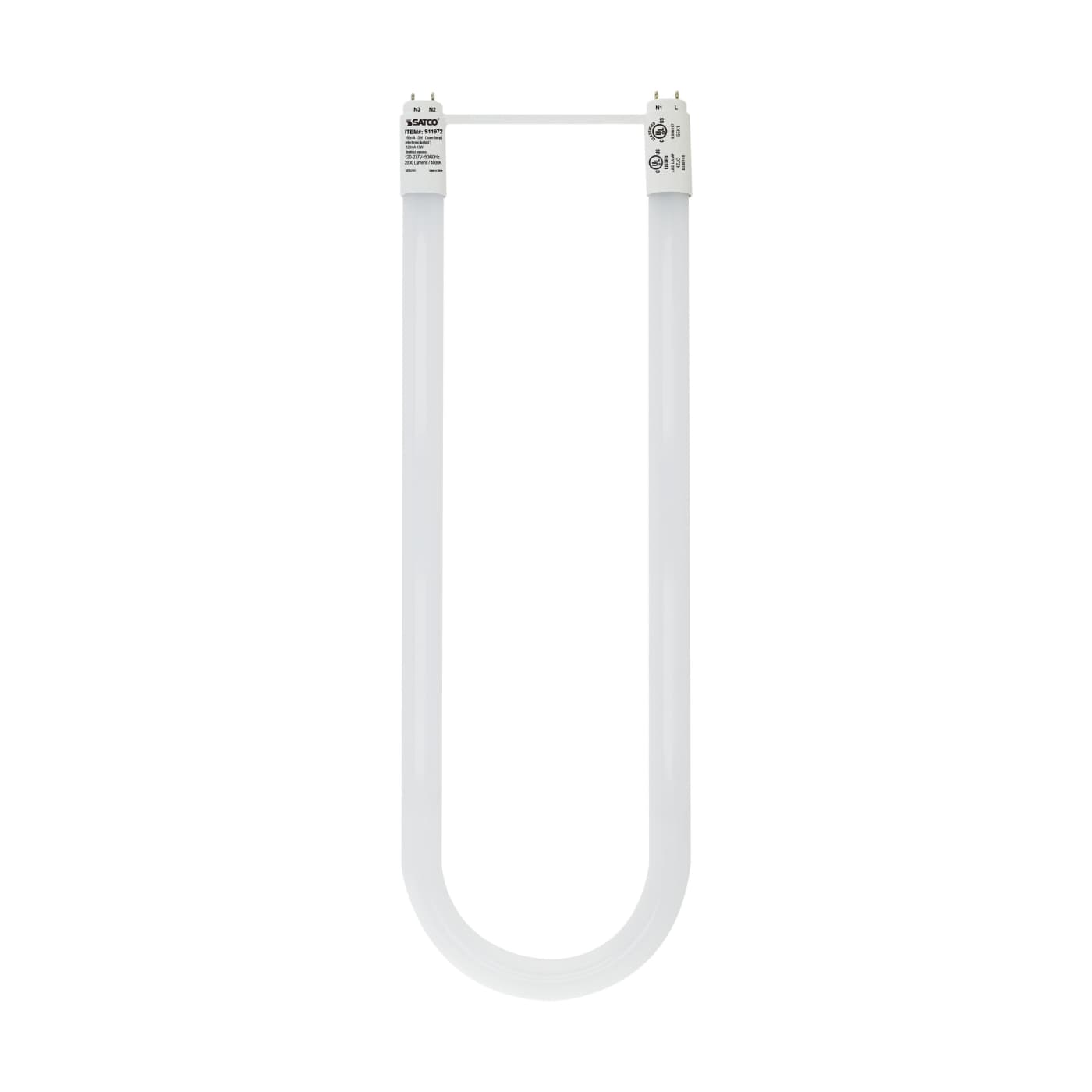

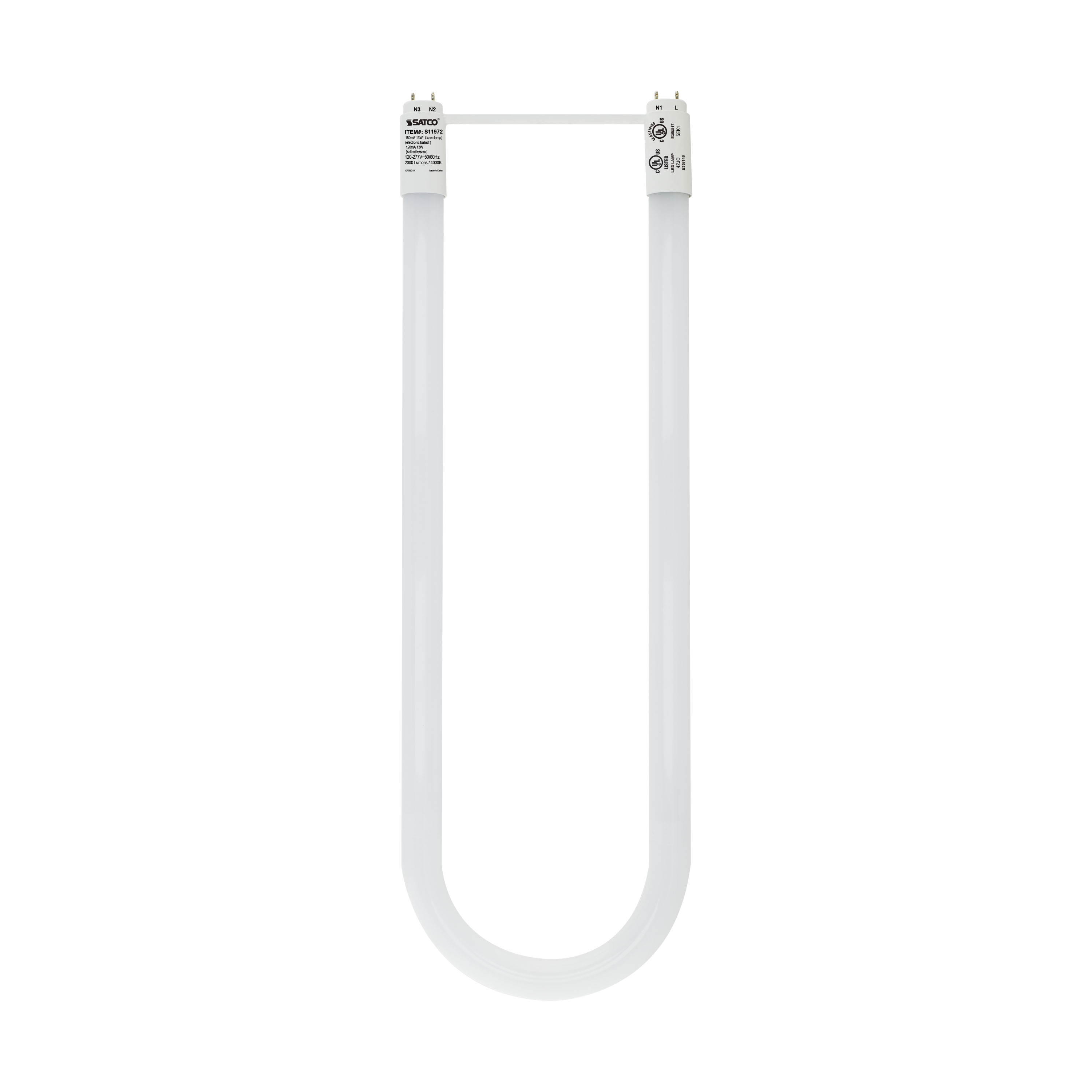

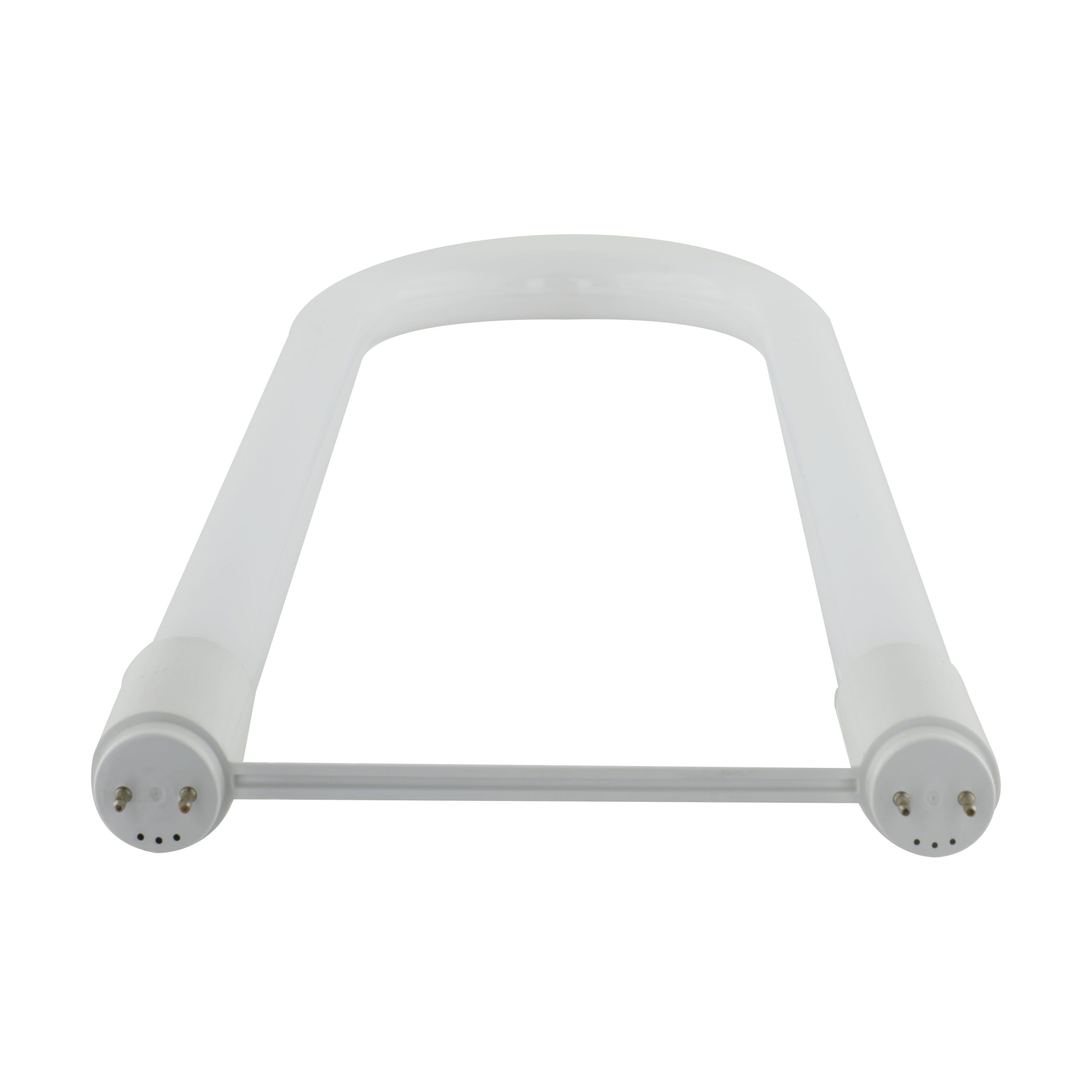

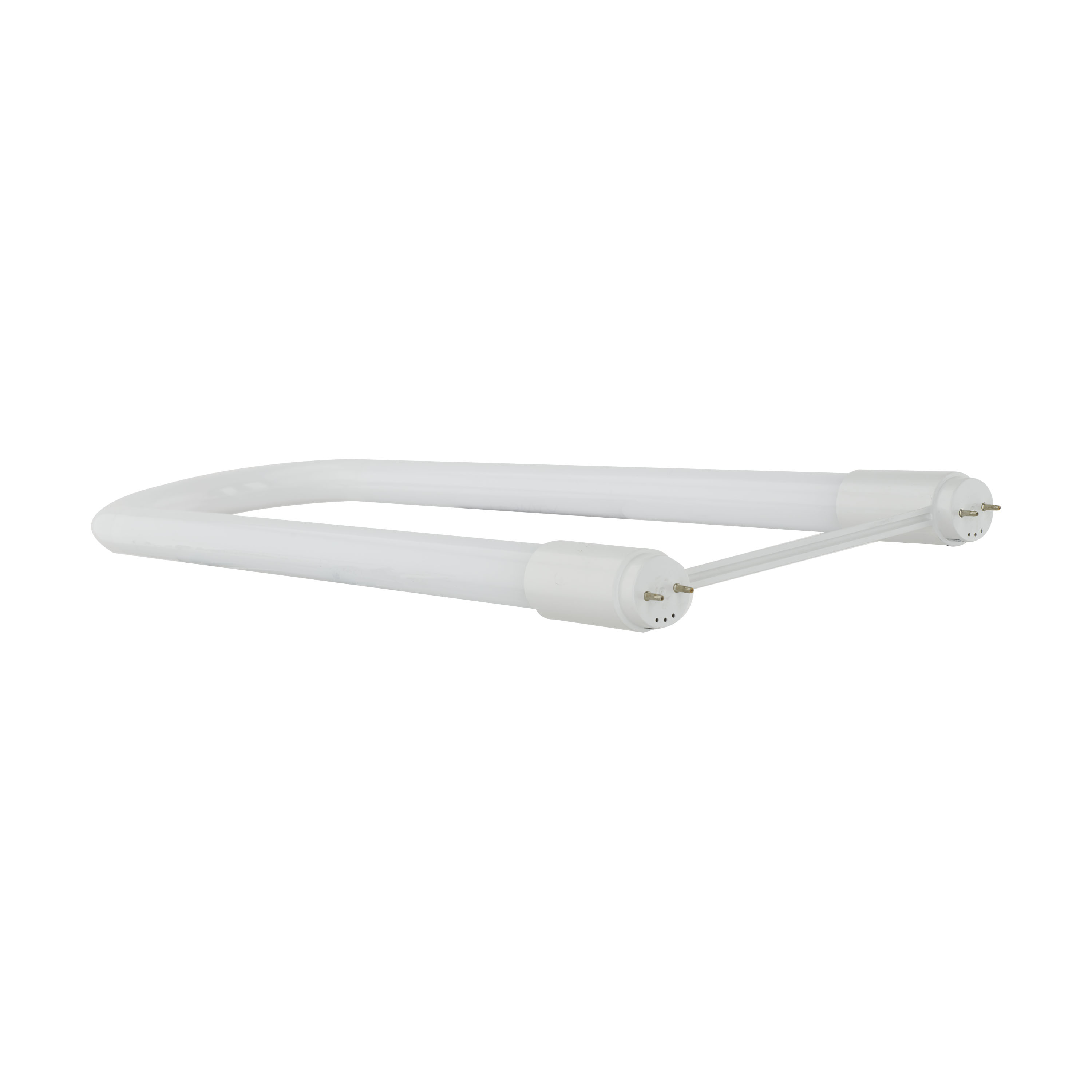

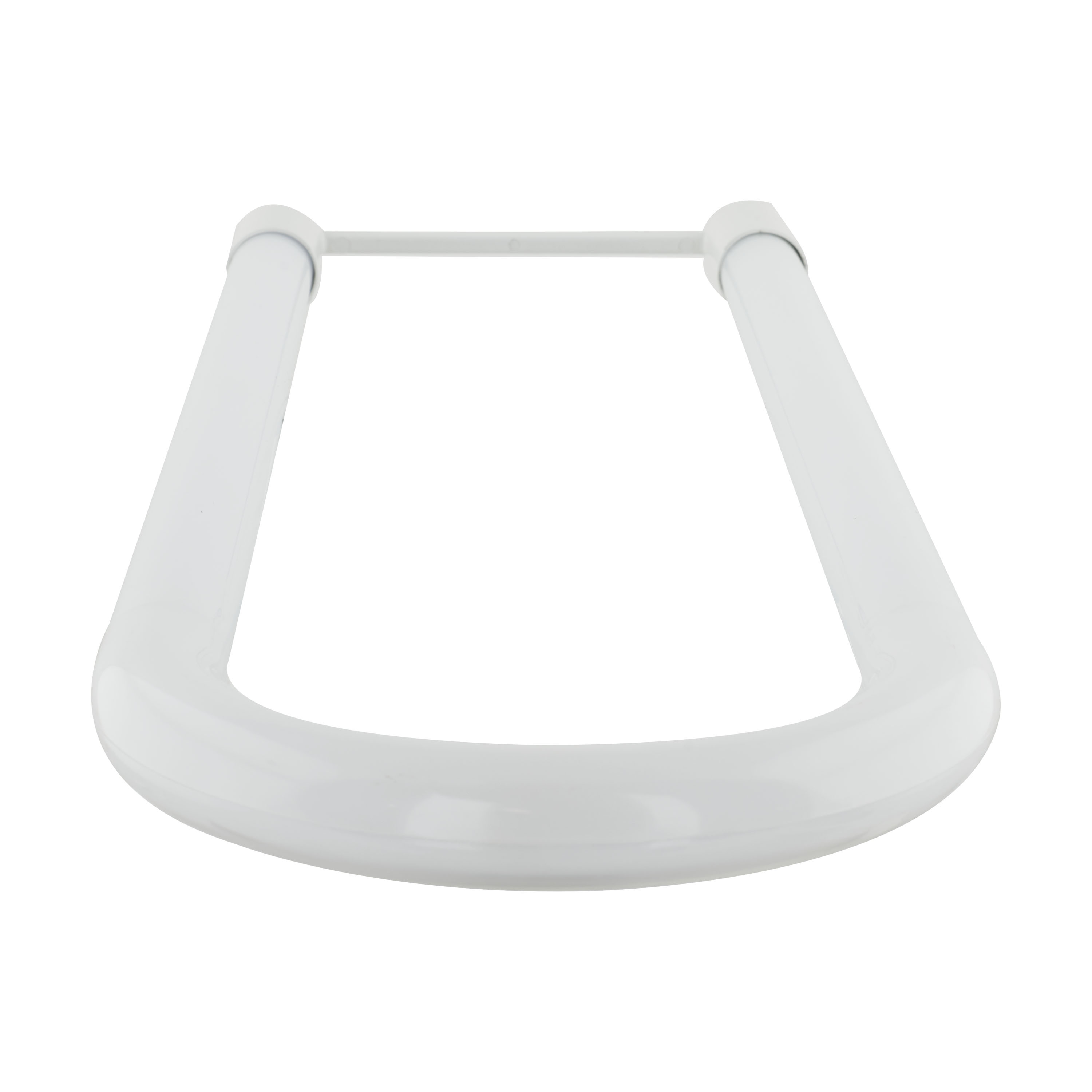

S11972 13T8U6/LED/22.5-840/DUAL

S11972

13T8U6/LED/22.5-840/DUAL

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 4000K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring


Lights

S11972

13T8U6/LED/22.5-840/DUAL

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 4000K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring

Specifications

General
StatusActive
SubstituteS18413
Watts13W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length22.5
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens2000L
Beam Spread160
DimmableYes-Dimmable
Hours Rated50000
Product CategoryU-Bend
Lamp TypeU-Bend
TechnologyLED
Electrical
Watts13W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens2000L
Beam Spread160
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL22.59
MOD1.1
Nominal Length22.5
Leg Spacing6
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialPlastic
Lens FinishFrost
Lens MaterialPlastic (PS)
Housing ColorWhite
Weight (lb.)0.5
Additional Information
Shatter-Proof TypeYes
Tube Guard UseYes
Installation NotesNot for use in vapor tight fixtures. Direct replacement for 32W/23T8/U6 lamps only
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLX80LFIAOD6
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
SDS SheetLED Lamp
Packaging
Each UPC045923119729
Each Quantity1
Each Length (in.)1.20
Each Width (in.)23.20
Each Height (in.)7.10
Each Weight (lb.)0.99
Each Cube (CuFt.)0.1144

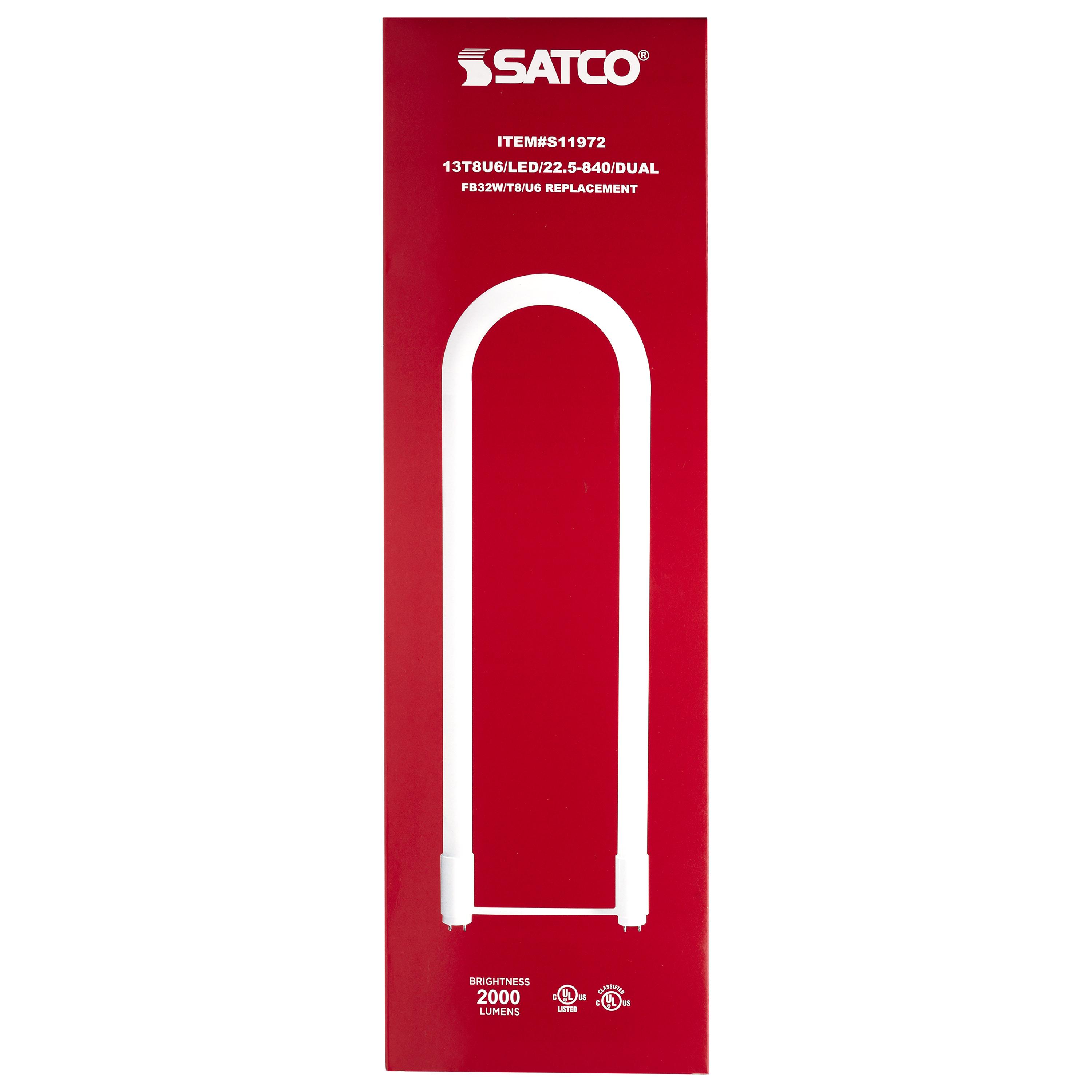

Pack TypeColor Box
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119726
Case Quantity12
Case Length (in.)24.41
Case Width (in.)8.27
Case Height (in.)15.16
Case Weight (lb.)10.60
Case Cube (CuFt.)1.7710
×
×

Ballast Compatibility

Name Type View
U-Bend U Bend View
U Bend Emergency U Bend View
×

Precautions

No precautions available at this time.

×
