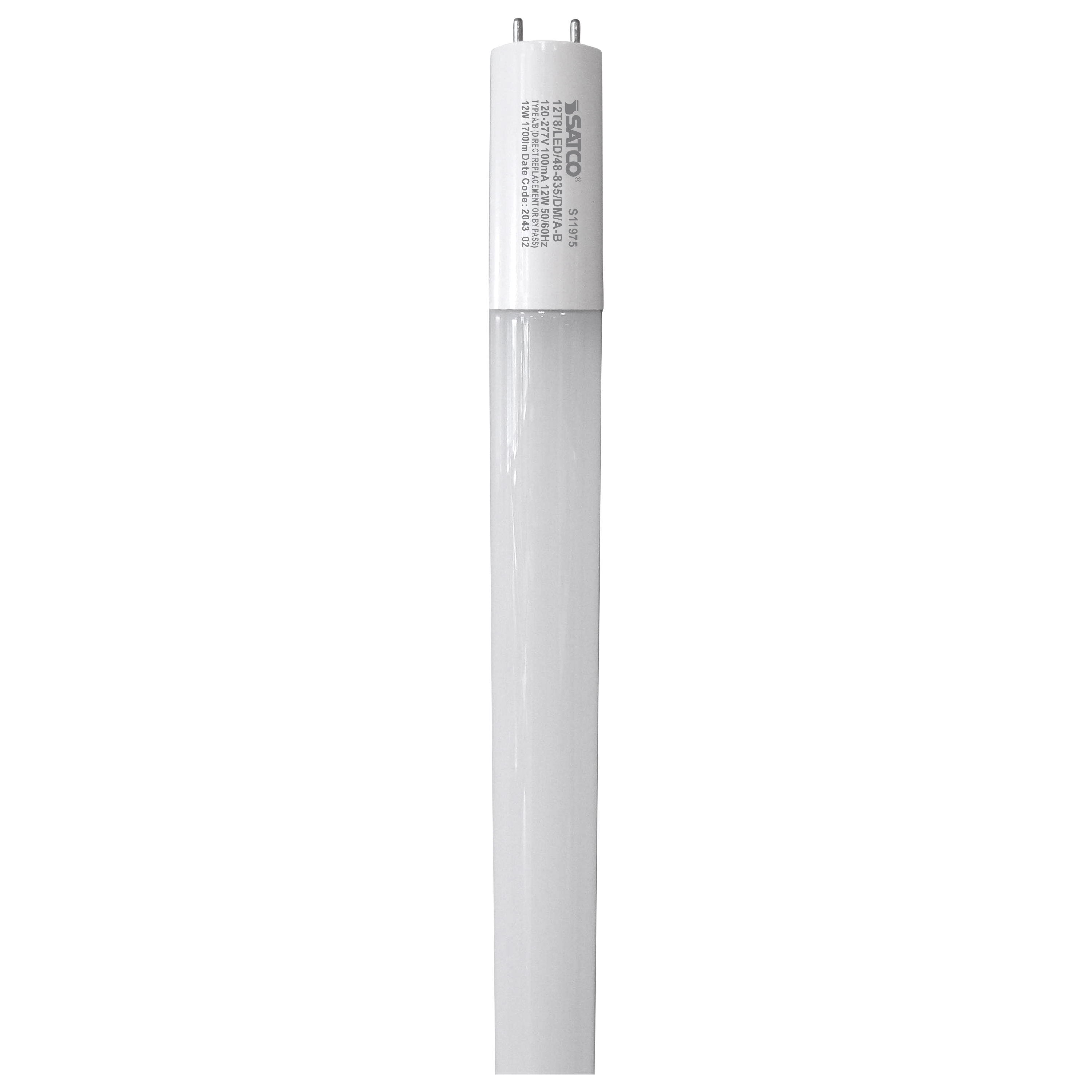

S11975 12T8/LED/48-835/DM/A-B

S11975

12T8/LED/48-835/DM/A-B

12 Watt; 48 Inch; T8 LED; G13 base; Dual Mode Hybrid Type A/B; 3500K; 1700 Lumens


Lights

S11975

12T8/LED/48-835/DM/A-B

12 Watt; 48 Inch; T8 LED; G13 base; Dual Mode Hybrid Type A/B; 3500K; 1700 Lumens

Specifications

General
StatusActive
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1700L
Beam Spread210
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1700L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.49
Additional Information
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-K5IXGD
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119750
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.58
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119757
Case Quantity25
Case Length (in.)50.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)14.60
Case Cube (CuFt.)1.0417
×
×

Ballast Compatibility

Name Type View
S11975 Ballast Compatibility Chart LED T-8 View
×

Precautions

No precautions available at this time.

×
