» S11988

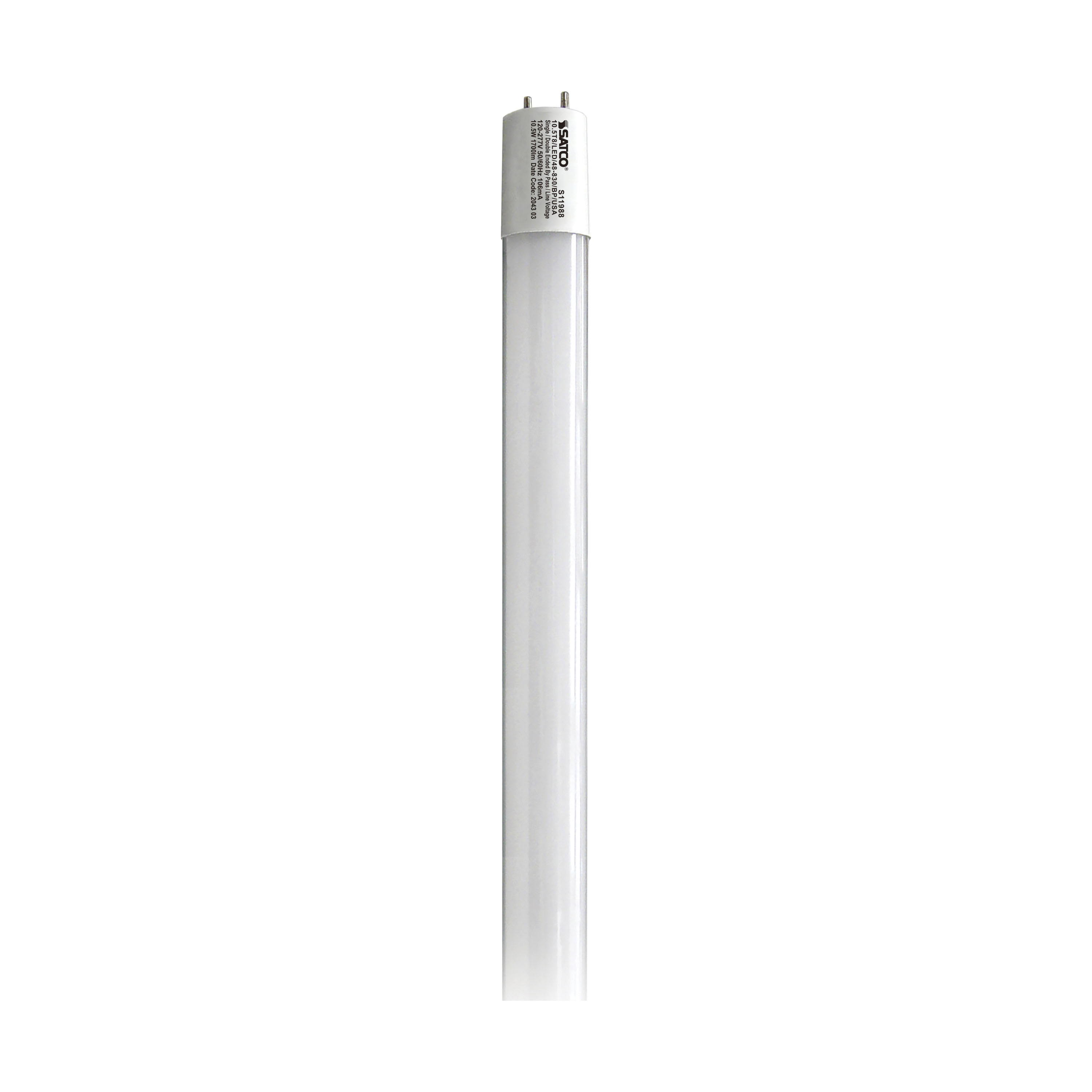

S11988 10.5T8/LED/48-830/BP/USA

S11988

10.5T8/LED/48-830/BP/USA

10.5 Watt; 48 Inch; T8 LED; 3000K; Medium Bi Pin base; 82 CRI; 50000 Average rated hours;Type B Ballast Bypass; 1700 Lumens; Assembled in the USA


Lights

S11988

10.5T8/LED/48-830/BP/USA

10.5 Watt; 48 Inch; T8 LED; 3000K; Medium Bi Pin base; 82 CRI; 50000 Average rated hours;Type B Ballast Bypass; 1700 Lumens; Assembled in the USA

Specifications

General
StatusDiscontinued
Watts10.5W
Incandescent Equivalent50W
Fluorescent Equivalent30W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13

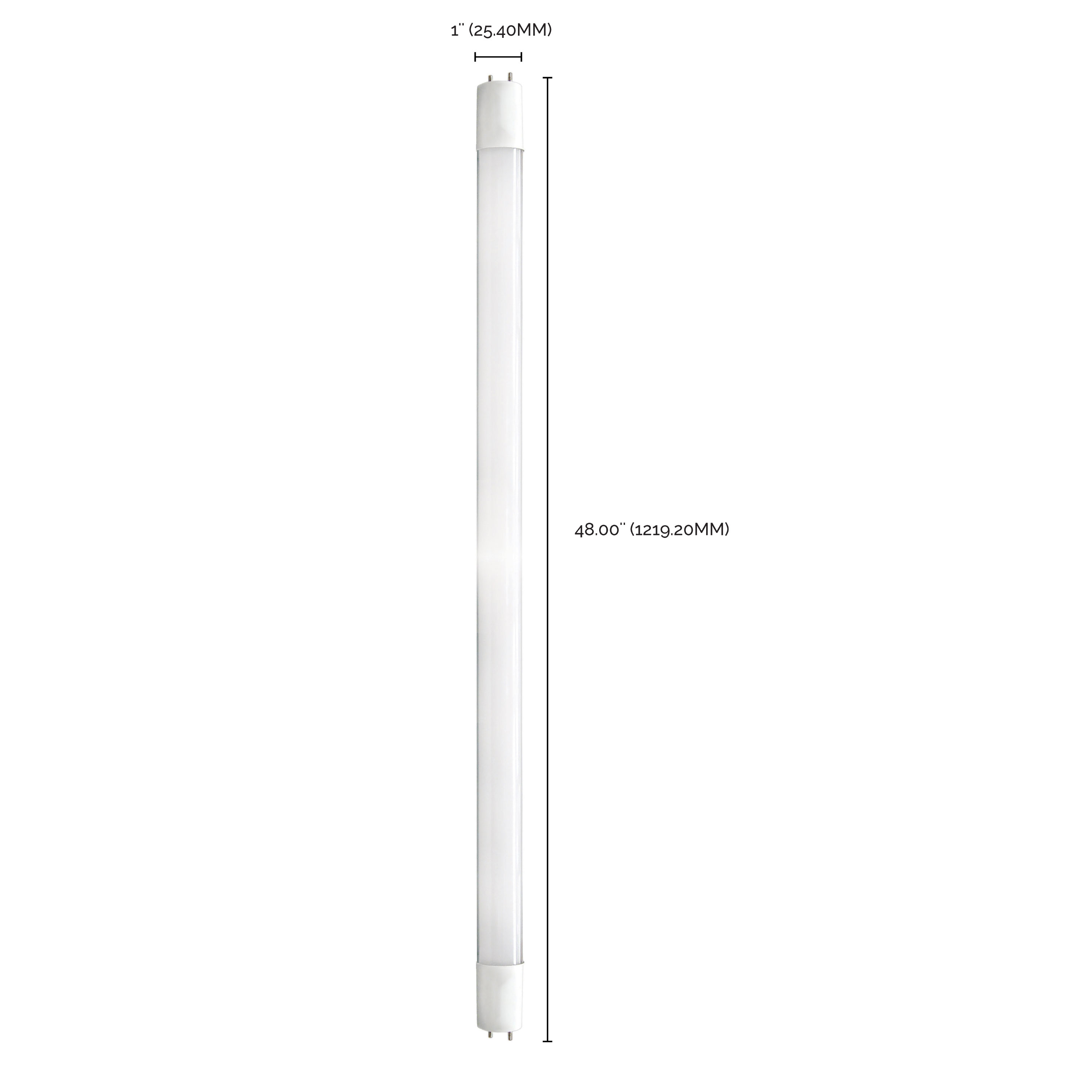

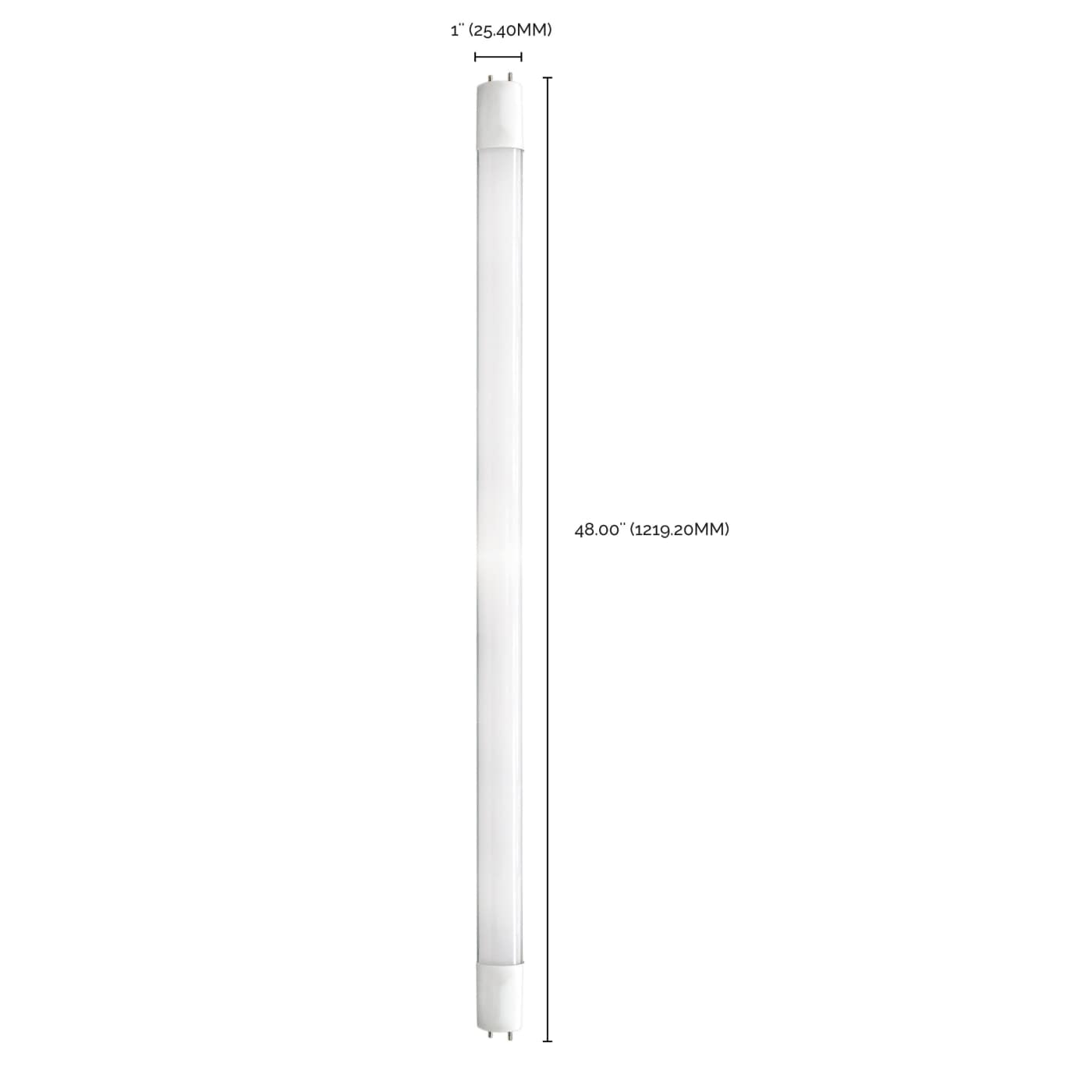

Nominal Length48
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1700L
Beam Spread210
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts10.5W
Incandescent Equivalent50W
Fluorescent Equivalent30W
Volts120V-277V

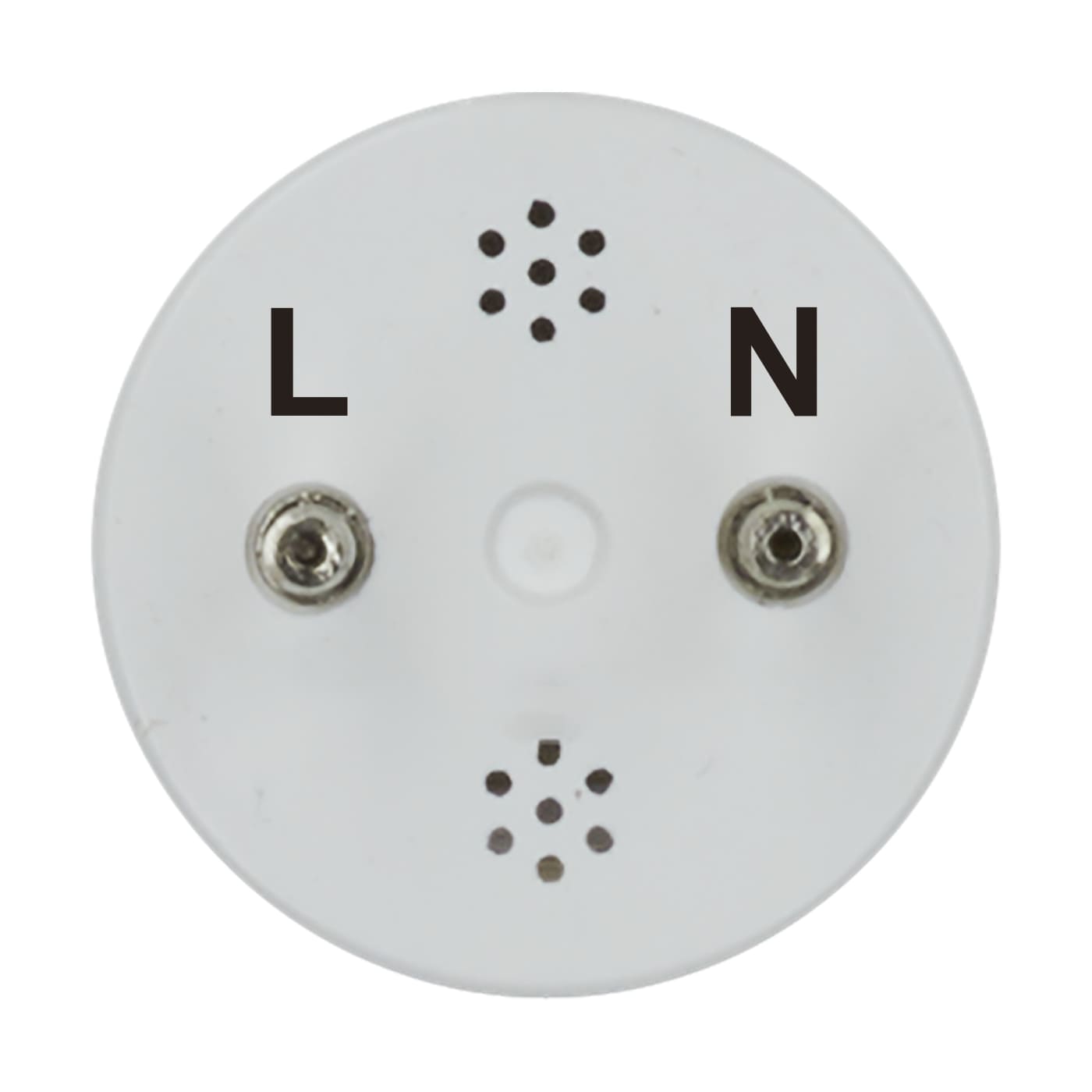

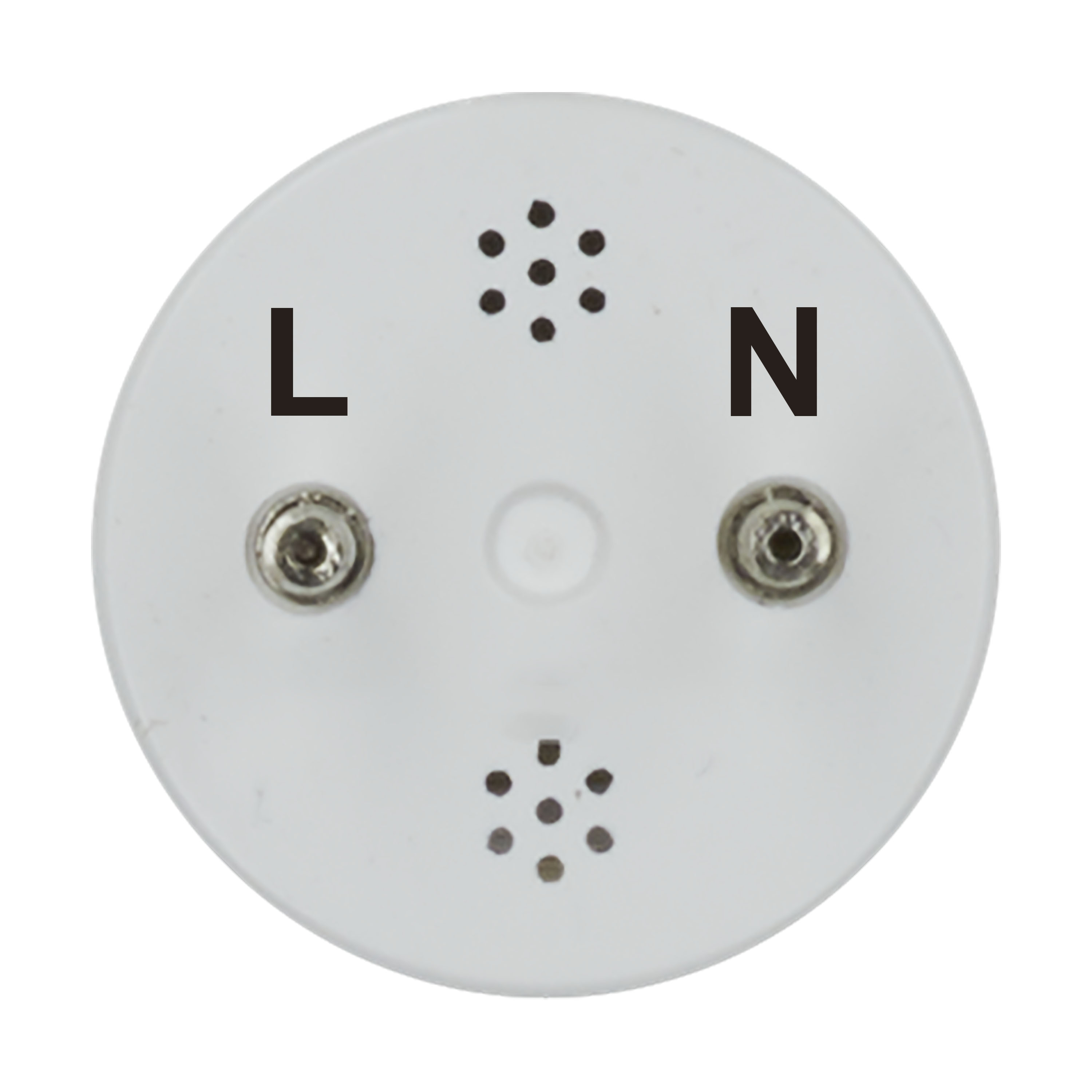

Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1700L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL47.78
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass / Plastic
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.44
Additional Information
Installation NotesNot for use in vapor tight fixtures.
Specification NoteCompatible with S8000 and S8002 LED EM Driver
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Certified; cULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLDUPAOQ3XWY
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119880
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.58
Each Cube (CuFt.)0.0278
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119887
Case Quantity25
Case Length (in.)48.80
Case Width (in.)6.10
Case Height (in.)6.30
Case Weight (lb.)14.40
Case Cube (CuFt.)1.0853
