| Status | Active |
| Watts | 3W |
| Incandescent Equivalent | 25W |
| Volts | 12V |
| Shape | T5 |
| Base | Bi Pin G4 |
| ANSI Base | G4 |
| Finish | Clear |
| CCT (Kelvin) | 3000K |
| Temperature | Soft White |
| CRI | 80+ |
| Lumens | 330L |
| Beam Spread | 300 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 25000 |
| Product Category | Miniature |
| Lamp Type | Miniature |
| Technology | LED |
| Watts | 3W |
| Incandescent Equivalent | 25W |
| Volts | 12V |
| Operating Frequency | 60Hz |
| CCT (Kelvin) | 3000K |
| Temperature | Soft White |
| CRI | 80+ |
| Lumens | 330L |
| Beam Spread | 300 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Phase cut |
| Dimming Note | Check the transformer/driver MFG for dimmer compatibility |
| Hours Rated | 25000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |

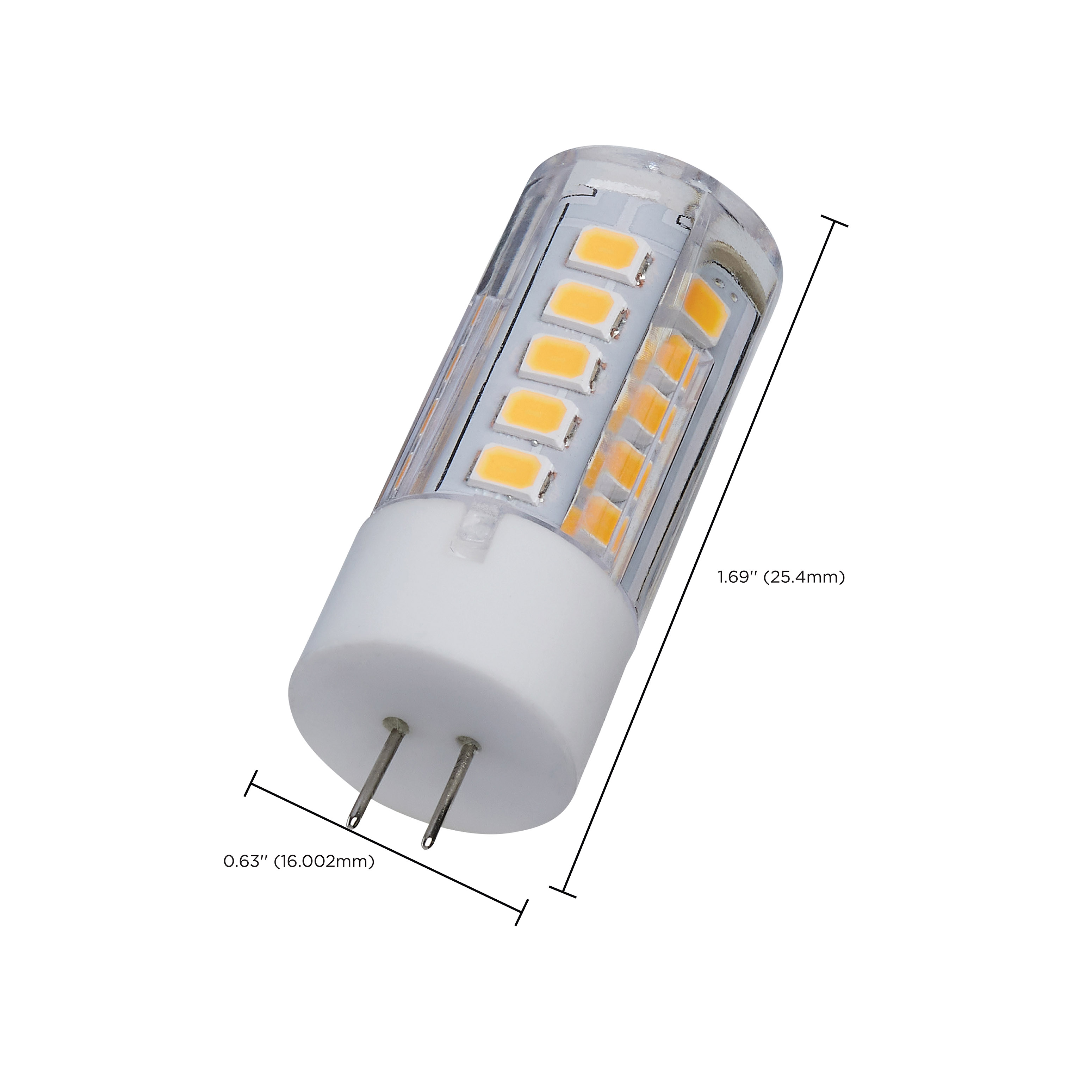

| MOL | 1.69 |
| MOD | 0.63 |
| Shape | T5 |
| Base | Bi Pin G4 |
| ANSI Base | G4 |
| Finish | Clear |
| Housing Color | White |
| Weight (lb.) | 0.02 |
| Additional Info | Housing Material: Ceramic; Lens Material: Polycarbonate (PC) |
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 3 Year Limited - Mini LED Pin Base |
| Safety Listing | cULus - Certified; cULus - Listed |
| Location Rating | Damp |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
| Each UPC | 045923121203 |
| Each Quantity | 1 |
| Each Length (in.) | 3.27 |
| Each Width (in.) | 0.63 |
| Each Height (in.) | 4.84 |
| Each Weight (lb.) | 0.06 |
| Each Cube (CuFt.) | 0.0058 |
| Pack Type | Carded |
| Inner UPC | 20045923121207 |
| Inner Quantity | 12 |
| Inner Length (in.) | 8.86 |
| Inner Width (in.) | 4.65 |
| Inner Height (in.) | 5.63 |
| Inner Weight (lb.) | 0.83 |
| Inner Cube (CuFt.) | 0.1342 |
| Case UPC | 10045923121200 |
| Case Quantity | 48 |
| Case Length (in.) | 10.04 |
| Case Width (in.) | 9.45 |
| Case Height (in.) | 12.13 |
| Case Weight (lb.) | 4.14 |
| Case Cube (CuFt.) | 0.6660 |
