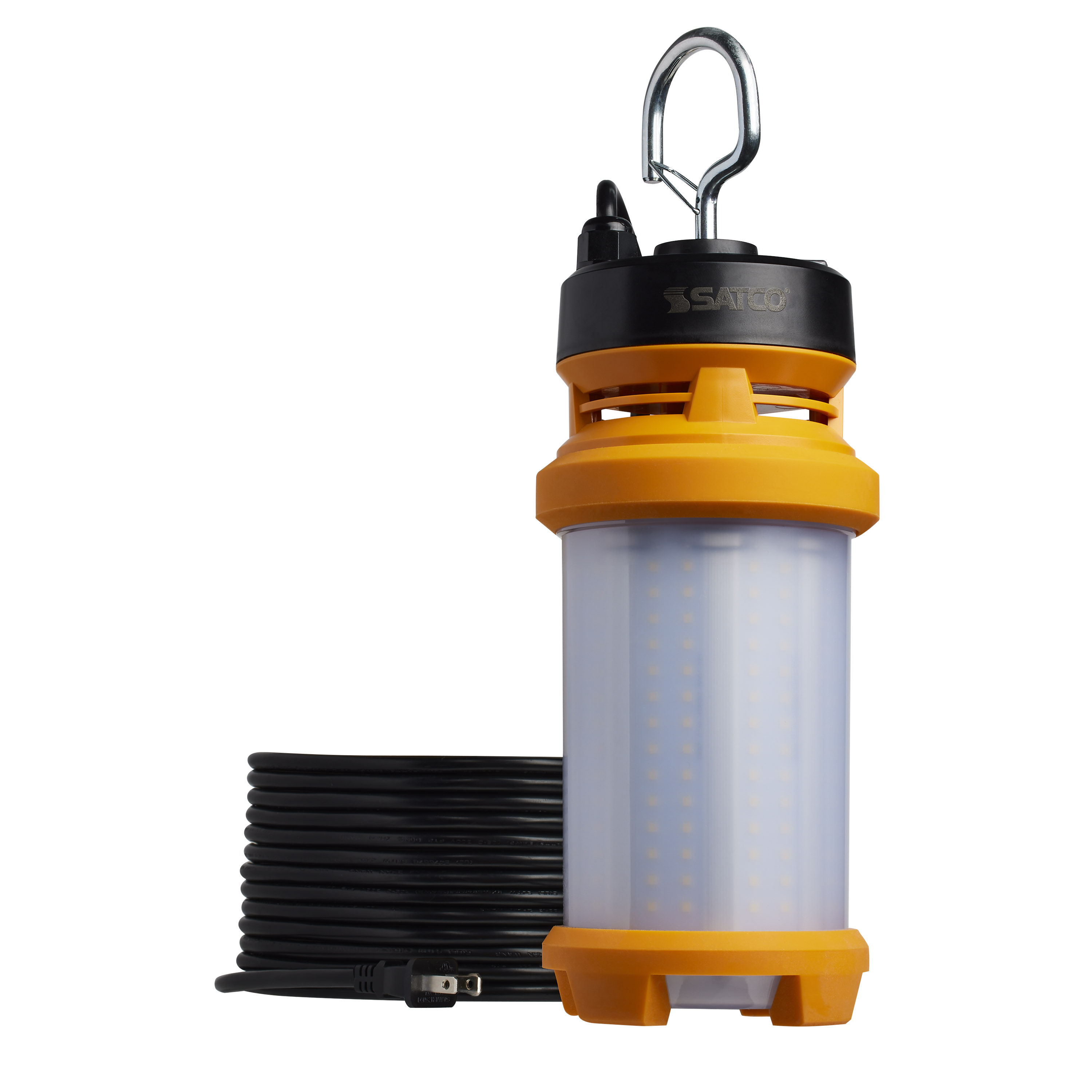

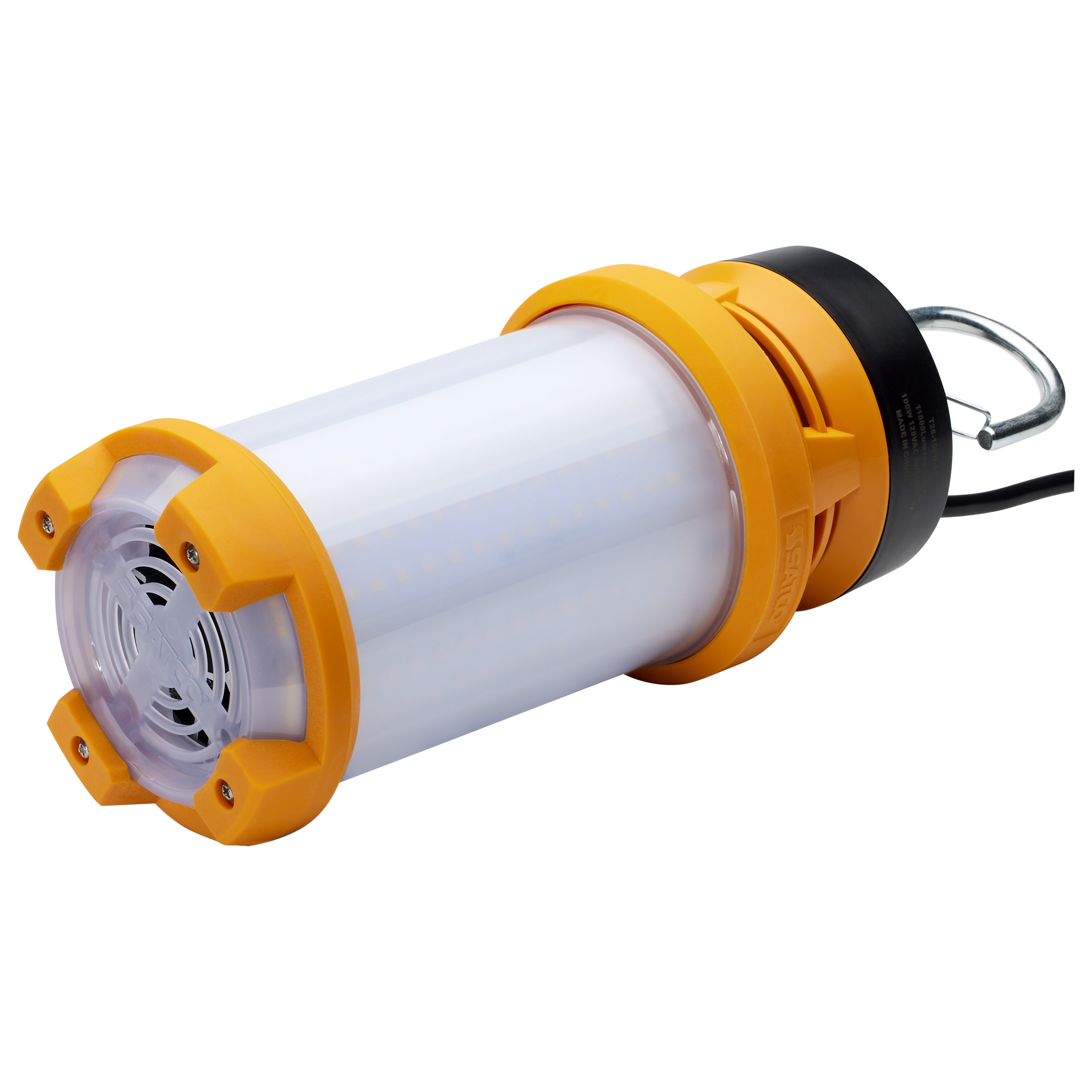

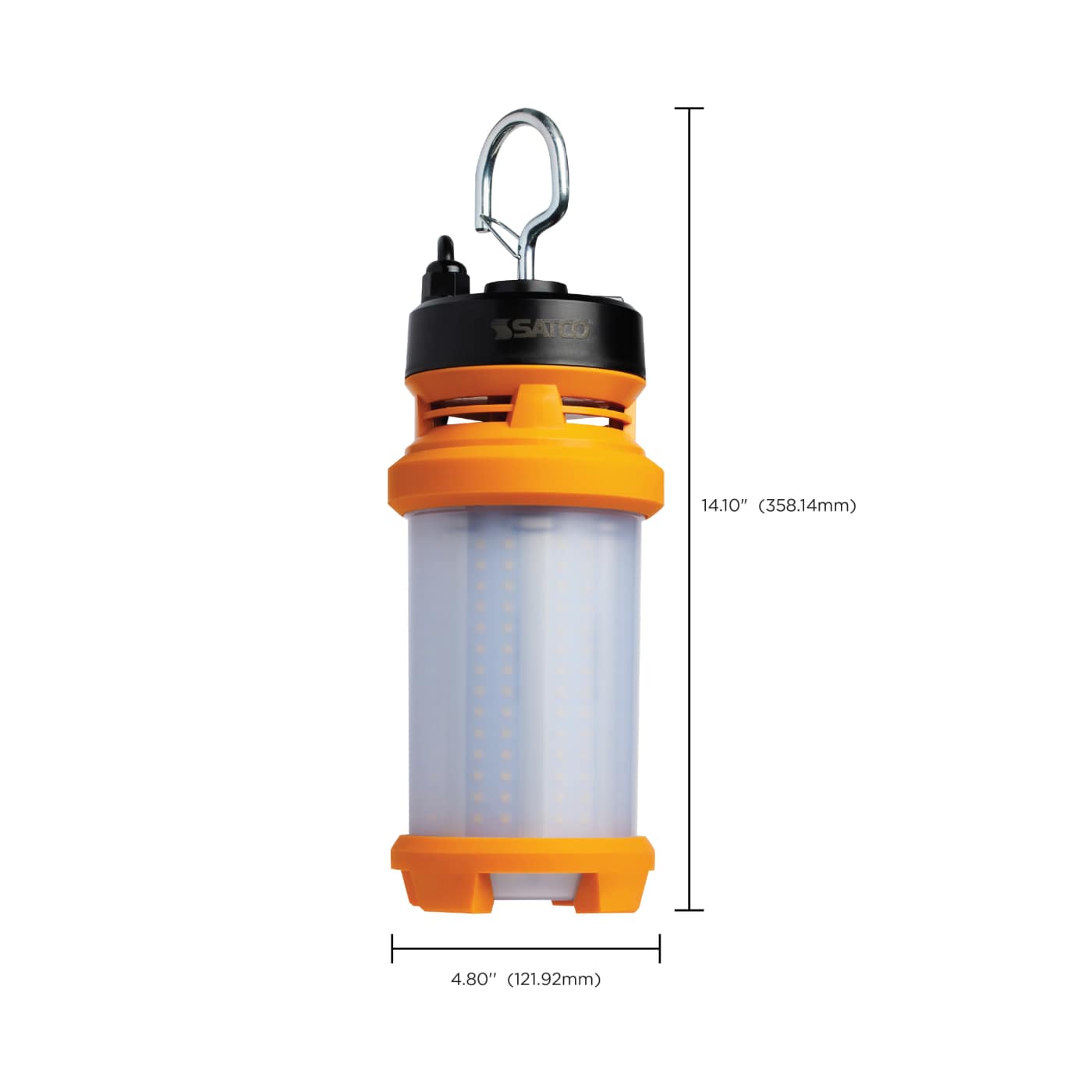

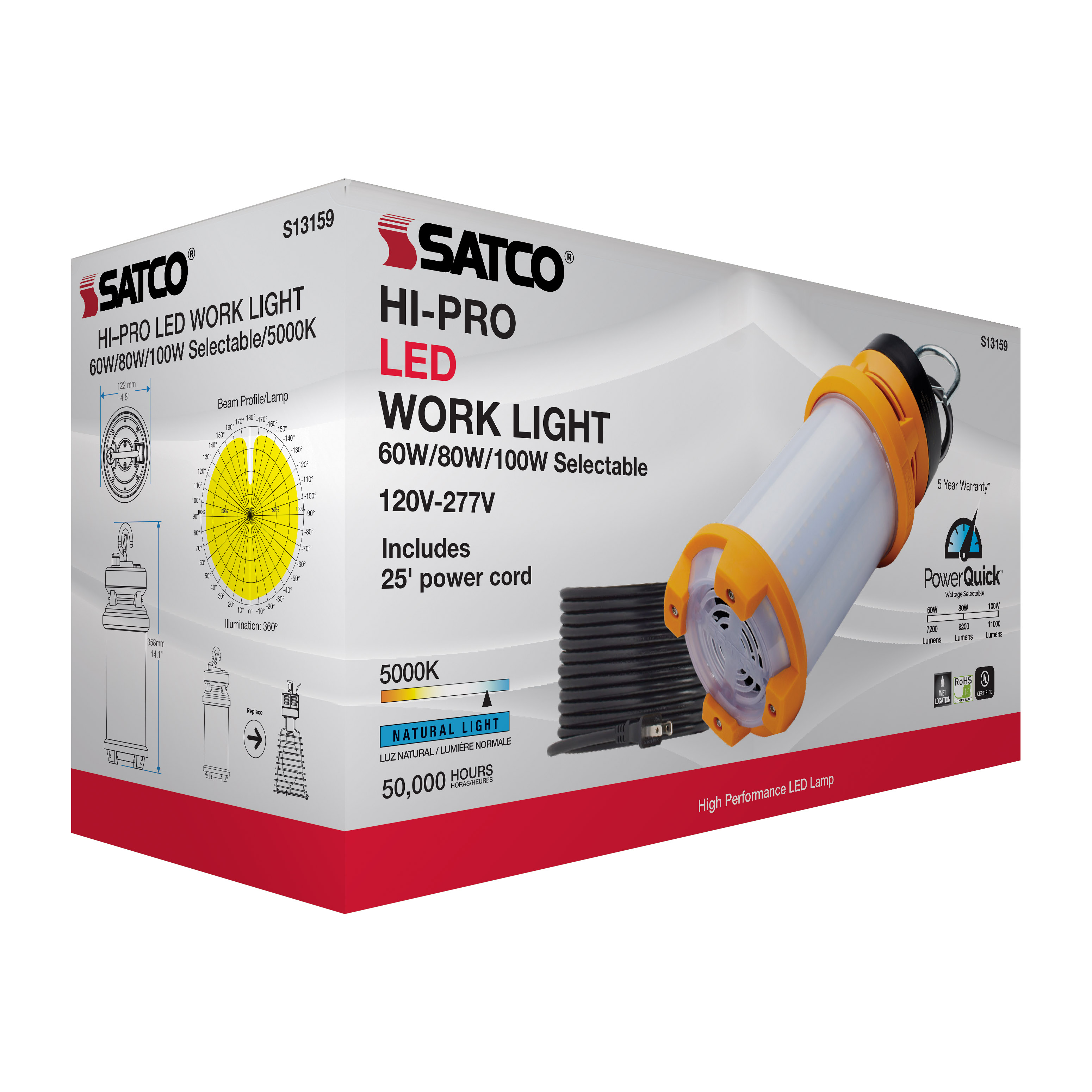

S13159

100W/LED/HID/IP65/TEMP/120-277

  • 60/80/100 Wattage selectable LED Hi-lumen temporary lamp
  • 5000K
  • 120-277 Volt
ip_rating^IP65^1
location_rating^wet^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S13159 SpecificationsS13159 InstructionsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Tools
Lighting Layout Analysis For S13159
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
60/80/100 Wattage selectable LED Hi-lumen temporary lamp; 5000K; 120-277 Volt
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

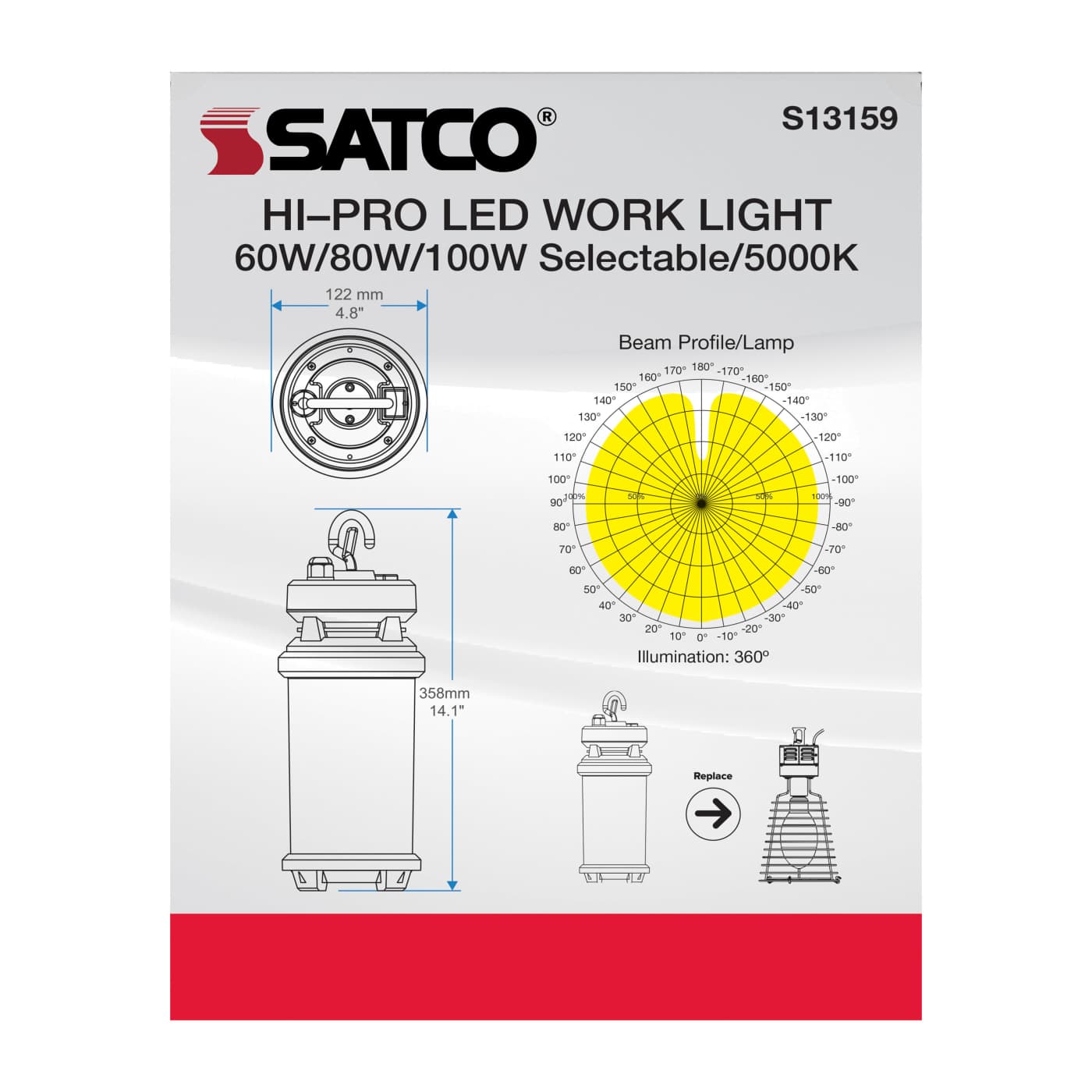

Diameter4.8
MaterialHigh Elasticity PC
Fixture TypeLED HID
StatusActive
StyleUtility
Total Harmonic Distortion5.7%
CCT SelectableFalse
Wattage SelectableTrue
Finish FamilyYellow

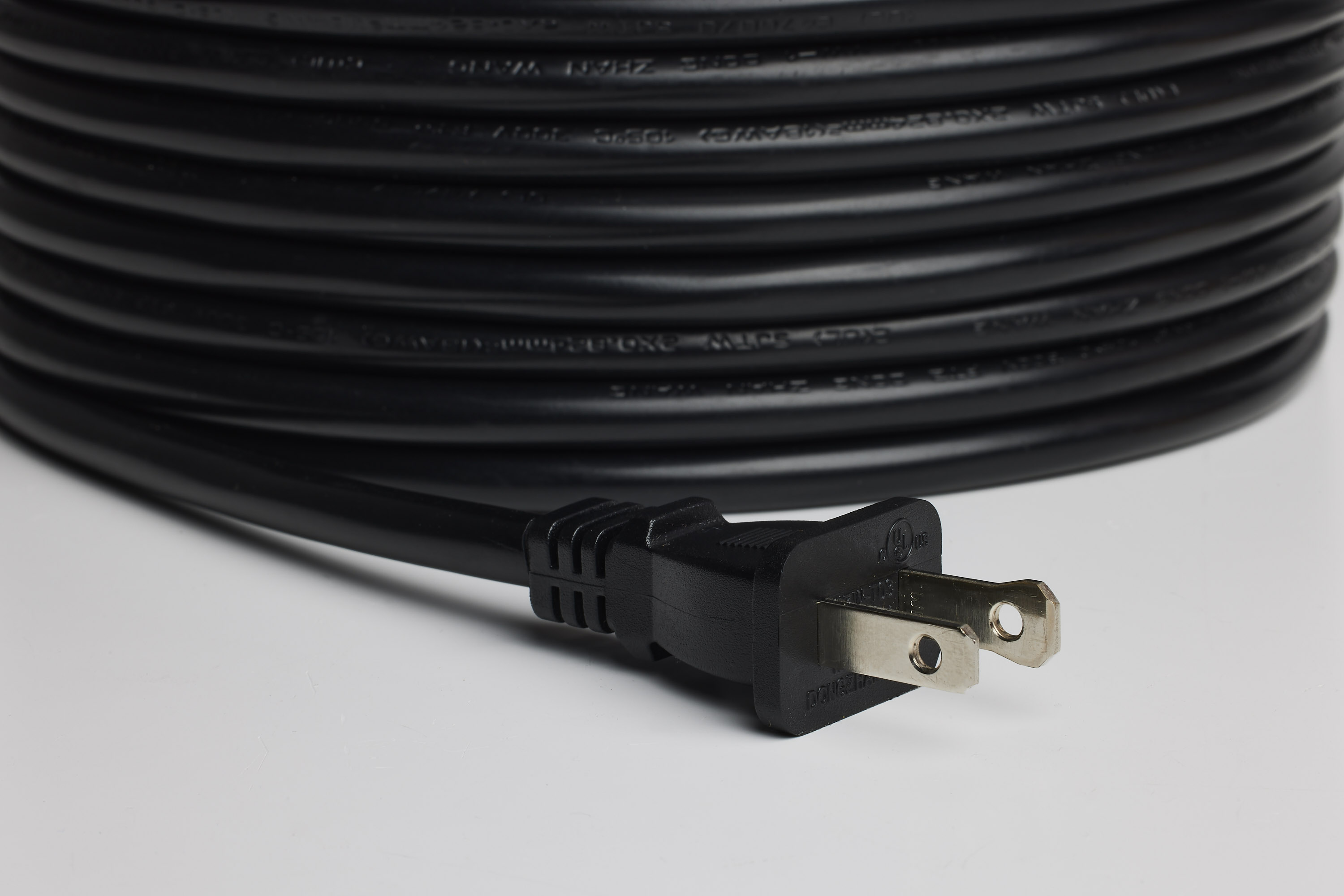

Additional InfoTemporary Work Light with 25 foot cord
Amps0.500-0.217/0.667-0.289/0.833-0.361A
Has CameraFalse
IOT EnabledFalse
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Operating Frequency50-60Hz
Operating Temp-19C (-2.2F) to +45C (+113F)
HID Equivalent250W/320W/400W
Lumens7200L/9200L/11000L
Volts120V-277V
Watts60W/80W/100W
Physical
Lamp BasePlug
FinishYellow
ANSI BasePlug
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue

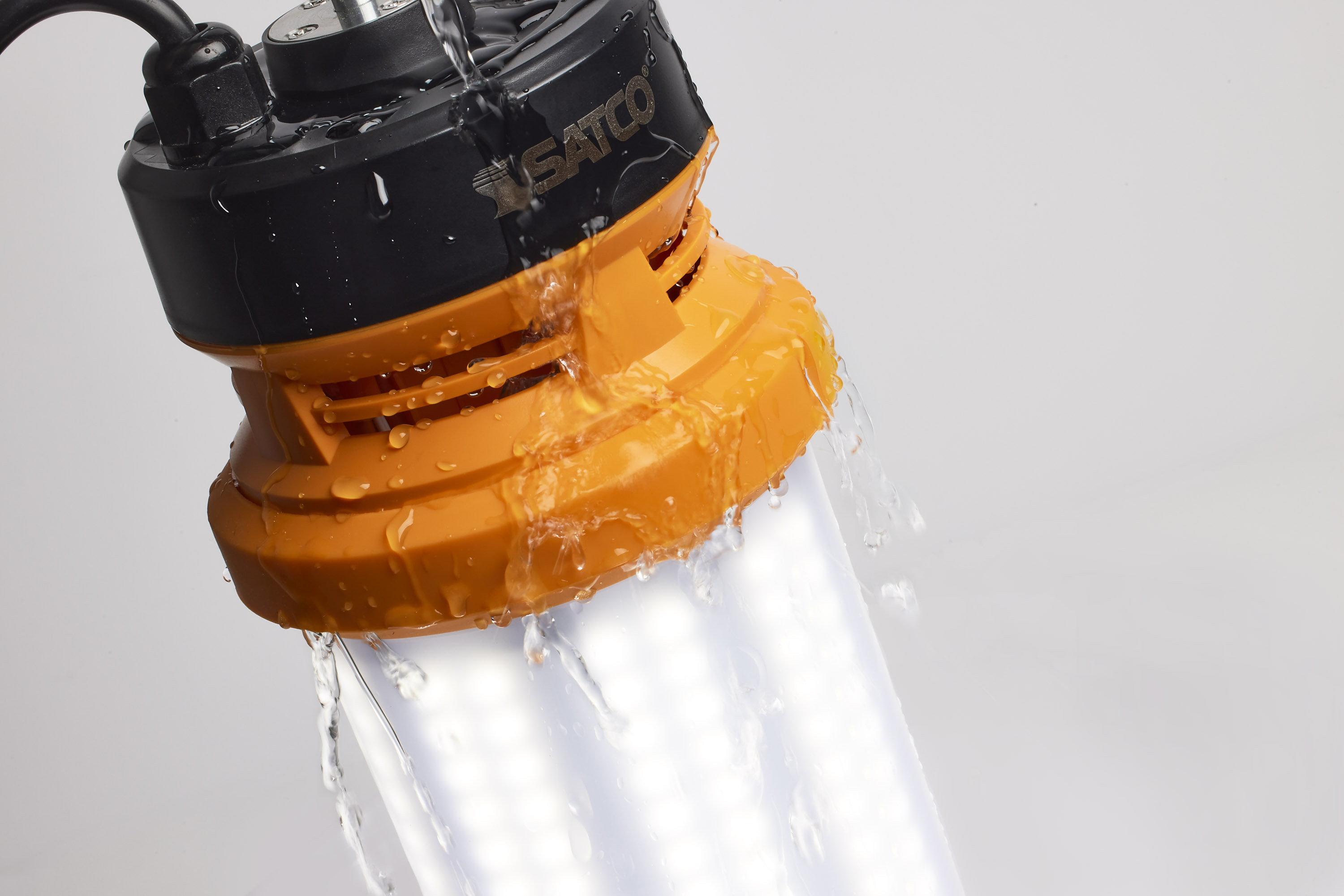

IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923131592
Case Cube2.2755
Case Height17.72
Case Length16.34
Case Quantity4
Case UPC10045923131599
Case Weight26.9
Case Width13.58
EA Cube0.4987
EA Height8.46
EA Length15.67
EA Quantity1
EA Weight5.95
EA Width6.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeColor Box
Web Height14.1
Web Width4.8
