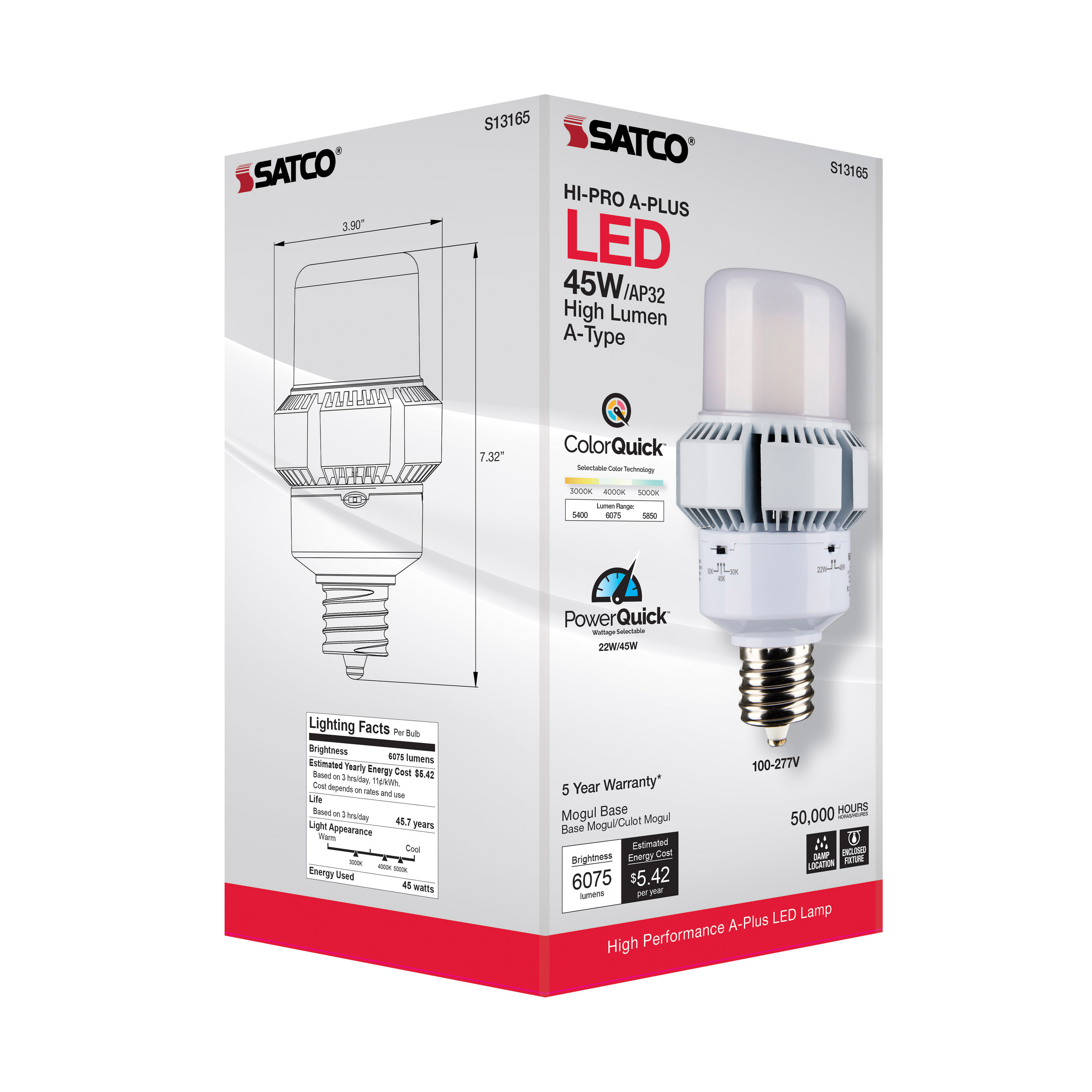

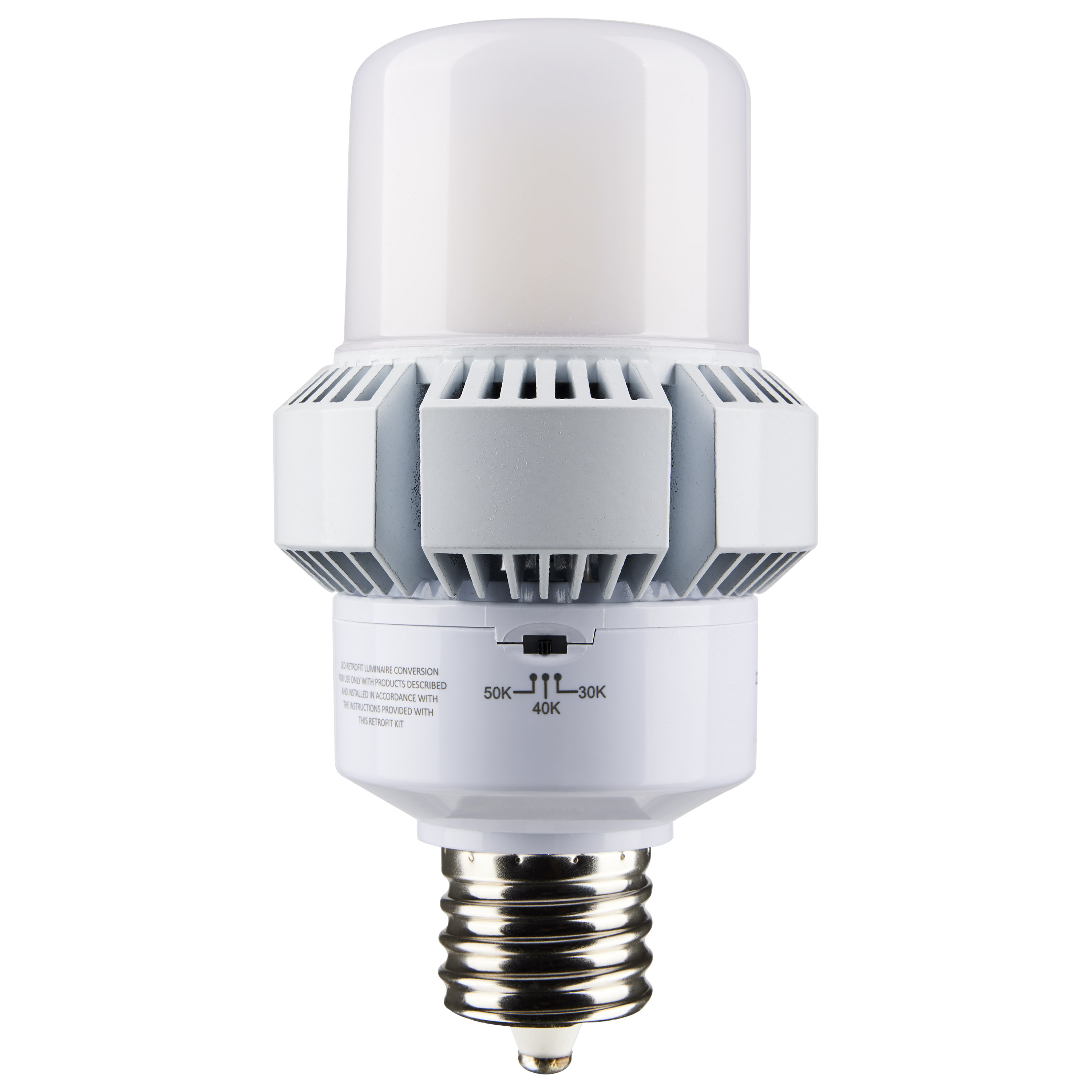

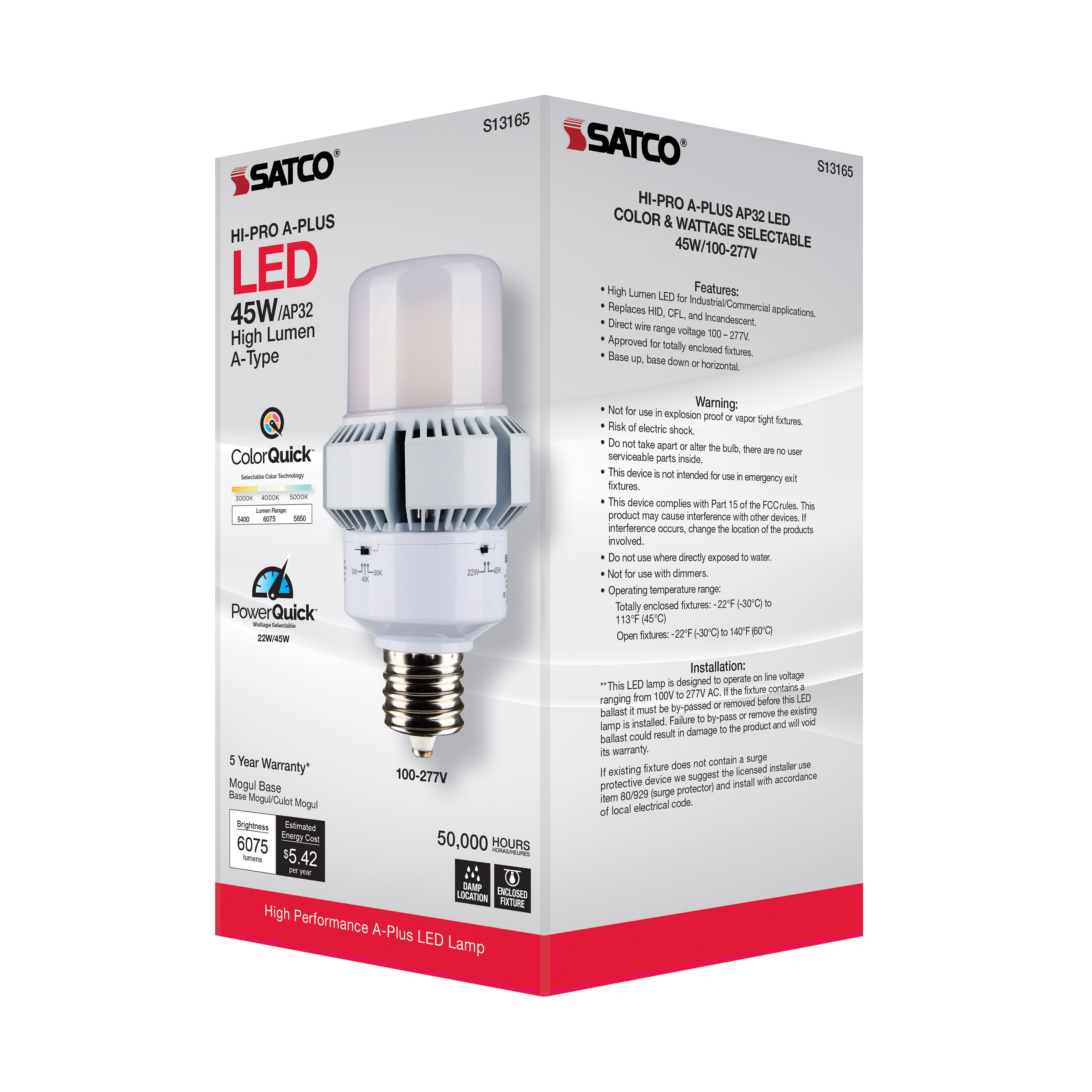

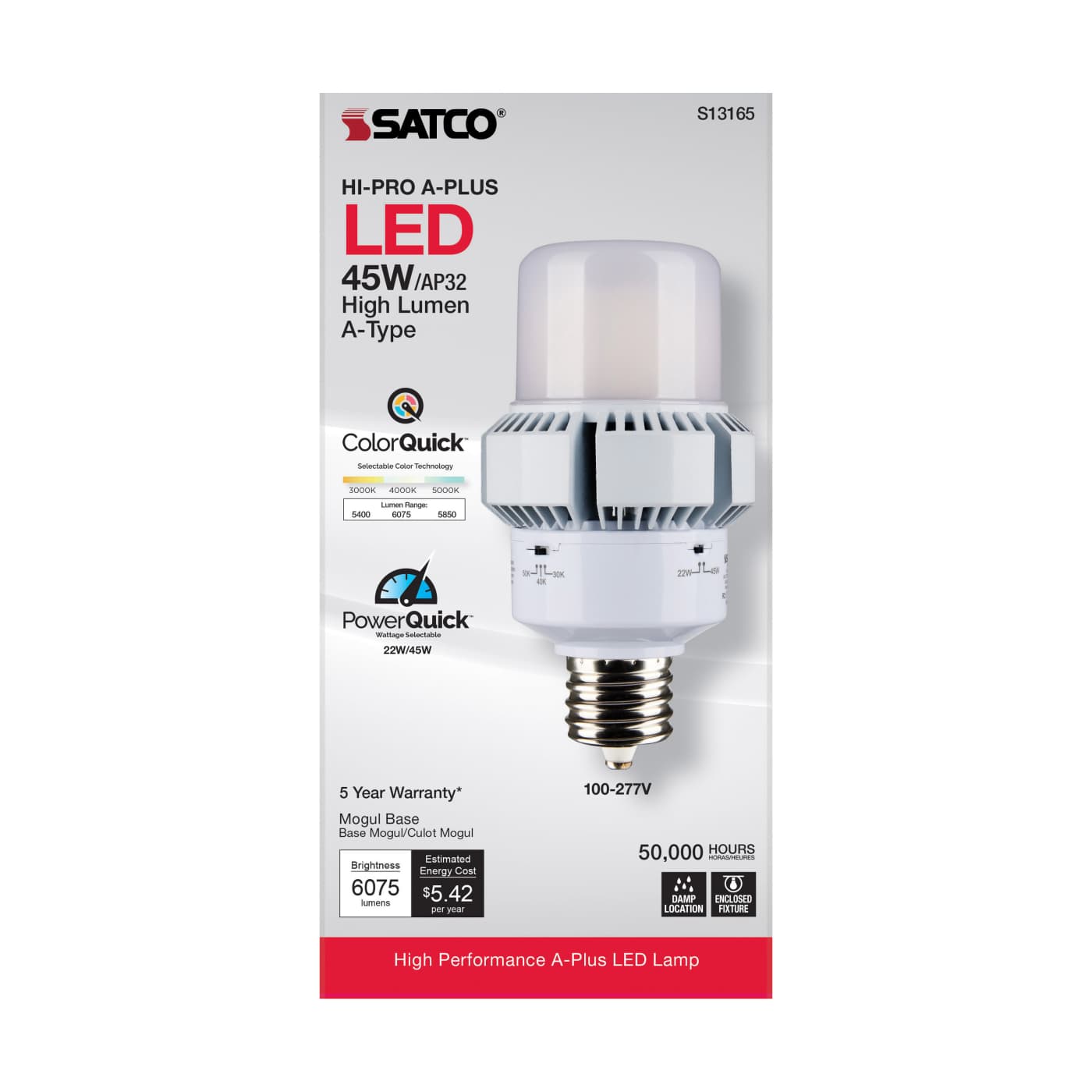

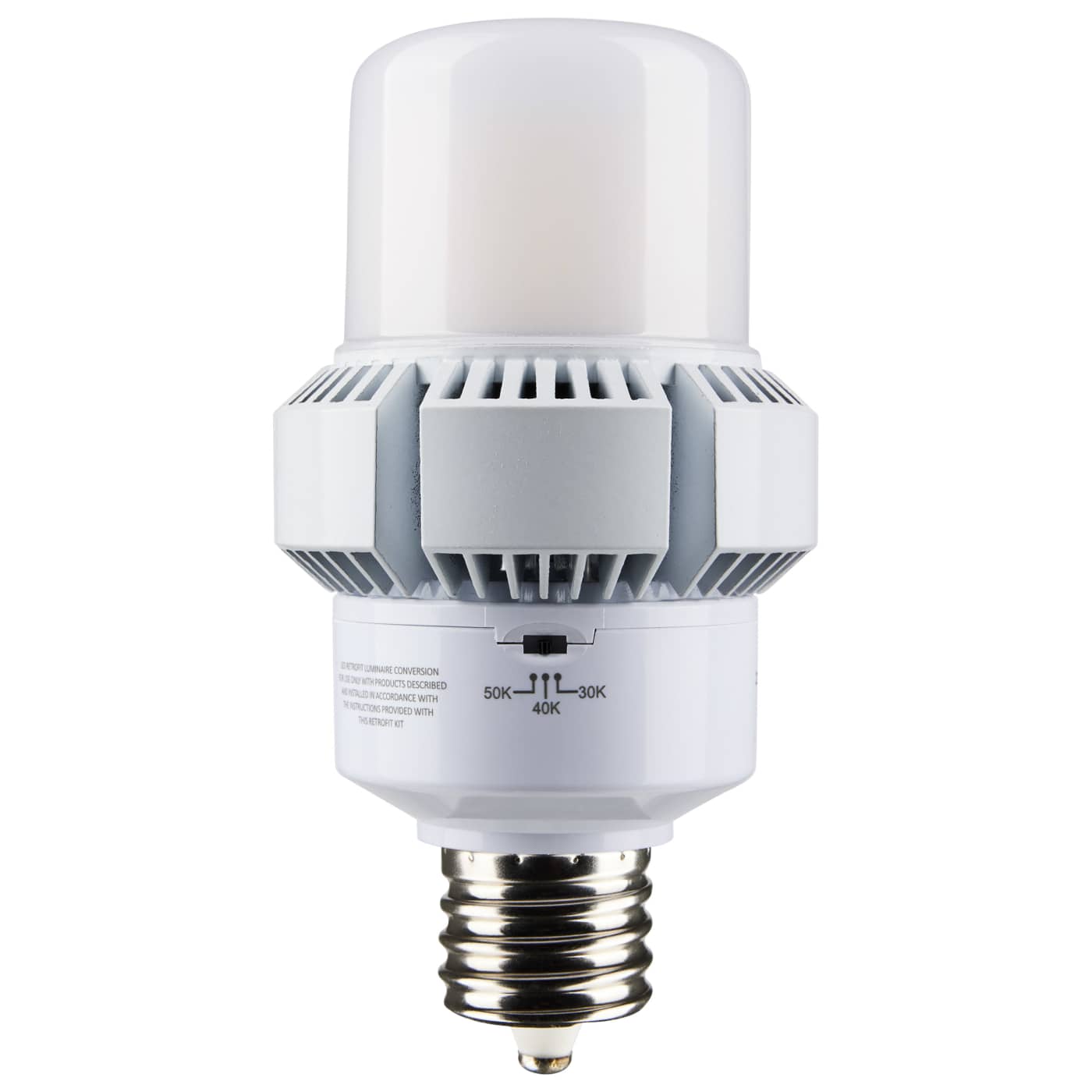

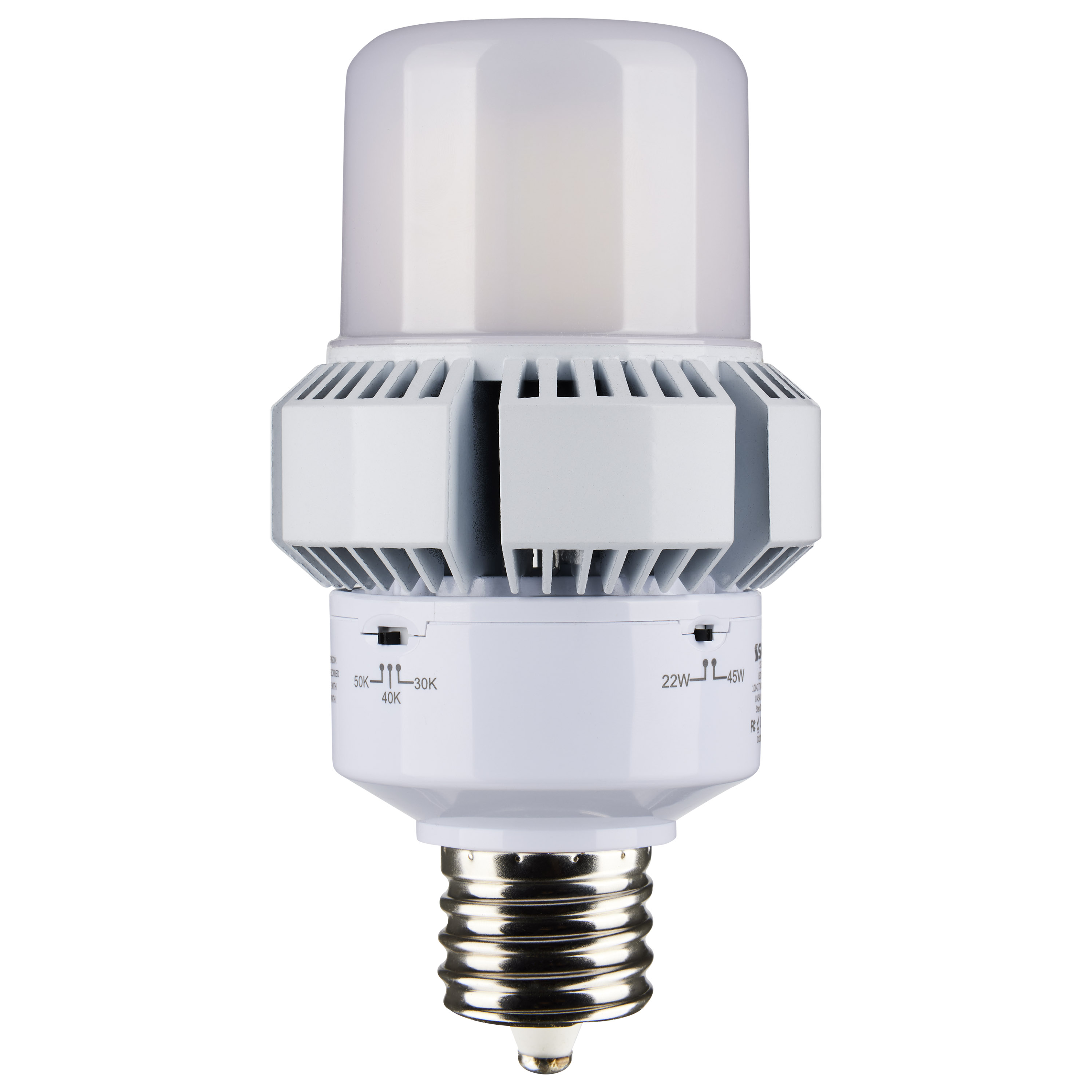

S13165 45W/AP32/LED/CCT/100-277V/EX39

S13165

45W/AP32/LED/CCT/100-277V/EX39

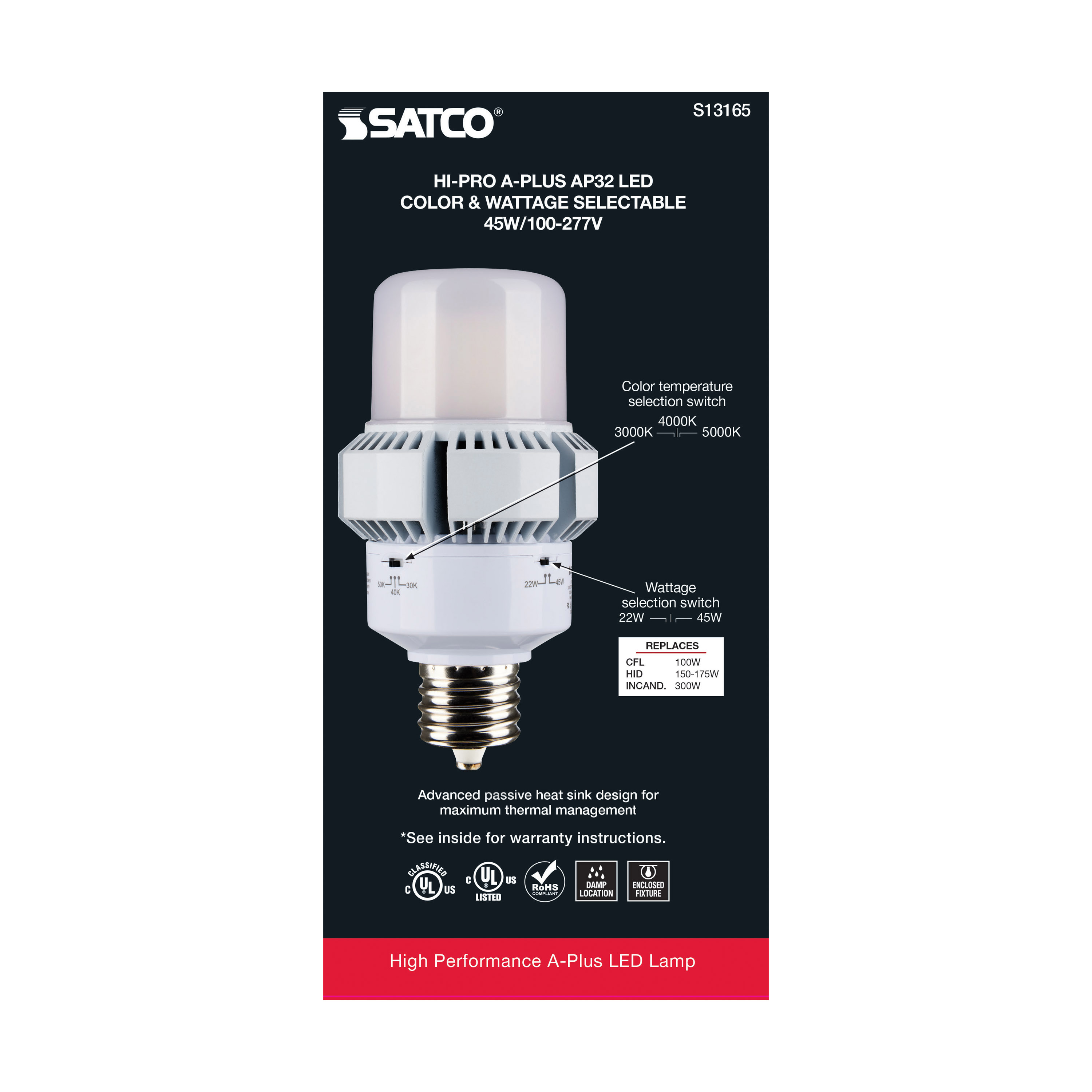

45 Watt; A-Plus 32; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology


Lights

S13165

45W/AP32/LED/CCT/100-277V/EX39

45 Watt; A-Plus 32; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology

Specifications

General
StatusActive
Watts45W/22W
Incandescent Equivalent300W
Fluorescent Equivalent100W
HID Equivalent150W-175W
Volts100V-277V
ShapeAP32
BaseMogul Extended
ANSI BaseEX39
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80

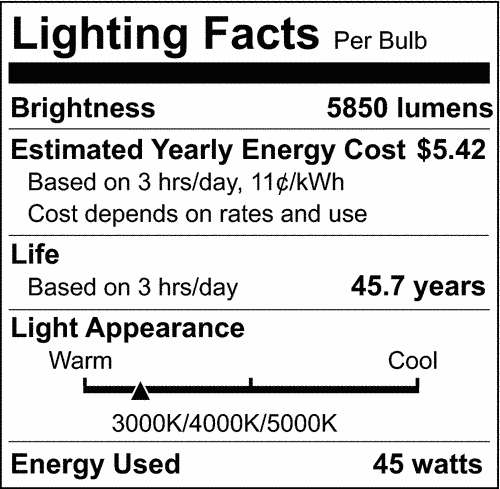

Lumens5850L/3060L
Beam Spread280
Hours Rated50000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Min Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts45W/22W
Incandescent Equivalent300W
Fluorescent Equivalent100W
HID Equivalent150W-175W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens5850L/3060L
Beam Spread280
Dimming TypeStep Dimming
Power Factor>0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 3KV
THD15%
Operating Temperature-22C (-30F) to +45C (+113F)
Physical

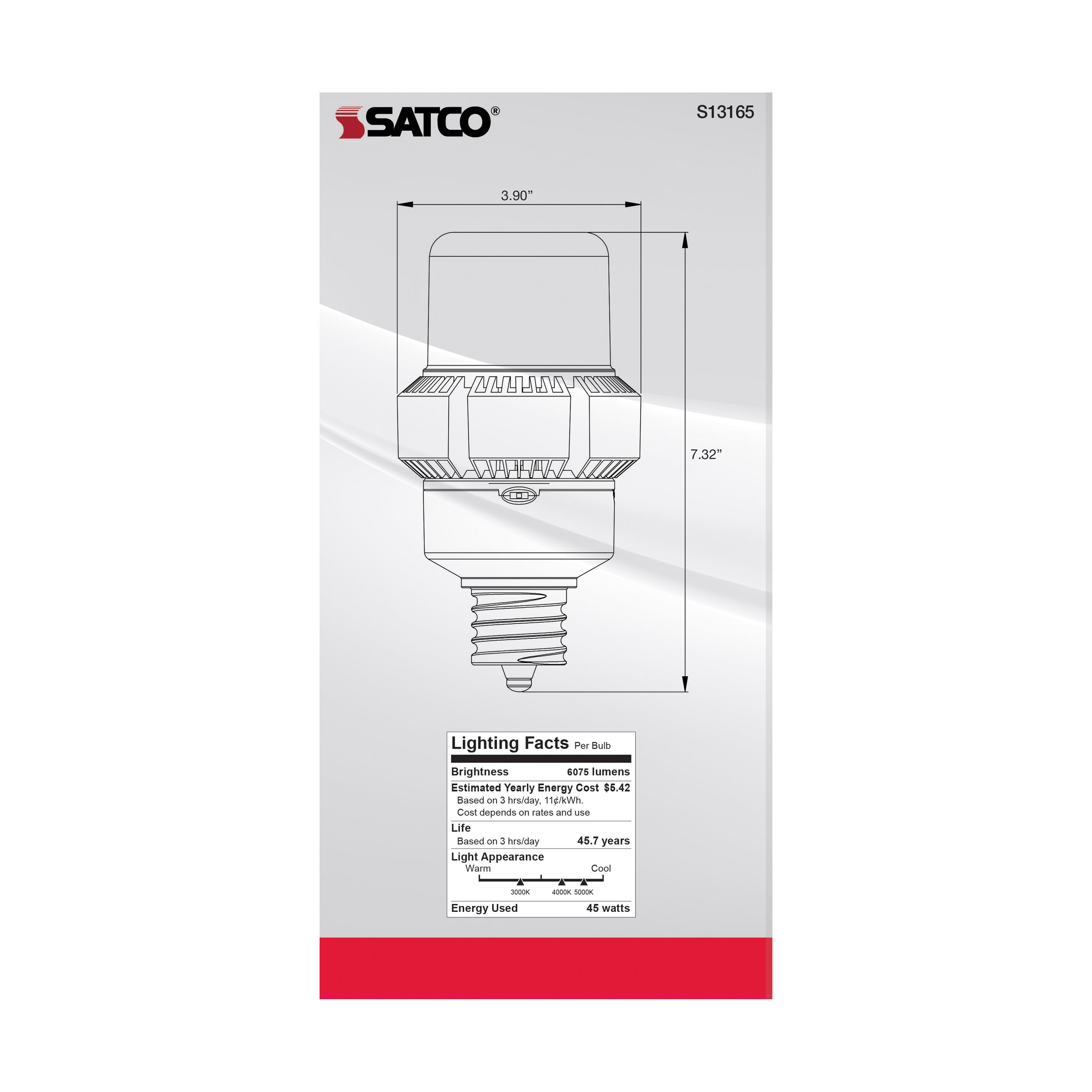

MOL7.32
MOD3.9
ShapeAP32
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Housing ColorWhite
Weight (lb.)1.38
Additional Information
Min Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Rated For Enclosed FixtureYes
IP RatingIP64

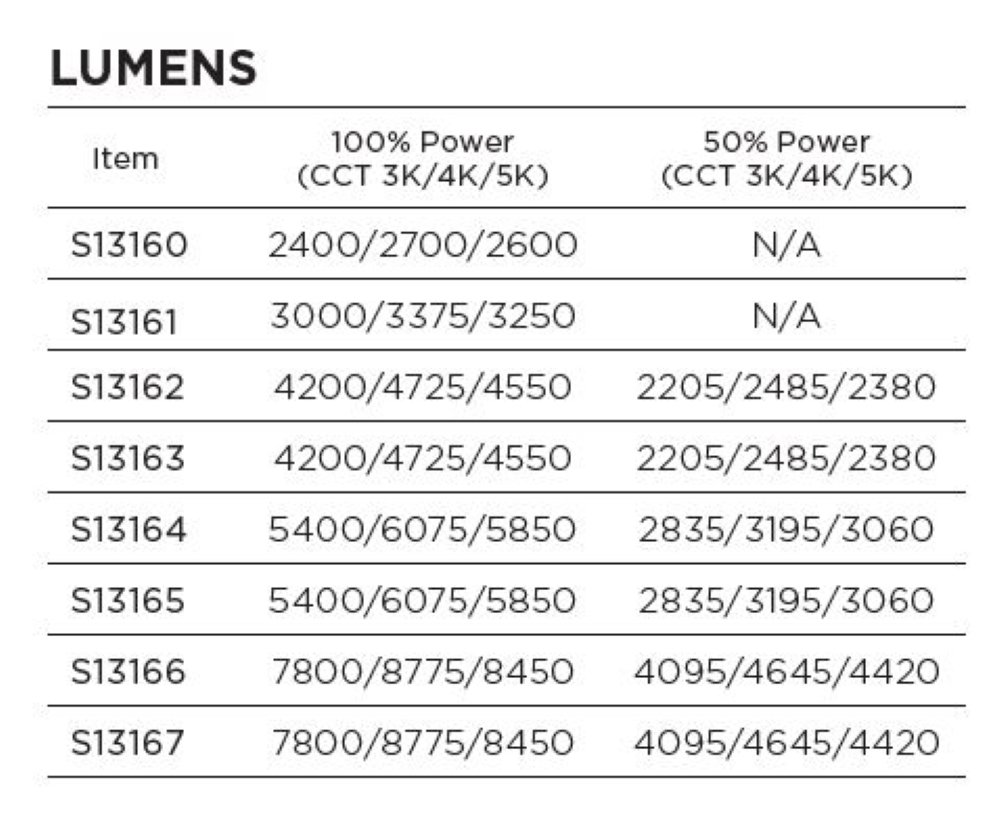

Specification NoteLumen/Watt/CCT Ratio Chart in Documents.

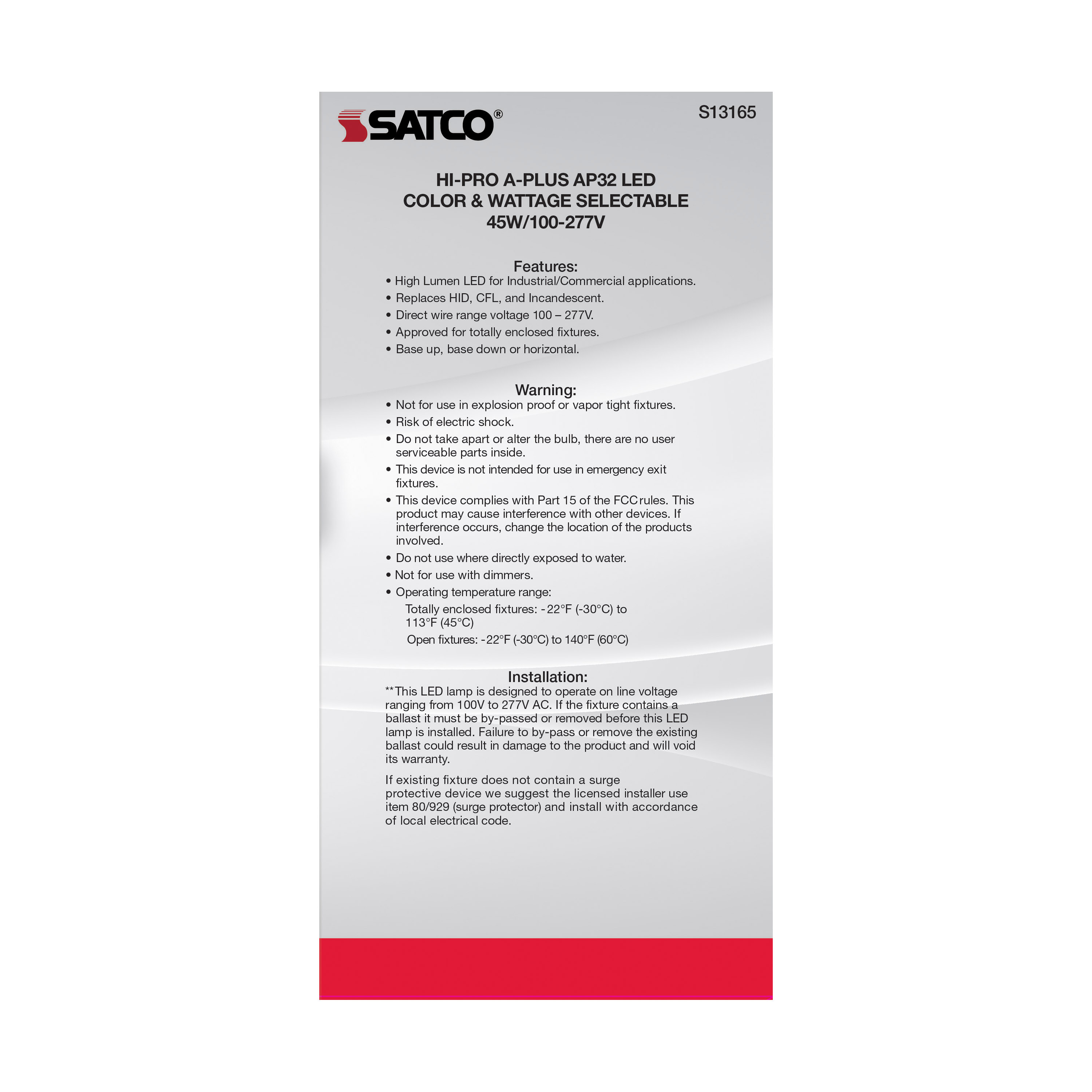

Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-GNP8VX
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923131653
Each Quantity1
Each Length (in.)4.65
Each Width (in.)4.65
Each Height (in.)9.25
Each Weight (lb.)1.75
Each Cube (CuFt.)0.1157
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923131650
Case Quantity12
Case Length (in.)19.20
Case Width (in.)14.60
Case Height (in.)10.00
Case Weight (lb.)22.30
Case Cube (CuFt.)1.6222
