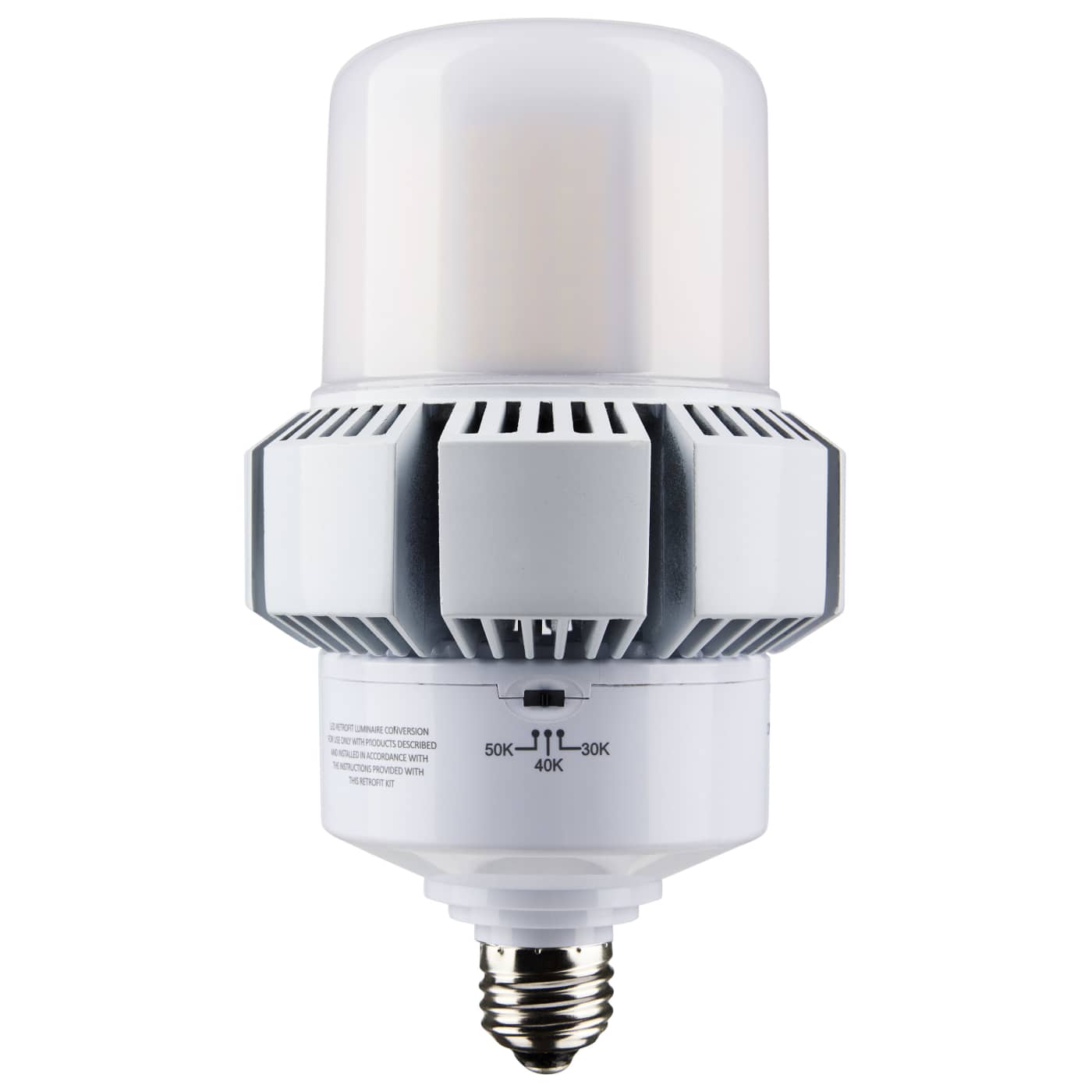

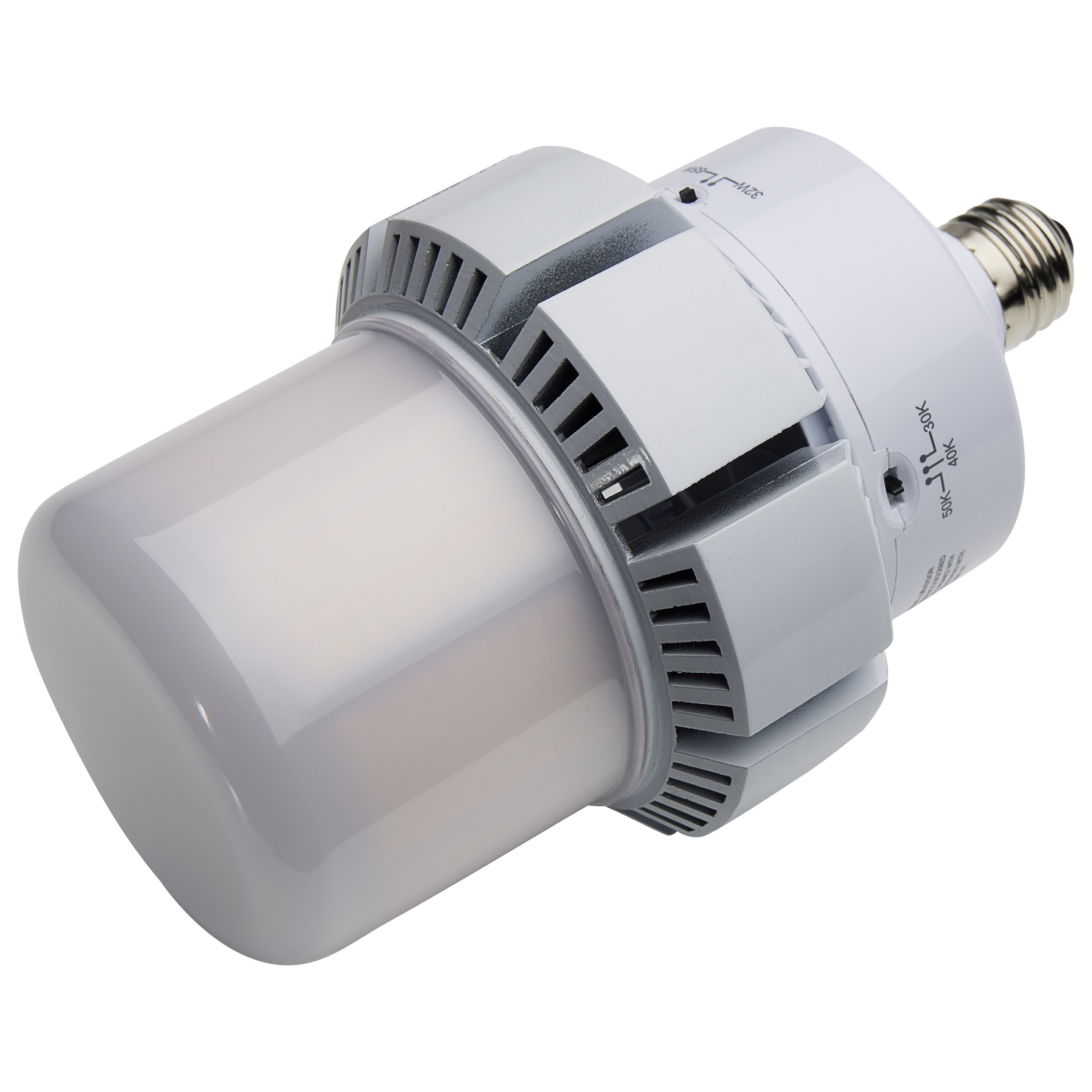

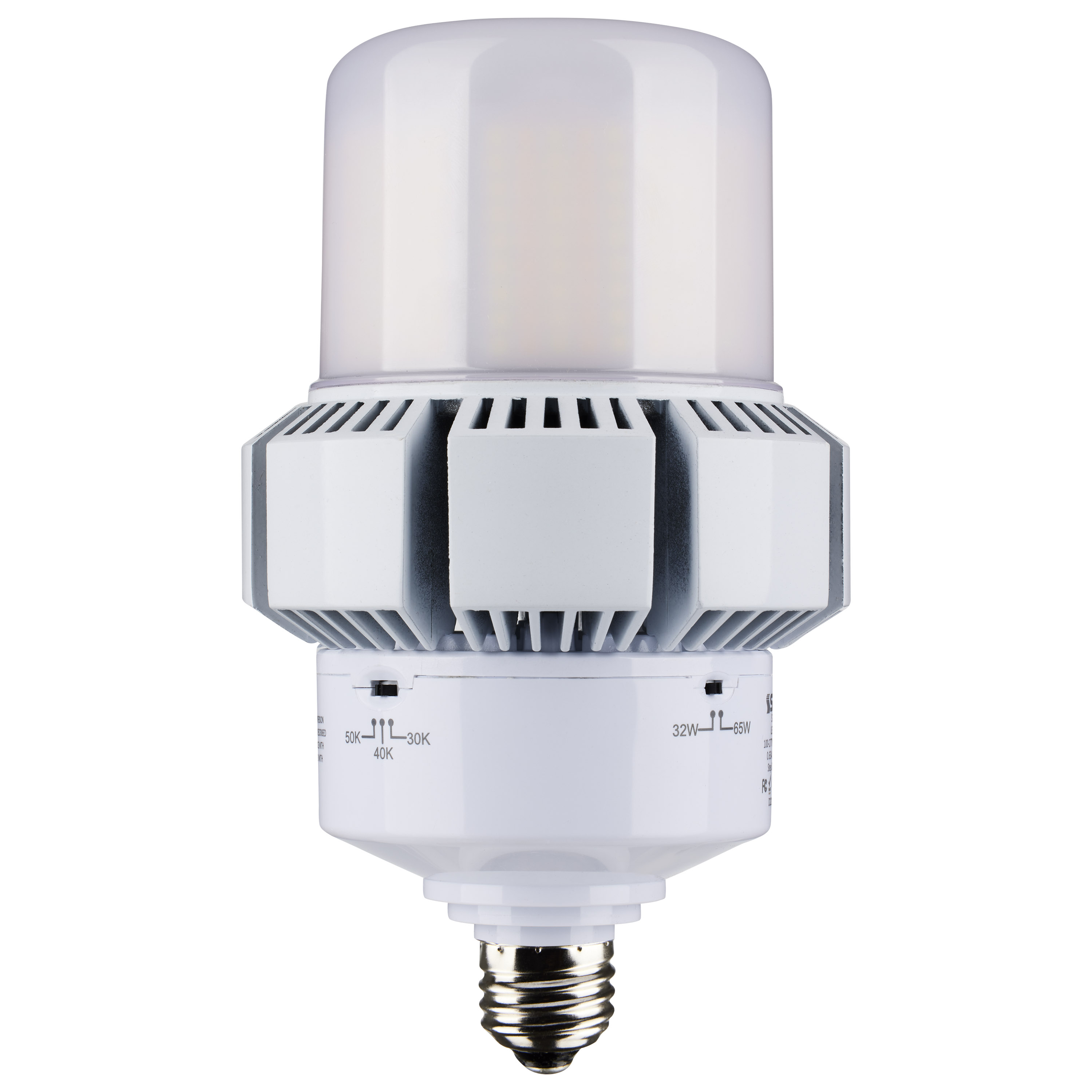

S13166 65W/AP37/LED/CCT/100-277V/E26

S13166

65W/AP37/LED/CCT/100-277V/E26

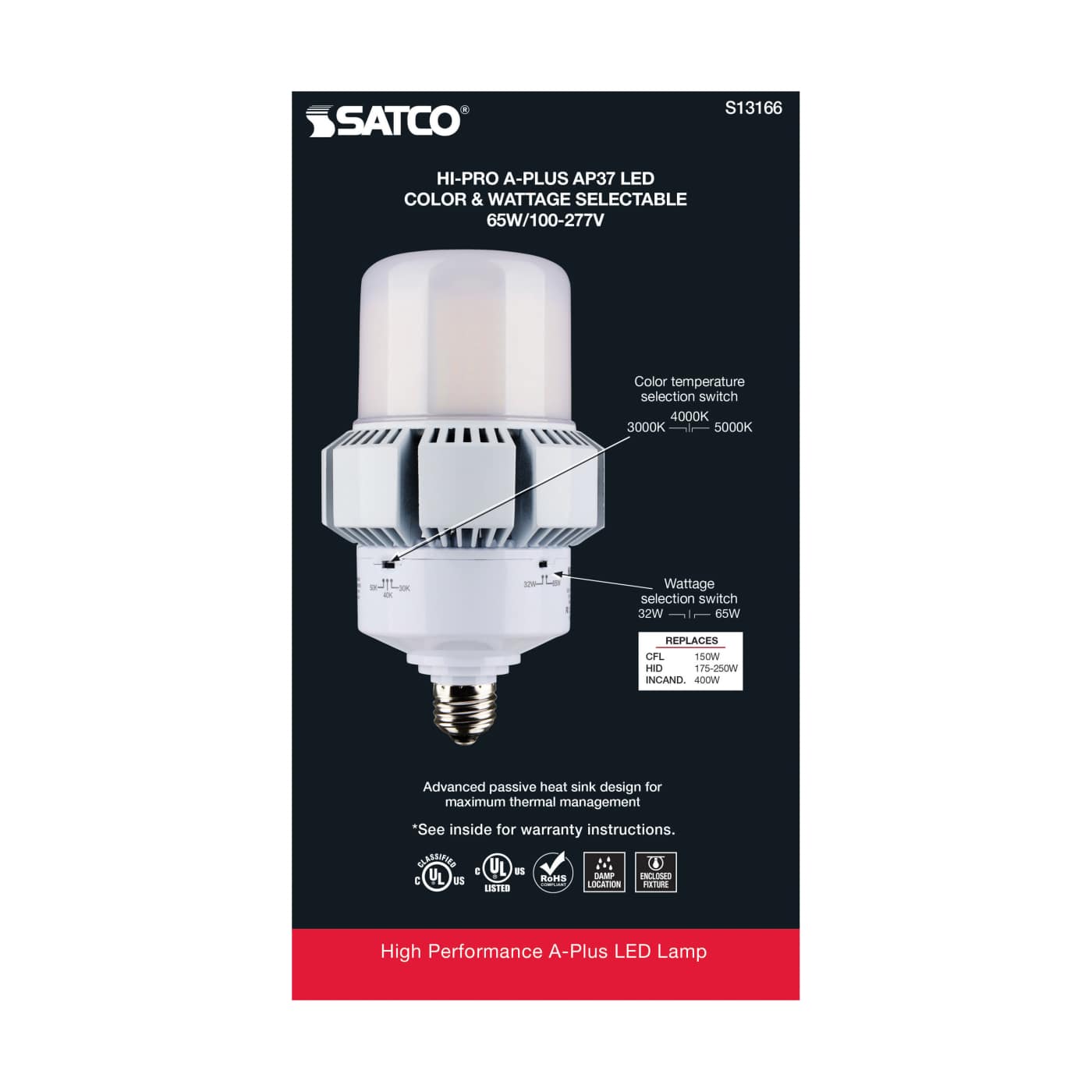

65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Medium base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology


Lights

S13166

65W/AP37/LED/CCT/100-277V/E26

65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Medium base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology

Specifications

General
StatusActive
Watts65W/32W
Incandescent Equivalent400W
Fluorescent Equivalent150W
HID Equivalent175W-250W
Volts100V-277V
ShapeAP37
BaseMedium
ANSI BaseE26
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80

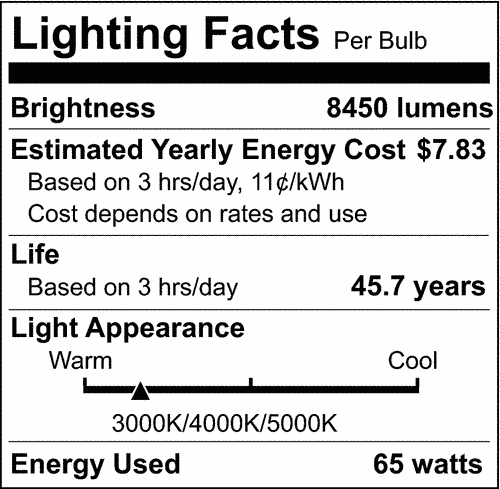

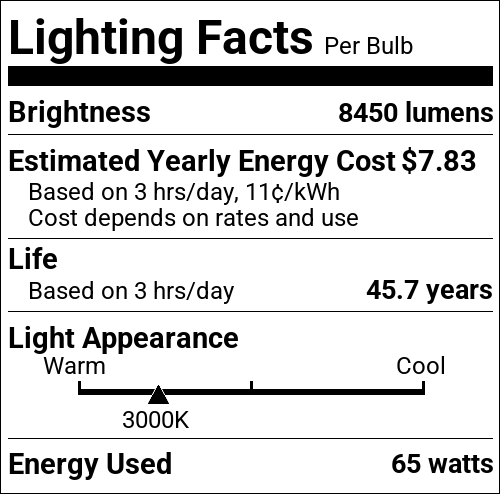

Lumens8450L/4420L
Beam Spread280
DimmableYes-Dimmable
Hours Rated50000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 11 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts65W/32W
Incandescent Equivalent400W
Fluorescent Equivalent150W
HID Equivalent175W-250W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens8450L/4420L
Beam Spread280
DimmableYes-Dimmable
Dimming TypeReverse Phase
Dimming NoteOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Power Factor>0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 4KV
Operating Temperature-22C (-30F) to +45C (+113F)
Physical

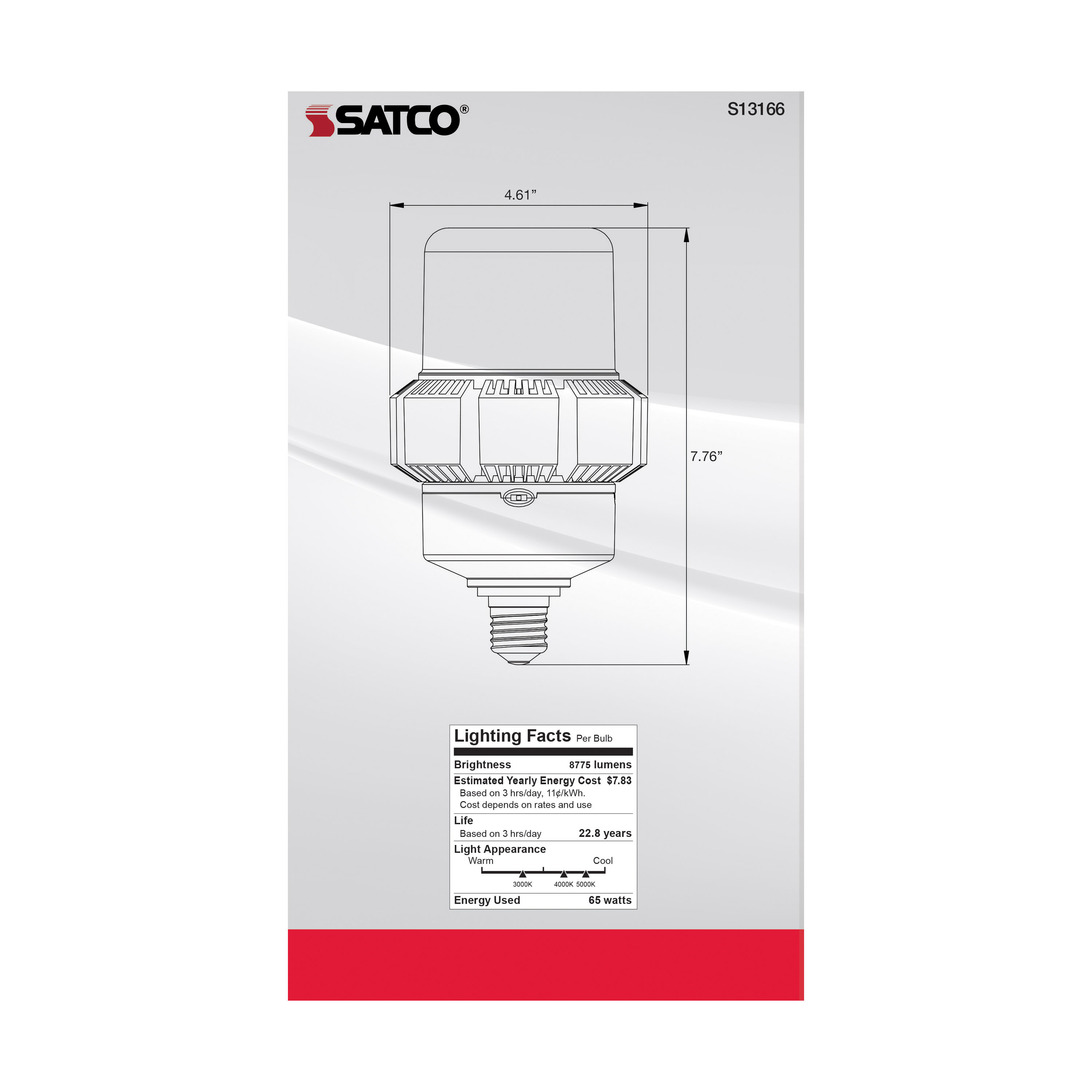

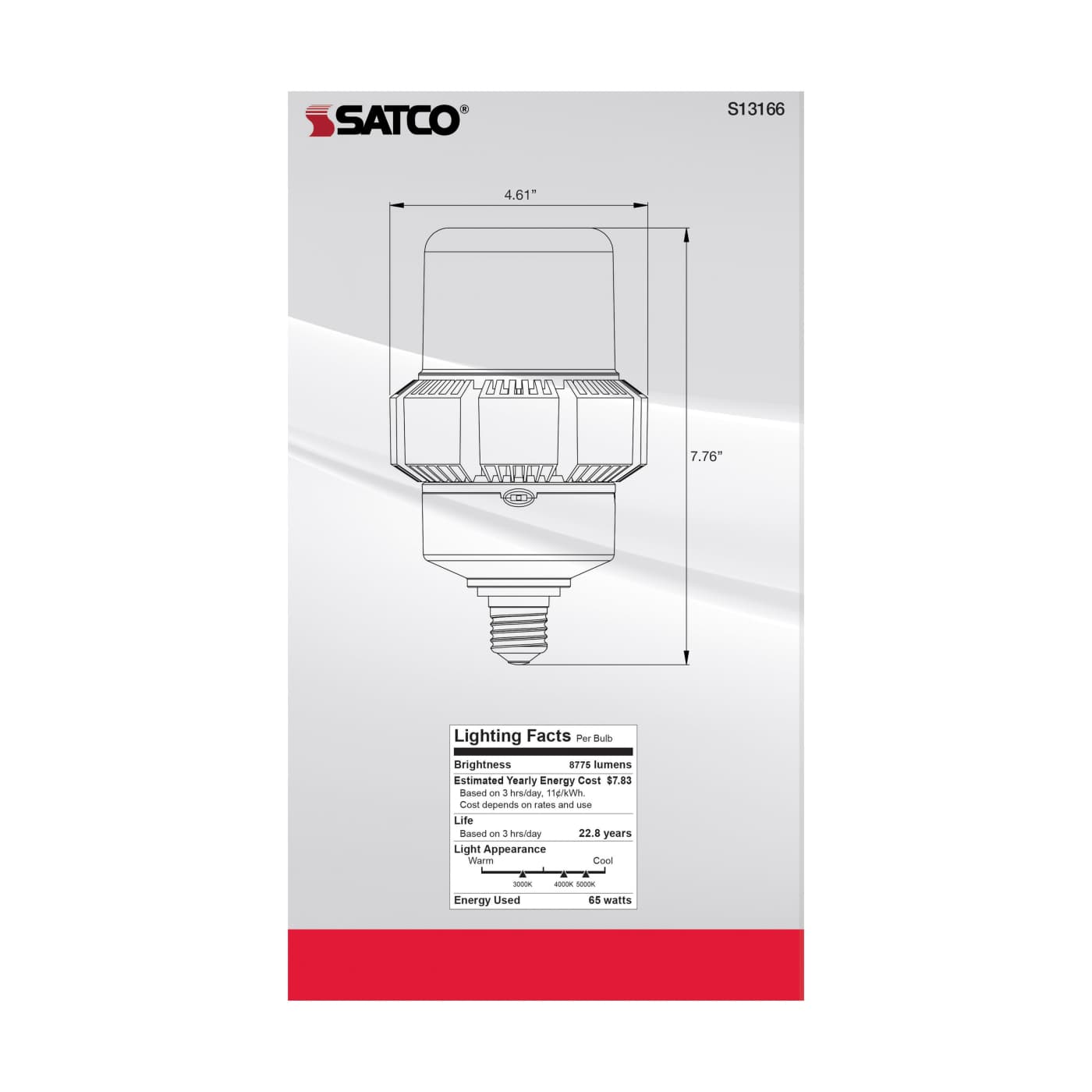

MOL7.76
MOD4.61
ShapeAP37
BaseMedium
ANSI BaseE26
FinishWhite
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Housing ColorWhite
Weight (lb.)2.04
Additional Information
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 11 in.
Rated For Enclosed FixtureYes
IP RatingIP64

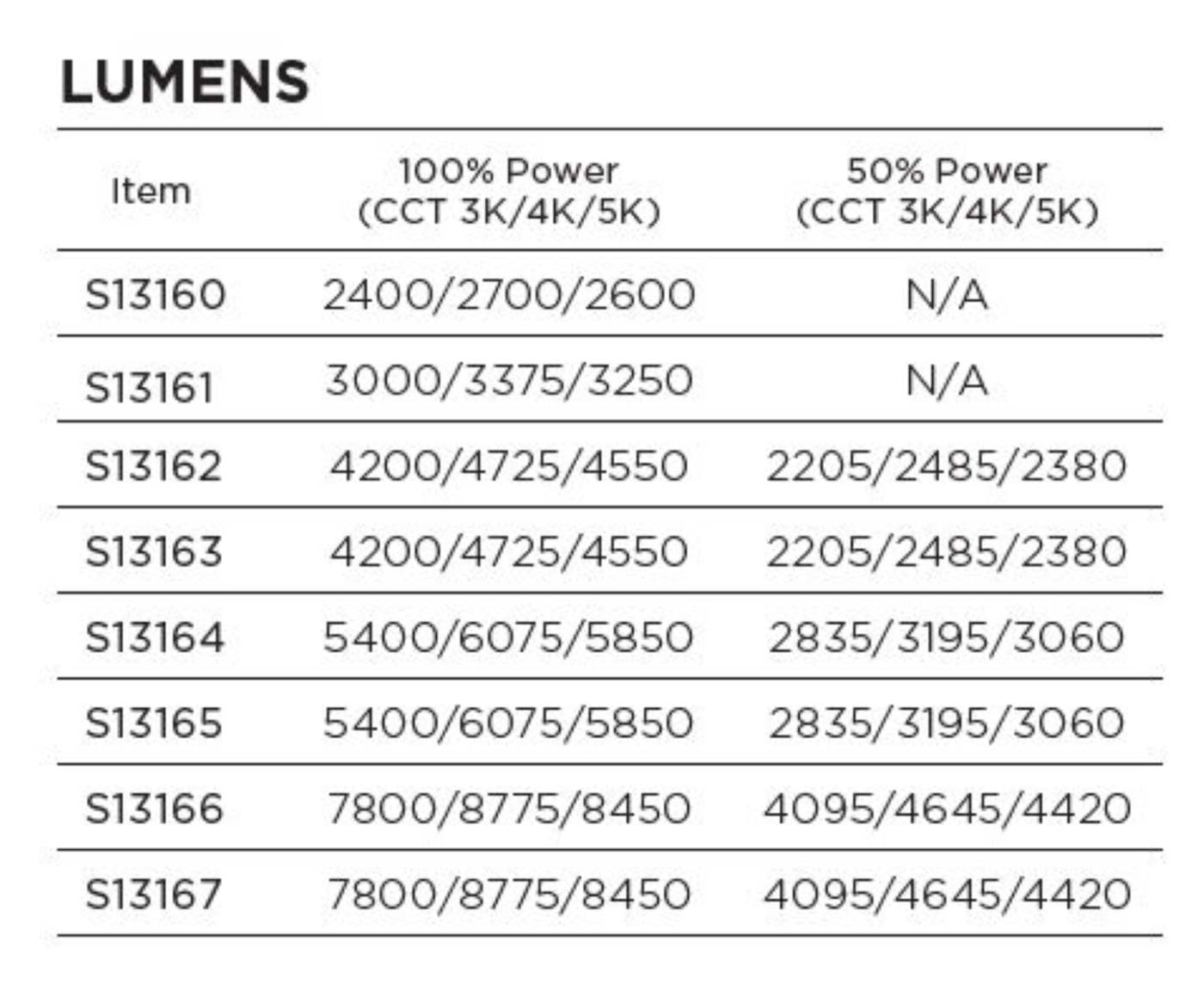

Specification NoteLumen/Watt/CCT Ratio Chart in Documents.

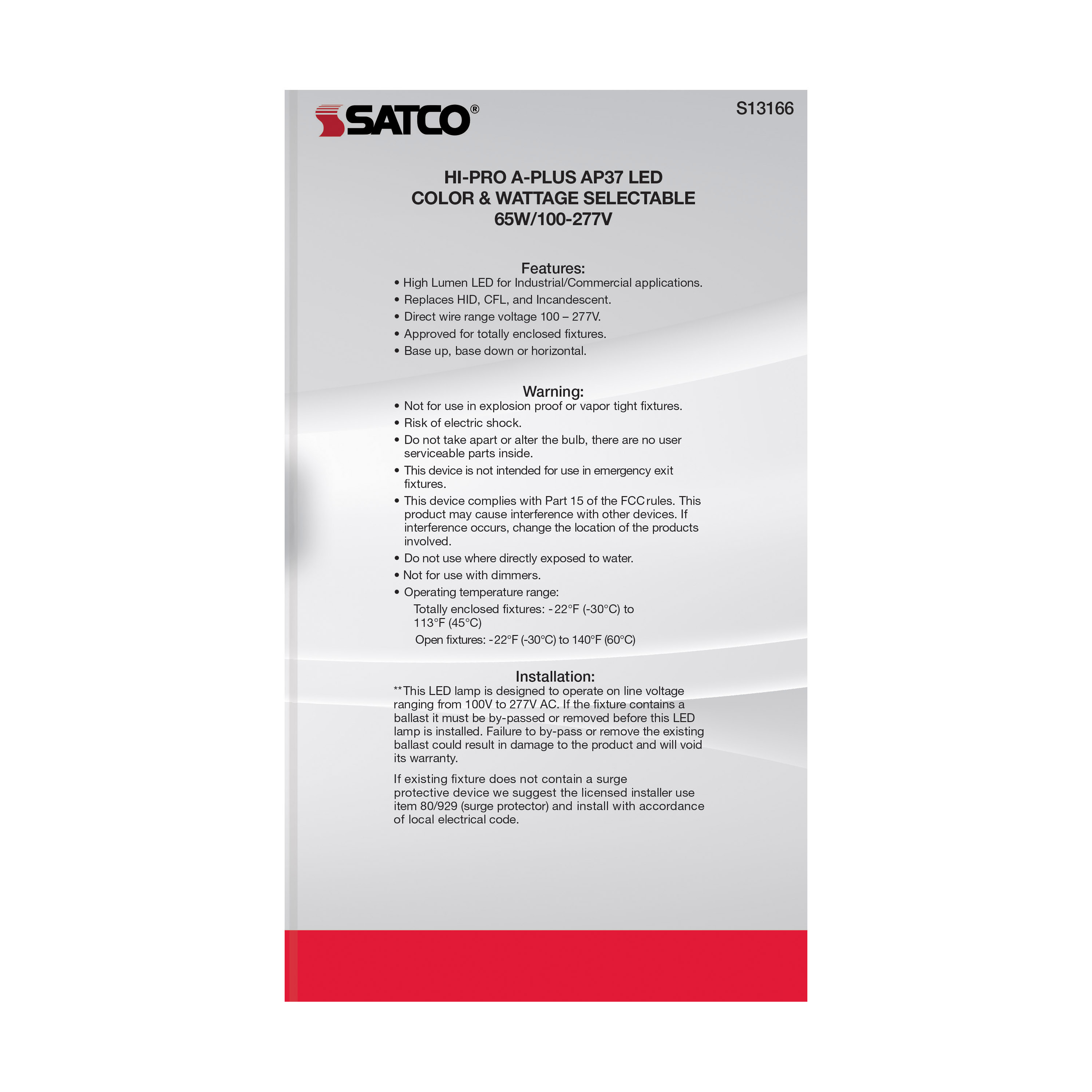

Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - >2600 Lumens
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp

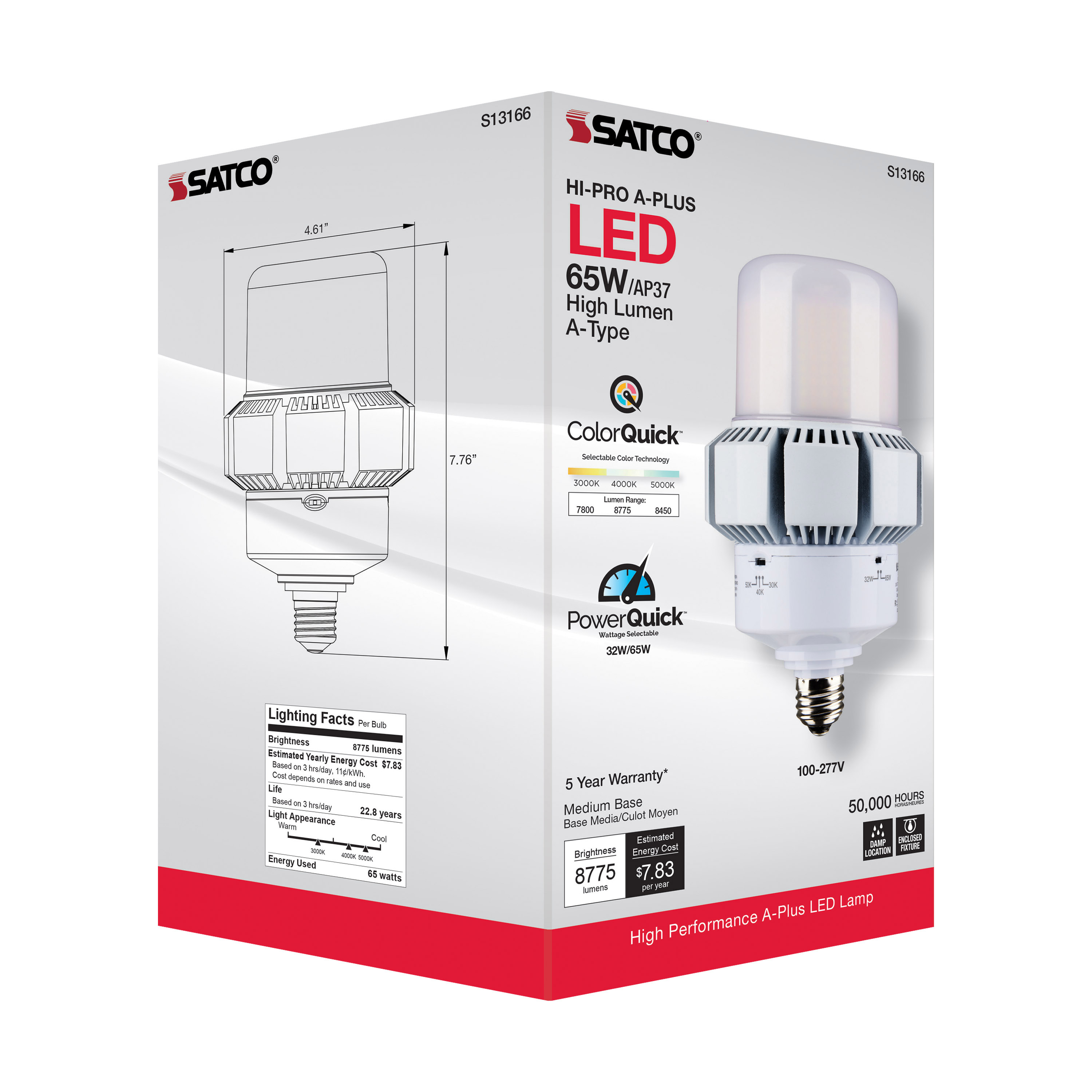

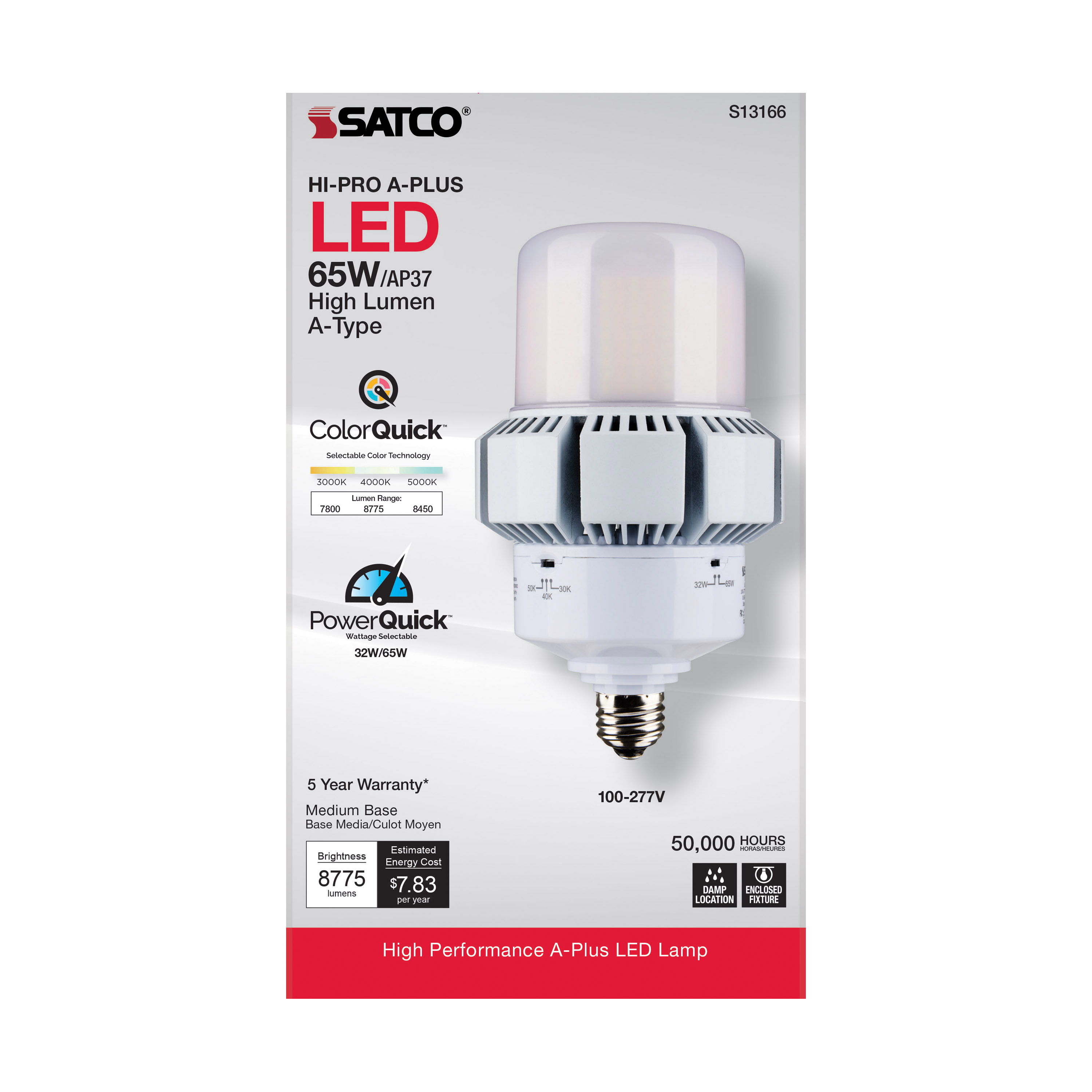

Packaging
Each UPC045923131660
Each Quantity1
Each Length (in.)5.31
Each Width (in.)5.31
Each Height (in.)9.41
Each Weight (lb.)2.54
Each Cube (CuFt.)0.1535
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923131667
Case Quantity12
Case Length (in.)21.90
Case Width (in.)16.50
Case Height (in.)10.20
Case Weight (lb.)31.70
Case Cube (CuFt.)2.1330
