» S1906

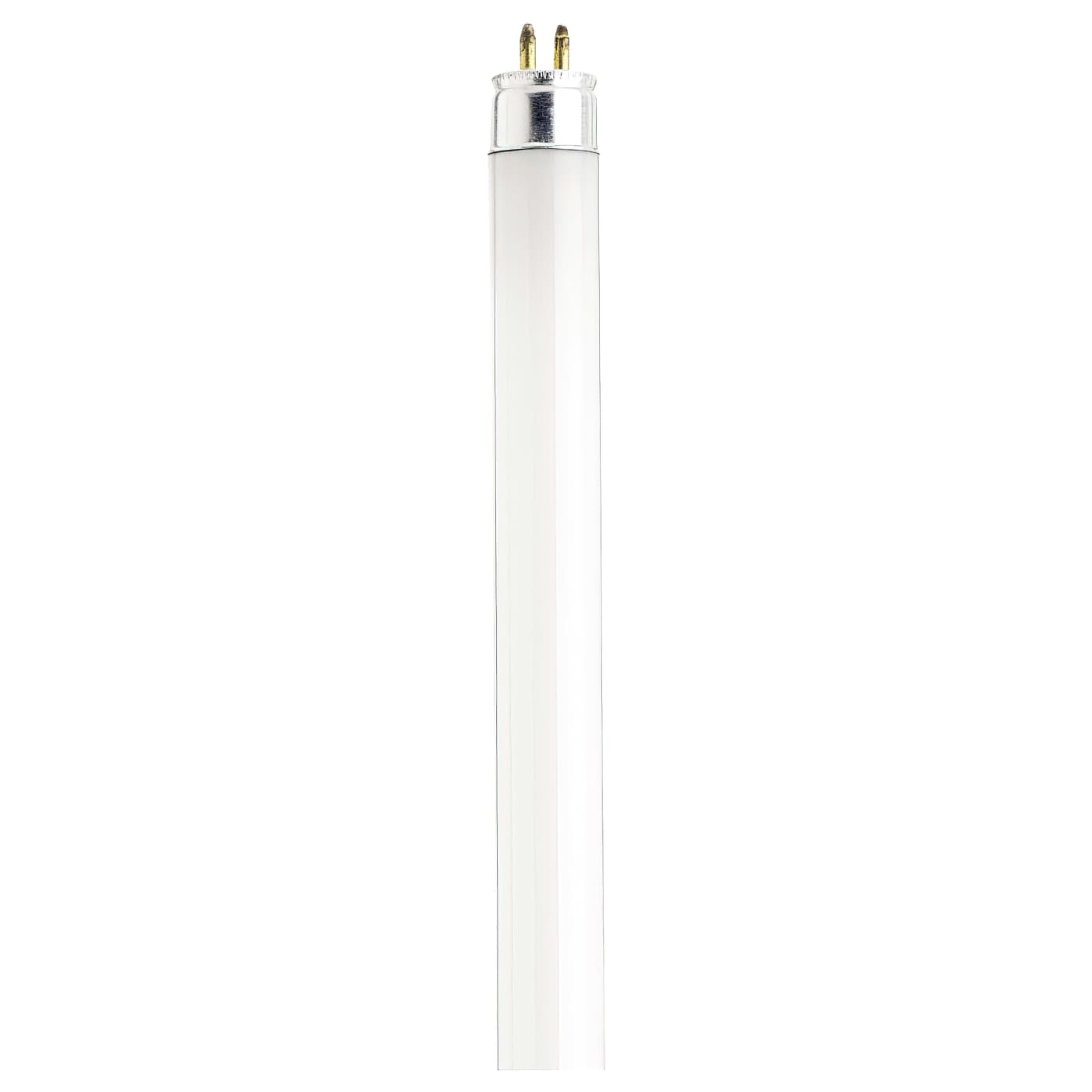

S1906 F13T5/CW

S1906

F13T5/CW

13 Watt; T5; Preheat Fluorescent; 4200K Cool White; 62 CRI; Miniature Bi Pin base


The SATCO T5 preheat fluorescent lamp makes use of a magnetic ballast to preheat the tube for a few seconds, before high voltage is applied to strike the mercury arc. Preheating allows the current to flow through each electrode. No additional power is applied across the electrodes during operation.
  • 360-degree beam spread
  • Operating temerature: Ballast dependent
  • Rated for use in enclosed fixtures
  • Dry location rated
  • Luminous efficacy: 66.15 lm/w
  • Non-Dimmable
Lights

S1906

F13T5/CW

13 Watt; T5; Preheat Fluorescent; 4200K Cool White; 62 CRI; Miniature Bi Pin base

The SATCO T5 preheat fluorescent lamp makes use of a magnetic ballast to preheat the tube for a few seconds, before high voltage is applied to strike the mercury arc. Preheating allows the current to flow through each electrode. No additional power is applied across the electrodes during operation.
  • 360-degree beam spread
  • Operating temerature: Ballast dependent
  • Rated for use in enclosed fixtures
  • Dry location rated
  • Luminous efficacy: 66.15 lm/w
  • Non-Dimmable

Specifications

General
StatusActive
Watts13W
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length21
FinishWhite
CCT (Kelvin)4200K
TemperatureCool White
CRI62
Lumens860L
Beam Spread360
Hours Rated5000
Lamp TypeLinear
TechnologyFluorescent
Electrical
Watts13W
CCT (Kelvin)4200K
TemperatureCool White
CRI62
Lumens860L
Beam Spread360
Hours Rated5000
Hg Content5
Operating TemperatureBallast Dependent
Physical
MOL20.91
MOD0.63
Nominal Length21
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishWhite
Housing ColorNone
Additional Information
WarrantyAvg. Rated Hour Limited
Compliance
Safety ListingNot Listed
Location RatingDry
Energy StarNo
CA T20 / T24 RationaleExempt - Linear Fluorescent
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
SDS SheetLinear Fluorescent Lamp
Packaging
Each UPC045923019067
Each Quantity1
Each Length (in.)0.63
Each Width (in.)0.63
Each Height (in.)20.91
Each Weight (lb.)0.14
Each Cube (CuFt.)0.0048
Pack TypeBox
Inner UPC20045923019061
Inner Quantity10
Inner Length (in.)21.79
Inner Width (in.)1.46
Inner Height (in.)3.66
Inner Weight (lb.)1.39
Inner Cube (CuFt.)0.0674
Case UPC10045923019064
Case Quantity200
Case Length (in.)22.46
Case Width (in.)8.27
Case Height (in.)16.75
Case Weight (lb.)28.22
Case Cube (CuFt.)1.8005
