» S21400

Discontinued – Suggested Replacement: S21412
S21400 PLT/16W/H/LED/830/4P/DR

S21400

PLT/16W/H/LED/830/4P/DR

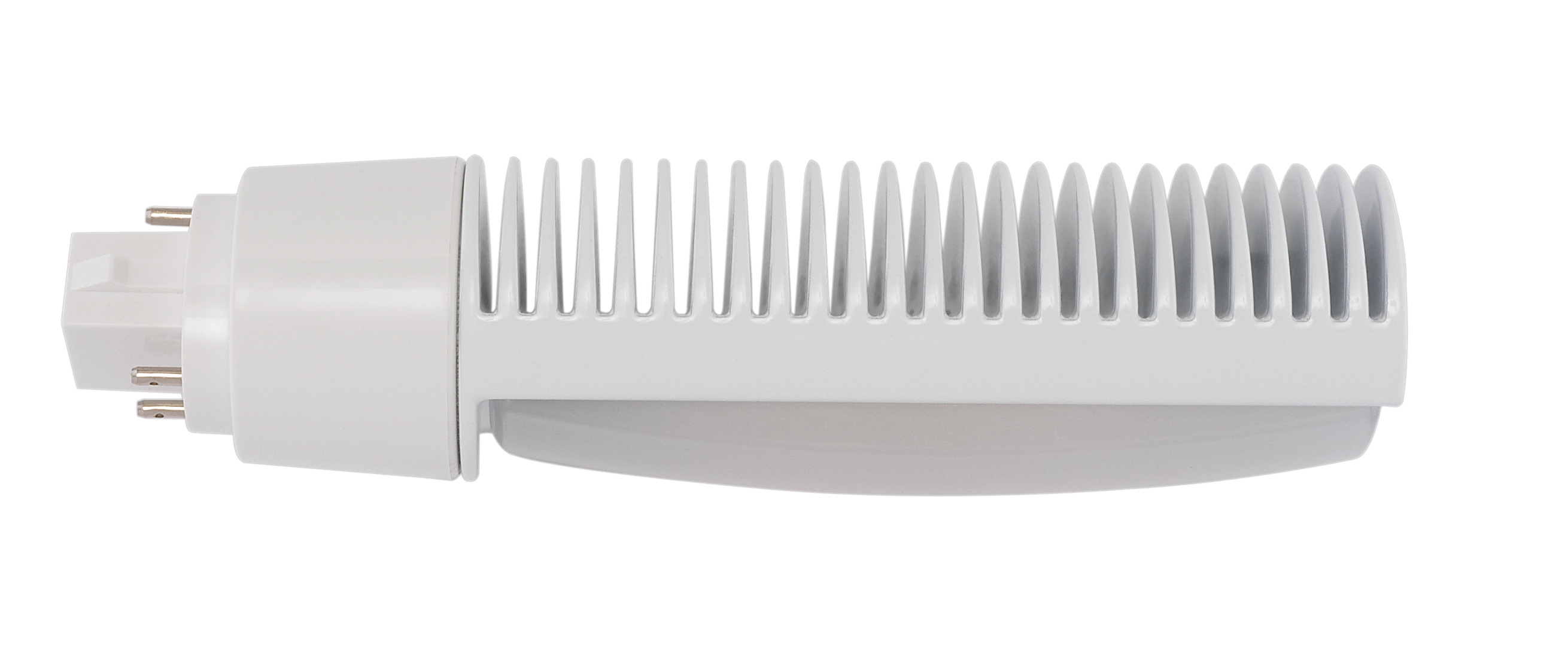

16 Watt LED PL 4-Pin; 3000K; 1750 Lumens; G24q base; 50000 Average rated hours; Horizontal; Type A; Ballast dependent


Lights

S21400

PLT/16W/H/LED/830/4P/DR

16 Watt LED PL 4-Pin; 3000K; 1750 Lumens; G24q base; 50000 Average rated hours; Horizontal; Type A; Ballast dependent

Specifications

General
StatusDiscontinued
SubstituteS21412
Watts16W
Fluorescent Equivalent42W
VoltsBallast Dependent
Ballast TypeType A
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1750L
Beam Spread100
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionHorizontal
TechnologyLED
Electrical
Watts16W
Fluorescent Equivalent42W
VoltsBallast Dependent
Ballasting RequirementsBallast required
Ballast TypeType A
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1750L
Beam Spread100
Power Factor0.9
Hours Rated50000
THD20%
Operating PositionHorizontal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL6.44
MOD1.69
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
Housing ColorWhite
Weight (lb.)0.42
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLAM7CKQQ85K
NSF ApprovedYes
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923224003
Each Quantity1
Each Length (in.)1.77
Each Width (in.)1.77
Each Height (in.)6.70
Each Weight (lb.)0.42
Each Cube (CuFt.)0.0121
Pack TypeBox
Inner UPC20045923224007
Inner Quantity10
Inner Length (in.)9.84
Inner Width (in.)4.13
Inner Height (in.)7.28
Inner Weight (lb.)4.82
Inner Cube (CuFt.)0.1712
Case UPC10045923224000
Case Quantity20
Case Length (in.)10.43
Case Width (in.)8.46
Case Height (in.)7.80
Case Weight (lb.)9.92
Case Cube (CuFt.)0.3983
×
×

Ballast Compatibility

Name Type View
PL LED 4 Pin - Horizontal LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
