| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A/B |
| Ballasting Requirements | Ballast required (Type A) or Ballast Bypass (Type B) |
| Dimmable Text | Only Dimmable with Compatible Dimming Ballasts |
| Lamp Filament | LED |

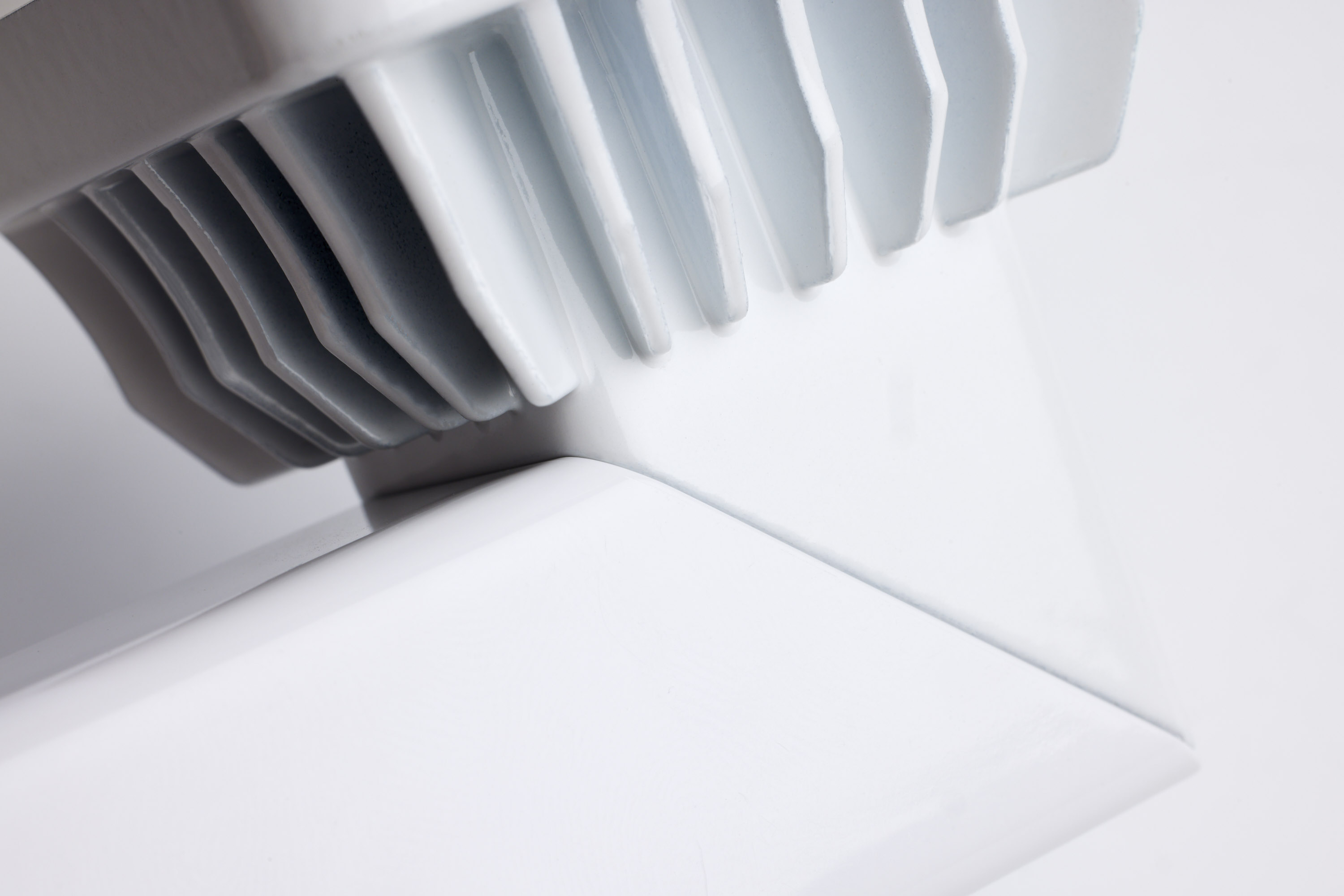

| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | PL 4-Pin |
| Status | Active |
| Style | Transitional |
| Surge Protection | Built-in surge protection - 1KV |
| Total Harmonic Distortion | 20% |

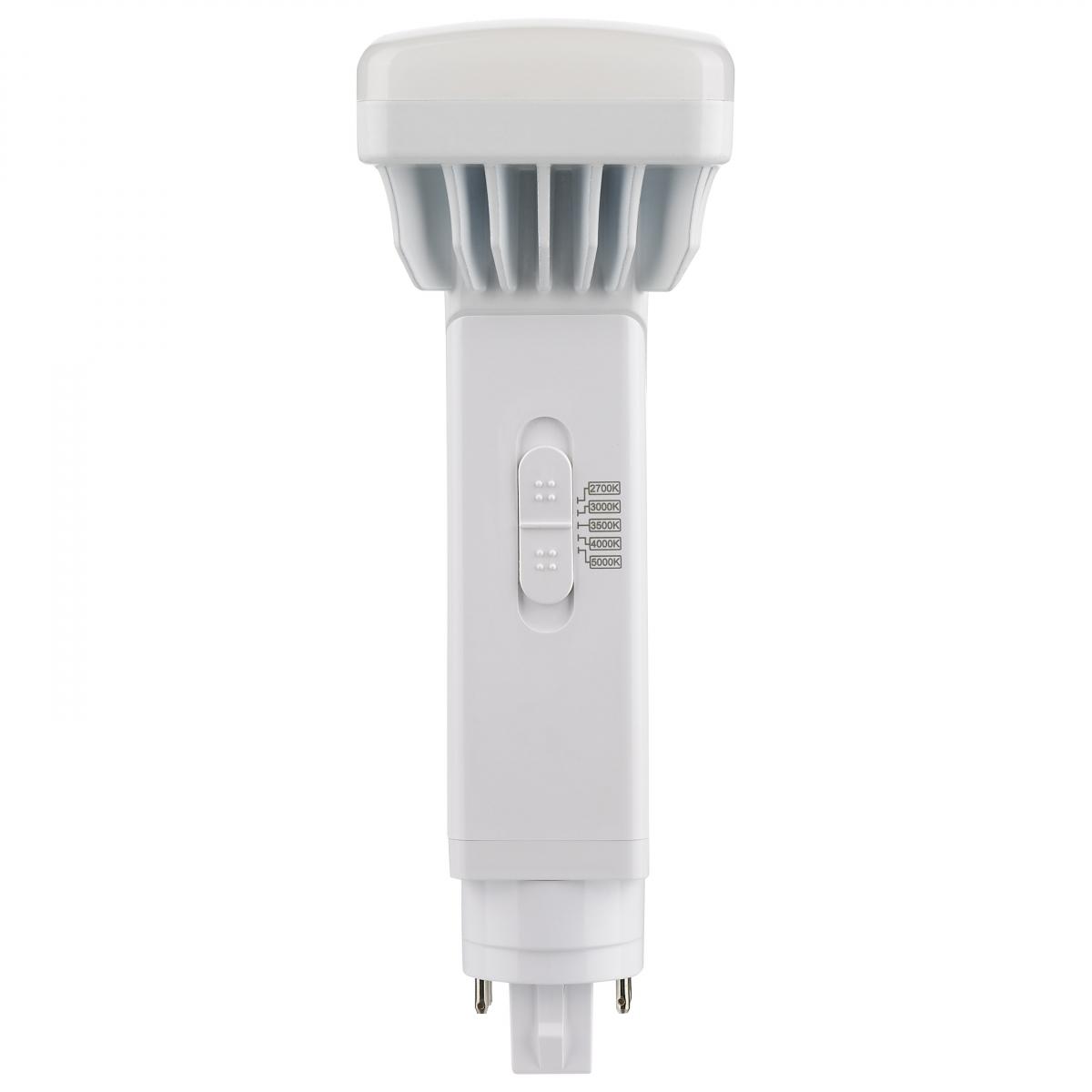

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.150-0.058A |
| Has Camera | False |
| IOT Enabled | False |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 42W |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Warm White to Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

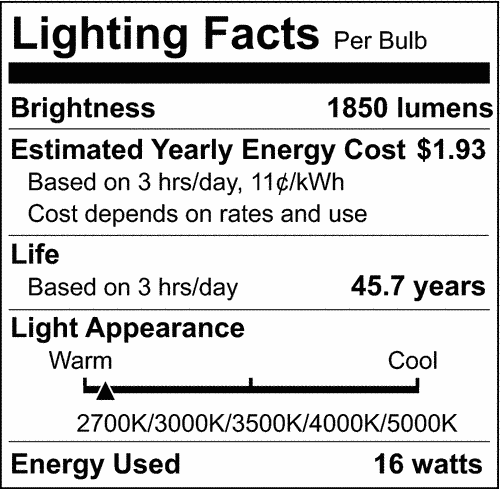

| Lumens | 1850L |
| Volts | 120V-277V |
| Watts | 16W |

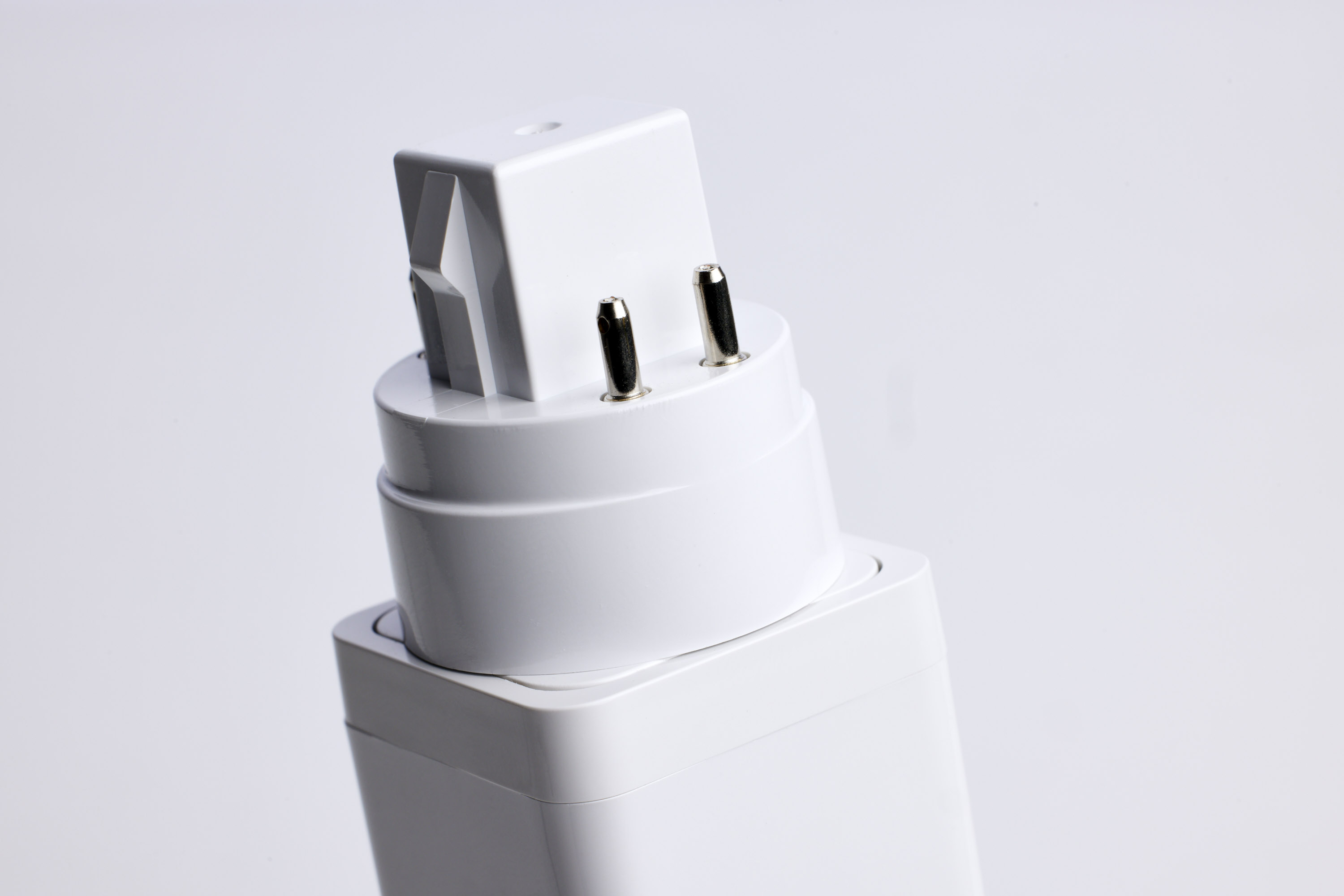

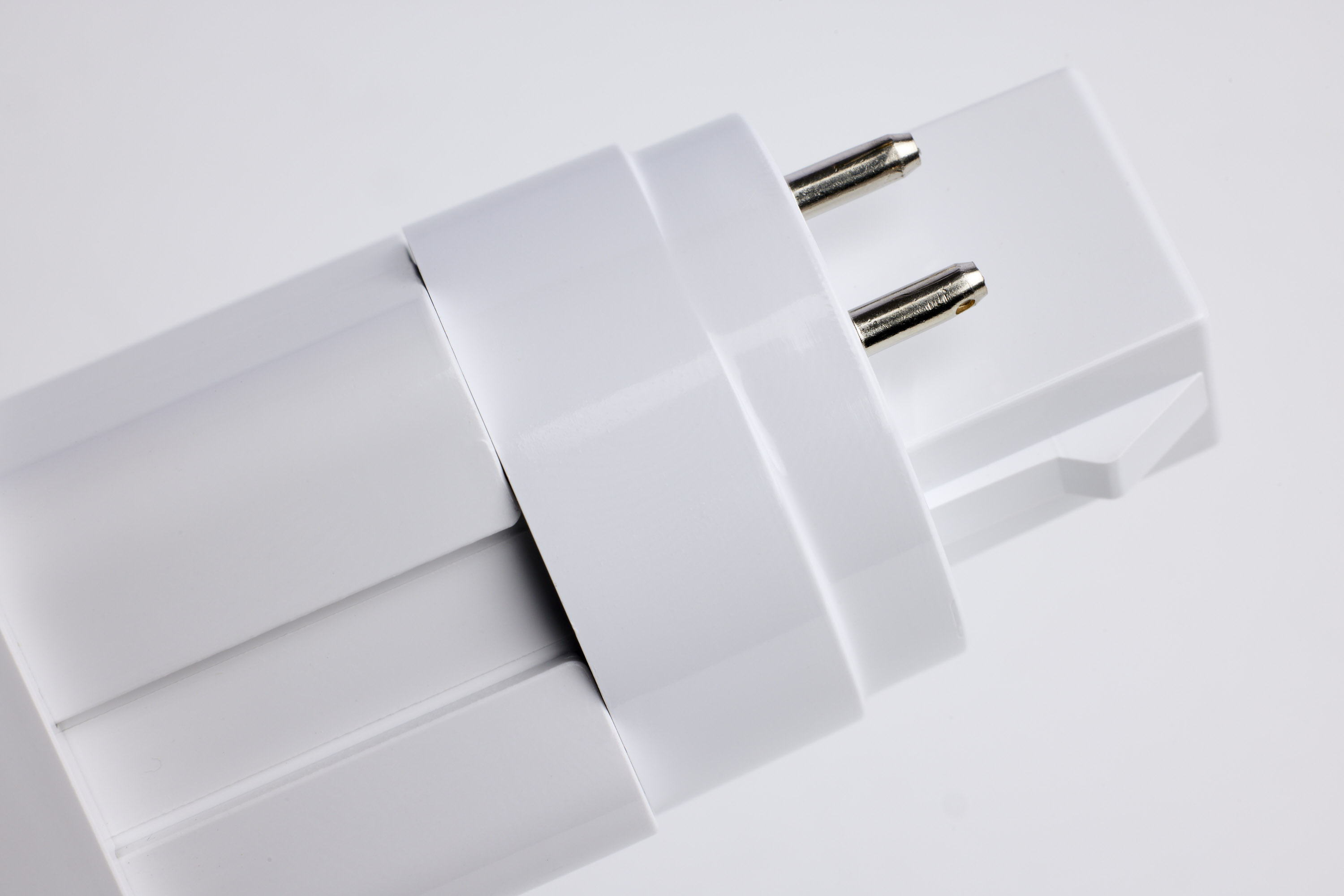

| Lamp Base | G24q-4 (4-Pin) |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | G24q-4 |
| Lamp Type | PL |
| MOD Lamps | 2.36 |
| MOL | 6.76 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Suggested wattage equivalency = 42W CFL |
| Rated For Enclosed Fixture | False |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923211645 |
|---|---|
| Case Cube | 1.7271 |
| Case Height | 8.27 |
| Case Length | 27.36 |
| Case Quantity | 50 |
| Case UPC | 10045923211642 |
| Case Weight | 26.3 |
| Case Width | 13.19 |
| EA Cube | 0.0237 |
| EA Height | 6.89 |
| EA Length | 2.44 |
| EA Quantity | 1 |
| EA Weight | 0.53 |
| EA Width | 2.44 |
| Inner Cube | 0.2895 |
| Inner Height | 7.36 |
| Inner Length | 12.8 |
| Inner Quantity | 10 |
| Inner UPC | 20045923211649 |
| Inner Weight | 5.3 |
| Inner Width | 5.31 |
| Pack Type | Box |
| Web Length | 6.76 |
| Web Width | 2.36 |
