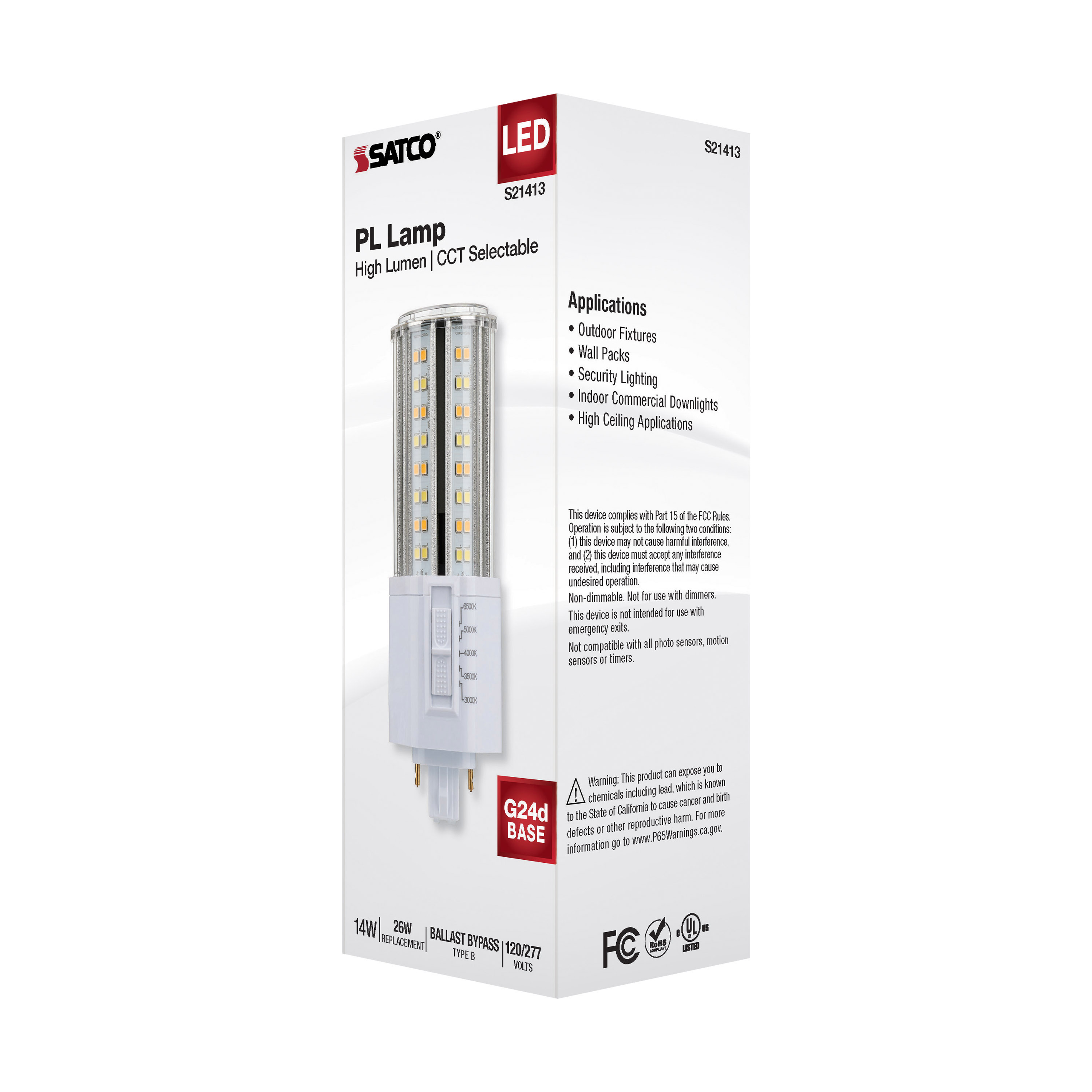

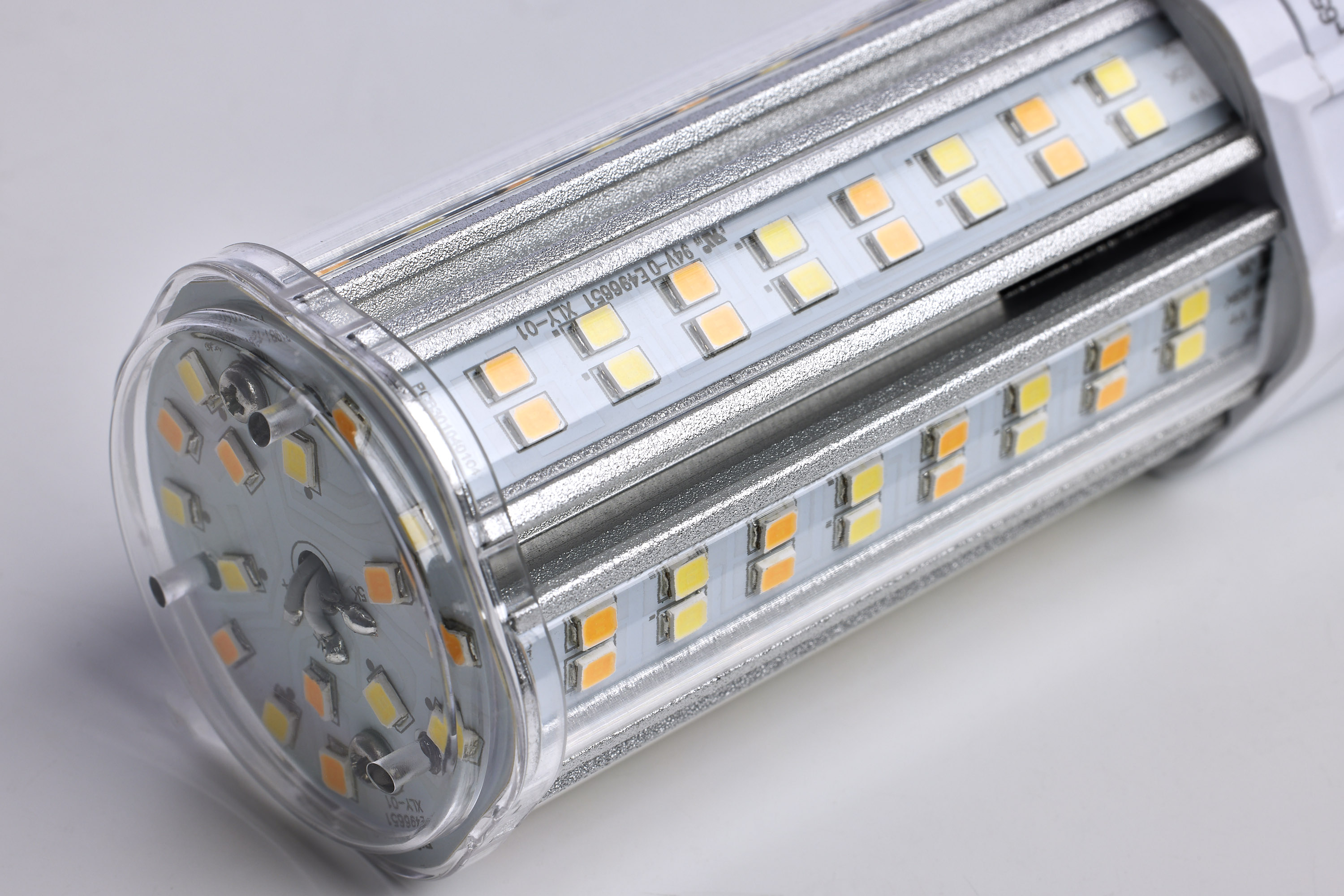

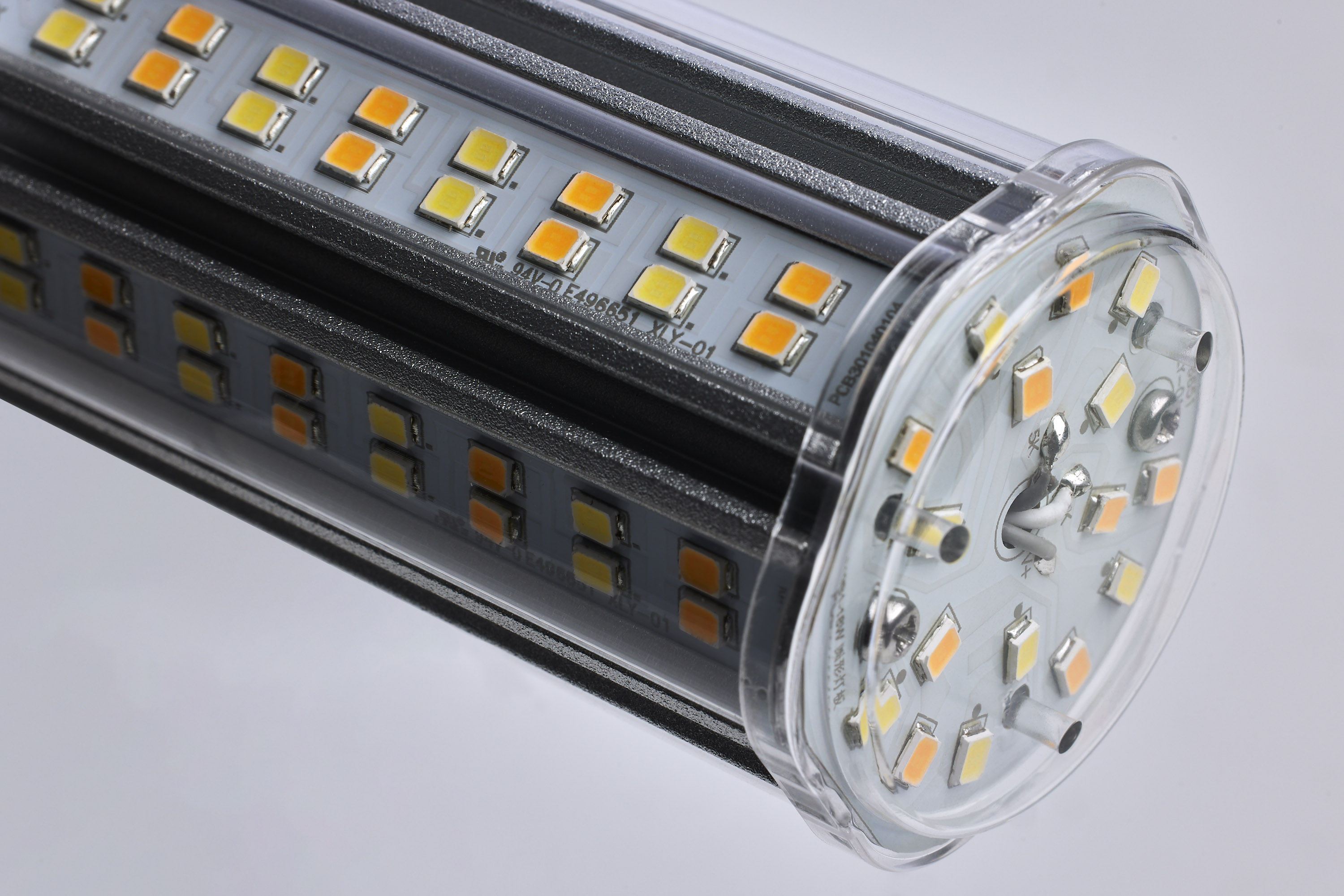

S21413 14W/PL/LED/HL/5CCT/G24

S21413

14W/PL/LED/HL/5CCT/G24

14 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 Volt


Lights

S21413

14W/PL/LED/HL/5CCT/G24

14 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 Volt

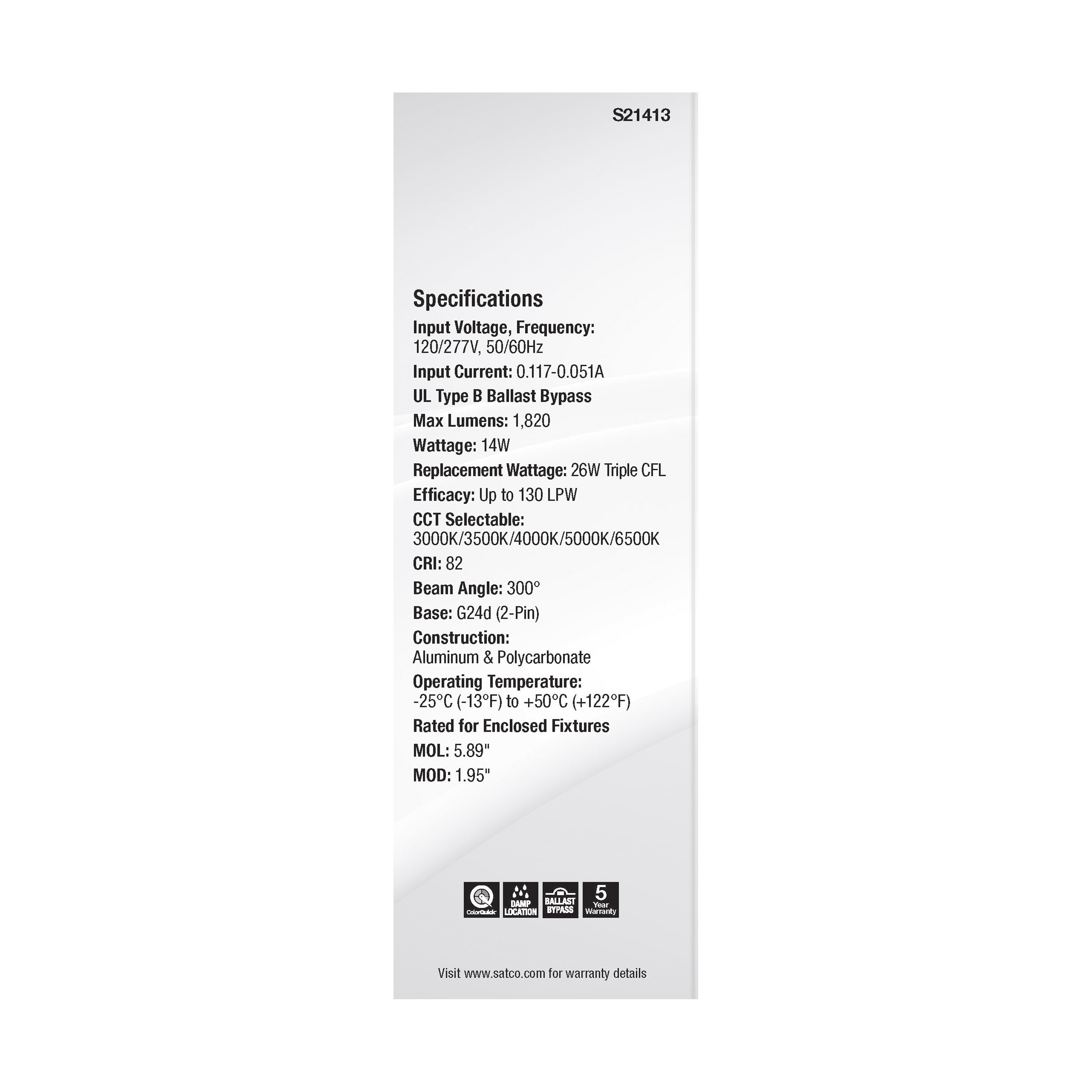

Specifications

General
StatusActive
Watts14W
Fluorescent Equivalent26W
Volts120V/277V
Ballast TypeType B
ShapePL
BaseG24d (2-Pin)
ANSI BaseG24d
FinishWhite

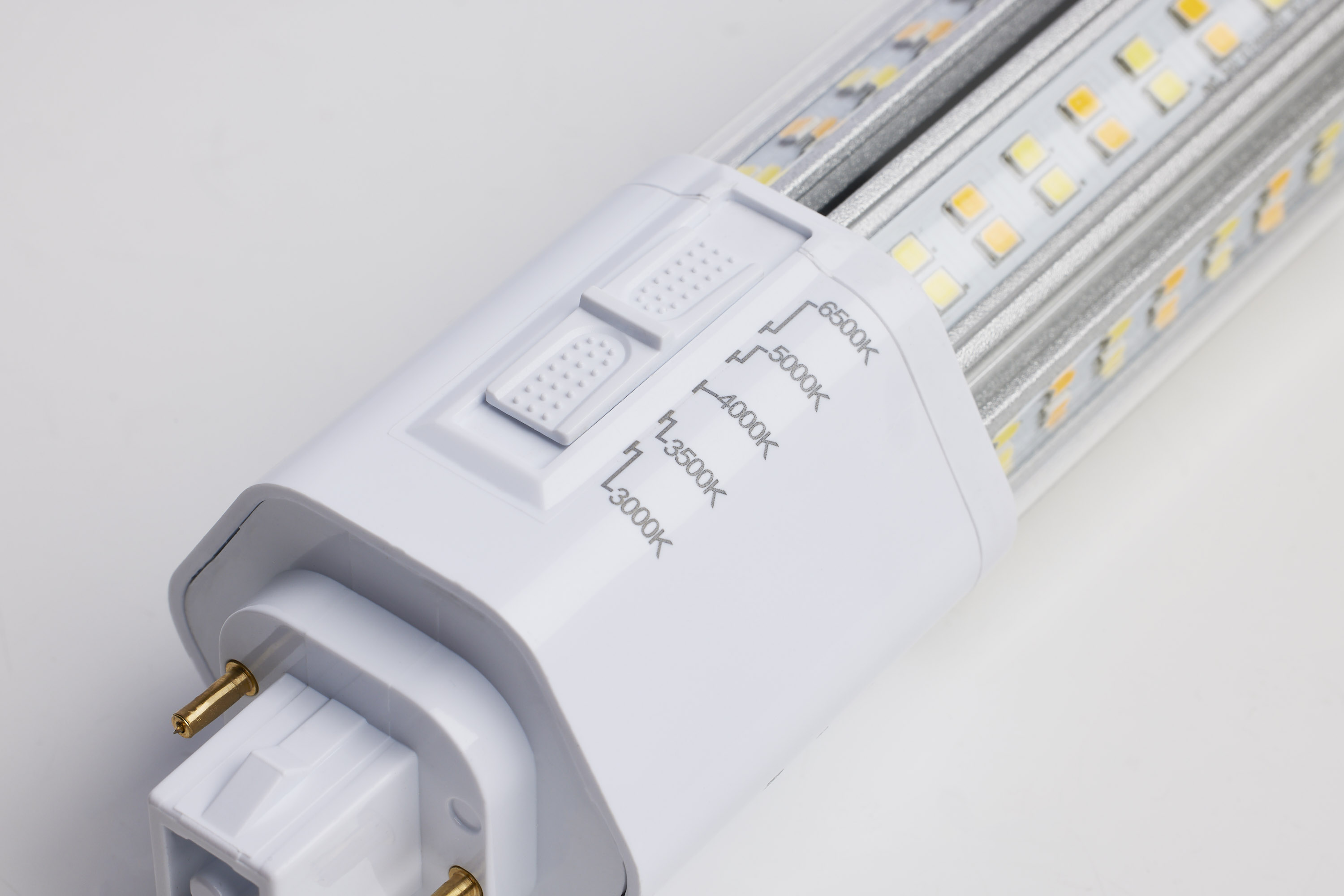

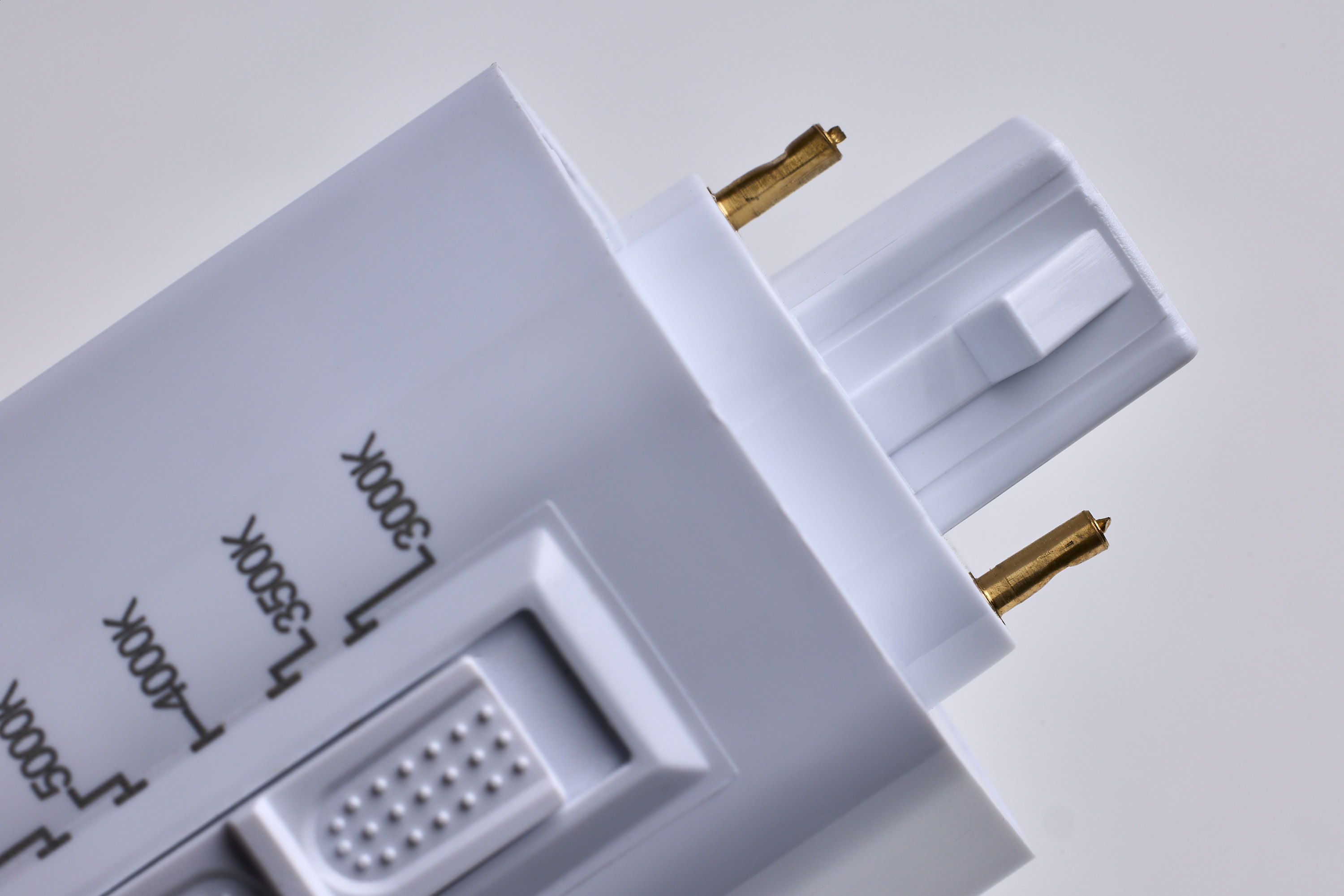

CCT (Kelvin)3000K/3500K/4000K/5000K/6500K
TemperatureWarm White to Natural Light
CRI82
Lumens1750L-1820L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL 2-Pin
Lamp TypePL 2-Pin
Operating PositionUniversal
TechnologyLED
Electrical
Watts14W
Fluorescent Equivalent26W
Volts120V/277V
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3000K/3500K/4000K/5000K/6500K
TemperatureWarm White to Natural Light
CRI82
Lumens1750L-1820L
Beam Spread300
DimmableNon-Dimmable
Power Factor>0.9
Hours Rated50000
THD20%
Operating PositionUniversal
Operating Temperature-25C (-13F) to +50C (+122F)
Physical
MOL5.89
MOD1.95
ShapePL
BaseG24d (2-Pin)
ANSI BaseG24d
FinishWhite
Weight (lb.)0.4
Additional Information
Installation NotesSuggested wattage equivalency = 26W CFL
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Certified; cULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923215728
Each Quantity1
Each Length (in.)2.56
Each Width (in.)2.36
Each Height (in.)7.17
Each Weight (lb.)0.50
Each Cube (CuFt.)0.0251
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923215725
Case Quantity24
Case Length (in.)10.04
Case Width (in.)8.27
Case Height (in.)15.16
Case Weight (lb.)12.10
Case Cube (CuFt.)0.7284
