| Company | NUVO |
|---|---|
| Mounting Height | 3.07 |
| Bulb Included | Integrated |
| Diameter | 4.96 |
| Material | Aluminum |

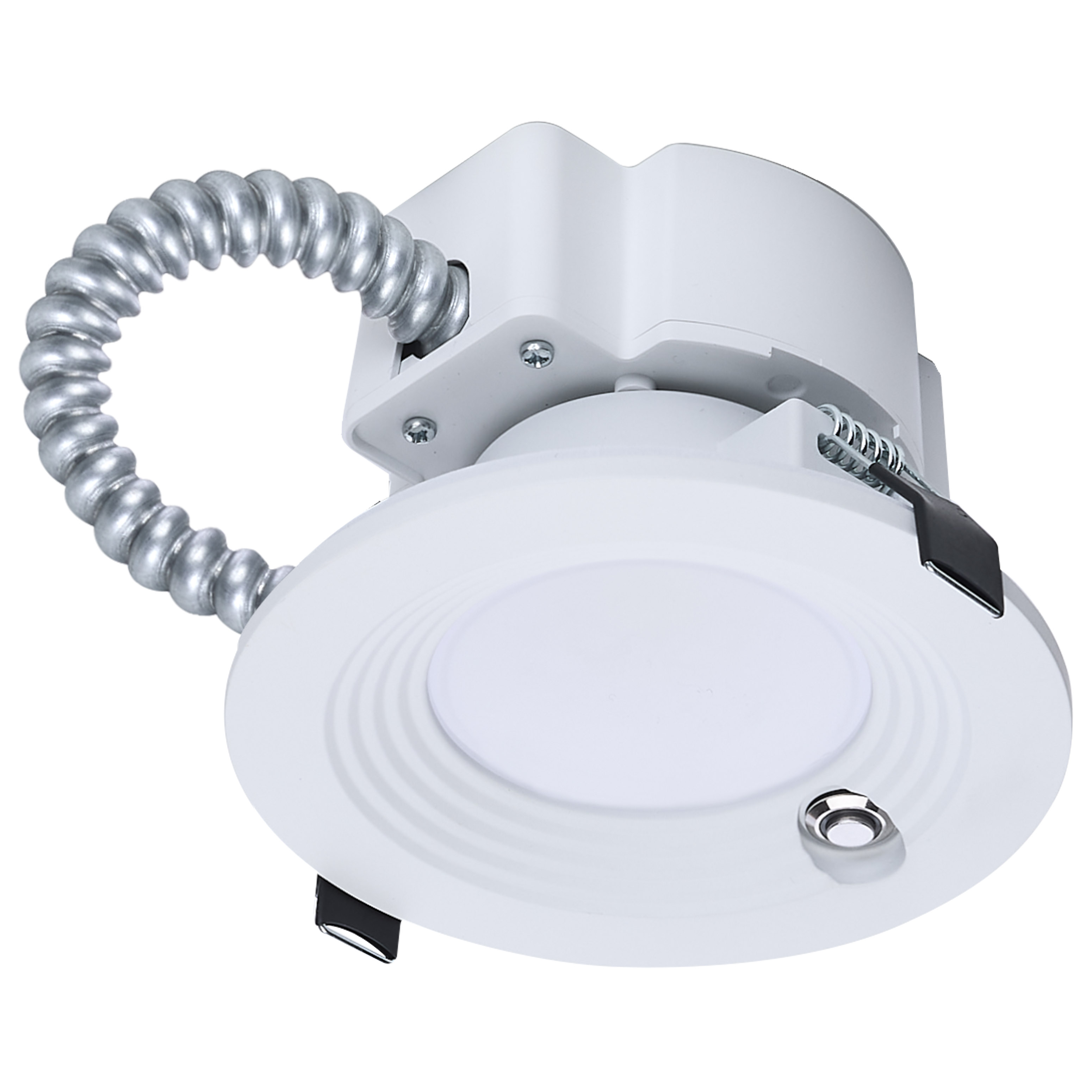

| Fixture Type | Commercial Downlight Retrofit |
| Product Notes | Default CCT setting is 3000K. Default wattage setting is 14.6W. |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <30% |
| Up Down Installation | Down |

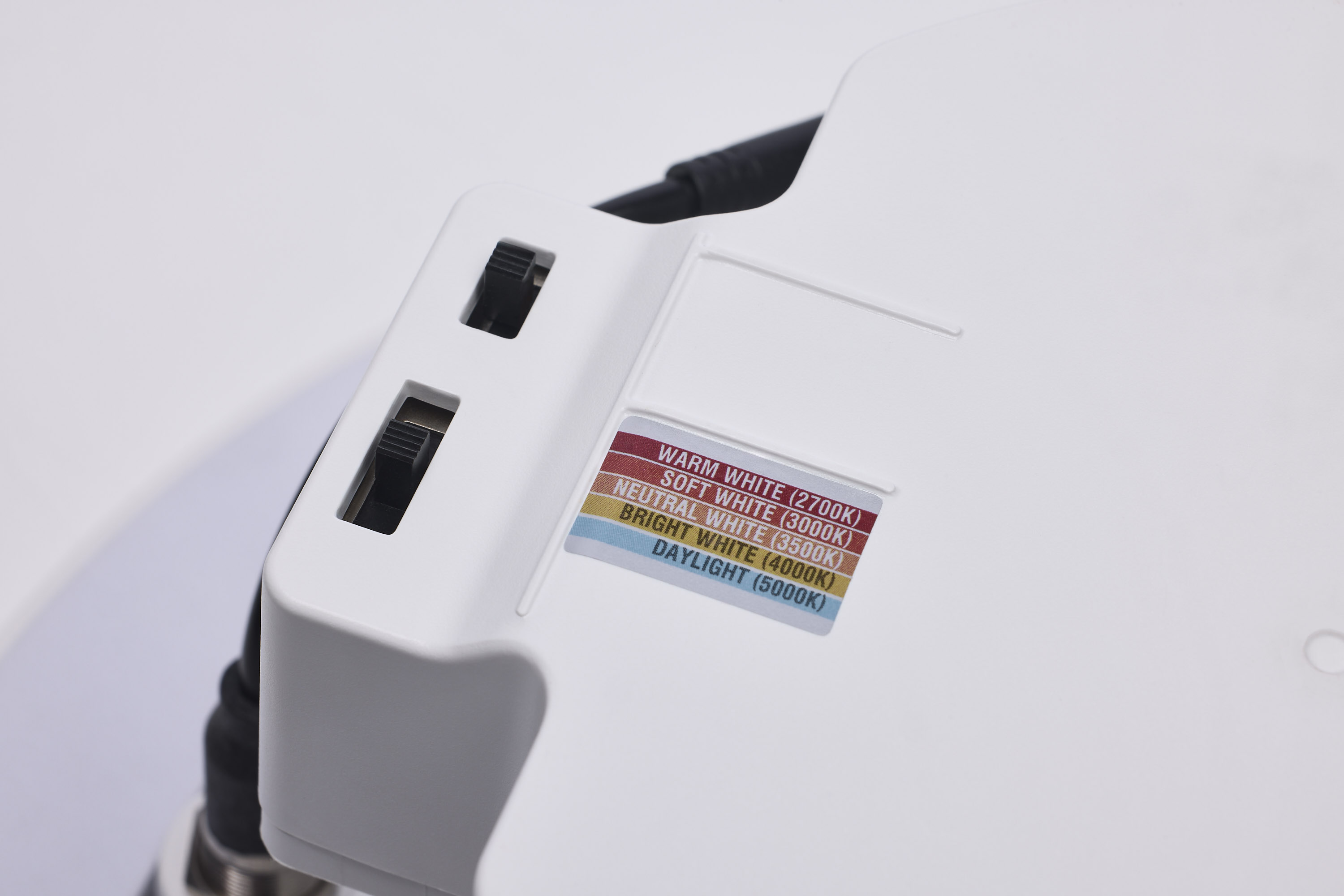

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Finish Family | White |

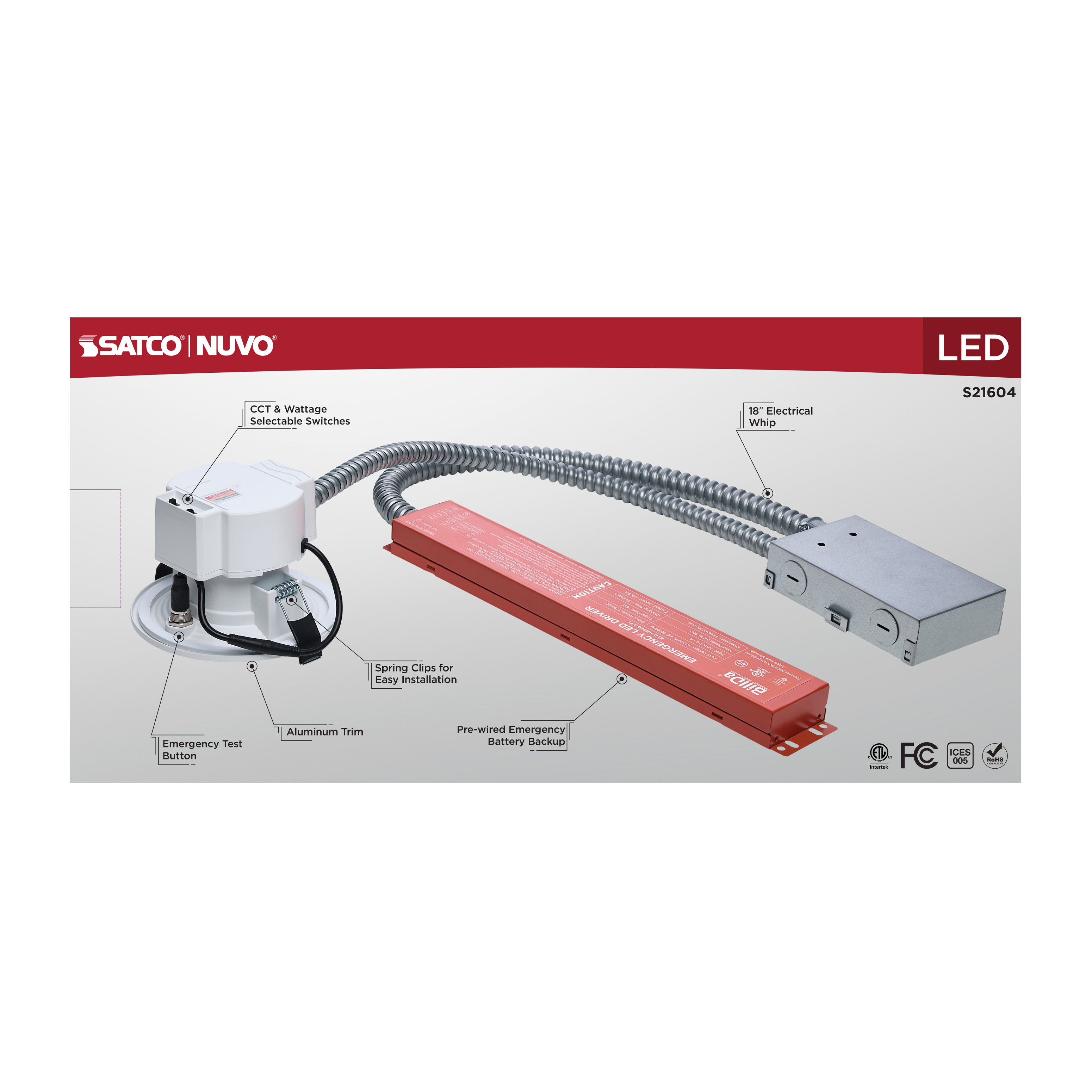

| Additional Info | 90 Minute EM Battery Runtime |
| Amps | 0.113-0.039/0.100-0.035/0.089-0.031A |
| Mounting Diameter | 4.17 |
| Has Camera | No |
| IOT Enabled | No |
| Lens Material | Polycarbonate (PC) |
| Nominal Length | 4.0 |
| Photo Cell | No |
| Power Factor | >0.9 |
| SDS Class | Lithium_Ion_Battery |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| Fluor Equiv | 18W |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 85 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Dual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-347V |
| Operating Frequency | 60Hz |
| Operating Temp | +41F to +104F (+5C to +40C) |
| Lumens | 1200L/1000L/800L |
| Volts | 120V-347V |
| Watts | 14.6W/13.6W/12.4W |
| Max Lumens | 1200L |

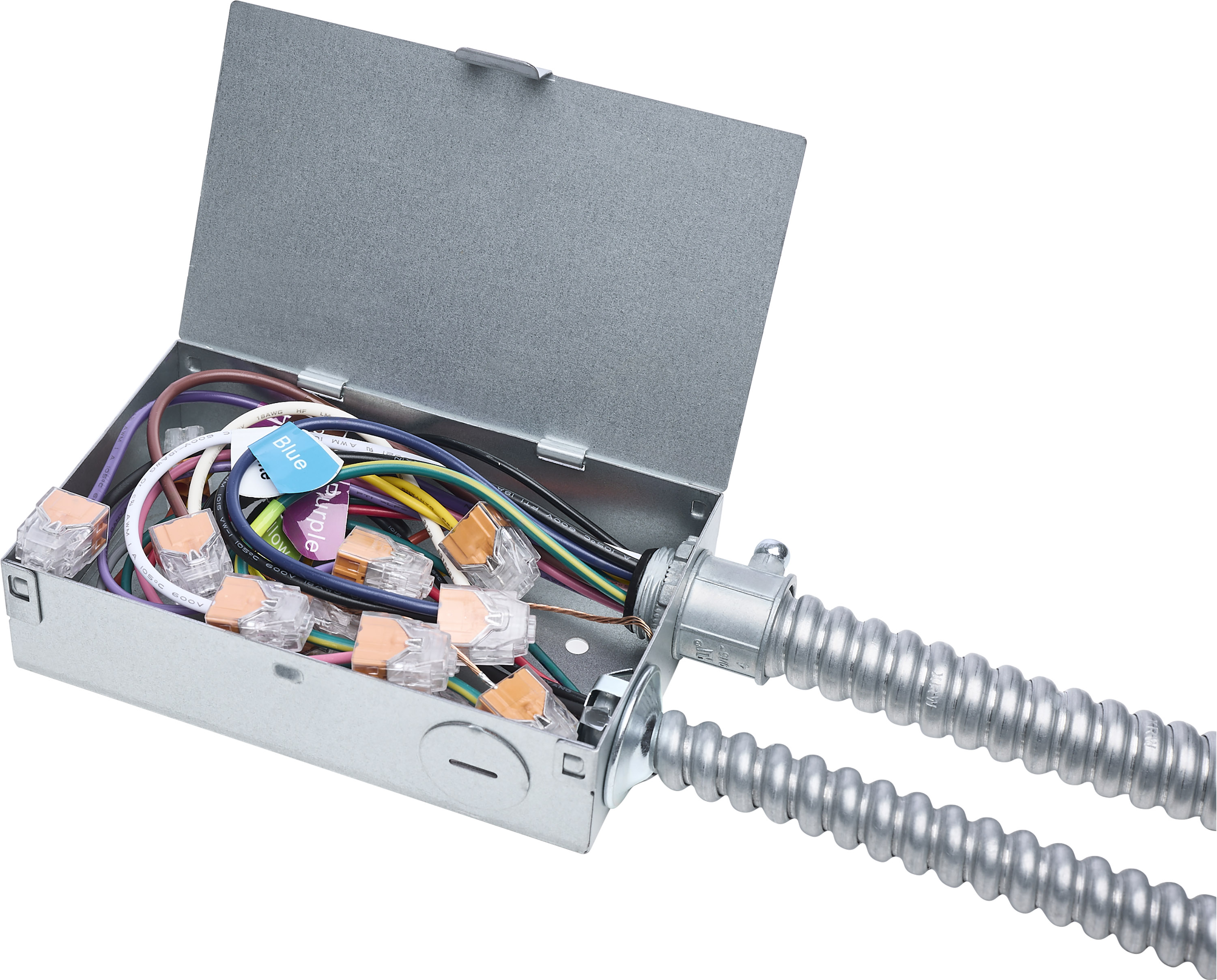

| Connection | Hardwire |
| Battery Chemistry | Lithium-ion (Li-ion) |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Mounting Procedure | Ceiling |
| Warranty | 5-Years |
|---|
| ADA Compliant | No |
|---|---|
| Air Tight | Yes |
| CA Prop 65 | Lead |
| Energy Star ID | 4510057 |
| FCC Compliant | Yes |
| IC Rated | Yes |
| IP Rating | IP20 |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | Lawful for sale |
| Energy Star Certified | Yes |
| Title 20 | Yes |
| T24/JA8 Compliant | Yes |
| UPC | 045923411199 |
|---|---|
| Case Cube | 2.0313 |
| Case Height | 16.73 |
| Case Length | 24.8 |
| Case Quantity | 6 |
| Case UPC | 10045923411196 |
| Case Weight | 25.21 |
| Case Width | 8.46 |
| EA Cube | 0.2882 |
| EA Height | 16.06 |
| EA Length | 7.87 |
| EA Quantity | 1 |
| EA Weight | 3.47 |
| EA Width | 3.94 |
| Pack Type | Color Box |

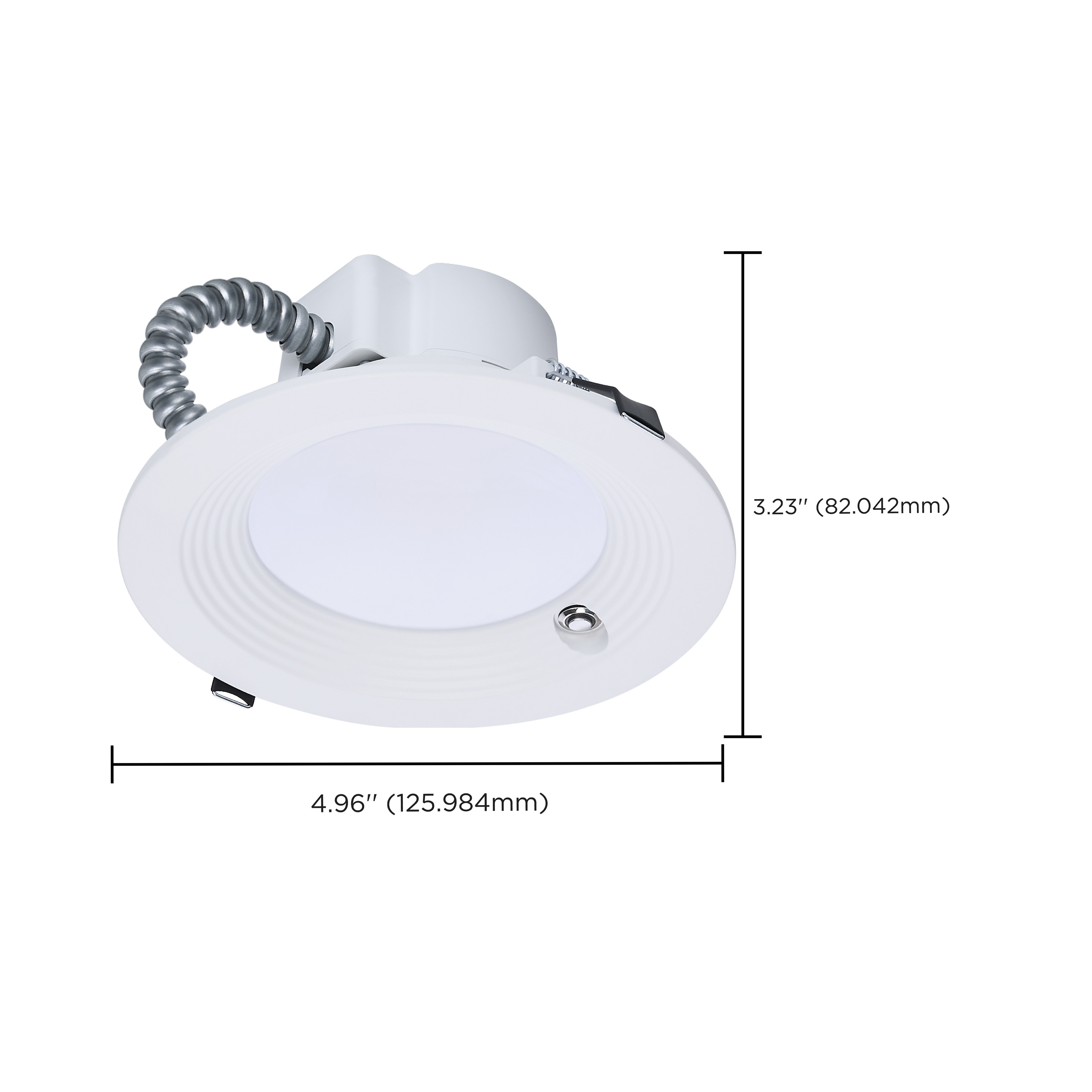

| Web Height | 3.23 |
| Web Width | 4.96 |
