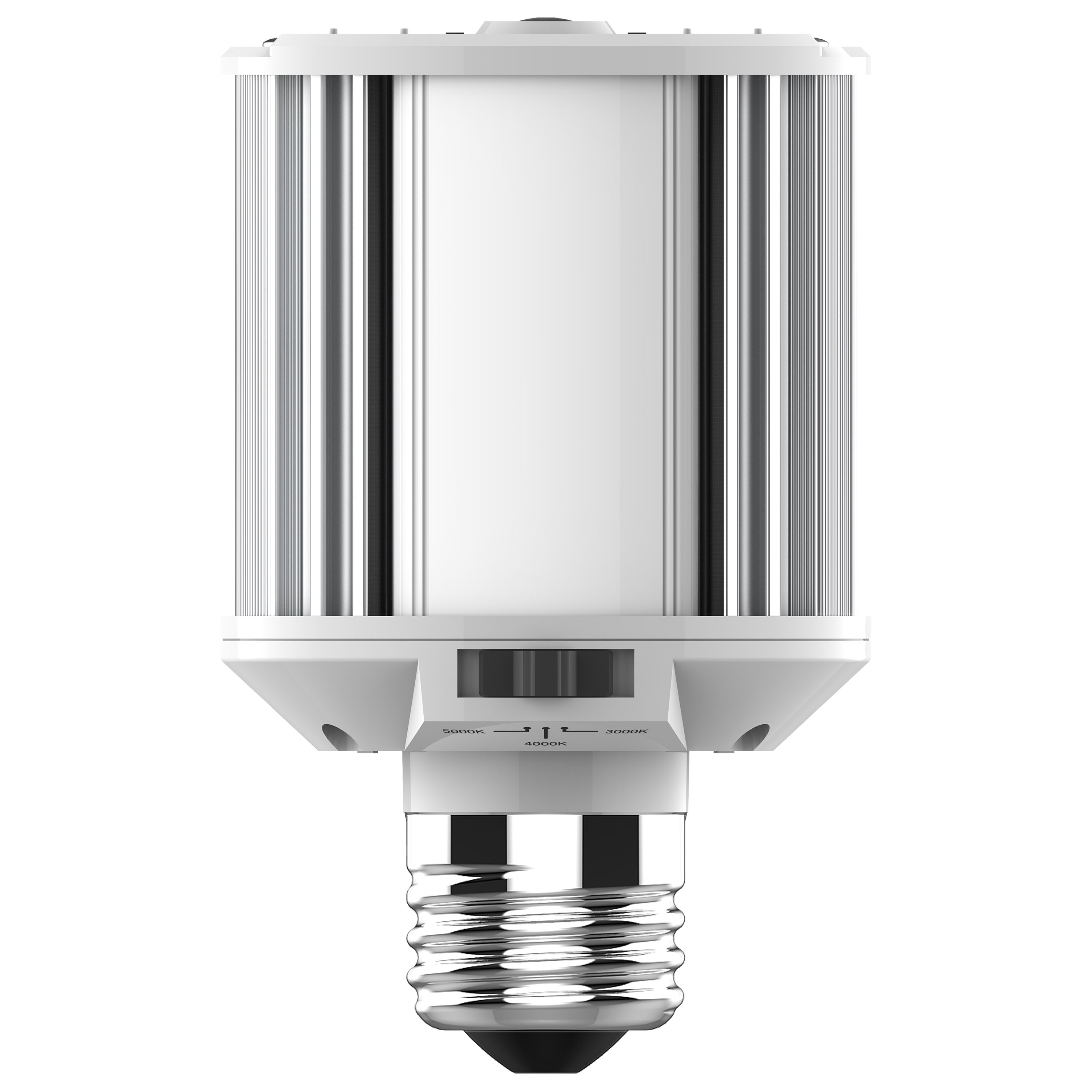

S28928 20W/LED/WP/CCT/E26/100-277V

S28928

20W/LED/WP/CCT/E26/100-277V

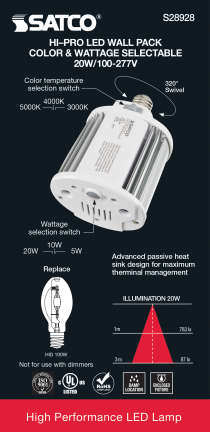

5/10/20 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology


Lights

S28928

20W/LED/WP/CCT/E26/100-277V

5/10/20 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Specifications

General
StatusActive

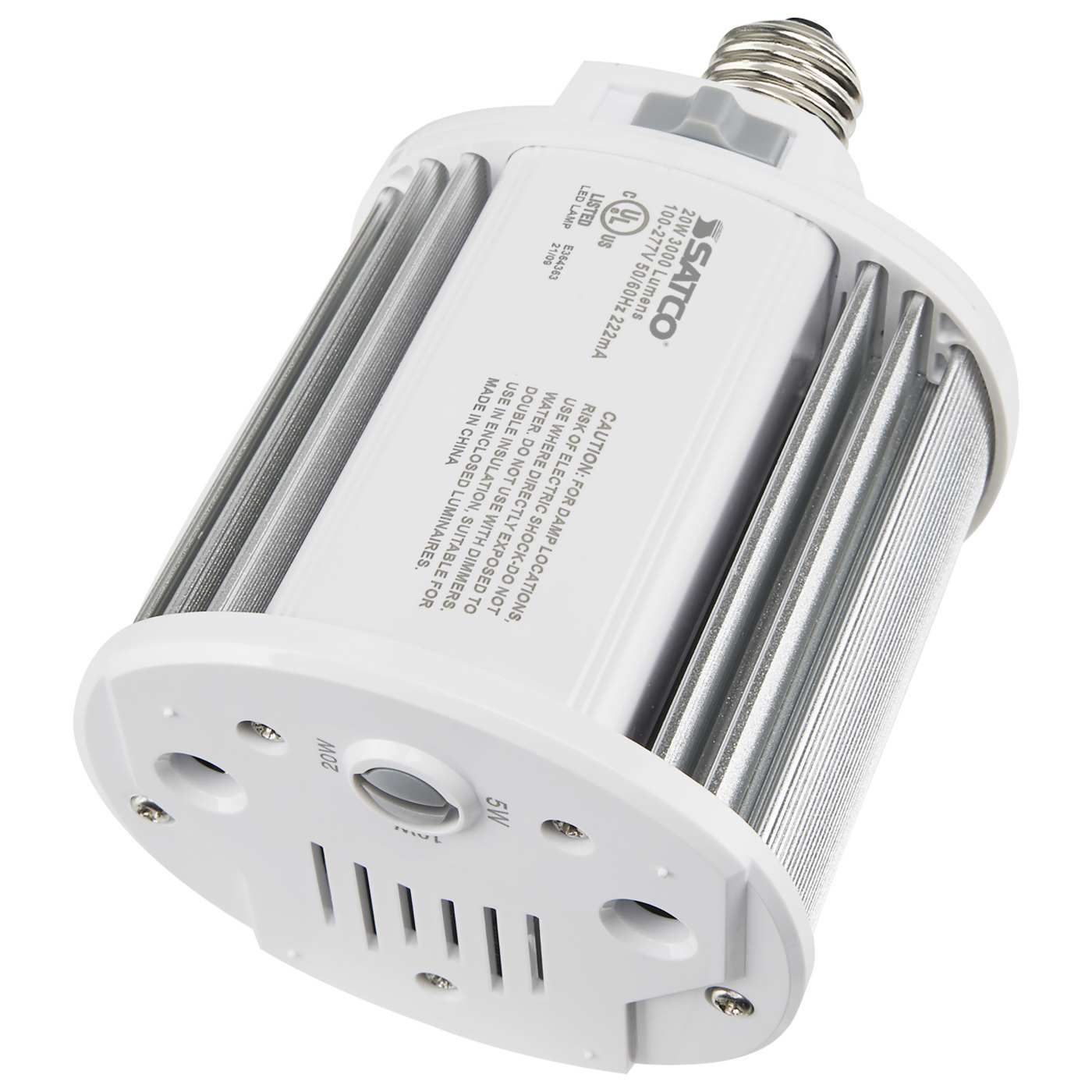

Watts5W/10W/20W
Incandescent Equivalent25W/40W/60W
HID Equivalent100W
Volts120V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishWhite

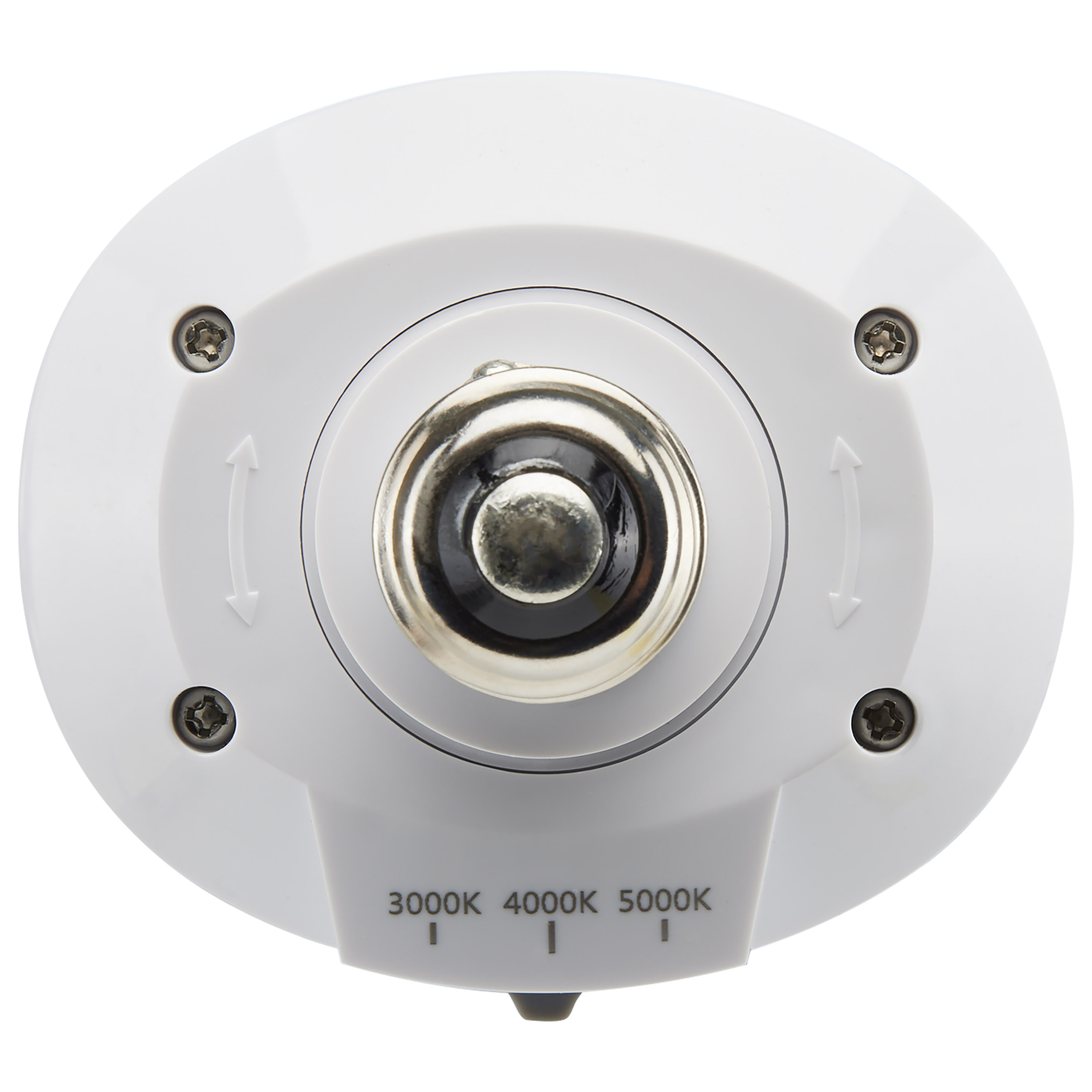

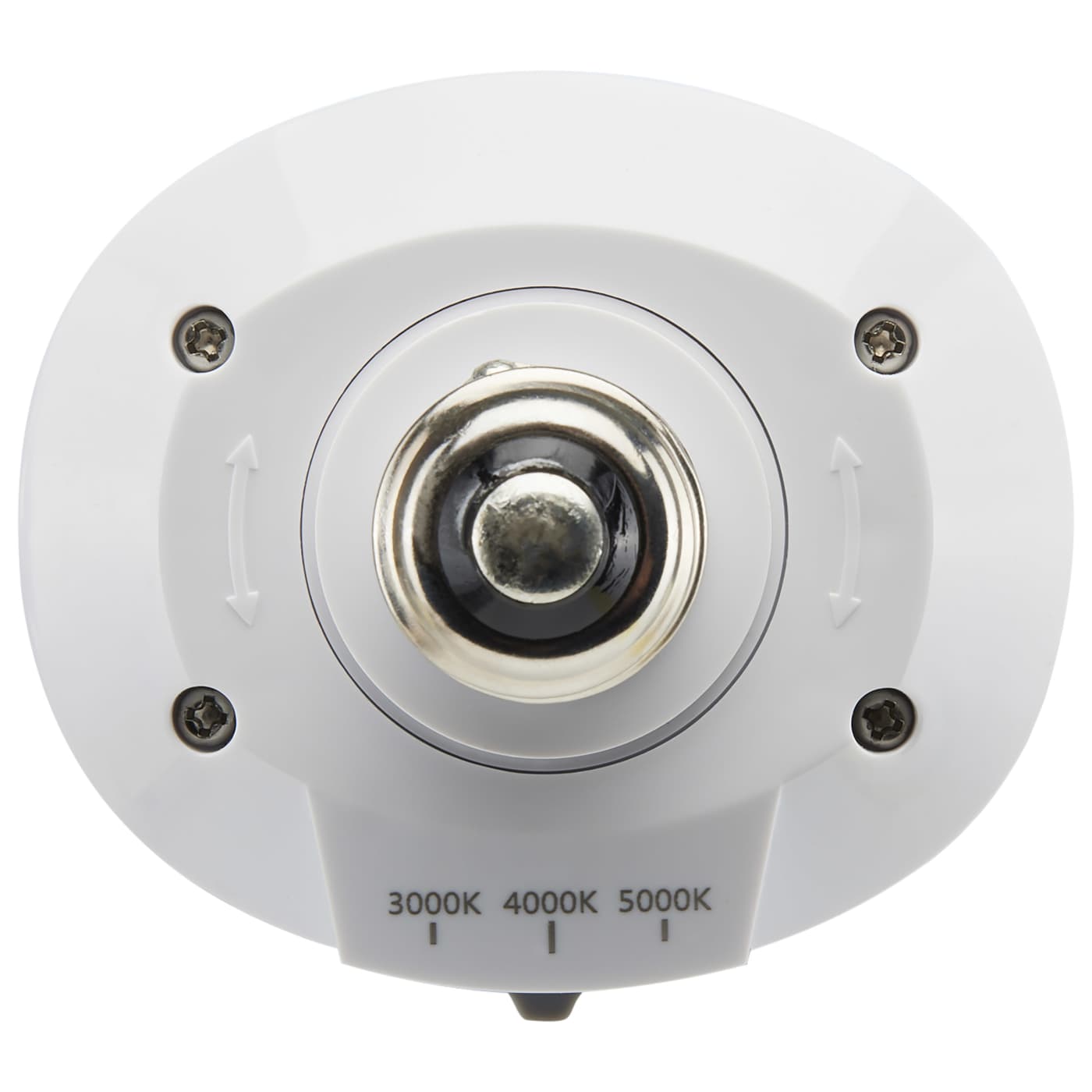

CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80+

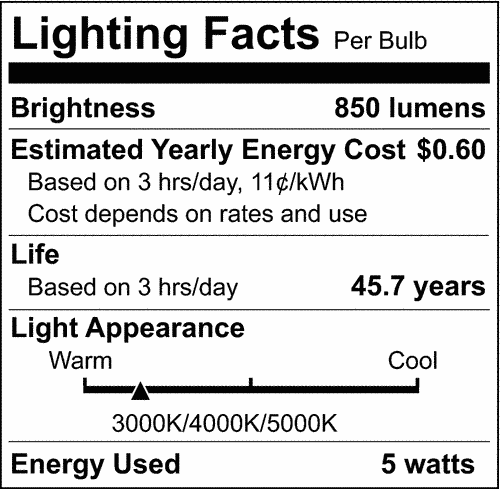

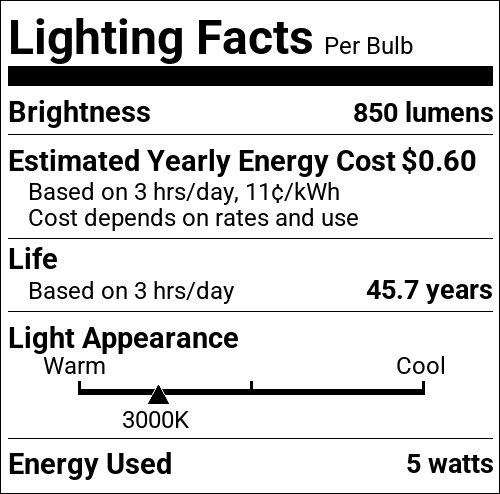

Lumens850L/1500L/3000L
Beam Spread180
DimmableYes-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 11 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts5W/10W/20W
Incandescent Equivalent25W/40W/60W
HID Equivalent100W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50-60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80+
Lumens850L/1500L/3000L
Beam Spread180
DimmableYes-Dimmable

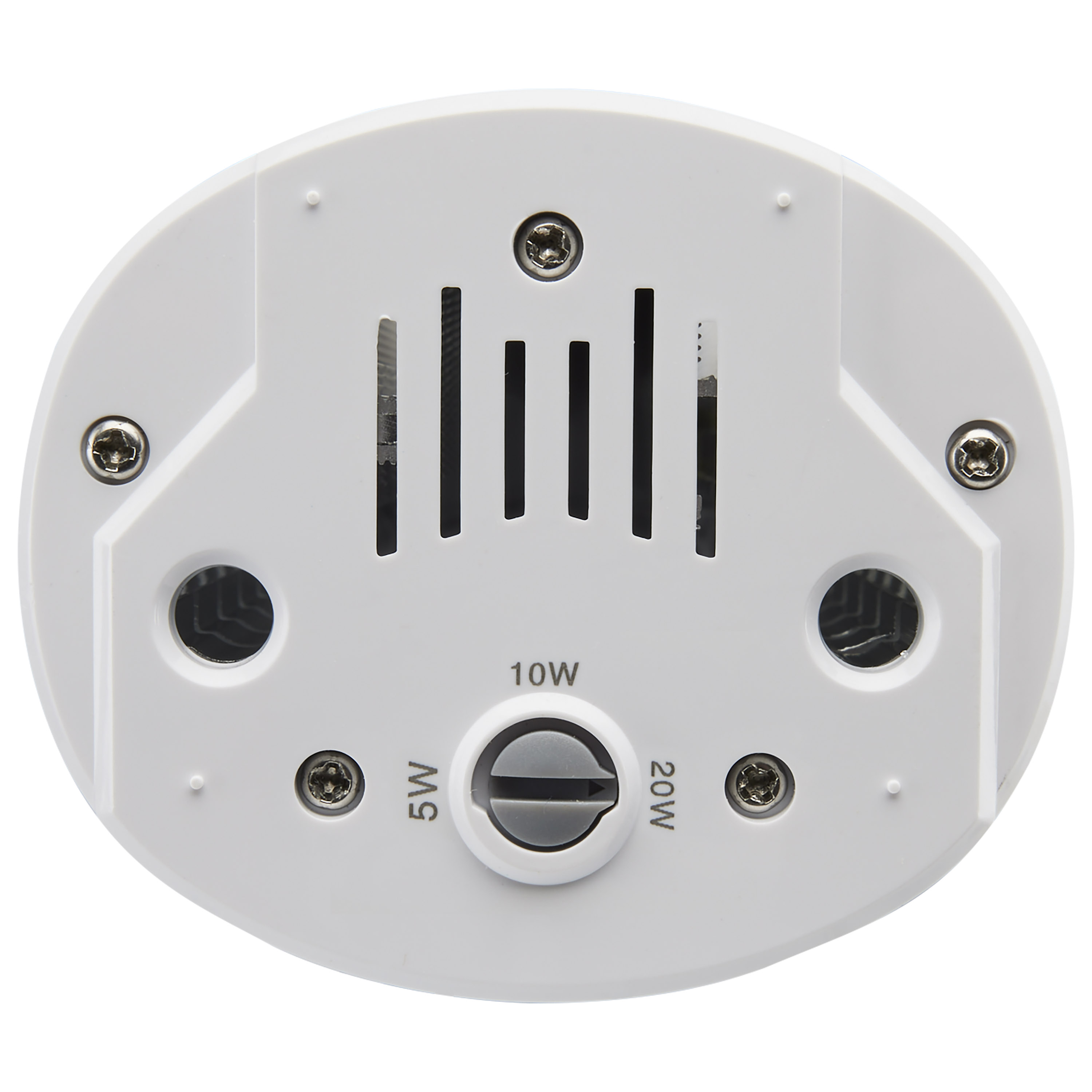

Dimming NoteDimmable only via the wattage/lumen selectable dial included on lamp
Power Factor>0.9
Hours Rated50000
Operating PositionHorizontal
Surge ProtectionBuilt-in surge protection - 4KV
Operating Temperature-30C (-22F) to +45C (+113F)
Physical

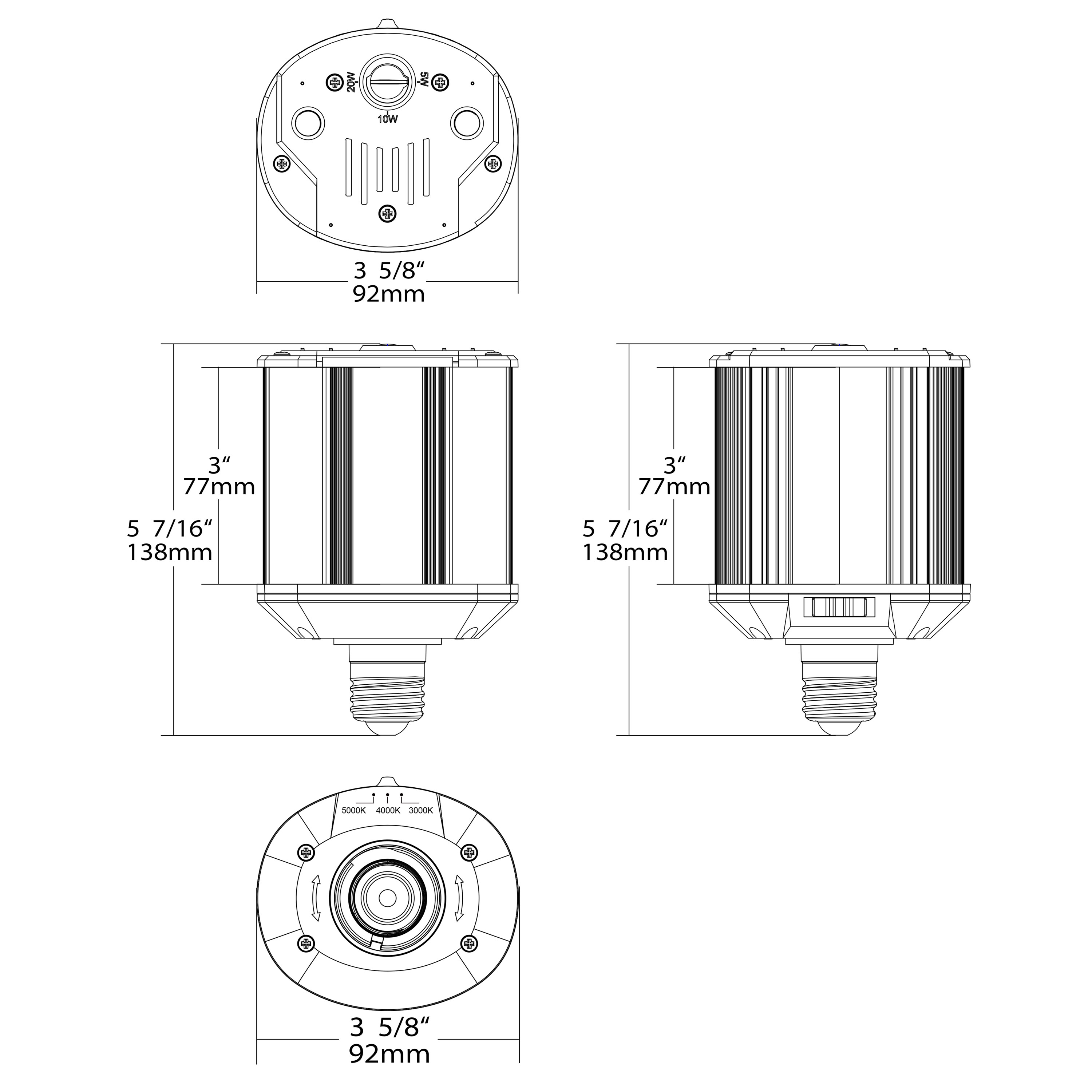

MOL5.43
MOD3.62
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishWhite
Lens MaterialPlastic
Housing ColorWhite
Weight (lb.)1
Additional Information
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 11 in.
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
DLC ApprovedNo
California StatusNon-Compliant
Title 20 / 24 StatusNon-Compliant
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923289286
Each Quantity1
Each Length (in.)7.48
Each Width (in.)3.66
Each Height (in.)3.66
Each Weight (lb.)1.21
Each Cube (CuFt.)0.0580
Pack TypeBox
Inner UPC20045923289280
Inner Quantity12
Inner Length (in.)11.65
Inner Width (in.)7.71
Inner Height (in.)15.59
Inner Weight (lb.)15.67
Inner Cube (CuFt.)0.8104
Case UPC10045923289283
Case Quantity24
Case Length (in.)16.22
Case Width (in.)12.28
Case Height (in.)16.38
Case Weight (lb.)32.38
Case Cube (CuFt.)1.8881
