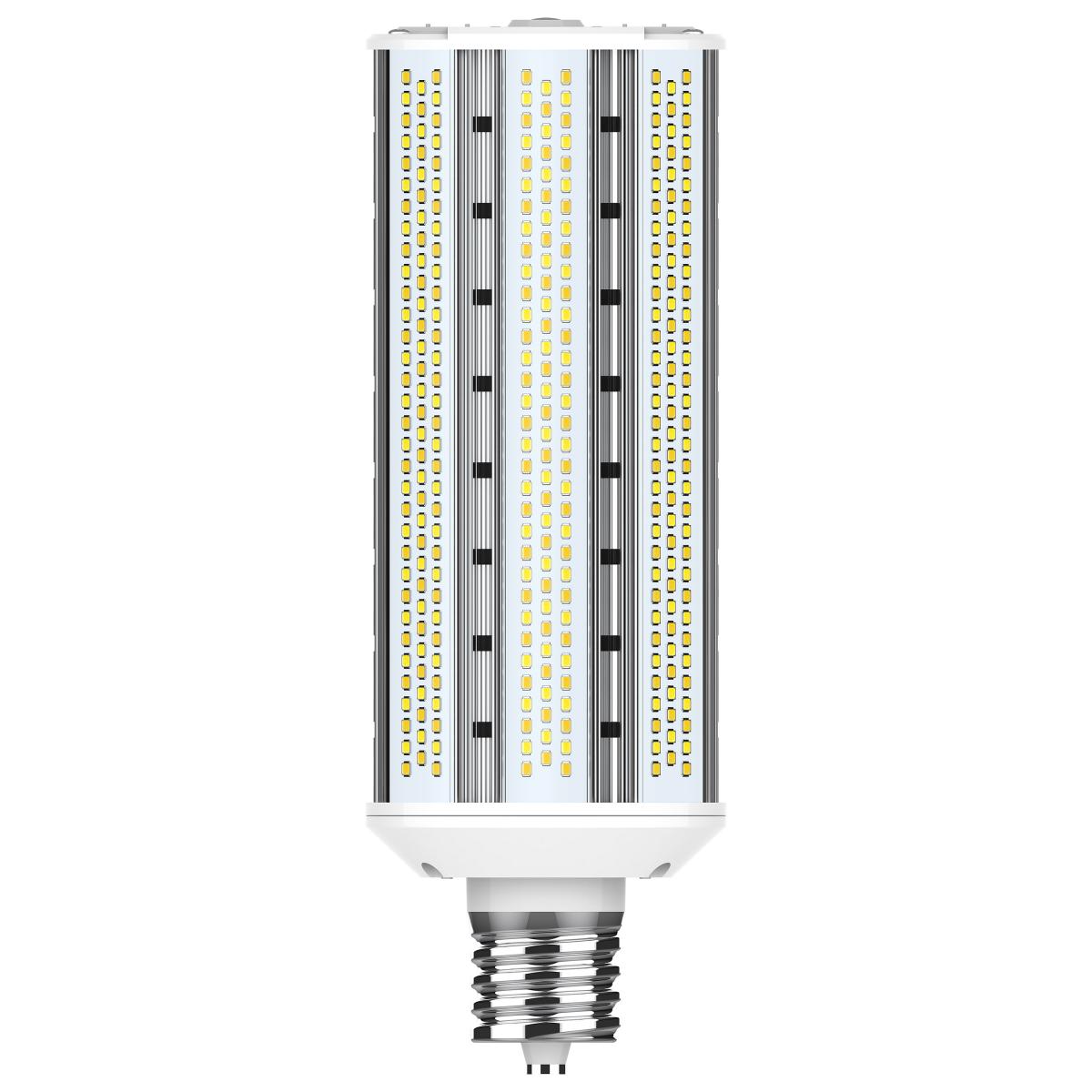

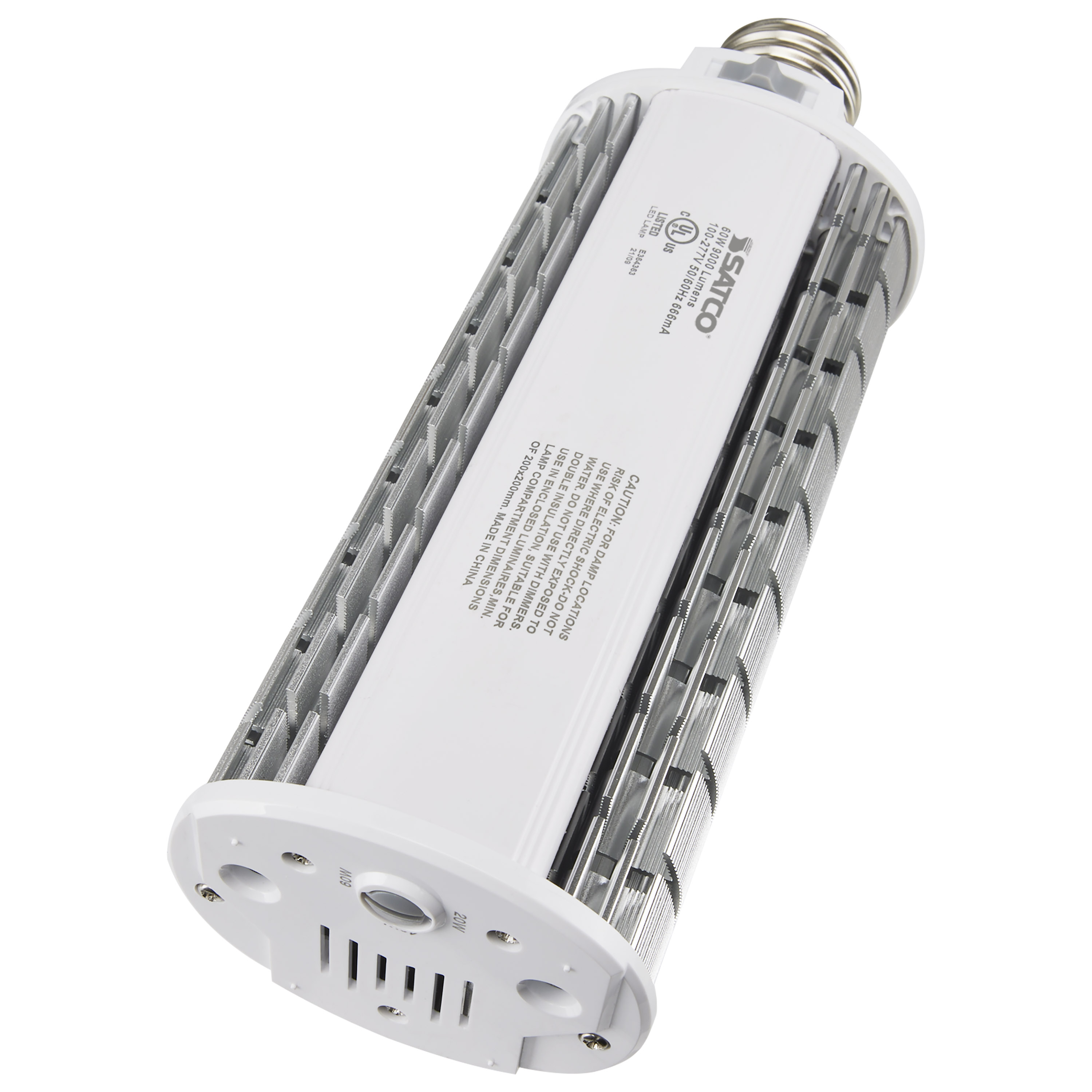

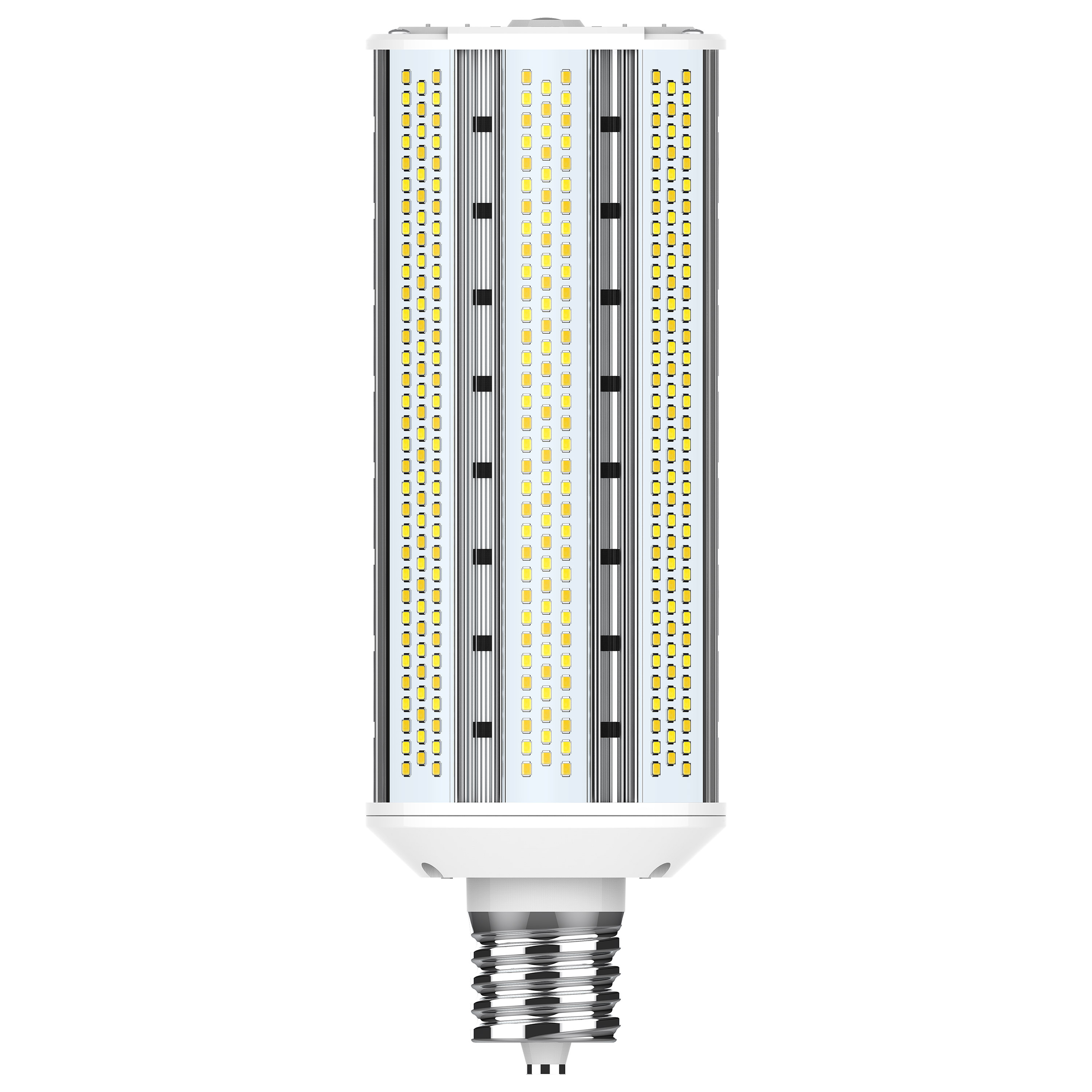

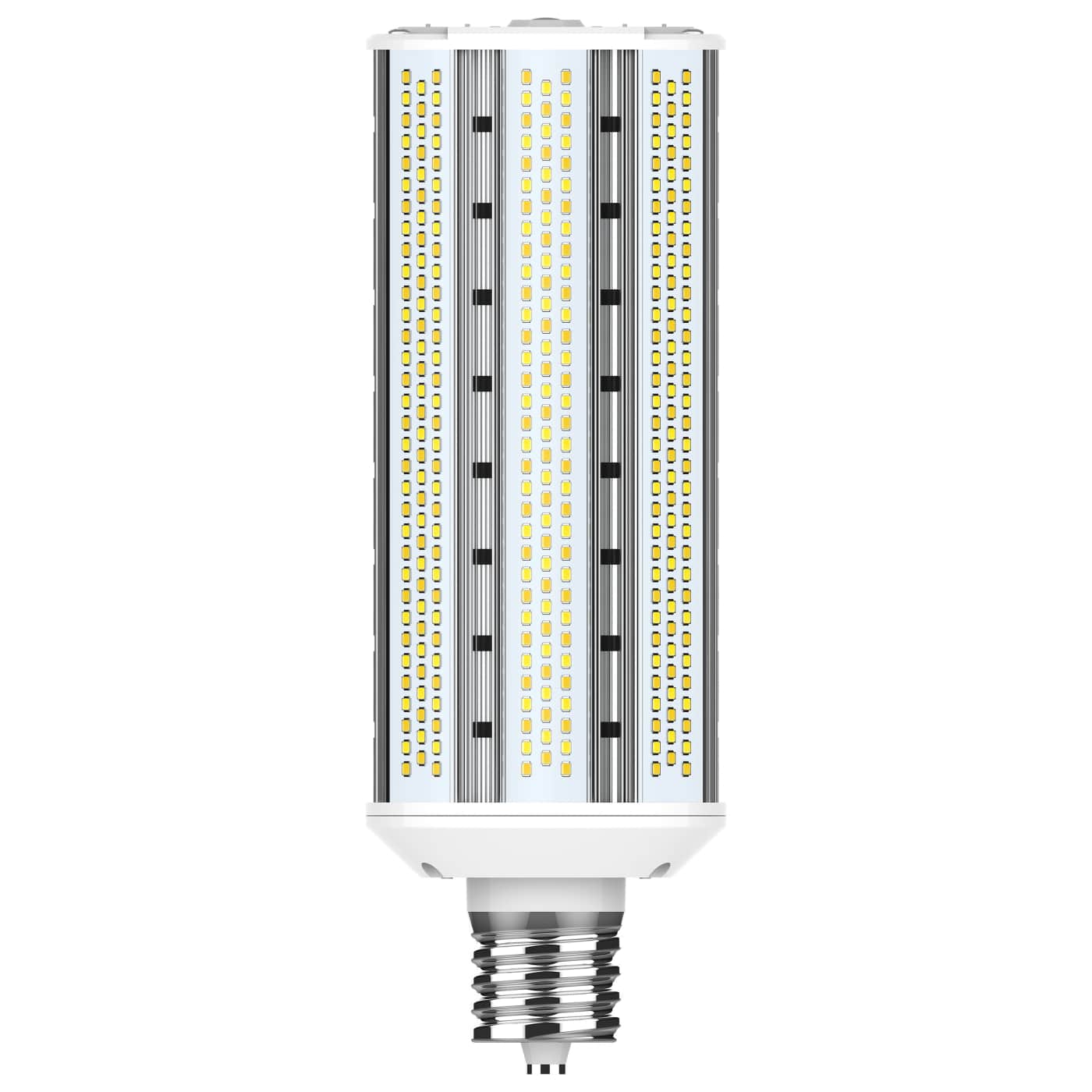

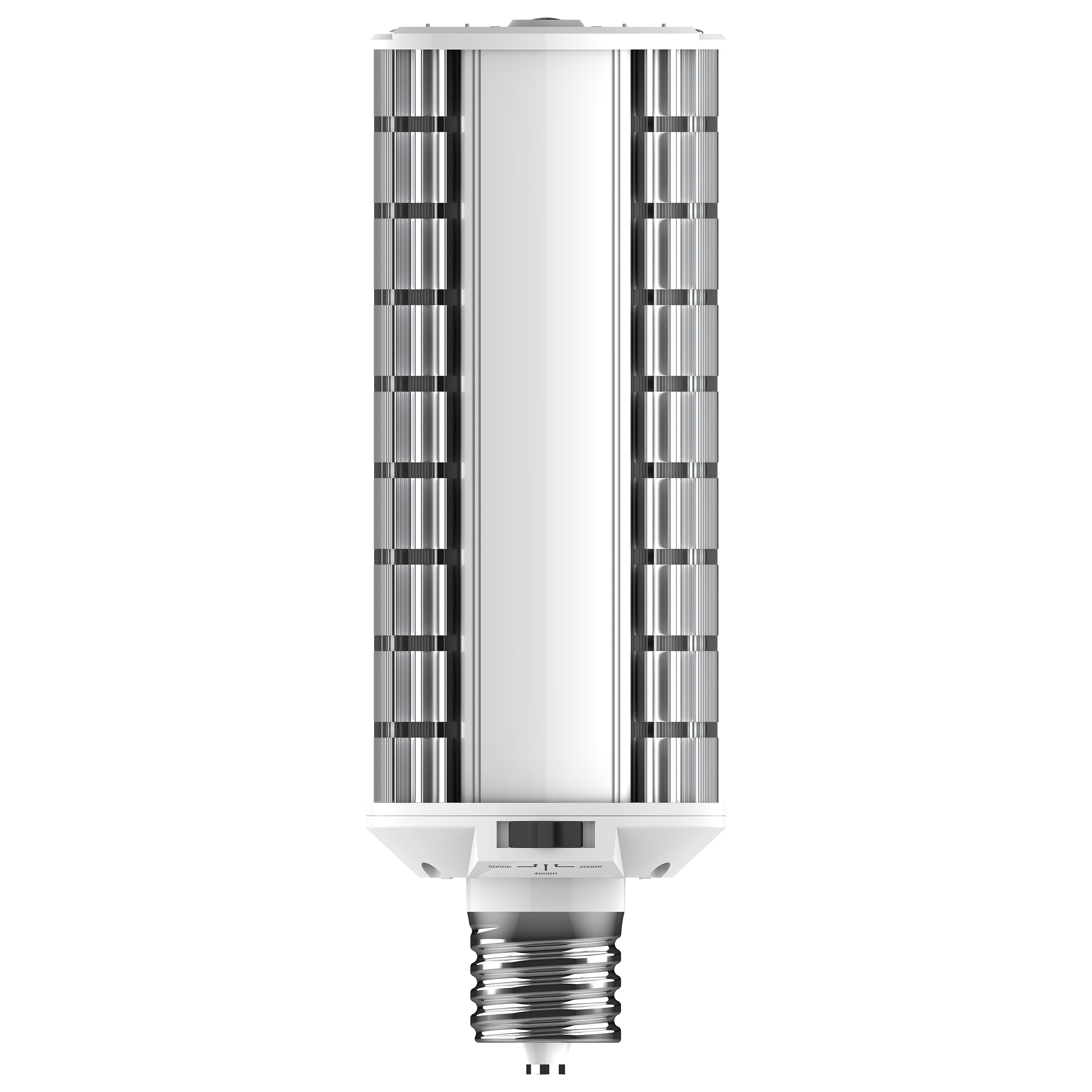

S28987 60W/LED/WP/CCT/EX39/100-277V

S28987

60W/LED/WP/CCT/EX39/100-277V

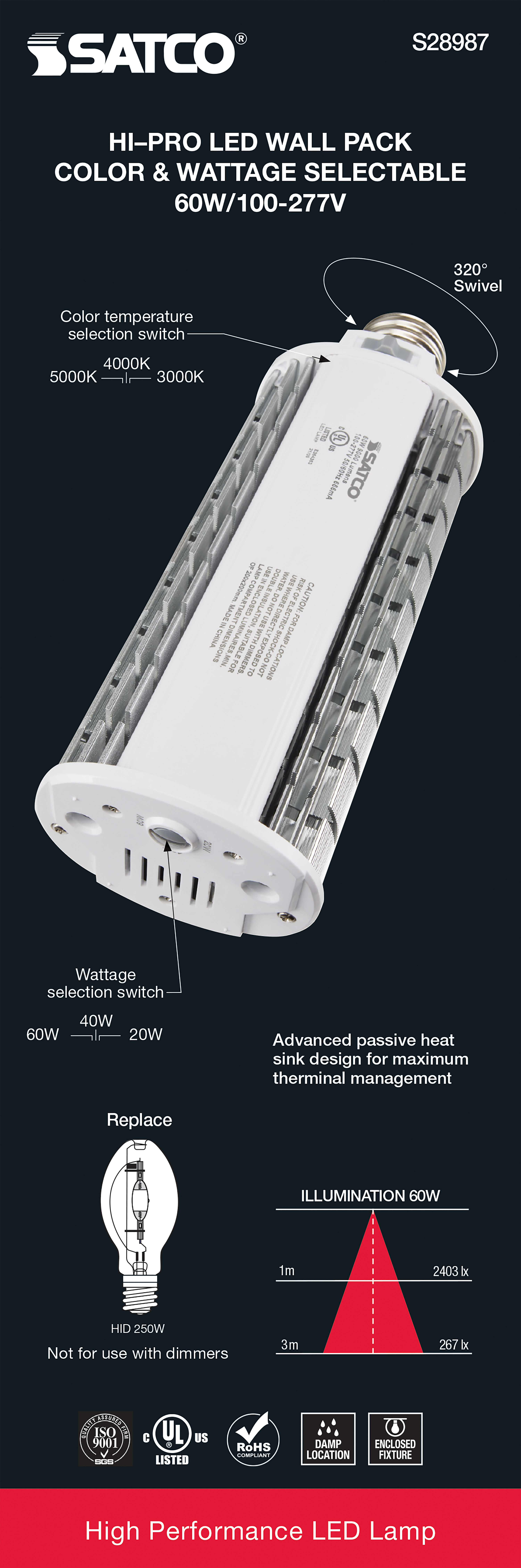

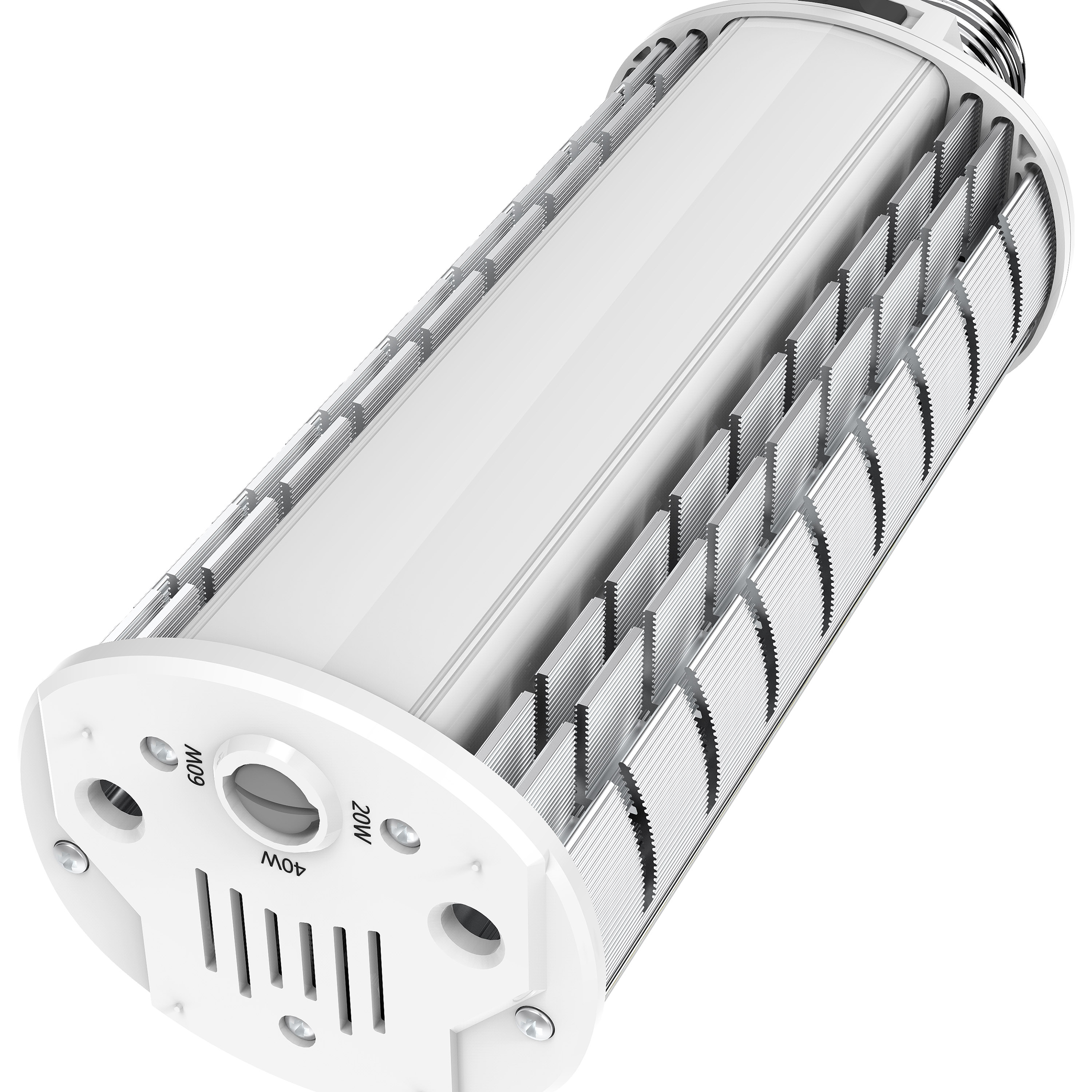

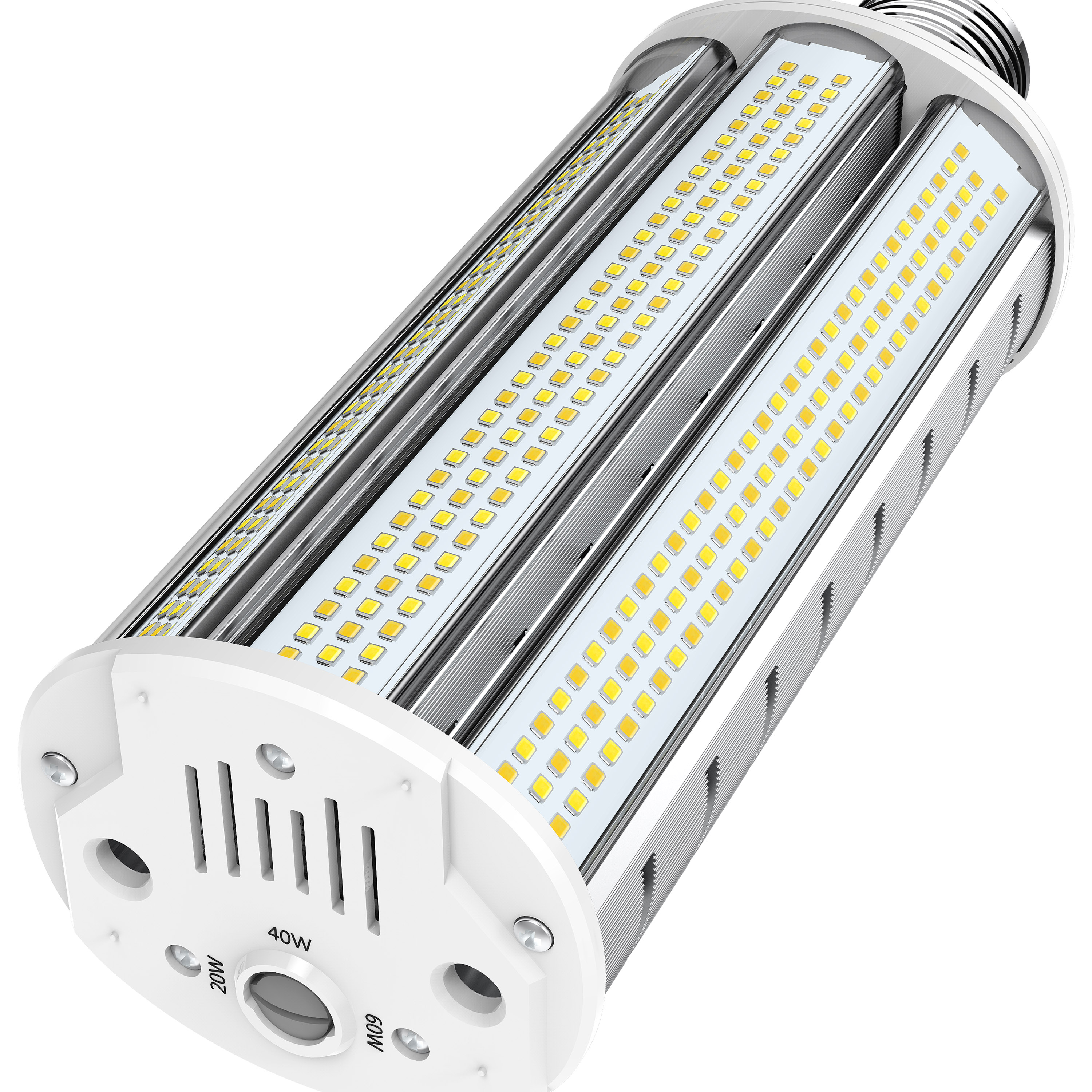

20/40/60 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology


Lights

S28987

60W/LED/WP/CCT/EX39/100-277V

20/40/60 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Specifications

General
StatusActive

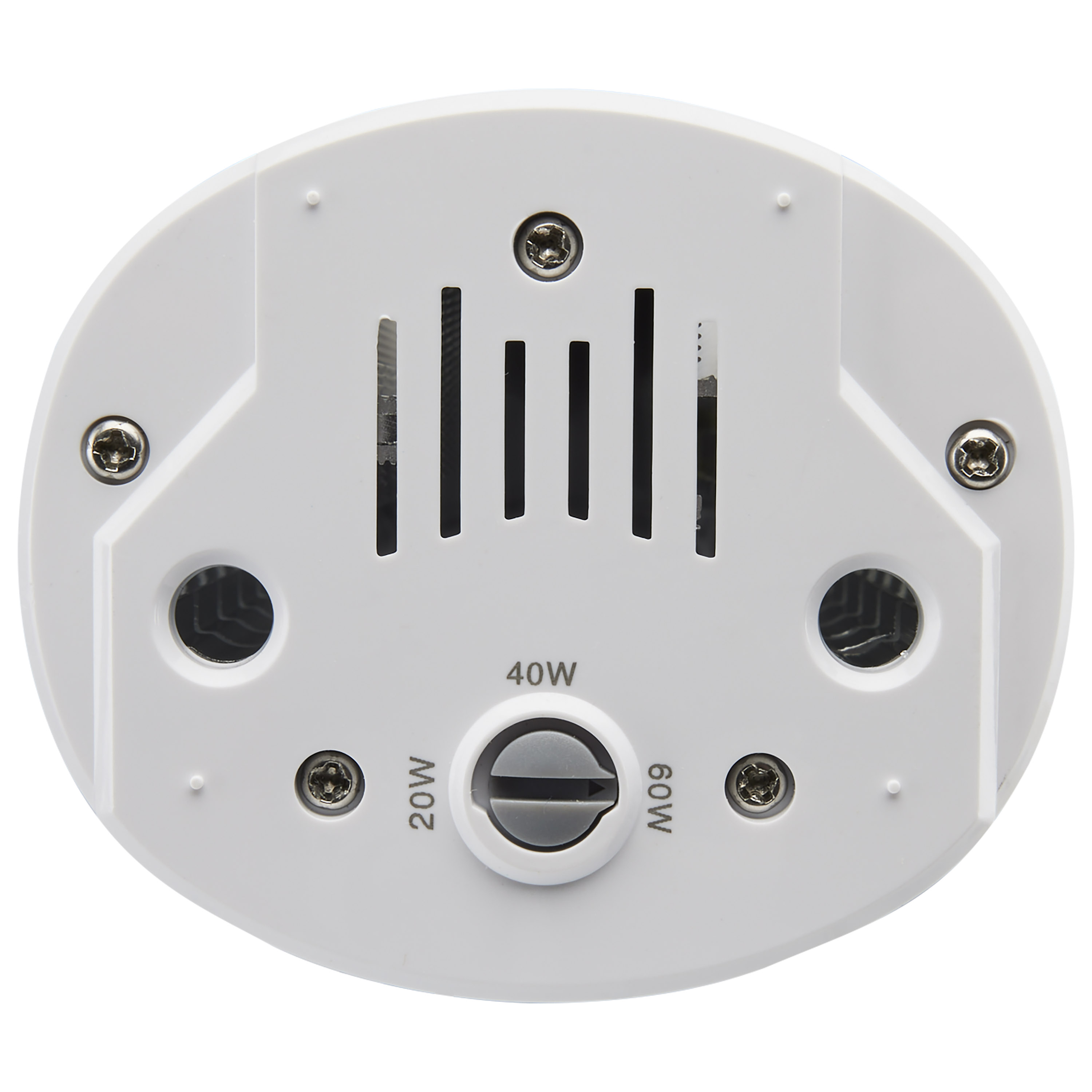

Watts20W/40W/60W
Incandescent Equivalent100W
HID Equivalent250W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite

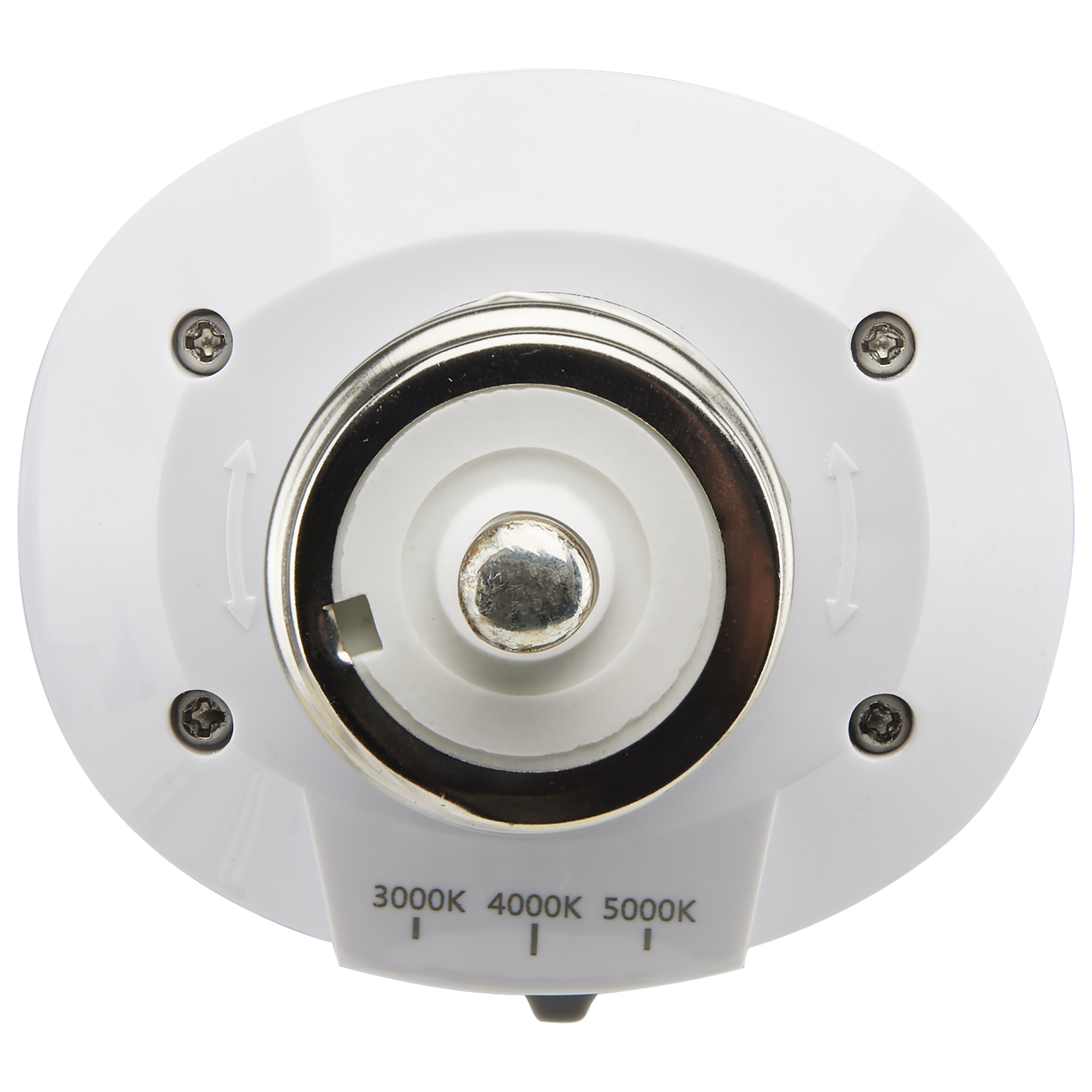

CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80

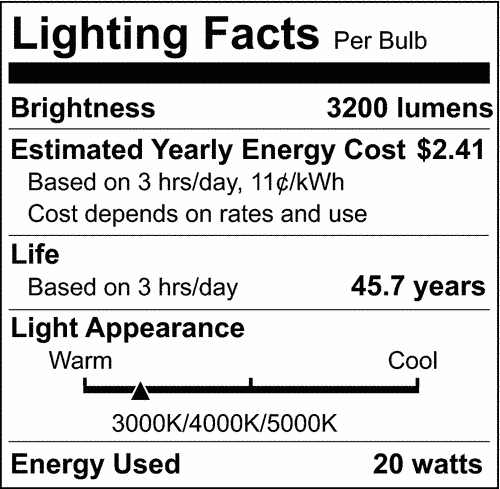

Lumens3200L/6500L/9000L
Beam Spread180
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 12 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts20W/40W/60W
Incandescent Equivalent100W
HID Equivalent250W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50-60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens3200L/6500L/9000L
Beam Spread180
Power Factor>0.9
Hours Rated50000
Operating PositionHorizontal
Surge ProtectionBuilt-in surge protection - 4KV
Operating Temperature-30C (-22F) to +45C (+113F)

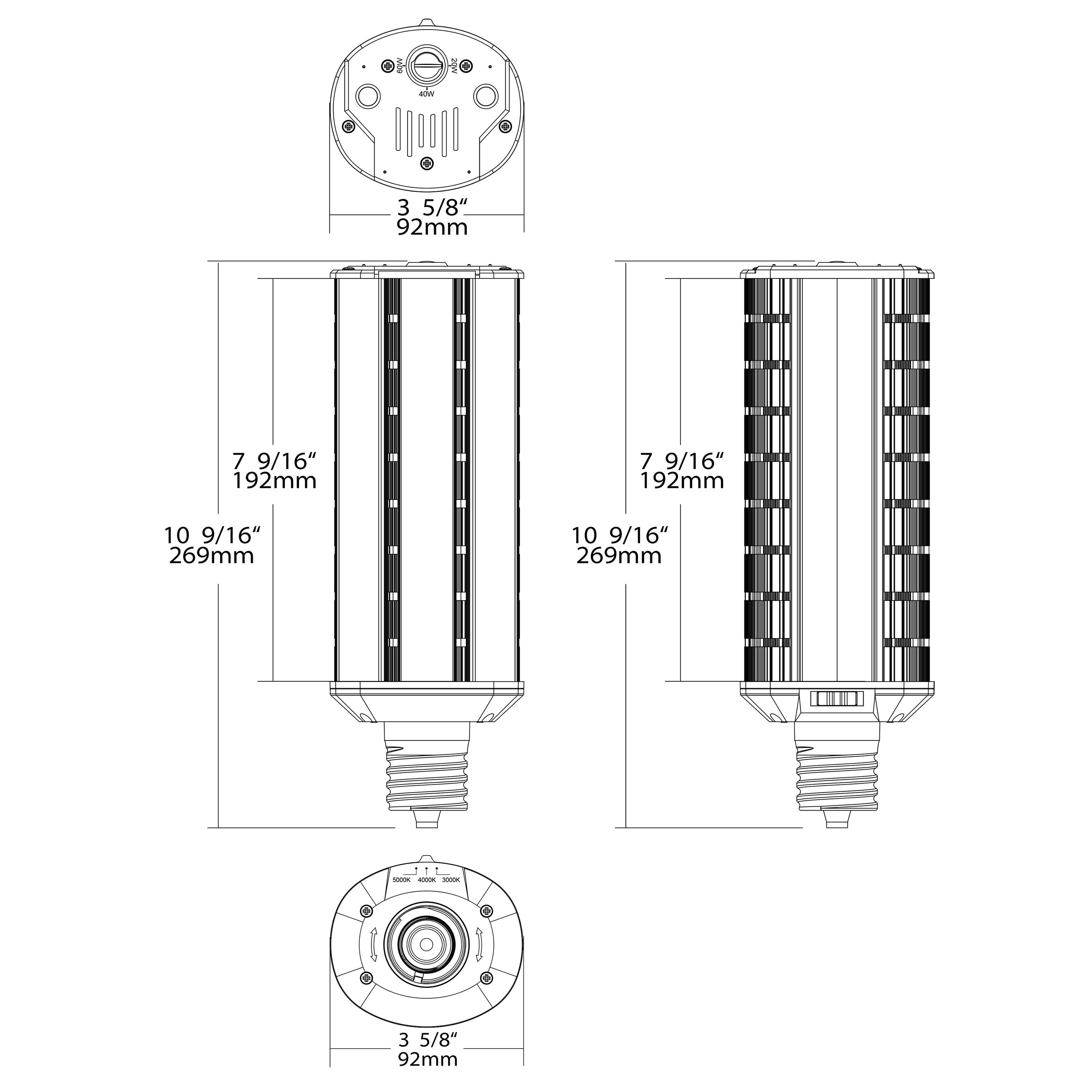

Physical
MOL10.6
MOD3.62
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens MaterialPlastic
Housing ColorWhite
Weight (lb.)2.24
Additional Information
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 12 in.
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPWQMWM48
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923289873
Each Quantity1
Each Length (in.)4.00
Each Width (in.)4.00
Each Height (in.)11.88
Each Weight (lb.)2.55
Each Cube (CuFt.)0.1100
Pack TypeBox
Inner UPC20045923289877
Inner Quantity6
Inner Length (in.)12.67
Inner Width (in.)8.42
Inner Height (in.)12.59
Inner Weight (lb.)15.45
Inner Cube (CuFt.)0.7773
Case UPC10045923289870
Case Quantity12
Case Length (in.)17.64
Case Width (in.)13.31
Case Height (in.)13.39
Case Weight (lb.)32.74
Case Cube (CuFt.)1.8193
