» S29751

Discontinued – Suggested Replacement: S39751
S29751 40W/LED/HID/MB/5000K/100-277V

S29751

40W/LED/HID/MB/5000K/100-277V

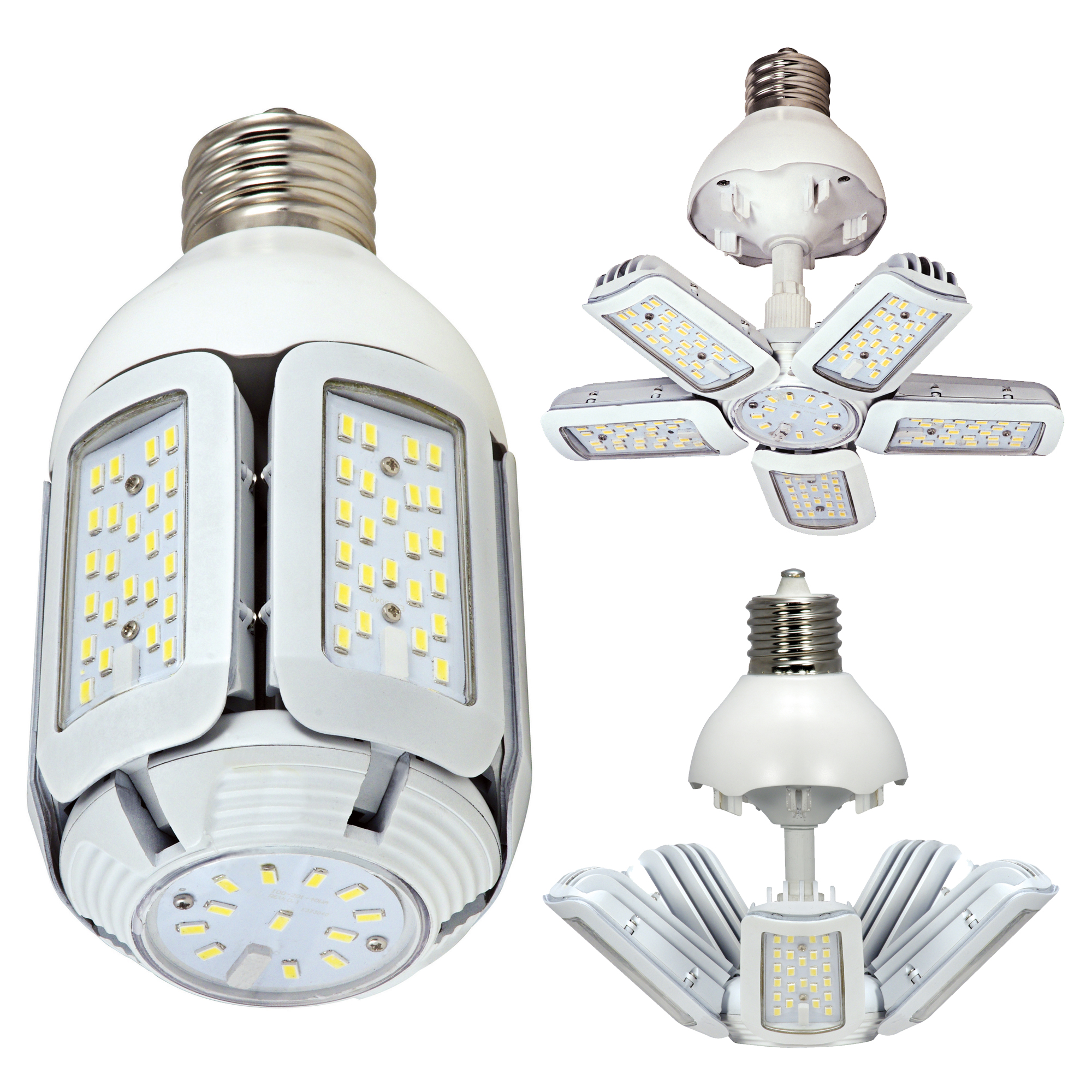

40 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable beam angle; 100-277 Volt


Lights

S29751

40W/LED/HID/MB/5000K/100-277V

40 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable beam angle; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39751
Watts40W
Incandescent Equivalent300W
Fluorescent Equivalent65W
HID Equivalent175W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens5200L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts40W
Incandescent Equivalent300W
Fluorescent Equivalent65W
HID Equivalent175W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens5200L
Beam Spread360
DimmableNon-Dimmable
Power Factor>0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 2KV
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL7.88
MOD3.5
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Weight (lb.)1.85
Additional Information
Additional InfoWidth 360 deg 3.5 in.; Width 270 deg 7.7 in.; Width 180 deg 8.9 in.
Min Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 8.88 inches
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923297519
Each Quantity1
Each Length (in.)4.57
Each Width (in.)4.57
Each Height (in.)8.98
Each Weight (lb.)2.17
Each Cube (CuFt.)0.1085
Pack TypeBox
Inner UPC20045923297513
Inner Quantity6
Inner Length (in.)14.25
Inner Width (in.)9.65
Inner Height (in.)9.45
Inner Weight (lb.)13.82
Inner Cube (CuFt.)0.7520
Case UPC10045923297516
Case Quantity12
Case Length (in.)19.88
Case Width (in.)14.76
Case Height (in.)10.43
Case Weight (lb.)29.96
Case Cube (CuFt.)1.7711
