» S29768

Discontinued – Suggested Replacement: S39768
S29768 30W/LED/HID/MB/2700K/100-277V

S29768

30W/LED/HID/MB/2700K/100-277V

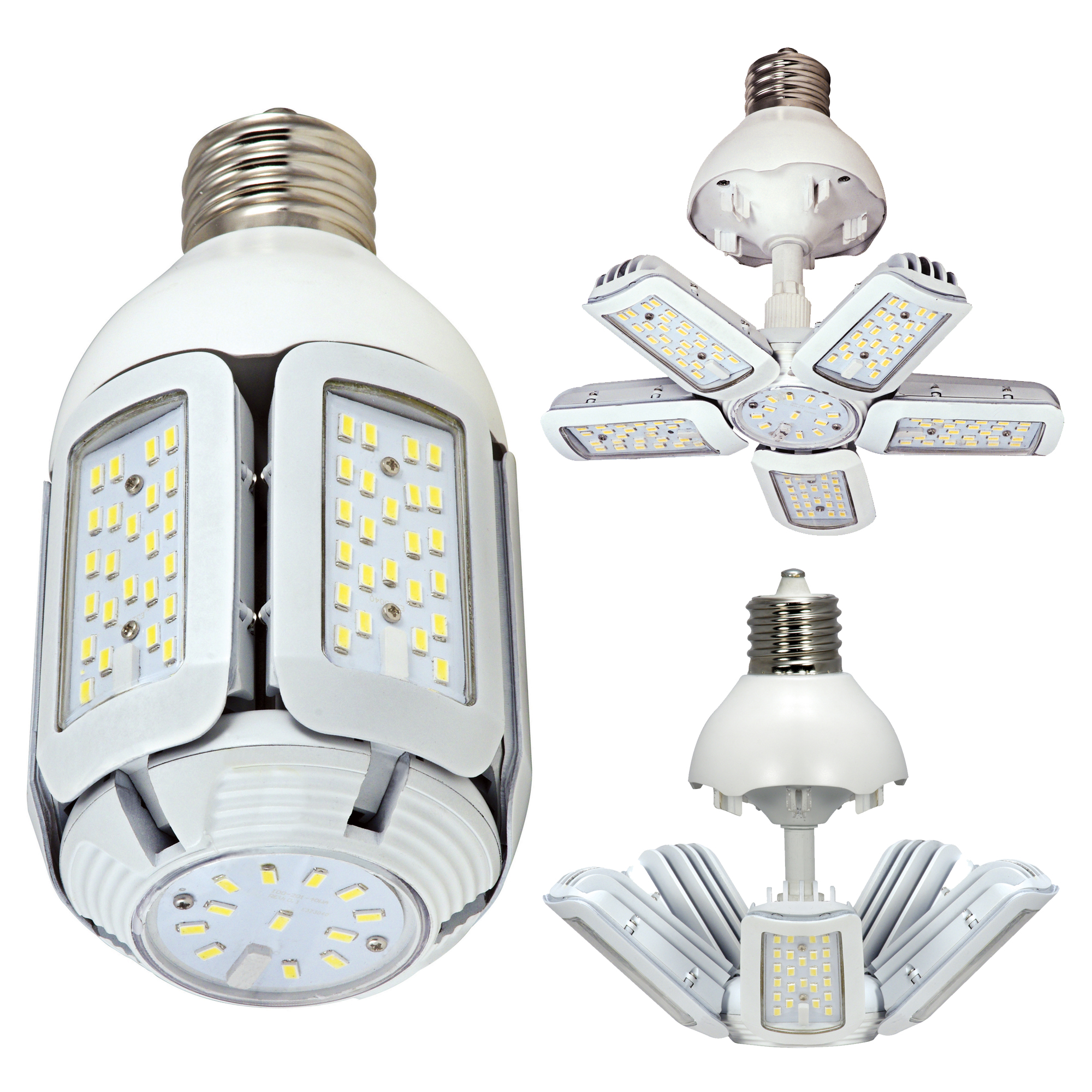

30 Watt LED HID Replacement; 2700K; Medium base; Adjustable beam angle; 100-277 Volt


Lights

S29768

30W/LED/HID/MB/2700K/100-277V

30 Watt LED HID Replacement; 2700K; Medium base; Adjustable beam angle; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39768
Watts30W
Incandescent Equivalent200W
Fluorescent Equivalent55W
HID Equivalent150W
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)2700K
TemperatureWarm White
CRI80+
Lumens3660L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 11.02 in. Width: 8 in. Depth: 8 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts30W
Incandescent Equivalent200W
Fluorescent Equivalent55W
HID Equivalent150W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)2700K
TemperatureWarm White
CRI80+
Lumens3660L
Beam Spread360
DimmableNon-Dimmable
Power Factor>0.9
Hours Rated50000
Operating PositionBase Up or Down
Surge ProtectionBuilt-in surge protection - 1KV
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL6.38
MOD3.19
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
Lens FinishClear
Housing ColorWhite
Weight (lb.)1.37
Additional Information
Additional InfoWidth 360 deg 3.2 in.; Width 270 deg 6.8 in.; Width 180 deg 7.7 in.; Trim material is Thermo Plastic; Trim color is white
Min Compartment SizeLength: 11.02 in. Width: 8 in. Depth: 8 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 7.69 inches
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - >2600 Lumens
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923297687
Each Quantity1
Each Length (in.)6.50
Each Width (in.)6.50
Each Height (in.)11.42
Each Weight (lb.)1.45
Each Cube (CuFt.)0.2792
Pack TypeBox
Inner UPC20045923297681
Inner Quantity6
Inner Length (in.)13.07
Inner Width (in.)8.86
Inner Height (in.)8.30
Inner Weight (lb.)9.92
Inner Cube (CuFt.)0.5562
Case UPC10045923297684
Case Quantity24
Case Length (in.)18.30
Case Width (in.)13.58
Case Height (in.)18.11
Case Weight (lb.)40.79
Case Cube (CuFt.)2.6045
