| Status | Active |
| Watts | 14W |
| Incandescent Equivalent | 75W |
| Fluorescent Equivalent | 25W/28W/30W/32W |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |

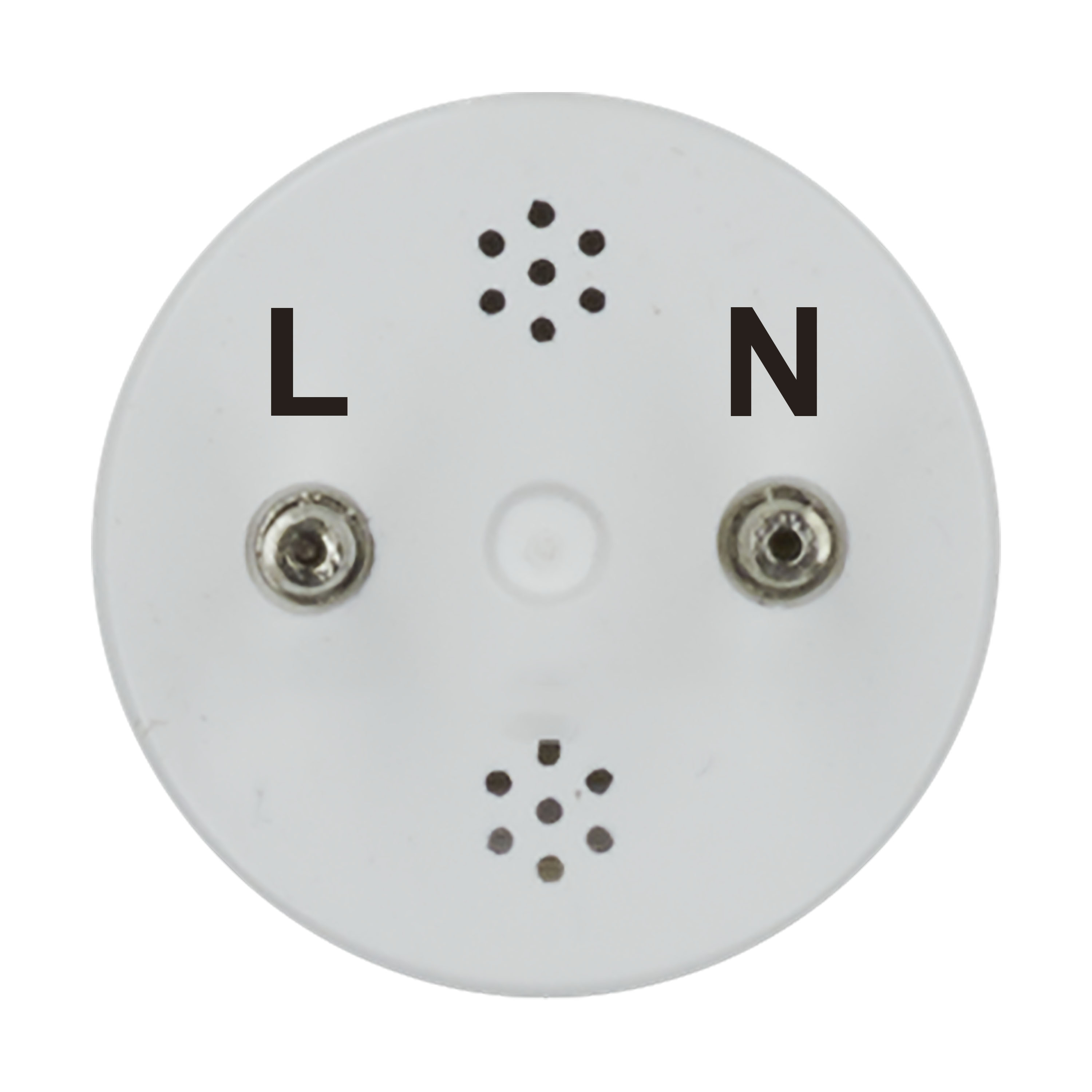

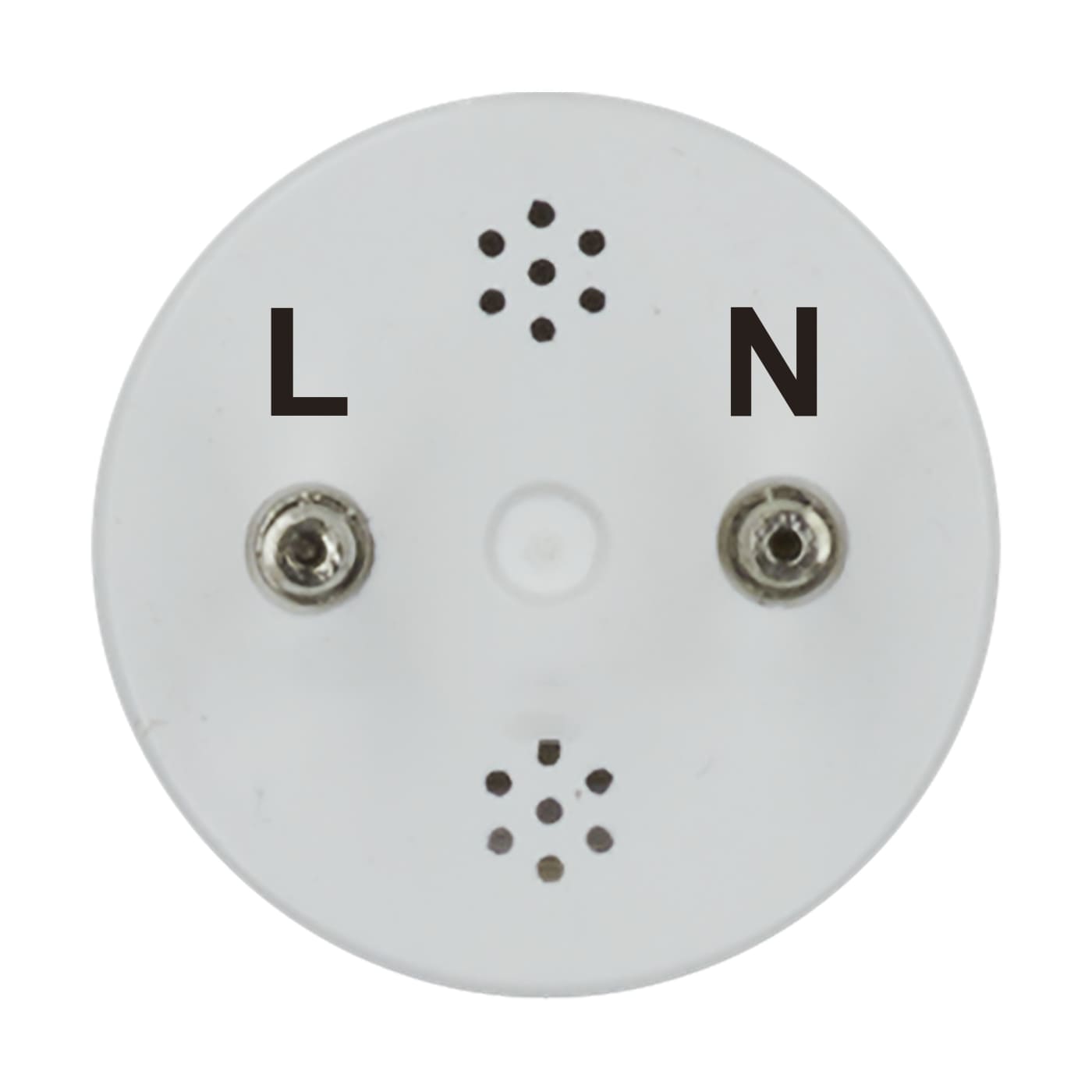

| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 48 |
| Finish | Gloss White |
| CCT (Kelvin) | 4000K |
| Temperature | Cool White |
| CRI | 80+ |

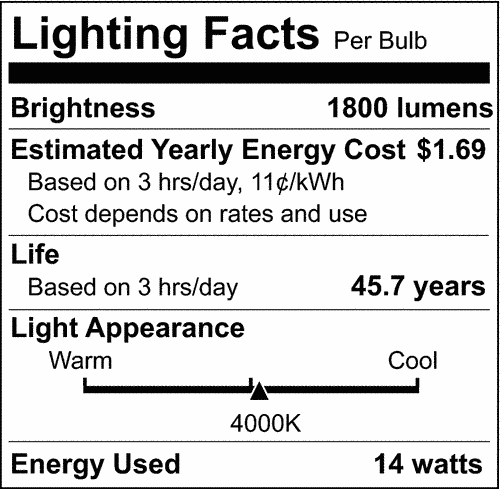

| Lumens | 1800L |
| Beam Spread | 210 |
| Hours Rated | 50000 |
| Product Category | Linear |
| Lamp Type | Linear |
| Technology | LED |
| Watts | 14W |
| Incandescent Equivalent | 75W |
| Fluorescent Equivalent | 25W/28W/30W/32W |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 4000K |
| Temperature | Cool White |
| CRI | 80+ |
| Lumens | 1800L |
| Beam Spread | 210 |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| THD | 20% |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| MOL | 47.78 |
| MOD | 1.1 |
| Nominal Length | 48 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Gloss White |
| Material | Glass |
| Lens Finish | Gloss White |
| Lens Material | Glass |
| Housing Color | White |
| Weight (lb.) | 0.43 |
| Additional Info | Equivalent CCT selectable option available in S11766 |
| Tube Guard Use | Yes |
| Installation Notes | Not for use in vapor tight fixtures. |
| Specification Note | Built-in shock resistant circuit - (not hot until both ends are installed) |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
| Safety Listing | cULus - Certified; cULus - Classified; cRUus - Recognized Component |
| Location Rating | Damp |
| DLC Approved | Yes |
| DLC ID | PLUMQ3JWEPJX |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes |
| SDS Sheet | LED Lamp |
| Each UPC | 045923399152 |
| Each Quantity | 1 |

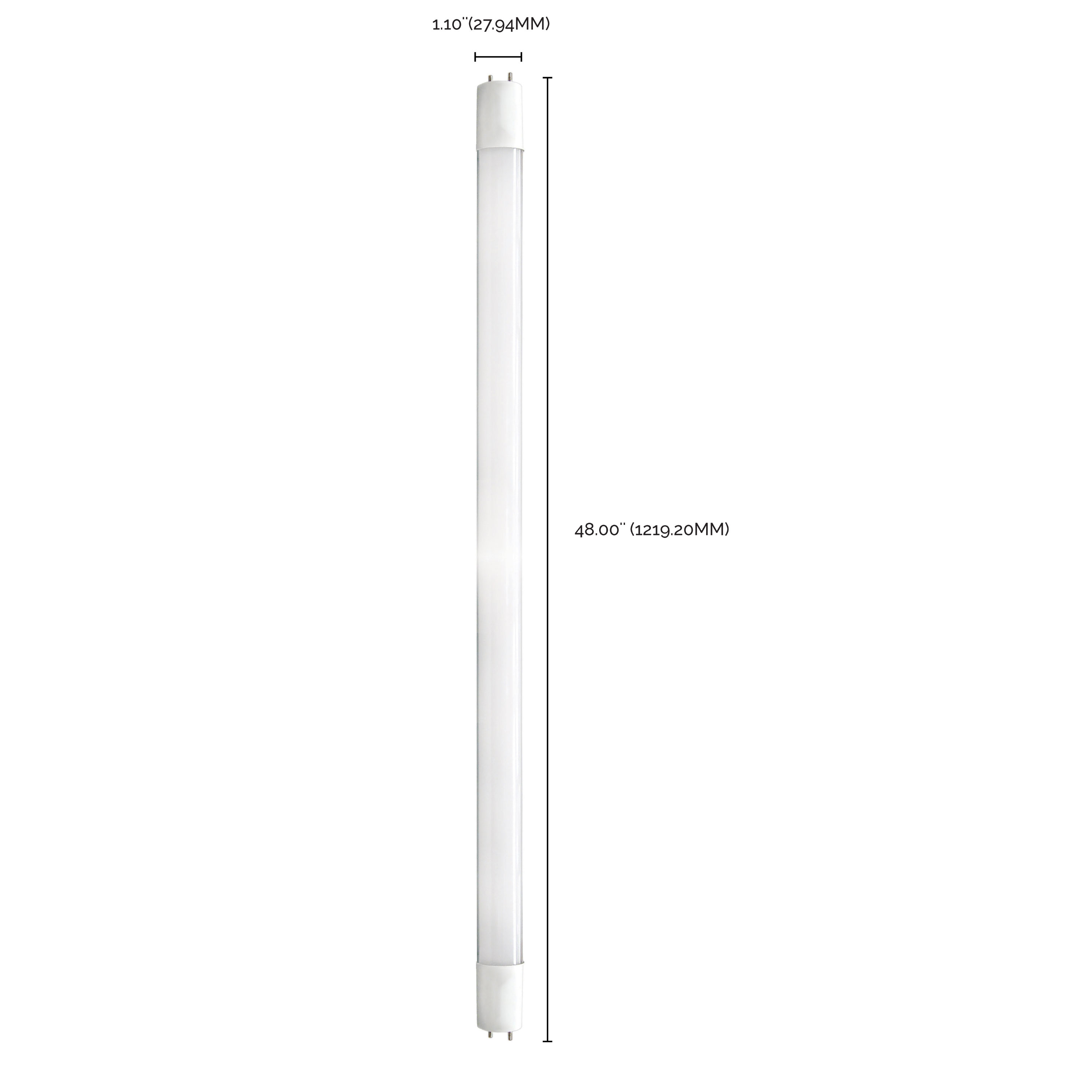

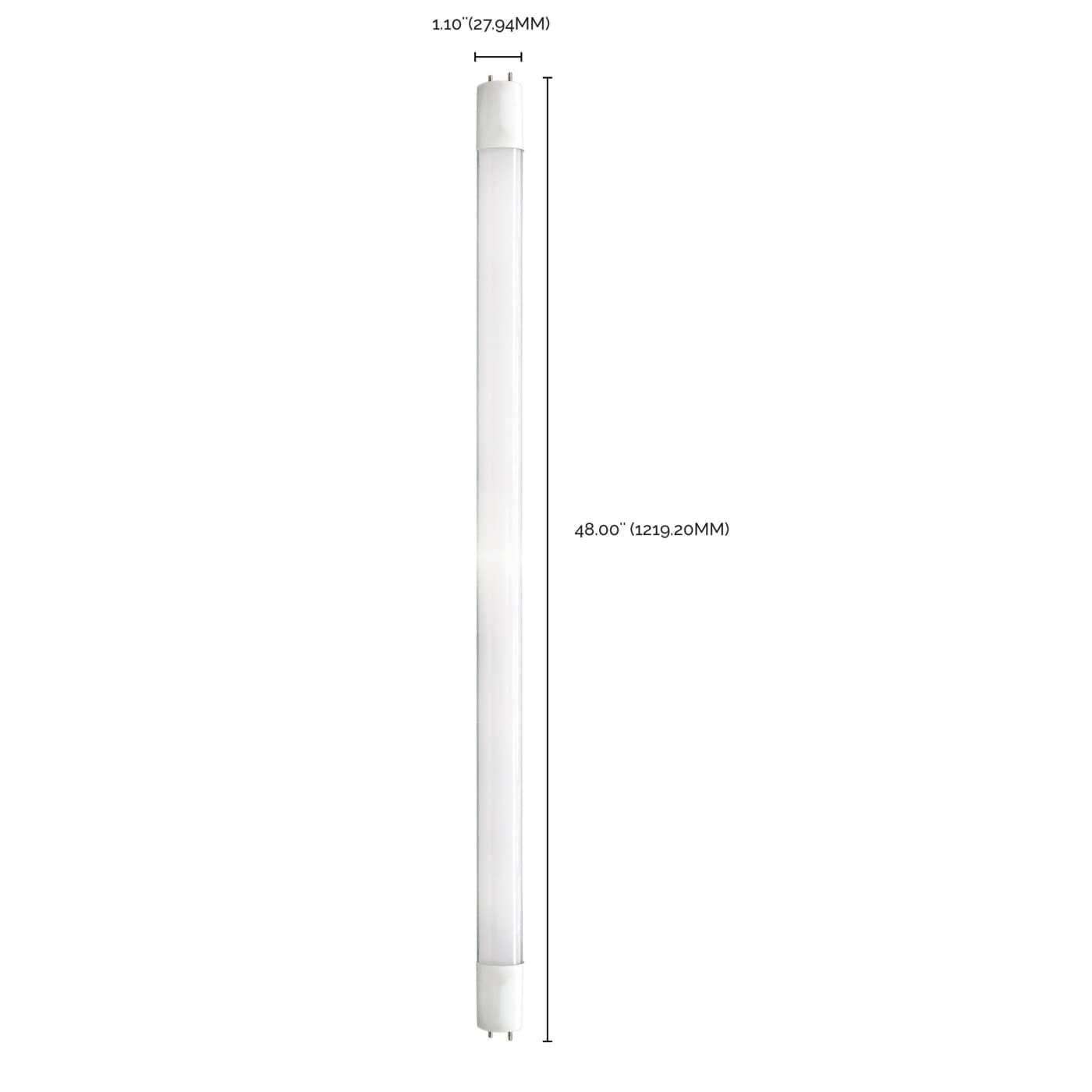

| Each Length (in.) | 1.10 |
| Each Width (in.) | 1.10 |
| Each Height (in.) | 48.00 |
| Each Weight (lb.) | 0.58 |
| Each Cube (CuFt.) | 0.0336 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923399159 |
| Case Quantity | 25 |
| Case Length (in.) | 49.00 |
| Case Width (in.) | 6.00 |
| Case Height (in.) | 6.00 |
| Case Weight (lb.) | 14.40 |
| Case Cube (CuFt.) | 1.0208 |
