S39928 12T8/LED/36-840/BP/SE-DE

S39928

12T8/LED/36-840/BP/SE-DE

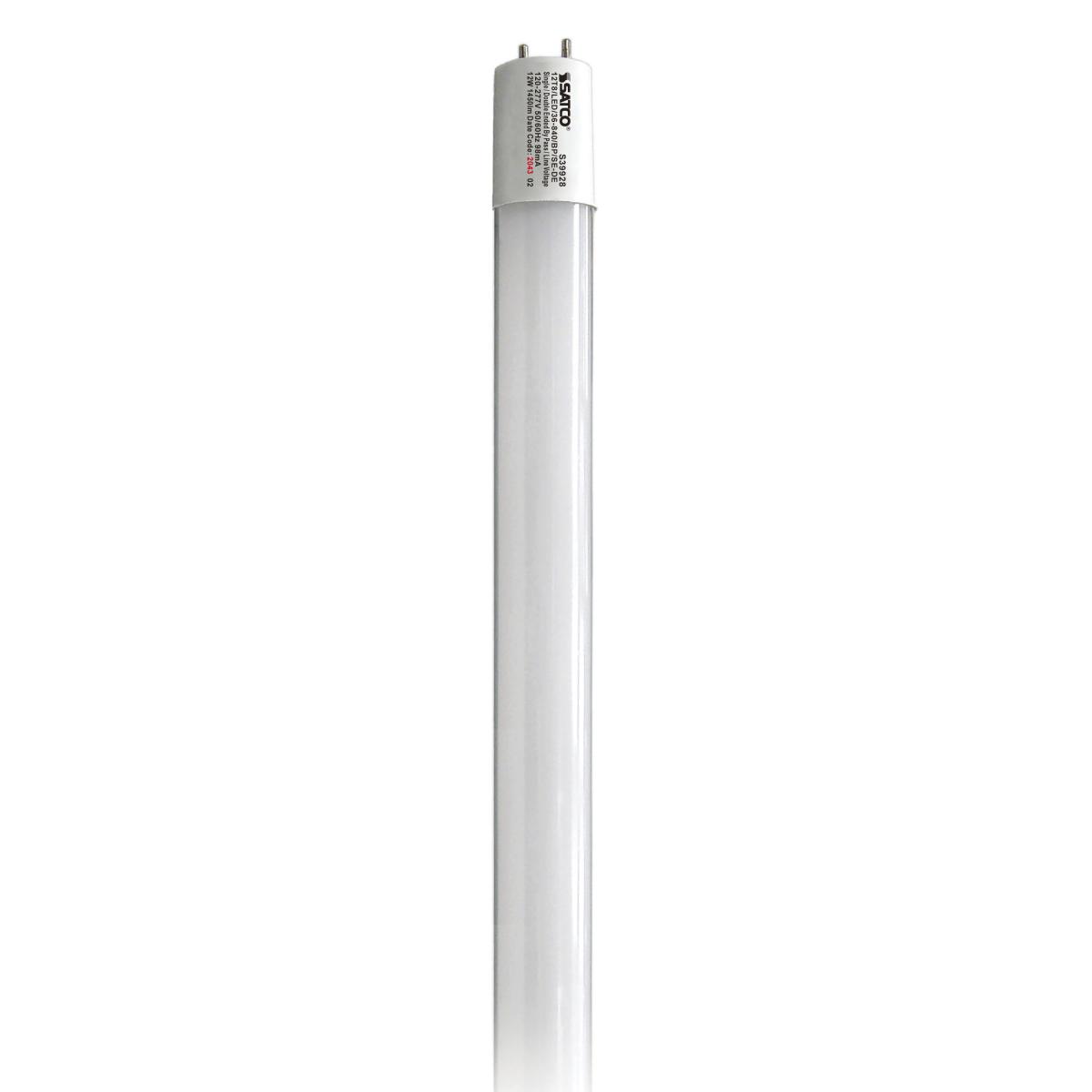

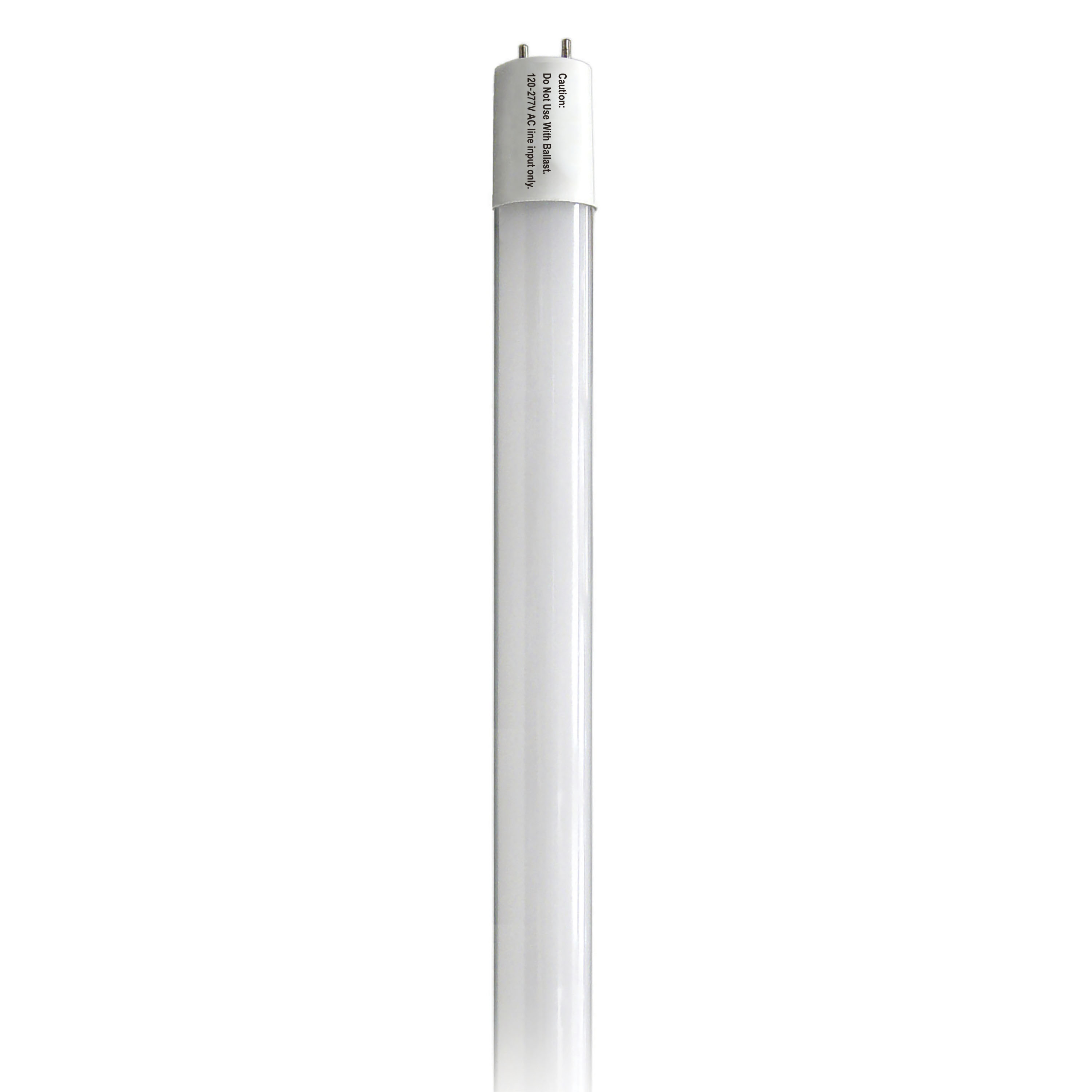

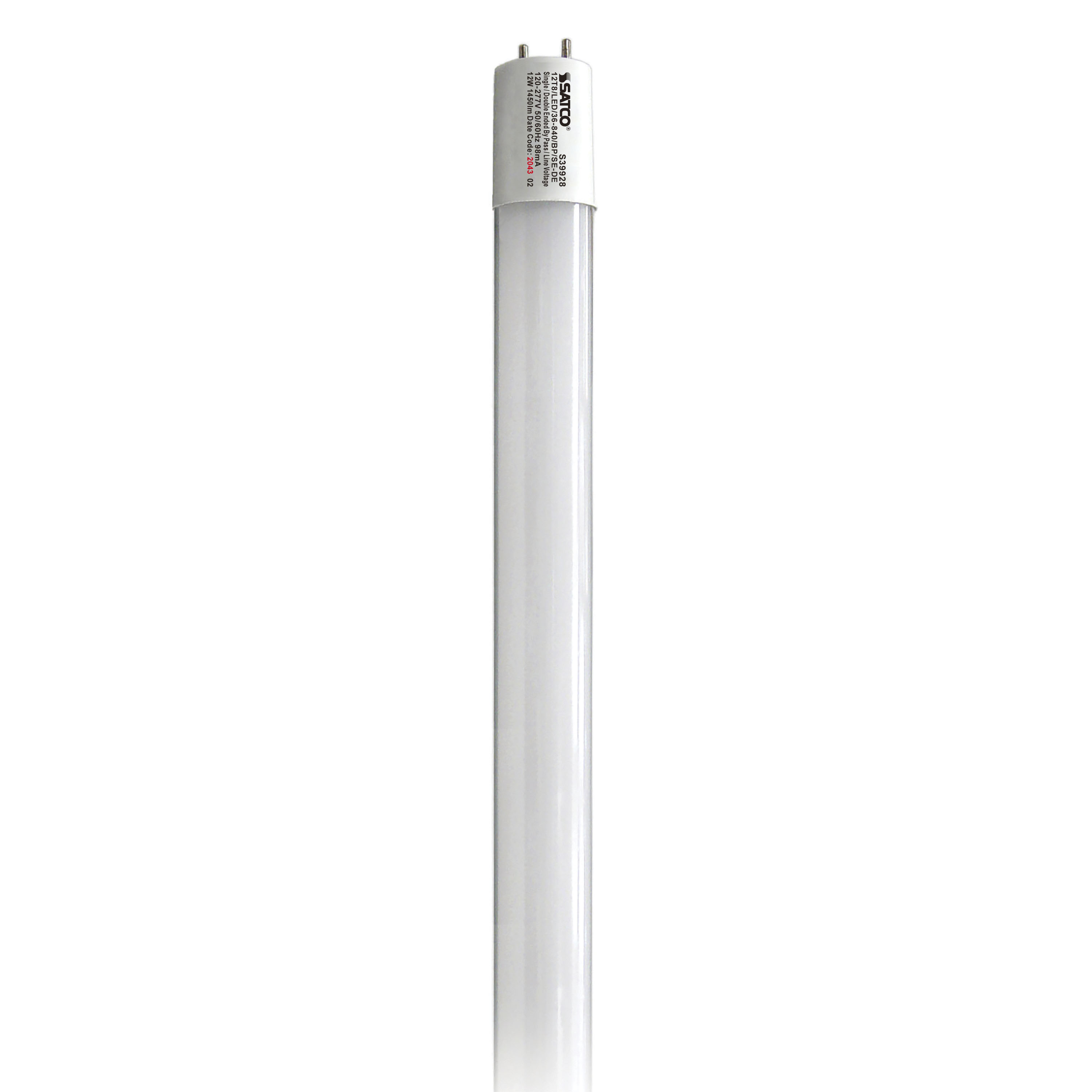

12 Watt T8 LED; 3Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1450 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring


Lights

S39928

12T8/LED/36-840/BP/SE-DE

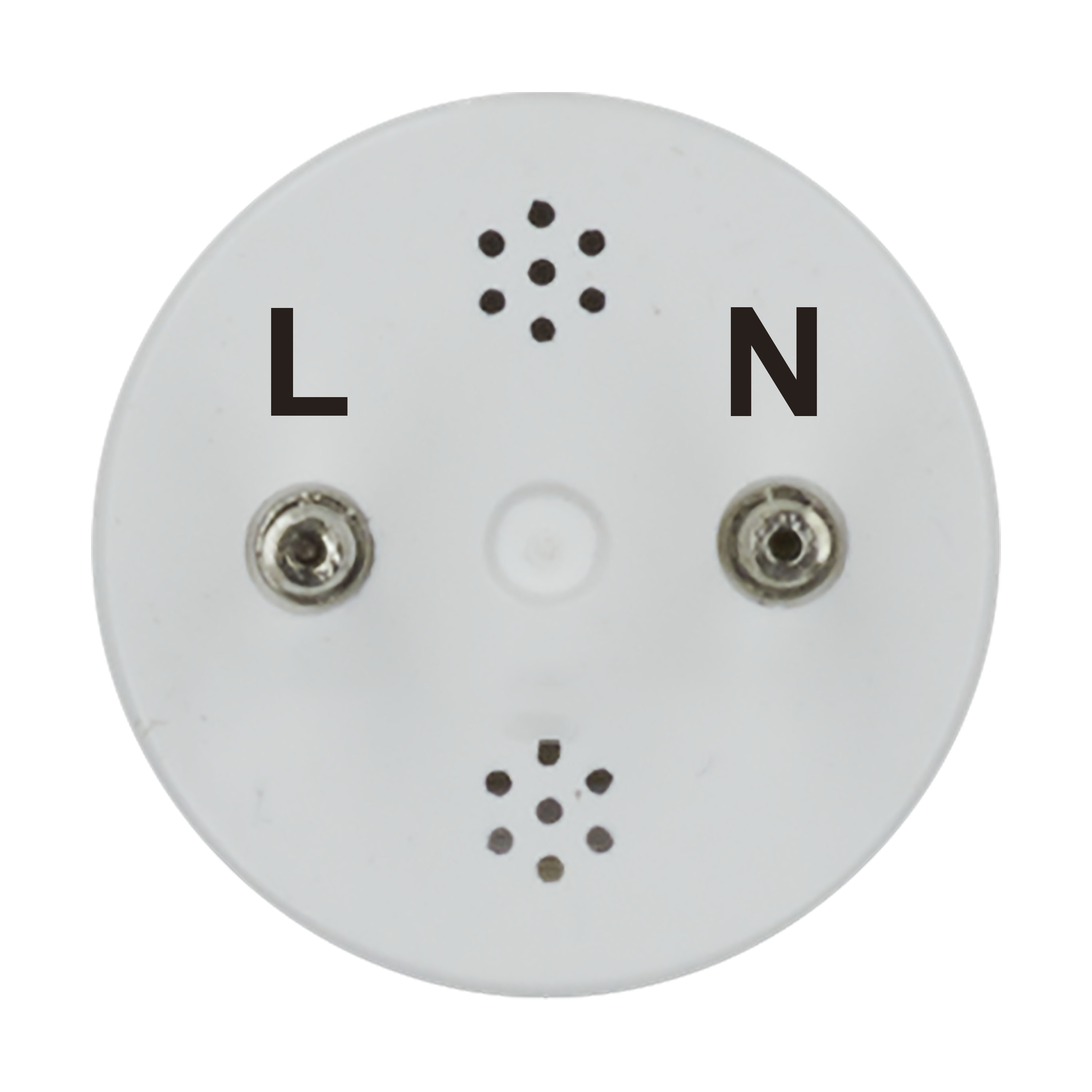

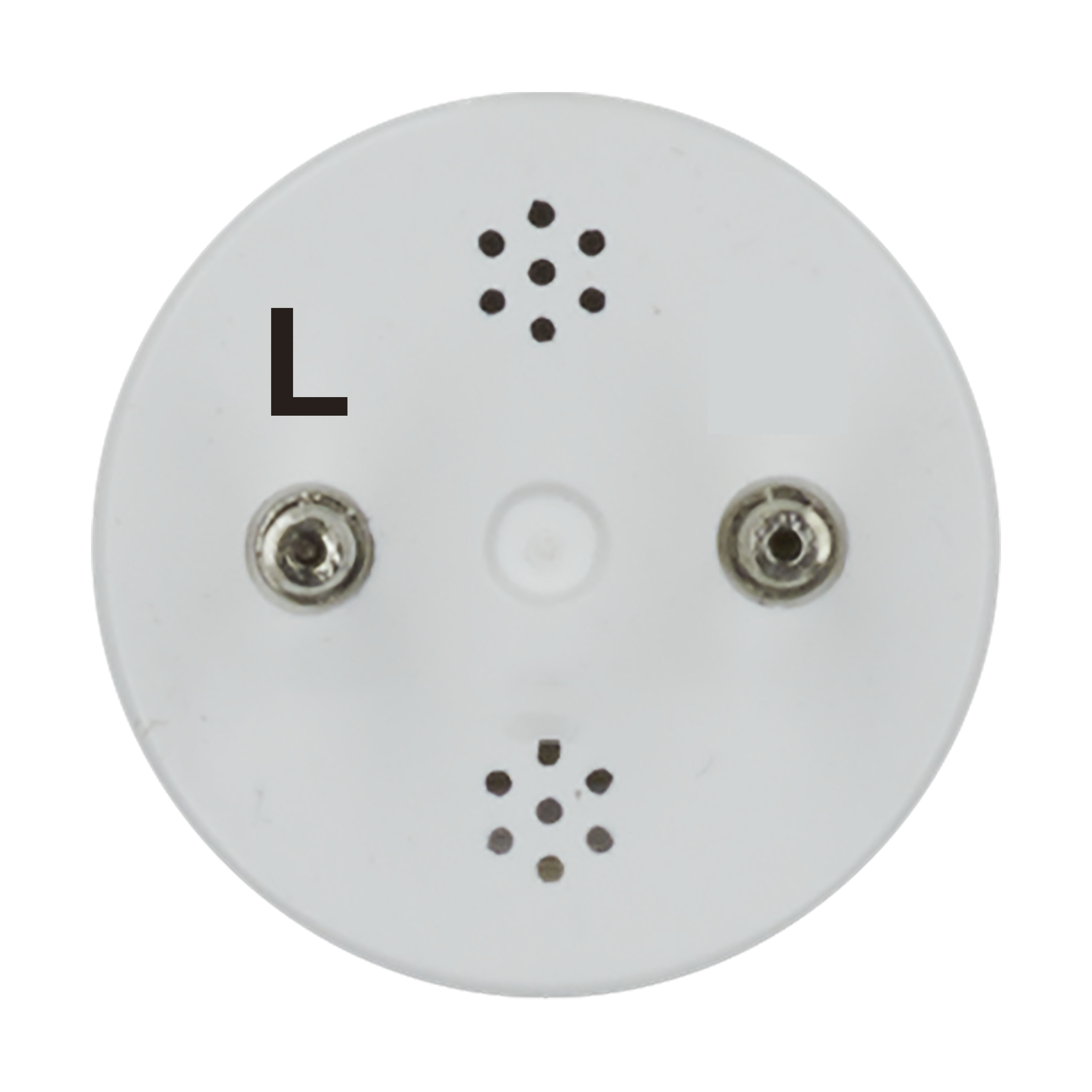

12 Watt T8 LED; 3Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1450 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

Specifications

General
StatusActive
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent25W
Volts120V-277V
Ballast TypeType B
ShapeT8

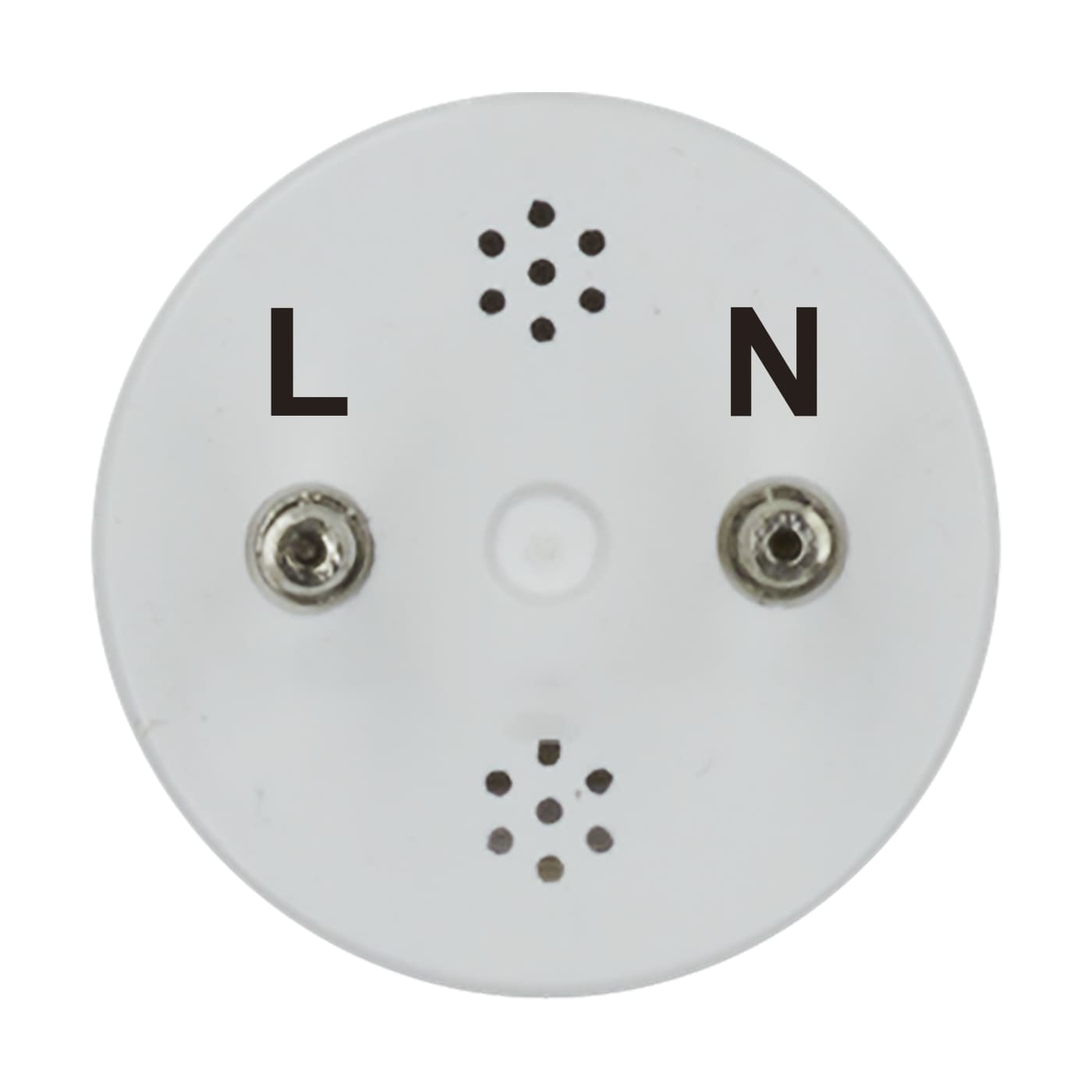

BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishGloss White
CCT (Kelvin)4000K
TemperatureCool White
CRI82

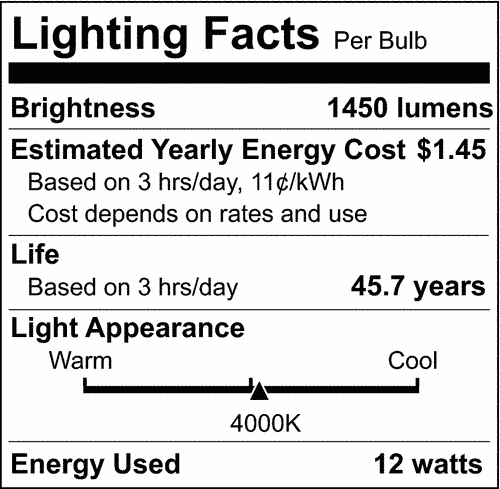

Lumens1450L
Beam Spread210
Hours Rated50000
Product CategoryT8
Lamp TypeT8
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent25W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens1450L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

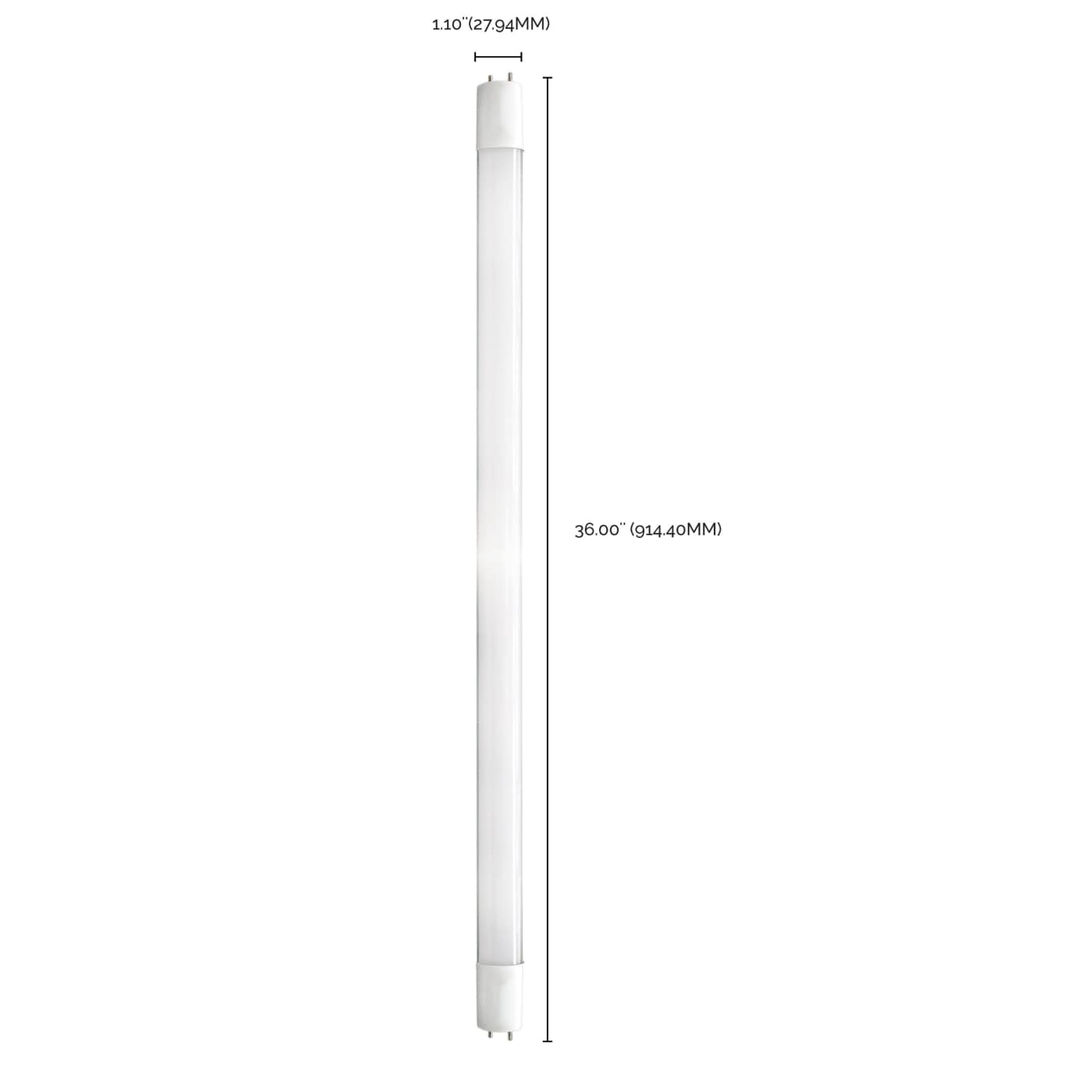

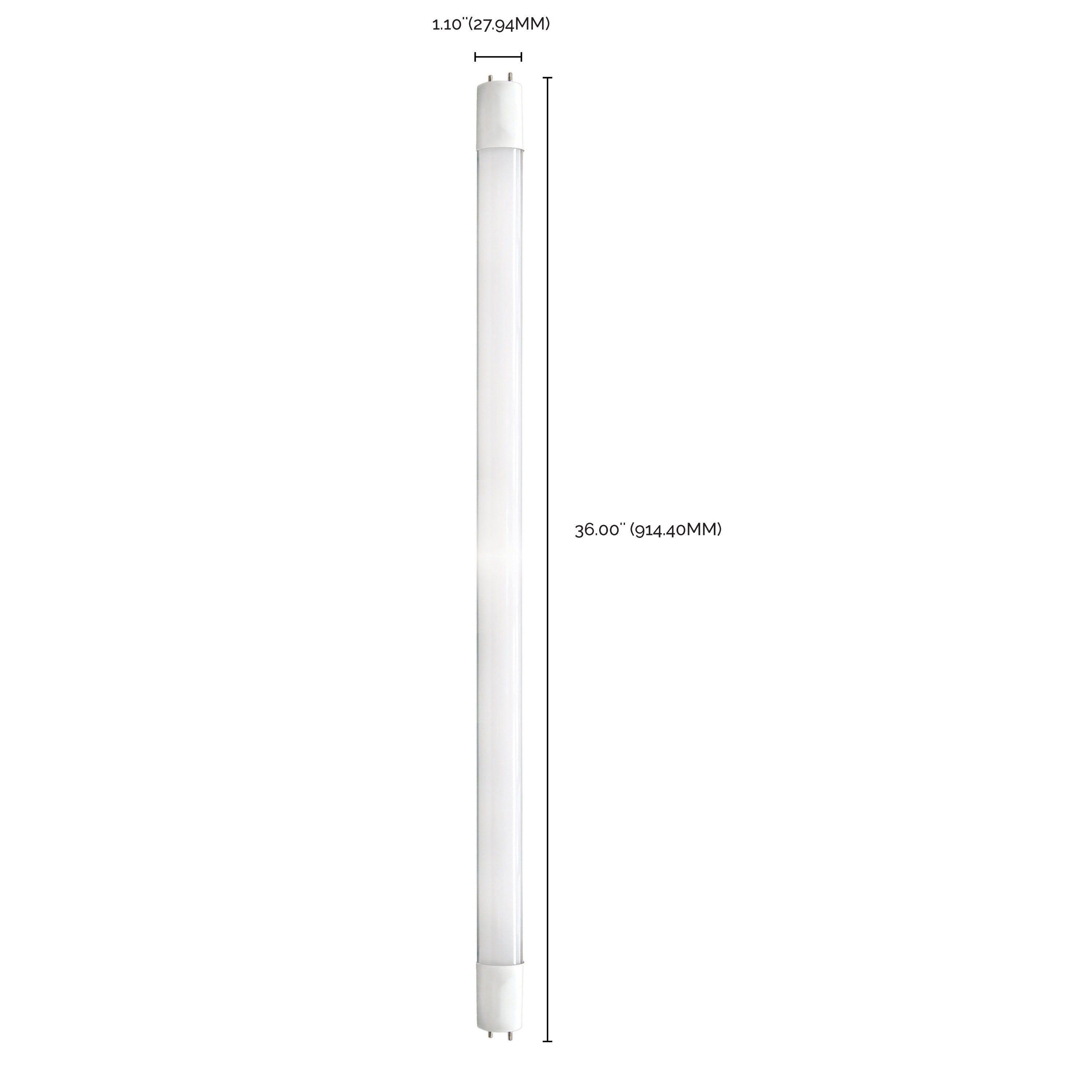

MOL35.78
MOD1.1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.34
Additional Information
Additional InfoEquivalent CCT selectable option available in S11765
Tube Guard UseYes
Installation NotesNot for use in vapor tight fixtures.
Specification NoteBuilt-in shock resistant circuit - (not hot until both ends are installed)
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Certified; cULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLEVJVG7MB2D
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923399282
Each Quantity1
Each Length (in.)36.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.45
Each Cube (CuFt.)0.0252
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923399289
Case Quantity25
Case Length (in.)37.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)11.33
Case Cube (CuFt.)0.7708
