Status | Active |
Watts | 8W |
Incandescent Equivalent | 110W |
Fluorescent Equivalent | 17W/15W |
Volts | Ballast Dependent |
Ballast Type | Type A |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Nominal Length | 24 |
Finish | Gloss White |
CCT (Kelvin) | 4000K |
Temperature | Cool White |
CRI | 82 |
Lumens | 1250L |
Beam Spread | 210 |
Dimmable | Yes-Dimmable |
Hours Rated | 50000 |
Product Category | Linear |
Lamp Type | Linear |
Technology | LED |
Watts | 8W |
Incandescent Equivalent | 110W |
Fluorescent Equivalent | 17W/15W |
Volts | Ballast Dependent |
Ballasting Requirements | Ballast required |
Ballast Type | Type A |
Operating Frequency | 50/60Hz |
CCT (Kelvin) | 4000K |
Temperature | Cool White |
CRI | 82 |
Lumens | 1250L |
Beam Spread | 210 |
Dimmable | Yes-Dimmable |
Dimming Note | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
Power Factor | 0.9 |
Hours Rated | 50000 |
THD | 20% |
Operating Temperature | -20C (-4F) to +45C (+113F) |
MOL | 23.78 |
MOD | 1.1 |
Nominal Length | 24 |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Finish | Gloss White |
Material | Glass |
Lens Finish | Gloss White |
Lens Material | Glass |
Housing Color | White |
Weight (lb.) | 0.22 |
Tube Guard Use | Approved for use with tube guards when operated on Low or Normal ballast factor systems |
Installation Notes | Not for use in vapor tight fixtures. |
Rated For Enclosed Fixture | Yes |
Warranty | 5 Year Limited - T8 LED Bulbs |
Safety Listing | cULus - Certified; cULus - Listed |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLOE7MPP97KC |
CA T20 / T24 Rationale | Exempt - Base Not Regulated |
RoHS Compliant | Yes |
FCC Compliant | Yes |
NSF Approved | Yes |
SDS Sheet | LED Lamp |
Each UPC | 045923499487 |
Each Quantity | 1 |

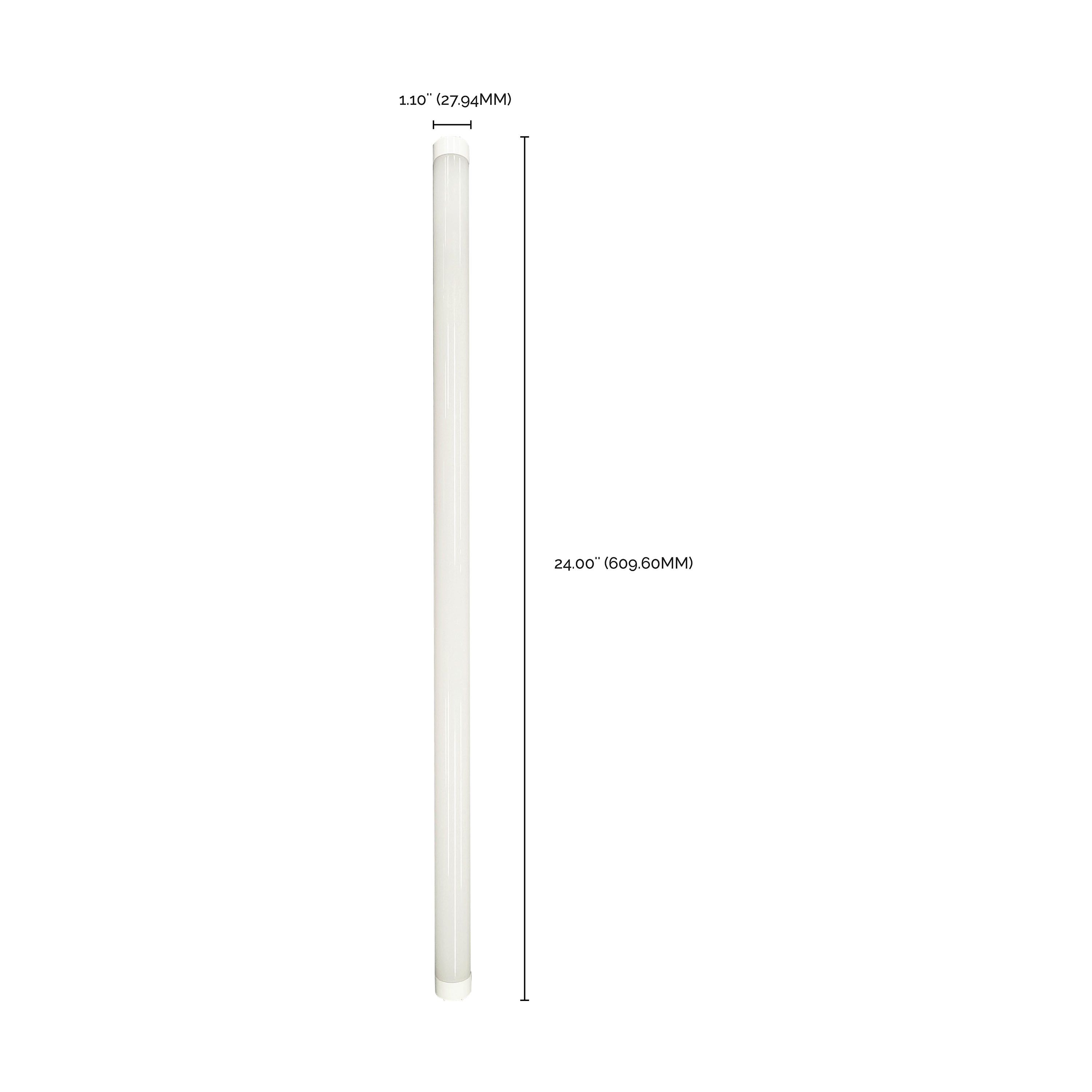

Each Length (in.) | 24.00 |
Each Width (in.) | 1.10 |
Each Height (in.) | 1.10 |
Each Weight (lb.) | 0.24 |
Each Cube (CuFt.) | 0.0168 |
Pack Type | Sleeve |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923499484 |
Case Quantity | 25 |
Case Length (in.) | 25.00 |
Case Width (in.) | 5.79 |
Case Height (in.) | 5.82 |
Case Weight (lb.) | 6.88 |
Case Cube (CuFt.) | 0.4875 |
