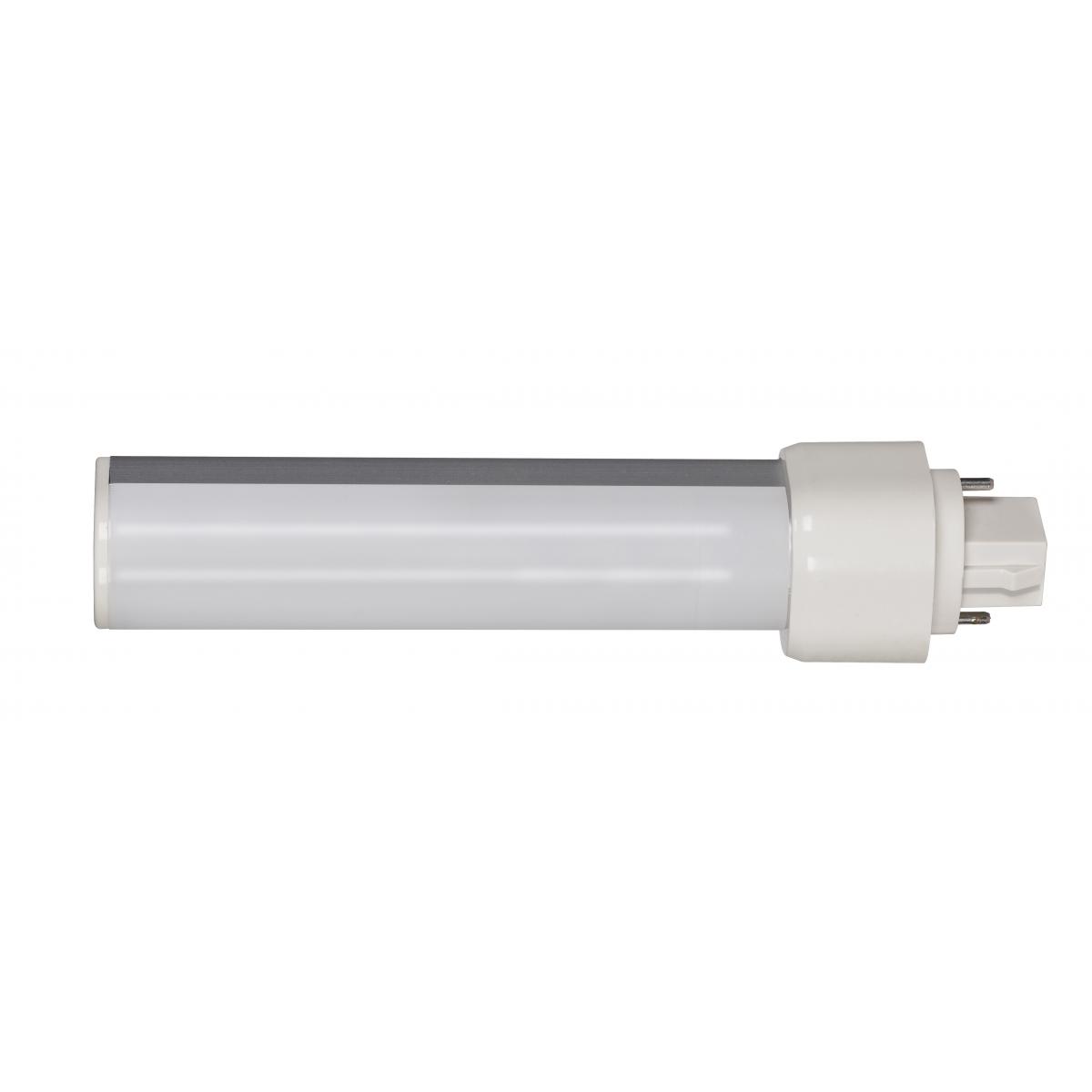

SKU S8530 - Image 1

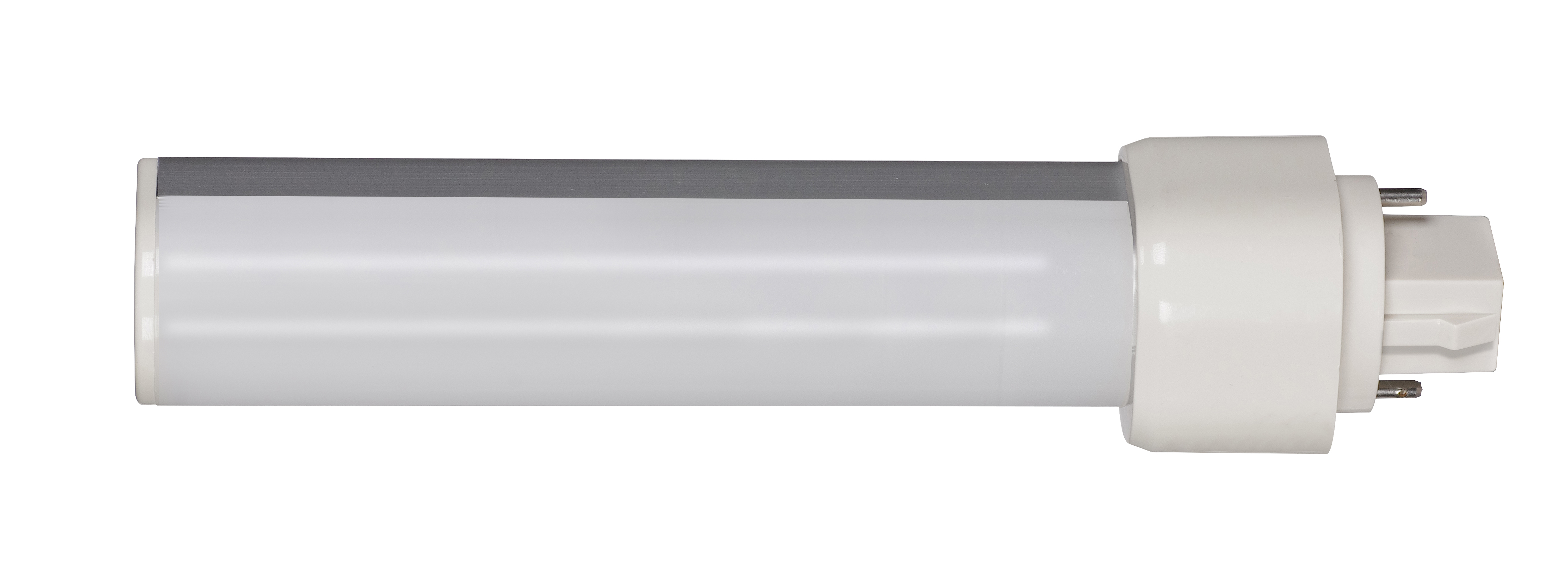

S8530

9WPLH/LED/827/BP/2P

  • 9 Watt LED PL 2-Pin
  • 2700K
  • 900 Lumens
  • G24d base
  • 50000 Average rated hours
  • 120 Deg. Beam Angle
  • Horizontal
  • Type B
  • Ballast Bypass
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S8530 SpecificationsS8530 InstructionsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Tools
Lighting Layout Analysis For S8530
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9 Watt LED PL 2-Pin; 2700K; 900 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Horizontal; Type B; Ballast Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
Fixture TypePL
StatusActive
StyleTransitional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.075-0.032A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionHorizontal
Power Factor0.99
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv18W/26W
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens900L
Volts120V-277V
Watts9W
Physical
Lamp BaseG24d (2-Pin)
FinishFrost
Housing ColorWhite
ANSI BaseG24d
Lamp TypePL
MOD Lamps1.09
MOL6.63
Additional Info
Warranty5-Years
Installation Notes2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923085307
Case Cube0.6567
Case Height9.0
Case Length14.56
Case Quantity50
Case UPC10045923085304
Case Weight13.0
Case Width8.66
EA Cube0.0088
EA Height6.77
EA Length1.5
EA Quantity1
EA Weight0.26
EA Width1.5
Inner Cube0.1083
Inner Height7.09
Inner Length8.0
Inner Quantity10
Inner UPC20045923085301
Inner Weight0.0
Inner Width3.3
Pack TypeBox
Web Length6.63
Web Width1.09
