» S8736

Discontinued – Suggested Replacement: S28737

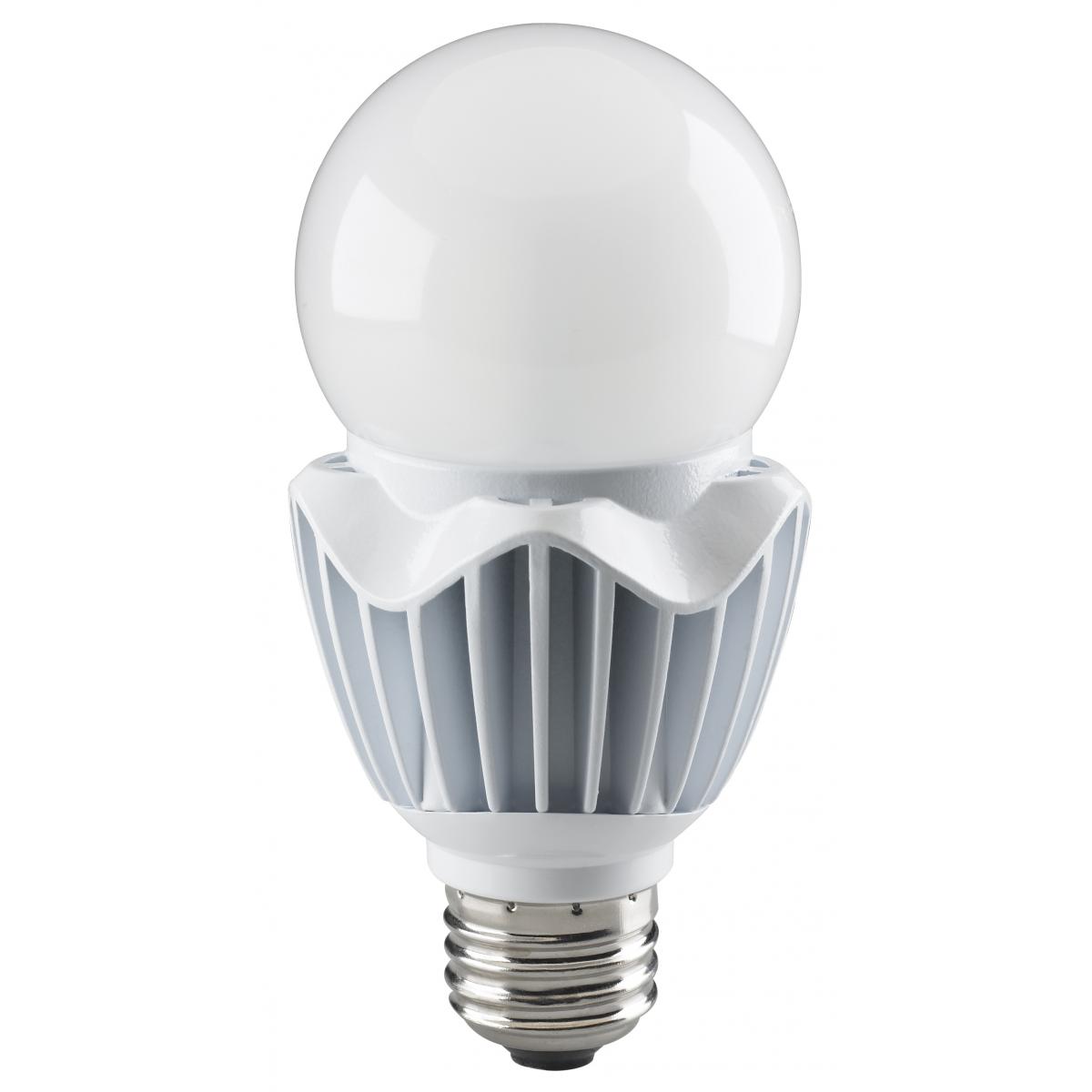

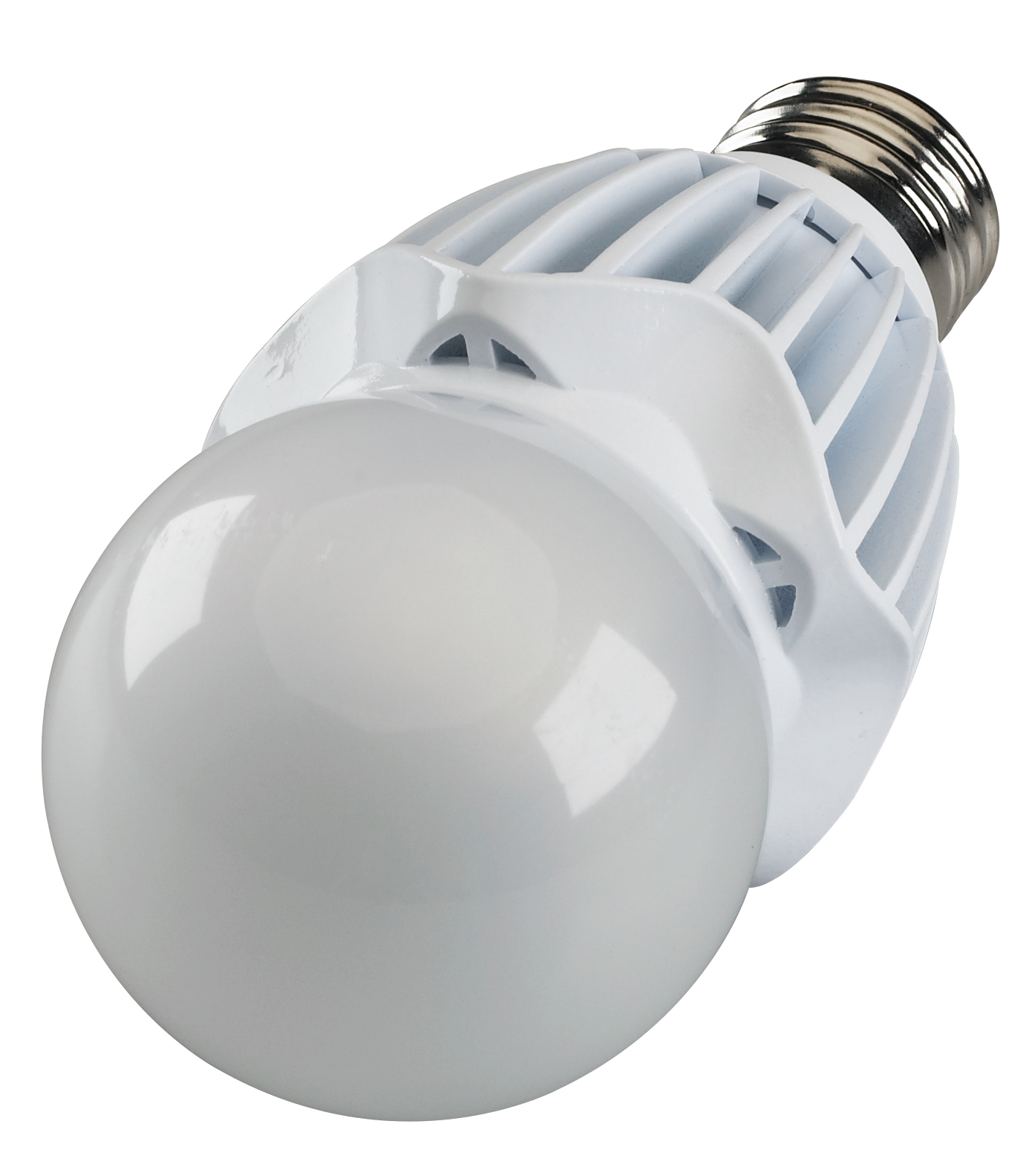

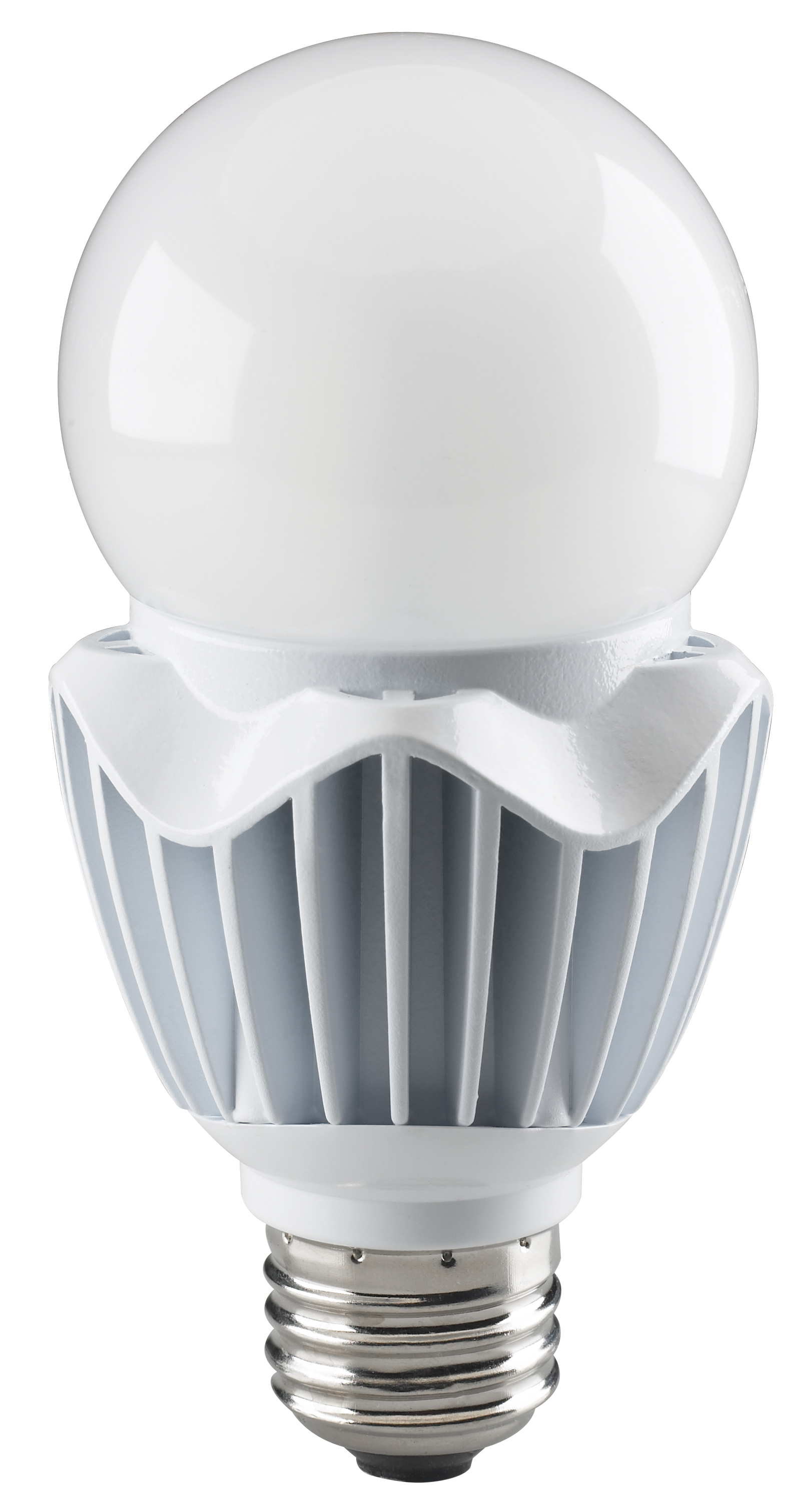

S8736 20WA21/LED/5K/120V/DIM

S8736

20WA21/LED/5K/120V/DIM

20 Watt - LED A21 High lumen output; 5000K; Medium base; 120 Volt


Lights

S8736

20WA21/LED/5K/120V/DIM

20 Watt - LED A21 High lumen output; 5000K; Medium base; 120 Volt

Specifications

General
StatusDiscontinued
SubstituteS28737
Watts20W
Incandescent Equivalent150W
Volts120V
ShapeA21
BaseMedium
ANSI BaseE26
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2860L
Beam Spread280
DimmableYes-Dimmable
Hours Rated25000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Electrical
Watts20W
Incandescent Equivalent150W
Volts120V
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2860L
Candlepower204
Beam Spread280
Power Factor>0.9
Hours Rated25000
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL5
MOD2.63
ShapeA21
BaseMedium
ANSI BaseE26
FinishFrost
Housing ColorWhite
Weight (lb.)0.34
Additional Information
Rated For Enclosed FixtureYes
Min Compartment SizeLength: 8.50 in. Width: 6 in. Depth: 6 in.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
Energy StarYes
ES Unique IDESID-2390502
CA T20 / T24 RationaleExempt - >2600 Lumens
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087363
Each Quantity1
Each Length (in.)2.76
Each Width (in.)2.76
Each Height (in.)5.50
Each Weight (lb.)0.59
Each Cube (CuFt.)0.0242
Pack TypeBox
Inner UPC20045923087367
Inner Quantity12
Inner Length (in.)14.37
Inner Width (in.)10.83
Inner Height (in.)6.89
Inner Weight (lb.)7.20
Inner Cube (CuFt.)0.6205
Case UPC10045923087360
Case Quantity24
Case Length (in.)15.16
Case Width (in.)11.42
Case Height (in.)15.35
Case Weight (lb.)15.50
Case Cube (CuFt.)1.5379
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Leviton 6674 Visit
Dimmer Satco 86/103 Visit
Dimmer Legrand ADTP703TU Visit
Dimmer Lutron AYCL-153P Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Leviton DSL06-1LZ Visit
Dimmer Leviton DSM10-1LZ Visit
Dimmer Lutron DVCL-153P Visit
Dimmer Lutron GP-CARD Visit
Dimmer Lutron GT-5NEM Visit
Dimmer Lutron GTJ-5NEM Visit
Dimmer Lutron HQRA-6CL Visit
Dimmer Lutron HQRD-10ND Visit
Dimmer Lutron HQRD-6CL Visit
Dimmer Lutron HQRD-6NA Visit
Dimmer Lutron HQRD-HN6BRL Visit
Dimmer Lutron HW-RPM-4A-120 Visit
Dimmer Lutron HW-RPM-4U-120 Visit
Dimmer Lutron HWD-6ND Visit
Dimmer Lutron HWI-WPM-6D-120 Visit
Dimmer Leviton IPL06-10Z Visit
Dimmer Lutron LECL-153PH Visit
Dimmer Lutron LQRJ-WPM-6P Visit
Dimmer Lutron LQSE-4A-120-D Visit
Dimmer Lutron LQSE-4A1-D Visit
Dimmer Lutron MACL-153M Visit
Dimmer Lutron MRF2S-6CL Visit
Dimmer Lutron MRF2S-6ELV Visit
Dimmer Lutron MSCL-OP153M Visit
Dimmer Lutron NTRP-250 Visit
Dimmer Lutron PD-6WCL Visit
Dimmer Lutron PHPM-WBX-120 Visit
Dimmer Lutron RRD-10ND Visit
Dimmer Lutron RRD-6CL Visit
Dimmer Lutron RRD-HN6BRL Visit
Dimmer Lutron SZ-6ND Visit
Dimmer Eaton TAL06P-C2 Visit
×
×
