S9729

7.5WLED/RDL/4"BFL/12V 90CRI 3K

Discontinued - Suggested Replacement: S11838

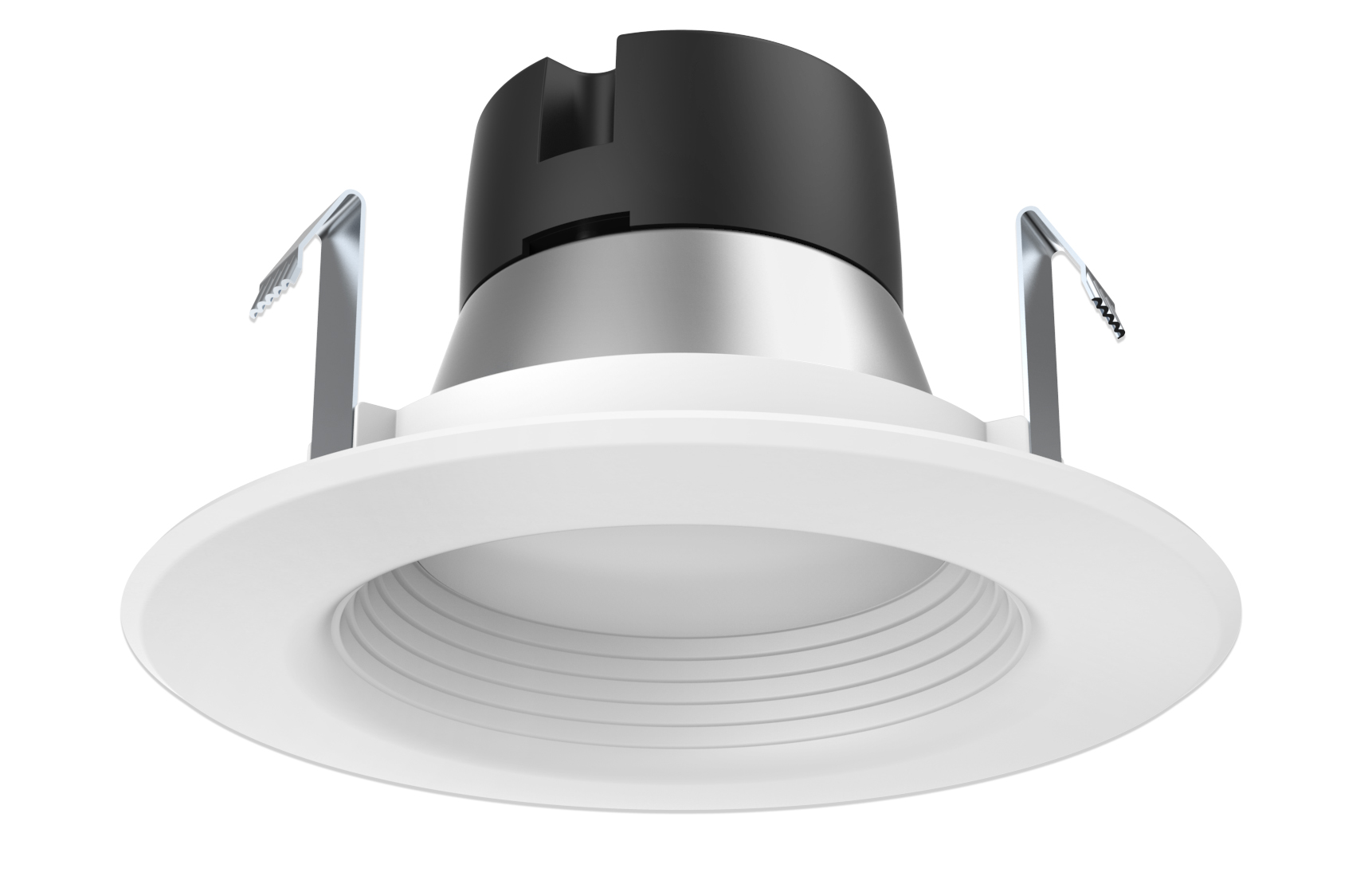

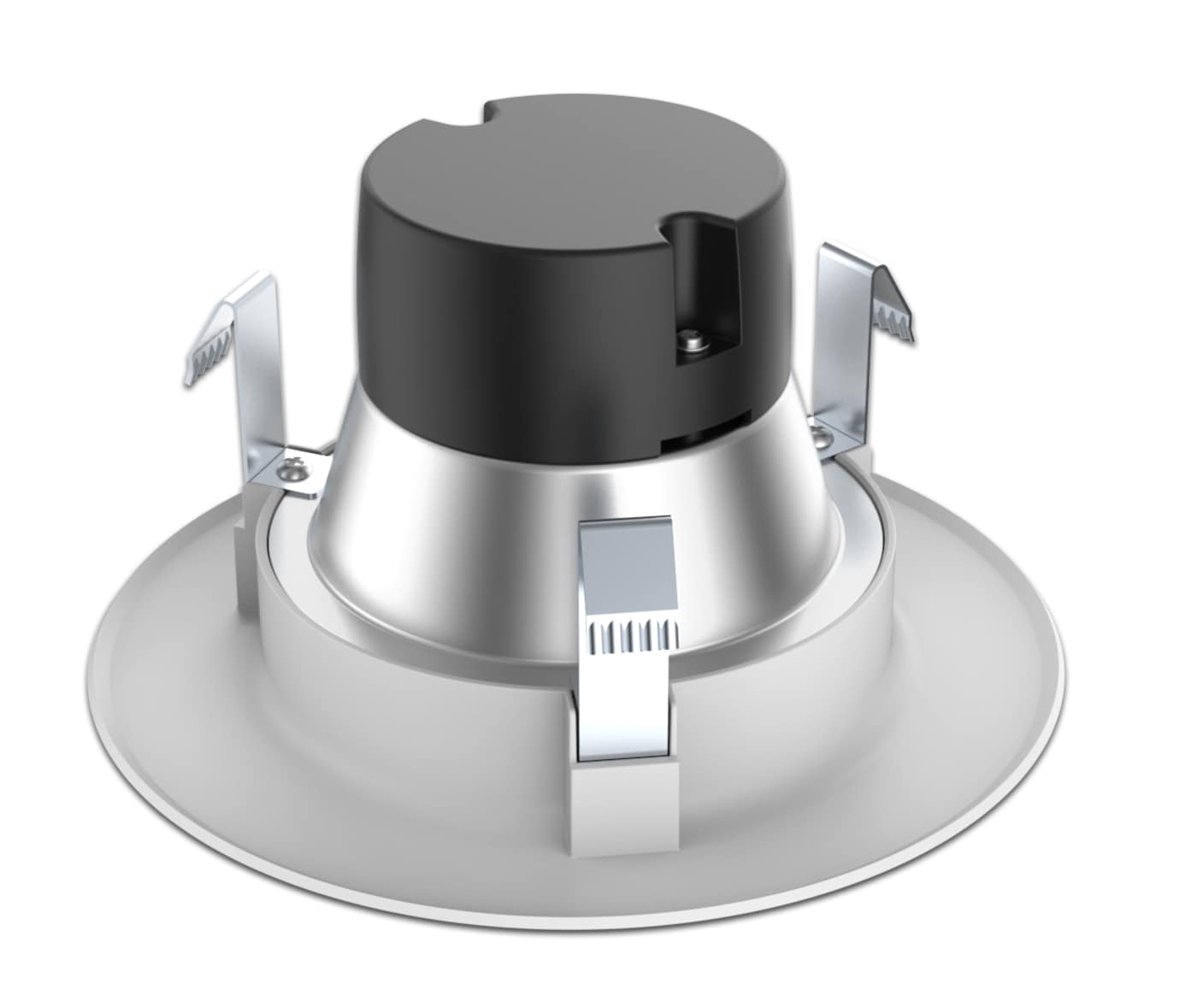

  • 7.5 watt LED Downlight Retrofit
  • 4'' Baffle
  • 3000K
  • GU5.3 socket for MR16 retrofit
  • 12 volts
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^35k^2
fcc_compliant^true^3
rohs_compliant^y^3
S9729 SpecificationsS9729 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Description
Description
7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

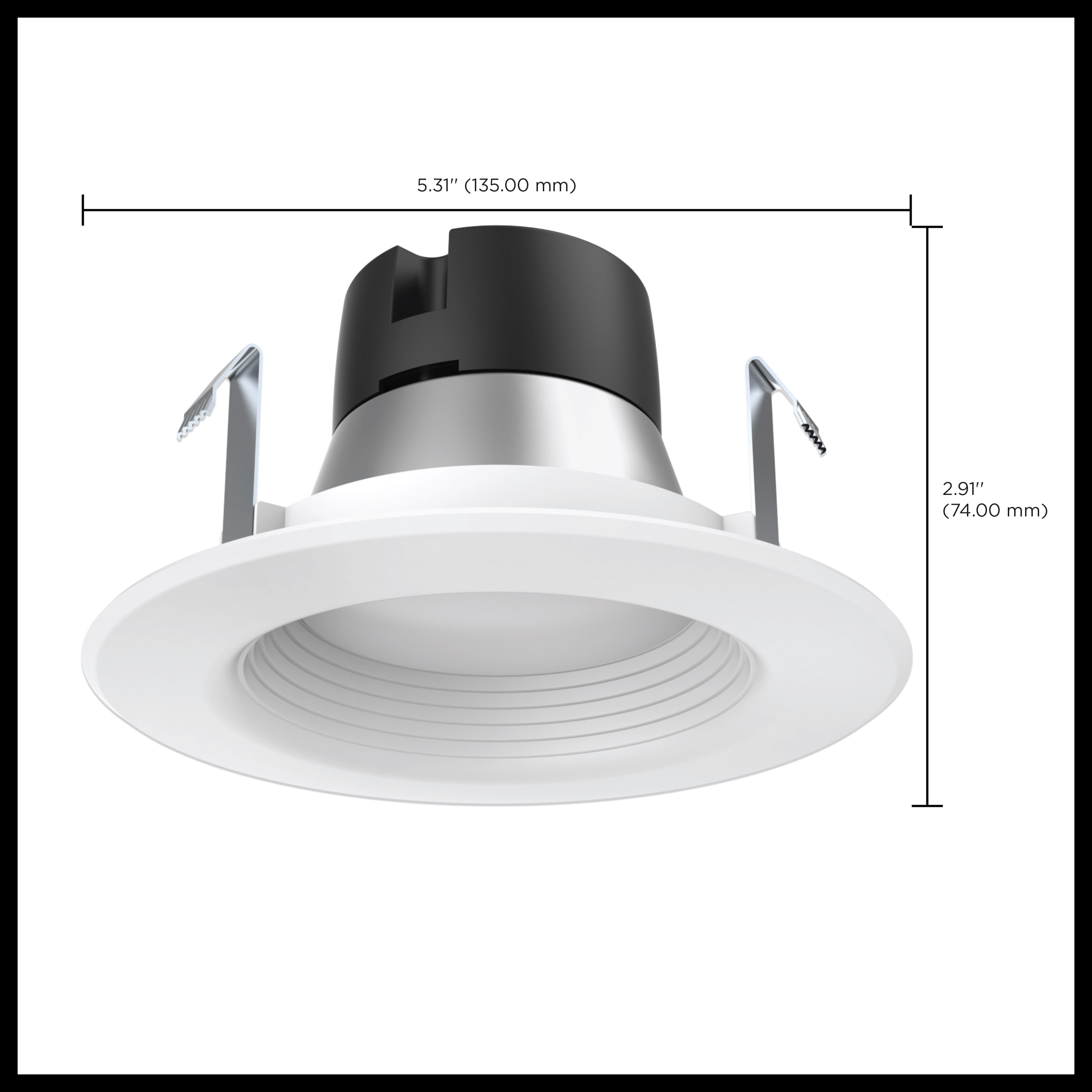

Diameter5.31
MaterialAluminum
Fixture TypeDownlight Retrofit
IncludesBi Pin GU5.3 Adapter included with this fixture
StatusDiscontinued
StyleModern and Contemporary
Most Current GenerationS11838
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyWhite
Additional InfoThe dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require an ELV dimmer (Lutron DVELV-300P-WH).
Amps0.625A
Has CameraFalse
IOT EnabledFalse
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated35000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Temp-20C (-4F) to +45C (+113F)
Lumens460L
Volts12V
Watts7.5W
Physical
Lamp BaseBi Pin GU5.3
FinishWhite / Frosted
ANSI BaseGU5.3 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty3-Years
Installation NotesGU5.3 base
Documents
Compliance
CA RegulationsExempt - Base Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingNot Listed
CA Compliance TextLawful for sale
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923097294
Case Cube1.0302
Case Height6.69
Case Length22.84
Case Quantity12
Case UPC10045923097291
Case Weight7.34
Case Width11.65
EA Cube0.0682
EA Height5.91
EA Length5.51
EA Quantity1
EA Weight0.51
EA Width3.62
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.91
Web Width5.31
