» S9768

Discontinued – Suggested Replacement: S39768

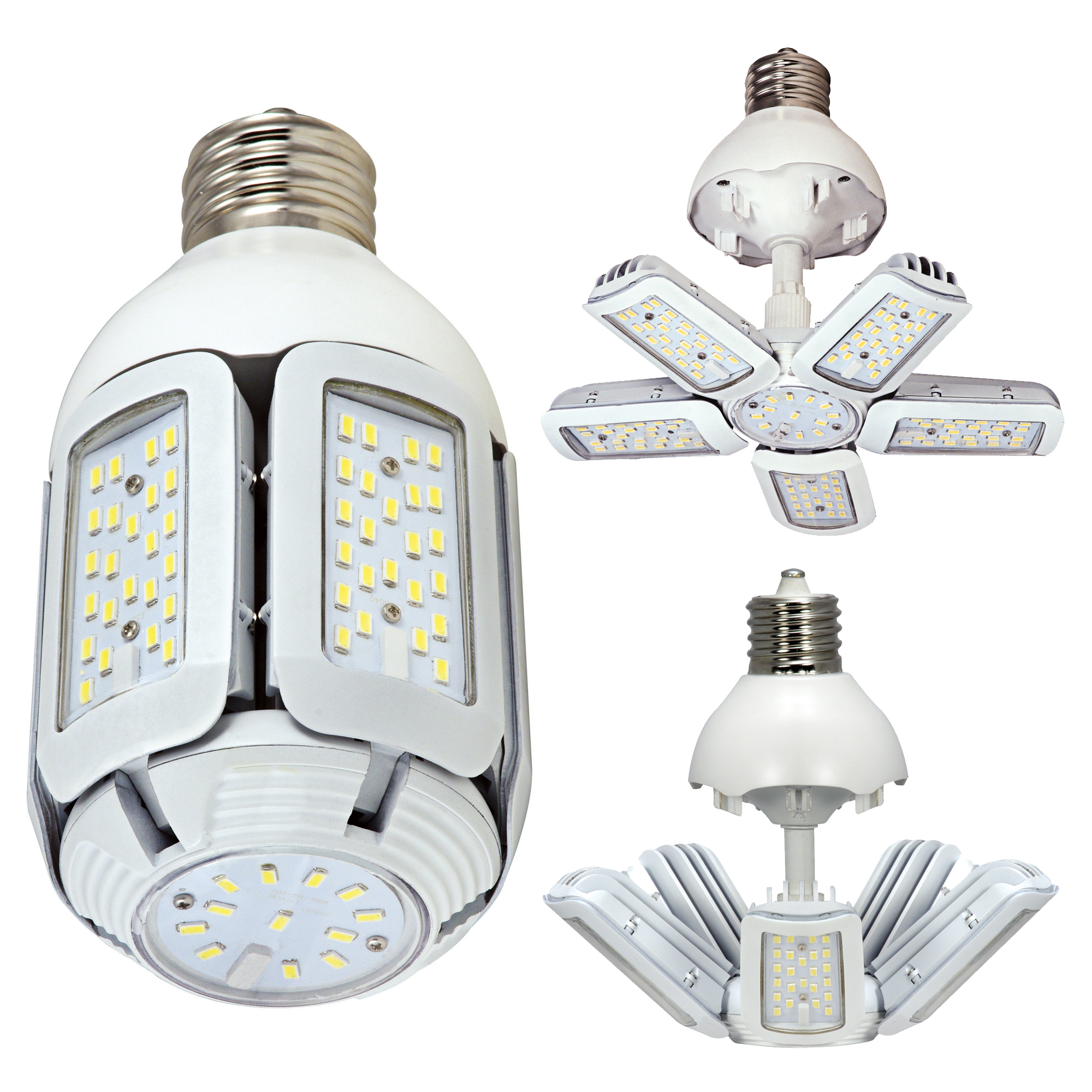

S9768 30W/LED/HID/MB/2700K/100-277V

S9768

30W/LED/HID/MB/2700K/100-277V

30 Watt LED HID Replacement; 2700K; Medium base; Adjustable beam angle; 100-277 Volt


Lights

S9768

30W/LED/HID/MB/2700K/100-277V

30 Watt LED HID Replacement; 2700K; Medium base; Adjustable beam angle; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39768
Watts30W
Incandescent Equivalent200W
Fluorescent Equivalent55W
HID Equivalent150W
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)2700K
TemperatureWarm White
CRI83
Lumens3660L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 11.02 in. Width: 8 in. Depth: 8 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts30W
Incandescent Equivalent200W
Fluorescent Equivalent55W
HID Equivalent150W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Working VoltageAC 90-305V
Operating Frequency50-60Hz
CCT (Kelvin)2700K
TemperatureWarm White
CRI83
Lumens3660L
Beam Spread360
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL6.38
MOD3.19
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
Additional InfoWidth 360 deg 3.2 in.; Width 270 deg 6.8 in.; Width 180 deg 7.7 in.
Min Compartment SizeLength: 11.02 in. Width: 8 in. Depth: 8 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 7.69 inches
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - >2600 Lumens
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923097683
Each Quantity1
Each Length (in.)4.70
Each Width (in.)4.70
Each Height (in.)7.80
Each Weight (lb.)1.62
Each Cube (CuFt.)0.0997
Pack TypeBox
Inner UPC20045923097687
Inner Quantity6
Inner Length (in.)12.60
Inner Width (in.)8.27
Inner Height (in.)8.66
Inner Weight (lb.)10.09
Inner Cube (CuFt.)0.5222
Case UPC10045923097680
Case Quantity24
Case Length (in.)18.31
Case Width (in.)17.80
Case Height (in.)13.58
Case Weight (lb.)42.55
Case Cube (CuFt.)2.5613
