» S9924

Discontinued – Suggested Replacement: S29924

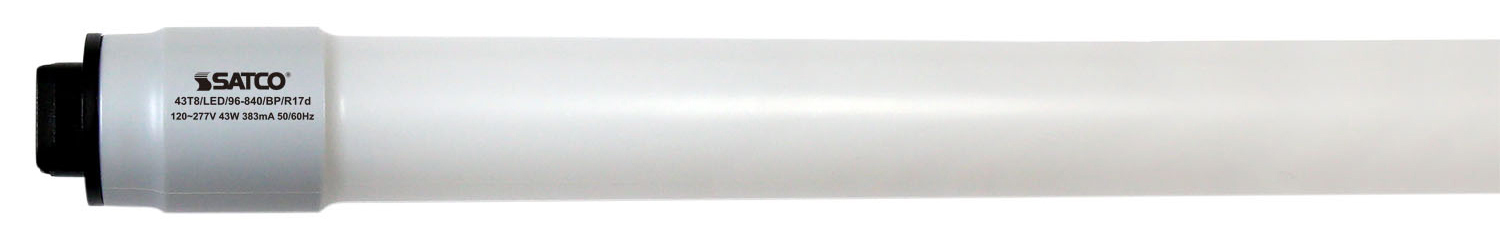

S9924 43T8/LED/96-840/BP/R17D HO

S9924

43T8/LED/96-840/BP/R17D HO

43 Watt T8 LED; 4000K; Recessed Double Contact base; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring


Lights

S9924

43T8/LED/96-840/BP/R17D HO

43 Watt T8 LED; 4000K; Recessed Double Contact base; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Specifications

General
StatusDiscontinued
SubstituteS29924
Watts43W
Incandescent Equivalent125W
Fluorescent Equivalent110W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseRecessed Double Contact HO/VHO
ANSI BaseR17d
Nominal Length96
FinishGloss White
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens5500L
Beam Spread210
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts43W
Incandescent Equivalent125W
Fluorescent Equivalent110W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens5500L
Beam Spread210
DimmableNon-Dimmable
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL96
MOD1
Nominal Length96
ShapeT8
BaseRecessed Double Contact HO/VHO
ANSI BaseR17d
FinishGloss White
Lens FinishGloss White
Weight (lb.)0.91
Additional Information
Shatter-Proof TypeYes
Installation NotesNot for use in vapor tight fixtures. Double ended wiring
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923099243
Each Quantity1
Each Length (in.)93.70
Each Width (in.)1.02
Each Height (in.)1.02
Each Weight (lb.)0.97
Each Cube (CuFt.)0.0564
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099240
Case Quantity10
Case Length (in.)95.67
Case Width (in.)7.48
Case Height (in.)4.72
Case Weight (lb.)13.23
Case Cube (CuFt.)1.9547
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
