» S9927

Discontinued – Suggested Replacement: S39927

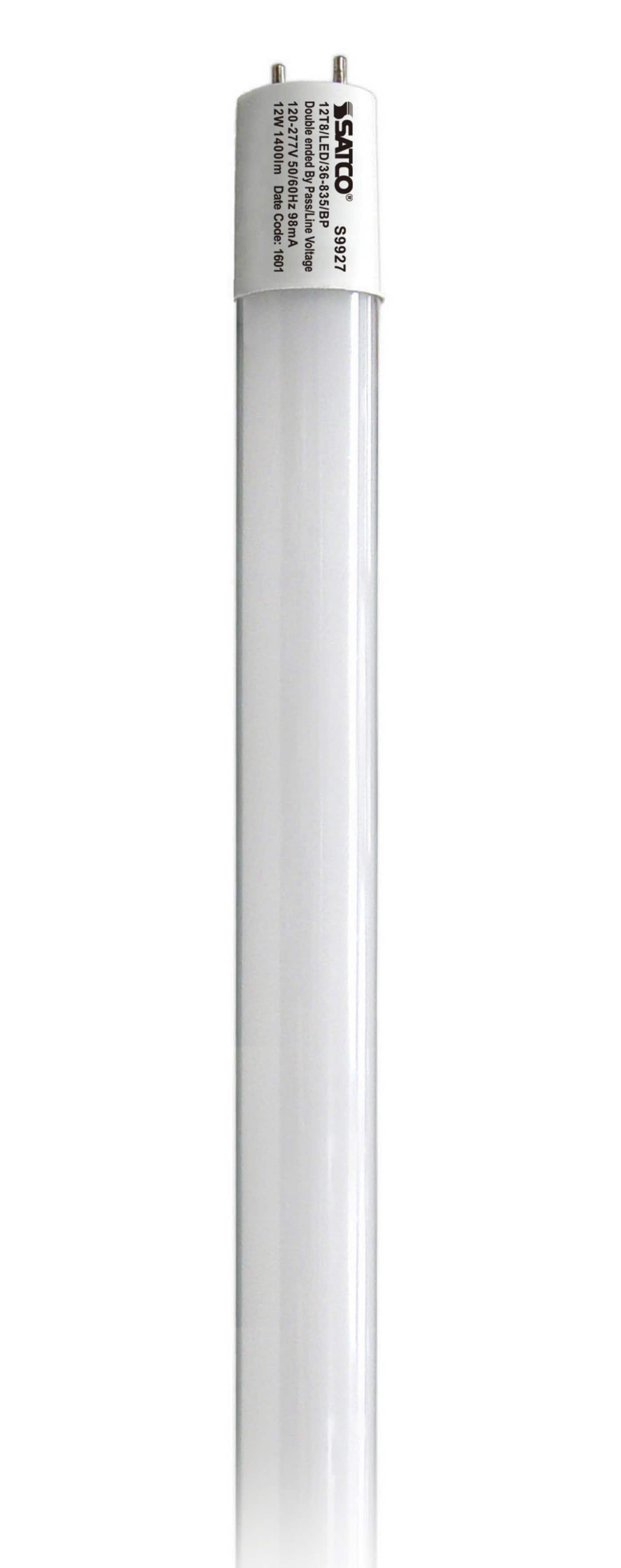

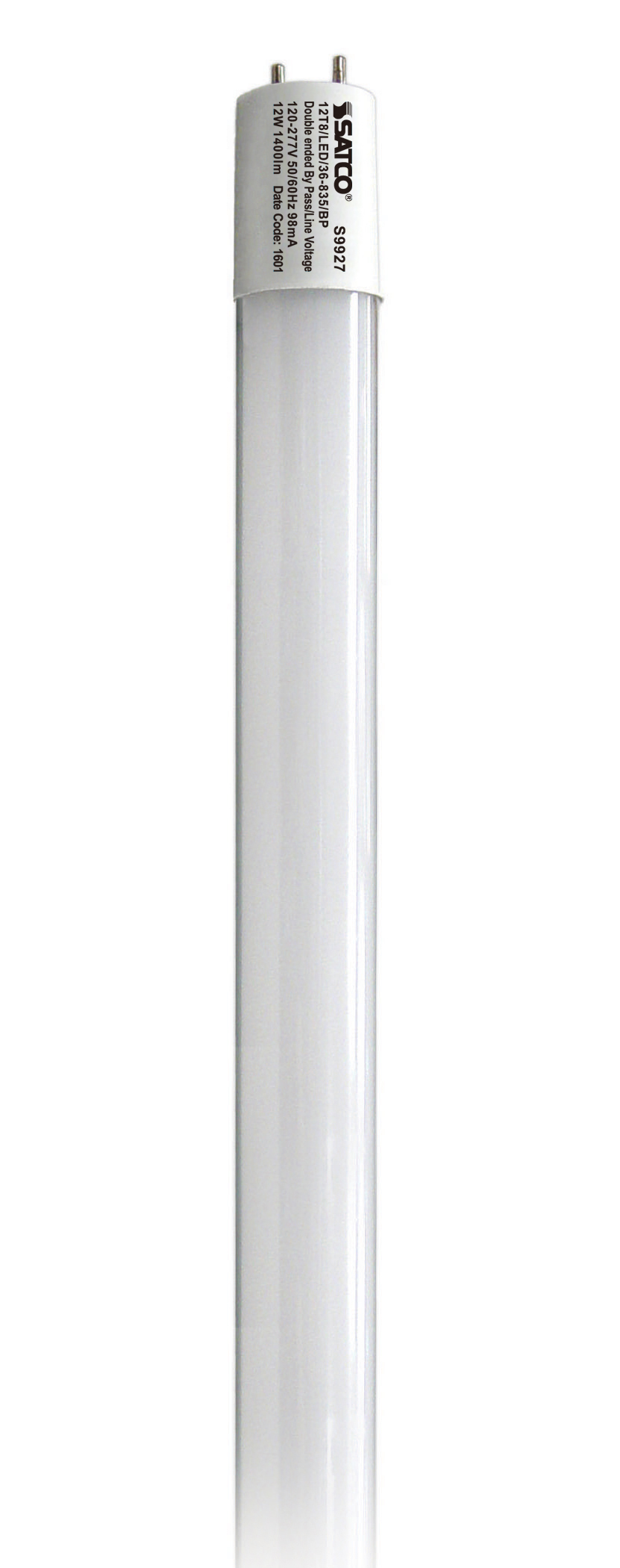

S9927 12T8/LED/36-835/BP 120-277V

S9927

12T8/LED/36-835/BP 120-277V

12 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours;Type B Ballast Bypass; 1400 Lumens


Lights

S9927

12T8/LED/36-835/BP 120-277V

12 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours;Type B Ballast Bypass; 1400 Lumens

Specifications

General
StatusDiscontinued
SubstituteS39927
Watts12W
Incandescent Equivalent60W
Fluorescent Equivalent25W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1400L
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent60W
Fluorescent Equivalent25W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1400L
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL36
MOD1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
Lens FinishFrost
Additional Information
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923099274
Each Quantity1
Each Length (in.)35.70
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.39
Each Cube (CuFt.)0.0207
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099271
Case Quantity10
Case Length (in.)36.40
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)4.60
Case Cube (CuFt.)0.3981
No compatibility links for this item.
×
×
×
