» S9950

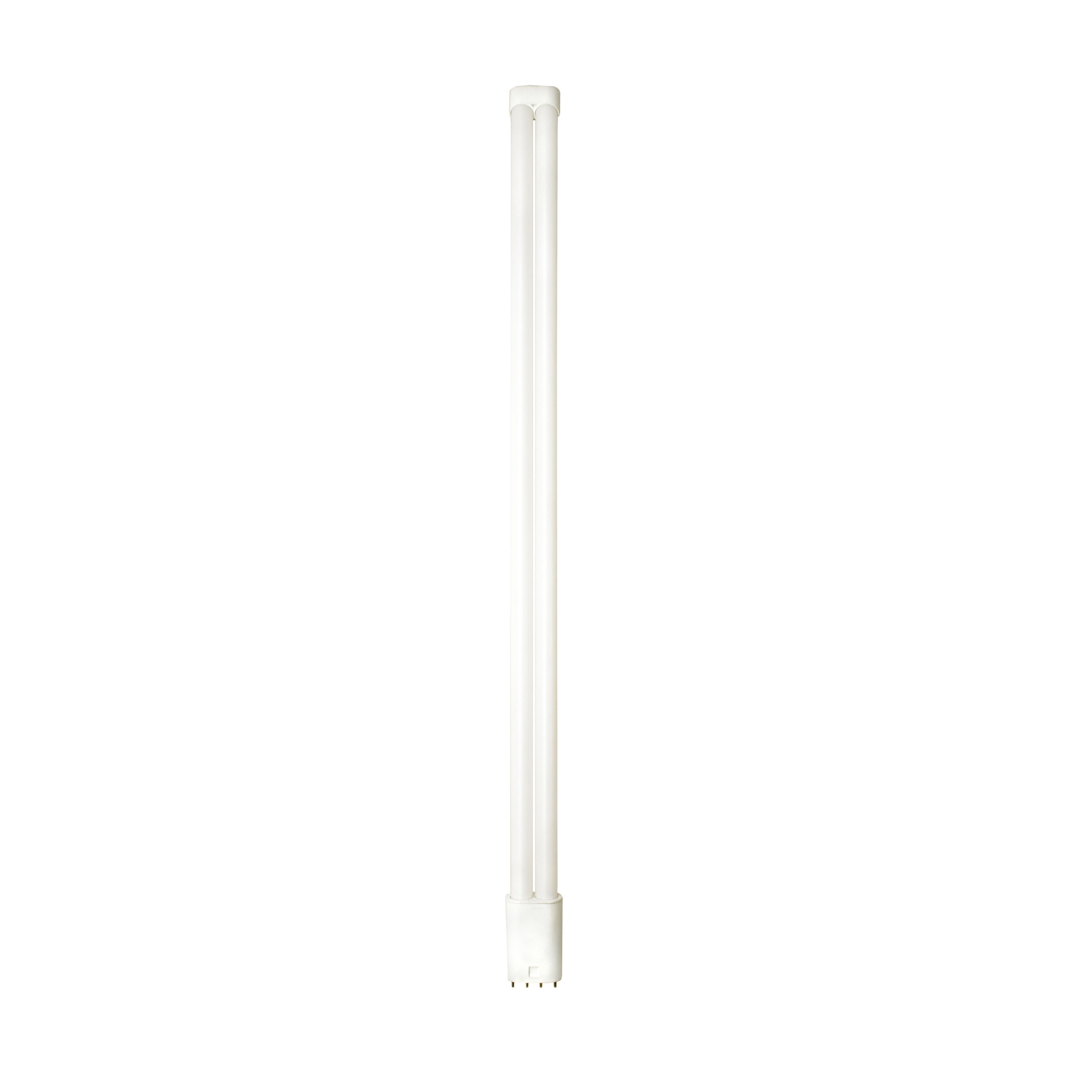

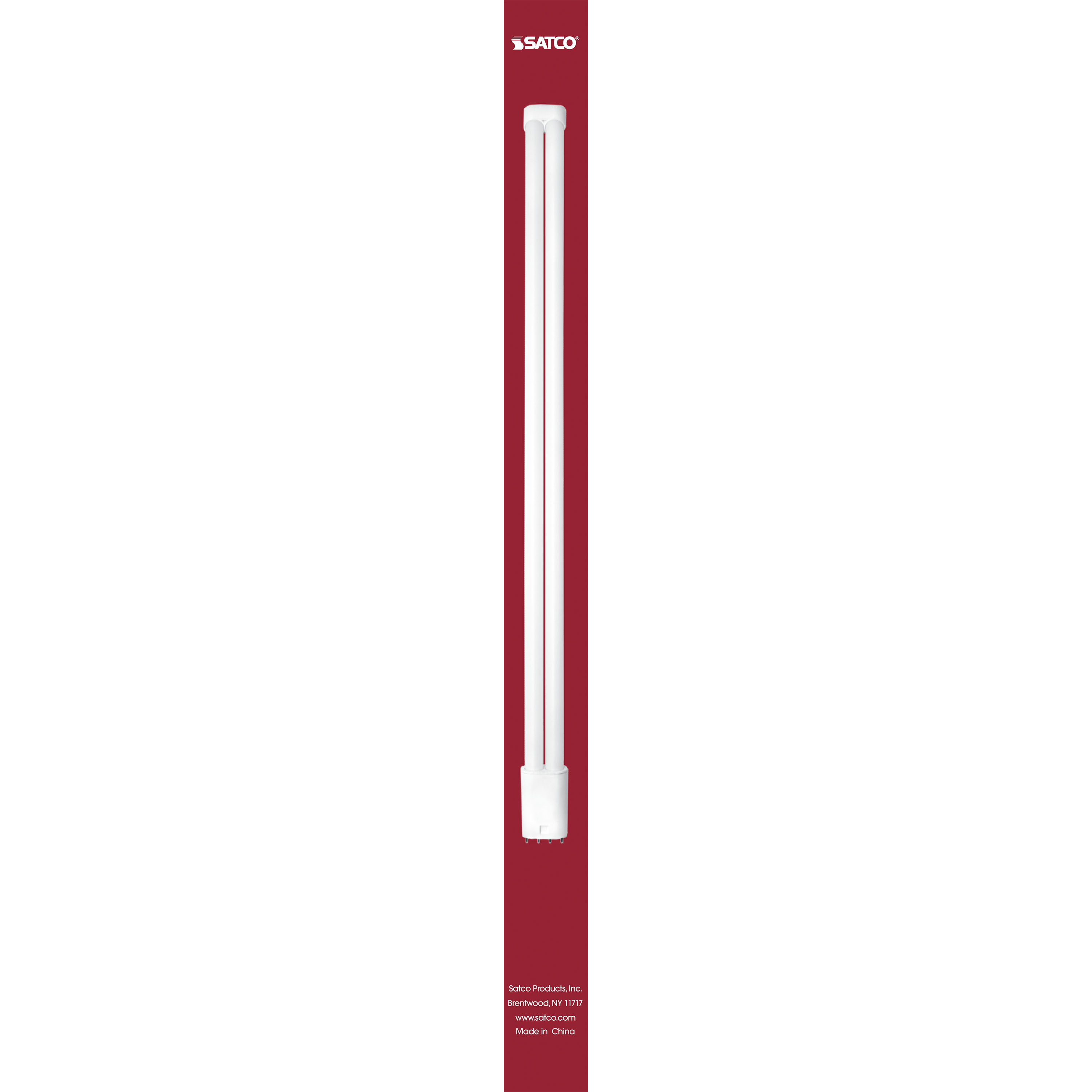

S9950 23PLL/LED/835/BP

S9950

23PLL/LED/835/BP

23 Watt PLL LED ballast bypass; 2G11 base; 2800 Lumens; 120-277 Volt; 3500K; Type B; Ballast Bypass


Lights

S9950

23PLL/LED/835/BP

23 Watt PLL LED ballast bypass; 2G11 base; 2800 Lumens; 120-277 Volt; 3500K; Type B; Ballast Bypass

Specifications

General
StatusActive
Watts23W
Fluorescent Equivalent40W
Volts120V-277V
Ballast TypeType B
ShapeT5

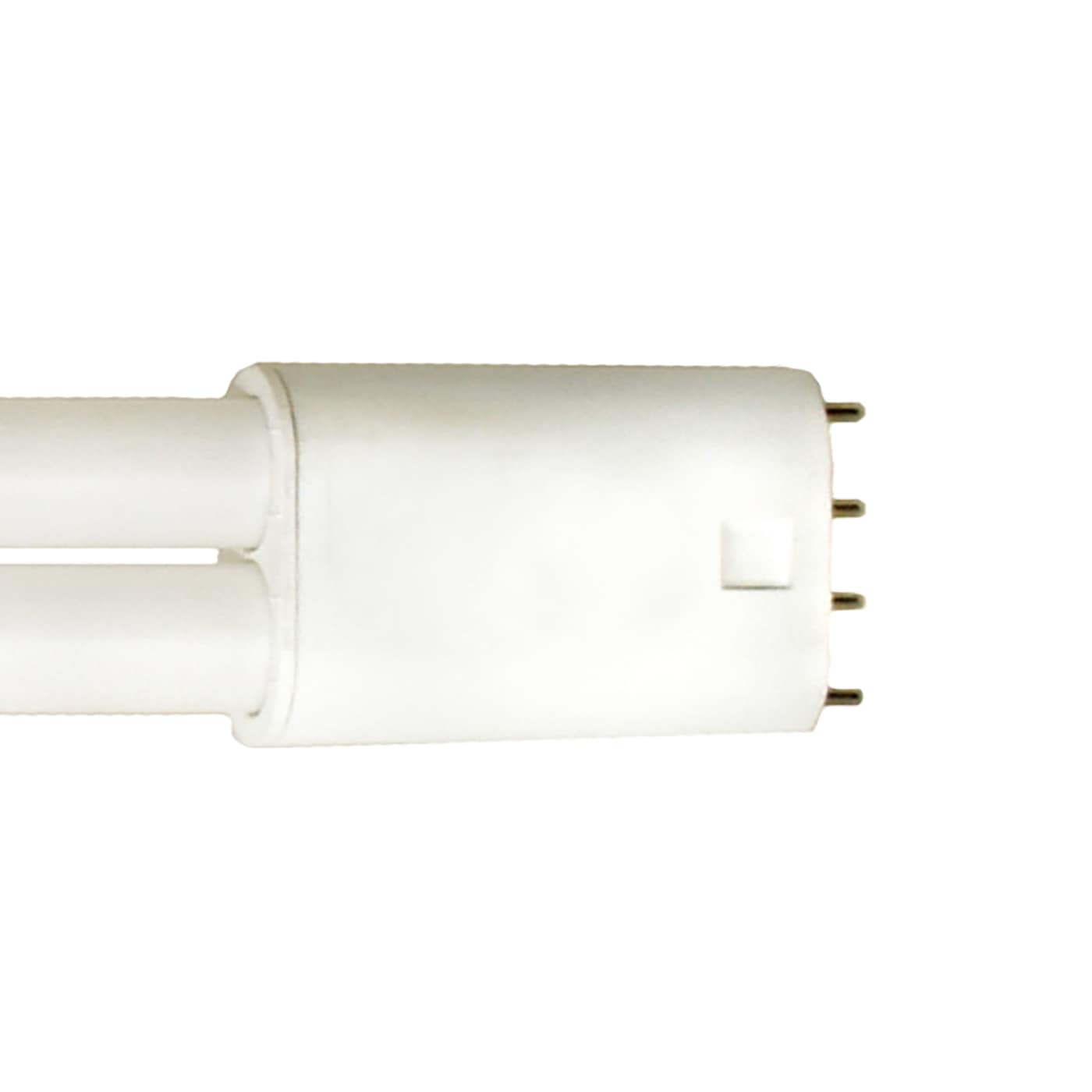

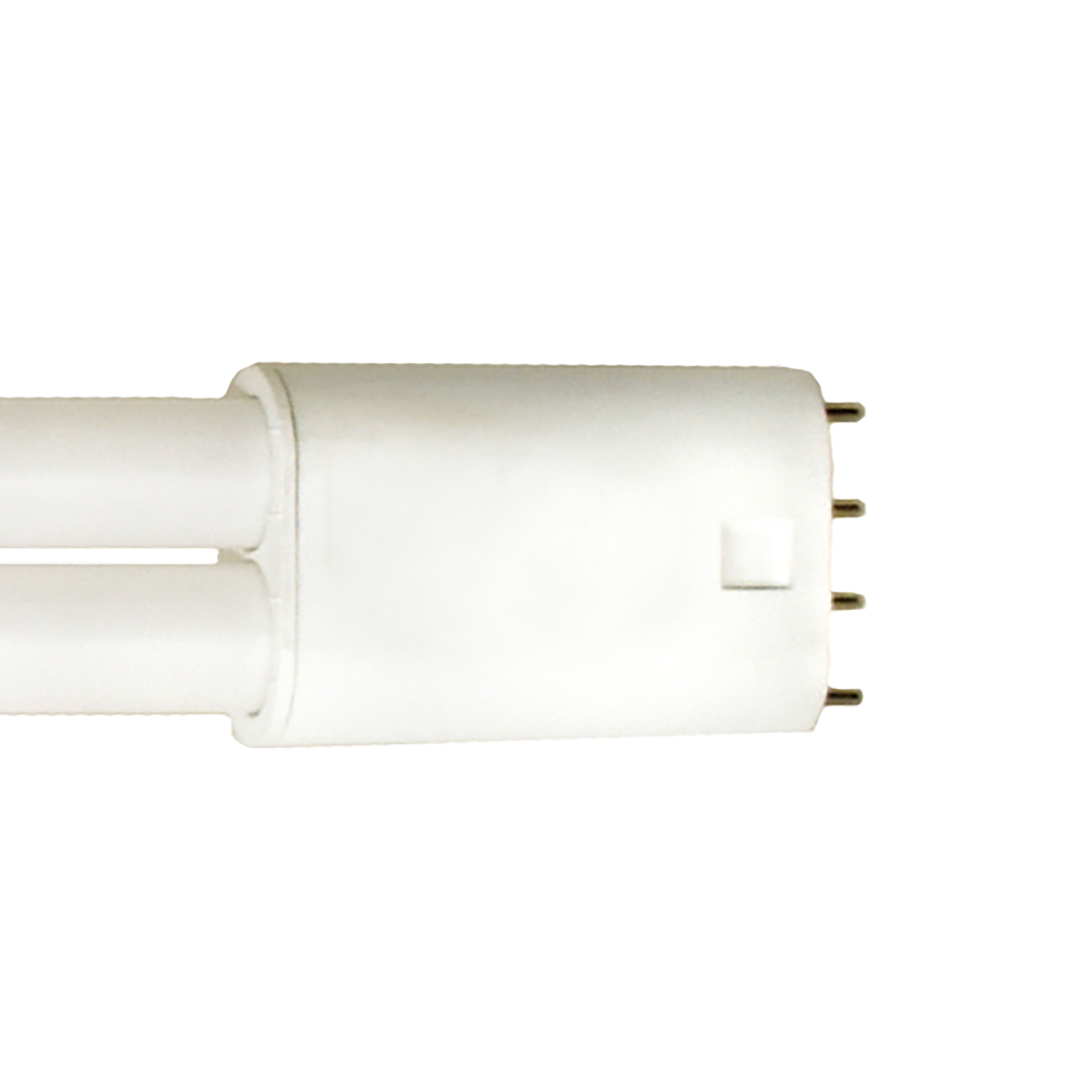

Base2G11
ANSI Base2G11
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82

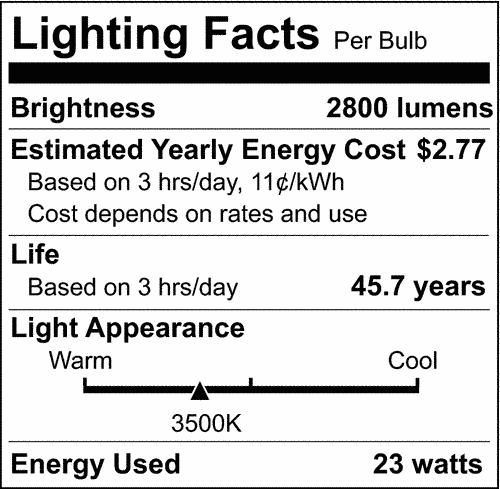

Lumens2800L
Beam Spread270
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionUniversal
TechnologyLED
Electrical
Watts23W
Fluorescent Equivalent40W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens2800L
Beam Spread270
Power Factor0.9
Hours Rated50000
THD20%
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

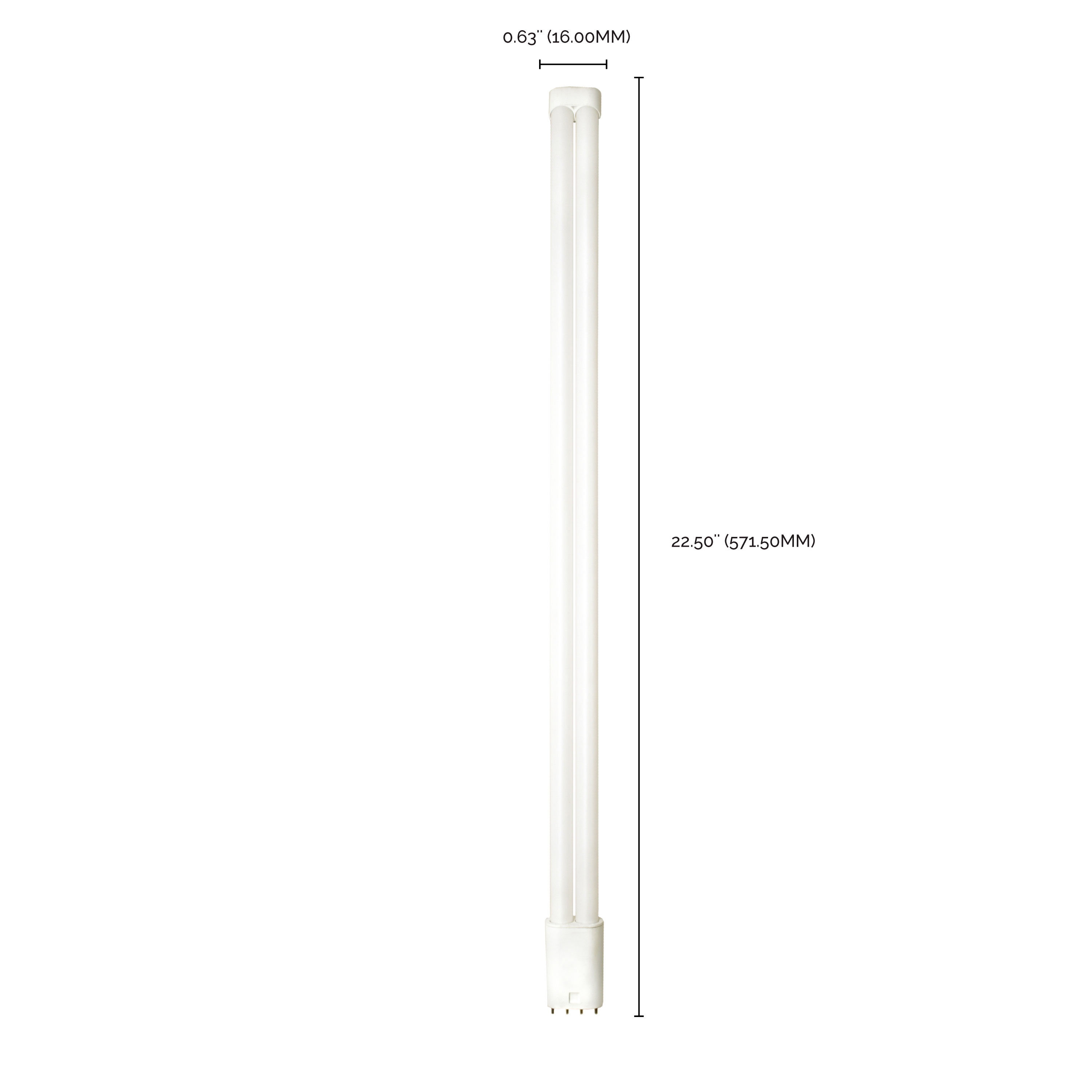

MOL22.5
MOD0.63
ShapeT5
Base2G11
ANSI Base2G11
FinishFrost
Housing ColorWhite
Weight (lb.)0.38
Additional Information
Additional InfoCCT Selectable Option: S18423
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDP0O7T912
NSF ApprovedYes
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923099502
Each Quantity1
Each Length (in.)23.00
Each Width (in.)1.80
Each Height (in.)1.10
Each Weight (lb.)0.45
Each Cube (CuFt.)0.0264
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099509
Case Quantity10
Case Length (in.)23.60
Case Width (in.)4.30
Case Height (in.)6.70
Case Weight (lb.)5.10
Case Cube (CuFt.)0.3935
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
