SKU TH475 - Image 1
TH475

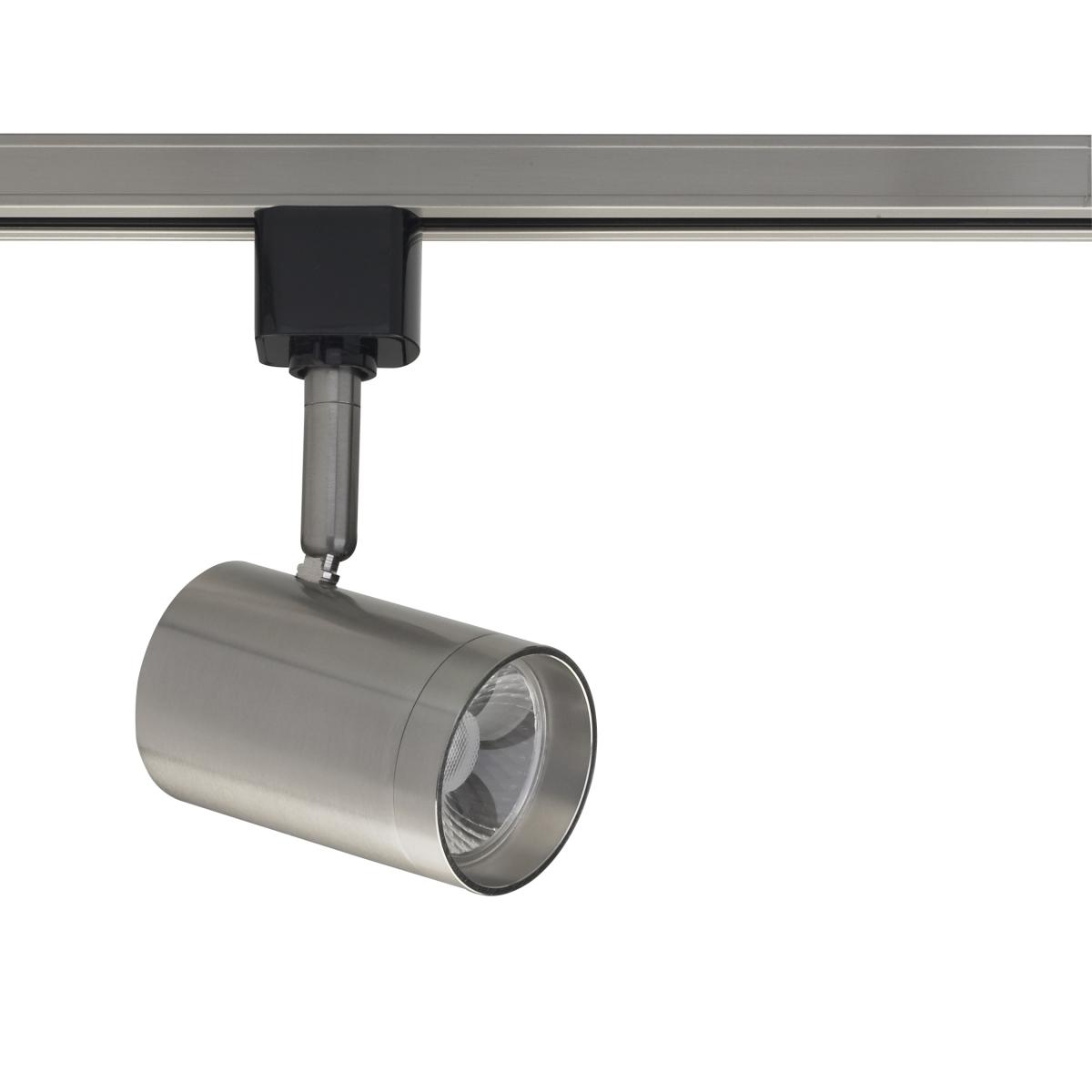

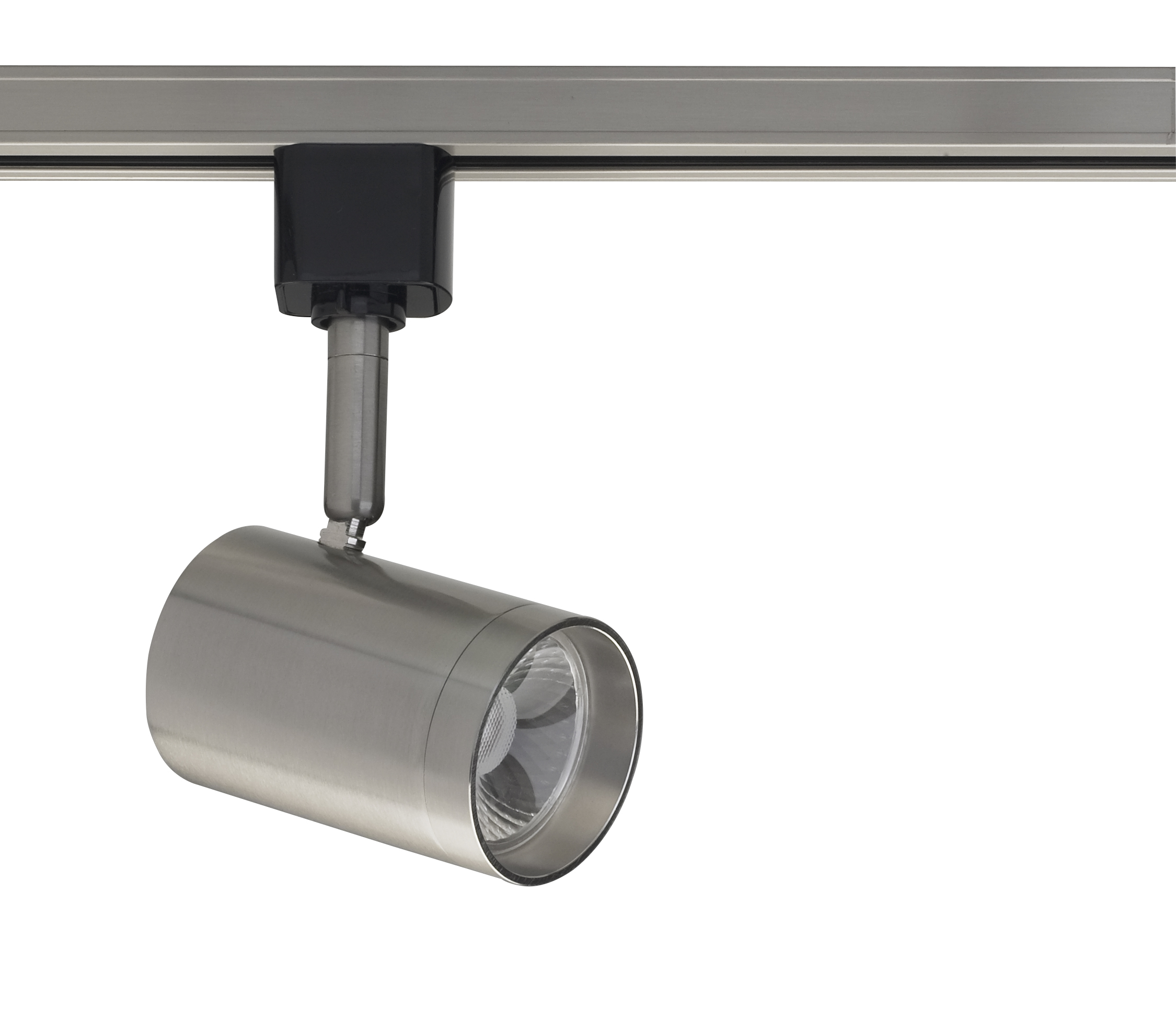

12W LED TRACK SMALL CYLINDER

  • 1 Light - LED - 12W Track Head - Small Cylinder - Brushed Nickel - 24 Deg. Beam
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^30k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
TH475 SpecificationsTH475 InstructionsTH475 H-Style Track Head Installation Instructions
Tools
Lighting Layout Analysis For TH475
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
1 Light - LED - 12W Track Head - Small Cylinder - Brushed Nickel - 24 Deg. Beam
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
Dimmable Text120V only

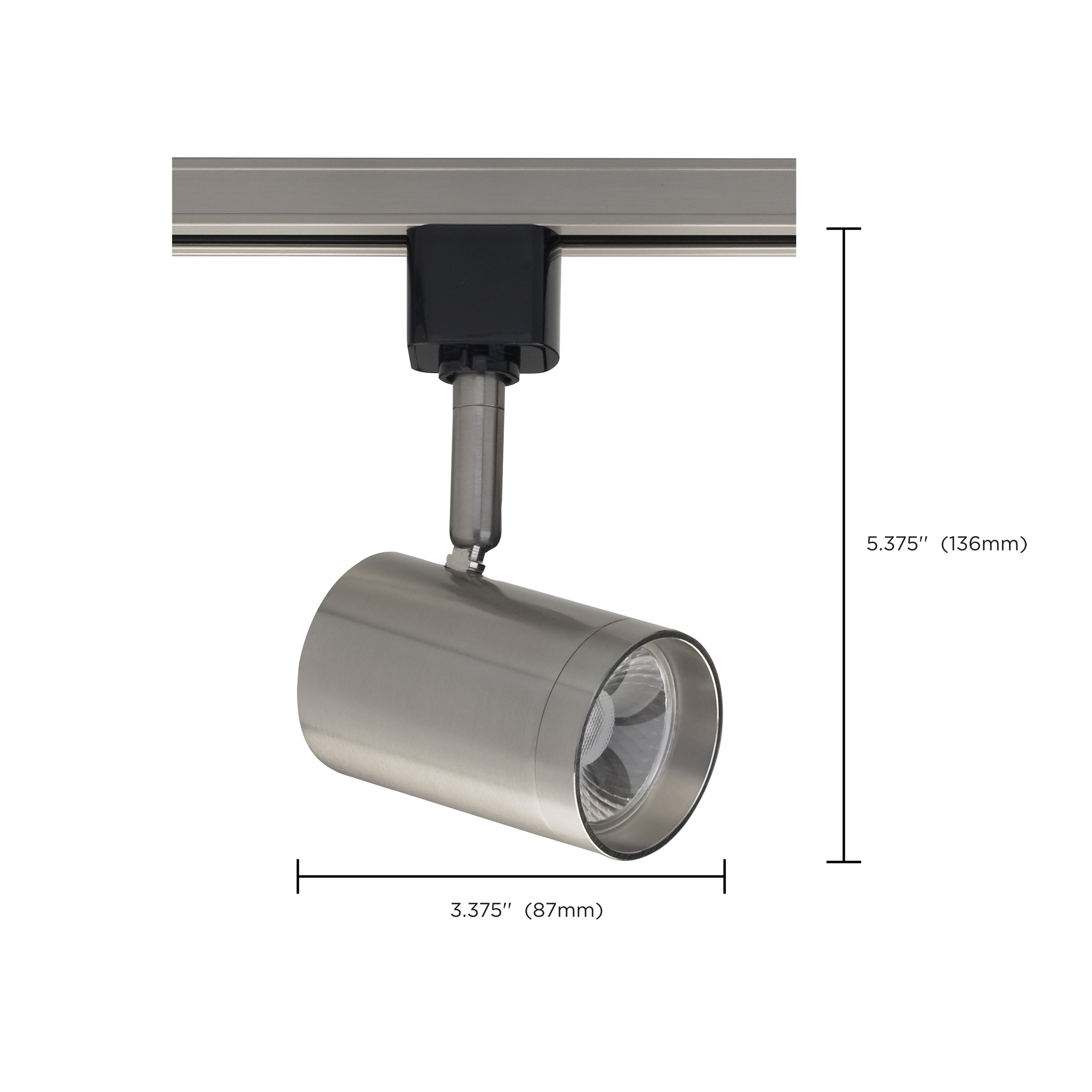

Extends (in)5.38
MaterialAluminum / Steel
Fixture TypeTrack Head
StatusActive
StyleContemporary
Track Head StyleCylinder
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNickel
Amps0.100A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated30000
Beam Angle (degree)24
Color TempWarm White
CRI90+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1020L
Volts120v
Watts12W
Physical
Lamp BaseIntegrated
FinishBrushed Nickel
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDry
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextCalifornia T24 Listed
UL ApplicationTrack
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923404757
Case Cube0.7109
Case Height7.28
Case Length14.88
Case Quantity12
Case UPC10045923404754
Case Weight8.52
Case Width11.34
EA Cube0.045
EA Height6.5
EA Length3.46
EA Quantity1
EA Weight0.66
EA Width3.46
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.25
Web Length3.375
Web Width2.25
