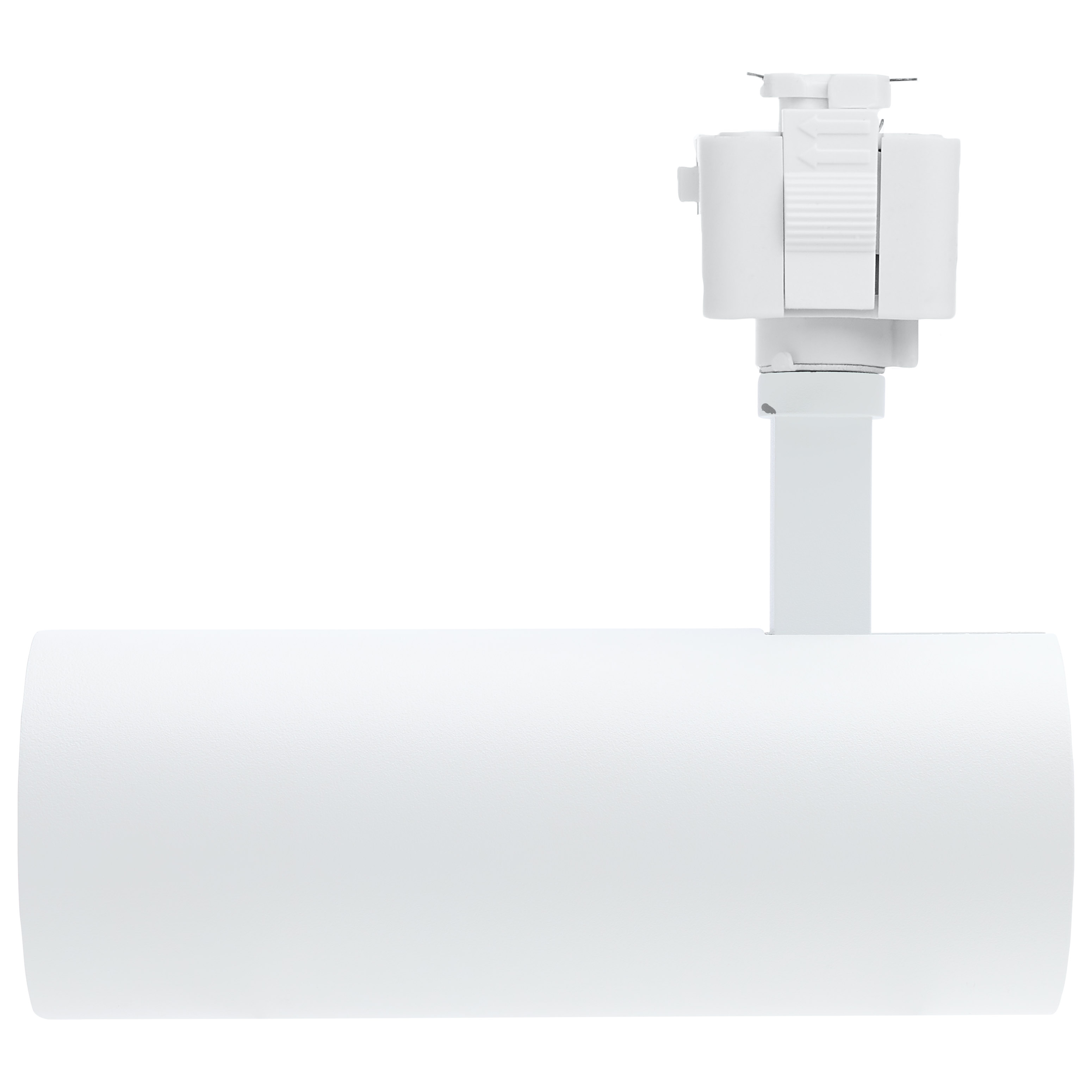

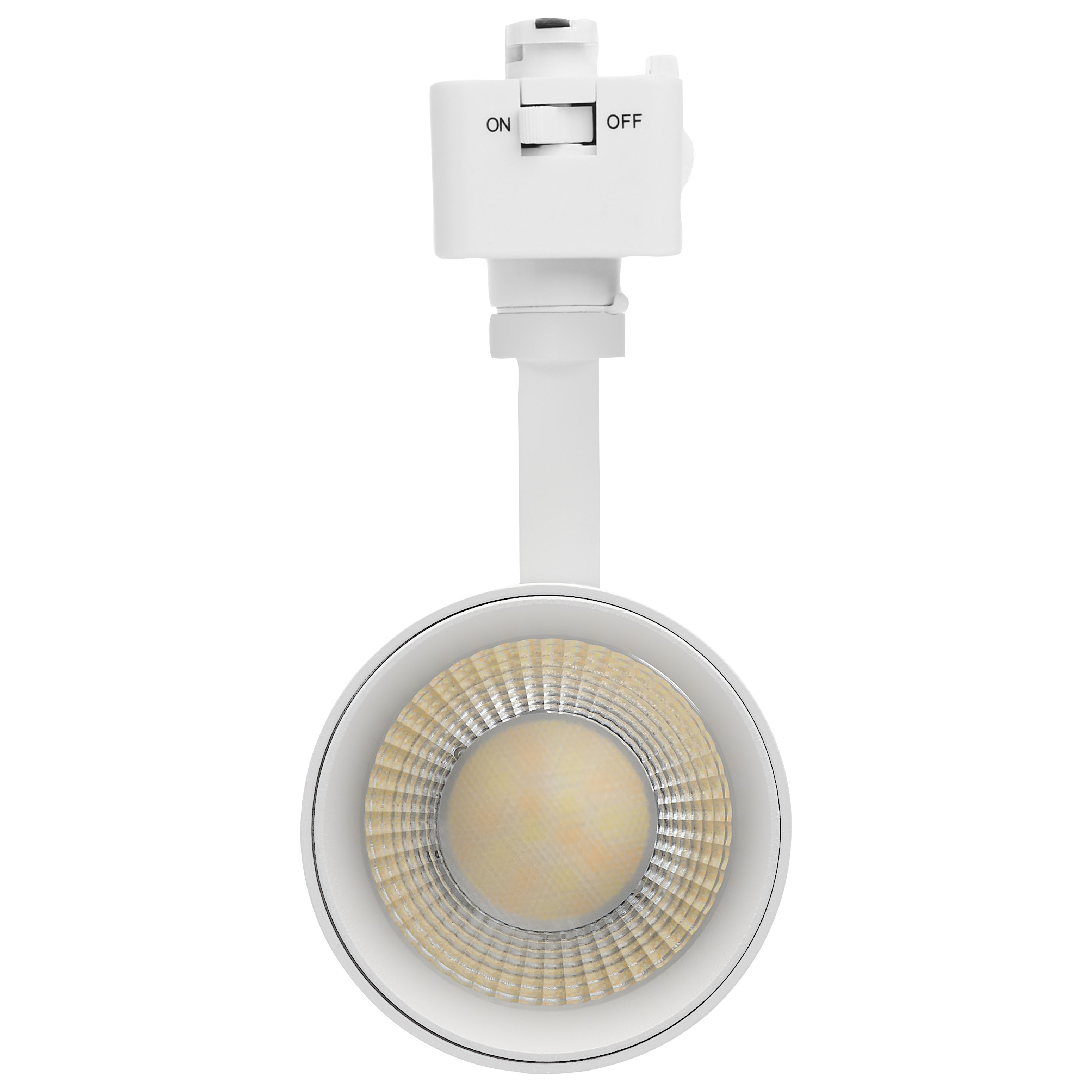

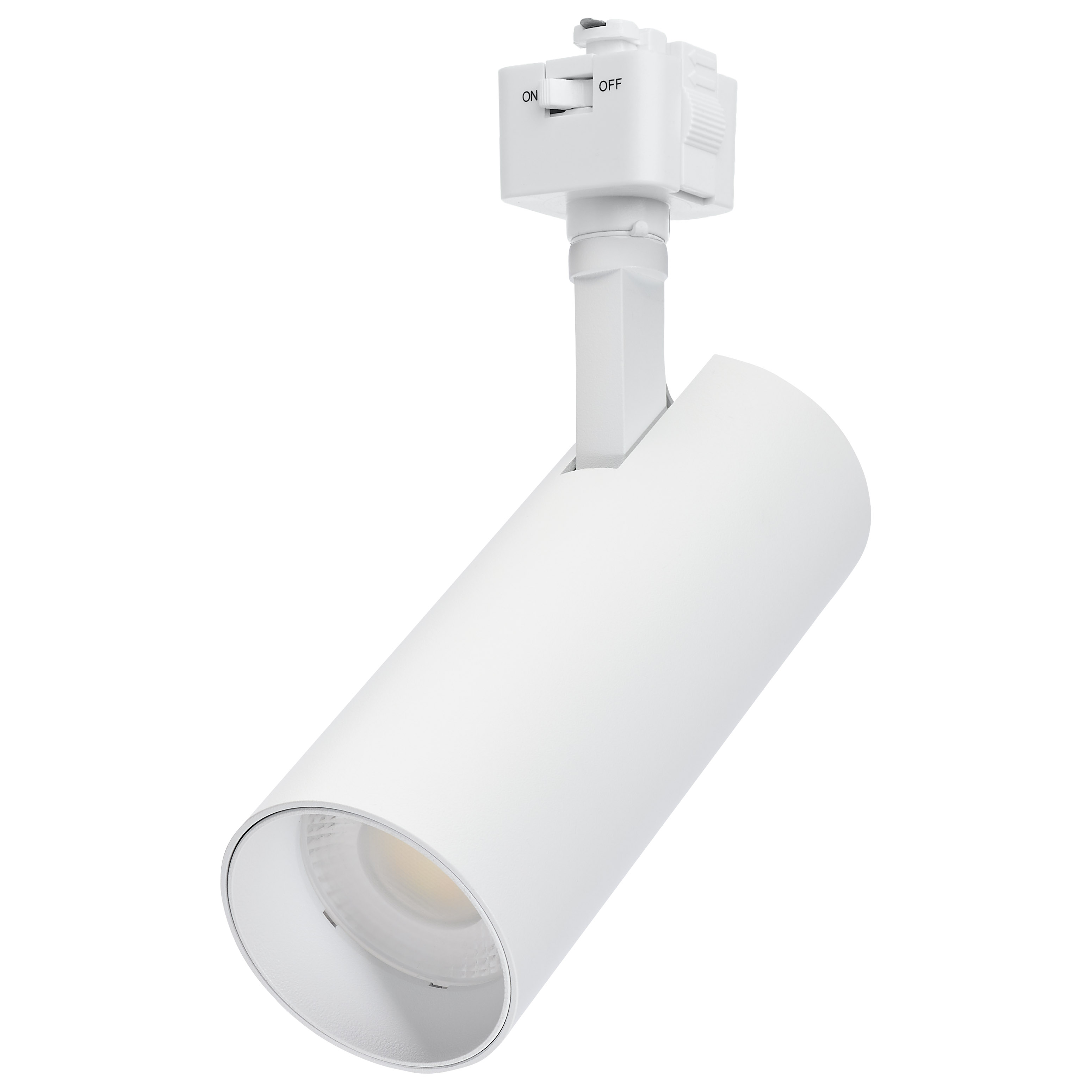

20W CCT LED TRK 36 WHT J-STYLE - TH5011
20W CCT LED TRK 36 WHT J-STYLE - TH5011
20W CCT LED TRK 36 WHT J-STYLE - TH5011
20W CCT LED TRK 36 WHT J-STYLE - TH5011
20W CCT LED TRK 36 WHT J-STYLE - TH5011
TH5011

20W CCT LED TRK 36 WHT J-STYLE

  • 20 Watt LED Track Head
  • 36 Degree Beam Spread
  • J-Style Track
  • 5 CCT Selectable
  • Matte White Finish
  • J-Style
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^30k^2
warranty^3_years^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
TH5011 SpecificationsTH5011 Instructions.pdf
Tools
Lighting Layout Analysis For TH5011
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

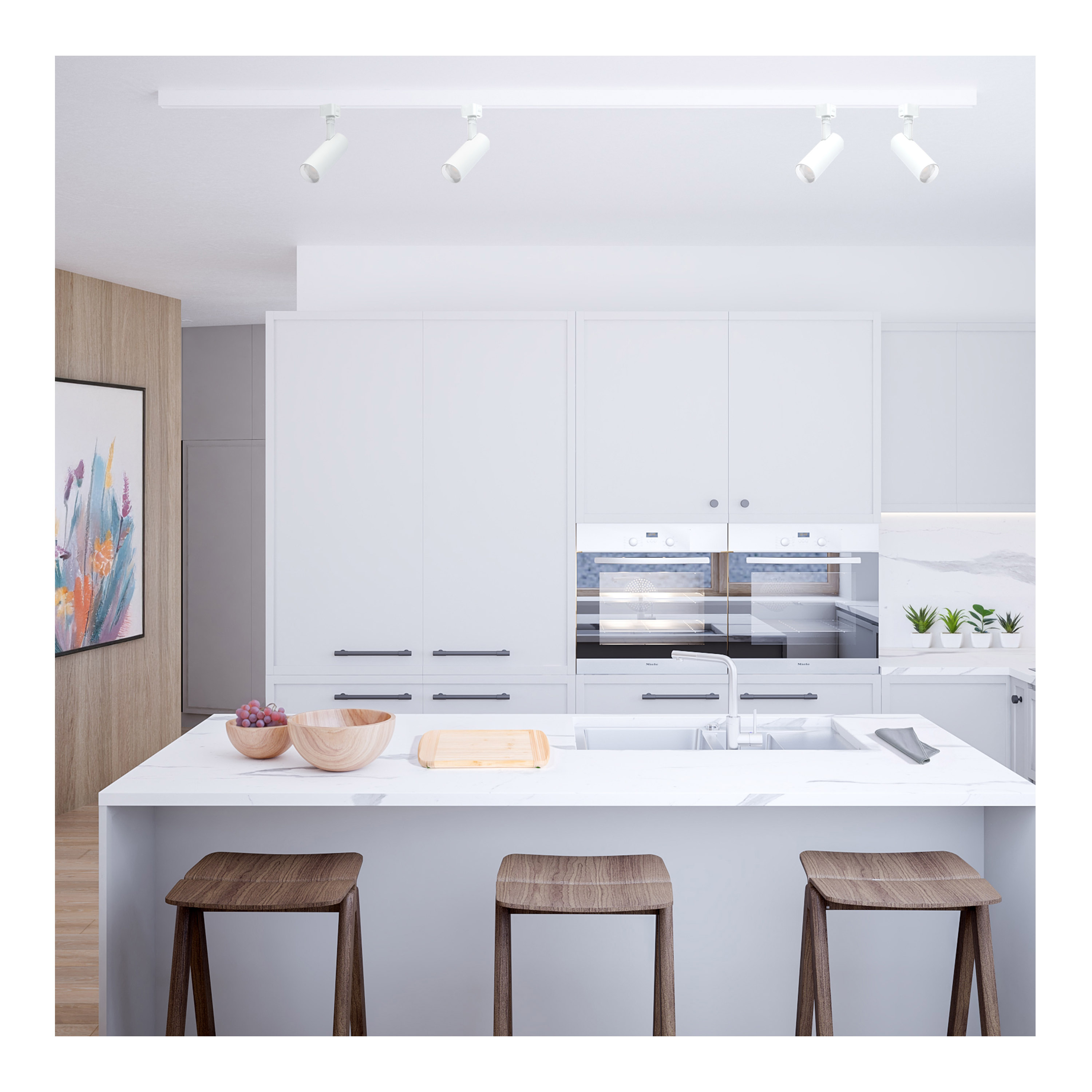

New to SATCO NUVO, the TH5011 LED CCT Selectable track head fixture is finished in matte white, operates at 20 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Circuit J-Style track systems, this fixture offers expanded versatility. J-Style track is widely used in residential and commercial settings for its simple, streamlined connector design. With five color temperature options selectable at installation and a high 90 CRI for true-to-life color rendering, the TH5011 delivers efficient, modern lighting with precise control.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Extends (in)8.63
MaterialAluminum / Steel
Fixture TypeTrack Head
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 2KV
Track Head StyleCylinder
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.180A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor>0.9
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated30000
Beam Angle (degree)36
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)

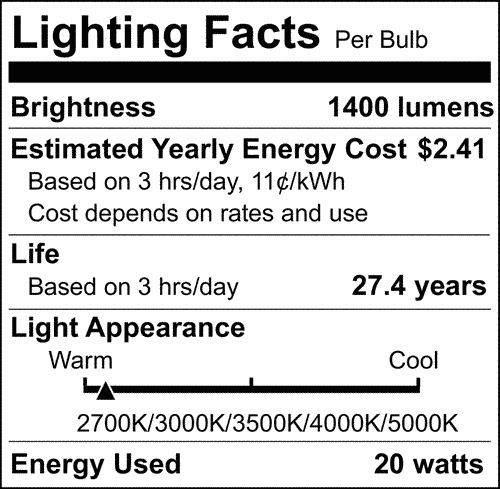

Lumens1400L
Volts120v
Watts20W
Physical
Lamp BaseIntegrated
FinishMatte White
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureTrack
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDry
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923408113
Case Cube0.6481
Case Height9.92
Case Length11.38
Case Quantity12
Case UPC10045923408110
Case Weight13.22
Case Width9.92
EA Cube0.0426
EA Height8.94
EA Length3.07
EA Quantity1
EA Weight1.1
EA Width2.68
Pack TypeBox

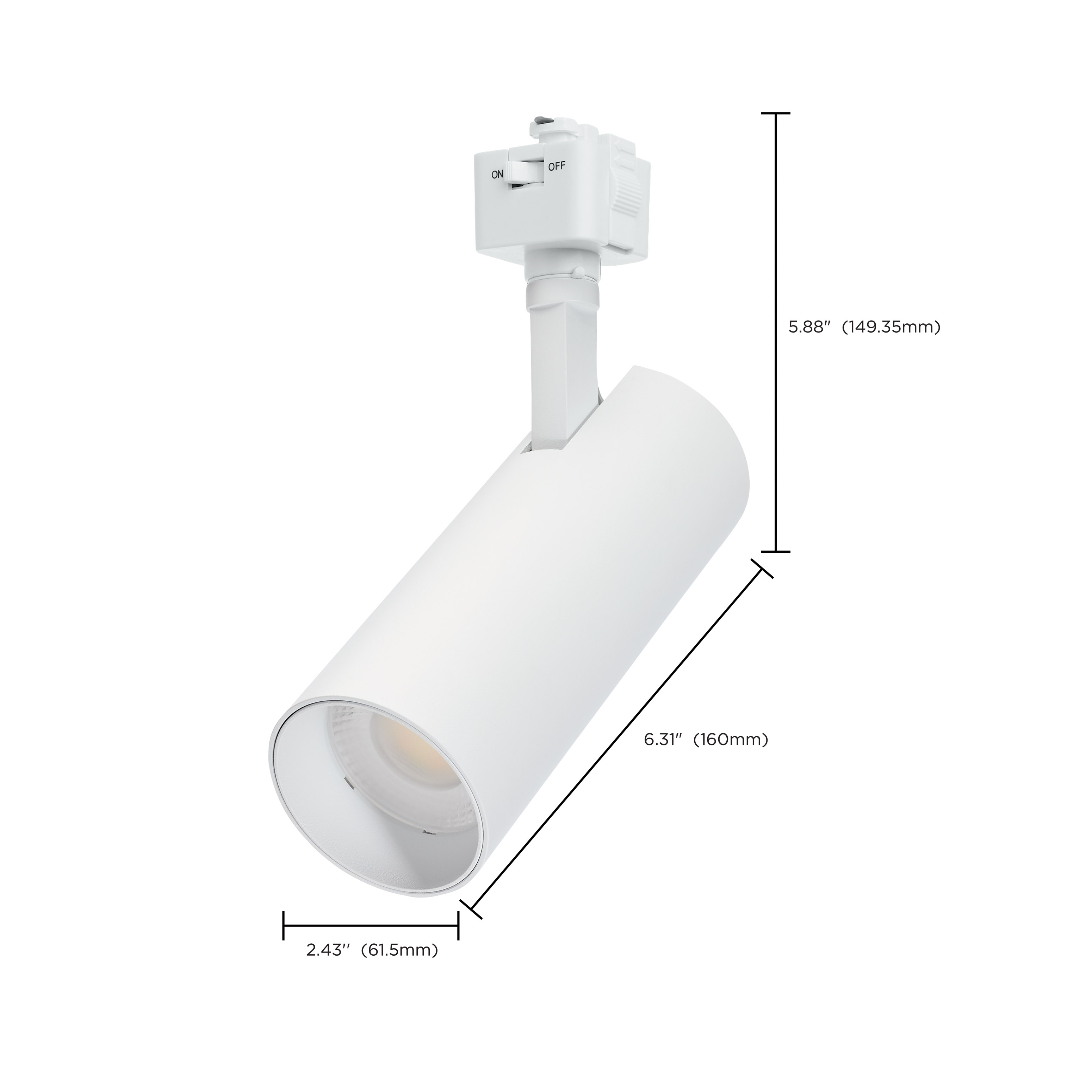

Web Height5.88
Web Length6.31
Web Width2.43
