Discontinued – Suggested Replacement: S28727

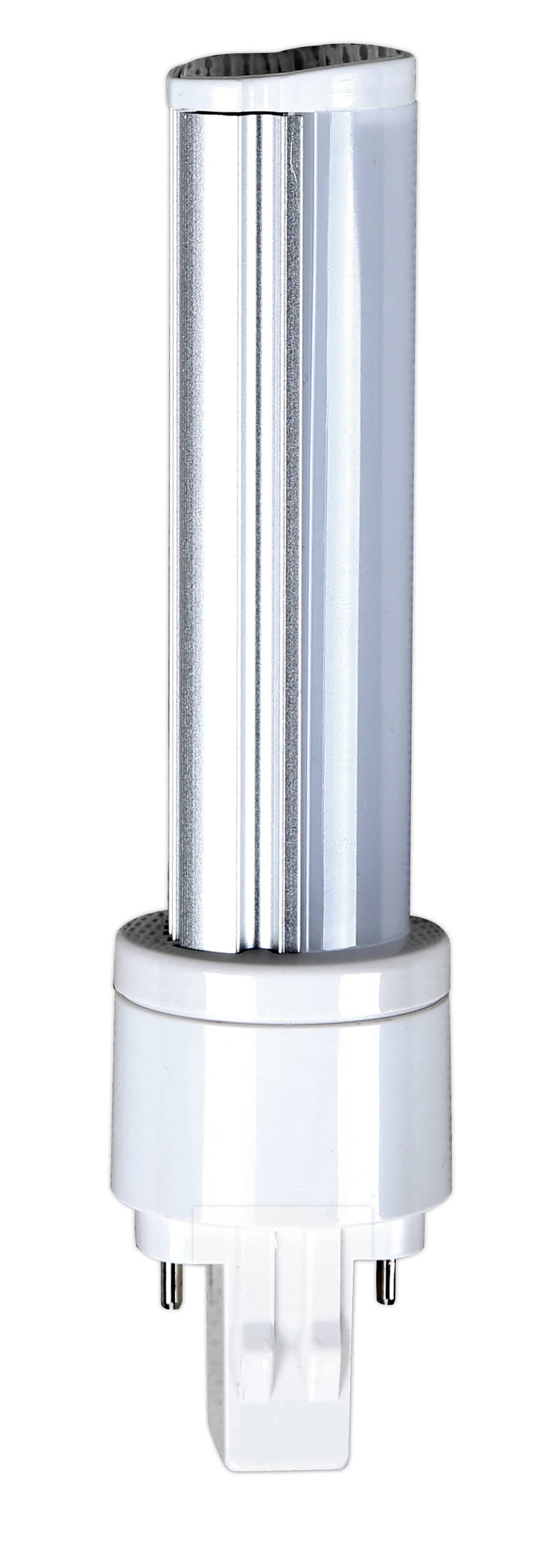

S8727 6W/H/LED/CFL/835/2P/BP/120-277

S8727

6W/H/LED/CFL/835/2P/BP/120-277

6 Watt LED PL 2-PIN; 3500K; 600 Lumens; GX23 base; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt; Type B; Ballast Bypass


Lights

S8727

6W/H/LED/CFL/835/2P/BP/120-277

6 Watt LED PL 2-PIN; 3500K; 600 Lumens; GX23 base; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt; Type B; Ballast Bypass

Specifications

General
StatusDiscontinued
SubstituteS28727
Watts6W
Fluorescent Equivalent13W
Volts120V-277V
Ballast TypeType B
ShapePL
BaseGX23
ANSI BaseGX23
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI80+
Lumens600L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionUniversal
TechnologyLED
Electrical
Watts6W
Fluorescent Equivalent13W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI80+
Lumens600L
Beam Spread120
DimmableNon-Dimmable
Power Factor0.98
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL5.81
MOD1.25
ShapePL
BaseGX23
ANSI BaseGX23
FinishFrost
Housing ColorWhite
Weight (lb.)0.16
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087271
Each Quantity1
Each Length (in.)6.38
Each Width (in.)1.65
Each Height (in.)1.65
Each Weight (lb.)0.21
Each Cube (CuFt.)0.0101
Pack TypeBox
Inner UPC20045923087275
Inner Quantity10
Inner Length (in.)9.10
Inner Width (in.)3.50
Inner Height (in.)7.10
Inner Weight (lb.)2.10
Inner Cube (CuFt.)0.1309
Case UPC10045923087278
Case Quantity50
Case Length (in.)18.90
Case Width (in.)9.60
Case Height (in.)8.30
Case Weight (lb.)11.40
Case Cube (CuFt.)0.8715
