S8940 80W/LED/HID/TEMP/5000K/120V

S8940

80W/LED/HID/TEMP/5000K/120V

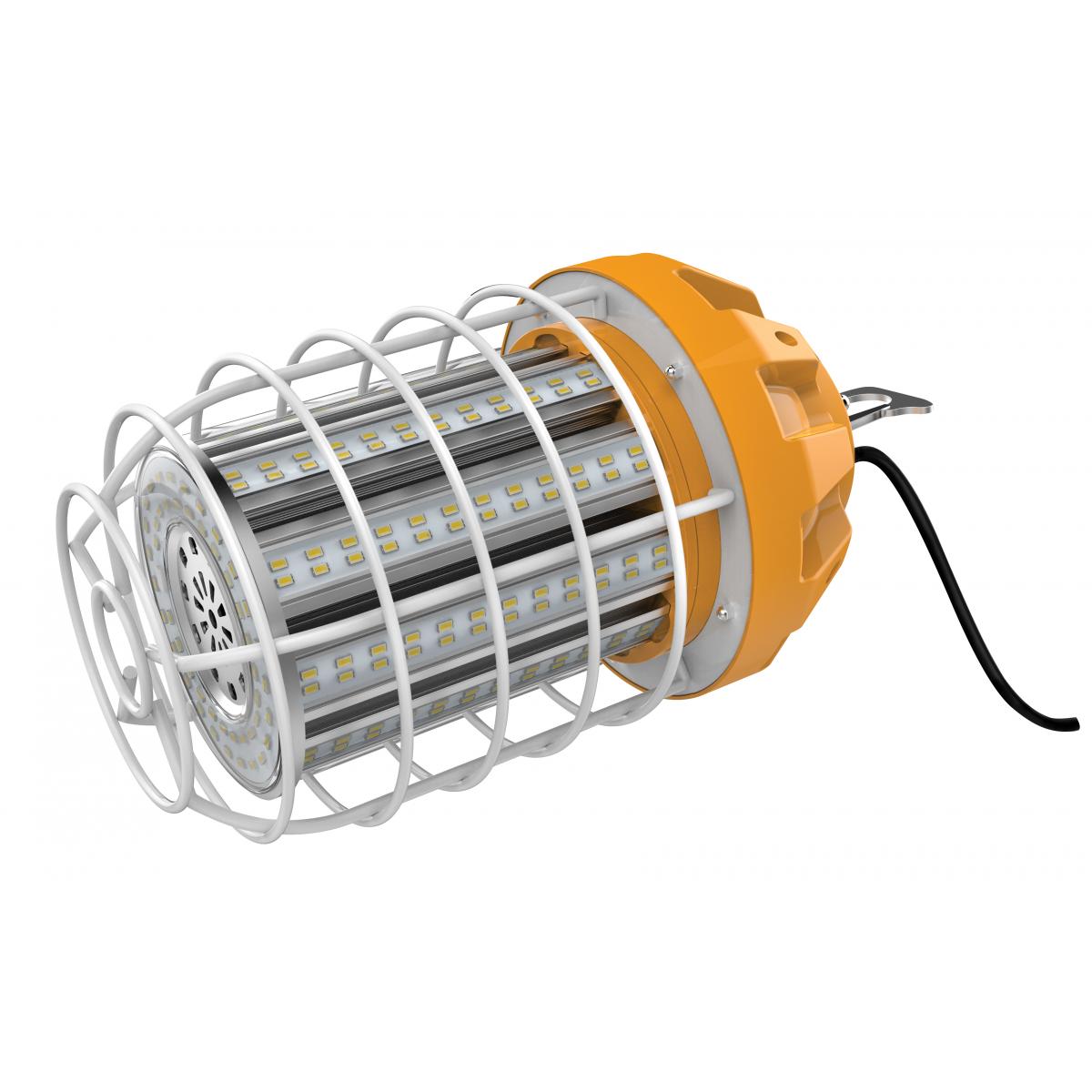

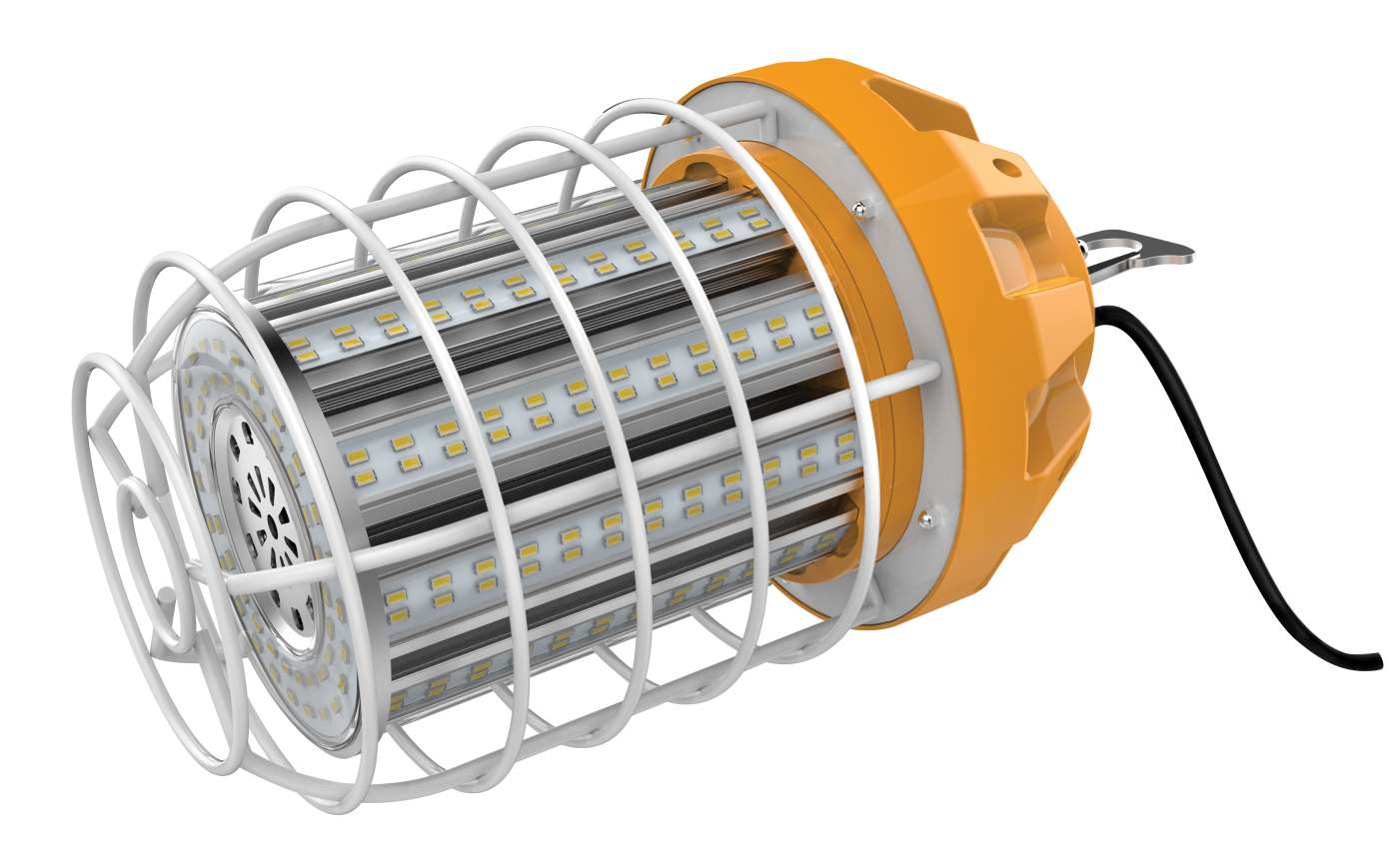

80 Watt LED Hi-lumen temporary hi-bay caged lamp; 5000K; Integrated cord / plug and hook; 120 Volt


Lights

S8940

80W/LED/HID/TEMP/5000K/120V

80 Watt LED Hi-lumen temporary hi-bay caged lamp; 5000K; Integrated cord / plug and hook; 120 Volt

Specifications

General
StatusDiscontinued
Watts80W
Incandescent Equivalent400W
HID Equivalent250W
Volts120V
ShapeCorncob
BasePlug 3-Prong
ANSI BaseNEMA 5-15
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI85

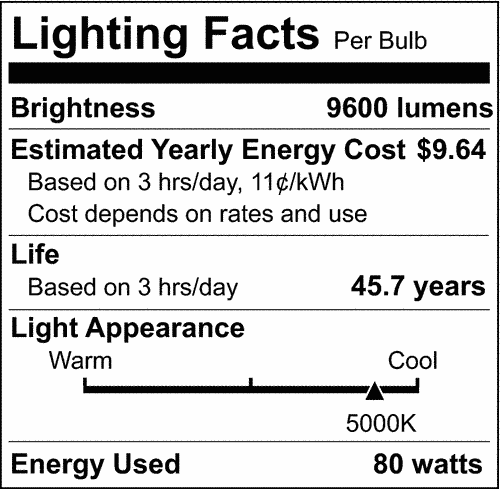

Lumens9600L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Electrical
Watts80W
Incandescent Equivalent400W
HID Equivalent250W
Volts120V
CCT (Kelvin)5000K
TemperatureNatural Light
CRI85
Lumens9600L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Operating PositionUniversal
Operating Temperature-29C (-20.2F) to +60C (+140F)
Physical
MOL13.44
MOD5.03
ShapeCorncob
BasePlug 3-Prong
ANSI BaseNEMA 5-15
FinishClear
Lens FinishClear
Housing ColorYellow/White
Additional Information
IncludesIntegrated 36in. power cord plug and hook
Integrated Features36in. power cord plug and hook
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923089404
Each Quantity1
Each Length (in.)15.01
Each Width (in.)8.35
Each Height (in.)8.55
Each Weight (lb.)7.38
Each Cube (CuFt.)0.6201
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923089401
Case Quantity4
Case Length (in.)17.18
Case Width (in.)15.56
Case Height (in.)17.73
Case Weight (lb.)32.10
Case Cube (CuFt.)2.7428
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
